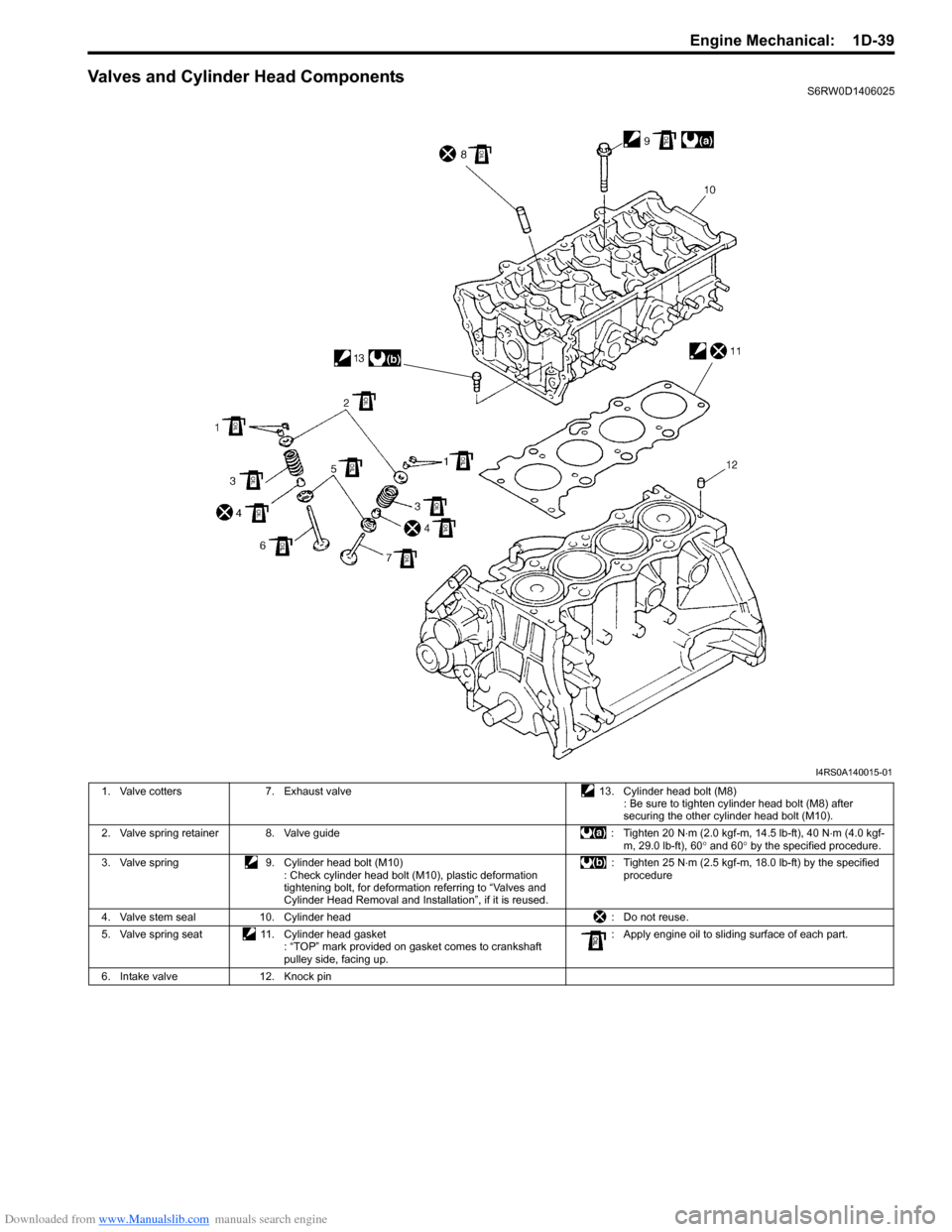

Valves and Cylinder Head ComponentsS6RW0D1406025
I4RS0A140015-01
1. Valve cotters 7. Exhaust valve 13. Cylinder head bolt (M8)
: Be sure to tighten cylinder head bolt (M8) after
securing the other cylinder head bolt (M10).
2. Valve spring retainer 8. Valve guide : Tighten 20 N⋅m (2.0 kgf-m, 14.5 lb-ft), 40 N⋅m (4.0 kgf-
m, 29.0 lb-ft), 60° and 60° by the specified procedure.
3. Valve spring 9. Cylinder head bolt (M10)
: Check cylinder head bolt (M10), plastic deformation
tightening bolt, for deformation referring to “Valves and
Cylinder Head Removal and Installation”, if it is reused.: Tighten 25 N⋅m (2.5 kgf-m, 18.0 lb-ft) by the specified
procedure
4. Valve stem seal 10. Cylinder head : Do not reuse.
5. Valve spring seat 11. Cylinder head gasket
: “TOP” mark provided on gasket comes to crankshaft
pulley side, facing up.: Apply engine oil to sliding surface of each part.
6. Intake valve 12. Knock pin

Downloaded from www.Manualslib.com manuals search engine 1D-40 Engine Mechanical:
Valves and Cylinder Head Removal and
Installation
S6RW0D1406026

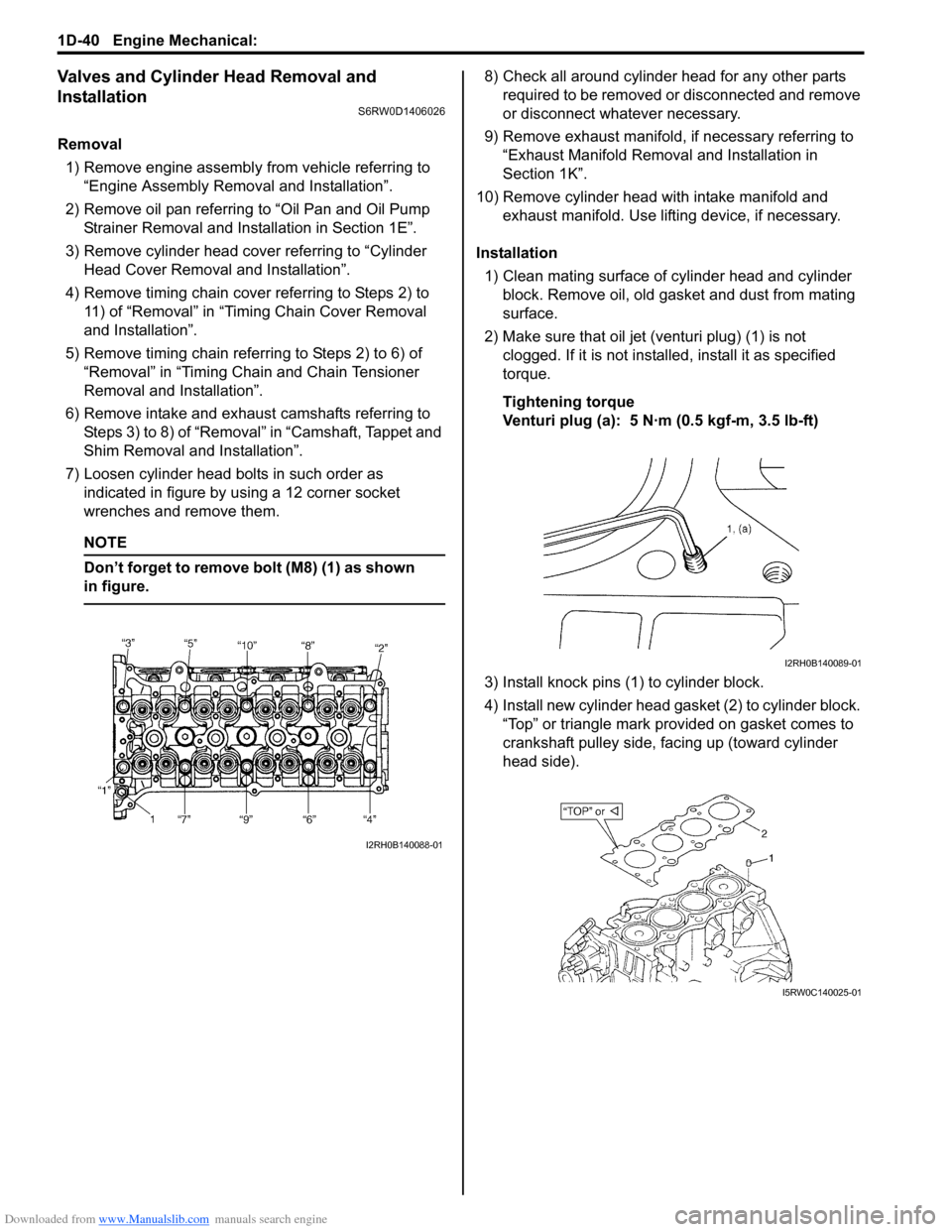

Removal
1) Remove engine assembly from vehicle referring to
“Engine Assembly Removal and Installation”.
2) Remove oil pan referring to “Oil Pan and Oil Pump
Strainer Removal and Installation in Section 1E”.
3) Remove cylinder head cover referring to “Cylinder
Head Cover Removal and Installation”.
4) Remove timing chain cover referring to Steps 2) to
11) of “Removal” in “Timing Chain Cover Removal
and Installation”.
5) Remove timing chain referring to Steps 2) to 6) of
“Removal” in “Timing Chain and Chain Tensioner
Removal and Installation”.
6) Remove intake and exhaust camshafts referring to
Steps 3) to 8) of “Removal” in “Camshaft, Tappet and
Shim Removal and Installation”.
7) Loosen cylinder head bolts in such order as
indicated in figure by using a 12 corner socket
wrenches and remove them.
NOTE
Don’t forget to remove bolt (M8) (1) as shown
in figure.

8) Check all around cylinder head for any other parts
required to be removed or disconnected and remove
or disconnect whatever necessary.
9) Remove exhaust manifold, if necessary referring to
“Exhaust Manifold Removal and Installation in
Section 1K”.
10) Remove cylinder head with intake manifold and
exhaust manifold. Use lifting device, if necessary.
Installation
1) Clean mating surface of cylinder head and cylinder
block. Remove oil, old gasket and dust from mating
surface.
2) Make sure that oil jet (venturi plug) (1) is not
clogged. If it is not installed, install it as specified
torque.
Tightening torque
Venturi plug (a): 5 N·m (0.5 kgf-m, 3.5 lb-ft)
3) Install knock pins (1) to cylinder block.
4) Install new cylinder head gasket (2) to cylinder block.
“Top” or triangle mark provided on gasket comes to
crankshaft pulley side, facing up (toward cylinder
head side).
I2RH0B140088-01
I2RH0B140089-01
I5RW0C140025-01

Downloaded from www.Manualslib.com manuals search engine Engine Mechanical: 1D-41

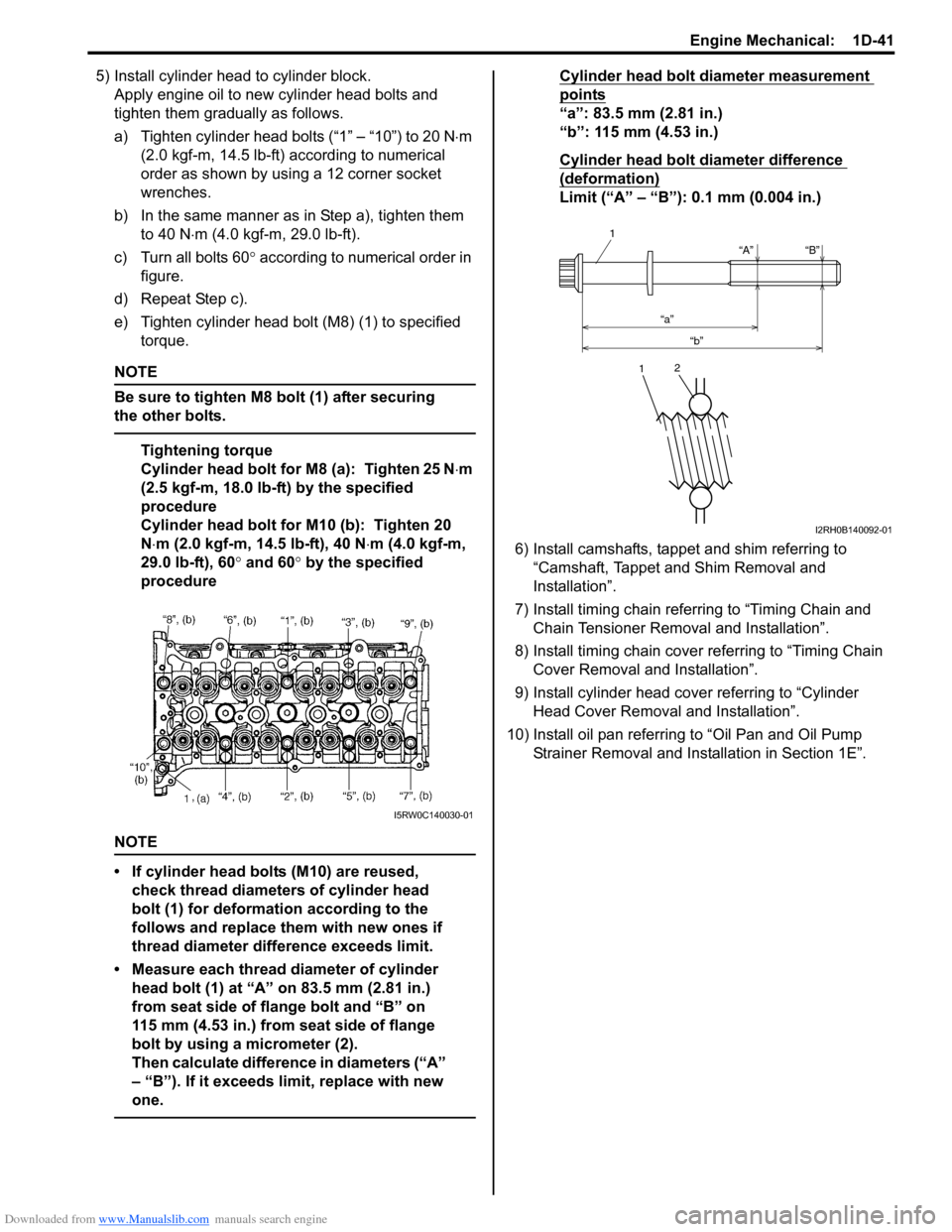

5) Install cylinder head to cylinder block.
Apply engine oil to new cylinder head bolts and
tighten them gradually as follows.
a) Tighten cylinder head bolts (“1” – “10”) to 20 N⋅m
(2.0 kgf-m, 14.5 lb-ft) according to numerical
order as shown by using a 12 corner socket
wrenches.
b) In the same manner as in Step a), tighten them
to 40 N⋅m (4.0 kgf-m, 29.0 lb-ft).
c) Turn all bolts 60° according to numerical order in
figure.
d) Repeat Step c).
e) Tighten cylinder head bolt (M8) (1) to specified
torque.
NOTE
Be sure to tighten M8 bolt (1) after securing
the other bolts.

Tightening torque
Cylinder head bolt for M8 (a): Tighten 25 N⋅m
(2.5 kgf-m, 18.0 lb-ft) by the specified
procedure
Cylinder head bolt for M10 (b): Tighten 20
N⋅m (2.0 kgf-m, 14.5 lb-ft), 40 N⋅m (4.0 kgf-m,
29.0 lb-ft), 60° and 60° by the specified
procedure
NOTE
• If cylinder head bolts (M10) are reused,
check thread diameters of cylinder head
bolt (1) for deformation according to the
follows and replace them with new ones if
thread diameter difference exceeds limit.
• Measure each thread diameter of cylinder
head bolt (1) at “A” on 83.5 mm (2.81 in.)
from seat side of flange bolt and “B” on
115 mm (4.53 in.) from seat side of flange
bolt by using a micrometer (2).
Then calculate difference in diameters (“A”
– “B”). If it exceeds limit, replace with new
one.

Cylinder head bolt diameter measurement
points
“a”: 83.5 mm (2.81 in.)
“b”: 115 mm (4.53 in.)
Cylinder head bolt diameter difference
(deformation)
Limit (“A” – “B”): 0.1 mm (0.004 in.)
6) Install camshafts, tappet and shim referring to
“Camshaft, Tappet and Shim Removal and
Installation”.
7) Install timing chain referring to “Timing Chain and
Chain Tensioner Removal and Installation”.
8) Install timing chain cover referring to “Timing Chain
Cover Removal and Installation”.
9) Install cylinder head cover referring to “Cylinder
Head Cover Removal and Installation”.
10) Install oil pan referring to “Oil Pan and Oil Pump
Strainer Removal and Installation in Section 1E”.
I5RW0C140030-01

“A”
“a”
“b”“B”

1
12
I2RH0B140092-01

Downloaded from www.Manualslib.com manuals search engine 1D-42 Engine Mechanical:
Valves and Cylinder Head Disassembly and
Assembly
S6RW0D1406027
Disassembly

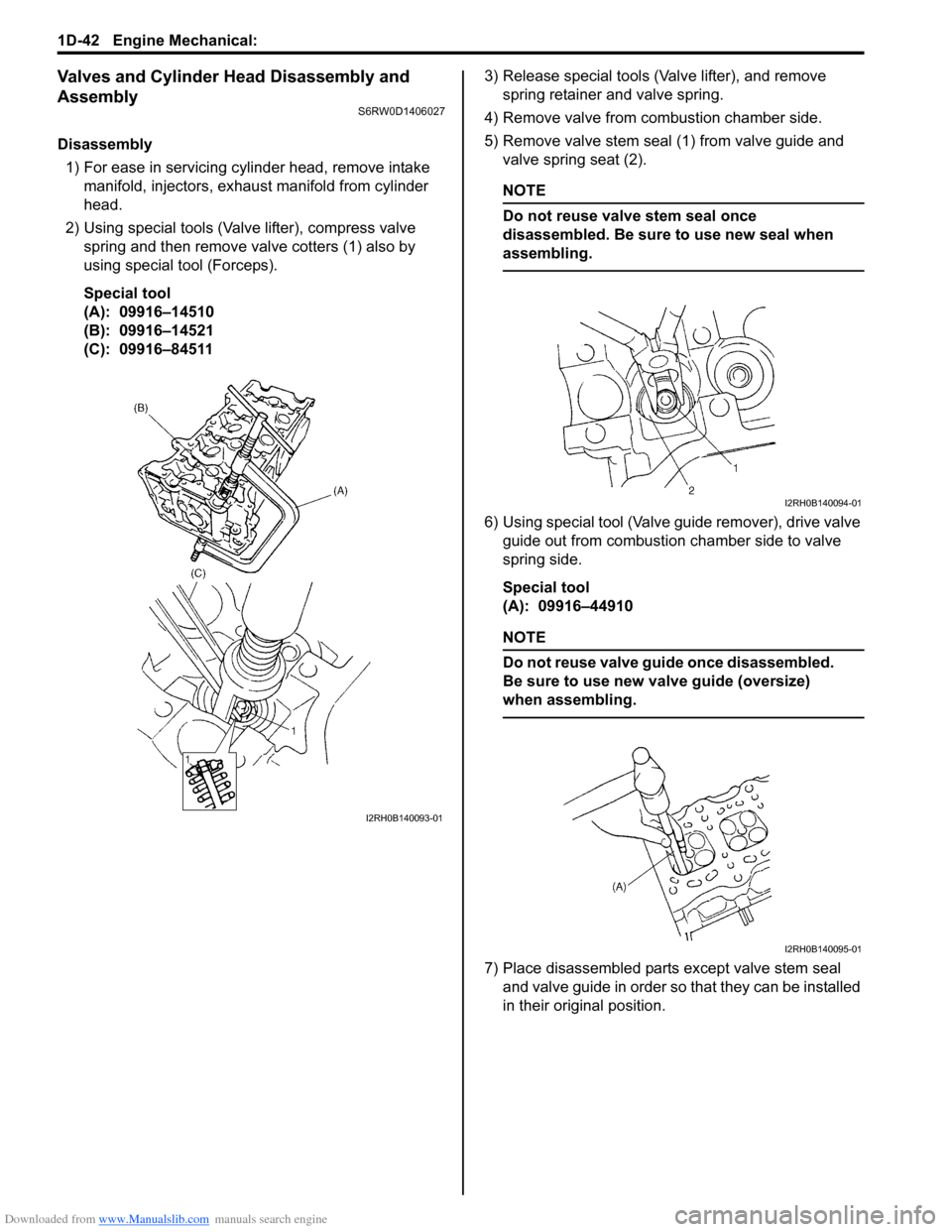

1) For ease in servicing cylinder head, remove intake
manifold, injectors, exhaust manifold from cylinder
head.
2) Using special tools (Valve lifter), compress valve
spring and then remove valve cotters (1) also by
using special tool (Forceps).
Special tool
(A): 09916–14510
(B): 09916–14521
(C): 09916–845113) Release special tools (Valve lifter), and remove
spring retainer and valve spring.
4) Remove valve from combustion chamber side.
5) Remove valve stem seal (1) from valve guide and
valve spring seat (2).
NOTE
Do not reuse valve stem seal once
disassembled. Be sure to use new seal when
assembling.

6) Using special tool (Valve guide remover), drive valve
guide out from combustion chamber side to valve
spring side.
Special tool
(A): 09916–44910
NOTE
Do not reuse valve guide once disassembled.
Be sure to use new valve guide (oversize)
when assembling.

7) Place disassembled parts except valve stem seal
and valve guide in order so that they can be installed
in their original position.
I2RH0B140093-01
I2RH0B140094-01
I2RH0B140095-01

Downloaded from www.Manualslib.com manuals search engine Engine Mechanical: 1D-43
Assembly

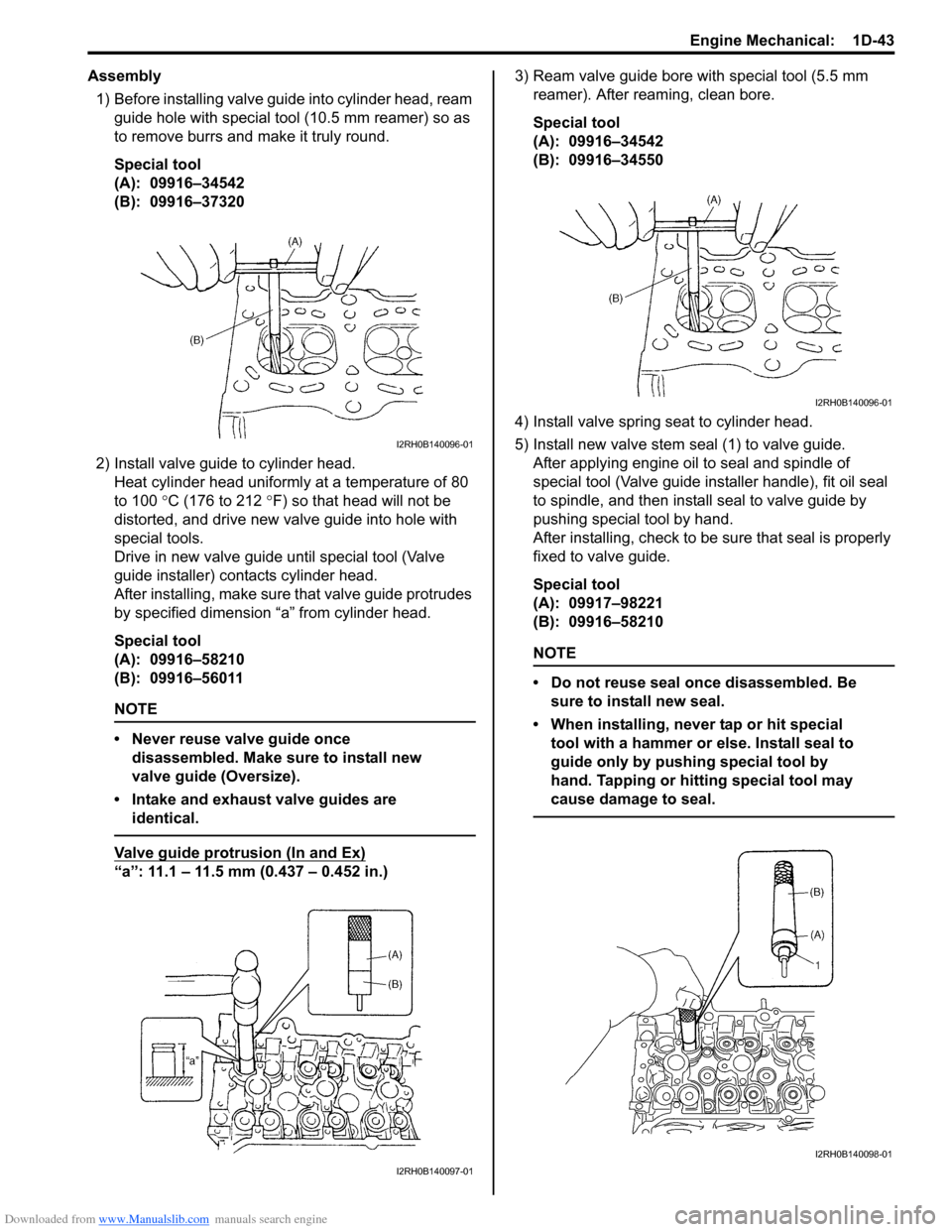

1) Before installing valve guide into cylinder head, ream
guide hole with special tool (10.5 mm reamer) so as
to remove burrs and make it truly round.
Special tool
(A): 09916–34542
(B): 09916–37320
2) Install valve guide to cylinder head.
Heat cylinder head uniformly at a temperature of 80
to 100 °C (176 to 212 °F) so that head will not be
distorted, and drive new valve guide into hole with
special tools.
Drive in new valve guide until special tool (Valve
guide installer) contacts cylinder head.
After installing, make sure that valve guide protrudes
by specified dimension “a” from cylinder head.
Special tool
(A): 09916–58210
(B): 09916–56011
NOTE
• Never reuse valve guide once
disassembled. Make sure to install new
valve guide (Oversize).
• Intake and exhaust valve guides are
identical.

Valve guide protrusion (In and Ex)
“a”: 11.1 – 11.5 mm (0.437 – 0.452 in.)3) Ream valve guide bore with special tool (5.5 mm
reamer). After reaming, clean bore.
Special tool
(A): 09916–34542
(B): 09916–34550
4) Install valve spring seat to cylinder head.
5) Install new valve stem seal (1) to valve guide.
After applying engine oil to seal and spindle of
special tool (Valve guide installer handle), fit oil seal
to spindle, and then install seal to valve guide by
pushing special tool by hand.
After installing, check to be sure that seal is properly
fixed to valve guide.
Special tool
(A): 09917–98221
(B): 09916–58210
NOTE
• Do not reuse seal once disassembled. Be
sure to install new seal.
• When installing, never tap or hit special
tool with a hammer or else. Install seal to
guide only by pushing special tool by
hand. Tapping or hitting special tool may
cause damage to seal.

I2RH0B140096-01
I2RH0B140097-01
I2RH0B140096-01
I2RH0B140098-01

Downloaded from www.Manualslib.com manuals search engine 1D-44 Engine Mechanical:
6) Install valve to valve guide.
Before installing valve to valve guide, apply engine
oil to stem seal, valve guide bore and valve stem.
7) Install valve spring and spring retainer.
Each valve spring has top end (large-pitch end (1))
and bottom end (small-pitch end (2)). Be sure to
position spring in place with its bottom end (small-
pitch end) facing the bottom (valve spring seat side).8) Using special tools (Valve lifter), compress valve
spring and fit two valve cotters (1) into groove in
valve stem.
NOTE
When compressing the valve spring, be
carefully to free from damage in inside face
of tappet installing hole.

Special tool
(A): 09916–14510
(B): 09916–14521
(C): 09916–84511
9) Install intake manifold referring to “Intake Manifold
Removal and Installation”.
10) Install fuel injectors referring to “Fuel Injector
Removal and Installation in Section 1G”.
11) Install exhaust manifold referring to “Exhaust
Manifold Removal and Installation in Section 1K”.
A: Valve spring retainer side B: Valve spring seat side
I2RH0B140099-01
I2RH0B140100-01
I2RH0B140101-01

Downloaded from www.Manualslib.com manuals search engine Engine Mechanical: 1D-45

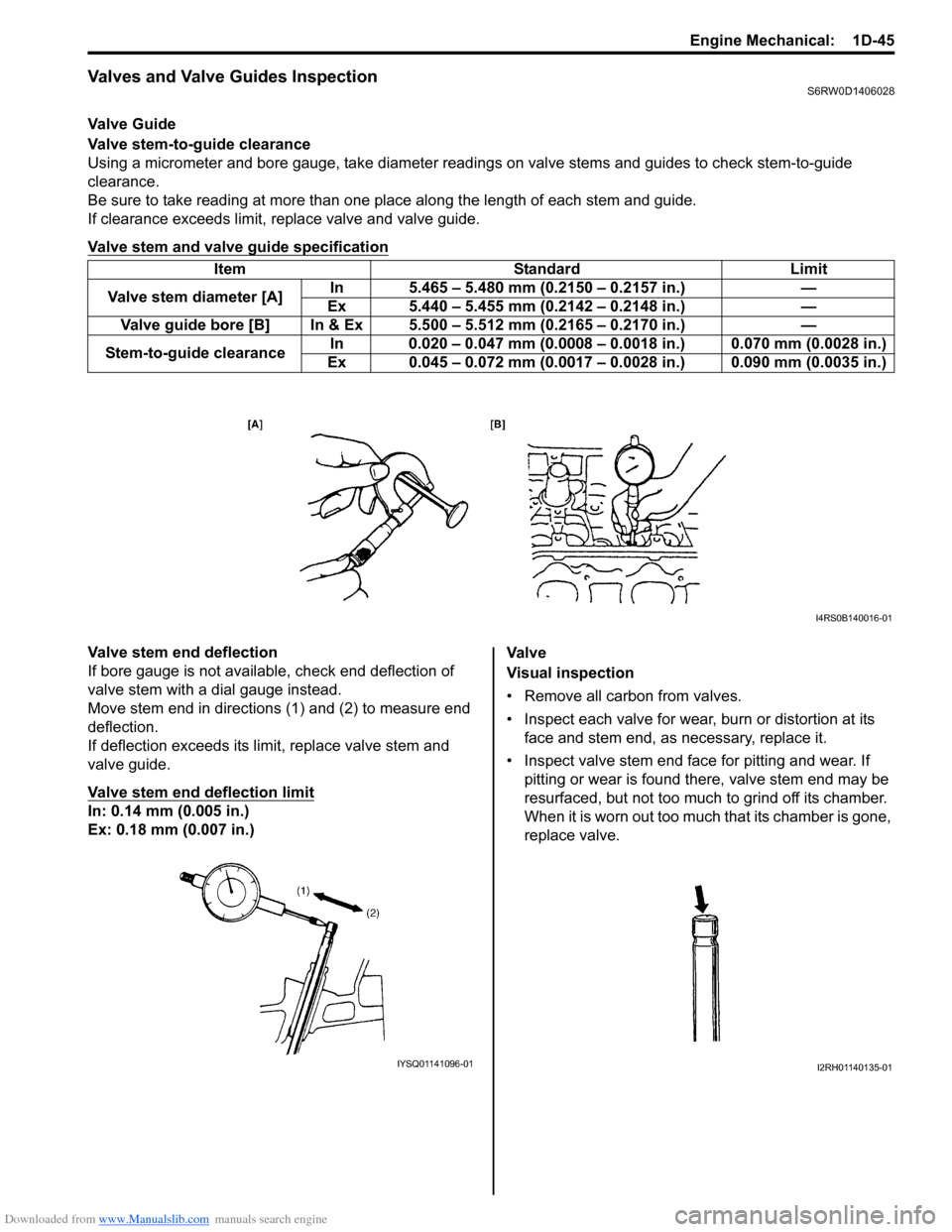

Valves and Valve Guides InspectionS6RW0D1406028
Valve Guide
Valve stem-to-guide clearance
Using a micrometer and bore gauge, take diameter readings on valve stems and guides to check stem-to-guide
clearance.
Be sure to take reading at more than one place along the length of each stem and guide.
If clearance exceeds limit, replace valve and valve guide.
Valve stem and valve guide specification
Valve stem end deflection
If bore gauge is not available, check end deflection of
valve stem with a dial gauge instead.
Move stem end in directions (1) and (2) to measure end
deflection.
If deflection exceeds its limit, replace valve stem and
valve guide.
Valve stem end deflection limit
In: 0.14 mm (0.005 in.)
Ex: 0.18 mm (0.007 in.)Va l v e
Visual inspection
• Remove all carbon from valves.
• Inspect each valve for wear, burn or distortion at its
face and stem end, as necessary, replace it.
• Inspect valve stem end face for pitting and wear. If
pitting or wear is found there, valve stem end may be
resurfaced, but not too much to grind off its chamber.
When it is worn out too much that its chamber is gone,
replace valve. Item Standard Limit
Valve stem diameter [A]In 5.465 – 5.480 mm (0.2150 – 0.2157 in.) —
Ex 5.440 – 5.455 mm (0.2142 – 0.2148 in.) —
Valve guide bore [B] In & Ex 5.500 – 5.512 mm (0.2165 – 0.2170 in.) —
Stem-to-guide clearanceIn 0.020 – 0.047 mm (0.0008 – 0.0018 in.) 0.070 mm (0.0028 in.)
Ex 0.045 – 0.072 mm (0.0017 – 0.0028 in.) 0.090 mm (0.0035 in.)
I4RS0B140016-01
IYSQ01141096-01I2RH01140135-01

Downloaded from www.Manualslib.com manuals search engine 1D-46 Engine Mechanical:
Valve head radial runout
Check each valve for radial runout with a dial gauge and
“V” block. To check runout, rotate valve slowly. If runout
exceeds its limit, replace valve.
Valve head radial runout
Limit: 0.08 mm (0.003 in.)
Seating contact width
Create contact pattern on each valve in the usual
manner, i.e., by giving uniform coat of marking
compound to valve seat and by rotatingly tapping seat
with valve head. Valve lapper (tool used in valve lapping)
must be used.
Pattern produced on seating face of valve must be a
continuous ring without any break, and the width of
pattern must be within specified range.
Standard seating width “a” revealed by contact
pattern on valve face
Intake and Exhaust: 1.0 – 1.4 mm (0.0389 – 0.0551
in.)Valve seat repair
A valve seat not producing a uniform contact with its
valve or showing width of seating contact that is out of
specified range must be repaired by regrinding or by
cutting and regrinding and finished by lapping.
1)Exhaust valve seat:
Use valve seat cutters (1) to make two cuts as
illustrated in figure. Two cutters must be used: the
first for making 22° angle, and the second for making
45° angle. The second cut must be made to produce
desired seat width.
Seat width for exhaust valve seat
“a”: 1.0 – 1.4 mm (0.0389 – 0.0551 in.)
2)Intake valve seat:
Use valve seat cutters (1) to make three cuts as
illustrated in figure. Three cutters must be used: the
1st for making 22° angle, the 2nd for making 60°
angle, and 3rd for making 45° angle. The 3rd cut
(45°) must be made to produce desired seat width.
Seat width for intake valve seat
“b”: 1.0 – 1.4 mm (0.0389 – 0.0551 in.)
3)Valve lapping:
Lap valve on seat in two steps, first with coarse size
lapping compound applied to face and the second
with fine-size compound, each time using valve
lapper according to usual lapping method.
I2RH01140136-01
I2RH0B140103-01
I5RW0A140024-01

Downloaded from www.Manualslib.com manuals search engine Engine Mechanical: 1D-47

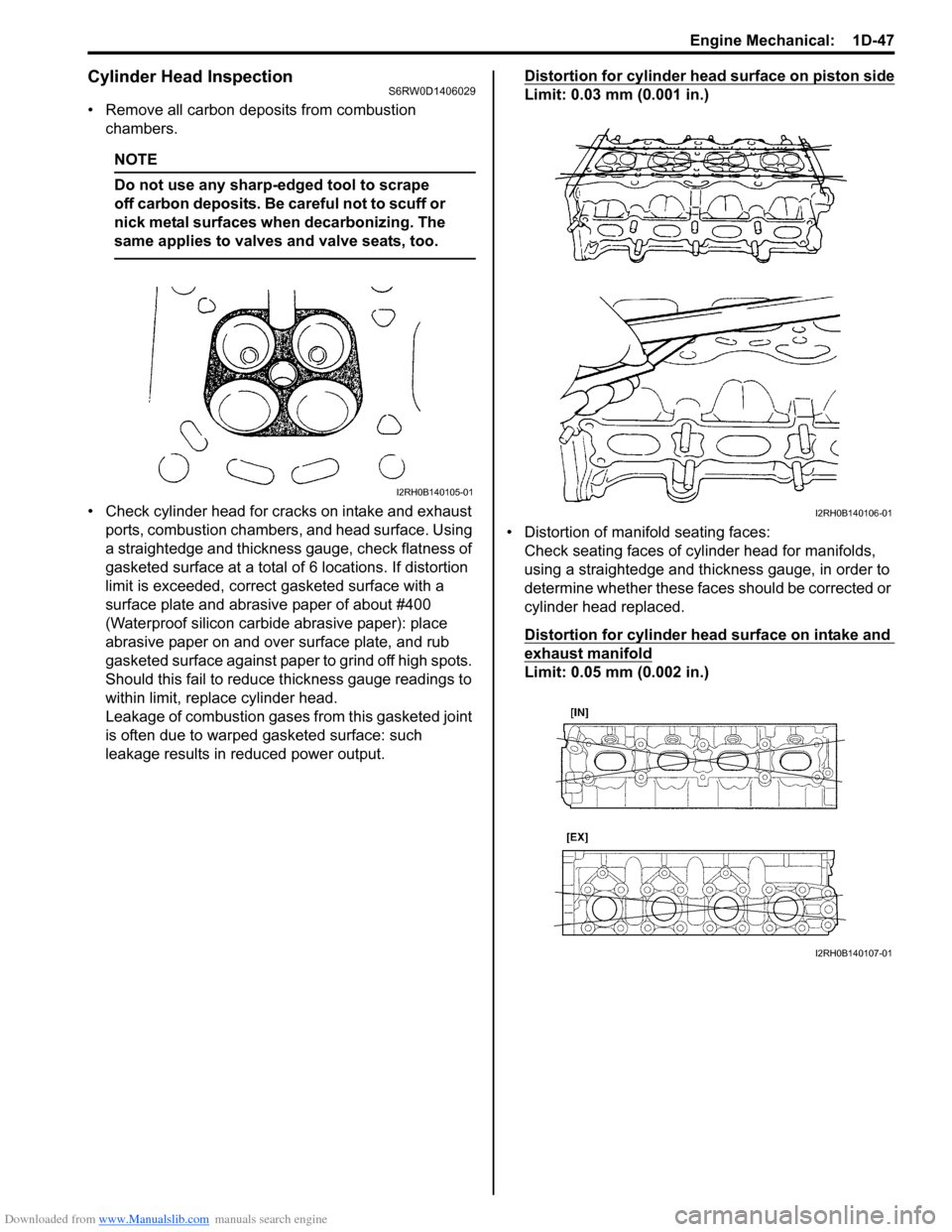

Cylinder Head InspectionS6RW0D1406029
• Remove all carbon deposits from combustion
chambers.
NOTE
Do not use any sharp-edged tool to scrape
off carbon deposits. Be careful not to scuff or
nick metal surfaces when decarbonizing. The
same applies to valves and valve seats, too.

• Check cylinder head for cracks on intake and exhaust
ports, combustion chambers, and head surface. Using
a straightedge and thickness gauge, check flatness of
gasketed surface at a total of 6 locations. If distortion
limit is exceeded, correct gasketed surface with a
surface plate and abrasive paper of about #400
(Waterproof silicon carbide abrasive paper): place
abrasive paper on and over surface plate, and rub
gasketed surface against paper to grind off high spots.
Should this fail to reduce thickness gauge readings to
within limit, replace cylinder head.
Leakage of combustion gases from this gasketed joint
is often due to warped gasketed surface: such
leakage results in reduced power output.Distortion for cylinder head surface on piston side
Limit: 0.03 mm (0.001 in.)
• Distortion of manifold seating faces:
Check seating faces of cylinder head for manifolds,
using a straightedge and thickness gauge, in order to
determine whether these faces should be corrected or
cylinder head replaced.
Distortion for cylinder head surface on intake and
exhaust manifold
Limit: 0.05 mm (0.002 in.)
I2RH0B140105-01
I2RH0B140106-01
I2RH0B140107-01

Downloaded from www.Manualslib.com manuals search engine 1D-48 Engine Mechanical:

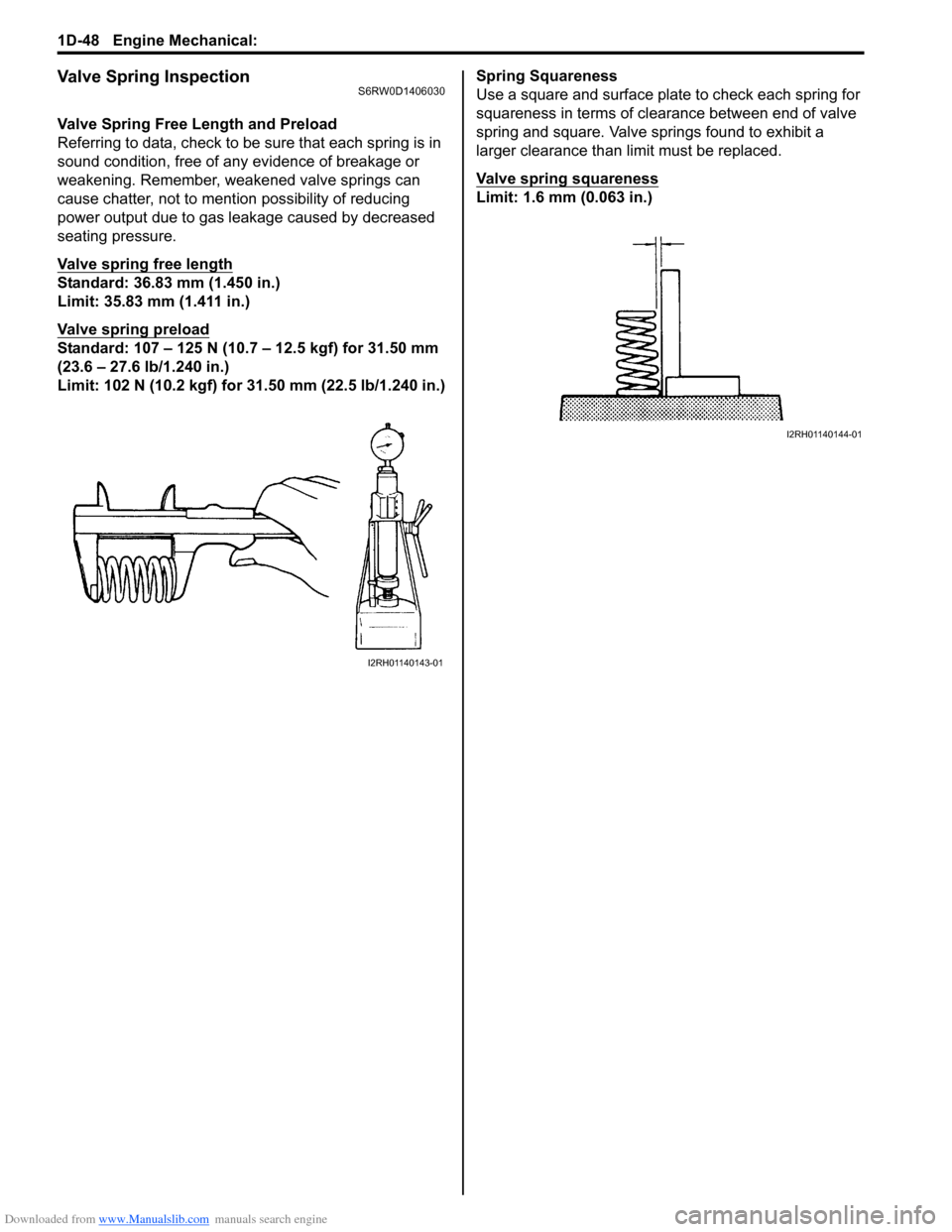

Valve Spring InspectionS6RW0D1406030
Valve Spring Free Length and Preload
Referring to data, check to be sure that each spring is in
sound condition, free of any evidence of breakage or
weakening. Remember, weakened valve springs can
cause chatter, not to mention possibility of reducing
power output due to gas leakage caused by decreased
seating pressure.
Valve spring free length
Standard: 36.83 mm (1.450 in.)
Limit: 35.83 mm (1.411 in.)
Valve spring preload
Standard: 107 – 125 N (10.7 – 12.5 kgf) for 31.50 mm
(23.6 – 27.6 lb/1.240 in.)
Limit: 102 N (10.2 kgf) for 31.50 mm (22.5 lb/1.240 in.)Spring Squareness
Use a square and surface plate to check each spring for
squareness in terms of clearance between end of valve
spring and square. Valve springs found to exhibit a
larger clearance than limit must be replaced.
Valve spring squareness
Limit: 1.6 mm (0.063 in.)
I2RH01140143-01
I2RH01140144-01
