Page 421 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Charging System:  1J-7
1) Set parking brake and place automatic transaxle in
PARK (NEUTRAL on manual transaxle). Turn off
ignition, turn off

Page 422 of 1556

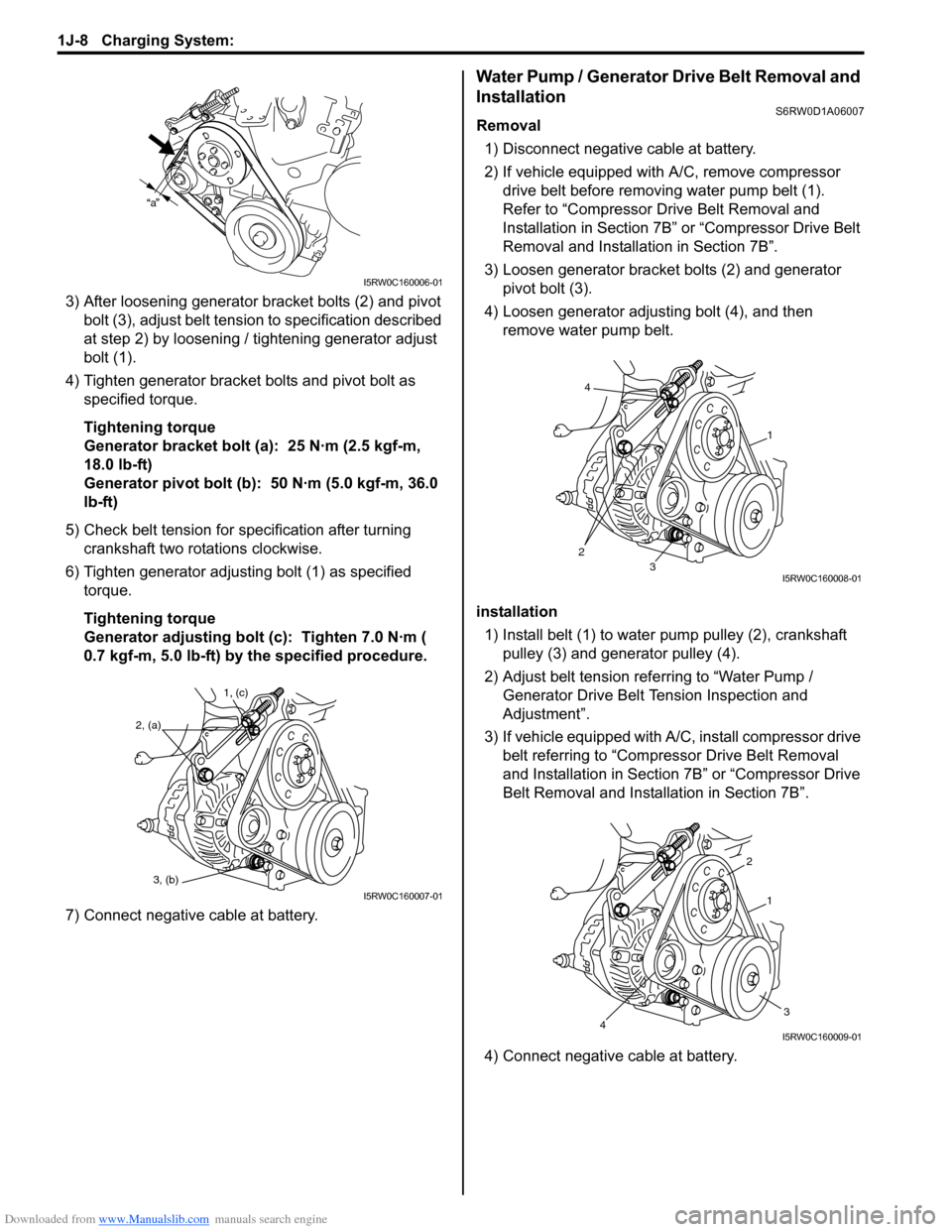

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1J-8 Charging System:
3) After loosening generator bracket bolts (2) and pivot
bolt (3), adjust belt tension to specification described
at s

Page 423 of 1556

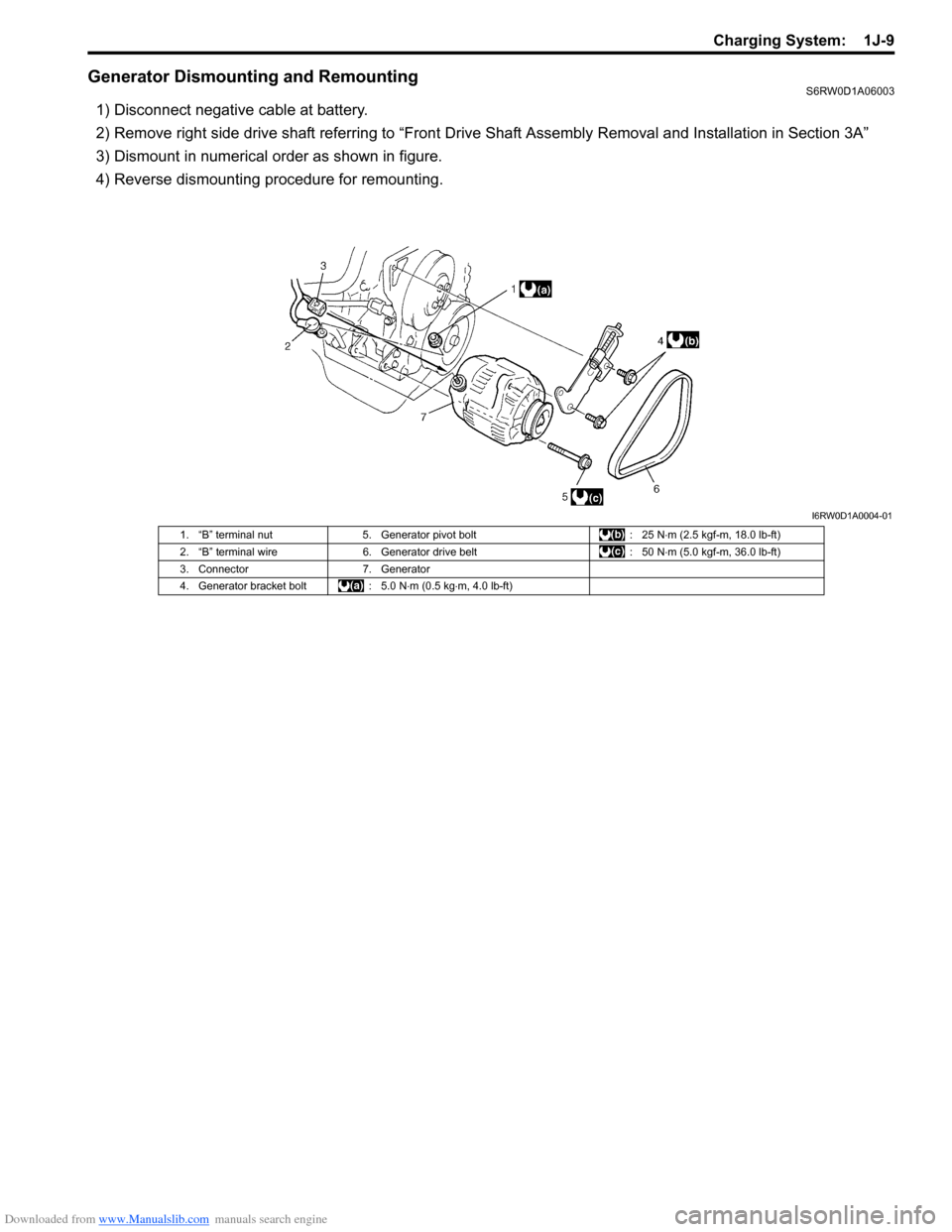

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Charging System:  1J-9
Generator Dismounting and RemountingS6RW0D1A06003
1) Disconnect negative cable at battery.
2) Remove right side drive sh

Page 424 of 1556

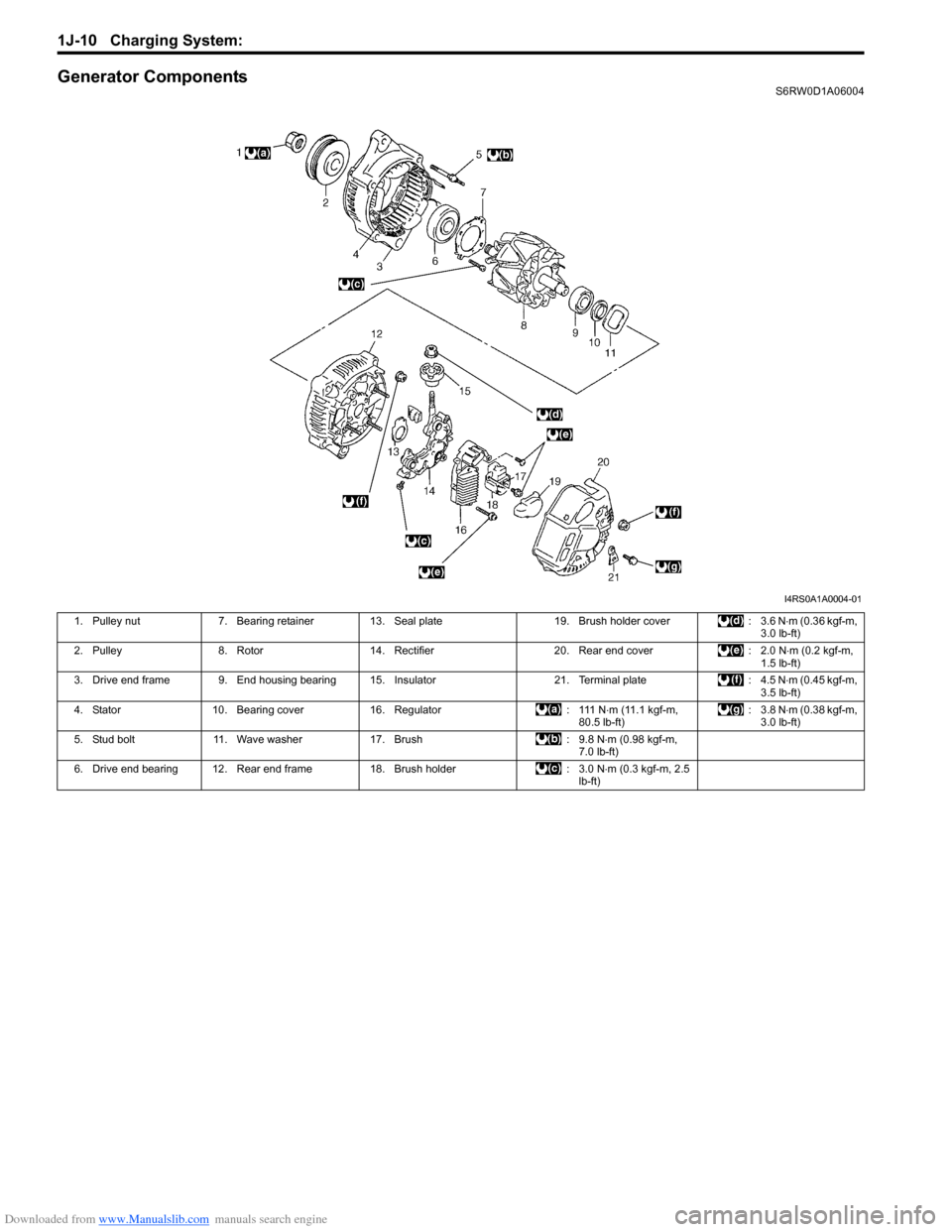

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1J-10 Charging System:
Generator ComponentsS6RW0D1A06004
I4RS0A1A0004-01
1. Pulley nut 7. Bearing retainer 13. Seal plate 19. Brush holder cov

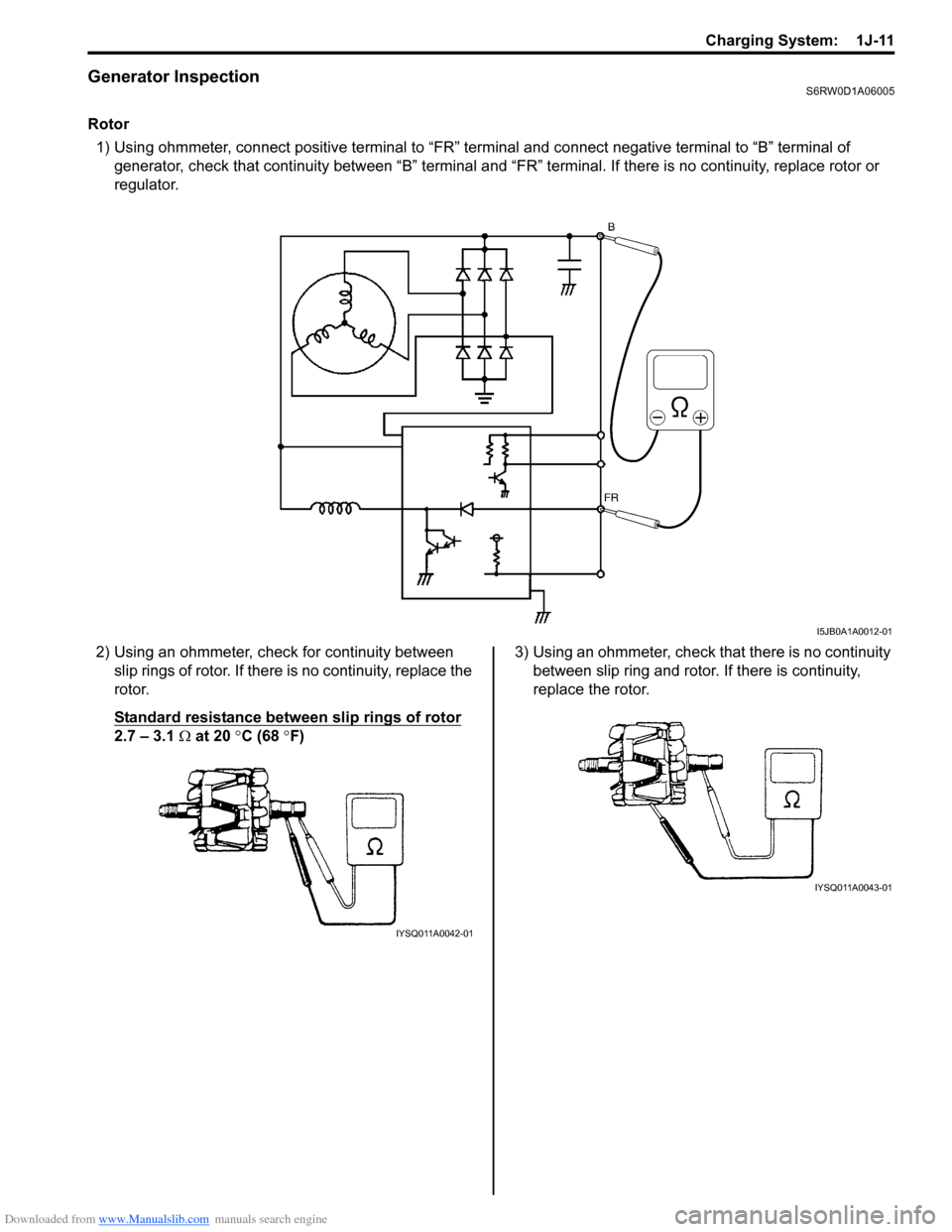

Page 425 of 1556

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Charging System:  1J-11
Generator InspectionS6RW0D1A06005
Rotor
1) Using ohmmeter, connect positive terminal to “FR” terminal and connect n

Page 426 of 1556

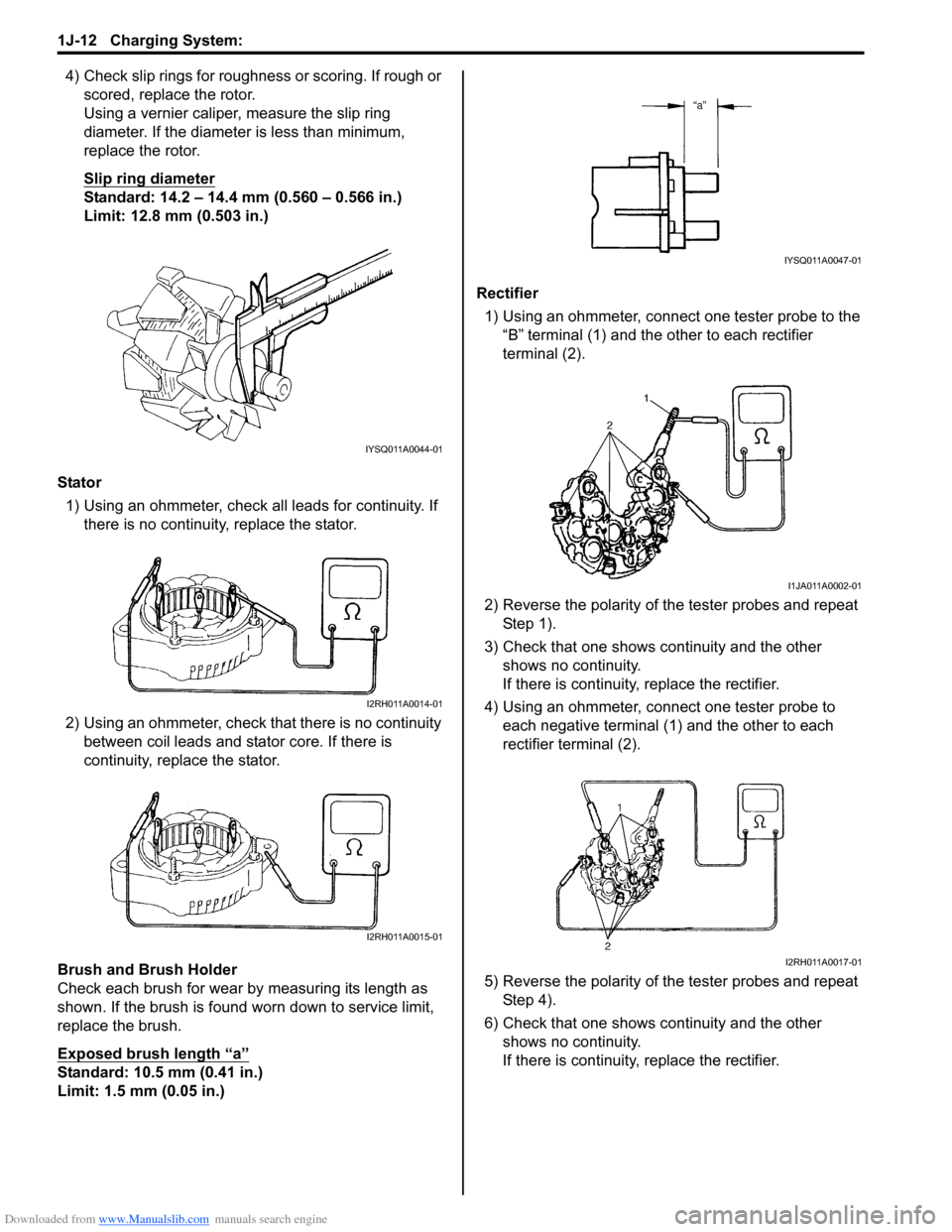

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1J-12 Charging System:
4) Check slip rings for roughness or scoring. If rough or
scored, replace the rotor.
Using a vernier caliper, measure

Page 427 of 1556

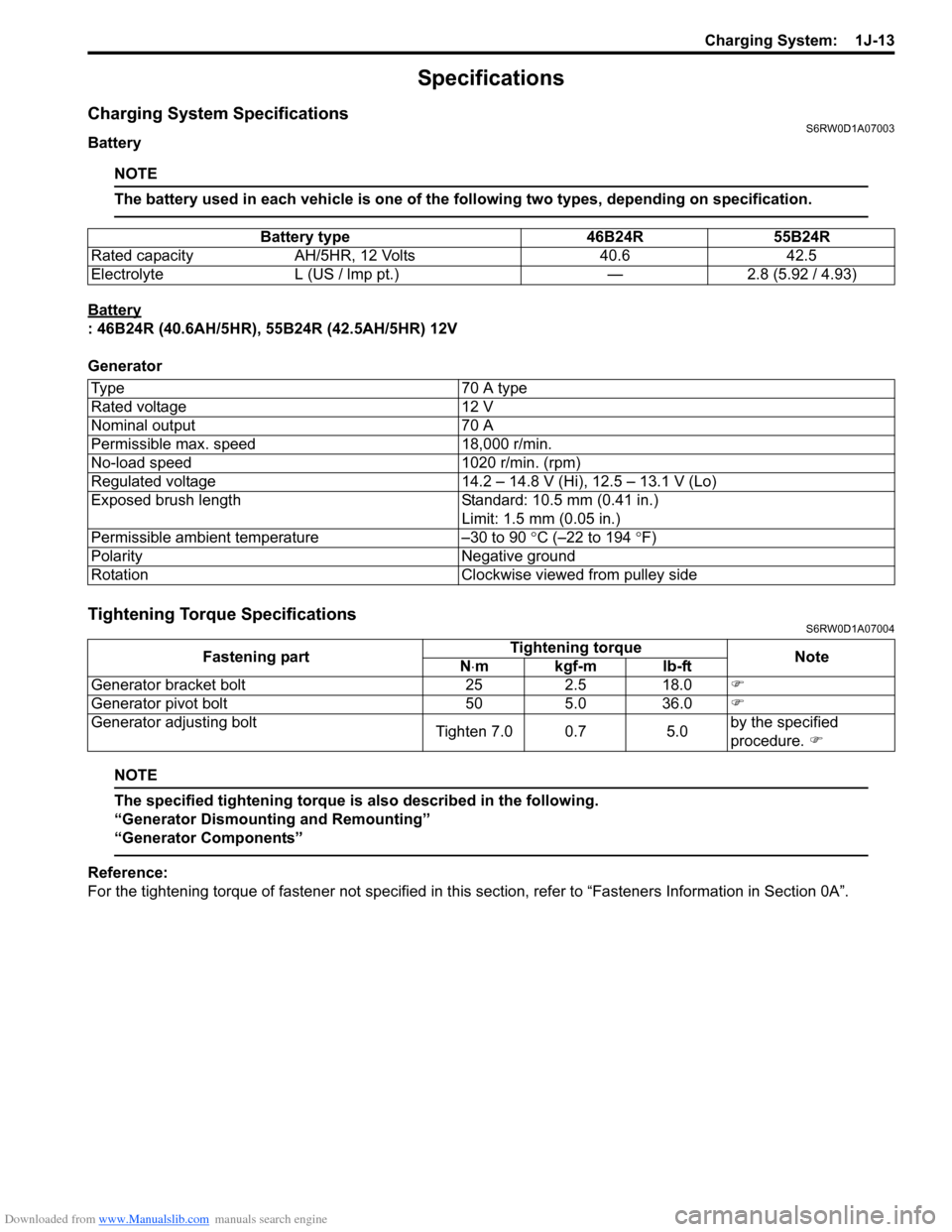

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Charging System:  1J-13
Specifications
Charging System SpecificationsS6RW0D1A07003
Battery
NOTE
The battery used in each vehicle is one of the

Page 428 of 1556

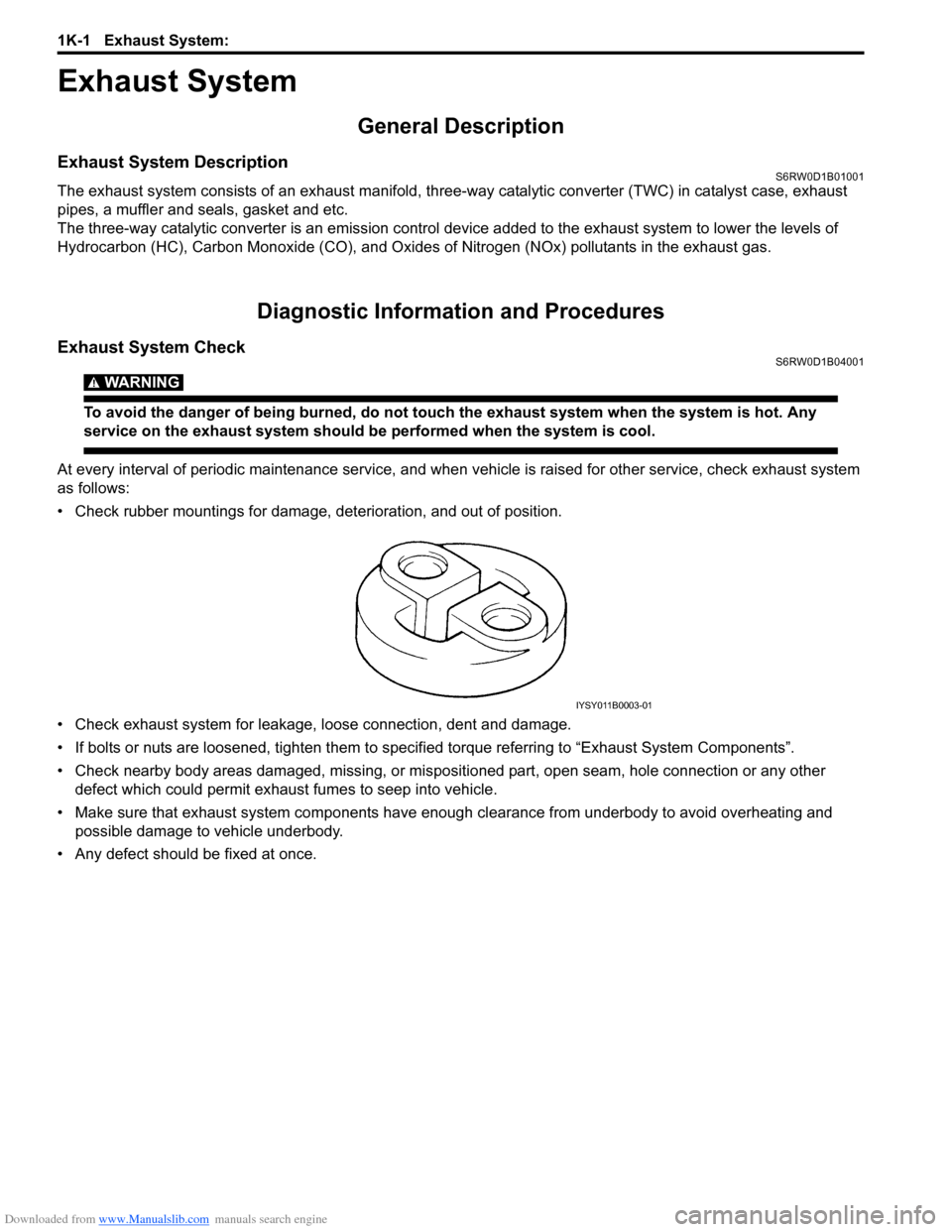

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1K-1 Exhaust System:
Engine
Exhaust System
General Description
Exhaust System DescriptionS6RW0D1B01001
The exhaust system consists of an exhau

Page 429 of 1556

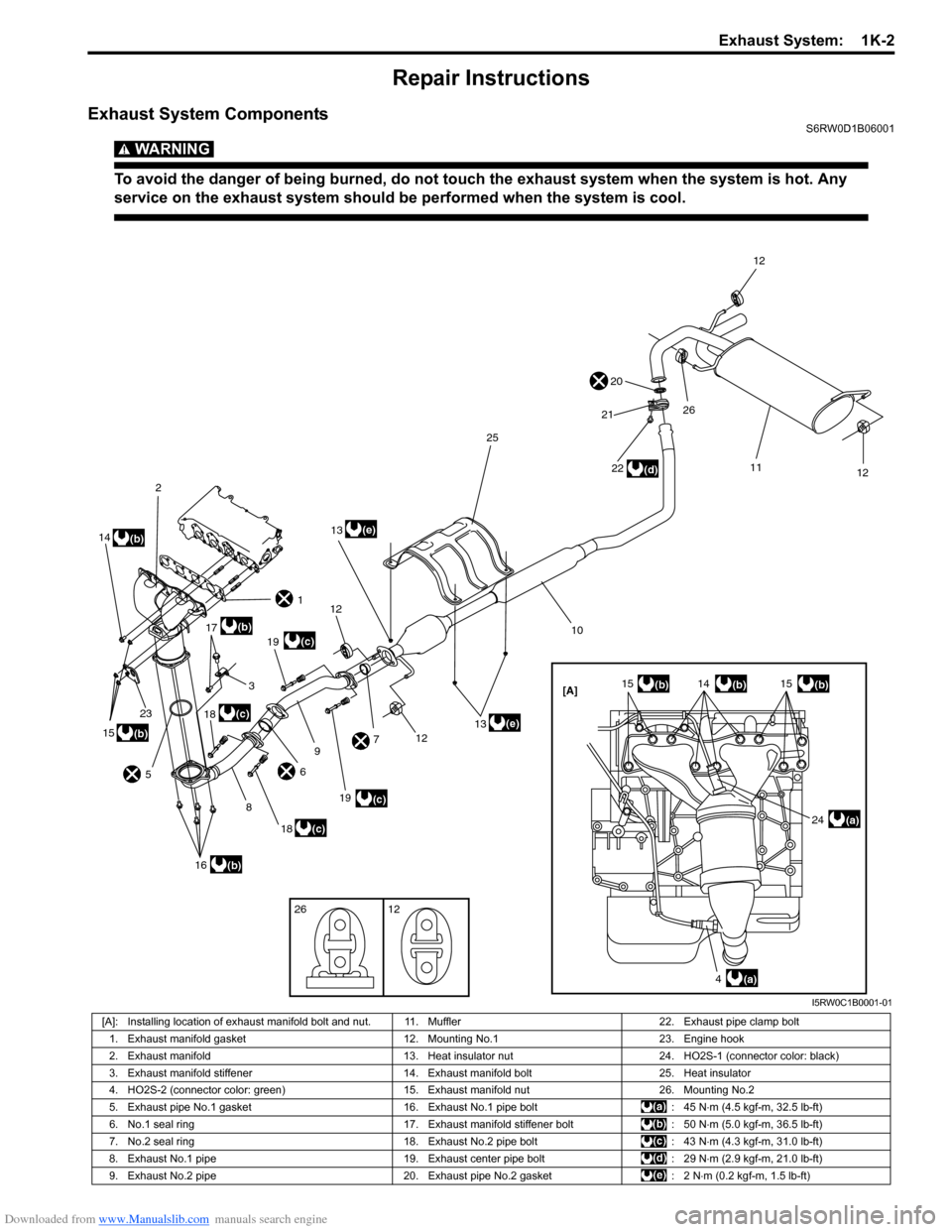

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine Exhaust System:  1K-2
Repair Instructions
Exhaust System ComponentsS6RW0D1B06001
WARNING!
To avoid the danger of being burned, do not touch th

Page 430 of 1556

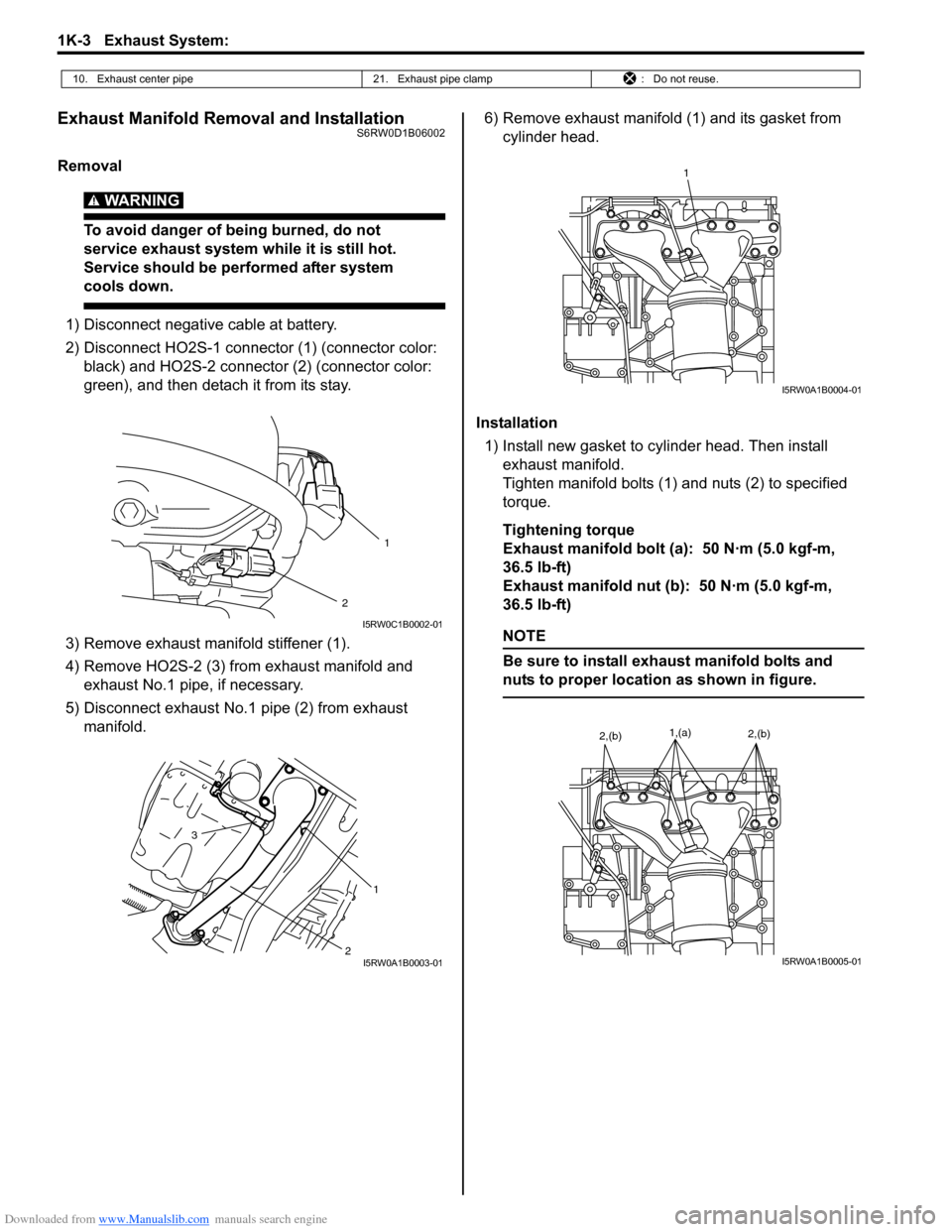

SUZUKI SX4 2006 1.G Service Workshop Manual Downloaded from www.Manualslib.com manuals search engine 1K-3 Exhaust System:
Exhaust Manifold Removal and InstallationS6RW0D1B06002
Removal
WARNING!
To avoid danger of being burned, do not
service
