TESLA MODEL 3 2019 Owner's Manual (Europe)

MODEL 3

EUROPE

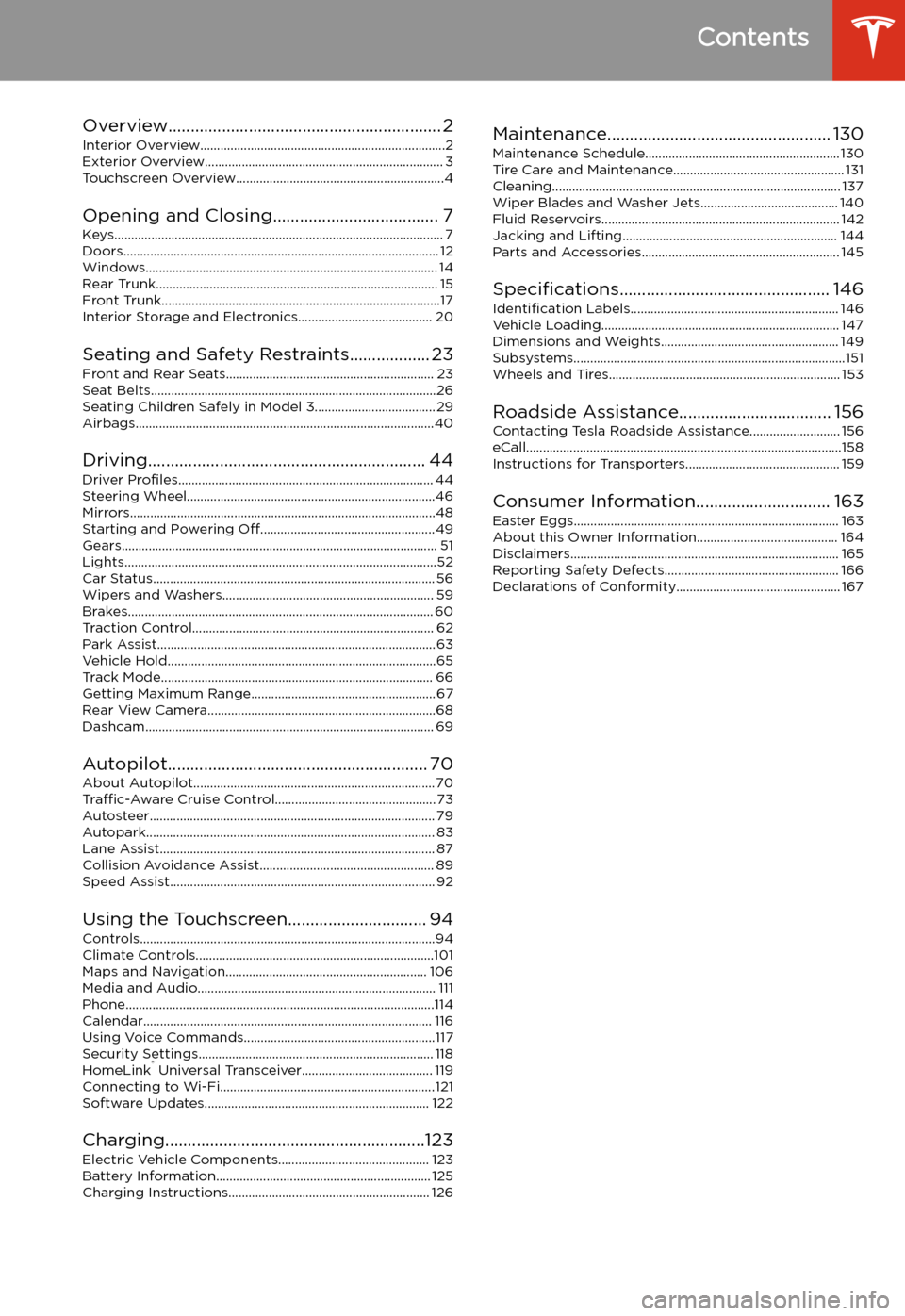

Contents
Overview............................................................. 2
Interior Overview.........................................................................2
Exterior Overview....................................................................... 3
Touchscreen Overview..............................................................4
Opening and Closing..................................... 7 Keys.................................................................................................. 7Doors.............................................................................................. 12Windows....................................................................................... 14
Rear Trunk.................................................................................... 15 Front Trunk...................................................................................17Interior Storage and Electronics........................................ 20
Seating and Safety Restraints.................. 23 Front and Rear Seats.............................................................. 23 Seat Belts.....................................................................................26Seating Children Safely in Model 3.................................... 29Airbags.........................................................................................40
Driving.............................................................. 44 Driver Profiles ............................................................................ 44
Steering Wheel..........................................................................46
Mirrors...........................................................................................48 Starting and Powering Off.................................................... 49
Gears.............................................................................................. 51 Lights.............................................................................................52Car Status.................................................................................... 56Wipers and Washers............................................................... 59 Brakes........................................................................................... 60Traction Control........................................................................ 62Park Assist...................................................................................63 Vehicle Hold................................................................................65Track Mode................................................................................. 66Getting Maximum Range....................................................... 67Rear View Camera....................................................................68
Dashcam...................................................................................... 69
Autopilot.......................................................... 70 About Autopilot........................................................................70
Traffic-Aware Cruise Control................................................ 73
Autosteer..................................................................................... 79 Autopark...................................................................................... 83Lane Assist.................................................................................. 87Collision Avoidance Assist.................................................... 89 Speed Assist............................................................................... 92
Using the Touchscreen............................... 94 Controls........................................................................................94Climate Controls.......................................................................101Maps and Navigation............................................................ 106 Media and Audio....................................................................... 111Phone............................................................................................114 Calendar...................................................................................... 116
Using Voice Commands.........................................................117 Security Settings...................................................................... 118 HomeLink

Overview

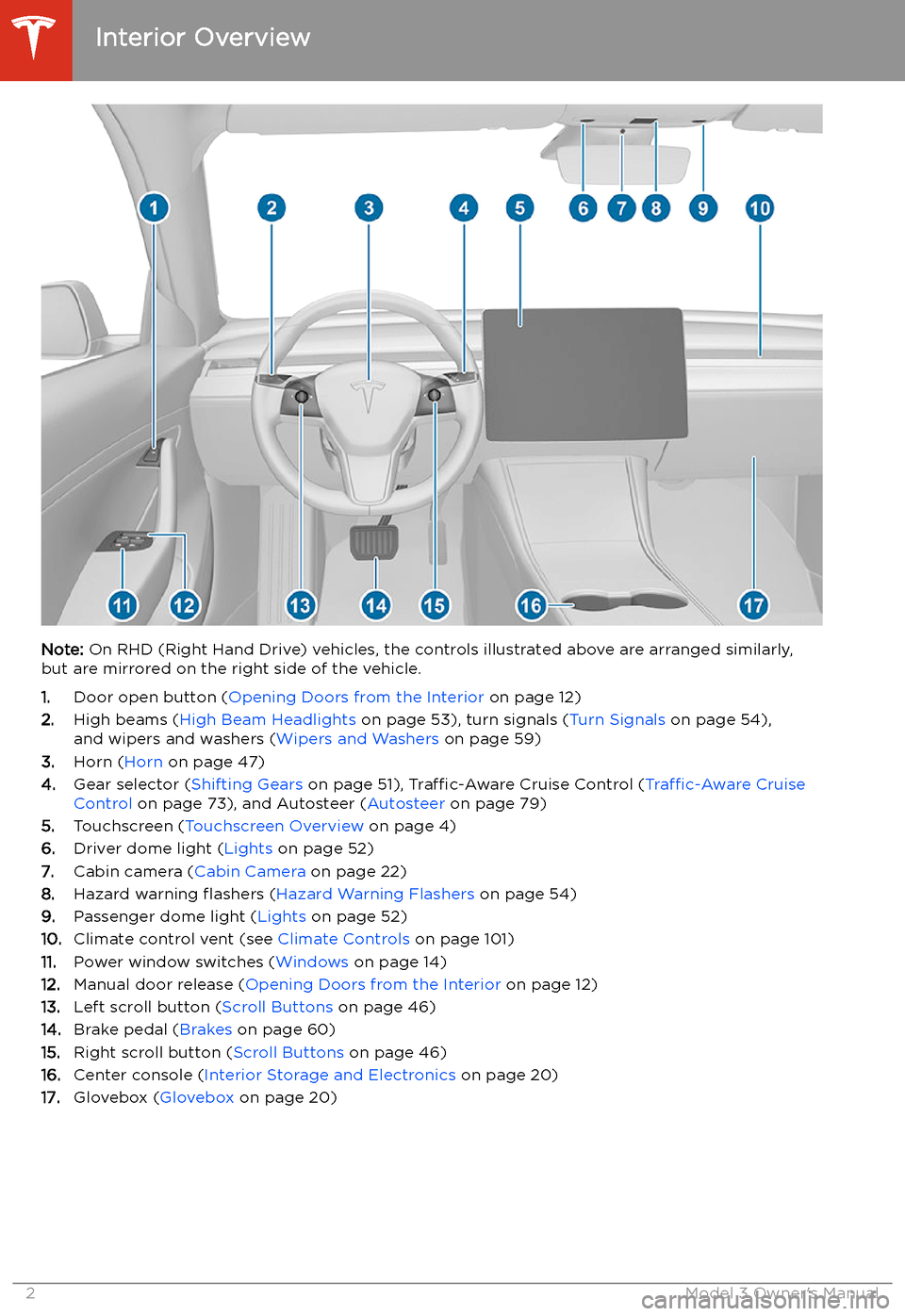

Interior Overview
Note: On RHD (Right Hand Drive) vehicles, the controls illustrated above are arranged similarly,
but are mirrored on the right side of the vehicle.
1. Door open button ( Opening Doors from the Interior on page 12)
2. High beams ( High Beam Headlights on page 53), turn signals ( Turn Signals on page 54),
and wipers and washers ( Wipers and Washers on page 59)
3. Horn ( Horn on page 47)
4. Gear selector ( Shifting Gears on page 51), Traffic-Aware Cruise Control ( Traffic-Aware Cruise
Control on page 73), and Autosteer ( Autosteer on page 79)
5. Touchscreen ( Touchscreen Overview on page 4)
6. Driver dome light ( Lights on page 52)
7. Cabin camera ( Cabin Camera on page 22)
8. Hazard warning

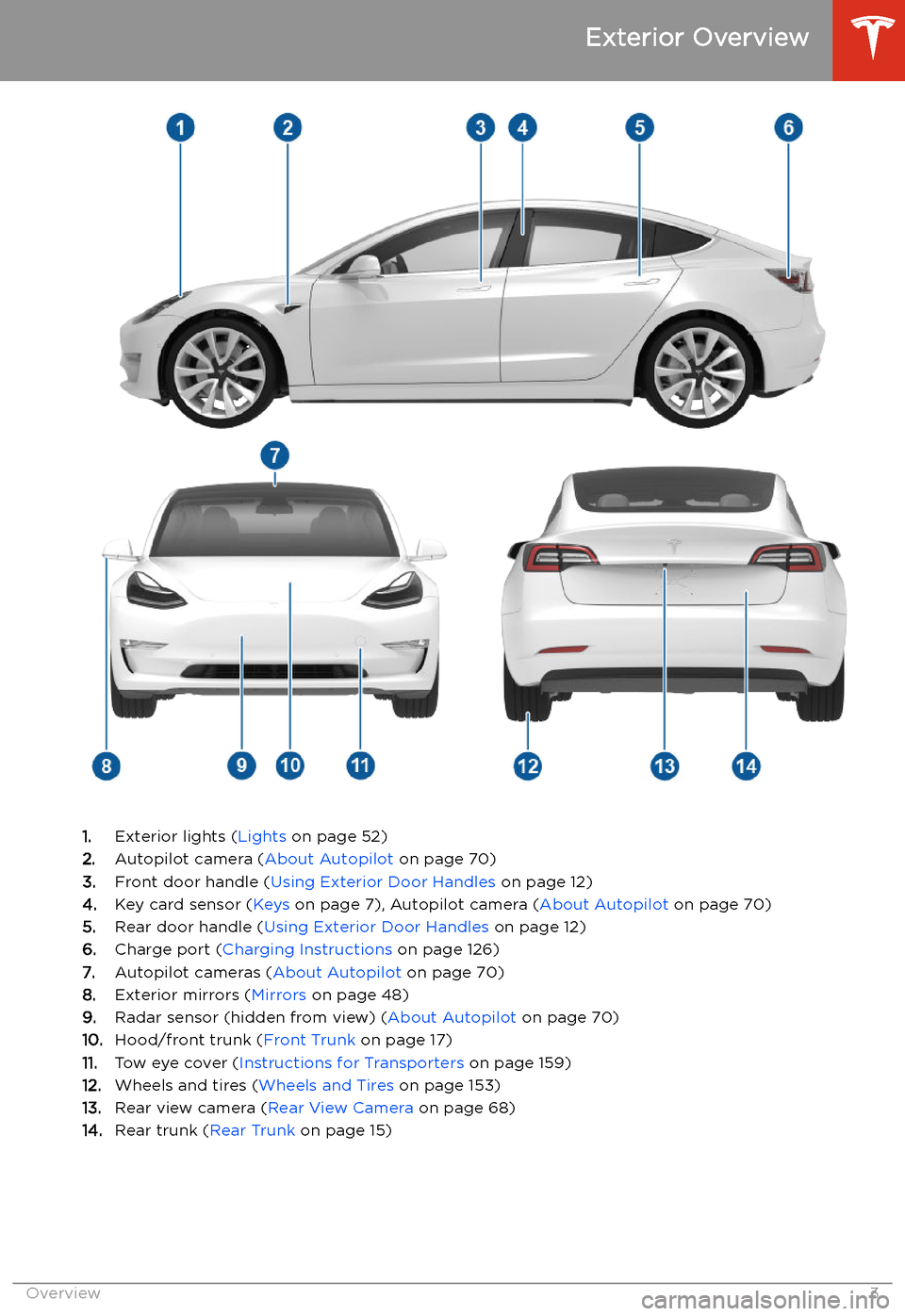

Exterior Overview
1.Exterior lights ( Lights on page 52)
2. Autopilot camera ( About Autopilot on page 70)
3. Front door handle ( Using Exterior Door Handles on page 12)
4. Key card sensor ( Keys on page 7), Autopilot camera ( About Autopilot on page 70)
5. Rear door handle ( Using Exterior Door Handles on page 12)
6. Charge port ( Charging Instructions on page 126)
7. Autopilot cameras ( About Autopilot on page 70)
8. Exterior mirrors ( Mirrors on page 48)
9. Radar sensor (hidden from view) ( About Autopilot on page 70)
10. Hood/front trunk ( Front Trunk on page 17)
11. Tow eye cover ( Instructions for Transporters on page 159)
12. Wheels and tires ( Wheels and Tires on page 153)
13. Rear view camera ( Rear View Camera on page 68)
14. Rear trunk ( Rear Trunk on page 15)
Exterior Overview
Overview3

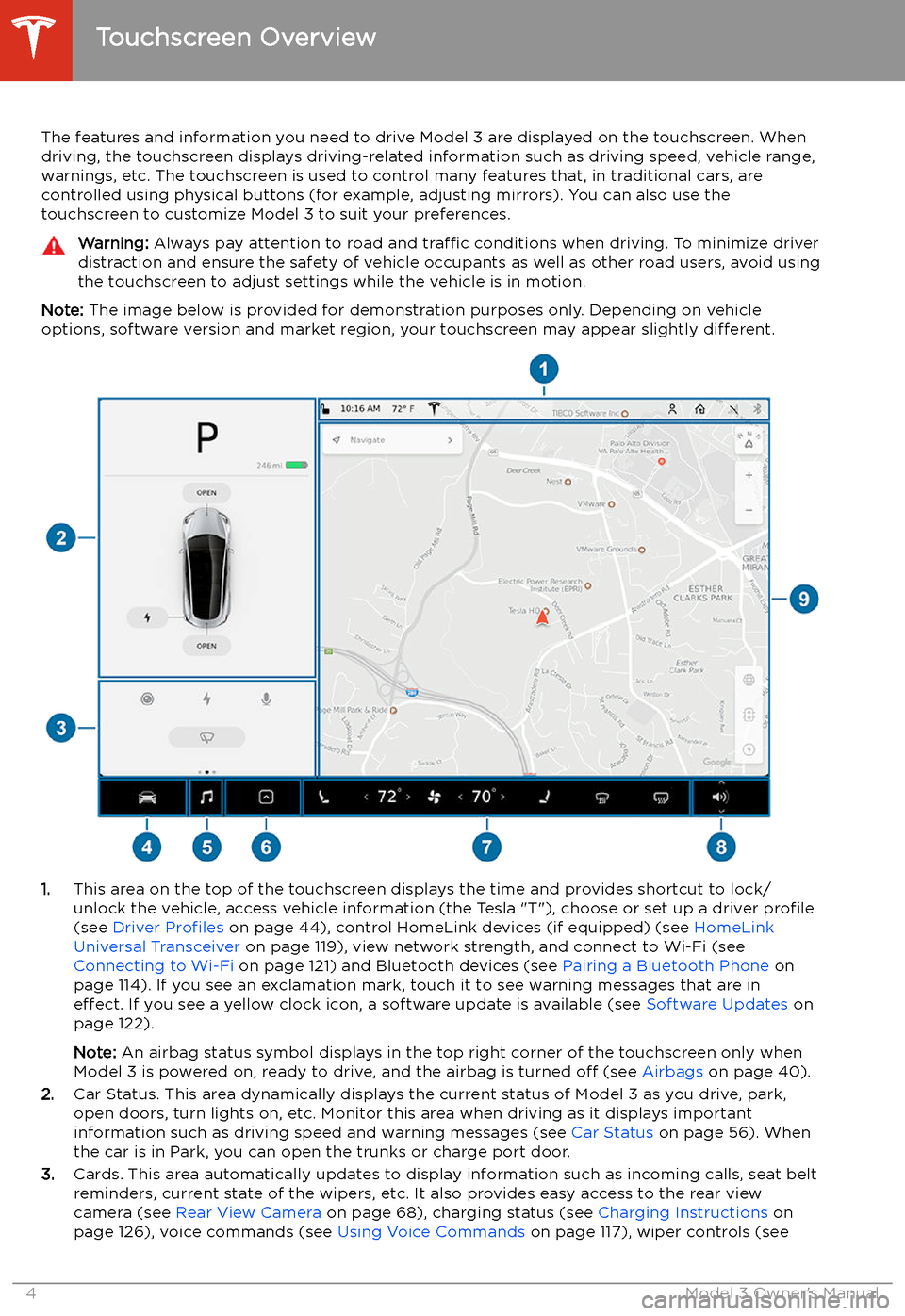

Touchscreen Overview
The features and information you need to drive Model 3 are displayed on the touchscreen. When
driving, the touchscreen displays driving-related information such as driving speed, vehicle range,
warnings, etc. The touchscreen is used to control many features that, in traditional cars, are controlled using physical buttons (for example, adjusting mirrors). You can also use the
touchscreen to customize Model 3 to suit your preferences.
Warning: Always pay attention to road and traffic conditions when driving. To minimize driver
distraction and ensure the safety of vehicle occupants as well as other road users, avoid using
the touchscreen to adjust settings while the vehicle is in motion.
Note: The image below is provided for demonstration purposes only. Depending on vehicle
options, software version and market region, your touchscreen may appear slightly different.
1.This area on the top of the touchscreen displays the time and provides shortcut to lock/
unlock the vehicle, access vehicle information (the Tesla "T"), choose or set up a driver profile
(see Driver Profiles on page 44), control HomeLink devices (if equipped) (see HomeLink
Universal Transceiver on page 119), view network strength, and connect to Wi-Fi (see
Connecting to Wi-Fi on page 121) and Bluetooth devices (see Pairing a Bluetooth Phone on
page 114). If you see an exclamation mark, touch it to see warning messages that are in effect. If you see a yellow clock icon, a software update is available (see Software Updates on
page 122).
Note: An airbag status symbol displays in the top right corner of the touchscreen only when
Model 3 is powered on, ready to drive, and the airbag is turned off (see Airbags on page 40).
2. Car Status. This area dynamically displays the current status of Model 3 as you drive, park,
open doors, turn lights on, etc. Monitor this area when driving as it displays important
information such as driving speed and warning messages (see Car Status on page 56). When
the car is in Park, you can open the trunks or charge port door.
3. Cards. This area automatically updates to display information such as incoming calls, seat belt
reminders, current state of the wipers, etc. It also provides easy access to the rear view camera (see Rear View Camera on page 68), charging status (see Charging Instructions on
page 126), voice commands (see Using Voice Commands on page 117), wiper controls (see
Touchscreen Overview
4Model 3 Owner

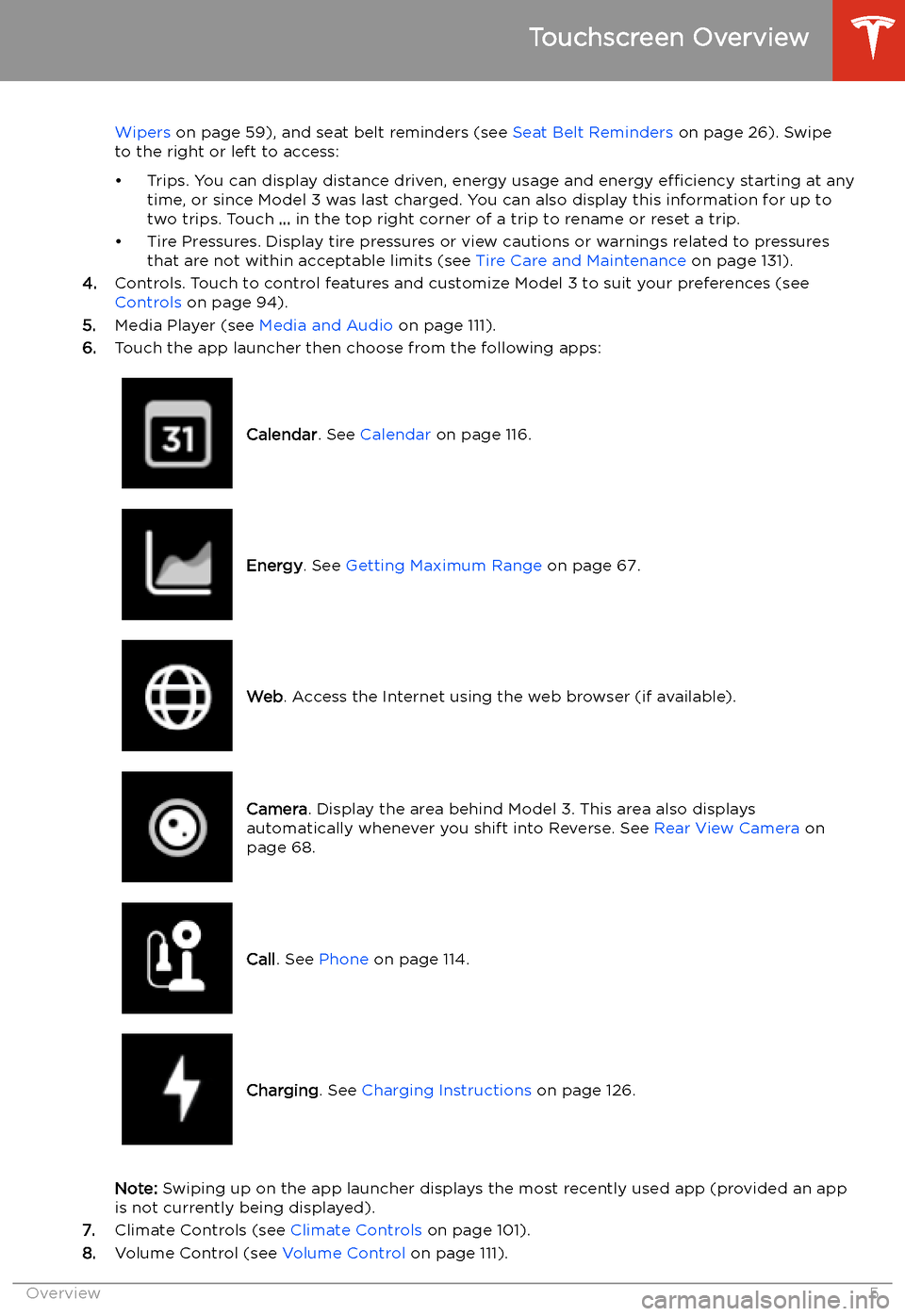

Wipers on page 59), and seat belt reminders (see Seat Belt Reminders on page 26). Swipe
to the right or left to access:

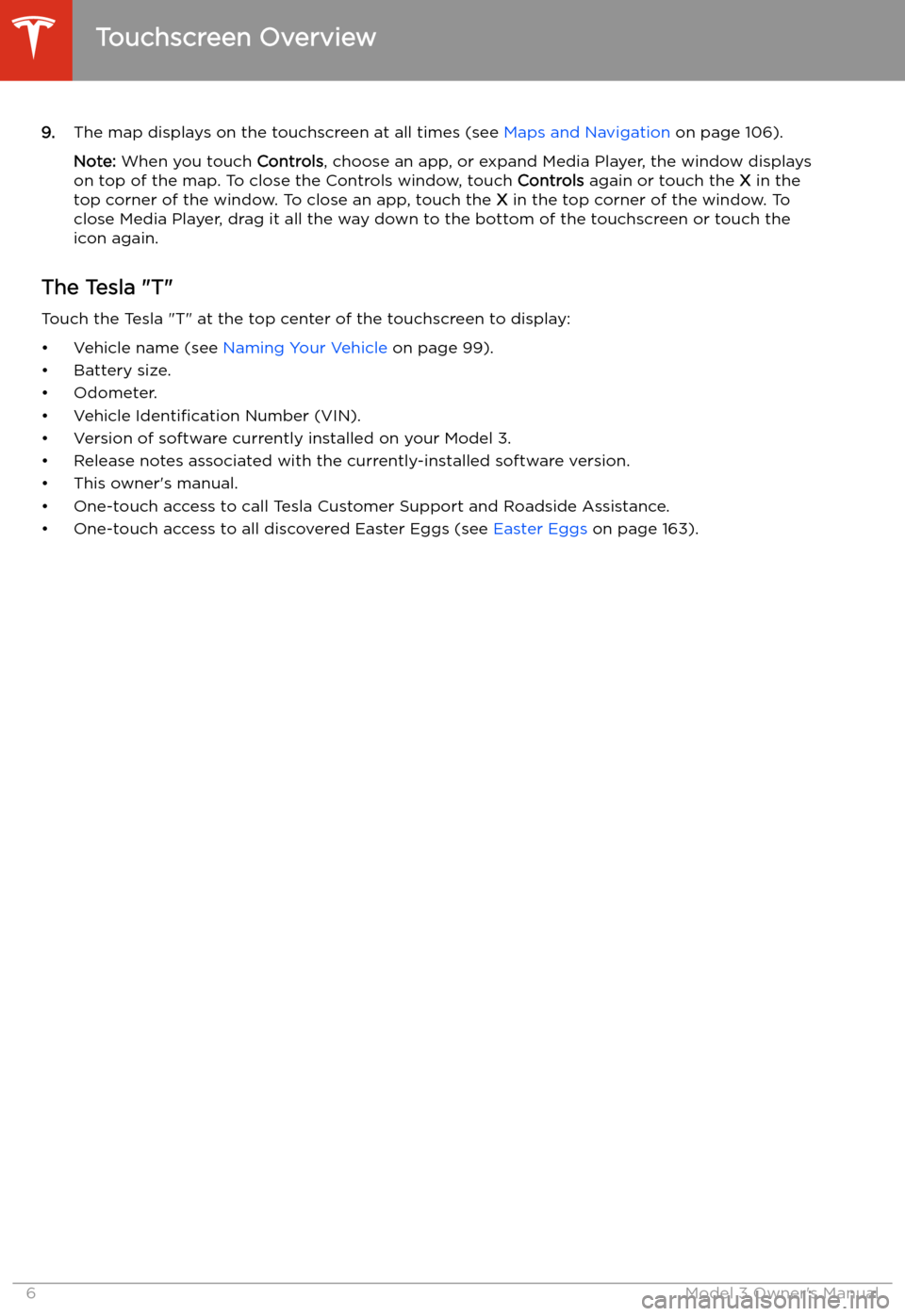

9.The map displays on the touchscreen at all times (see Maps and Navigation on page 106).
Note: When you touch Controls, choose an app, or expand Media Player, the window displays
on top of the map. To close the Controls window, touch Controls again or touch the X in the
top corner of the window. To close an app, touch the X in the top corner of the window. To
close Media Player, drag it all the way down to the bottom of the touchscreen or touch the icon again.
The Tesla "T"
Touch the Tesla "T" at the top center of the touchscreen to display:

Opening and Closing
Keys

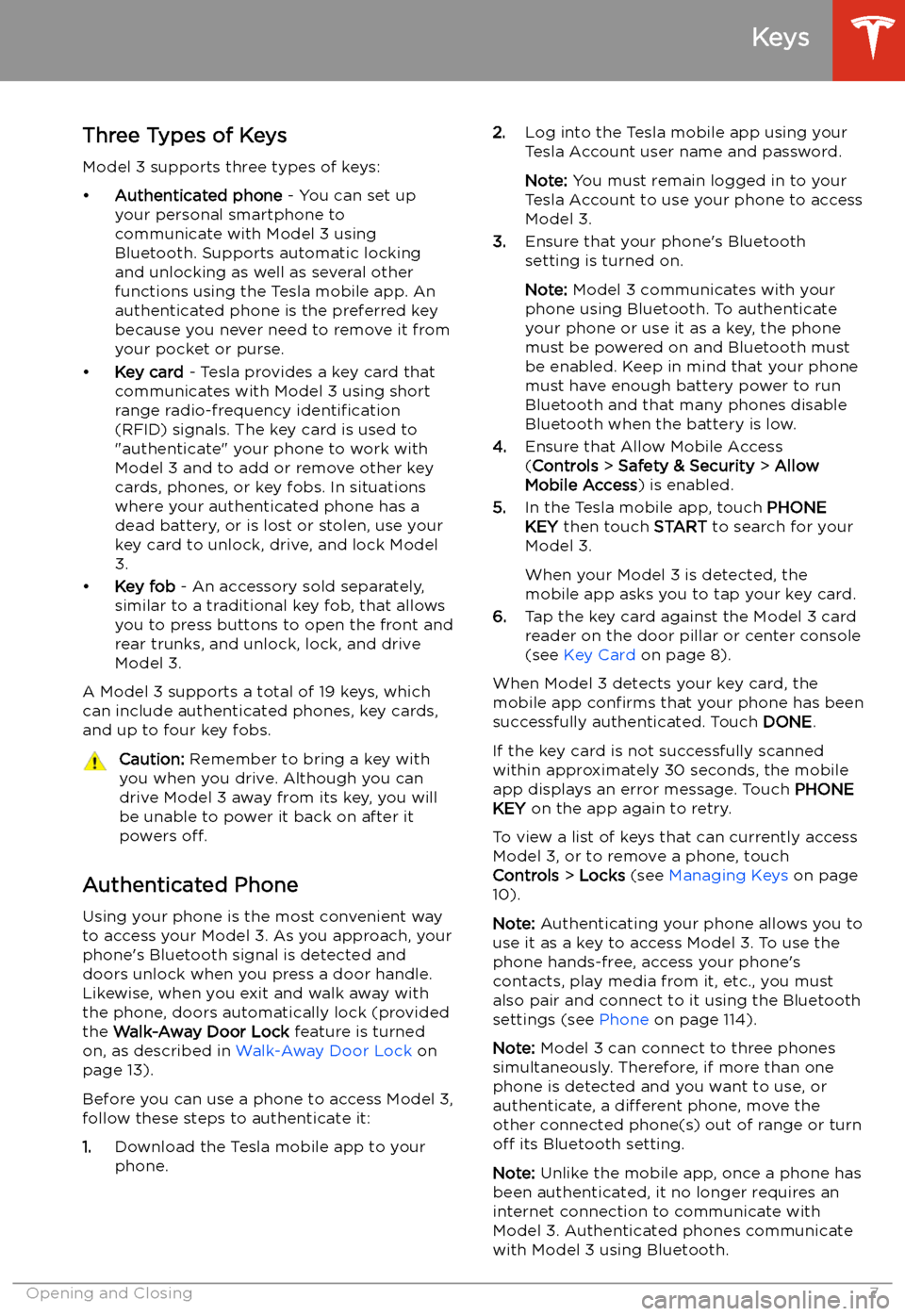

Three Types of Keys
Model 3 supports three types of keys:

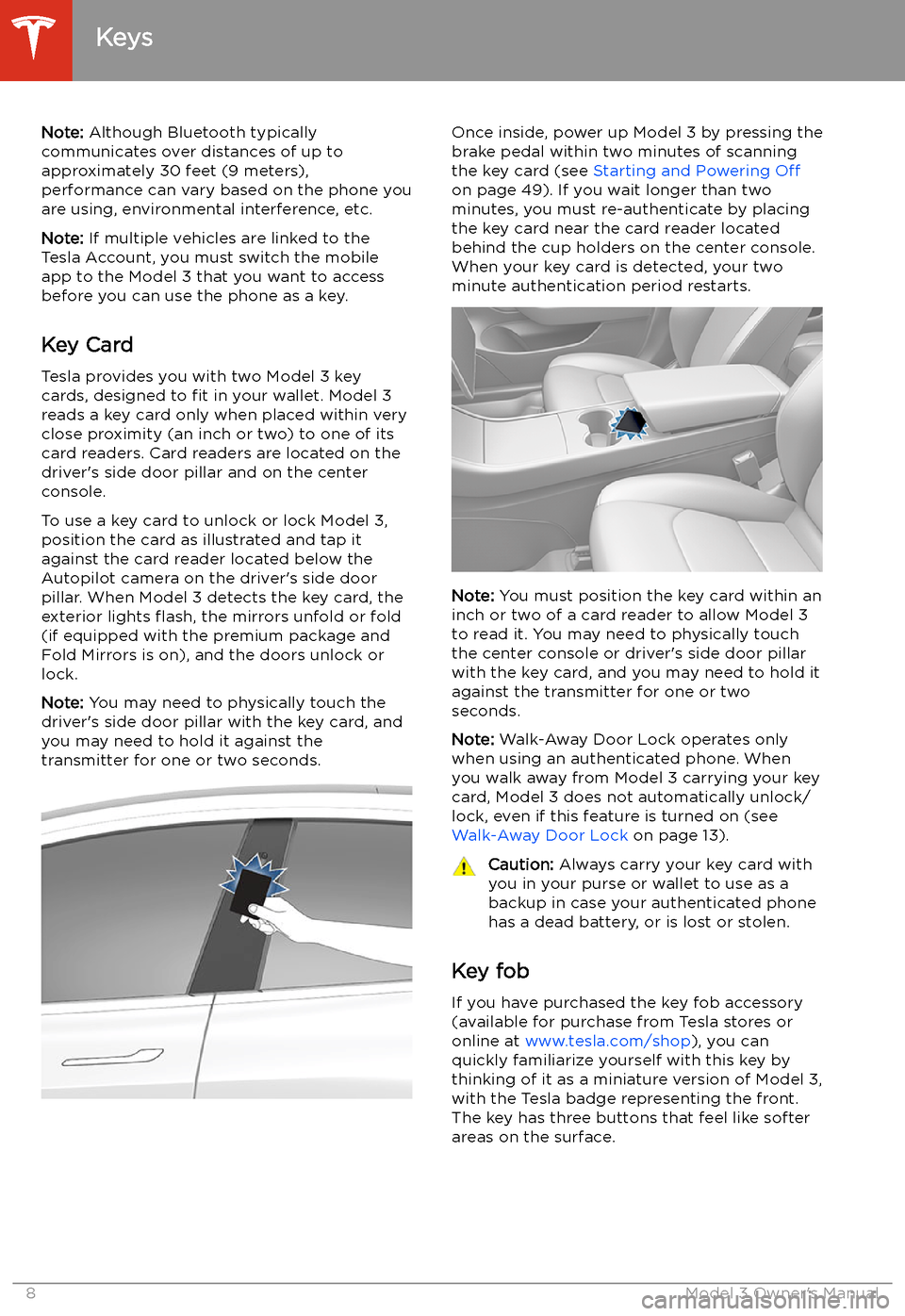

Note: Although Bluetooth typically
communicates over distances of up to approximately 30 feet (9 meters),
performance can vary based on the phone you
are using, environmental interference, etc.
Note: If multiple vehicles are linked to the
Tesla Account, you must switch the mobile
app to the Model 3 that you want to access before you can use the phone as a key.
Key Card Tesla provides you with two Model 3 key
cards, designed to fit in your wallet. Model 3
reads a key card only when placed within very close proximity (an inch or two) to one of its
card readers. Card readers are located on the
driver

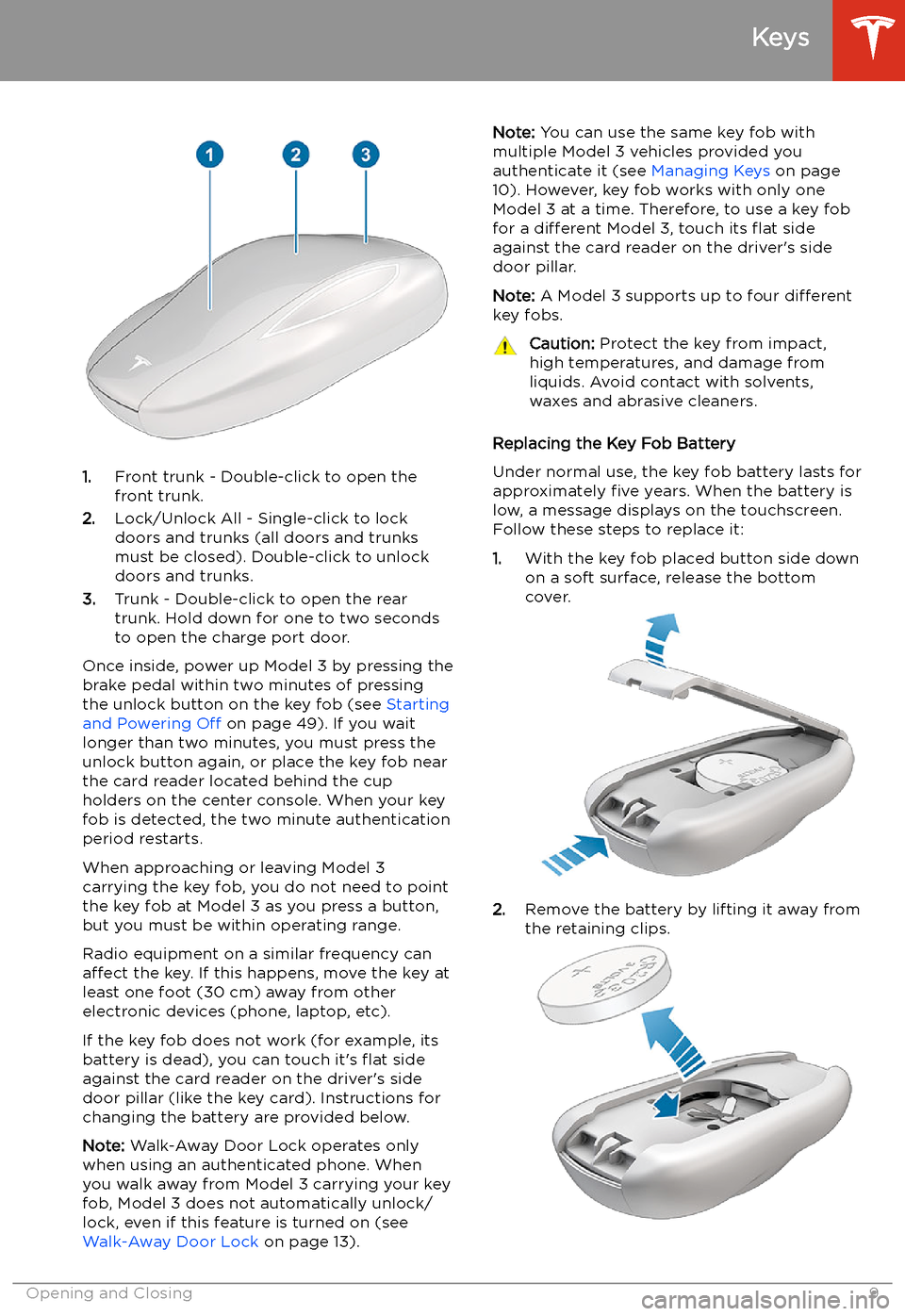

1.Front trunk - Double-click to open the
front trunk.
2. Lock/Unlock All - Single-click to lock
doors and trunks (all doors and trunks
must be closed). Double-click to unlock doors and trunks.
3. Trunk - Double-click to open the rear
trunk. Hold down for one to two seconds
to open the charge port door.
Once inside, power up Model 3 by pressing the
brake pedal within two minutes of pressing
the unlock button on the key fob (see Starting
and Powering Off on page 49). If you wait
longer than two minutes, you must press the
unlock button again, or place the key fob near
the card reader located behind the cup holders on the center console. When your key
fob is detected, the two minute authentication period restarts.
When approaching or leaving Model 3
carrying the key fob, you do not need to point the key fob at Model 3 as you press a button,
but you must be within operating range.
Radio equipment on a similar frequency can
affect the key. If this happens, move the key at
least one foot (30 cm) away from other electronic devices (phone, laptop, etc).
If the key fob does not work (for example, its
battery is dead), you can touch it
