Page 131 of 179
Maintenance
Maintenance Schedule
Service Intervals
Regular maintenance is the key to ensuring
the continued reliability and efficiency of your
Model 3.
Rotate the tires every 6,250 miles
(10,000 km). Maintain the correct tire
pressures. It is also important to perform the
daily and monthly checks described below.
Note: View tire pressures in the "Cards" area,
located toward the bottom on the left side of the touchscreen, as described in Touchscreen
Overview on page 4.
Model 3 should be serviced by Tesla-certified
technicians. Damages or failures caused by
maintenance or repairs performed by non-
Tesla certified technicians are not covered by
the warranty.
Daily Checks
Page 132 of 179
Tire Care and Maintenance
Maintaining Tire Pressures
Keep tires in
Page 134 of 179
Replacing Tires and Wheels
Tires degrade over time due to the effects of
ultraviolet light, extreme temperatures, high
loads, and environmental conditions. It is
recommended that tires are replaced every six
years, or sooner if required.
Wheel and tires are matched to suit thehandling characteristics of the vehicle.
Replacement tires must comply with the
original specification. If tires other than those
specified are used, ensure that the load and
speed ratings marked on the tire (see Understanding Tire Markings on page 154)
equal or exceed those of the original
specification.
Ideally, you should replace all four tires at the same time. If this is not possible, replace the
tires in pairs, placing the new tires on the rear.
Always balance the wheel after replacing a
tire.
If you replace a wheel, the TPMS (Tire Pressure
Monitoring System) sensors need to be reset to ensure they provide accurate warnings
when tires are under- or over-in
Page 135 of 179

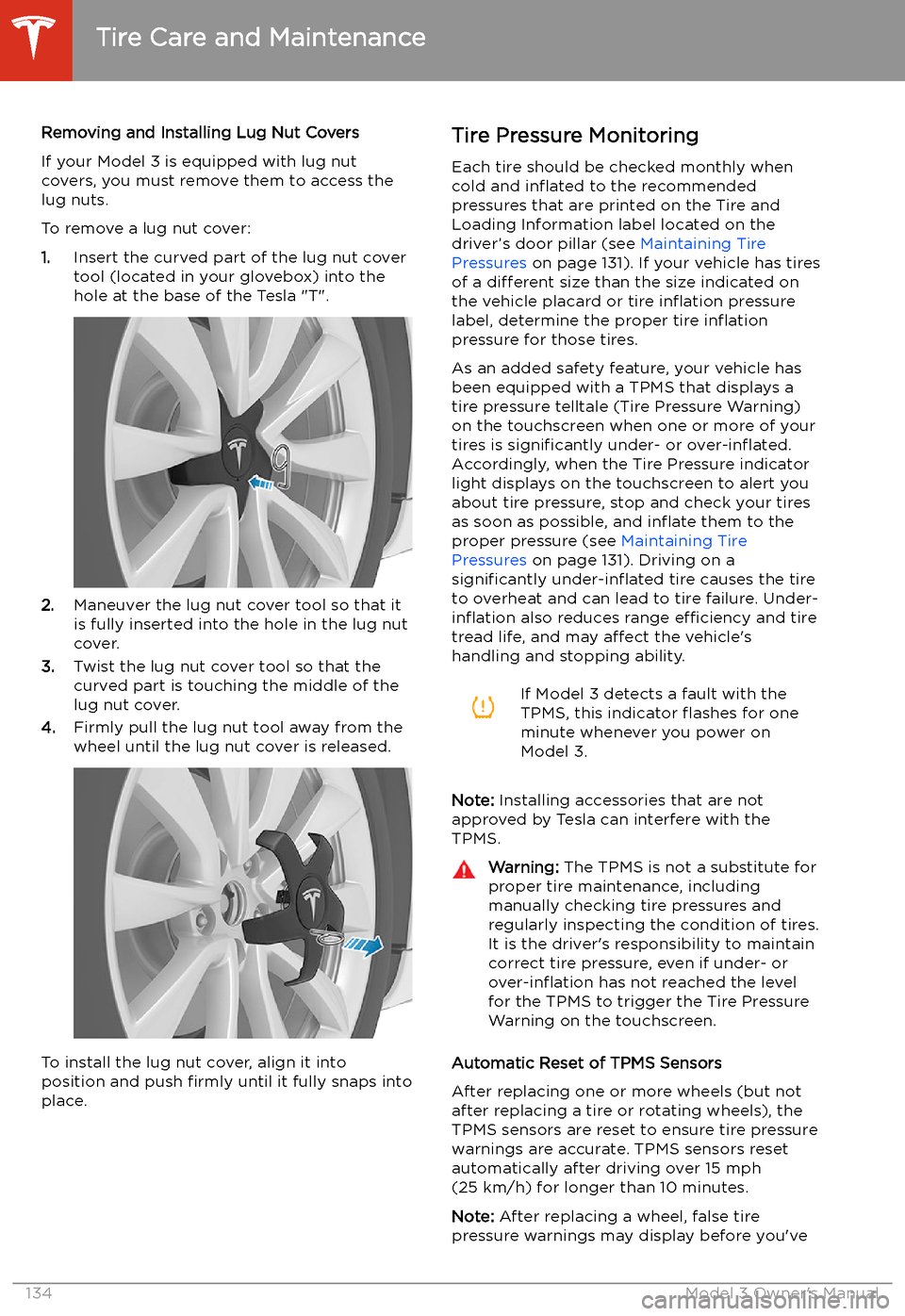

Removing and Installing Lug Nut Covers
If your Model 3 is equipped with lug nut covers, you must remove them to access the
lug nuts.
To remove a lug nut cover:
1. Insert the curved part of the lug nut cover
tool (located in your glovebox) into the
hole at the base of the Tesla "T".
2. Maneuver the lug nut cover tool so that it
is fully inserted into the hole in the lug nut
cover.
3. Twist the lug nut cover tool so that the
curved part is touching the middle of the
lug nut cover.
4. Firmly pull the lug nut tool away from the
wheel until the lug nut cover is released.
To install the lug nut cover, align it into
position and push firmly until it fully snaps into
place.
Tire Pressure Monitoring
Each tire should be checked monthly when
cold and in
Page 136 of 179
driven 15 mph (25 km/h) for longer than 10
minutes.
Replacing a Tire Sensor
If the Tire Pressure warning indicator displays frequently, contact Tesla to determine if a tire
sensor needs to be replaced. If a non-Tesla
Service Center repairs or replaces a tire, the
tire sensor may not work until Tesla performs
the setup procedure.
TPMS Malfunction
Model 3 has also been equipped with a TPMS
malfunction indicator to indicate when the
system is not operating properly.The TPMS malfunction indicator is
combined with the tire pressure
indicator light. When the system
detects a malfunction, the indicator
Page 154 of 179
Wheels and Tires
Wheel Specifications (Factory)
Wheel DiameterLocationWidth (in)Offset (mm)18"Front/Rear8.54019"Front/Rear8.54020"Front/Rear8.540Lug Nut Torque129 lb. ft (175 Nm)Lug Nut Socket Size21 mmNote: For instructions on how to jack/lift Model 3, see Jacking and Lifting on page 144.
Tire Specifications (Factory)
Tire SizeLocationSize18"Front/RearP235/45R1819"Front/RearP235/40R1920"Front/RearP235/35R20Tire pressures vary depending on the type of tires fitted. Refer to the tire pressures printed on
the Tire and Loading Information label. This label is located on the center door pillar and is
visible when the driver’s door is open (see Maintaining Tire Pressures on page 131).Winter tires can be purchased from a Tesla store.
Wheels and Tires
Specifications153
Page 178 of 179
supercharging (continued)described 129
idle fees 129
pay-per-use fees 129
suspension specifications 151
T telematics 165
temperatureBattery (high voltage), limits 125
cabin, controls for 101
outside 56
Teslacam 69
tie-down straps 160
Tire and Loading Information label 147
tire noise 136
Tire Pressure Monitoring SystemFCC certification 170
overview of 134
tire pressures, checking 131
tiresall-season 135
balancing 132
chains 136
inspecting and maintaining 132
pressures, how to check 131
replacing 133
replacing a tire sensor 135
rotation 132
specification 153
summer 135
tire markings 154
winter 135
toll system transponders, attaching 145
touch up body 138
touchscreenclean mode 138
cleaning 138
overview 4
restarting 46
software updates 122
tow eye, locating 160
towing a trailer 148
towing instructions 159
TPMSFCC certification 170
overview of 134
Track Mode 66
Tracking Disabled 106
traction control 62
trademarks 164
Traffic-Aware Cruise Control 73
trailer hitches 148
transmission specifications 151
transponders, attaching 145
Transport Mode 159
transporting 159
trip chart
67
Trip Planner 109
trunk, front 17
trunk, rear 15
TuneIn radio 112
turn signals 54
U
ultrasonic sensors 70
Unlock On Park 13
unlocking 12USB devicesconnecting 20
playing audio files from 113
USB ports 20
V
Valet mode 44
Vehicle Hold 65
Vehicle Identification Number (VIN) 146
vehicle loading 147
ventilation 103
VIN (Vehicle Identification Number) 146
volume control 4
volume control (media) 111
W
Walk-Away Door Lock 13
Wall Connector 124
warning
