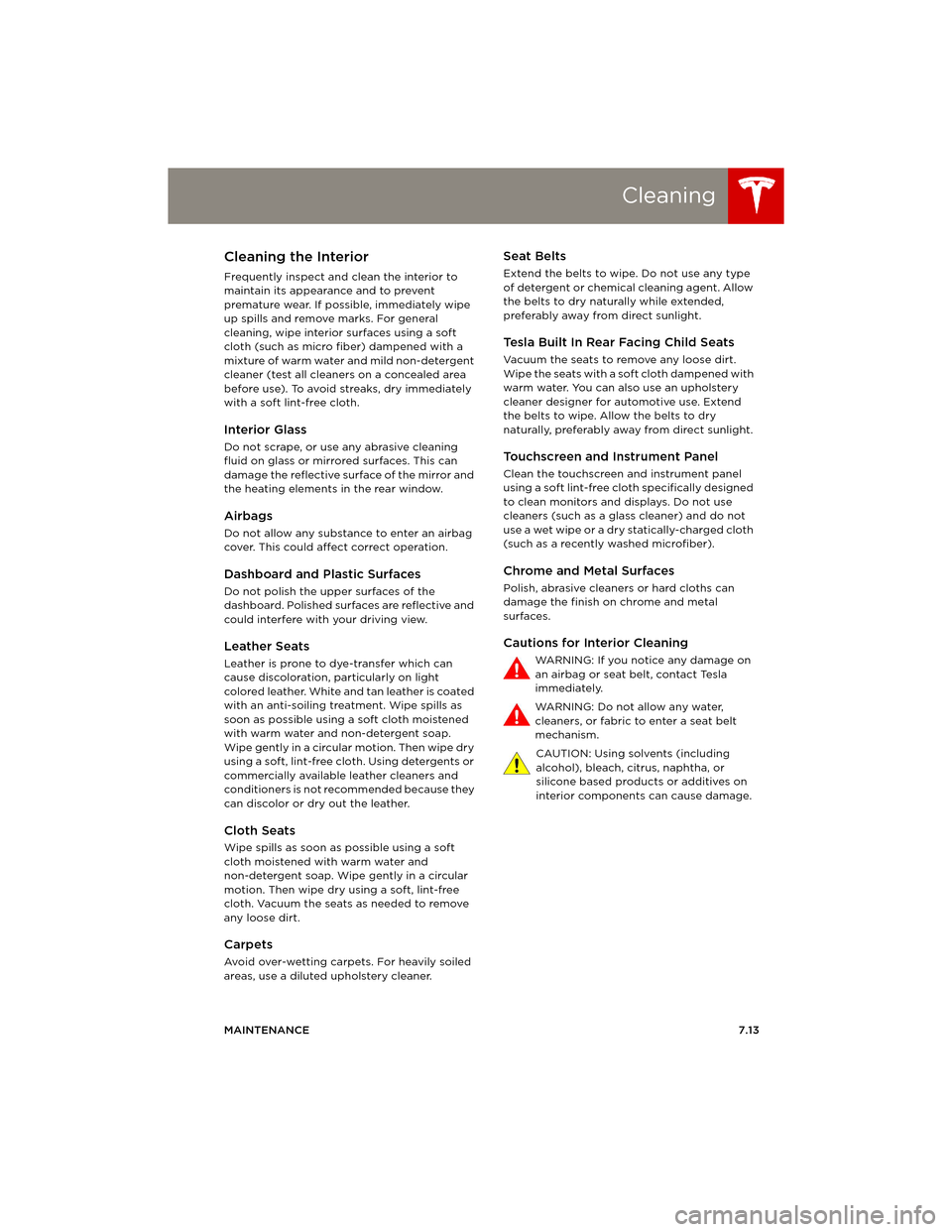

Cleaning
MAINTENANCE7.13
Cleaning the Interior
Frequently inspect and clean the interior to
maintain its appearance and to prevent
premature wear. If possible, immediately wipe
up spills and remove marks. For general
cleaning, wipe interior surfaces using a soft
cloth (such as micro fiber) dampened with a
mixture of warm water and mild non-detergent
cleaner (test all cleaners on a concealed area
before use). To avoid streaks, dry immediately
with a soft lint-free cloth.
Interior Glass
Do not scrape, or use any abrasive cleaning
fluid on glass or mirrored surfaces. This can
damage the reflective surface of the mirror and
the heating elements in the rear window.
Airbags
Do not allow any substance to enter an airbag
cover. This could affect correct operation.
Dashboard and Plastic Surfaces
Do not polish the upper surfaces of the
dashboard. Polished surfaces are reflective and
could interfere with your driving view.
Leather Seats
Leather is prone to dye-transfer which can
cause discoloration, particularly on light
colored leather. White and tan leather is coated
with an anti-soiling treatment. Wipe spills as
soon as possible using a soft cloth moistened
with warm water and non-detergent soap.
Wipe gently in a circular motion. Then wipe dry
using a soft, lint-free cloth. Using detergents or
commercially available leather cleaners and
conditioners is not recommended because they
can discolor or dry out the leather.
Cloth Seats
Wipe spills as soon as possible using a soft
cloth moistened with warm water and
non-detergent soap. Wipe gently in a circular
motion. Then wipe dry using a soft, lint-free
cloth. Vacuum the seats as needed to remove
any loose dirt.
Carpets
Avoid over-wetting carpets. For heavily soiled
areas, use a diluted upholstery cleaner.
Seat Belts
Extend the belts to wipe. Do not use any type
of detergent or chemical cleaning agent. Allow
the belts to dry naturally while extended,
preferably away from direct sunlight.
Tesla Built In Rear Facing Child Seats
Vacuum the seats to remove any loose dirt.
Wipe the seats with a soft cloth dampened with
warm water. You can also use an upholstery
cleaner designer for automotive use. Extend
the belts to wipe. Allow the belts to dry
naturally, preferably away from direct sunlight.
Touchscreen and Instrument Panel
Clean the touchscreen and instrument panel
using a soft lint-free cloth specifically designed
to clean monitors and displays. Do not use
cleaners (such as a glass cleaner) and do not
use a wet wipe or a dry statically-charged cloth
(such as a recently washed microfiber).
Chrome and Metal Surfaces
Polish, abrasive cleaners or hard cloths can
damage the finish on chrome and metal
surfaces.
Cautions for Interior Cleaning
WARNING: If you notice any damage on
an airbag or seat belt, contact Tesla
immediately.
WARNING: Do not allow any water,
cleaners, or fabric to enter a seat belt
mechanism.
CAUTION: Using solvents (including
alcohol), bleach, citrus, naphtha, or
silicone based products or additives on
interior components can cause damage.
book.book Page 13 Friday, July 19, 2013 12:53 PM

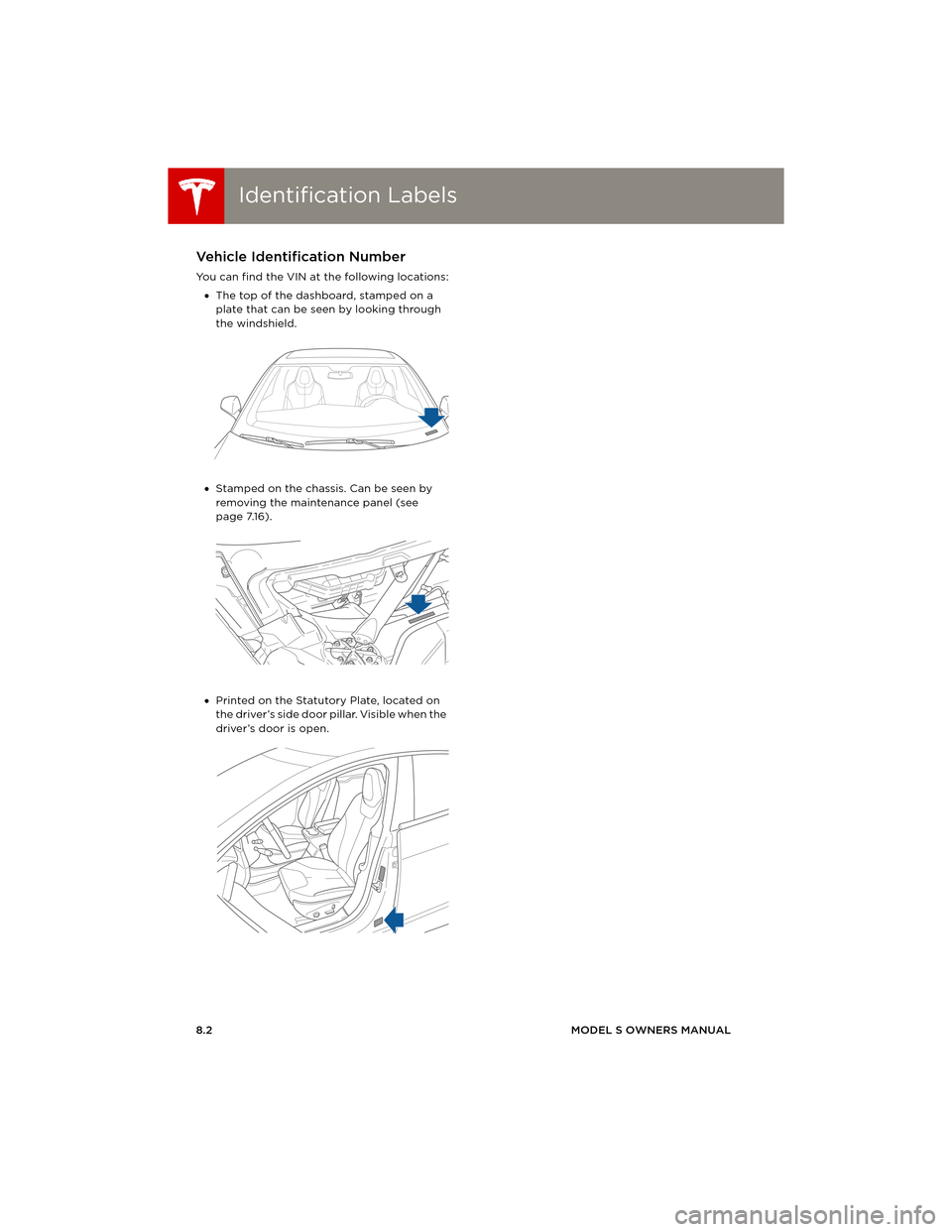

Identification LabelsIdentification Labels
8.2MODEL S OWNERS MANUAL
SPECIFICATIONS
Identification LabelsVehicle Identification Number
You can find the VIN at the following locations:
•The top of the dashboard, stamped on a
plate that can be seen by looking through
the windshield.
•Stamped on the chassis. Can be seen by
removing the maintenance panel (see
page 7.16).
•Printed on the Statutory Plate, located on
the driver’s side door pillar. Visible when the
driver’s door is open.
book.book Page 2 Friday, July 19, 2013 12:53 PM

About Roadside AssistanceAbout Roadside Assistance
9.2MODEL S OWNERS MANUAL
ROADSIDE ASSISTANCE
About Roadside AssistanceContacting Roadside Assistance
Tesla Roadside Assistance is available to you,
24 hours a day, 365 days a year for the duration
of your warranty period.
To contact Roadside Assistance, call the
number for your region, listed on this page.
Advise the representative of the vehicle
identification number (VIN), license plate
number, mileage, your location, and the nature
of the problem. The VIN is on the upper
dashboard on the driver’s side of your vehicle
and is visible through the windshield.
For a complete description of the terms and
conditions of the Tesla Roadside Assistance
Program, refer to the policy that was provided
to you by Tesla when you purchased Model S.
It is your responsibility to provide vehicle
transporters with instructions on how to
transport Model S (see page 9.3).
Regional Roadside Assistance
Numbers
A toll free number is available in most European
regions. If a toll free number is not listed below,
go to www.teslamotors.com to check if a toll
free number has become available in your area.
Andorra (Toll) . . . . . . . . . . . . + 31 (0)13 799 9501
Andorra (Toll Free) . . . . . . . . . . + 0800 914 590
Austria (Toll) . . . . . . . . . . . . + 31 (0)13 799 9502
Austria (Toll Free) . . . . . . . . . . + 0800 88 0992
Belgium (Toll) . . . . . . . . . . . + 31 (0)13 799 9503
Belgium (Toll Free) . . . . . . . . . . . + 0800 29 027
Bulgaria (Toll) . . . . . . . . . . . + 31 (0)13 799 9504
Croatia (Toll) . . . . . . . . . . . . + 31 (0)13 799 9505
Cyprus (Toll) . . . . . . . . . . . . + 31 (0)13 799 9506
Czech Republic (Toll) . . . . + 31 (0)13 799 9507
Denmark (Toll) . . . . . . . . . . + 31 (0)13 799 9508
Denmark (Toll Free) . . . . . . . . . . . . + 800 71 1024
Estonia (Toll) . . . . . . . . . . . . + 31 (0)13 799 9509
Finland (Toll) . . . . . . . . . . . . . + 31 (0)13 799 9510
France (Toll) . . . . . . . . . . . . . + 31 (0)13 799 9511
France (Toll Free) . . . . . . . . . . . . + 0800 94 1029
Germany (Toll) . . . . . . . . . . . + 31 (0)13 799 9512
Germany (Toll Free) . . . . . . . . . + 0800 5893542
Gibraltar . . . . . . . . . . . . . . . . . + 31 (0)13 799 9513
Greece (Toll) . . . . . . . . . . . . . + 31 (0)13 799 9514Greece (Toll Free) . . . . + 0800 1809 205 0645
Hungary (Toll) . . . . . . . . . . . . + 31 (0)13 799 9515
Iceland (Toll) . . . . . . . . . . . . . + 31 (0)13 799 9516
Ireland (Toll) . . . . . . . . . . . . . + 31 (0)13 799 9517
Italy (Toll) . . . . . . . . . . . . . . . + 31 (0)13 799 9518
Italy (Toll Free) . . . . . . . . . . . . . . . + 800 122 709
Latvia . . . . . . . . . . . . . . . . . . . + 31 (0)13 799 9519
Liechtenstein (Toll) . . . . . . + 31 (0)13 799 9520
Liechtenstein (Toll Free) . . . . . . + 0800 558 847
Lithuania (Toll) . . . . . . . . . . . + 31 (0)13 799 9521
Luxembourg (Toll) . . . . . . . . + 31 (0)13 799 9522
Luxembourg (Toll Free) . . . + 0800 8002 2538
Malta (Toll) . . . . . . . . . . . . . + 31 (0)13 799 9523
Monaco (Toll) . . . . . . . . . . . . + 31 (0)13 799 9524
Monaco (Toll Free) . . . . . . . . . . . + 0800 94 1029
Netherlands (Toll) . . . . . . . . + 31 (0)13 799 9525
Netherlands (Toll Free) . . . . . . + 0800 0200160
Norway (Toll) . . . . . . . . . . . . + 31 (0)13 799 9527
Norway (Toll Free) . . . . . . . . . . . . . . + 800 11 093
Poland (Toll) . . . . . . . . . . . . + 31 (0)13 799 9528
Poland (Toll Free). . . . . . . . . . . . + 800 141 01492
Portugal (Toll) . . . . . . . . . . . . + 31 (0)13 799 9529
Romania (Toll) . . . . . . . . . . + 31 (0)13 799 9530
San Marino (Toll) . . . . . . . . . + 31 (0)13 799 9531
Slovakia (Toll) . . . . . . . . . . . . + 31 (0)13 799 9532
Slovenia (Toll) . . . . . . . . . . . . + 31 (0)13 799 9533
Spain (Toll) . . . . . . . . . . . . . .+ 31 (0)13 799 9534
Sweden (Toll) . . . . . . . . . . . . + 31 (0)13 799 9535
Switzerland (Toll) . . . . . . . . .+ 31 (0)13 799 9536
Switzerland (Toll Free) . . . . . . . + 0800 83 7521
United Kingdom (Toll). . . . . + 31 (0)13 799 9537
United Kingdom (Toll Free) . . + 0800 358 5774
assistance.fm Page 2 Thursday, July 25, 2013 10:59 AM

ii
INDEXINDEX
safety information ......................................... 3-10
seat belt retained, installing ........................ 3-8
testing ................................................................ 3-10
upper tether straps ....................................... 3-10
cleaning
exterior
...............................................................7-12
interior ............................................................... 7-13
climate control
operating tips
.................................................. 5-10
overview .............................................................. 5-8
cold weather option .......................................... 4-15
console
armrests
............................................................ 2-14
cup holders ...................................................... 2-14
power socket ................................................... 5-16
USB ports .......................................................... 5-16
contact information
Tesla
.................................................................... 10-3
coolant
Battery (high voltage)
................................. 7-16
replacement of ................................................. 7-2
cornering lights ................................................... 4-13
cruise control ...................................................... 4-23
cup holders ........................................................... 2-14
current, charging .................................................. 6-7
customizing Model S ........................................... 5-6
D
DAB radio .............................................................. 5-13
dashboard overview ............................................. 1-2
data recording ..................................................... 10-2
de-icing ................................................................... 4-15
delivery mileage .................................................. 10-2
devices
Bluetooth, playing audio files
................... 5-15
connecting ....................................................... 5-16
playing audio files from ............................... 5-15
dimensions .............................................................. 8-5
dome (map) lights .............................................. 4-11
door handles
exterior
................................................................2-4
interior .................................................................2-4
door labels ............................................................... 8-3
doors
child protection locks
.................................... 2-5
drive-away locking .......................................... 2-5
interior rear, opening with no power ....... 2-6
locking and unlocking, key .......................... 2-2
locking and unlocking, touchscreen ........2-4
opening exterior, no power ......................... 2-5
opening, exterior handles .............................2-4
opening, interior handles ..............................2-4
unlocking when key does not work ......... 2-5
walk-away locking ........................................... 2-5
drive gear ................................................................4-7
drive-away locking ............................................... 2-5driver
profiles, creating
............................................. 4-2
seat adjustment ................................................3-2
seating position ................................................3-2
driving
energy gains
.................................................... 4-21
seating position ................................................3-2
starting Model S .............................................. 4-6
tips to maximize range ................................ 4-19
E
electric parking brake ....................................... 4-21
emergency flashers ............................................4-14
emergency rear door opening ........................ 2-6
energy
app
....................................................................... 4-19
displaying usage of .......................................4-19
gained from regenerative braking .......... 4-21
graph .................................................................. 4-19
range information ........................................... 4-8
tips to minimize usage of ........................... 4-19
event data recording ......................................... 10-2
exterior
car cover
........................................................... 7-14
cleaning ............................................................. 7-12
dimensions ..........................................................8-5
overview ...............................................................1-3
polishing, touch up, & repair ...................... 7-14
specifications .....................................................8-5
exterior lights, controlling ................................ 4-11
F
fan speed, interior ................................................ 5-9
favorites, adding and removing .................... 5-15
features, downloading new ........................... 5-24
flash drives
connecting
........................................................ 5-16
playing audio from ........................................ 5-15
flashers, warning .................................................4-14
flat tire repair ..........................................................7-8
floor mats ............................................................... 7-14
fluids
Battery (high voltage)
................................. 7-16
brake ................................................................... 7-17
replacement of ..................................................7-2
windshield washer ......................................... 7-18
fog lights ................................................................. 4-11
free rolling .............................................................. 4-7
front passenger detection ............................... 3-17
front suspension specifications .......................8-7
front trunk
closing
................................................................ 2-10
opening .............................................................. 2-10
book.book Page ii Friday, July 19, 2013 12:53 PM
