warning TESLA MODEL S 2014 Quick Guide (Europe)

Roadside Assistance......................2About Roadside Assistance.................................... 2
Contacting Roadside Assistance 2Regional Roadside Assistance Numbers 2
Instructions for Transporters..................................4
Use a Flatbed Only 4Disable Self-Leveling (air suspension vehicles only) 4Activate Tow Mode 4Connect the Tow Chain 5Pull Onto the Trailer and Secure the Wheels 5
Safety Information......................... 6Seat Belts....................................................................... 6
Wearing Seat Belts 6Wearing Seat Belts When Pregnant 6Seat Belt Pre-tensioners 7Testing Seat Belts 7Seat Belt Warnings 8
Child Safety Seats....................................................... 9
Guidelines for Seating Children 9Choosing a Child Safety Seat 9Seating Larger Children 11Installing Child Safety Seats 11Installing Seat Belt Retained Child Seats 11Installing ISOFIXChild Seats 12Attaching Upper Tether Straps 13Testing a Child Safety Seat 13Warnings - Child Safety Seats 14
Tesla Built-In Rear Facing Child Seats...............15
Usage Restrictions 15Opening 15Folding 16Seating a Child 17Warnings - Tesla Child Seats 18
Airbags.......................................................................... 19
Location of Airbags 19How the Airbags Work 20Types of Airbags 20Disabling the Passenger Front Airbag 21Inflation Effects 22Airbag Warning Indicator 22Airbag Warnings 22
Tire Care and Maintenance................................... 23
Maintaining Tire Pressures 23Inspecting and Maintaining Tires 24Replacing Tires and Wheels 25Using Tire Chains 26Tire Pressure Monitoring 26Understanding Tire Markings 28
Vehicle Loading........................................................ 30
Load Capacity Labeling 30Calculating Load Limits 31Towing a Trailer 31
Disclaimers................................................................... 31
Vehicle Telematics/Data Recorders 31Quality Control 32
Reporting Concerns.................................................33
Contacting Tesla 33
Warranty......................................... 34General Warranty Provisions............................... 34
Who is the Warrantor? 34What Vehicles are Covered? 34Multiple Warranty Conditions 34Limitations and Disclaimers 34Your Rights Under Local Law 35Ownership Transfer 35Who Can Enforce this New Vehicle Limited Warranty? 35When Does the Warranty Period Begin and End? 35
Warranty Coverage................................................. 35
Basic Vehicle Limited Warranty 36Supplemental Restraint System Limited Warranty 36Battery Limited Warranty 36
Exclusions and Limitations....................................37
Warranty limitations 37Additional limitations and exclusions 37Voided warranty 38Damages 38
Obtaining Warranty Service.................................39
Payment of Tax for Repairs 39Reasonable Time for Repairs 39Modifications and Waivers 40
Warranty Enforcement Laws and
Dispute Resolution.................................................. 40 Country Specific Consumer Disclosure............ 41
Bulgaria 41France 42Italy 42Norway 43Poland 44San Marino 44Contents

Instructions for Transporters
Use a Flatbed Only
Use a flatbed trailer only, unless otherwise specified by Tesla. Do not transport Model Swith the tires directly on the ground.Caution: Damage caused by transporting
is not covered by the warranty.Caution: To transport Model S, follow the
instructions exactly as described next.
Disable Self-Leveling (air suspension
vehicles only)
If Model S is equipped with Smart Air Suspension, it automatically self-levels, evenwhen power is off. To prevent damage, youmust activate Jack mode to disable self-
leveling:
1. Touch Controls > Driving on the
touchscreen.
2. Press the brake pedal, then touch Very
High to maximize height.
3. Touch Jack.
When Jack mode is active,
Model S displays this indicator
light on the instrument panel,
along with a message telling you
that active suspension is
disabled.
Note: Jack mode cancels when Model S is
driven over 7 km/h.
Warning: Failure to activate Jack mode
on a Model S equipped with Smart Air
Suspension can result in the vehicle becoming loose during transport, which
may cause significant damage.Activate Tow Mode
Model S may automatically shift into Park
when it detects the driver leaving the vehicle, even if it has previously been shifted intoNeutral. To keep Model S in Neutral (which
disengages the parking brake), you must use
the touchscreen to activate Tow mode:
1. Shift into Park.
2. Press the brake pedal, then on the
touchscreen, touch Controls > E-Brake &
Power Off > Tow Mode .When Tow mode is active, Model S
displays this indicator light on the
instrument panel, along with a
message telling you that Model S is
free-rolling.
Note: Tow mode cancels when Model S is
shifted into Park.
Caution: If the electrical system is not
working, and you therefore cannot
release the electric parking brake,
attempt to quick start the 12V battery.
For instructions, call Tesla. If a situation
occurs where you cannot disengage the
parking brake, use tire skids or transport
Model S for the shortest possible distance
using wheeled dollies. Before doing so,
always check the dolly manufacturer’s specifications and recommended load
capacity.
Roadside Assistance
4Model S Quick Guide

Seat BeltsWearing Seat Belts
Using seat belts and child safety seats is the
most effective way to protect occupants if a
collision occurs. Therefore, wearing a seat belt
is required by law in most jurisdictions.
Both the driver and passenger seats are equipped with three-point inertia reel seatbelts. Inertia reel belts are automatically
tensioned to allow occupants to move
comfortably during normal driving conditions.
The seat belt reel automatically locks to prevent movement of occupants if Model S
experiences a force associated with hard
acceleration, braking, cornering, or an impact in a collision.The seat belt reminder on the
instrument panel alerts you if a seat
belt for an occupied seat is not
fastened. If the belt remains
unfastened, the reminder flashes and
an intermittent chime sounds. If all
occupants are buckled up and the
reminder stays on, re-fasten seat
belts to ensure they are correctly
latched. Also remove any heavy
objects (such as a briefcase) from an
unoccupied seat. If the reminder
light continues to stay on, contact
Tesla.
To Fasten a Belt
1. Ensure correct positioning of the seat.
2.Draw the belt out smoothly, ensuring the
belt lays flat across the pelvis, chest and
mid-point of your collar bone, between
the neck and shoulder.
3. Insert the latch plate into the buckle and
press together until you hear a click indicating it is locked in place.
4. Pull the belt to check that it is securely
fastened.
5. Pull the diagonal part of the belt toward
the reel to remove excess slack.
To Release a Belt
Hold the belt near the buckle to prevent the
belt from retracting too quickly, then press
the button on the buckle. The belt retracts
automatically. Ensure there is no obstruction
that prevents the belt from fully retracting.
The belt should not hang loose. If a seat belt does not fully retract, contact Tesla.
Wearing Seat Belts When Pregnant
Do not put the lap or shoulder sections of the
seat belt over the abdominal area. Wear the
lap section of the belt as low as possible
across the hips, not the waist. Position the
shoulder portion of the belt between the
breasts and to the side of the abdomen.
Consult your doctor for specific guidance.Warning: Never place anything between
you and the seat belt to cushion the
impact in the event of an accident.
Safety Information
6Model S Quick Guide

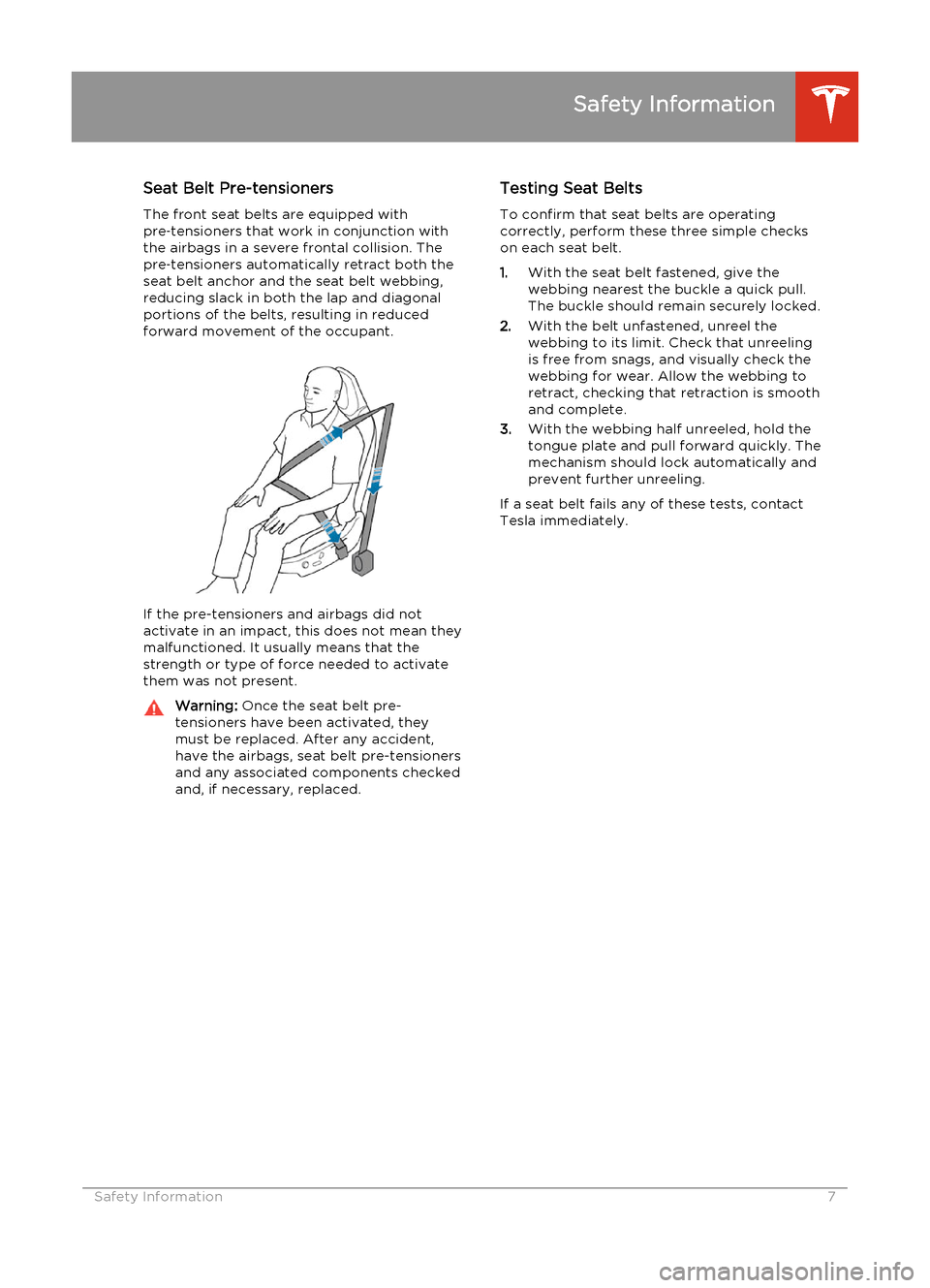

Seat Belt Pre-tensionersThe front seat belts are equipped with
pre ‑tensioners that work in conjunction with
the airbags in a severe frontal collision. The
pre ‑tensioners automatically retract both the
seat belt anchor and the seat belt webbing,
reducing slack in both the lap and diagonal
portions of the belts, resulting in reduced
forward movement of the occupant.
If the pre-tensioners and airbags did not activate in an impact, this does not mean they
malfunctioned. It usually means that the
strength or type of force needed to activate them was not present.
Warning: Once the seat belt pre-
tensioners have been activated, they
must be replaced. After any accident,
have the airbags, seat belt pre-tensioners and any associated components checkedand, if necessary, replaced.Testing Seat Belts
To confirm that seat belts are operating
correctly, perform these three simple checks on each seat belt.
1. With the seat belt fastened, give the
webbing nearest the buckle a quick pull.
The buckle should remain securely locked.
2. With the belt unfastened, unreel the
webbing to its limit. Check that unreeling
is free from snags, and visually check the
webbing for wear. Allow the webbing to
retract, checking that retraction is smooth
and complete.
3. With the webbing half unreeled, hold the
tongue plate and pull forward quickly. The
mechanism should lock automatically and
prevent further unreeling.
If a seat belt fails any of these tests, contact Tesla immediately.
Safety Information
Safety Information7

Seat Belt WarningsWarning: Seat belts should be worn by all
occupants at all times, even if driving for a very short distance. Failure to do so
increases the risk of injury or death if an
accident occurs.Warning: Secure small children in a
suitable child safety seat (see Choosing a Child Safety Seat on page 9). Always
follow the child safety seat
manufacturer's instructions when
installing.Warning: Ensure that all seat belts are
worn correctly. An improperly worn seat
belt increases the risk of injury or death if
an accident occurs.Warning: Do not wear seat belts over
hard, fragile or sharp items in clothing, such as pens, keys, eyeglasses, etc. The
pressure from the seat belt on such items can cause injury.Warning: Seat belts should not be worn
with any part of the strap twisted.Warning: Each seat belt assembly must
be used by one occupant only. It is
dangerous to put a seat belt around a
child being carried on an occupant’s lap.Warning: Seat belts that have been worn
in an accident must be inspected or
replaced by Tesla, even if damage to the
assembly is not obvious.Warning: Seat belts that show signs of
wear (such as fraying), or have been cut or damaged in any way, must be replacedby Tesla.Warning: Avoid contaminating a seat
belt’s components with any chemicals,
liquids, grit, dirt or cleaning products. If a
seat belt fails to retract or latch into the
buckle, it must be replaced immediately.
Contact Tesla.Warning: Do not make modifications or
additions that can prevent a seat belt
mechanism from taking up slack, or that
can prevent a seat belt from being
adjusted to remove slack. A slack belt
greatly reduces occupant protection.Warning: Do not make modifications that
can interfere with the operation of a seat
belt, or that can cause a seat belt to
become inoperable.Warning: When seat belts are not in use,
they should be fully retracted and not hanging loose. If a seat belt does not fullyretract, contact Tesla.
Safety Information
8Model S Quick Guide

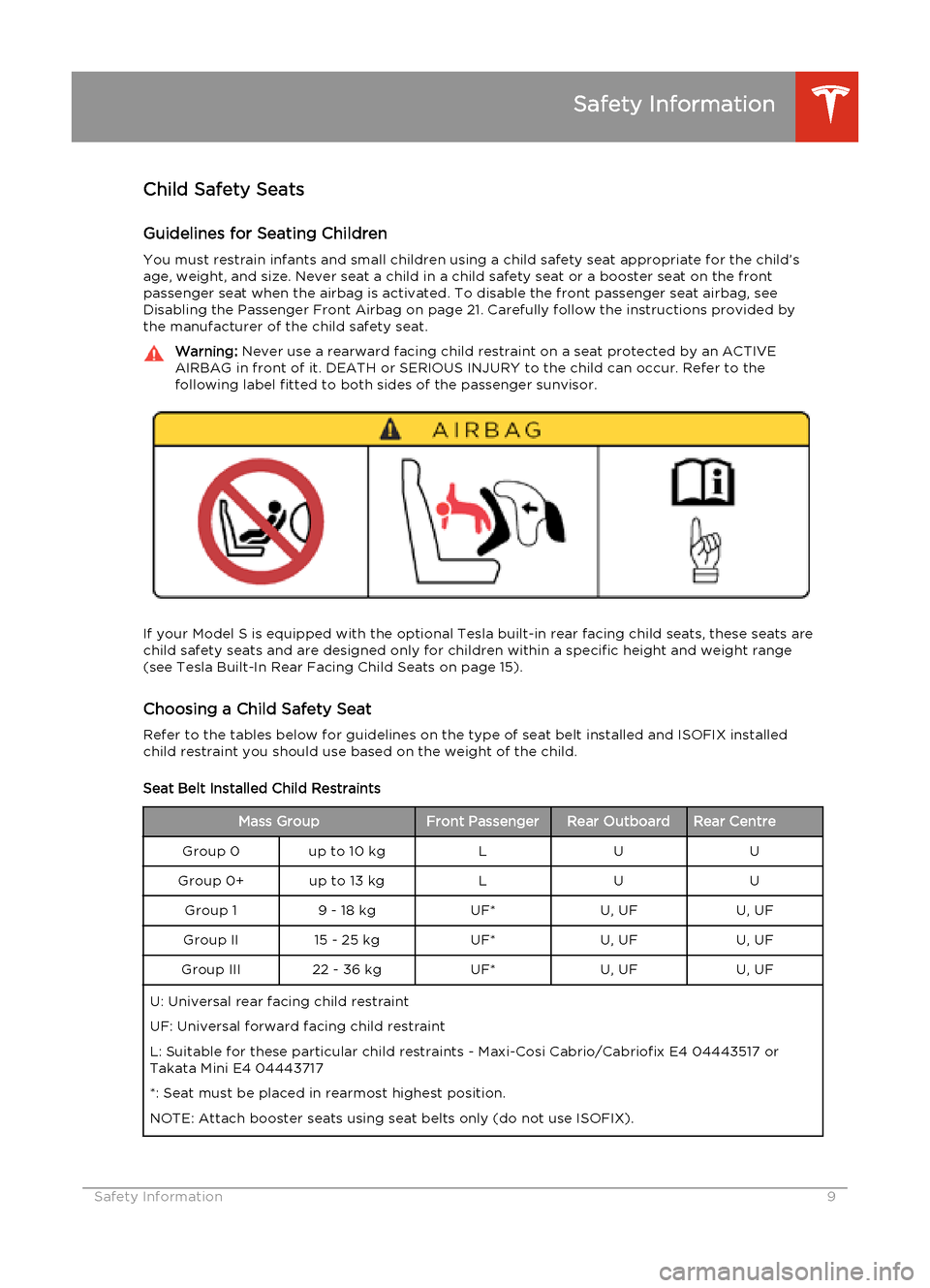

Child Safety SeatsGuidelines for Seating ChildrenYou must restrain infants and small children using a child safety seat appropriate for the child’sage, weight, and size. Never seat a child in a child safety seat or a booster seat on the front
passenger seat when the airbag is activated. To disable the front passenger seat airbag, see
Disabling the Passenger Front Airbag on page 21. Carefully follow the instructions provided by the manufacturer of the child safety seat.Warning: Never use a rearward facing child restraint on a seat protected by an ACTIVE
AIRBAG in front of it. DEATH or SERIOUS INJURY to the child can occur. Refer to the
following label fitted to both sides of the passenger sunvisor.
If your Model S is equipped with the optional Tesla built-in rear facing child seats, these seats are
child safety seats and are designed only for children within a specific height and weight range
(see Tesla Built-In Rear Facing Child Seats on page 15).
Choosing a Child Safety Seat
Refer to the tables below for guidelines on the type of seat belt installed and ISOFIX installed
child restraint you should use based on the weight of the child.
Seat Belt Installed Child Restraints
Mass GroupFront PassengerRear OutboardRear CentreGroup 0up to 10 kgLUUGroup 0+up to 13 kgLUUGroup 19 - 18 kgUF*U, UFU, UFGroup II15 - 25 kgUF*U, UFU, UFGroup III22 - 36 kgUF*U, UFU, UFU: Universal rear facing child restraint
UF: Universal forward facing child restraint
L: Suitable for these particular child restraints - Maxi-Cosi Cabrio/Cabriofix E4 04443517 or
Takata Mini E4 04443717
*: Seat must be placed in rearmost highest position.
NOTE: Attach booster seats using seat belts only (do not use ISOFIX).
Safety Information
Safety Information9

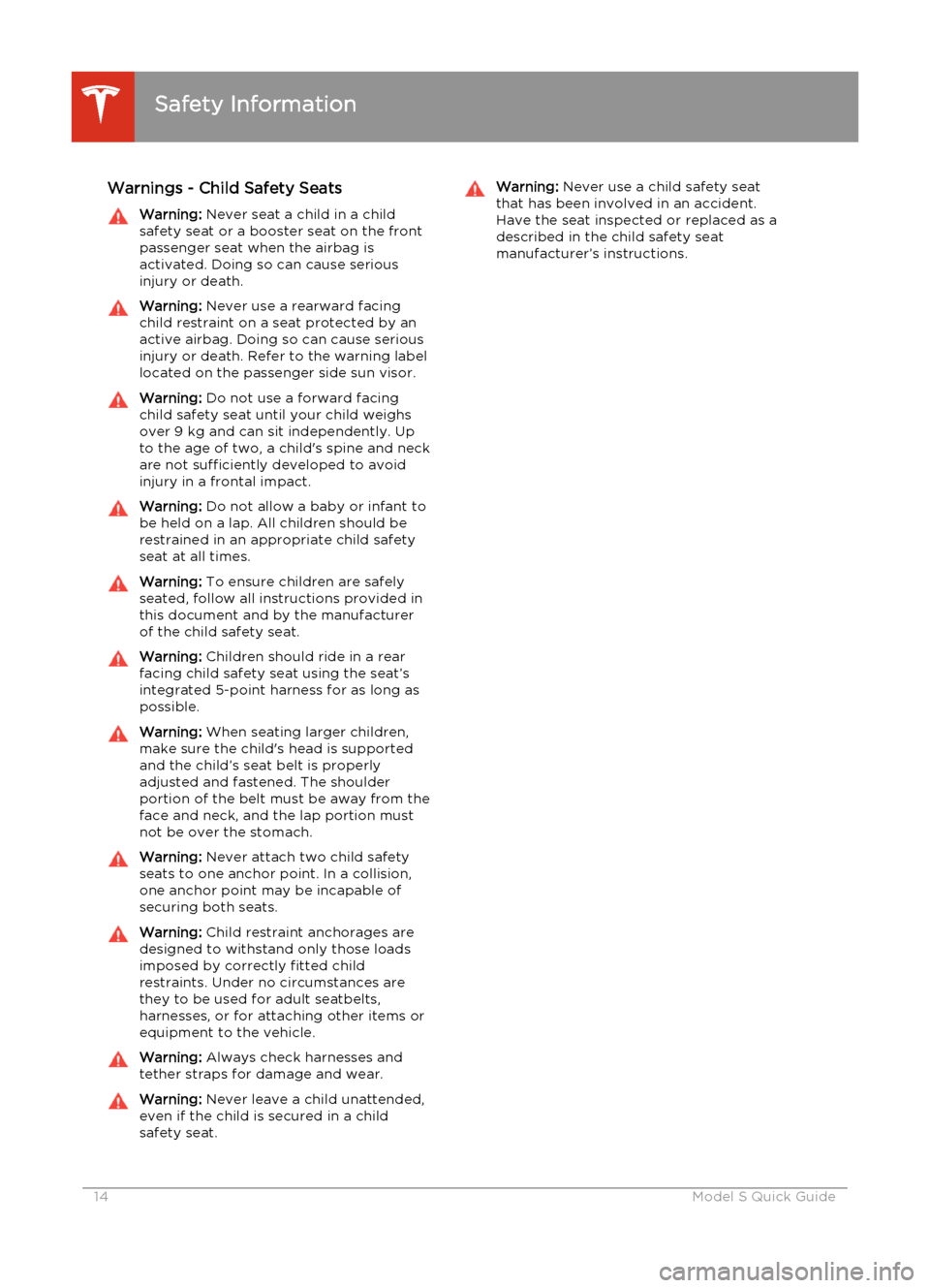

Warnings - Child Safety SeatsWarning: Never seat a child in a child
safety seat or a booster seat on the front
passenger seat when the airbag is
activated. Doing so can cause serious injury or death.Warning: Never use a rearward facing
child restraint on a seat protected by an active airbag. Doing so can cause serious
injury or death. Refer to the warning label located on the passenger side sun visor.Warning: Do not use a forward facing
child safety seat until your child weighs
over 9 kg and can sit independently. Up to the age of two, a child's spine and neckare not sufficiently developed to avoidinjury in a frontal impact.Warning: Do not allow a baby or infant to
be held on a lap. All children should be
restrained in an appropriate child safety
seat at all times.Warning: To ensure children are safely
seated, follow all instructions provided in this document and by the manufacturerof the child safety seat.Warning: Children should ride in a rear
facing child safety seat using the seat’s
integrated 5-point harness for as long as
possible.Warning: When seating larger children,
make sure the child's head is supported and the child’s seat belt is properlyadjusted and fastened. The shoulder
portion of the belt must be away from the face and neck, and the lap portion mustnot be over the stomach.Warning: Never attach two child safety
seats to one anchor point. In a collision, one anchor point may be incapable of
securing both seats.Warning: Child restraint anchorages are
designed to withstand only those loads imposed by correctly fitted child
restraints. Under no circumstances are
they to be used for adult seatbelts,
harnesses, or for attaching other items or equipment to the vehicle.Warning: Always check harnesses and
tether straps for damage and wear.Warning: Never leave a child unattended,
even if the child is secured in a child
safety seat.Warning: Never use a child safety seat
that has been involved in an accident.
Have the seat inspected or replaced as a
described in the child safety seat
manufacturer’s instructions.
Safety Information
14Model S Quick Guide

Warnings - Tesla Child SeatsWarning: The Tesla built-in rear facing
seats are child restraint systems and are approved to United Nations ECE
Regulation R44.04 standards for use by children in Mass Groups II and III,
weighing 15 - 36 kg. These seats must
only be used for children who are
between 3 and 12 years old, and 98 -
135 cm tall, provided the top of the
child’s head can not contact the interior.Warning: Do not use supplemental child
restraint systems, including booster seats,
in the Tesla built-in rear facing child seats.Warning: Always ensure that the top of
the child’s head cannot touch the vehicle and that the child is seated comfortablywith the seat belts correctly fastened.Warning: Follow all instructions and heed
all warnings related to the Tesla built-in
rear facing child seats. Failure to do so
can compromise occupant safety.Warning: Read all safety warnings and
labels attached to the seats.Warning: Do not leave children
unattended in Model S, even if the child is secured in a child safety seat or a Tesla
built-in rear facing child seat. In hot
weather, the interior temperature can reach dangerous levels that can result in
dehydration, serious injury or death.Warning: Do not remove or replace the
fabric on a Tesla built-in rear facing child
seat. The covers are an integral part of the restraint’s performance and shouldnot be removed or replaced with any
other type than those supplied by Tesla.Warning: If the Tesla built-in rear facing
child seats have been worn in an
accident, they must be inspected or
replaced by Tesla, even if damage is not
obvious.Warning: Before allowing a child to ride in
the Tesla built-in rear facing child seats, check that the seat is securely held in theupright position by trying to pull the seat
back toward you.Warning: Do not remove the built-in rear
facing child seats for any reason,
including cleaning. To ensure safety of
occupants, removal and installation mustbe performed by qualified Tesla service
technicians.Warning: Do not make modifications or
additions that can interfere with the
operation of the Tesla built-in rear facing
child seats.Warning: To prevent injury, ensure all
loose items (bags, luggage, etc.) are
secured. In an accident, or during hard
braking and sharp turns, loose items
could cause injury.
Safety Information
18Model S Quick Guide

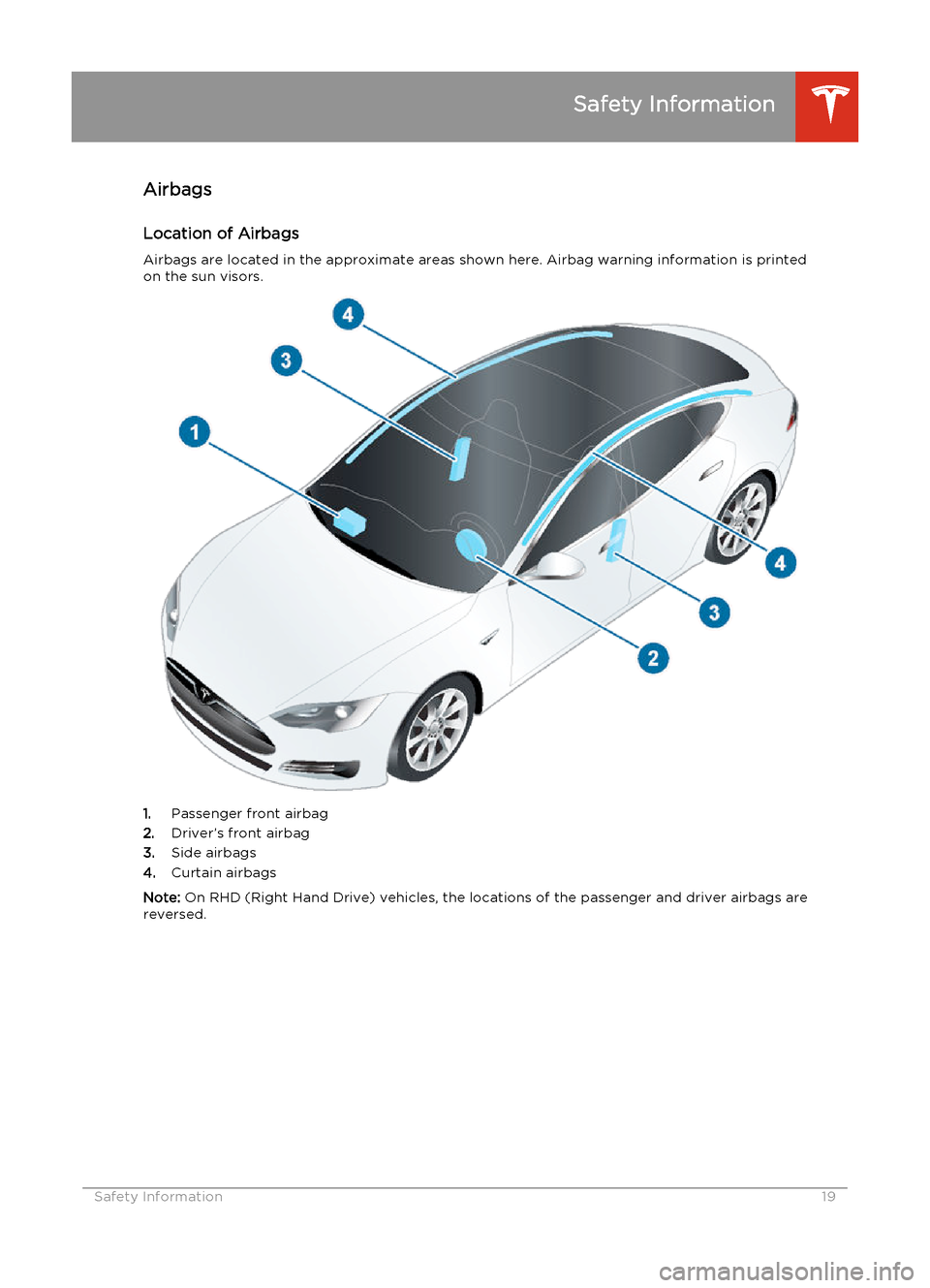

AirbagsLocation of Airbags
Airbags are located in the approximate areas shown here. Airbag warning information is printed on the sun visors.
1. Passenger front airbag
2. Driver’s front airbag
3. Side airbags
4. Curtain airbags
Note: On RHD (Right Hand Drive) vehicles, the locations of the passenger and driver airbags are
reversed.
Safety Information
Safety Information19

Disabling the Passenger Front AirbagWhen a child is seated in the front passenger
seat (even when the child is seated in a child safety seat or booster seat), you must disablethe passenger front airbag to prevent theairbag from injuring the child if a collision
occurs.
Note: Rear seats are the preferred location for
seating children in child safety seats.
To turn the passenger front airbag on or off, touch Controls > Settings > Safety & Security
> Passenger Front Airbag .
The ON/OFF status of the passenger front
airbag displays in the upper right corner of
the touchscreen. You can also turn the passenger airbag on or off by touching this
indicator.
If the status shows the airbag as on, even if
you have turned it off (or vice versa), contact
Tesla immediately.
Note: Model S has a capacitive touchscreen
and may not respond to your touch if you are wearing standard gloves. If the touchscreen is
not responding, remove gloves or wear gloves
with conductive fingertips for use with capacitive touchscreens.Warning: Never seat a child in a child
safety seat or a booster seat on the front
passenger seat when the airbag is
activated. Doing so can cause serious injury or death.Warning: If the control for the passenger
airbag does not appear to be functioning,
do not seat a passenger in the front seat.
Contact Tesla immediately to have the vehicle inspected and if necessary,
repaired.Warning: Do not use seat covers on
Model S. Doing so could restrict
deployment of the side air bags if an
accident occurs.
Safety Information
Safety Information21
