TESLA MODEL S 2017 Owner's Guide
Manufacturer: TESLA, Model Year: 2017, Model line: MODEL S, Model: TESLA MODEL S 2017Pages: 188, PDF Size: 5.46 MB
Page 21 of 188
Warning: Never place anything between
you and the seat belt to cushion the
impact in the event of an accident.Seat Belt Pre-tensioners
The front seat belts are equipped with
pre
Page 22 of 188
Testing Seat Belts
To
confirm that seat belts are operating
correctly, perform these three simple checks on each seat belt.
1. With the seat belt fastened, give the webbing nearest the buckle a quick pull.
The buckle should remain securely locked.
2. With the belt unfastened, unreel the webbing to its limit. Check that unreeling
is free from snags, and visually check the
webbing for wear. Allow the webbing to retract, checking that retraction is smooth
and complete.
3. With the webbing half unreeled, hold the tongue plate and pull forward quickly. The
mechanism should lock automatically and
prevent further unreeling.
If a seat belt fails any of these tests, contact
Tesla immediately.
For information about cleaning seat belts, see
Seat Belts on page 149.
Seat Belt Warnings
Warning: Seat belts should be worn by all
occupants at all times, even if driving for
a very short distance. Failure to do so
increases the risk of injury or death if an accident occurs.Warning: Secure small children in a
suitable child safety seat (see Child
Safety Seats on page 22). Always follow
the child safety seat manufacturer
Page 23 of 188

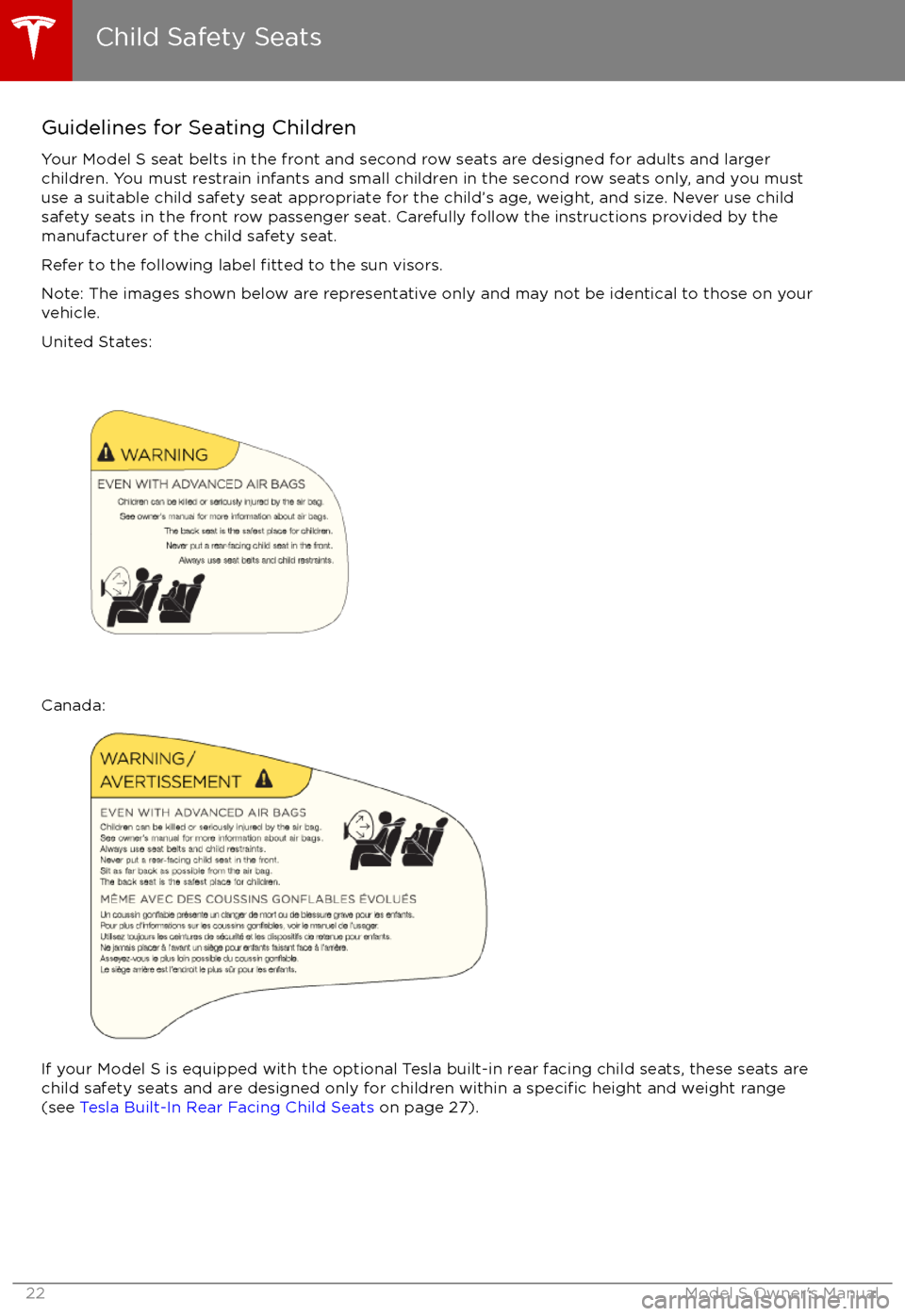

Guidelines for Seating Children
Your Model S seat belts in the front and second row seats are designed for adults and larger
children. You must restrain infants and small children in the second row seats only, and you must use a suitable child safety seat appropriate for the child
Page 24 of 188

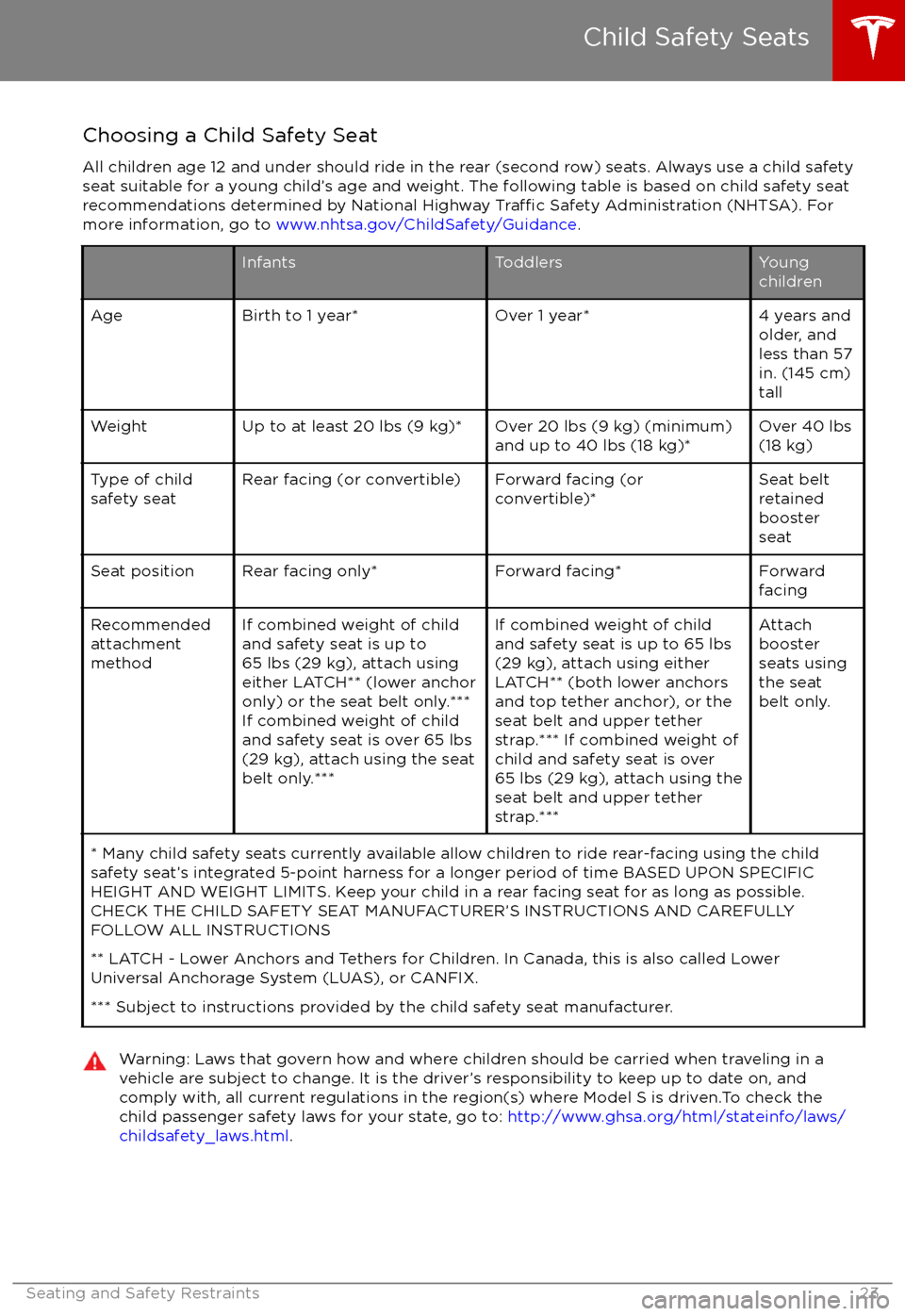

Choosing a Child Safety SeatAll children age 12 and under should ride in the rear (second row) seats. Always use a child safety
seat suitable for a young child
Page 25 of 188

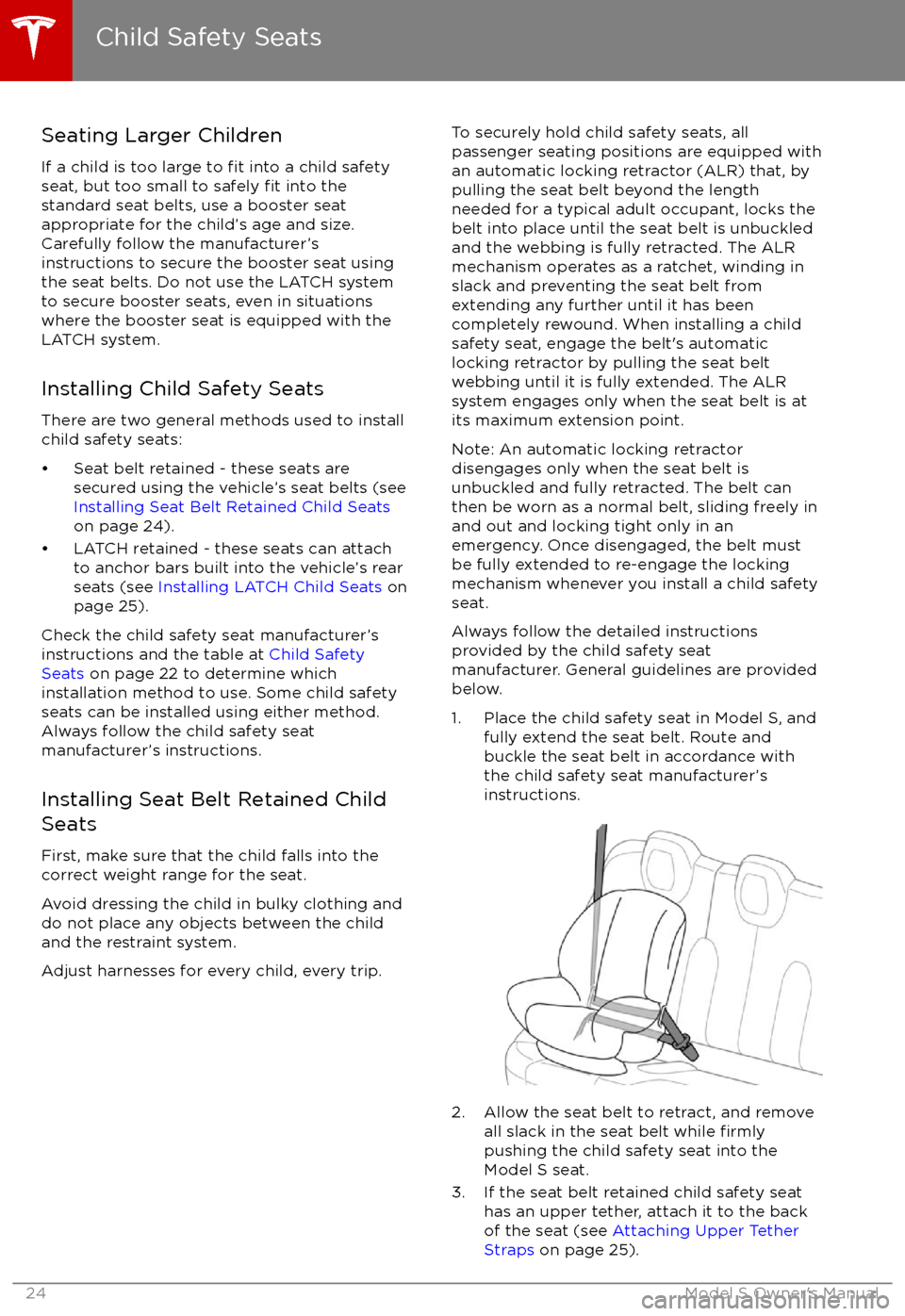

Seating Larger Children
If a child is too large to
fit into a child safety
seat, but too small to safely fit into the
standard seat belts, use a booster seat
appropriate for the child
Page 26 of 188

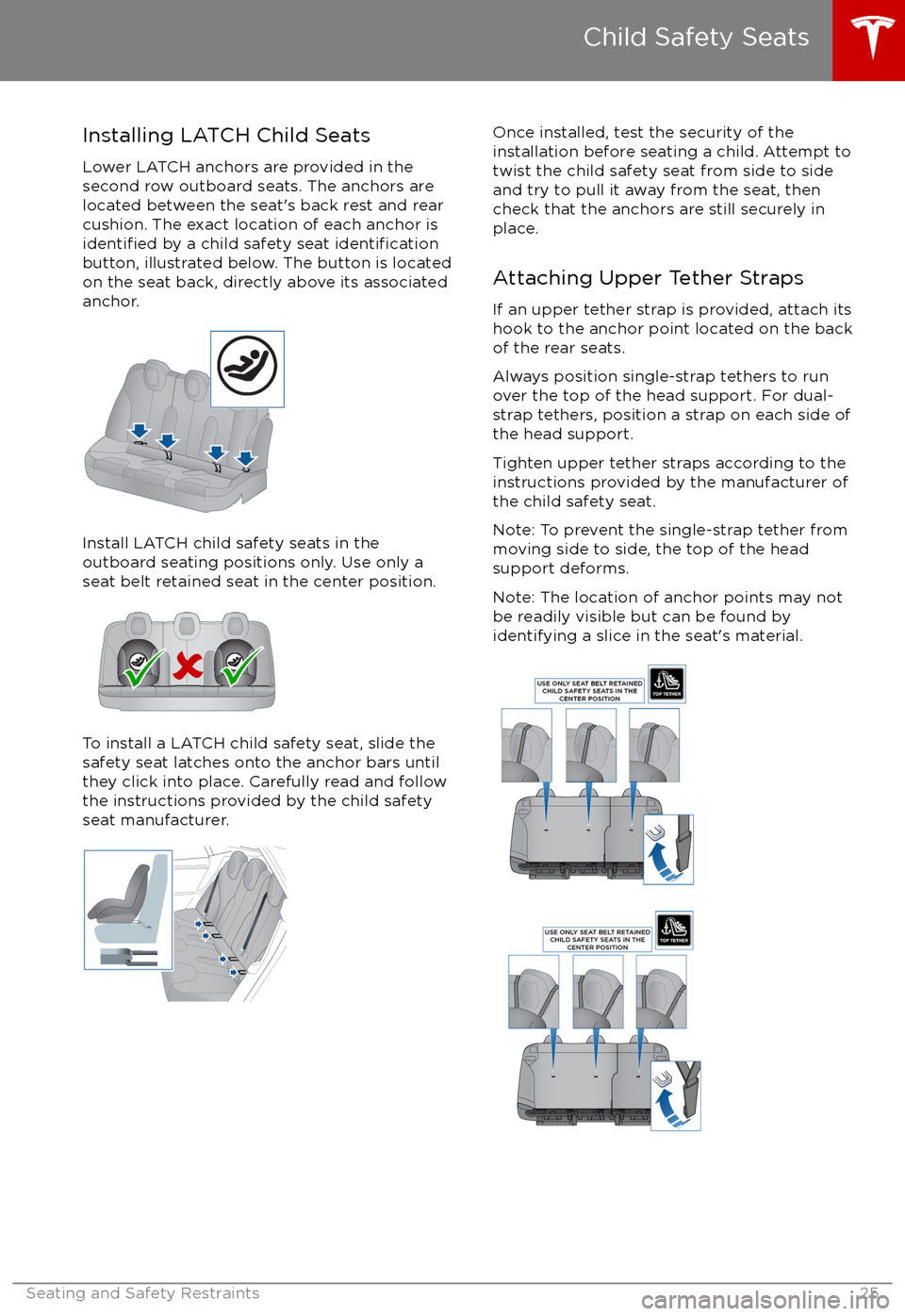

Installing LATCH Child Seats
Lower LATCH anchors are provided in the
second row outboard seats. The anchors are
located between the seat
Page 27 of 188
Testing a Child Safety Seat
Before seating a child, always make sure the
child safety seat is not loose:
1. Hold the child safety seat by the belt path and try to slide the safety seat from side
to side and front to back.
2. If the seat moves more than one inch (2.5 cm), it is too loose. Tighten the belt or
reconnect the LATCH retained child safety
seat.
3. If you are unable to reduce slack, try a
different seat location or try another child
safety seat.
Warnings - Child Safety Seats
Warning: Extreme hazard! Do not seat a
child on the front passenger seat even if
you are using a child safety seat. This seat
has an airbag in front of it. Although this airbag is disabled when Model S detects a
lightweight passenger, do not rely on technology to protect your child.Warning: Child restraint systems are
designed to be secured in vehicle seats
by lap belts or the lap belt portion of a lap-shoulder belt. Children could be
endangered in a crash if their child restraints are not properly secured in the
vehicleWarning: According to accident statistics,
children are safer when properly
restrained in the rear seating positions
than in the front seating positions.Warning: Do not use a forward facing child safety seat until your child weighs
over 20 lbs (9 kg) and can sit
independently. Up to the age of two, a
child
Page 28 of 188

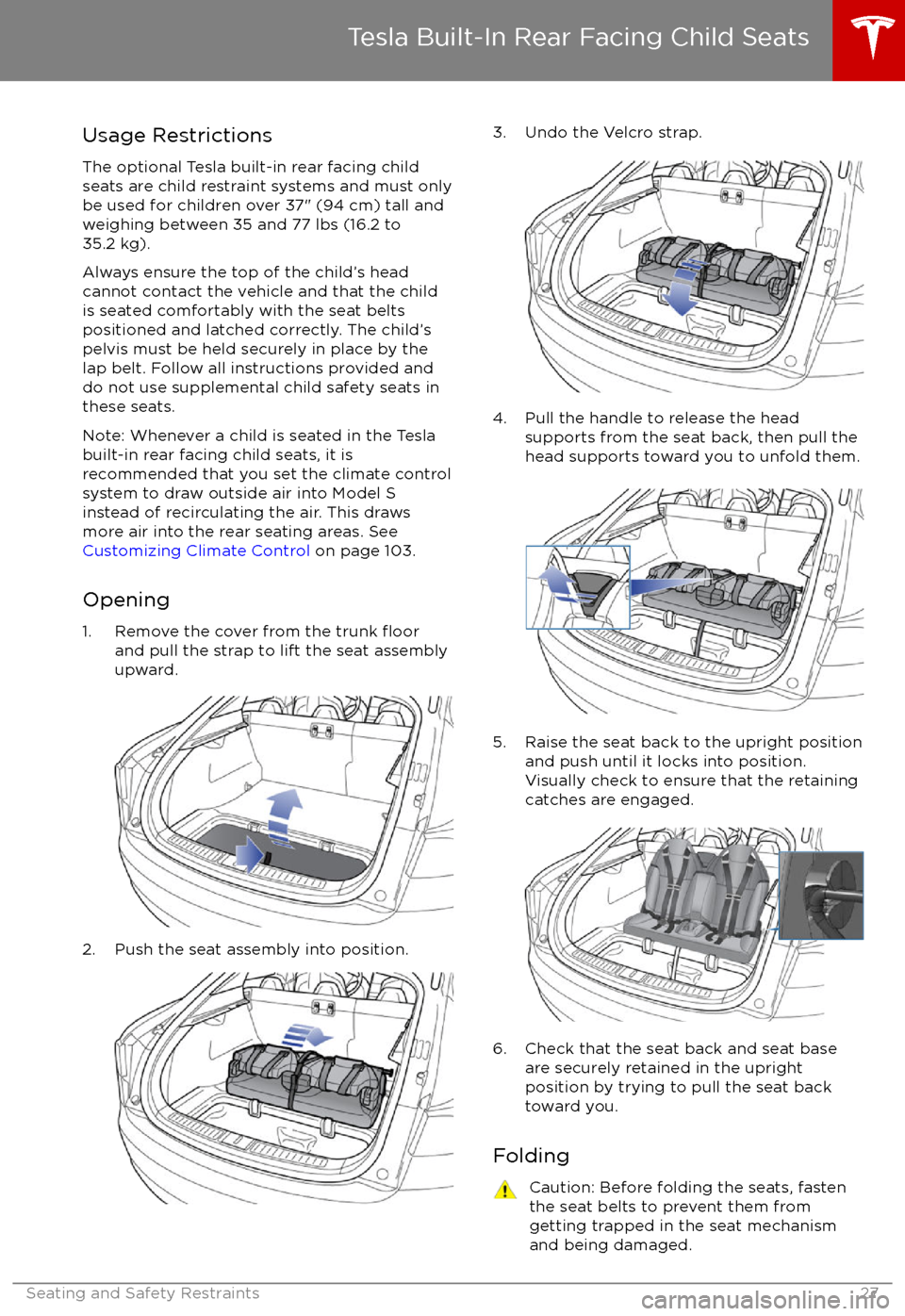

Usage RestrictionsThe optional Tesla built-in rear facing childseats are child restraint systems and must onlybe used for children over 37" (94 cm) tall andweighing between 35 and 77 lbs (16.2 to
35.2 kg).
Always ensure the top of the child
Page 29 of 188
1. Pull the handle to release the seat backand pull the seat back fully forward.
2. Push the lever to release the head supports from the seat back, then fold
back onto the seat.
3. Secure the Velcro strap.
4. Pull the strap at the rear of the seat to fold
the seat assembly into the trunk floor.
5. Replace the cover on the trunk floor.
Tesla Built-In Rear Facing Child Seats
28Model S Owner
Page 30 of 188

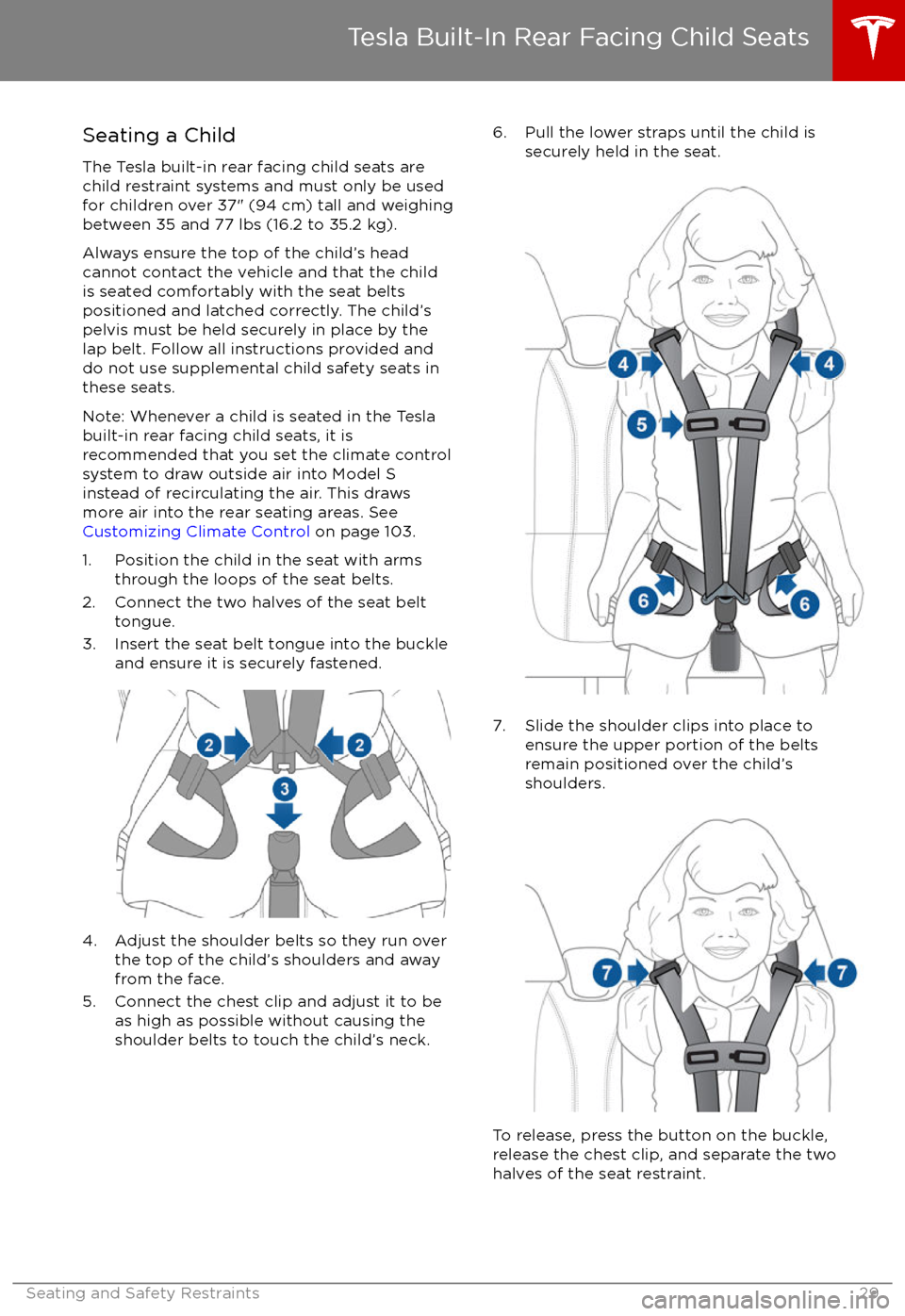

Seating a Child
The Tesla built-in rear facing child seats are
child restraint systems and must only be used
for children over 37" (94 cm) tall and weighing
between 35 and 77 lbs (16.2 to 35.2 kg).
Always ensure the top of the child
