TESLA MODEL X 2017 (UK) Owner's Guide

Accessing Third Row SeatsModel X makes it easy for passengers to enterand exit the third row seating positions (if
equipped). Press the Easy Entry button located on the backrest of each second row
outside seat. The associated outside seat

Warning: Always ensure the seat backs
are locked in their upright position.
Failure to do so increases the risk of injury.
Head Restraints
Front seats include non-removable head
restraints that adjust automatically based on
the position of the seat (see Adjusting the
Driver

Wearing Seat Belts
Using seat belts and child safety seats is the
most
effective way to protect occupants if a
collision occurs. Therefore, wearing a seat belt is required by law in most jurisdictions.
Both the driver and passenger seats are
equipped with three-point inertia reel seat
belts. Inertia reel belts are automatically
tensioned to allow occupants to move
comfortably during normal driving conditions.
To securely hold child safety seats, all
passenger seating positions are equipped with
an automatic locking retractor (ALR) that, by
pulling the seat belt beyond the length
needed for a typical adult occupant, locks the
belt into place until the seat belt is unbuckled
(see Installing Seat Belt Retained Child Seats
on page 29).
The seat belt reel automatically locks to prevent movement of occupants if Model Xexperiences a force associated with hard
acceleration, braking, cornering, or an impact in a collision.
The seat belt reminder on the
instrument panel alerts you if a seat
belt for an occupied seat is not
fastened. If the belt remains unfastened, the reminder
flashes and
an intermittent chime sounds. If all
occupants are buckled up and the
reminder stays on, re-fasten seat
belts to ensure they are correctly
latched. Also remove any heavy
objects (such as a briefcase) from an
unoccupied seat. If the reminder
light continues to stay on, contact
Tesla.
To Fasten a Belt
1. Ensure correct positioning of the seat.
2. Draw the belt out smoothly, ensuring the belt lays
flat across the pelvis, chest and
mid-point of your collar bone, between the neck and shoulder.
3. Insert the latch plate into the buckle and press together until you hear a click
indicating it is locked in place.
4. Pull the belt to check that it is securely fastened.
5. Pull the diagonal part of the belt toward the reel to remove excess slack.
To Release a Belt
Hold the belt near the buckle to prevent the
belt from retracting too quickly, then press the
button on the buckle. The belt retracts
automatically. Ensure there is no obstruction
that prevents the belt from fully retracting.
The belt should not hang loose. If a seat belt does not fully retract, contact Tesla.
Wearing Seat Belts When Pregnant
Do not put the lap or shoulder sections of the seat belt over the abdominal area. Wear thelap section of the belt as low as possibleacross the hips, not the waist. Position the
shoulder portion of the belt between the
breasts and to the side of the abdomen. Consult your doctor for
specific guidance.
Seat Belts
22Model X Owner

Warning: Never place anything between
you and the seat belt to cushion the
impact in the event of an accident.Seat Belt Pre-tensioners
The front seat belts are equipped with
pre

Testing Seat Belts
To
confirm that seat belts are operating
correctly, perform these three simple checks on each seat belt.
1. With the seat belt fastened, give the webbing nearest the buckle a quick pull.
The buckle should remain securely locked.
2. With the belt unfastened, unreel the webbing to its limit. Check that unreeling
is free from snags, and visually check the
webbing for wear. Allow the webbing to retract, checking that retraction is smooth
and complete.
3. With the webbing half unreeled, hold the tongue plate and pull forward quickly. The
mechanism should lock automatically and
prevent further unreeling.
If a seat belt fails any of these tests, contact
Tesla immediately.
Seat Belt Warnings
Warning: Seat belts should be worn by all
occupants at all times, even if driving for
a very short distance. Failure to do so
increases the risk of injury or death if an accident occurs.Warning: Secure small children in a
suitable child safety seat. Always follow
the child safety seat manufacturer

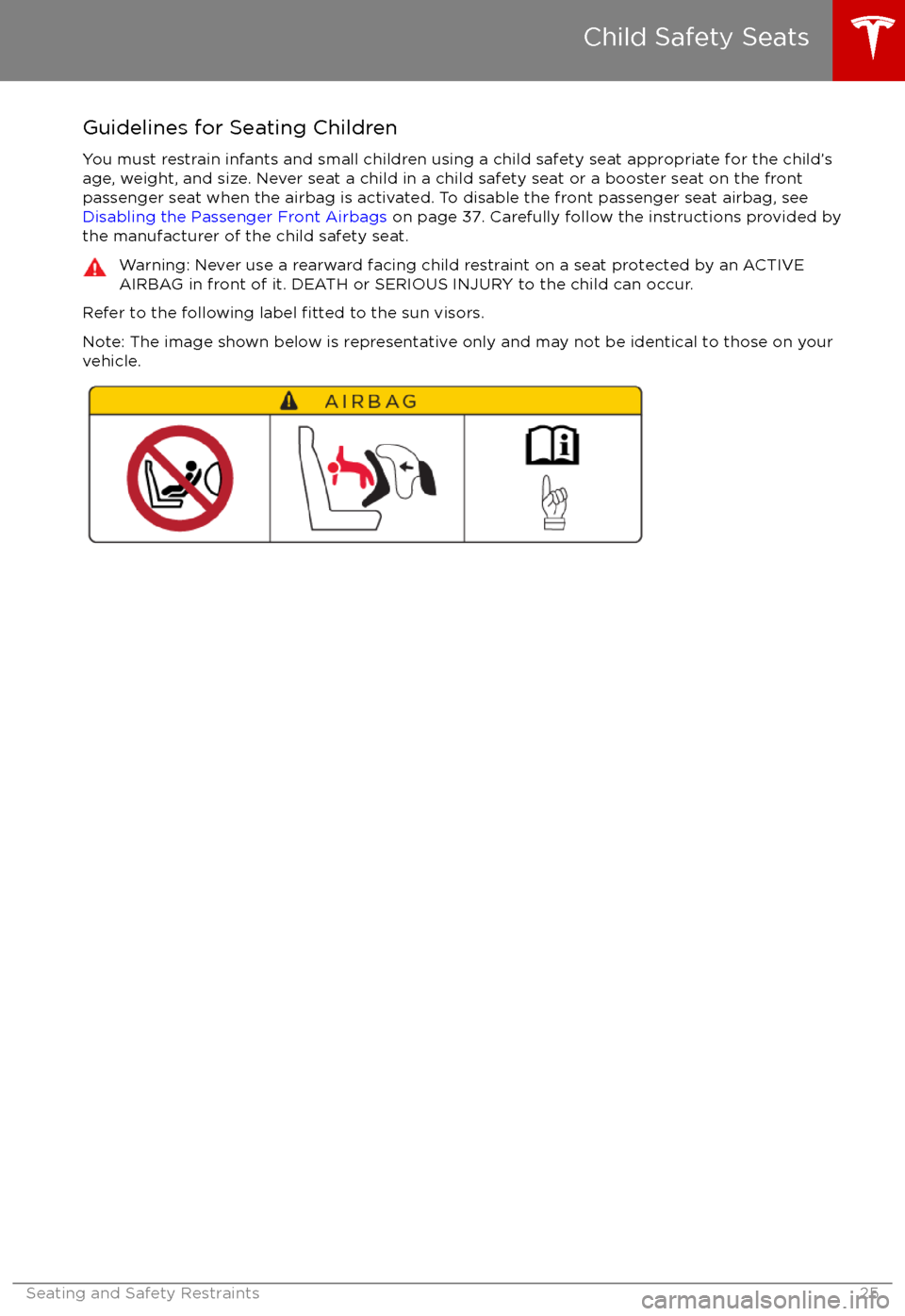

Guidelines for Seating Children
You must restrain infants and small children using a child safety seat appropriate for the child

Choosing a Child Safety SeatRefer to the tables below for guidelines on the type of seat belt installed and ISOFIX installed
child restraint you should use based on the weight of the child.
Seat Belt Installed Child Restraints
Monopost Seats:Mass GroupFront PassengerSecond RowThird RowGroup 0up to 10 kgXUUGroup 0+up to 13 kgL*UUGroup I9 - 18 kgUF*U, UFU, UFGroup II15 - 25 kgUF*U, UFU, UFGroup III22 - 36 kgUF*U, UFU, UF* Seat must be placed in rearmost and highest position.
U: Suitable for universal child restraints approved for use in this mass group.
UF: Suitable for universal forward-facing child restraints approved for use in this mass group.
L: Suitable for these particular child restraints - Maxi-Cosi
Cabrio/Cabriofix E4 04443517 or
Takata Mini E4 04443717.
X: Seating position is not suitable for children in this mass group.
Bench Seats (5-seat vehicles only):
Mass GroupFront
PassengerRear
Outboard (60%)Rear CenterRear
Outboard (40%)Group 0up to 10 kgXUUUGroup 0+up to 13 kgL*UUUGroup I9 - 18 kgUF*U, UFU, UFU, UFGroup II15 - 25 kgUF*U, UFU, UFU, UFGroup III22 - 36 kgUF*U, UFU, UFU, UF* Seat must be placed in the rearmost position with the seatback in the most upright position
(full rear and full up only).
U: Suitable for universal child restraints approved for use in this mass group.
UF: Suitable for universal forward-facing child restraints approved for use in this mass group.
L: Suitable for these particular child restraints - Maxi-Cosi
Cabrio/Cabriofix E4 04443517 or
Takata Mini E4 04443717.
X: Seating position is not suitable for children in this mass group.
Child Safety Seats
26Model X Owner

ISOFIX* Installed Child Restraints
Monopost Seats:
Mass GroupSize ClassFixtureFront
PassengerSecond Row
OutboardSecond Row
Center
Third Row
Group 0up to 10 kgER1XILXIL*
Group 0+up to 13kg
ER1XILXIL*DR2XILXIL*CR3XXXIL*
Group I9 - 18 kg
DR2XILXIL*CR3XXXIL*BF2XIUFXIUFB1F2XXIUFXIUFAF3XIUFXIUF*If a universal child restraint system is installed in the third row (right or left side), the second
row center and outboard seats in front of the child restraint system cannot be used because
these seats must be moved fully forward to accommodate the universal child restraint system.
IUF: Suitable for universal ISOFIX forward child restraint systems approved for use in this mass
group.
IL: Suitable for particular ISOFIX child restraint systems in the
"specific vehicle", "restricted", or
"semi-universal" categories.
X: Seating position does not support ISOFIX child restraint systems in this mass group/size
class.
Child Safety Seats
Seating and Safety Restraints27

Bench Seats (5-seat vehicles only):
Mass GroupSize ClassFixtureFront
PassengerRear
OutboardRear CenterGroup 0up to 10 kgER1XILX
Group 0+up to 13 kg
ER1XILXDR2XILXCR3XILX
Group I9 - 18 kg
DR2XILXCR3XILXBF2XIUFXB1F2XXIUFXAF3XIUFXIUF: Suitable for universal ISOFIX forward child restraint systems approved for use in this mass
group.
IL: Suitable for particular ISOFIX child restraint systems in the
"specific vehicle", "restricted", or
"semi-universal" categories.
X: Seating position does not support ISOFIX child restraint systems in this mass group/size
class.
*ISOFIX - The international standard for attachment points for child safety seats in passenger
vehicles.
Note: If the combined weight of the child and the child safety seat is over 29 kg, Tesla
recommends attaching the safety seat using the seat belt and upper tether strap. In addition to
safety, this has the added
benefit of ensuring the seat belt reminder does not stay lit. Always
follow the child safety seat manufacturer

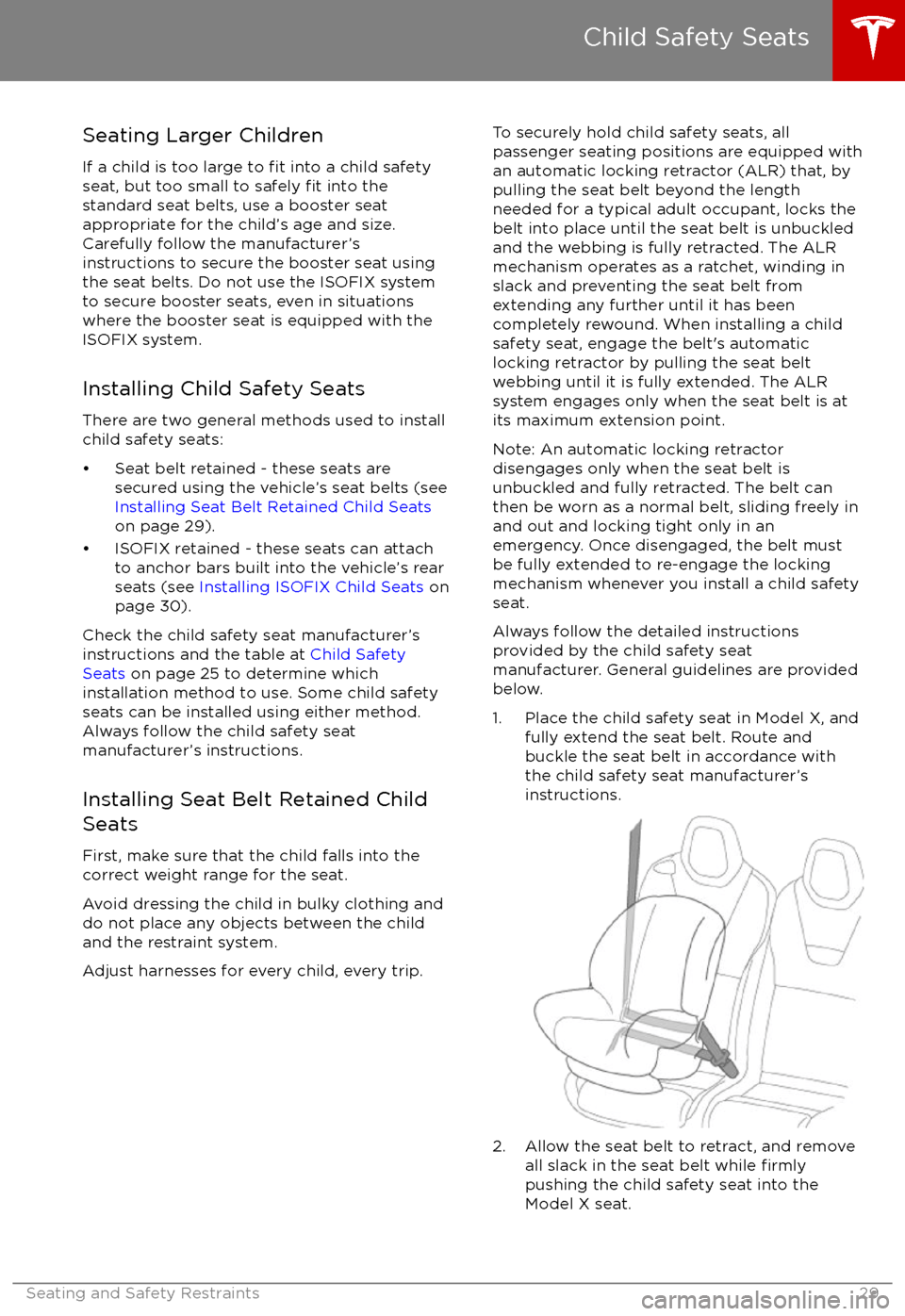

Seating Larger Children
If a child is too large to
fit into a child safety
seat, but too small to safely fit into the
standard seat belts, use a booster seat
appropriate for the child
