4RUNNER ()71

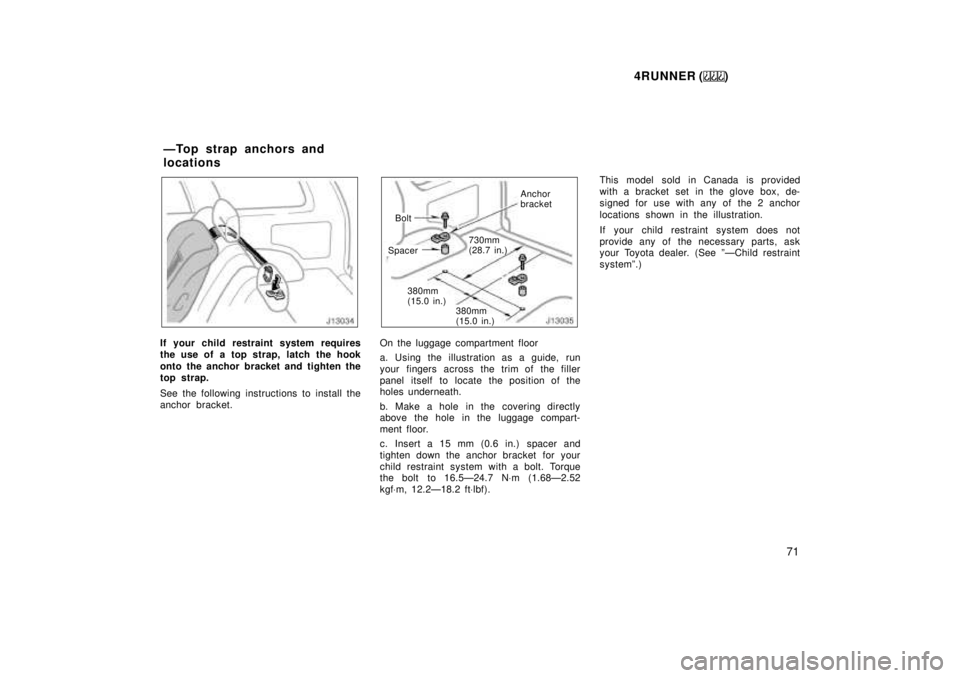

If your child restraint system requires
the use of a top strap, latch the hook
onto the anchor bracket and tighten the
top strap.
See the following instructions to install the
anchor bracket.
Bolt
Spacer
380mm
(15.0 in.) 730mm
(28.7 in.)
380mm
(15.0 in.) Anchor
bracket
On the luggage compartment floor
a. Using the illustration as a guide, run
your fingers across the trim of the f iller
panel itself to locate the position of the
holes underneath.
b. Make a hole in the covering directly
above the hole in the luggage compart-
ment floor.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5Ð24.7 N Vm (1.68Ð2.52
kgf Vm, 12.2Ð18.2 ft Vlbf). This model sold in Canada is provided
with a bracket set in the glove box, de-
signed for use with any of the 2 anchor
locations shown in the illustration.
If your child restraint system does not
provide any of the necessary parts, ask
your Toyota dealer. (See ºÐChild restraint
systemº.)
ÐTop strap anchors and
locations

4RUNNER ()
72

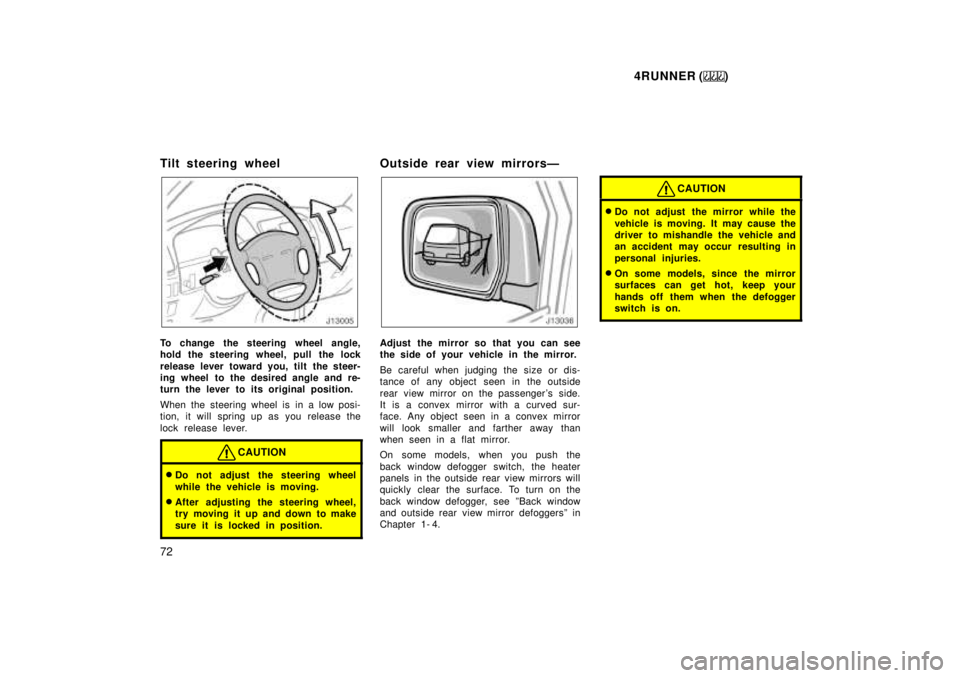

Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
turn the lever to its original position.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION

Do not adjust the steering wheel
while the vehicle is moving.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrorsÐ
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger 's side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. To turn on the
back window defogger, see ºBack window
and outside rear view mirror defoggersº in
Chapter 1- 4.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.

4RUNNER ()73
With power windows (door armrest)
Without power windows
(instrument panel) To adjust a mirror, use the switches.
1. Master switchÐTo select the mirror to be adjusted
Place the switch at ºLº (left) or ºRº
(right).
2. Control switchÐTo move the mir- ror
P ush the switch in the desired
direction.
Mirror can be adjusted when key is in the
ºACCº or ºONº position.
NOTICE
If ice should jam the mirror, do not operate the control or scrape the mir-ror face. Use a spray de- icer to free the mirror.
ÐFolding rear view mirrors
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
ÐPower Rear view mirror
control

4RUNNER ()
74

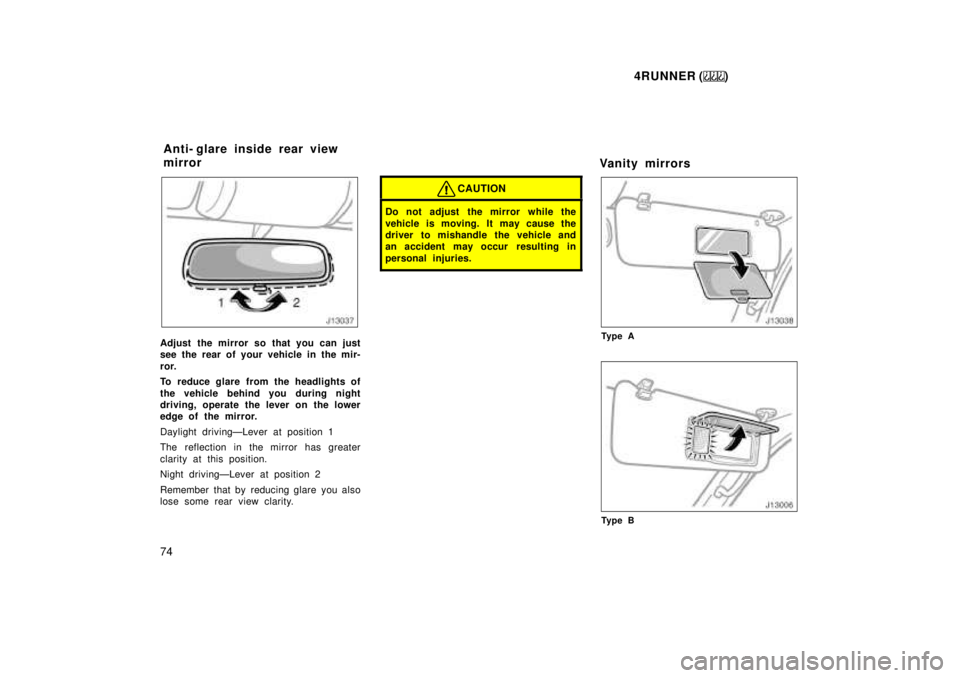

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight drivingÐLever at position 1
The reflection in the mirror has greater
clarity at this position.
Night drivingÐLever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Vanity mirrors
Ty p e A
Ty p e B
Anti- glare inside rear view
mirror

4RUNNER ()75
To use the vanity mirrors, swing down
the sun visor and open the cover.
Type B onlyÐThe vanity light comes on
when you open the cover.

4RUNNER ()
76

4RUNNER ()77
Part 1
OPERATION OF
INSTRUMENTS AND
CONTROLSÐ
Chapter 1- 4
Lights, Wipers and Defogger
Headlights and turn signals
Emergency flashers
Instrument panel light control
Front fog lights
Interior light
Personal lights
Luggage compartment light
Ignition switch light
Windshield wipers and washer
Back window wiper and washer
Back window and outside rear
view mirror defoggers
Headlights and turn signals
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
above
The lights automatically turn off when the
driver 's door is opened with the ignition
switch turned off. To turn them on again,
turn the key to the ºONº position or actu-
ate the headlight switch. If you are going
to park for over one week, make sure the
headlight switch is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights onfor a long period when the engine is not running.
Daytime running light system (Canada
only)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the ºOFFº
position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Under the daytime running light system,
the headlights turn on at reduced intensity.
Twist the knob to the position 2 to turn
to full intensity for driving at night.

4RUNNER ()
78

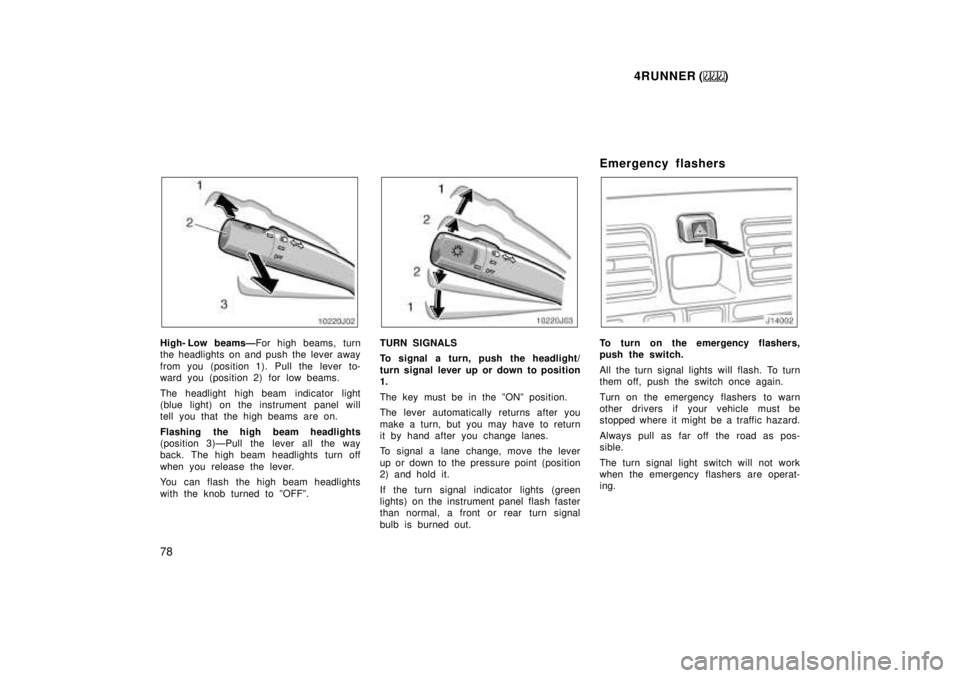

High- Low beamsÐ For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to ºOFFº.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position 1.
The key must be in the ºONº position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. Emergency flashersTo turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.

4RUNNER ()79
NOTICE
To prevent the battery from being dis-charged, do not leave the switch onlonger than necessary when the en-gine is not running.
Instrument panel light control
To adjust the brightness of the instru-
ment panel lights, turn the knob. Front fog lightsTo turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
when the tail lights are turned on.

4RUNNER ()
80

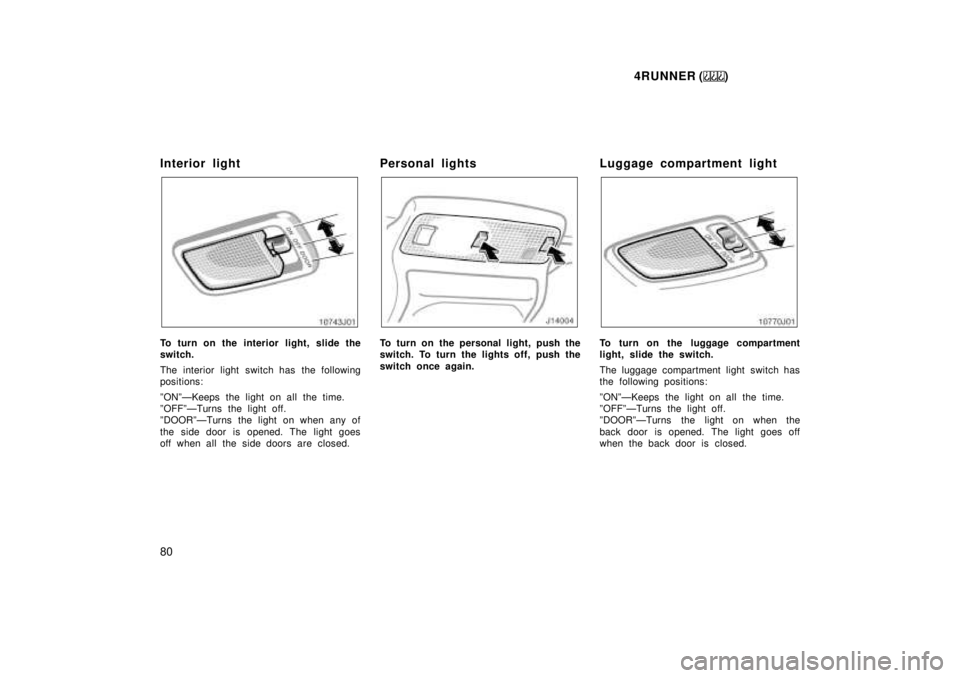

Interior light
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
ºONºÐKeeps the light on all the time.
ºOFFºÐTurns the light off.
ºDOORºÐTurns the light on when any of
the side door is opened. The light goes
off when all the side doors are closed.
Personal lightsTo turn on the personal light, push the
switch. To turn the lights off, push the
switch once again.
Luggage compartment lightTo turn on the luggage compartment
light, slide the switch.
The luggage compartment light switch has
the following positions:
ºONºÐKeeps the light on all the time.
ºOFFºÐTurns the light off.
ºDOORºÐTurns the light on when the
back door is opened. The light goes off
when the back door is closed.
