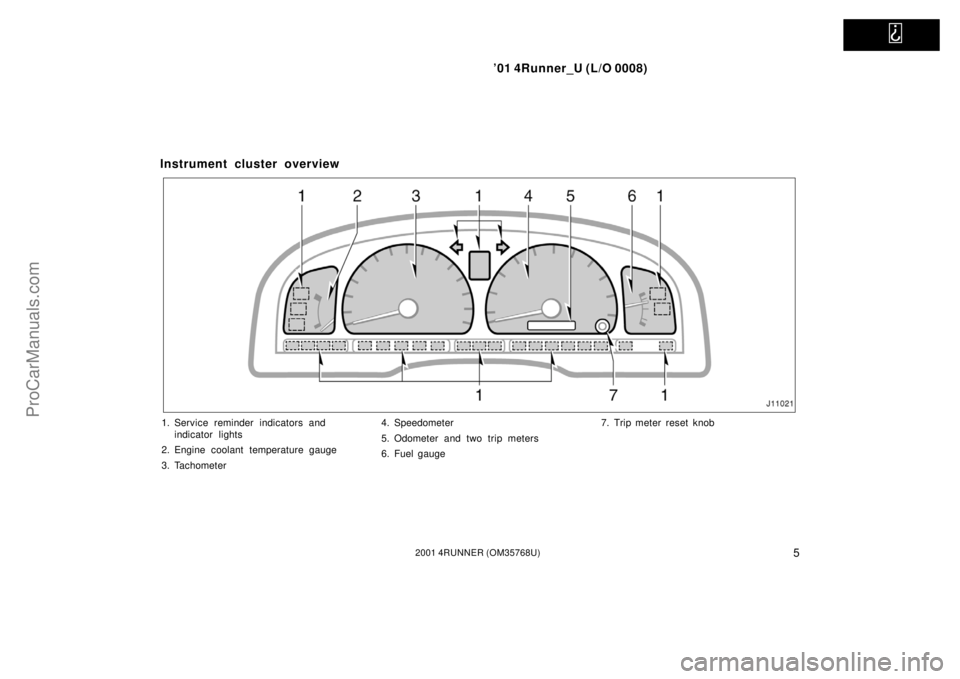

Instrument cluster overview
1. Service reminder indicators and
indicator lights
2. Engine coolant temperature gauge
3. Tachometer4. Speedometer
5. Odometer and two trip meters
6. Fuel gauge7. Trip meter reset knob
ProCarManuals.com
Page 12 of 301
’01 4Runner_U (L/O 0008)
62001 4RUNNER (OM35768U)
Indicator symbols on the instrument panel
or
Driver ’s seat belt reminder light∗
1
Low oil pressure warning light∗
1
Low fuel level warning light∗
1
Brake system warning light∗
1
Malfunction indicator lamp∗
1
Discharge warning light∗
1
Anti lock brake system warning light∗
1
Automatic transmission fluid temperature
warning light∗
1
SRS warning light∗
1
Unengaged “Park” warning light∗
1
Open door warning light∗
1
Low windshield washer fluid level warning
light∗
1
Headlight high beam indicator light Turn signal indicator lights
Front passenger ’s seat belt reminder light∗
1
Vehicle skid control system and traction control
system (two wheel drive models) or active
traction control system (four wheel drive models)
warning light
∗
1
ProCarManuals.com
Page 13 of 301
’01 4Runner_U (L/O 0008)
72001 4RUNNER (OM35768U)
Cruise control indicator light∗
2
Driving pattern (“PWR” mode) indicator light
∗
1: For details, see “Service reminder indicators and warning
buzzers” in Section 1 5.
∗
2: If this light flashes, see “Cruise control” in Section 1 6.Four wheel drive and center differential lock
indicator lights
Automatic transmission indicator lights
Traction control system off indicator light∗
1
(two wheel drive models)
Vehicle skid control system off indicator light
∗
1
(four wheel drive models) Slip indicator light
Overdrive off indicator light
ProCarManuals.com
Page 14 of 301
’01 4Runner_U (L/O 0008)
82001 4RUNNER (OM35768U)
ProCarManuals.com
Page 15 of 301
’01 4Runner_U (L/O 0008)
92001 4RUNNER (OM35768U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power back window24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 2
ProCarManuals.com
Page 16 of 301
’01 4Runner_U (L/O 0008)
102001 4RUNNER (OM35768U)

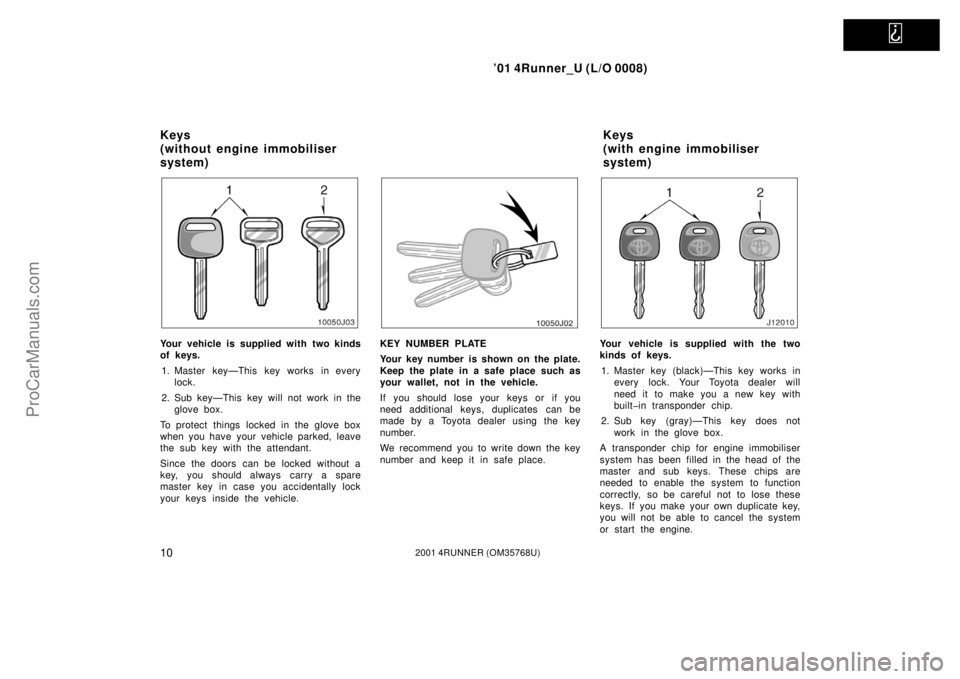

Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box.
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.Your vehicle is supplied with the two
kinds of keys.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built in transponder chip.
2. Sub key (gray)—This key does not
work in the glove box.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys
(without engine immobiliser
system)Keys
(with engine immobiliser
system)
ProCarManuals.com
Page 17 of 301
’01 4Runner_U (L/O 0008)
112001 4RUNNER (OM35768U)
To protect things locked in the glove box
when you have your vehicle parked, leave
the sub key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare master key in case you accidentally
lock your keys inside the vehicle.
For information on use of the wireless
remote control key, see “Side doors” in
this section.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
ProCarManuals.com
Page 18 of 301
’01 4Runner_U (L/O 0008)
122001 4RUNNER (OM35768U)
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
Do not knock the key hard against
other objects.
Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
Do not put the key in water or
wash it in an ultrasonic washer.
Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
ProCarManuals.com
Page 19 of 301
’01 4Runner_U (L/O 0008)
132001 4RUNNER (OM35768U)
Engine immobiliser system

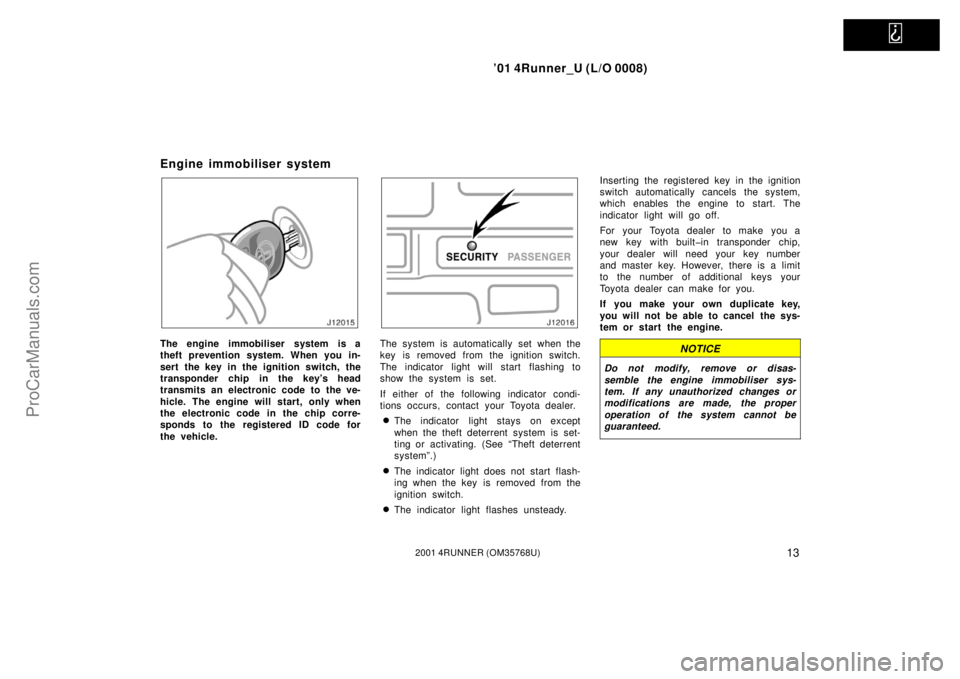

The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system”.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
