TOYOTA 4RUNNER 2001 Owner's Guide

’01 4Runner_U (L/O 0008)
252001 4RUNNER (OM35768U)
You can also open the back window when
the back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If you push in the window lock switch on
the driver ’s door (with power windows) or
on the instrument panel (without power
windows), the back window cannot be op-
erated.
With power windows (driver’s door)
Without power windows
(instrument panel)
OPERATING FROM OUTSIDE
After turning and holding the key for a few
seconds, the back window will move as
far as holding the key.
To open: Turn the key counterclockwise.
To close: Turn the key clockwise.
You can also open the back window when
the back window wiper is working. At the
time, the wiper stops working until the
window is closed again.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
262001 4RUNNER (OM35768U)
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power back window. If some-
one’s neck, head or hands gets
caught in a closing window, it
could result in a serious injury.
When anyone closes the power
back window, make sure that he/she
operates the window safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision. Use the window lock switch
to prevent them from making unex-
pected use of the switch.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power back window switch
and get trapped in a window. Unat-
tended children can be involved in
serious accidents.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Vehicles with wireless remote control sys-
tem—To open the back window with the
wireless remote control transmitter, see
“—Wireless remote control” in this section.
Back door
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lever.
The back door will be controlled by oper-
ating the power door lock switch.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
272001 4RUNNER (OM35768U)
When closing the back door, use the
inside strap for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
CAUTION
Keep the back window and back door
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
Driver’s side
Front passenger’s side
With power windows
ProCarManuals.com

’01 4Runner_U (L/O 0008)
282001 4RUNNER (OM35768U)

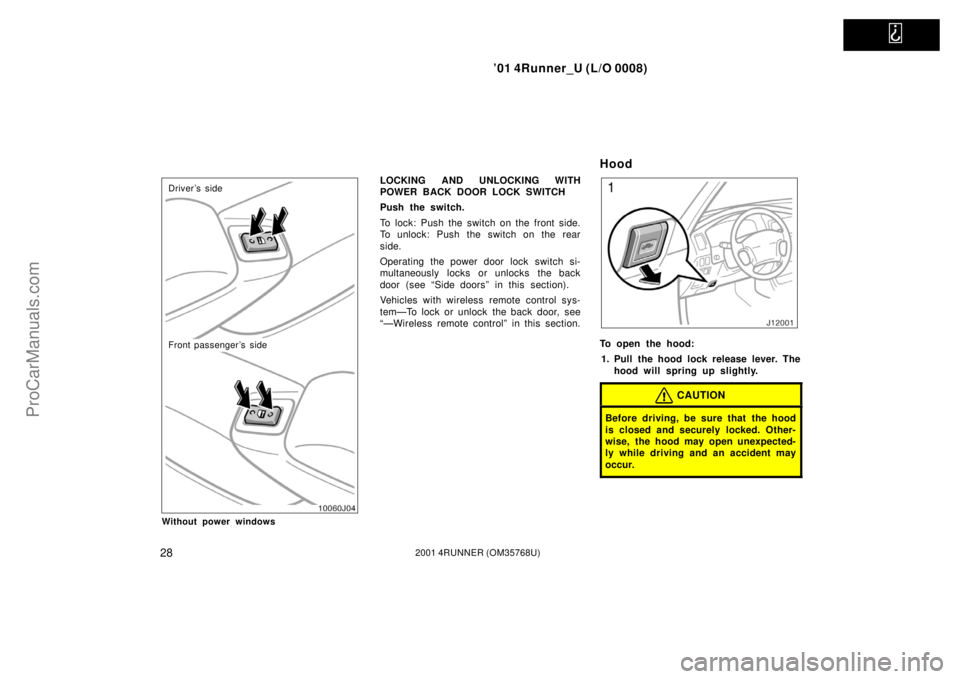

Front passenger’s side Driver’s side
Without power windows
LOCKING AND UNLOCKING WITH
POWER BACK DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Operating the power door lock switch si-
multaneously locks or unlocks the back
door (see “Side doors” in this section).
Vehicles with wireless remote control sys-
tem—To lock or unlock the back door, see
“—Wireless remote control” in this section.
Hood
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
292001 4RUNNER (OM35768U)

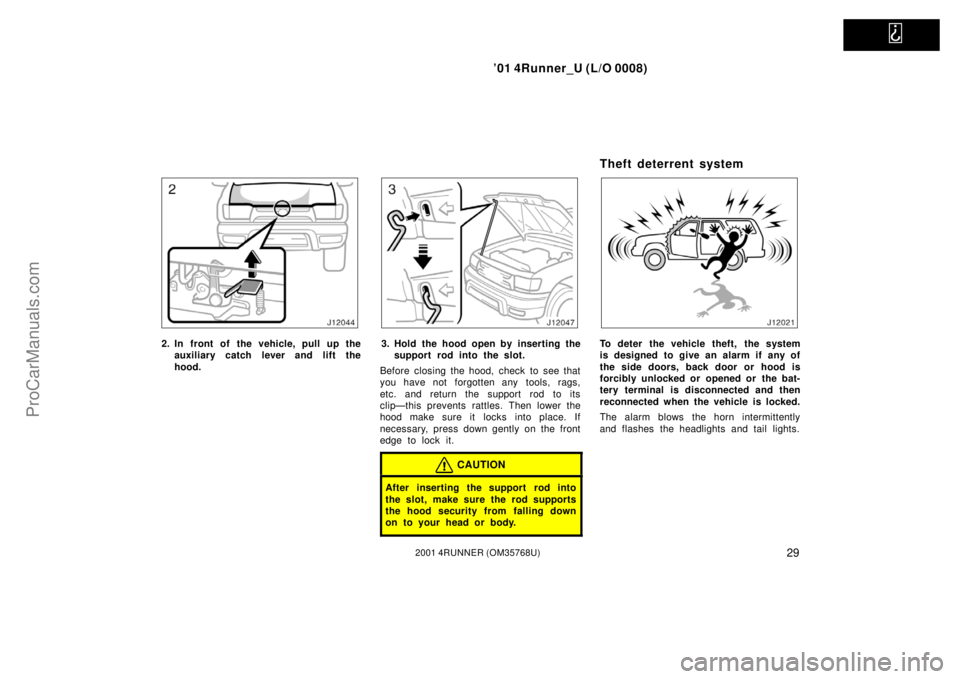

2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood make sure it locks into place. If
necessary, press down gently on the front
edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood security from falling down
on to your head or body.
Theft deterrent system
To deter the vehicle theft, the system
is designed to give an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
302001 4RUNNER (OM35768U)
SETTING THE SYSTEM
1. Turn the ignition key to the “LOCK”
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobiliser system”
for details.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the side doors, back
door and hood.
The indicator light will come on when all
the side doors, back door and hood are
closed and locked.The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:If any of the side doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the back
door or hood is forcibly opened.
If the battery terminal is disconnected
and then reconnected.
The indicator light will come on when the
system is activated.
If the alarm has been activated and the
key is not in the ignition switch, all the
side doors and back door will relock au-
tomatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
three ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
These ways cancel the system at the
same time.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
312001 4RUNNER (OM35768U)
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside.
The system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other
doors and hood. When testing on the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
Fuel tank cap

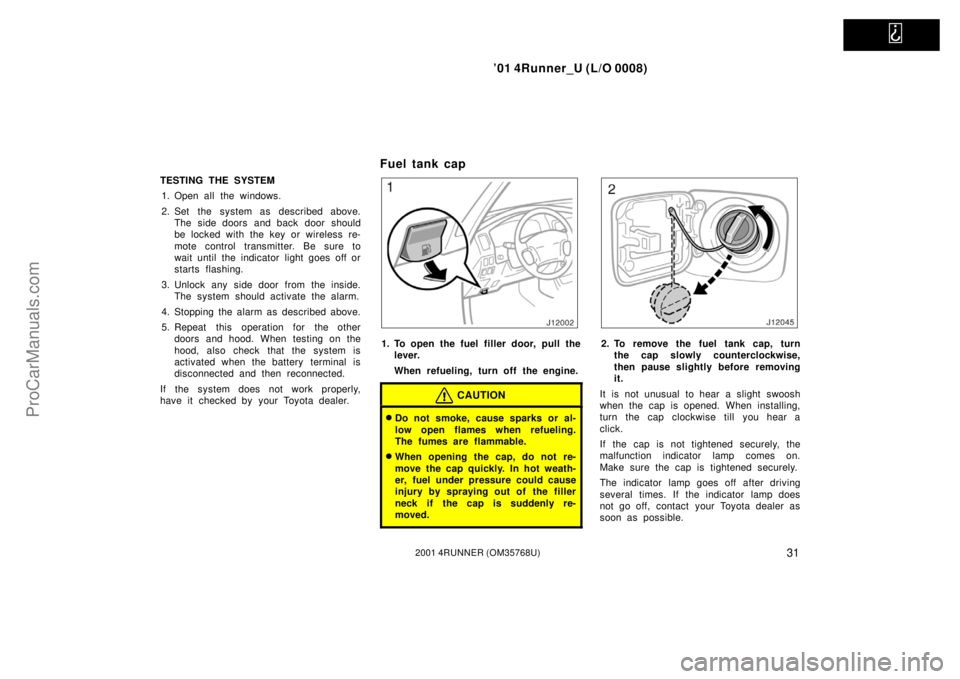

1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
322001 4RUNNER (OM35768U)
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.

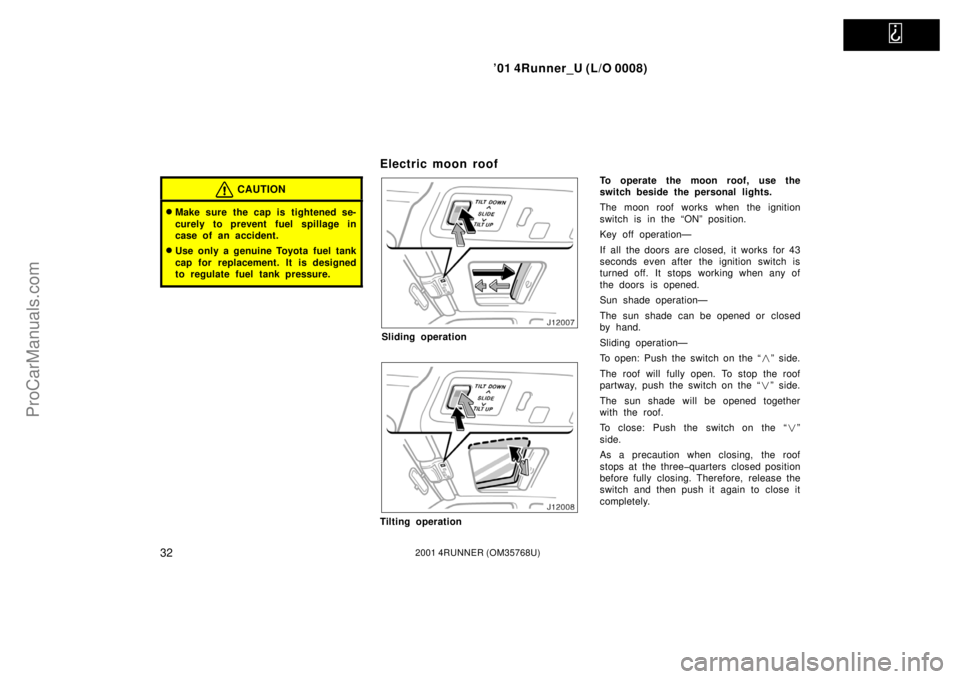

Electric moon roof
Sliding operation
Tilting operationTo operate the moon roof, use the
switch beside the personal lights.
The moon roof works when the ignition
switch is in the “ON” position.
Key off operation—
If all the doors are closed, it works for 43
seconds even after the ignition switch is
turned off. It stops working when any of
the doors is opened.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “” side.
The roof will fully open. To stop the roof
partway, push the switch on the “” side.
The sun shade will be opened together
with the roof.
To close: Push the switch on the “”
side.
As a precaution when closing, the roof
stops at the threequarters closed position
before fully closing. Therefore, release the
switch and then push it again to close it
completely.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
332001 4RUNNER (OM35768U)
Tilting operation—
To tilt up: Push the switch on the “TILT
UP” side.
To lower: Push the switch on the “TILT
DOWN” side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released.

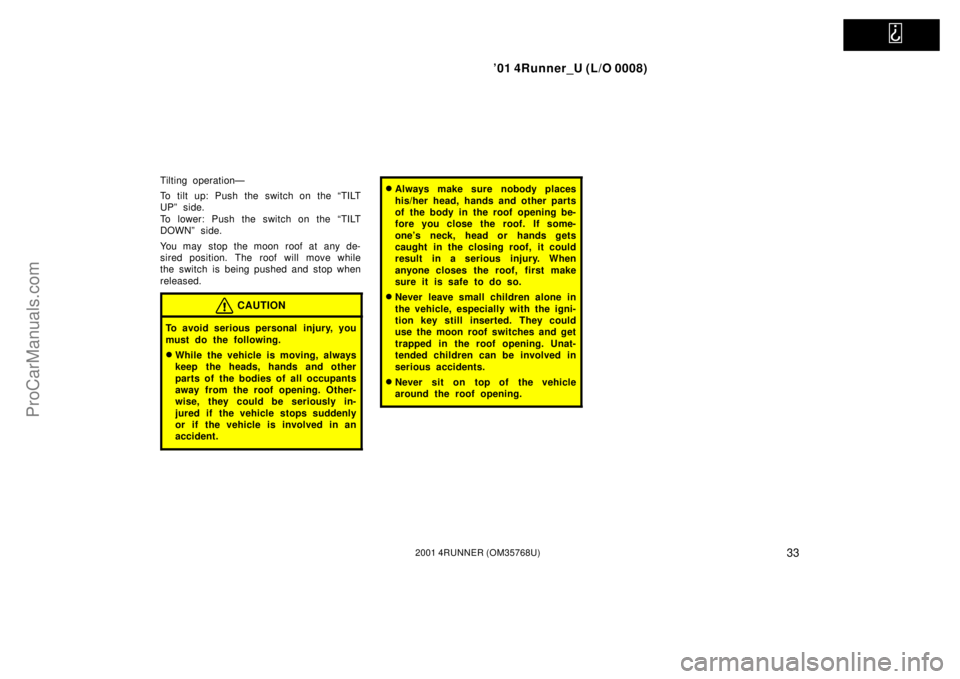

CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one’s neck, head or hands gets
caught in the closing roof, it could
result in a serious injury. When
anyone closes the roof, first make
sure it is safe to do so.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can be involved in
serious accidents.
Never sit on top of the vehicle
around the roof opening.
ProCarManuals.com

’01 4Runner_U (L/O 0008)
342001 4RUNNER (OM35768U)
ProCarManuals.com
