Toyota Maintenance and Repair Support7
TrueStart Batteries
The reputation for quality and reliability was likely a key reason behind your
decision to buy a Toyota. That overall quality is present in each of the compo-
nents of your car or truck, including the battery. When it’s time for a replace-
ment, your Toyota dealer is the only place to find a battery with the power to
start and operate your vehicle like new.
To maintain the original performance designed into your Toyota, a replacement
battery must meet Toyota’s specifications for Cold Cranking Amps (CCA) and
Reserve Capacity (RC). RC, a specification often not met by aftermarket brands,
supplies the power you need during high-demand conditions such as driving in
heavy traffic. RC is also what gives you the powerto operate electronic accessories
with the engine off. By choosing a TrueStart,
™you can be confident your battery
will meet your needs, every day.
Warranty coverage is another important consideration when selecting a battery.
TrueStart
™batteries feature a free replacement period of 24 months or the
remainder of the Toyota New Vehicle Limited Warranty, whichever is longer.
Following the free replacement period, warranty coverage is prorated from
months 25—84 in two simple tiers. See your Toyota dealer for more details.
Don’t entrust your Toyota’s performance to anything less than the best: Genuine
Toyota TrueStart
™Batteries.
WARNING: Battery posts, terminals and related accessories contain lead and
lead compounds, chemicals known to the State of California to cause cancer
and reproductive harm.
Wash hands after handling.
Page 12 of 62
Toyota Maintenance and Repair Support8
Collision Repair Parts
Insist on Genuine Toyota Quality
If you’re involved in a collision, you wantyour vehicle to be returned to its pre-
accident condition when repaired. To maintain your Toyota’s value, it’s important
to make sure it is repaired with Genuine Toyota Parts. Some repair shops and
insurance companies may suggest using imitation or used salvage parts to save
money. However, these parts do not meetToyota’s high standards for quality, fit
and corrosion resistance. In addition, imitation and used salvage parts are not
covered by any Toyota warranty (see box below).
To maintain the appearance, performance and safety of your Toyota, make sure
only Genuine Toyota Parts are used forcollision repairs. Protect your investment
— insist on Genuine Toyota quality.
Toyota warranty coverage remains intact when vehicle repairs are completed
with Genuine Toyota Parts. Toyota warranties do not cover imitation or used
salvage parts or any damage or failures caused by the use of such parts.
In Case of Accident, Be an Informed Owner
Toyota believes customers have the right to choose the types of parts used in the
repair of their vehicles. That’s why Toyota supports full disclosure by repair shops
and insurance companies regarding parts used for collision repair. The following
information is provided to help you understand the differences in the types of
parts that could be used in the repair of your vehicle.
General Information
“Collision repair parts” or “replacement crash parts” are the parts typically
replaced during the repair of a vehicle that has been damaged in a collision.
These parts include exterior sheet metal such as fenders, hoods, doors and
related components; and plastic components such as bumper covers and
lamp assemblies.
Page 13 of 62

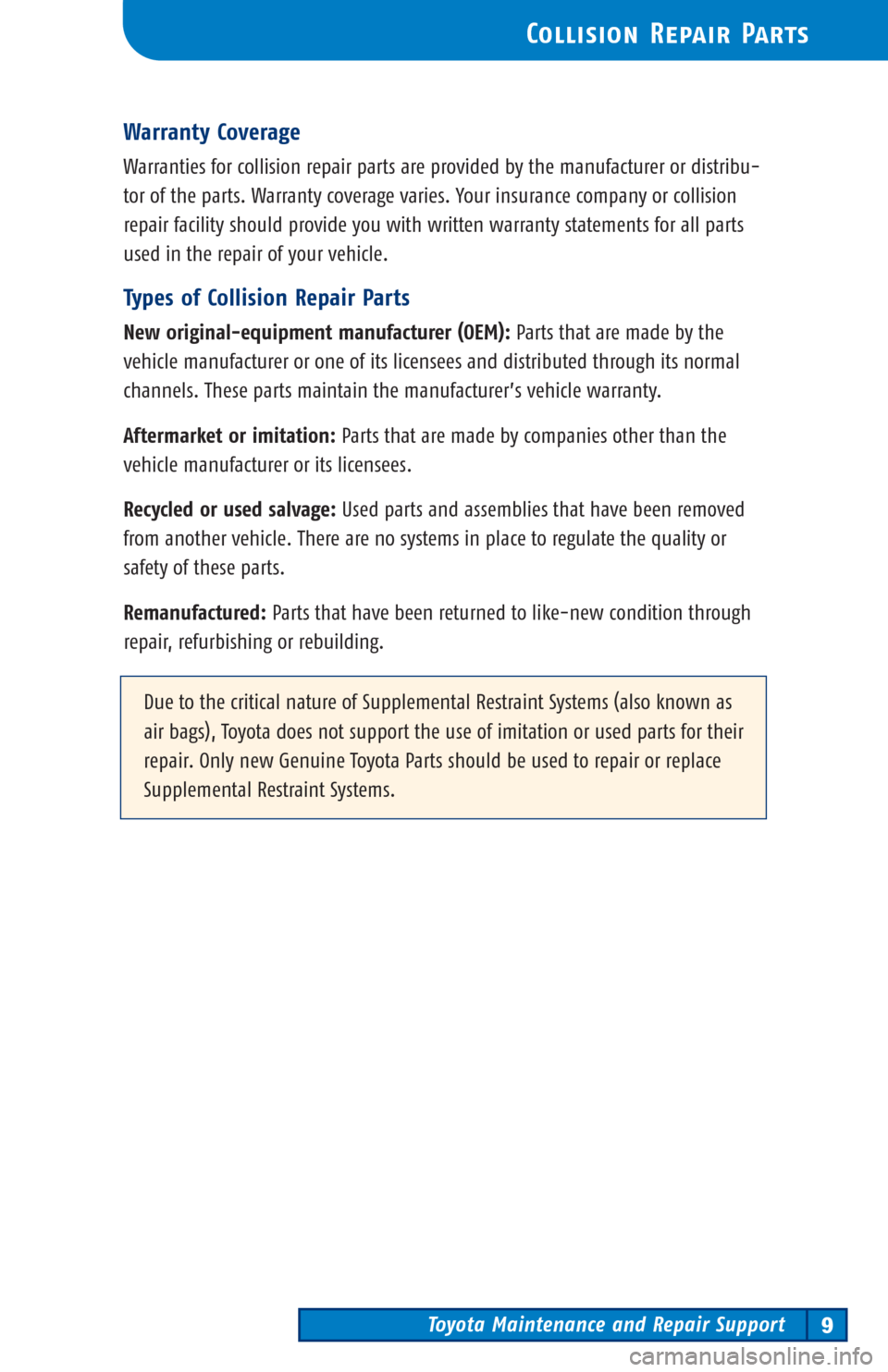

Toyota Maintenance and Repair Support9
Collision Repair Parts
Warranty Coverage
Warranties for collision repair parts are provided by the manufacturer or distribu-
torof the parts. Warranty coverage varies. Your insurance company or collision
repair facility should provide you with written warranty statements for all parts
used in the repair of your vehicle.
Types of Collision Repair Parts
New original-equipment manufacturer (OEM):Parts that are made by the
vehicle manufacturer or one of its licensees and distributed through its normal
channels. These parts maintain the manufacturer’s vehicle warranty.
Aftermarket or imitation:Parts that are made by companies other than the
vehicle manufacturer or its licensees.
Recycled or used salvage:Used parts and assemblies thathave been removed
from another vehicle. There are no systems in place to regulate the quality or
safety of these parts.
Remanufactured:Parts that have been returned to like-new condition through
repair, refurbishing or rebuilding.
Due to the critical nature of Supplemental Restraint Systems (also known as
air bags), Toyota does not support the use of imitation or used parts for their
repair. Only new Genuine Toyota Parts should be used to repair or replace
Supplemental Restraint Systems.
Page 22 of 62
General Maintenance Information18
Determining Your Vehicle’s Maintenance Needs
Special Operating Conditions
In addition to standard maintenance items, the scheduled maintenance log
indicates services that should be performed on vehicles that are driven under
especially demanding conditions. Specific conditions require specific services,
as indicated below. The scheduled maintenance log indicates at which mileage/
time intervals each service should be performed.
You should perform these additional maintenance services if you drive primarily
under any of the conditions noted. If you drive only occasionally under these
conditions, it is not necessary to perform the additional services.
Driving on Rough, Muddy or Snow-Melted Roads
•Inspect ball joints and dust cover
•Inspect brake linings/drums and brake pads/discs
•Inspect drive shaft boots
•Inspect nuts and bolts on chassis and body
•Inspect steering linkage and boots
•Lubricate propeller shaft and re-torque bolt*
•Re-torque drive shaft bolt*
•Rotate tires
Driving on Salt-Covered Roads
•Lubricate propeller shaft and re-torque bolt*
Driving on Unpaved or Dusty Roads
•Inspect brake linings/drums and brake pads/discs
•Inspect or change engine air filter
•Lubricate propeller shaft and re-torque bolt*
•Replace air conditioning filter*
Extensive Idling or Low-Speed Driving for Long Distances
•Inspect brake linings/drums and brake pads/discs
Page 24 of 62
General Maintenance Information20
Explanation of Maintenance Items
The following descriptions are provided to give you a better understanding of
the maintenance items that should be performed on your vehicle. The scheduled
maintenance log indicates at which mileage/time intervals each item should be
performed. Please note that many maintenance items should be performed only
by a qualified technician.
For further information on maintenance items you can perform yourself,
see the “Vehicle Maintenance and Care” and “Do-It-Yourself Maintenance”
sections of your
Owner’s Manual.
Air Conditioning Filter
Replace at specified intervals.
Automatic Transmission Fluid or Manual Transmission Oil
Replace at specified intervals. When performing inspections, check each com-
ponent for signs of leakage. If you discover any leakage, have it repaired by a
qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and steering linkage ball joints for looseness and damage.
Check all dust covers for deterioration and damage. Replace any deteriorated or
damaged parts. A qualified technician should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Checkforchafing, cracks, deterioration
and signs of leakage. Replace any deteriorated or damaged parts. A qualified
technician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check the pads for excessive wear and the
discs for runout, excessive wear and fluid leakage. Replace any deteriorated
or damaged parts. A qualified technician should perform these operations.
Charcoal Canister (CA, MA and NY vehicles)
Check for internal damage and clogging. If necessary, clean with compressed air
or replace. A qualified technician should perform these operations.
Page 28 of 62
5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 16.
Maintenance Log: Cars and Sienna
7,500 Miles or 6 Months
❑Replace engine oil and oil filter
❑Rotate tires (except MR2 Spyder)
Dealer Service Verification:
Date:
Mileage:
5,000 Miles or 4 Months
❑Replace engine oil and oil filter
Additional Maintenance Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires (except MR2 Spyder)
10,000 Miles or 8 Months
❑Replace engine oil and oil filter
Additional Maintenance Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Replace air conditioning filter (Avalon, Camry)
❑Rotate tires (except MR2 Spyder)
Dealer Service Verification:
Date: Mileage:
Scheduled Maintenance Log24
Dealer Service Verification:
Date: Mileage:
Page 29 of 62
1 Specific services apply to specific operating conditions. See pages 18—19 for details.2 Do not replace if replaced at 10,000 miles/8 months.3 Applies to Corolla with A131L automatic transmission.4 Applies to Avalon, Corolla and Sienna models with automatic transmission.
Maintenance Log: Cars and Sienna
15,000 Miles or 12 Months
15,000 Miles or 12 Months
❑Replace engine oil and oil filter
❑Replace air conditioning filter (Avalon, Camry)2
❑Rotate tires (except MR2 Spyder)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Differential oil
3
__ Drive shaft boots
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect automatic transmission fluid (Avalon, Camry, Camry Solara, Corolla, Sienna)
❑Inspect differential oil4
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
Scheduled Maintenance Log25
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Steering gear box
__ Steering linkage and boots
Page 30 of 62
5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 16.
Maintenance Log: Cars and Sienna
22,500 Miles or 18 Months
❑Replace engine oil and oil filter
❑Rotate tires (except MR2 Spyder)
Dealer Service Verification:
Date:
Mileage:
20,000 Miles or 16 Months
❑Replace engine oil and oil filter
Additional Maintenance Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Replace air conditioning filter (Avalon, Camry)
❑Rotate tires (except MR2 Spyder)
25,000 Miles or 20 Months
❑Replace engine oil and oil filter
Additional Maintenance Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires (except MR2 Spyder)
Dealer Service Verification:
Date: Mileage:
Scheduled Maintenance Log26
Dealer Service Verification:
Date: Mileage:
Page 31 of 62
1 Specific services apply to specific operating conditions. See pages 18—19 for details.2 Required under the terms of the Emission Control Warranty.3 Applies to all models with manual transmission and Avalon, Corolla and Sienna models with automatic transmission.
Maintenance Log: Cars and Sienna
30,000 Miles or 24 Months
30,000 Miles or 24 Months
❑Replace engine air filter
❑Replace engine coolant
❑Replace engine oil and oil filter
❑Replace air conditioning filter (Avalon, Camry)
❑Replace spark plugs (ECHO)2
❑Rotate tires (except MR2 Spyder)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Differential oil
__ Drive shaft boots
__ Exhaust pipes and mountings
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect nuts and bolts on chassis and body
❑Replace automatic transmission fluid (Avalon, Camry, Camry Solara, Corolla, Sienna)
❑Replace differential oil3
❑Replace manual transmission oil
Scheduled Maintenance Log27
Dealer Service Verification:
Date:
Mileage:
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil
Page 32 of 62
5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 16.
Maintenance Log: Cars and Sienna
37,500 Miles or 30 Months
❑Replace engine oil and oil filter
❑Rotate tires (except MR2 Spyder)
Dealer Service Verification:
Date:
Mileage:
35,000 Miles or 28 Months
❑Replace engine oil and oil filter
Additional Maintenance Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires (except MR2 Spyder)
40,000 Miles or 32 Months
❑Replace engine oil and oil filter
Additional Maintenance Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Replace air conditioning filter (Avalon, Camry)
❑Rotate tires (except MR2 Spyder)
Dealer Service Verification:
Date: Mileage:
Scheduled Maintenance Log28
Dealer Service Verification:
Date: Mileage:
