1352003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
To scan the preset stations: Touch the
“SCAN” switch on the screen or push the
“SCAN” button for longer than 2 seconds.
“P. SCAN” appears on the screen. The
radio will tune in the next preset station,
stay there for a few seconds, and then
move to the next preset station. To select
a station, touch the “SCAN” switch or
push the “SCAN” button again.
(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
—only select stations of a particular pro-
gram type,
—display messages from radio stations,
—search for a stronger signal station,
—search for local stations broadcasting
the same network as the vehicle travels,
—receive announcements concerning lo-
cal and national emergencies (even if
RDS function is turned off).
RDS features are available for the use
only on FM stations which broadcast RDS
information. “RDS SRCH” (RDS search) switch
This switch allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type
(See following “TYPE” switch for details
on program types).
By touching this button at the FM mode,
RDS is turned on and the radio is
switched to FM type mode. During the
program type search, “RDS SEARCH” will
be shown on the screen. Also at this
time, “FM TYPE” will appear on the
screen to indicate that the station selec-
tor switches are for program type.
After searching for all the available RDS
stations, the radio will activate the pre-
viously used program type. If the pre-
viously used program type is not avail-
able, or if the radio has not yet
performed a program type search, the
radio will activate the first available pro-
gram type that has stations in memory.
The radio will preset the stations of the
current program type into the preset but-
tons.
These are accessible through the “TYPE”
switch. If more than 6 stations are found,
the radio will load the 6 strongest sta-
tions signal of the program type into the
presets.

4Runner_Navi_U (L/O 0208)
1362003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
If no RDS stations are found, “No RDS
Stations Found” will be displayed and the
beep sounds. Then the radio will return
to the previous FM mode and frequency.
NZN071
“MSG” (Message)
When an RDS radio station transmits a
text message, “MSG” will be displayed.
At this time, touch the “MSG” switch to
view the text message. The message dis-
play will be canceled if any button that
affects the display is pushed. To view the
message again, touch the “MSG” switch
again. After the entire message has been
displayed, the message will disappear.
The RDS audio system has memory to
store three 64 character messages. To
store a message in memory, touch and
hold the “STORE” switch until you hear
a beep.
If 3 messages are already stored in
memory, the oldest message will be over-
written by the new message.To recall a radio text messages stored in
memory, touch the “RECALL” switch.
Touching the “LATEST MESSAGE” will
display the most recent message.
If no messages have been stored, or if
there are no more messages to be re-
called, “RECALL” switch is dimmed. The
message display will be canceled if you
activate any function that affects the dis-
play.
“TYPE” switch
This switch is used for changing the pro-
gram type (PTY) of RDS stations in all
RDS mode. 8 program types are avail-
able as listed here.
The following program type names are avail-
able.
ROCK
EASY LIS
CLS/JAZZ
R & B
INFORM
RELIGION
MISC
ALERT (Emergency message)

4Runner_Navi_U (L/O 0208)
1442003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

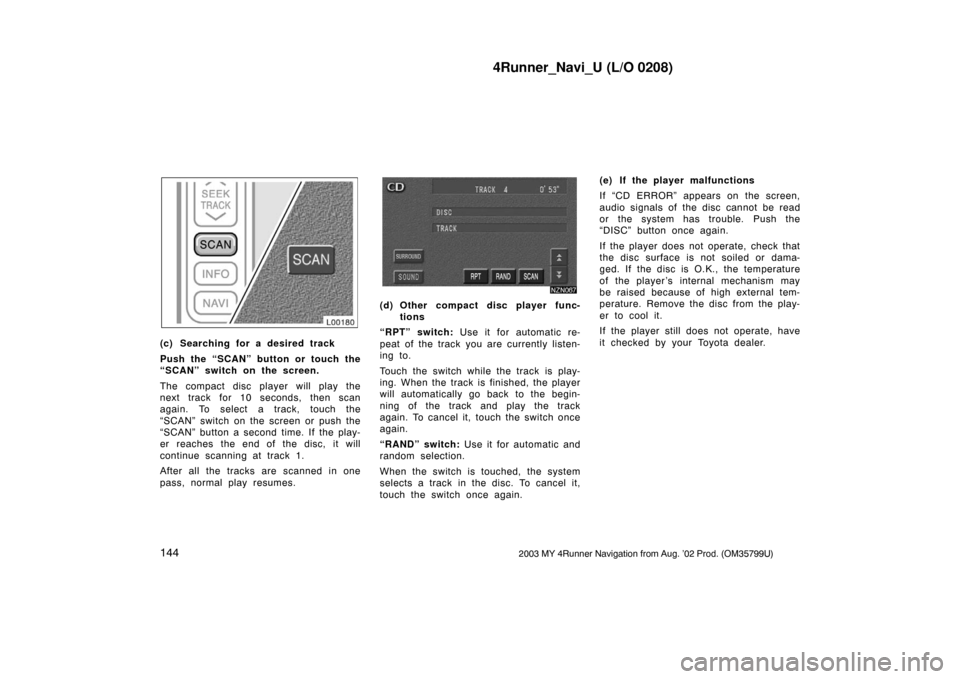

L00180
(c) Searching for a desired track
Push the “SCAN” button or touch the
“SCAN” switch on the screen.
The compact disc player will play the
next track for 10 seconds, then scan
again. To select a track, touch the
“SCAN” switch on the screen or push the
“SCAN” button a second time. If the play-
er reaches the end of the disc, it will
continue scanning at track 1.
After all the tracks are scanned in one
pass, normal play resumes.
(d) Other compact disc player func-tions
“RPT” switch: Use it for automatic re-
peat of the track you are currently listen-
ing to.
Touch the switch while the track is play-
ing. When the track is finished, the player
will automatically go back to the begin-
ning of the track and play the track
again. To cancel it, touch the switch once
again.
“RAND” switch: Use it for automatic and
random selection.
When the switch is touched, the system
selects a track in the disc. To cancel it,
touch the switch once again. (e) If the player malfunctions
If “CD ERROR” appears on the screen,
audio signals of the disc cannot be read
or the system has trouble. Push the
“DISC” button once again.
If the player does not operate, check that
the disc surface is not soiled or dama-
ged. If the disc is O.K., the temperature
of the player’s internal mechanism may
be raised because of high external tem-
perature. Remove the disc from the play-
er to cool it.
If the player still does not operate, have
it checked by your Toyota dealer.

4Runner_Navi_U (L/O 0208)
1452003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
The DVD player can play audio CDs,
DVD video discs and video CDs.
For appropriate discs for this player, see
“Car audio/video system operating hints”
on page 175.
For safety reasons, you can enjoy DVD
video discs and video CDs only when the
vehicle is completely stopped with the
ignition switch in the “ACC” or “ON” posi-
tion and the parking brake applied. While
you are driving, you can hear audio alone
even in the DVD video or video CD
mode.
NCY006
(a) Inserting discs
1. Open the glove box.
—DVD player operation

4Runner_Navi_U (L/O 0208)
1502003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

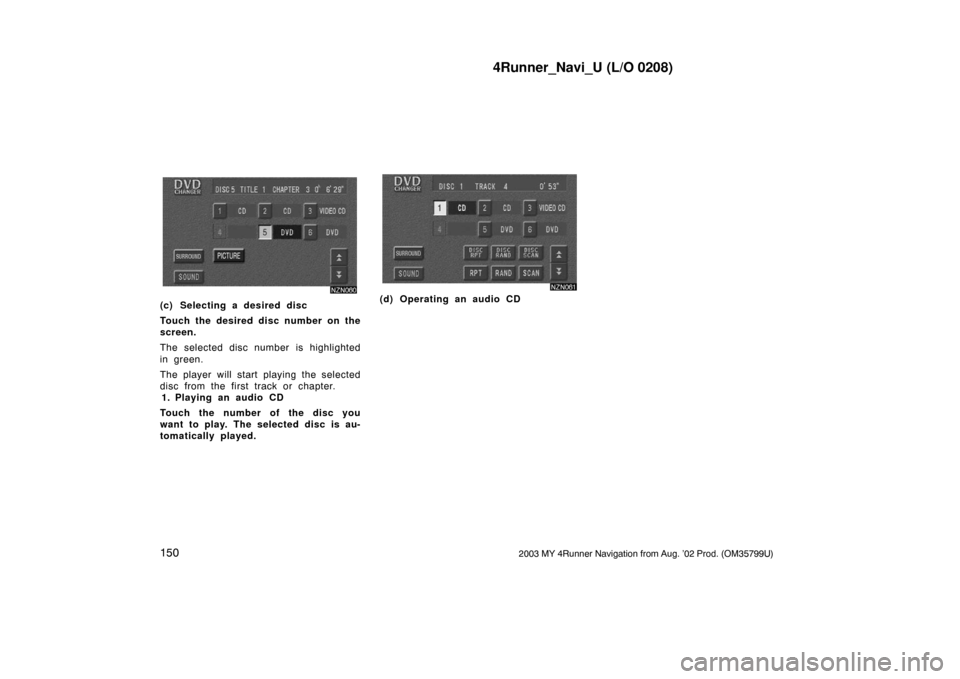

(c) Selecting a desired disc
Touch the desired disc number on the
screen.
The selected disc number is highlighted
in green.
The player will start playing the selected
disc from the first track or chapter.(d) Operating an audio CD
1. Playing an audio CD
Touch the number of the disc you
want to play. The selected disc is au-
tomatically played.

4Runner_Navi_U (L/O 0208)
1522003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
“Scan” will be highlighted in green. The
player will play the next track for 10 sec-
onds, then scan again. To select a track,
touch the “SCAN” switch again. If the
player reaches the end of the disc, it will
continue scanning at track 1.
After all the tracks are scanned in one
pass, normal play resumes.Touch the “DISK SCAN” switch.
“DISC SCAN” will be highlighted in green.
The program at the beginning of each
disc will be played for 10 seconds. To
continue listening to the program of your
choice, touch the “DISC SCAN” switch
again.
After all the audio discs are scanned in
one pass, normal play resumes.
4. Other functions
“RPT” switch: Use it for automatic re-
peat of the track you are currently listen-
ing to.
Touch the switch while the track is play-
ing. When the track is finished, the player
will automatically go back to the begin-
ning of the track and play the track
again. To cancel it, touch the switch once
again. “DISC RPT” switch:
Use it for automatic
repeat of the disc you are currently lis-
tening to.
Touch the switch while the disc is play-
ing. When the disc is finished, the player
will automatically go back to the begin-
ning of the disc and play the disc again.
To cancel it, touch the switch once again.
“RAND” switch: Use it for automatic and
random selection of the tracks of the disc
which you are currently listening to.
When the switch is touched, the system
selects a track on the disc you are cur-
rently listening to. To cancel it, touch the
switch once again. “DISC RAND” switch:
Use it for auto-
matic track selection of all the audio
discs.
When the switch is touched, the system
selects a track from all the audio discs
set in the magazine and plays it. To can-
cel it, touch the switch once again.

4Runner_Navi_U (L/O 0208)
1532003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
(e) Operating a DVD video disc
NOTE: The playback condition of some
DVD video discs may be determined
by the manufacturer of the DVD video
software producer. This DVD player
plays discs as the software manufac-
turer intended. Therefore, some func-
tions may not work properly. Be sure
to read the instru ction manual for the
DVD video disc separately provided.
For detailed information about DVD
video discs, see “(h) DVD video disc
information”.
Precautions for DVD video discs
When recording on a DVD or video CD,
audio tracks may not record in some
cases while the menu is displayed. As
audio will not play in this case, verify that
the video tracks are playing and then
activate playback.
When playback of a disc is completed:
If an audio CD is playing, the next CD
will be selected and playback will be-
gin automatically.
If a DVD video or video CD is playing,
playback will stop or the menu screen
will be displayed. The next disc will
not play back automatically. (Audio
tracks cannot be heard while the disc
is stopped) The title/chapter number and playback
time display may not appear while playing
back certain DVD video discs.
CAUTION
Conversational speech on some
DVDs is recorded at a low volume to
emphasize the impact of sound ef-
fects. If you adjust the volume as-
suming that the conversations repre-
sent the maximum vo
lume level that
the DVD will play, you may be
startled by louder sound effects or
when you change to a different au-
dio source. Loud sounds may have
a significant impact on the human
body or pose a driving hazard. Keep
this in mind when you adjust the
volume.

4Runner_Navi_U (L/O 0208)
1542003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
1. Playing a DVD video disc
Touch the number of the disc you
want to play. The selected disc is au-
tomatically played.
When you touch the “PICTURE” switch,
the video screen appears.
For safety reasons, you can enjoy DVD
video discs only when the vehicle is com-
pletely stopped with the ignition switch in
the “ACC” or “ON” position and the park-
ing brake applied. While you are driving,
you can hear audio alone even in the
DVD video mode.
NZN016
NZN017
2. Displaying op eration switches
If you touch a part of the screen where
switches are not located while you are
watching video, DVD video operation
switches will appear. “Second Page” switch:
Use this switch
to display the operation switches on the
second page.
“Top Page” switch: Use this switch to
display the operation switches on the top
page. “Hide Keys” switch:
Use this switch to
turn off the operation switches from the
display.
If “
” appears on the display when you
touch a switch, the operation relevant to
the switch is not permitted.

4Runner_Navi_U (L/O 0208)
1552003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
3. Description of each switch
SWITCHES ON TOP PAGE
“SET UP” switch: The initial set up
screen appears. (See page 157.)
“
”, “Menu” and “Top Menu”
switches: If you touch any of the above
switches, the menu screen for DVD video
appears. (For the operation, see the
manual that came with the DVD video
disc provided separately.)
“Angle” switch: The angle selection
screen appears. (See page 157.)
“Sub Title” switch: The subtitle chang-
ing screen appears. (See page 156.)
“Audio” switch: The audio changing
screen appears. (See page 156.)
SWITCHES ON SECOND PAGE
“Search” switch: The title search screen
appears. (See page 155.)
“
” switch: Use this switch to pause
the video screen. When you touch this
switch again, the video screen advances
frame by frame.
“
” switch: Use this switch to stop
playing video. “
” switch: Touch this switch to resume
normal play after a stop or pause.
“ ” switch: Touch this switch to fast
reverse during playback and reverse
slowly during pause.
“ ” switch: Touch this switch to fast
forward during playback and play slowly
during pause.
“
” switch: Use this switch to display
a predetermined scene and start playing
from here.
NZN018
4. Searching by title

4Runner_Navi_U (L/O 0208)
1562003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
Enter the title number using “”, “+”
and “+10” switches and touch “Enter”.
The player starts playing video for that
title number.
Push “” or “” on the “TRACK” switch
to select a chapter.
Touch “Return”, and the previous screen
returns.
NZN019
5. Changing the subtitle language
Each time you touch “Sub Title”, a
language is selected from the ones
stored on the discs.
To turn off the subtitles, touch “Hide”.
Touch “Return”, and the previous screen
returns.
NZN020
6. Changing the audio language
Each time you touch “Audio”, a lan-
guage is selected from the ones stored
on the discs and changed.
Touch “Return”, and the previous screen
returns.
