Touch any number to select the
desired volume. Touching the
“Off”
switch turns the voice route guidance
off. If you turn the
“Adaptive
volume control”
on, the volume is
turned up automatically when the
vehicle speed exceeds 80 km/h (50
mph).
INFORMATION
During route guidance, the voice
guidance continues even if the navi-
gation screen is changed to the oth-
er screens, such as the audio
screen.
UN301
The voice guidance provides various
messages as you approach an intersec-
tion, or other point where you need to
maneuver the vehicle.
1“Proceed about 5 miles.”
2“In a quarter of a mile, right
turn.”
3“Right turn.”
4(Beep sound only)
INFORMATION
On freeways, interstates of other
highways with higher speed limits,
the voice guidance will be made at
earlier points than on city streets in
order to allow time to maneuver.
Typical voice guidance
prompts

4Runner_Navi_U (L/O 0208)
1232003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
NZN065
Depending on the position of the head-
light switch, the screen changes to the
day mode or night mode.
To display the screen in the day mode
even with the headlight switch on, touch
“DAY MODE” on the adjustment screen
for brightness and contrast control.
However, if the instrument panel light
control is adjusted to full intensity, mode
switching cannot be done. It remains in
the day mode. In this case, “DAY MODE”
is not shown on the screen.
If the screen is set in the day mode with
the headlight switch turned to on, this
condition is memorized in the system
even with the engine turned off.
NZN044
You can select a function that enables
automatic return to the previous
screen from the audio screen.
1. Push the
“INFO” button to display the “Infor mation Menu” screen. Touch “Screen Transition”.
Screen transition

4Runner_Navi_U (L/O 0208)
1242003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
NZN045
2. Select “ON” or “OFF” and then touch “OK”.
ON: The previous screen automatically
returns from the audio screen 20
seconds after the end of audio op-
eration.
OFF: The audio screen remains on.

4Runner_Navi_U (L/O 0208)
1262003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
AUDIO SYSTEM
Audio system
Quick reference for your audio system127
. . . . . . . . . . . . . . . . . . . . . . .
Your audio system 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Using your audio system 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Car audio/video system operating hints 175
. . . . . . . . . . . . . . . . . . . . . .
SECTION V

4Runner_Navi_U (L/O 0208)
1272003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)

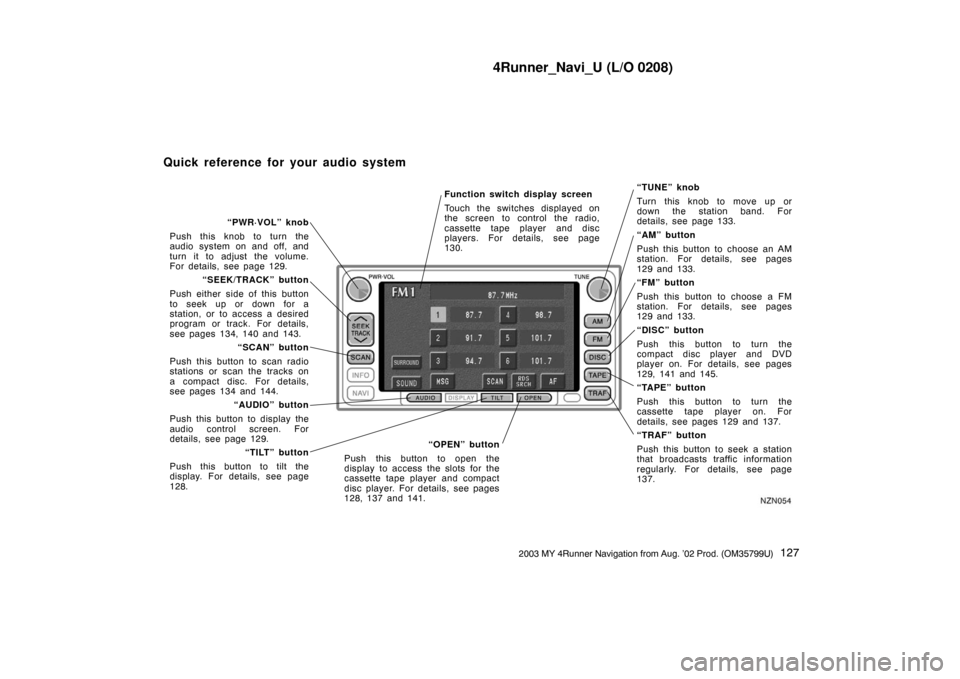

Function switch display screen
Touch the switches displayed on
the screen to control the radio,
cassette tape player and disc
players. For details, see page
130.“TUNE” knob
Turn this knob to move up or
down the station band. For
details, see page 133.
“AM” button
Push this button to choose an AM
station. For details, see pages
129 and 133.
“FM” button
Push this button to choose a FM
station. For details, see pages
129 and 133.
“DISC” button
Push this button to turn the
compact disc player and DVD
player on. For details, see pages
129, 141 and 145.
“TAPE” button
Push this button to turn the
cassette tape player on. For
details, see pages 129 and 137.
“TRAF” button
Push this button to seek a station
that broadcasts traffic information
regularly. For details, see page
137.
“OPEN” button
Push this button to open the
display to access the slots for the
cassette tape player and compact
disc player. For details, see pages
128, 137 and 141.
“PWR·VOL” knob
Push this knob to turn the
audio system on and off, and
turn it to adjust the volume.
For details, see page 129. “SEEK/TRACK” button
Push either side of this button
to seek up or down for a
station, or to access a desired
program or track. For details,
see pages 134, 140 and 143. “SCAN” button
Push this button to scan radio
stations or scan the tracks on
a compact disc. For details,
see pages 134 and 144. “AUDIO” button
Push this button to display the
audio control screen. For
details, see page 129.
“TILT” button
Push this button to tilt the
display. For details, see page
128.
Quick reference for your audio system

4Runner_Navi_U (L/O 0208)
1282003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
L00004
You can adjust the angle of the dis-
play by pushing the “TILT” button.
Each push of the “TILT” button will tilt
the display to position 1, 2, 3 and then
back to 0 in that order.
If you turn the ignition switch off, the
display will automatically move back to
position 0. The display will automatically
resume the previous position you used when
the ignition switch is turned to the “ACC”
or “ON” position.
The slots for the cassette tape player
and compact disc player are behind
the display.
To lower the display, push the “OPEN”
button. After you inserting the cassette
tape or compact disc, push the button
again to close the display.
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about in the compart-
ment and possibly injure people in
the vehicle during sudden braking
or in an accident.
To reduce the chance of injury in
case of an accident or sudden
stop while driving, keep the dis-
play closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct th e display while it
is moving. It could damage your au-
dio system.
Your audio system

4Runner_Navi_U (L/O 0208)
1292003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
This section describes some of the basic
features of the Toyota audio system.
Some information may not pertain to your
system.
Your audio system works when the igni-
tion switch is in the “ACC” or “ON” posi-
tion.
NOTICE
To prevent the battery from being
discharged, do not leave the car au-
dio on longer than necessary when
the engine is not running.
L00166
(a) Turning the system on and off
PWR·VOL: Push this knob to turn the
audio system on and off. Turn this knob
to adjust the volume. The system turns
on in the last mode used.
AUDIO: Push this button to display
switches for audio s ystem (audio control
mode).
You can select the function that enables
automatic return to the previous screen
from the audio screen. See page 123 for
details.Push “AM”, “FM”, “DISC” or “TAPE”
button to turn on the desired mode.
The selected mode turns on immedi-
ately.
Push these buttons if you want to switch
from one mode to another.
If the tape or disc is not set, the cassette
player or compact disc player does not
turn on.
You can turn off the cassette player or
compact disc player by ejecting the cas-
sette tape or compact disc. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the cassette tape. If another func-
tion was previously playing, it will come
on again.
Using your audio system—
—Some basics

4Runner_Navi_U (L/O 0208)
1302003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
The switches for radio, cassette tape
player, compact disc player and DVD
player operation are displayed on the
function switch display screen when
the audio control mode is selected.
Touch the switches lightly and directly
on the screen.
The selected switch is highlighted in green.
INFORMATION
 If the system does not respond to
a touch of a switch, move your fin-
ger away from the screen and then
touch it again.
 You cannot operate dimmed
switches.
 Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.

4Runner_Navi_U (L/O 0208)
1312003 MY 4Runner Navigation from Aug. ’02 Prod. (OM35799U)
(b) Tone and balance
How good an audio program sounds to you
is largely determined by the mix of the
treble, midrange, and bass levels. In fact,
different kinds of music and vocal programs
usually sound better with different mixes of
treble, mid −range and bass.
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the
volume of another.
NZN030

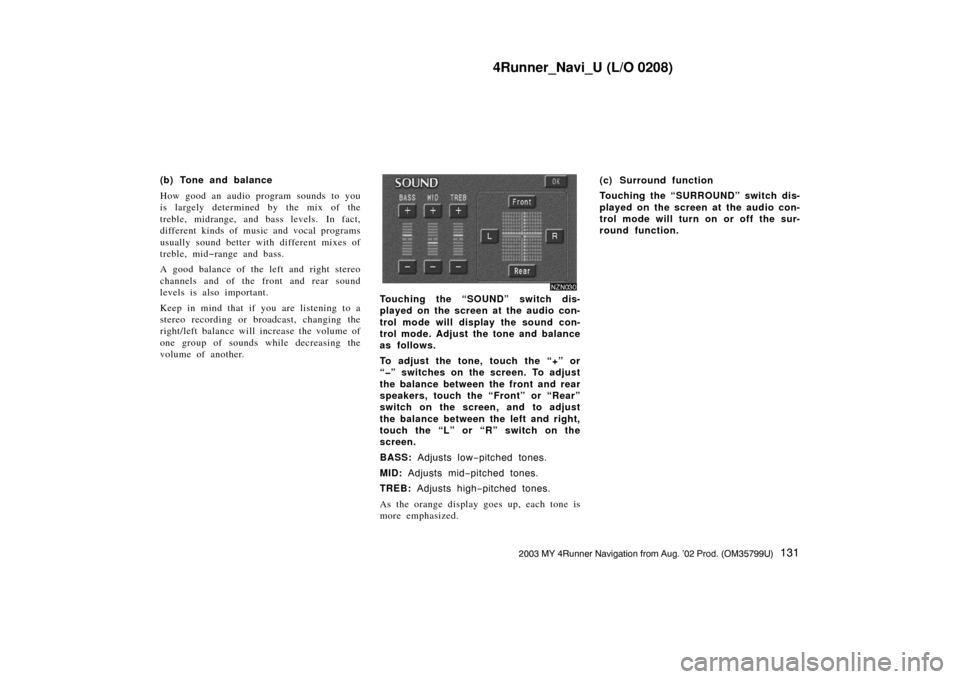

Touching the “SOUND” switch dis-
played on the screen at the audio con-
trol mode will display the sound con-
trol mode. Adjust the tone and balance
as follows.
To adjust the tone, touch the “+” or
“” switches on the screen. To adjust
the balance between the front and rear
speakers, touch the “Front” or “Rear”
switch on the screen, and to adjust
the balance between the left and right,
touch the “L” or “R” switch on the
screen.
BASS: Adjusts low− pitched tones.
MID: Adjusts mid −pitched tones.
TREB: Adjusts high− pitched tones.
As the orange display goes up, each tone is
more emphasized. (c) Surround function
Touching the “SURROUND” switch dis-
played on the screen at the audio con-
trol mode will turn on or off the sur-
round function.
