navigation system TOYOTA 4RUNNER 2004 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0308)
9
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
5. By Marked Point: You can register your own favorite destinations as a “Marked Point”. The system allows you to store up 100
marked points. See page 19 for the detailed steps.
6. By Previous Destination: You can select a destination from any of the last 20 previously set destinations. See page 20 for
the detailed steps.
7. By Emergency: You can select one of the three points of emergency service points that have been already stored in the system’s
database. See page 21 for the detailed steps.
8. By Intersection: You can enter the names of two intersecting streets. This is helpful if you do not know the specific street
address of your destination but know the general vicinity. See page 22 for the detailed steps.
9. By Freeway Entrance/Exit: You can enter the name of the freeway (interstate) entrance or exit. See page 23 for the detailed
steps.
10. By Previous Starting Point: You can enter a point where the system has started to guide last time. See page 24 for the detailed
steps.

4Runner_Navi_U (L/O 0308)
12
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00022
After each letter is input, the system
searches the database for street names
that match. Alphabet keys are dimmed if
the database does not have a match for
the next letter in the remaining list of
matching street names.
When you input numerals, touch the
“0–9” switch to display the screen
for numeral input.
Based on your input, the number of
matching sites appears at the top right of
the screen. After the number decreases
to some extent, touch the
“List” switch
to display the street selection list. If the
number of matches decreases to 4 or
less, the screen changes automatically to
the selection list.
L00015
When you find your desired street
name, touch
of the item. The
screen changes and displays the map
location of the selected destination
and the route preference. (See “(a) En-
tering destination” on page 25.)
If the same address exists in more than
one city, the current screen changes to
the “City Select” screen. Select or enter
your desired city.
L00023
If you input a street name first, the
screen changes. You can then input the
house number.
L00024
If the above screen appears, you can
select an address range on that screen.

4Runner_Navi_U (L/O 0308)
21
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
By touching the “Emergency”
switch on the “Destination” screen, the
display changes to a screen to select
dealers, hospitals or police stations.
During driving, only nearby police sta-
tions, hospitals or dealers are shown.
The current position is shown with an
address, the latitude and the longitude
at the top of the screen.
L00040
When you touch your desired emergency
category, the selected emergency catego-
ry list is displayed.
L00041
The distance from your current position
up to the destination is displayed on the
right of the name.
You can see the names of the emergency
destinations in alphabetical order by
touching the
“Name Sort” switch on
the screen.
Touch the
of your desired item.
The screen changes and displays the
map location of the selected destina-
tion and the route preference. (See
“(a) Entering destination” on page 25.)
Touch the
“Info.” switch on the screen
to display the selected emergency des-
tination name, address and telephone
number.
INFORMATION
The navigation system does not
guide in areas where route guidance
is unavailable. (See page 62.)
Destination input by
EMERGENCY

4Runner_Navi_U (L/O 0308)
25
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
After you input the destination, the
screen changes and displays the map
location of the selected destination
and the route preference.
L00050
You can move and set the cursor at
a desired point. (For the method of how
to move the cursor, see page 4.)
When you touch the
“Enter” switch,
the system starts searching for a route to
your destination using the conditions en-
tered.
Route preference
Touch the
“Change” switch to change
the conditions which are to determine the
route to your destination.You are given a number of choices on
the conditions which the system uses to
determine the route to your destination.
L00051
Touch the “Detour” switch of “Free-
way” to search for a route that includes
freeways as little as possible. (In some
cases, the route cannot avoid including a
freeway.)
Touch the
“Detour” switch of “Toll
road” to search for a route that includes
toll roads as little as possible.
Touch the
“Detour” switch of
“Ferry” to search for a route includes
ferries as little as possible.
Touch the
“Detour” switch of “Re-
stricted road” to search for a route that
does not utilize restricted road.
Touching the
“Allow” switch on each
item allows its use.The switches you select are highlighted
in green. After choosing conditions, touch
the
“OK” switch.
Setting and deleting
destination
(a) Entering destination

4Runner_Navi_U (L/O 0308)
34
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

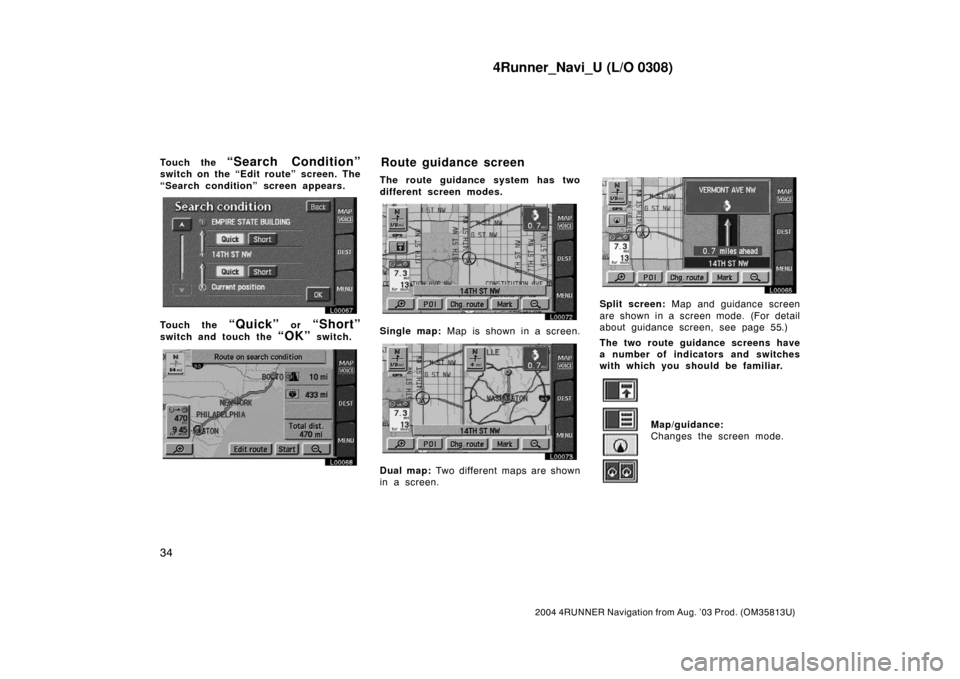

Touch the “Search Condition”
switch on the “Edit route” screen. The
“Search condition” screen appears.
L00067
Touch the “Quick” or “Short”
switch and touch the “OK” switch.
L00068
The route guidance system has two
different screen modes.
L00072
Single map: Map is shown in a screen.
L00073
Dual map: Two different maps are shown
in a screen.
L00065
Split screen: Map and guidance screen
are shown in a screen mode. (For detail
about guidance screen, see page 55.)
The two route guidance screens have
a number of indicators and switches
with which you should be familiar.
Map/guidance:
Changes the screen mode.
Route guidance screen

4Runner_Navi_U (L/O 0308)
35
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Upon reception of signals
from the GPS (Global Posi-
tioning System), this mark
appears. (For details, see
page 59.)
Magnifies or reduces the map
scale. (For details, see page
57.)
Touch this switch, and sym-
bols of points of interest are
shown on the screen. (For
details, see page 51.)
Touch this switch for one−
touch registration of the
marked point. (For details,
see page 84.)
INFORMATION
The distance up to your destination
appears at the left of the screen.
The time to your destination can
also be displayed. (For the setting
steps, see page 98.)
The “Change route” screen
appears and the following
settings are available.
L00066
Search condition: To change the condi-
tion for reroute.
Detour: To change the condition for de-
tour. (For details, see page 49.)
Del. next dest.: To delete and skip the
next destination.
INFORMATION
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.

4Runner_Navi_U (L/O 0308)
38
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

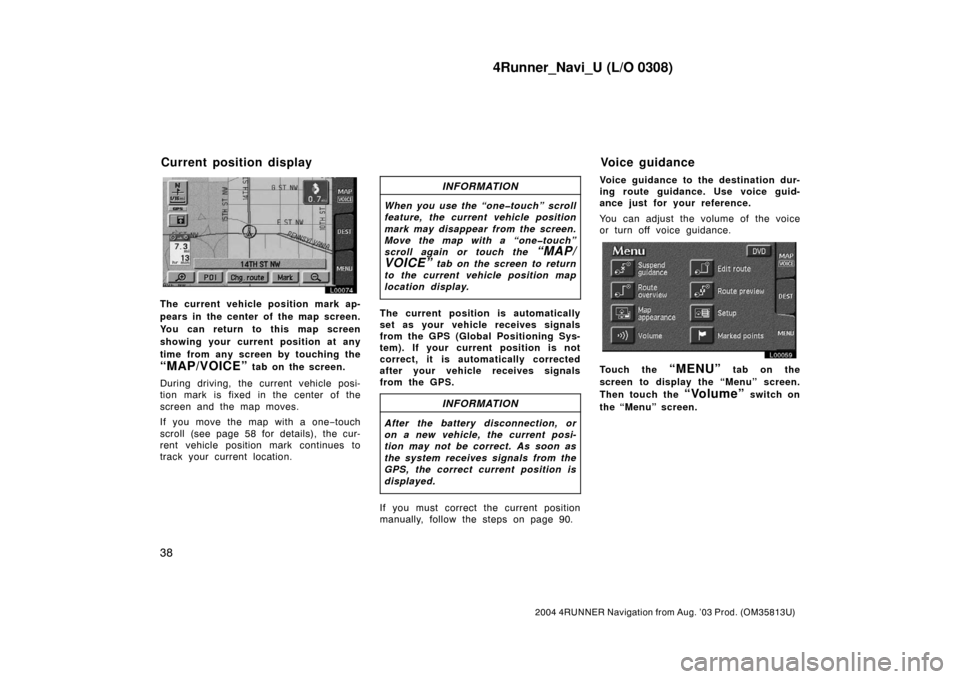

L00074
The current vehicle position mark ap-
pears in the center of the map screen.
You can return to this map screen
showing your current position at any
time from any screen by touching the
“MAP/VOICE” tab on the screen.
During driving, the current vehicle posi-
tion mark is fixed in the center of the
screen and the map moves.
If you move the map with a one−touch
scroll (see page 58 for details), the cur-
rent vehicle position mark continues to
track your current location.
INFORMATION
When you use the “onetouch” scroll
feature, the current vehicle position
mark may disappear from the screen.
Move the map with a “onetouch”
scroll again or touch the
“MAP/
VOICE”
tab on the screen to return
to the current vehicle position map
location display.
The current position is automatically
set as your vehicle receives signals
from the GPS (Global Positioning Sys-
tem). If your current position is not
correct, it is automatically corrected
after your vehicle receives signals
from the GPS.
INFORMATION
After the battery disconnection, or
on a new vehicle, the current posi-
tion may not be correct. As soon as
the system receives signals from the
GPS, the correct current position is
displayed.
If you must correct the current position
manually, follow the steps on page 90.Voice guidance to the destination dur-
ing route guidance. Use voice guid-
ance just for your reference.
You can adjust the volume of the voice
or turn off voice guidance.
L00059
Touch the “MENU” tab on the
screen to display the “Menu” screen.
Then touch the
“Volume” switch on
the “Menu” screen.
Current position display Voice guidance

4Runner_Navi_U (L/O 0308)
40
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
NZ018
4.2 miles
0.25 miles
1“Proceed about 4 miles to the
traffic circle.”
2“In a quarter of a mile, traffic
circle ahead, and then 3rd exit
ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
EMV3114U
One−way road
One−way road
∗: The system indicates a U−turn if the
distance between two one−way roads (of
opposite directions) is less than 15 m (50
ft.) in residential areas or 50 m (164 ft.)
in non−residential areas.
1“In half of a mile, make a legal
U−turn.”
2“Make a legal U−turn ahead.”
3(Beep sound only)
EMV3115U
The system announces your approach to
the final destination.
1“Your destination is ahead.”
2“You have arrived at your des-
tination. The route guidance is
now finished.”

4Runner_Navi_U (L/O 0308)
41
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
INFORMATION
If the system cannot determine the
current vehicle position correctly
(in cases of poor GPS signal recep-
tion), the voice guidance may be
made early or delayed.
If you did not hear the voice guid-
ance command, touch the
“MAP/
VOICE”
tab on the screen to hear
it again.
Registering your home

4Runner_Navi_U (L/O 0308)
49
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00085
3. Select the destination that you want to delete and touch the switch.
If you want to delete all the preset
destinations, touch the
“Delete
all”
switch.
Messages appear depending on the type
of deletion. If you want to delete, touch
the
“Yes” switch. To cancel the dele-
tion, touch the
“No” switch.When you are driving while the route
guidance is operating, you can change
the route to detour around a section
of the route where a delay is caused
by road repairs, an accident, etc.
L00074
Touch the “Chg. Route” switch if
you encounter a reason to divert from
the selected route.
EMV3065U
This picture shows an example of how
the system would route you around a
delay caused by a traffic jam.
1This part indicates the location
where traffic jam is occurring due to
road repairs or an accident.
Detour setting
