2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
After you input the destination, the
screen changes and displays the map
location of the selected destination
and the route preference.
L00050
You can move and set the cursor at
a desired point. (For the method of how
to move the cursor, see page 4.)
When you touch the
“Enter” switch,
the system starts searching for a route to
your destination using the conditions en-
tered.
Route preference
Touch the
“Change” switch to change
the conditions which are to determine the
route to your destination.You are given a number of choices on
the conditions which the system uses to
determine the route to your destination.
L00051
Touch the “Detour” switch of “Free-
way” to search for a route that includes
freeways as little as possible. (In some
cases, the route cannot avoid including a
freeway.)
Touch the
“Detour” switch of “Toll
road” to search for a route that includes
toll roads as little as possible.
Touch the
“Detour” switch of
“Ferry” to search for a route includes
ferries as little as possible.
Touch the
“Detour” switch of “Re-
stricted road” to search for a route that
does not utilize restricted road.
Touching the
“Allow” switch on each
item allows its use.The switches you select are highlighted
in green. After choosing conditions, touch
the
“OK” switch.
Setting and deleting
destination
(a) Entering destination

4Runner_Navi_U (L/O 0308)
26
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00052
During the route search, “Searching
route...” appears on the screen. When
the search is completed, 3 types of
routes are displayed on the screen.
L00053
If you want to see the other routes and
make a comparison, touch the
“3routes” switch. 3 types of the
routes are displayed on the screen.Quick: A route by which you can reach
the destination in the shortest time
This route is indicated by an orange line.
Short: A route by which you can reach
the destination in the shortest distance
This route is indicated by a purple line.
Alternative: Other route
This route is indicated by a green line.
Touch the switch to select the route.
If you want to add a destination, see the
following “(b) Adding destinations”.
After selecting one, you can start the
route guidance by touching the
“Start”
switch or starting to move your vehicle.
If you want to change the search condi-
tion, touch the
“Edit route” switch.
The screen changes and displays the
change route menu. (For details, see
page 49.)
When you keep touching the
“Start”
switch until you hear a beep, Demo mode
will start.
1. Touch the
“MENU” tab on the screen to display the “Menu” screen.
(b) Adding destinations

4Runner_Navi_U (L/O 0308)
29
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
1. Touch the “MENU” tab on the screen to display the “Menu” screen and touch the “Edit route” switch.
L00056
2. Touch the “Reorder” switch under “Destination”.
(c) Reordering destinations

4Runner_Navi_U (L/O 0308)
35
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Upon reception of signals
from the GPS (Global Posi-
tioning System), this mark
appears. (For details, see
page 59.)
Magnifies or reduces the map
scale. (For details, see page
57.)
Touch this switch, and sym-
bols of points of interest are
shown on the screen. (For
details, see page 51.)
Touch this switch for one−
touch registration of the
marked point. (For details,
see page 84.)
INFORMATION
The distance up to your destination
appears at the left of the screen.
The time to your destination can
also be displayed. (For the setting
steps, see page 98.)
The “Change route” screen
appears and the following
settings are available.
L00066
Search condition: To change the condi-
tion for reroute.
Detour: To change the condition for de-
tour. (For details, see page 49.)
Del. next dest.: To delete and skip the
next destination.
INFORMATION
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.

4Runner_Navi_U (L/O 0308)
36
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00059

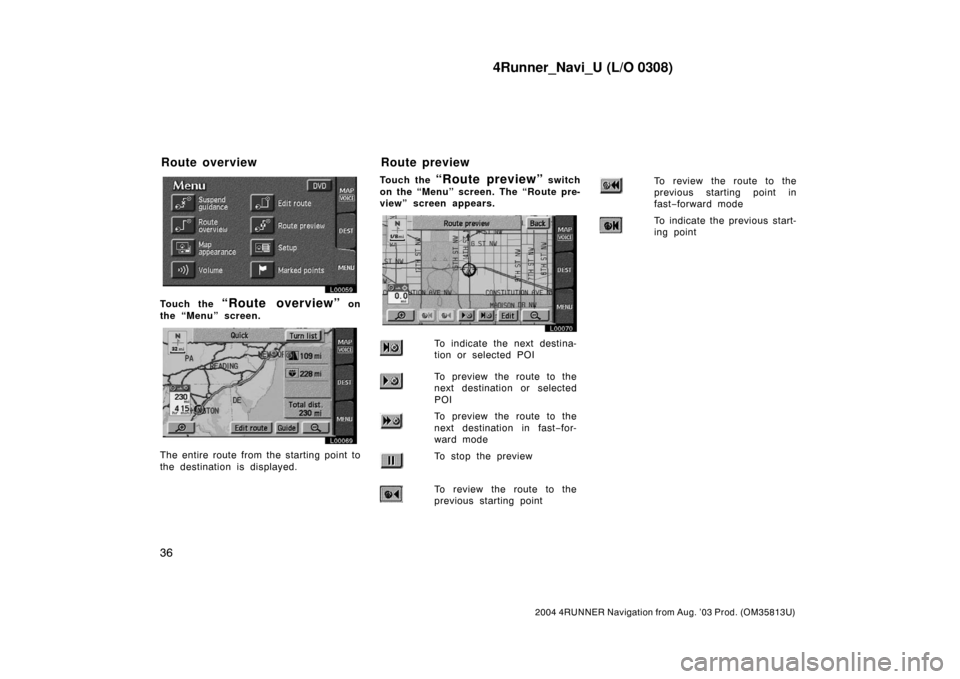

Touch the “Route overview” on
the “Menu” screen.
L00069
The entire route from the starting point to
the destination is displayed.Touch the
“Route preview” switch
on the “Menu” screen. The “Route pre-
view” screen appears.
L00070
To indicate the next destina-
tion or selected POI
To preview the route to the
next destination or selected
POI
To preview the route to the
next destination in fast−for-
ward mode
To stop the preview
To review the route to the
previous starting point
To review the route to the
previous starting point in
fast−forward mode
To indicate the previous start-
ing point
Route overview Route preview

4Runner_Navi_U (L/O 0308)
37
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00071

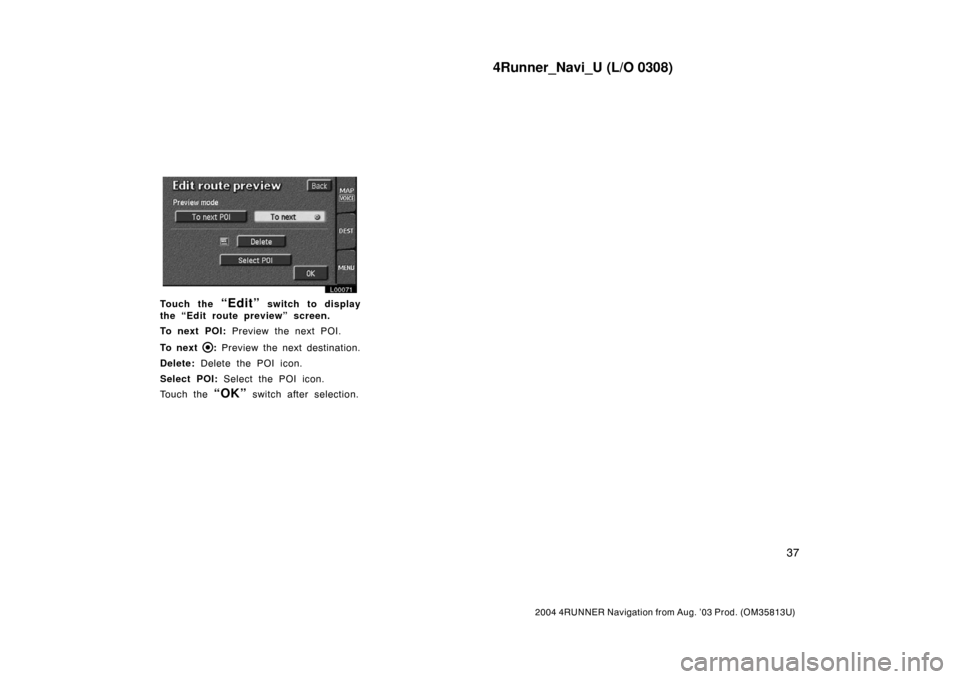

Touch the “Edit” switch to display
the “Edit route preview” screen.
To next POI: Preview the next POI.
To next
: Preview the next destination.
Delete: Delete the POI icon.
Select POI: Select the POI icon.
Touch the
“OK” switch after selection.

4Runner_Navi_U (L/O 0308)
38
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00074
The current vehicle position mark ap-
pears in the center of the map screen.
You can return to this map screen
showing your current position at any
time from any screen by touching the
“MAP/VOICE” tab on the screen.
During driving, the current vehicle posi-
tion mark is fixed in the center of the
screen and the map moves.
If you move the map with a one−touch
scroll (see page 58 for details), the cur-
rent vehicle position mark continues to
track your current location.
INFORMATION
When you use the “onetouch” scroll
feature, the current vehicle position
mark may disappear from the screen.
Move the map with a “onetouch”
scroll again or touch the
“MAP/
VOICE”
tab on the screen to return
to the current vehicle position map
location display.
The current position is automatically
set as your vehicle receives signals
from the GPS (Global Positioning Sys-
tem). If your current position is not
correct, it is automatically corrected
after your vehicle receives signals
from the GPS.
INFORMATION
After the battery disconnection, or
on a new vehicle, the current posi-
tion may not be correct. As soon as
the system receives signals from the
GPS, the correct current position is
displayed.
If you must correct the current position
manually, follow the steps on page 90.Voice guidance to the destination dur-
ing route guidance. Use voice guid-
ance just for your reference.
You can adjust the volume of the voice
or turn off voice guidance.
L00059
Touch the “MENU” tab on the
screen to display the “Menu” screen.
Then touch the
“Volume” switch on
the “Menu” screen.
Current position display Voice guidance

4Runner_Navi_U (L/O 0308)
42
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
If you register your home address be-
forehand, you can easily set the route
back to your home.
L00059

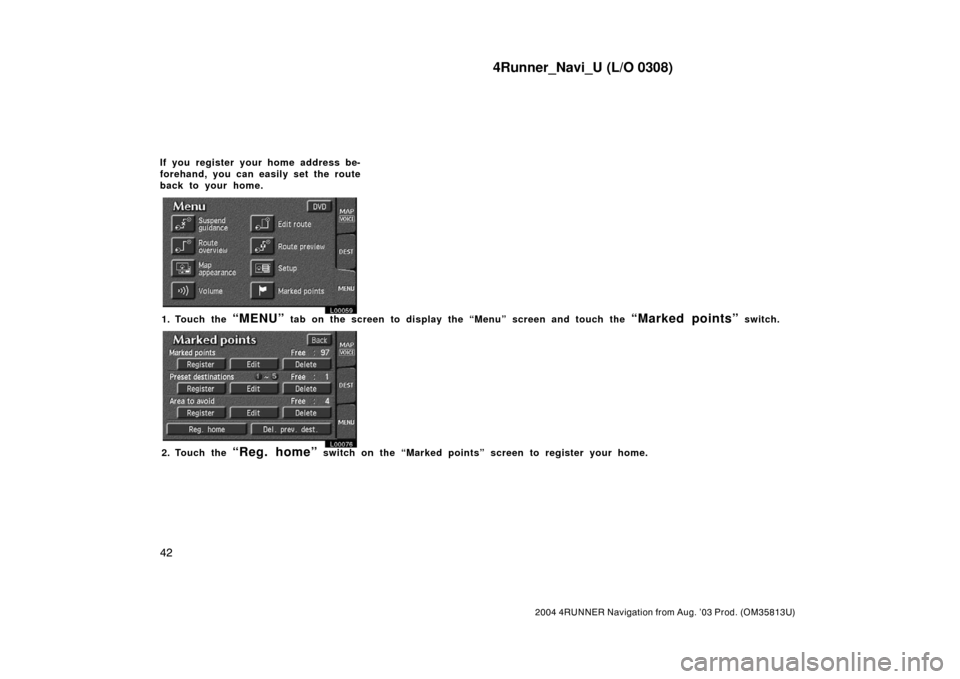

1. Touch the “MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.
L00076
2. Touch the “Reg. home” switch on the “Marked points” screen to register your home.

4Runner_Navi_U (L/O 0308)
44
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
DELETING YOUR HOME
L00059
1. Touch the “MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.
L00078
2. Touch the “Delete home” switch on the “Marked points” screen.

4Runner_Navi_U (L/O 0308)
45
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00079
The screen changes and displays the
map location of home and a message. If
you are sure that you want to delete,
touch the
“Yes” switch. If not, touch
the
“No” switch.You can register up to 5 preset des-
tinations.
1. Touch the
“MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.
L00080
2. Touch the “Register” switch under “Preset destinations 1~5”.
Registering preset
destinations
