navigation TOYOTA 4RUNNER 2004 N210 / 4.G Navigation Manual

4Runner_Navi_U (L/O 0308)
33
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

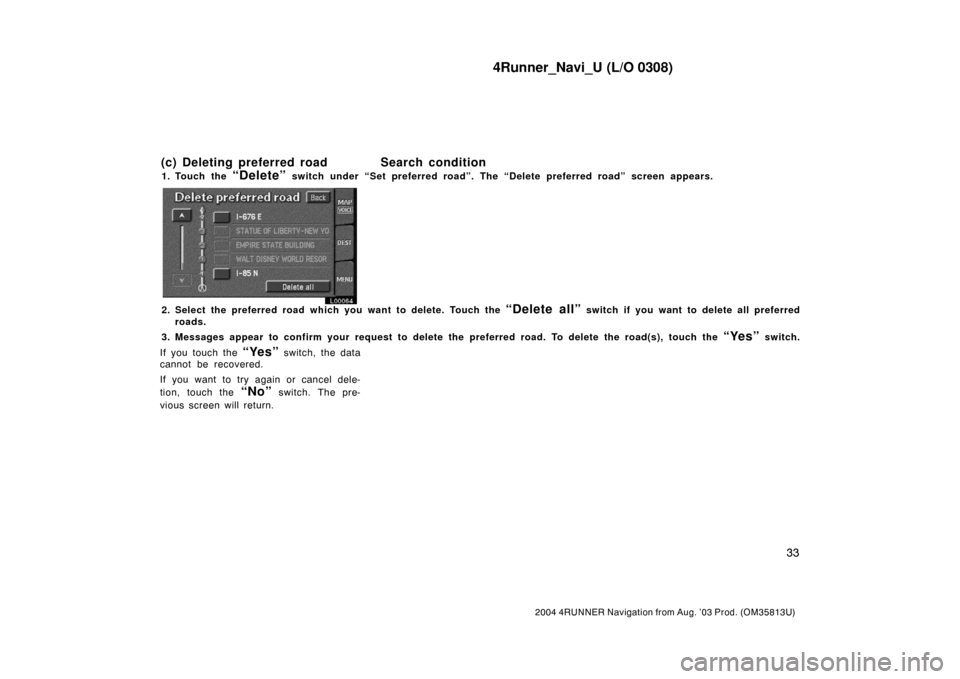

1. Touch the “Delete” switch under “Set preferred road”. The “Delete preferred road” screen appears.
L00064
2. Select the preferred road which you want to delete. Touch the “Delete all” switch if you want to delete all preferred
roads.
3. Messages appear to confirm your request to delete the preferred road. To delete the road(s), touch the
“Yes” switch.
If you touch the
“Yes” switch, the data
cannot be recovered.
If you want to try again or cancel dele-
tion, touch the
“No” switch. The pre-
vious screen will return.
(c) Deleting preferred road Search condition

4Runner_Navi_U (L/O 0308)
34
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Touch the “Search Condition”
switch on the “Edit route” screen. The
“Search condition” screen appears.
L00067
Touch the “Quick” or “Short”
switch and touch the “OK” switch.
L00068
The route guidance system has two
different screen modes.
L00072
Single map: Map is shown in a screen.
L00073
Dual map: Two different maps are shown
in a screen.
L00065
Split screen: Map and guidance screen
are shown in a screen mode. (For detail
about guidance screen, see page 55.)
The two route guidance screens have
a number of indicators and switches
with which you should be familiar.
Map/guidance:
Changes the screen mode.
Route guidance screen

4Runner_Navi_U (L/O 0308)
35
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
Upon reception of signals
from the GPS (Global Posi-
tioning System), this mark
appears. (For details, see
page 59.)
Magnifies or reduces the map
scale. (For details, see page
57.)
Touch this switch, and sym-
bols of points of interest are
shown on the screen. (For
details, see page 51.)
Touch this switch for one−
touch registration of the
marked point. (For details,
see page 84.)
INFORMATION
The distance up to your destination
appears at the left of the screen.
The time to your destination can
also be displayed. (For the setting
steps, see page 98.)
The “Change route” screen
appears and the following
settings are available.
L00066
Search condition: To change the condi-
tion for reroute.
Detour: To change the condition for de-
tour. (For details, see page 49.)
Del. next dest.: To delete and skip the
next destination.
INFORMATION
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.

4Runner_Navi_U (L/O 0308)
36
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00059
Touch the “Route overview” on
the “Menu” screen.
L00069
The entire route from the starting point to
the destination is displayed.Touch the
“Route preview” switch
on the “Menu” screen. The “Route pre-
view” screen appears.
L00070
To indicate the next destina-
tion or selected POI
To preview the route to the
next destination or selected
POI
To preview the route to the
next destination in fast−for-
ward mode
To stop the preview
To review the route to the
previous starting point
To review the route to the
previous starting point in
fast−forward mode
To indicate the previous start-
ing point
Route overview Route preview

4Runner_Navi_U (L/O 0308)
37
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00071
Touch the “Edit” switch to display
the “Edit route preview” screen.
To next POI: Preview the next POI.
To next
: Preview the next destination.
Delete: Delete the POI icon.
Select POI: Select the POI icon.
Touch the
“OK” switch after selection.

4Runner_Navi_U (L/O 0308)
38
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
L00074
The current vehicle position mark ap-
pears in the center of the map screen.
You can return to this map screen
showing your current position at any
time from any screen by touching the
“MAP/VOICE” tab on the screen.
During driving, the current vehicle posi-
tion mark is fixed in the center of the
screen and the map moves.
If you move the map with a one−touch
scroll (see page 58 for details), the cur-
rent vehicle position mark continues to
track your current location.
INFORMATION
When you use the “onetouch” scroll
feature, the current vehicle position
mark may disappear from the screen.
Move the map with a “onetouch”
scroll again or touch the
“MAP/
VOICE”
tab on the screen to return
to the current vehicle position map
location display.
The current position is automatically
set as your vehicle receives signals
from the GPS (Global Positioning Sys-
tem). If your current position is not
correct, it is automatically corrected
after your vehicle receives signals
from the GPS.
INFORMATION
After the battery disconnection, or
on a new vehicle, the current posi-
tion may not be correct. As soon as
the system receives signals from the
GPS, the correct current position is
displayed.
If you must correct the current position
manually, follow the steps on page 90.Voice guidance to the destination dur-
ing route guidance. Use voice guid-
ance just for your reference.
You can adjust the volume of the voice
or turn off voice guidance.
L00059
Touch the “MENU” tab on the
screen to display the “Menu” screen.
Then touch the
“Volume” switch on
the “Menu” screen.
Current position display Voice guidance

4Runner_Navi_U (L/O 0308)
39
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)

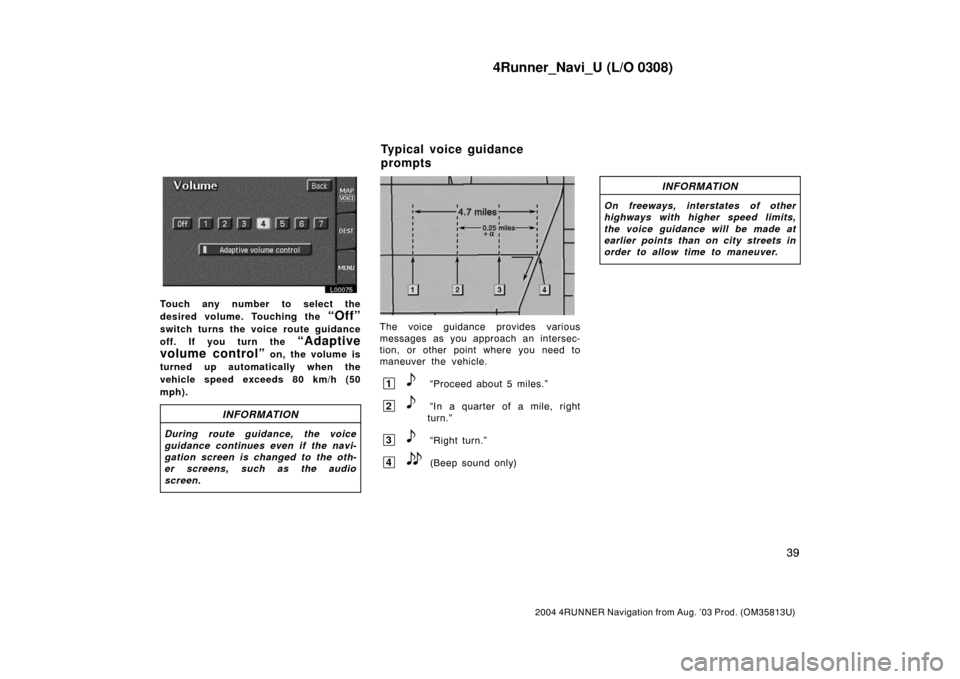

L00075
Touch any number to select the
desired volume. Touching the
“Off”
switch turns the voice route guidance
off. If you turn the
“Adaptive
volume control”
on, the volume is
turned up automatically when the
vehicle speed exceeds 80 km/h (50
mph).
INFORMATION
During route guidance, the voice
guidance continues even if the navi-
gation screen is changed to the oth-
er screens, such as the audio
screen.
UN301
The voice guidance provides various
messages as you approach an intersec-
tion, or other point where you need to
maneuver the vehicle.
1“Proceed about 5 miles.”
2“In a quarter of a mile, right
turn.”
3“Right turn.”
4(Beep sound only)
INFORMATION
On freeways, interstates of other
highways with higher speed limits,
the voice guidance will be made at
earlier points than on city streets in
order to allow time to maneuver.
Typical voice guidance
prompts

4Runner_Navi_U (L/O 0308)
40
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
NZ018
4.2 miles
0.25 miles
1“Proceed about 4 miles to the
traffic circle.”
2“In a quarter of a mile, traffic
circle ahead, and then 3rd exit
ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
EMV3114U
One−way road
One−way road
∗: The system indicates a U−turn if the
distance between two one−way roads (of
opposite directions) is less than 15 m (50
ft.) in residential areas or 50 m (164 ft.)
in non−residential areas.
1“In half of a mile, make a legal
U−turn.”
2“Make a legal U−turn ahead.”
3(Beep sound only)
EMV3115U
The system announces your approach to
the final destination.
1“Your destination is ahead.”
2“You have arrived at your des-
tination. The route guidance is
now finished.”

4Runner_Navi_U (L/O 0308)
41
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
INFORMATION
If the system cannot determine the
current vehicle position correctly
(in cases of poor GPS signal recep-
tion), the voice guidance may be
made early or delayed.
If you did not hear the voice guid-
ance command, touch the
“MAP/
VOICE”
tab on the screen to hear
it again.
Registering your home

4Runner_Navi_U (L/O 0308)
42
2004 4RUNNER Navigation from Aug. ’03 Prod. (OM35813U)
If you register your home address be-
forehand, you can easily set the route
back to your home.
L00059
1. Touch the “MENU” tab on the screen to display the “Menu” screen and touch the “Marked points” switch.
L00076
2. Touch the “Reg. home” switch on the “Marked points” screen to register your home.
