TOYOTA 4RUNNER 2004 N210 / 4.G Owners Manual

’04 4Runner_U (L/O 0308)
11 3
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

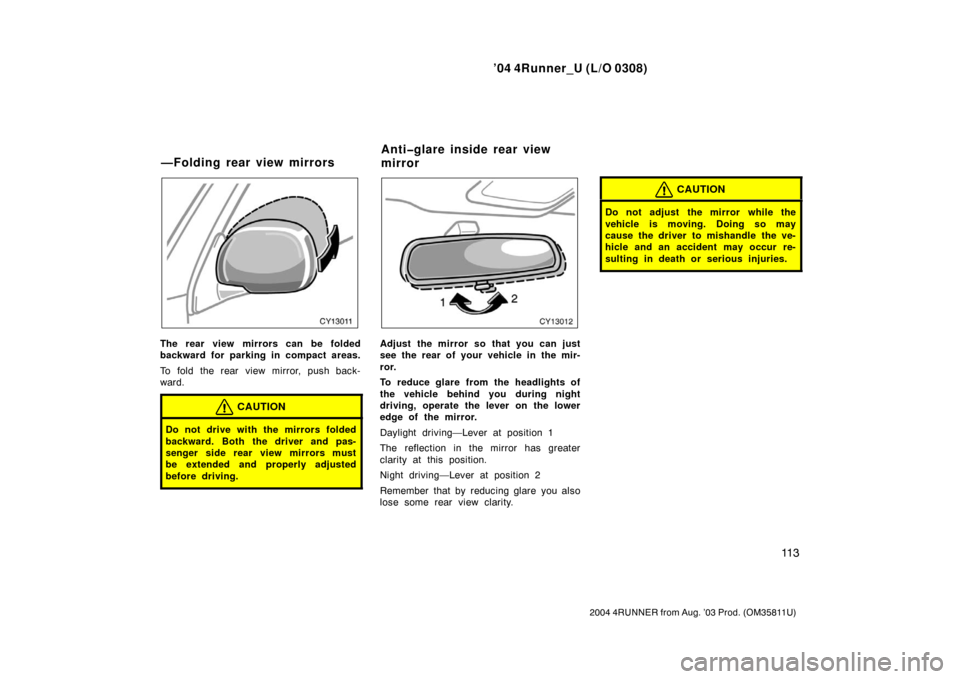

The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
—Folding rear view mirrors Antiglare inside rear view
mirror

’04 4Runner_U (L/O 0308)
11 4
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on. In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, push
the “MIRROR” switch.
To turn on the automatic function again,
push the “MIRROR” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
To ensure correct functioning of an
antiglare mirror sensor located on the
back side of the mirror, do not touch
or cover the sensor with your finger or
a piece of cloth, etc.
Auto antiglare inside rear
view mirror

’04 4Runner_U (L/O 0308)
11 5
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Rear sideview mirrors are useful as a
secondary means of checking the area
to the rear of the vehicle.
Carefully check the area to the rear of the
vehicle by either looking directly or using
both outside and inside rear view mirrors.
Ty p e A
Ty p e B
Rear sideview mirrors Sun visors—

’04 4Runner_U (L/O 0308)
11 6
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the main sun visor (position 1).
To block out glare from the side—Swing
down the main sun visor, remove it from
the hook and swing it to the lateral side
(position 2).
Type A—If glare comes from obliquely be-
hind you, extend the plate at the end of
the visor (to position 3).
Type B—If glare comes from obliquely be-
hind you, slide the main sun visor back-
ward (to position 3).

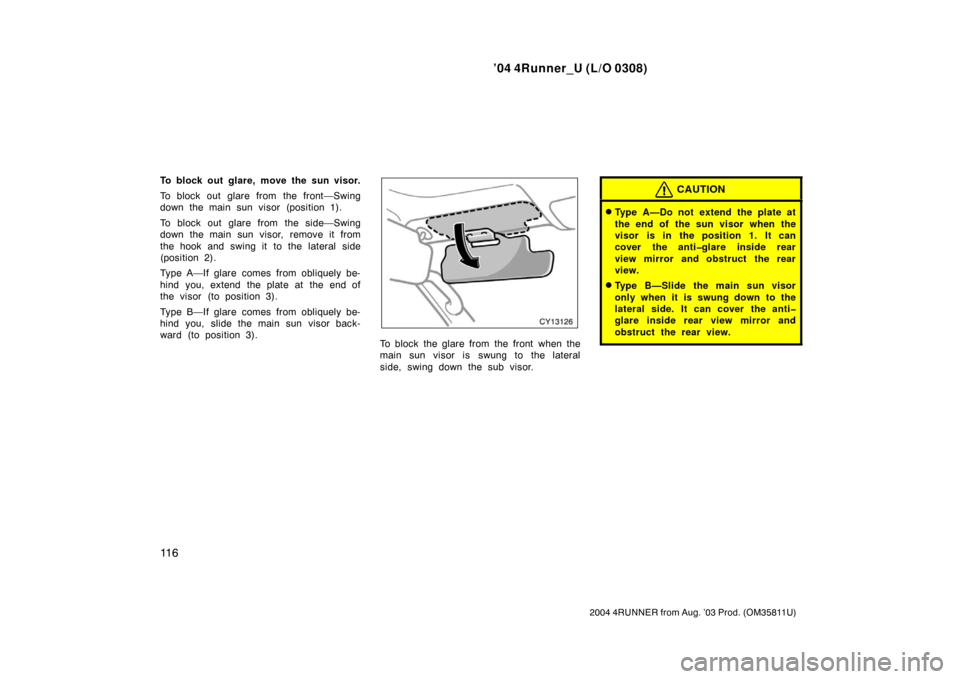

To block the glare from the front when the
main sun visor is swung to the lateral
side, swing down the sub visor.
CAUTION
Type A—Do not extend the plate at
the end of the sun visor when the
visor is in the position 1. It can
cover the antiglare inside rear
view mirror and obstruct the rear
view.
Type B—Slide the main sun visor
only when it is swung down to the
lateral side. It can cover the anti
glare inside rear view mirror and
obstruct the rear view.

’04 4Runner_U (L/O 0308)
11 7
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Ty p e A
Ty p e B
To use the vanity mirrors, swing down
the main sun visor and slide the cover.
Ty p e A —
The vanity light comes on when you slide
the cover.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed for 30 minutes or
more.
—Vanity mirrors

’04 4Runner_U (L/O 0308)
11 8
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

’04 4Runner_U (L/O 0308)
11 9
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Personal lights 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Luggage compartment light 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Running board lights 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Windshield wipers and washer 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defoggers 131
. . . . . . . . . . .
SECTION 1 5

’04 4Runner_U (L/O 0308)
120
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
For the U.S.A.
For Canada
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
For Canada—The tail light indicator (green
light) on the instrument panel will tell you
that the tail lights are on.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight low beam
indicator light (green light) on the instru-
ment panel will tell you that the low
beams are on.
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.
The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
The operating condition or sensitivity can
be changed. For details, contact your
Toyota dealer.
Automatic light cut off system
Position 1 or position 3 with the tail
lights on—
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position.
Headlights and turn signals
(with automatic light control
system)

’04 4Runner_U (L/O 0308)
121
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Position 2 or 3 with the headlights on—
The lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the ignition key in
the “ACC” or “LOCK” position.
If the “LOCK” switch of the wireless re-
mote control transmitter is pushed twice
simultaneously, the lights automatically
turn off immediately.
The time before the headlights turn off
can be changed. For details, contact your
Toyota dealer.
If the driver ’s door is kept opened, the
lights automatically turn off after 30 min-
utes.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light (DRL) system (all
models sold in Canada and some mod-
els sold in U.S.A.)
Daytime Running Light (DRL) system can
make it easier for others to see the front
of your vehicle during the day. The DRL
system can be helpful in many different
driving conditions, but they can be espe-
cially helpful in the short periods after
dawn and before sunset.
The DRL system will make your front turn
signal lights come on when:
The ignition is on with the engine run-
ning.
The knob is in the “OFF” position,
position 1 or position 3 with the tail
lights on.
The parking brake is released.
To turn off the DRL system, twist the knob
to the position 2 or position 3 with the
headlights on, or turn the ignition switch
off.
This DRL system can be disabled. For
details, contact your Toyota dealer.
HighLow beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

’04 4Runner_U (L/O 0308)
122
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
On some models, the front turn signal
lights are on during daytime running light
system is on. For details, see “Daytime
running light system”. If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.For the U.S.A.
For Canada
Headlights and turn signals
(without automatic light
control system)
