TOYOTA 4RUNNER 2004 N210 / 4.G User Guide

’04 4Runner_U (L/O 0308)
3
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
21. Telescopic steering lock release lever
22. Parking brake pedal
23. Window lock switch
24. Power rear view mirror control switches

’04 4Runner_U (L/O 0308)
4
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
1. Instrument panel light control dial
2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches
4. Wiper and washer switches
5. Power back window switch
6. Car audio
7. Front passenger ’s seat belt reminder light
8. Engine immobilizer/theft deterrent system indicator light
9. Multi −information display
10. Emergency flasher switch 11. Air conditioning controls
12. Auxiliary box
13. Back window and rear view mirror defogger switch
14. Four −wheel drive control switch knob
(full −time four −wheel drive models) or
multi −mode control switch knob
(multi −mode four −wheel drive models)
15. Ignition switch
16. Cruise control switch
17. Hood lock release lever

’04 4Runner_U (L/O 0308)
5
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
18. Fuel filler door o pener
19. Roll sensing of curtain shield airbags off switch
20. “TRAC OFF” switch
21. Center differential lock switch
22. Power outlet main switch

’04 4Runner_U (L/O 0308)
6
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
1. Trip meter reset button
2. Tachometer
3. Service reminder indicators and
indicator lights 4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Engine coolant temperature gauge
8. Odometer and two trip meters
9. Odometer/two trip meter changeover
button
Instrument cluster overview

’04 4Runner_U (L/O 0308)
7
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
or
Driver ’s seat belt reminder light∗
1
Low engine oil pressure warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.) Brake system warning light
∗ 1
Malfunction indicator lamp∗1
Discharge warning light∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
Open door warning light∗1
Front passenger ’s seat belt reminder light∗1
Vehicle stability control system warning
light∗1
Traction control system warning light∗1
(two −wheel drive models)
Active traction control system warning light∗
1
(four− wheel drive models)
Downhill assist control system warning
light∗
1 (four −wheel drive models)
Hill −start assist control system warning
light∗ 1
Automatic transmission fluid temperature
warning light∗1
Low windshield washer fluid level warning
light∗1 (for vehicles sold in Canada)
Low tire pressure warning light∗1
Indicator symbols on the instrument panel

’04 4Runner_U (L/O 0308)
8
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Cruise control indicator light∗
5
Center differential lock indicator light∗3
(four −wheel drive models)
Automatic transmission indicator lights
(5 −speed)
Traction control system off indicator light
(two −wheel drive models)
Vehicle stability control system off indicator light
(four −wheel drive models)
Slip indicator light
Turn signal indicator lights
Low speed four
−wheel drive indicator light∗
3
(four −wheel drive models)
Downhill assist control system indicator light
(four −wheel drive models)
Height control “OFF” indicator light
∗ 4
Height control indicator lights
Headlight high beam indicator light
Automatic transmission indicator lights
(4 −speed)
Four −wheel drive indicator light∗
3
(multi −mode four −wheel drive models)
Engine immobilizer/theft deterrent system
indicator light
Roll sensing of curtain shield airbags off
indicator light∗
2
Headlight low beam indicator light
Tail light indicator light

’04 4Runner_U (L/O 0308)
9
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
∗
1: For details, see “Service reminder indicators and warning
buzzers” on page 137 in Section 1 −6.
∗
2: For details, see “Roll sensing of curtain shield airbags off
switch” on page 87 in Section 1 −3.
∗
3: If this light flashes, see “Four −wheel drive system” on page
158 in Section 1− 7.
∗
4: If this light flashes, see “Rear height control air suspension”
on page 178 in Section 1 −7.
∗
5: If this light flashes, see “Cruise control” on page 188 in
Section 1 −7.

’04 4Runner_U (L/O 0308)
10
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

’04 4Runner_U (L/O 0308)
11
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power back window 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Back door 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’04 4Runner_U (L/O 0308)
12
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

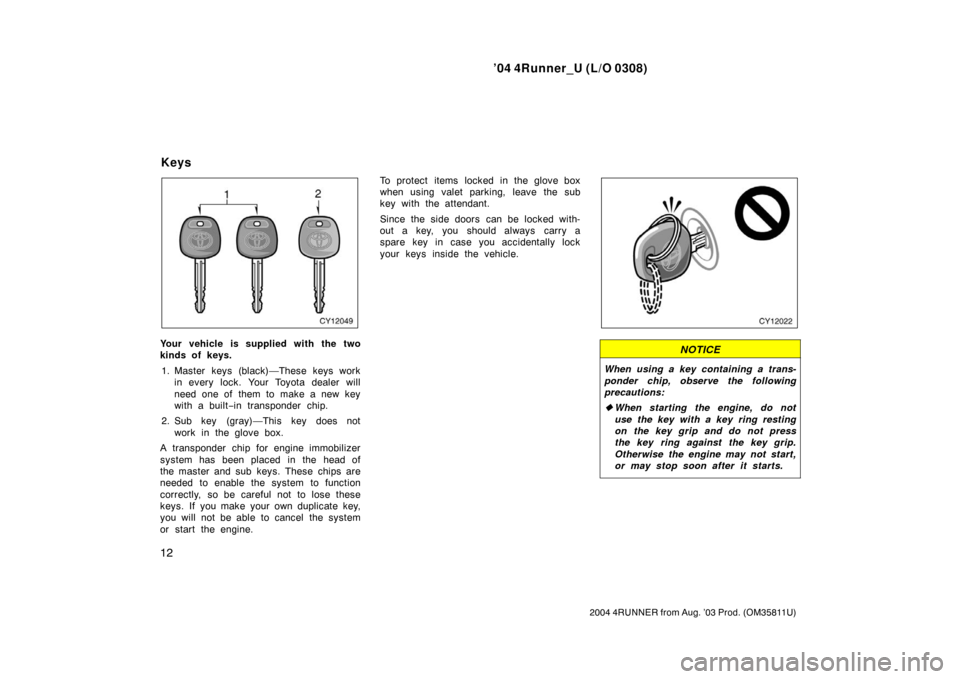

Your vehicle is supplied with the two
kinds of keys.
1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key does not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine. To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys
