’04 4Runner_U (L/O 0308)
43
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
5. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the control switch on either side.
The amount of lumber support will change
while the switch is pushed.

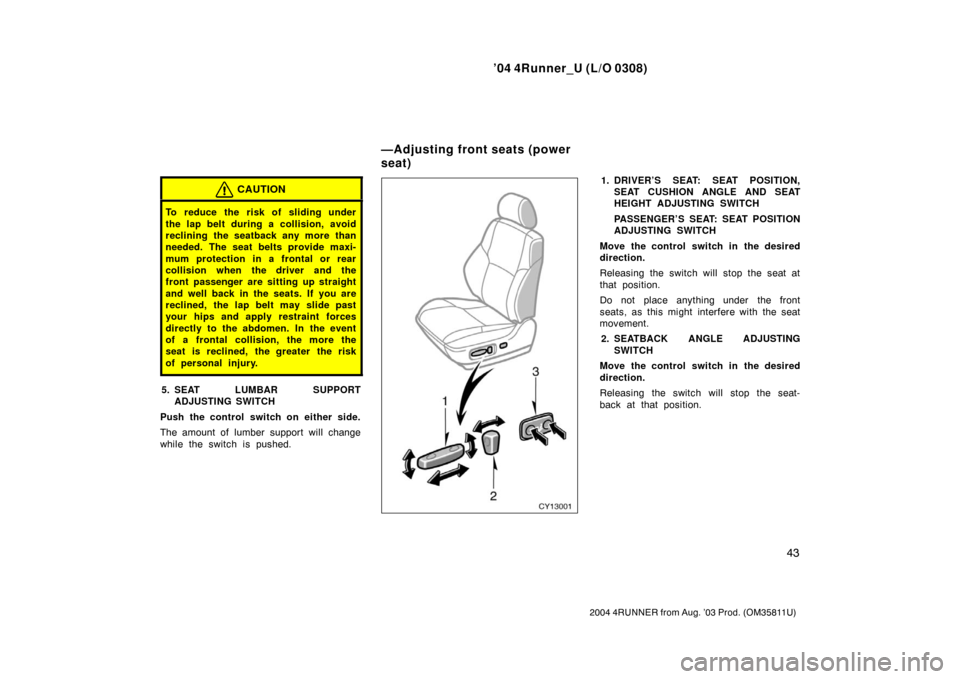

1. DRIVER’S SEAT: SEAT POSITION, SEAT CUSHION ANGLE AND SEAT
HEIGHT ADJUSTING SWITCH
PASSENGER’S SEAT: SEAT POSITION
ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat at
that position.
Do not place anything under the front
seats, as this might interfere with the seat
movement. 2. SEATBACK ANGLE ADJUSTING SWITCH
Move the control switch in the desired
direction.
Releasing the switch will stop the seat-
back at that position.
—Adjusting front seats (power
seat)
Page 52 of 412
’04 4Runner_U (L/O 0308)
44
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the
front passenger are sitting up straight
and well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. In the event
of a frontal collision, the more the
seat is reclined, the greater the risk
of personal injury.
3. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the control switch on either side.
The amount of lumber support will change
while the switch is pushed.
1. Remove the head restraint. Hold the center of the lever and pull it up.
Then slide the seat further forward
than the front most lock position.2. Pull the seatback angle adjusting le-ver to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
—Flattening seatbacks
(manual seat)
Page 53 of 412
’04 4Runner_U (L/O 0308)
45
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.

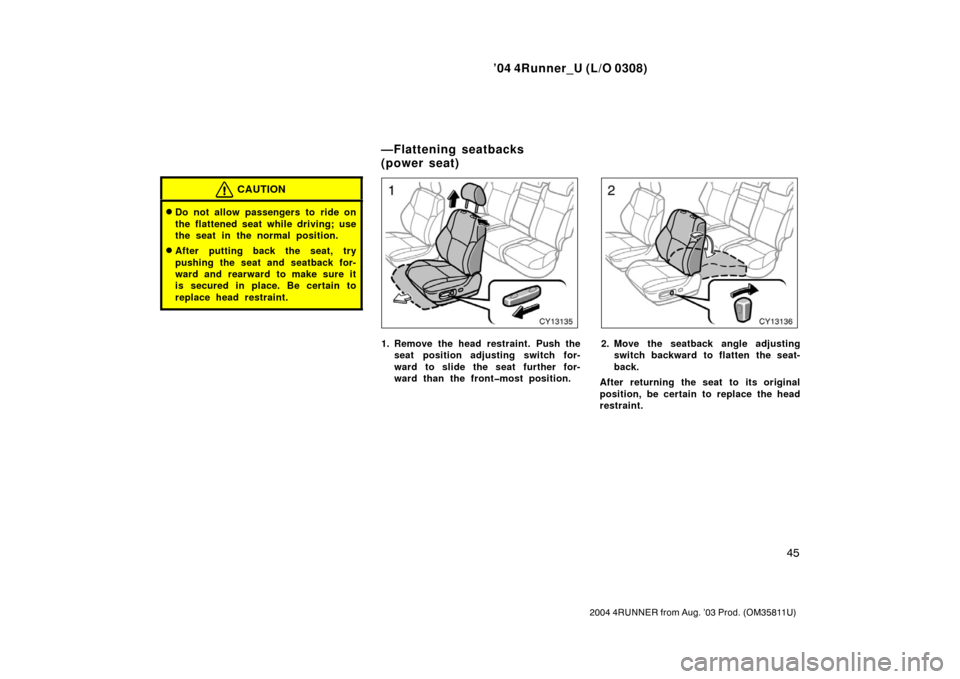

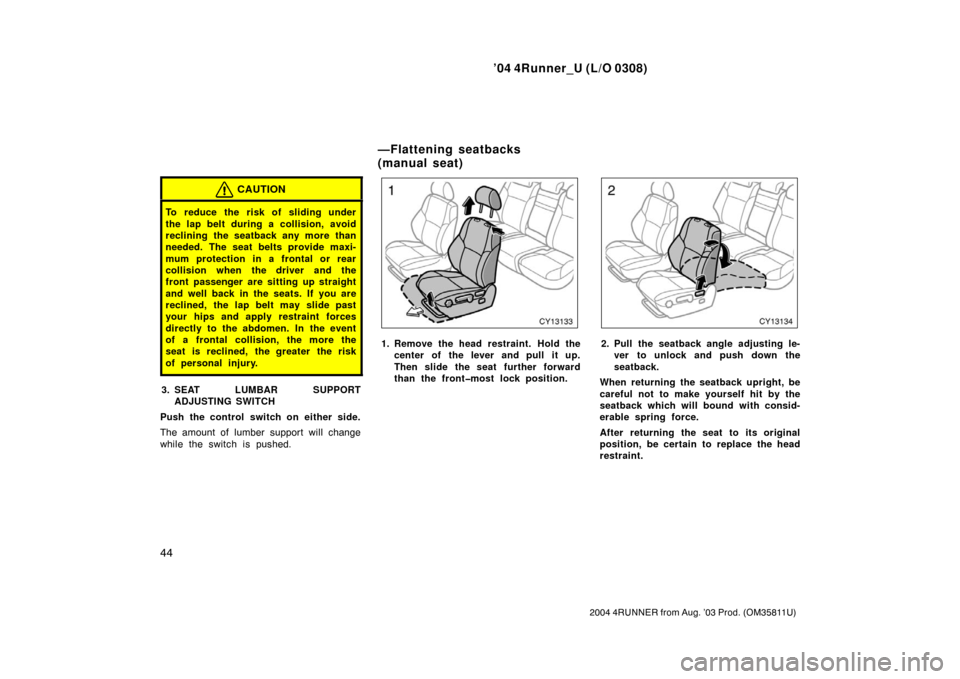

1. Remove the head restraint. Push the
seat position adjusting switch for-
ward to slide the seat further for-
ward than the front most position.2. Move the seatback angle adjustingswitch backward to flatten the seat-
back.
After returning the seat to its original
position, be certain to replace the head
restraint.
—Flattening seatbacks
(power seat)
Page 54 of 412
’04 4Runner_U (L/O 0308)
46
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.

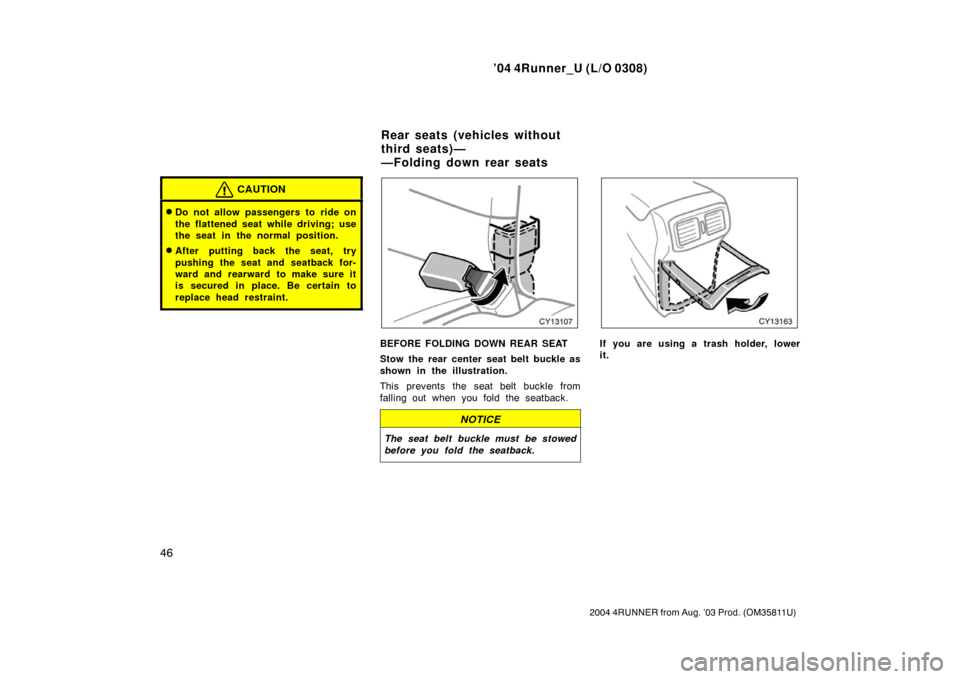

BEFORE FOLDING DOWN REAR SEAT
Stow the rear center seat belt buckle as
shown in the illustration.
This prevents the seat belt buckle from
falling out when you fold the seatback.
NOTICE
The seat belt buckle must be stowed
before you fold the seatback.
If you are using a trash holder, lower
it.
Rear seats (vehicles without
third seats)—
—Folding down rear seats
Page 55 of 412
’04 4Runner_U (L/O 0308)
47
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

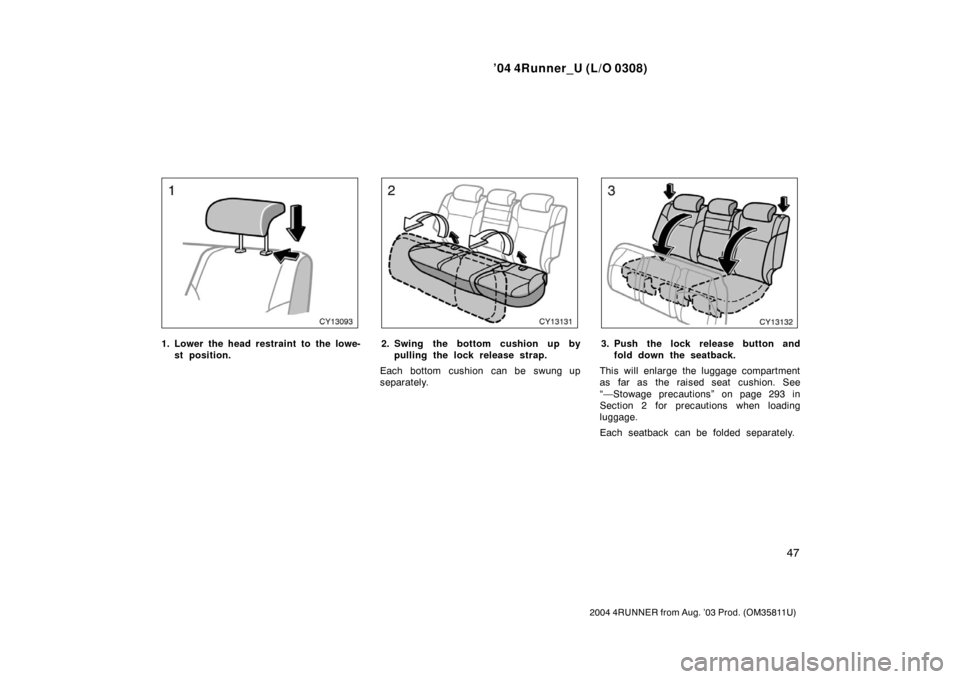

1. Lower the head restraint to the lowe-
st position.2. Swing the bottom cushion up bypulling the lock rel ease strap.
Each bottom cushion can be swung up
separately.3. Push the lock release button and fold down the seatback.
This will enlarge the luggage compartment
as far as the raised seat cushion. See
“—Stowage precautions” on page 293 in
Section 2 for precautions when loading
luggage.
Each seatback can be folded separately.
Page 56 of 412
’04 4Runner_U (L/O 0308)
48
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

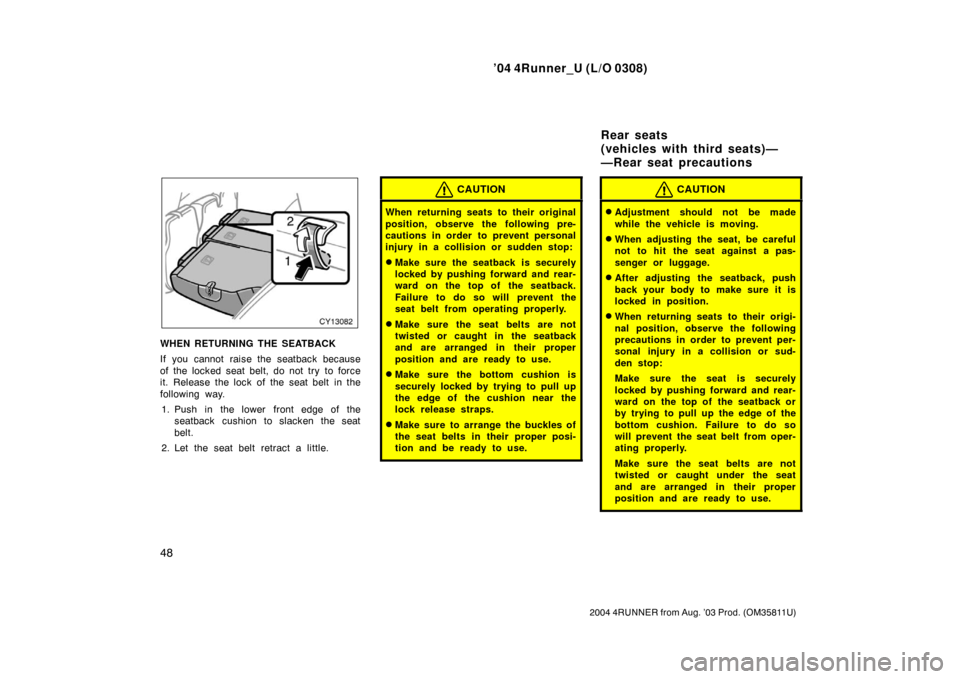

WHEN RETURNING THE SEATBACK
If you cannot raise the seatback because
of the locked seat belt, do not try to force
it. Release the lock of the seat belt in the
following way.
1. Push in the lower front edge of the seatback cushion to slacken the seat
belt.
2. Let the seat belt retract a little.
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the cushion near the
lock release straps.
Make sure to arrange the buckles of
the seat belts in their proper posi-
tion and be ready to use.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Rear seats
(vehicles with third seats)—
—Rear seat precautions
Page 57 of 412
’04 4Runner_U (L/O 0308)
49
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

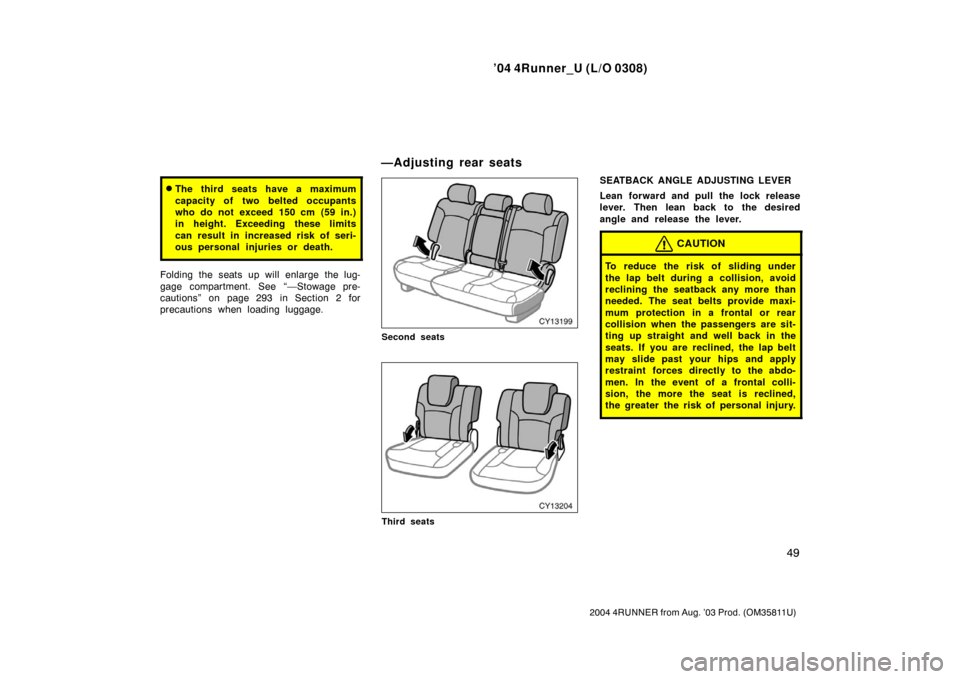

The third seats have a maximum
capacity of two belted occupants
who do not exceed 150 cm (59 in.)
in height. Exceeding these limits
can result in increased risk of seri-
ous personal injuries or death.
Folding the seats up will enlarge the lug-
gage compartment. See “—Stowage pre-
cautions” on page 293 in Section 2 for
precautions when loading luggage.
Second seats
Third seats
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lock release
lever. Then lean back to the desired
angle and release the lever.
CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the p assengers are sit-
ting up straight and well back in the
seats. If you are reclined, the lap belt
may slide past your hips and apply
restraint forces directly to the abdo-
men. In the event of a frontal colli-
sion, the more the seat is reclined,
the greater the risk of personal injury.
—Adjusting rear seats
Page 58 of 412
’04 4Runner_U (L/O 0308)
50
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

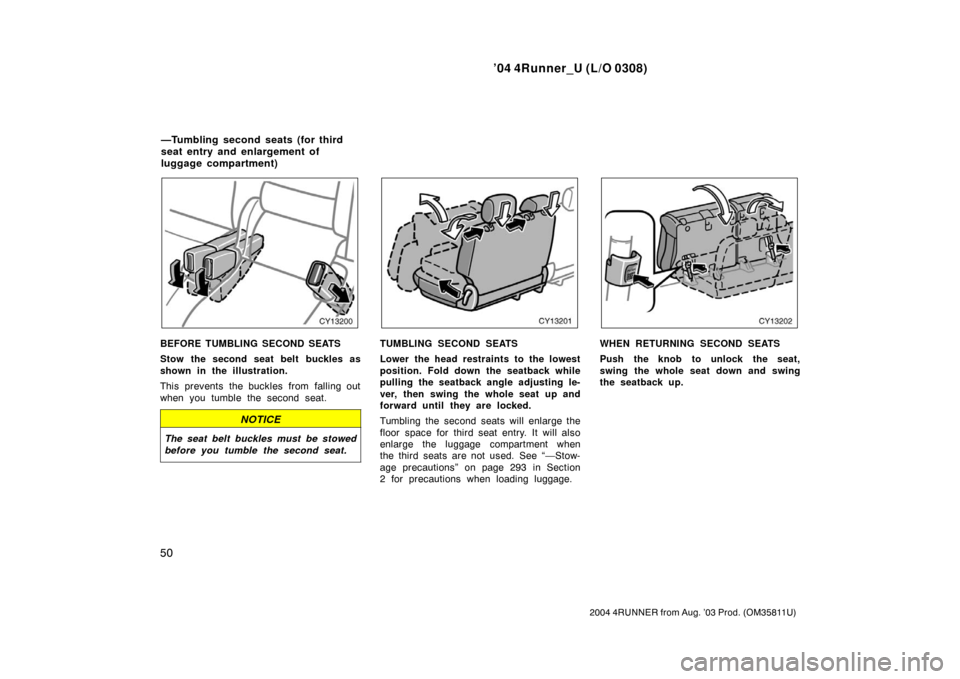

BEFORE TUMBLING SECOND SEATS
Stow the second seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you tumble the second seat.
NOTICE
The seat belt buckles must be stowed
before you tumble the second seat.
TUMBLING SECOND SEATS
Lower the head restraints to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting le-
ver, then swing the whole seat up and
forward until they are locked.
Tumbling the second seats will enlarge the
floor space for third seat entry. It will also
enlarge the luggage compartment when
the third seats are not used. See “—Stow-
age precautions” on page 293 in Section

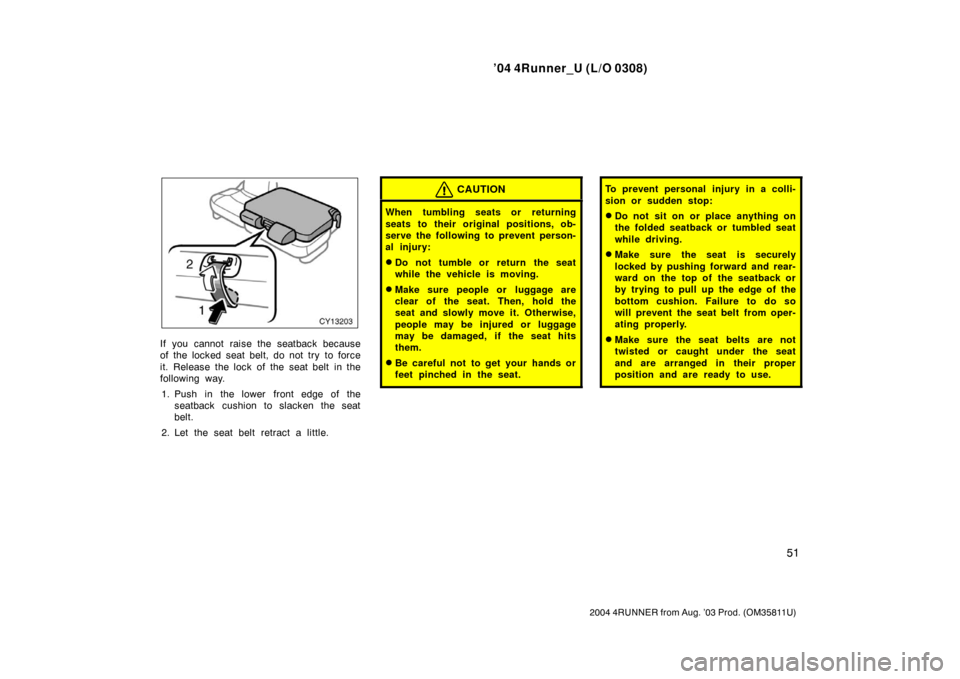

2 for precautions when loading luggage.WHEN RETURNING SECOND SEATS
Push the knob to unlock the seat,
swing the whole seat down and swing
the seatback up.
—Tumbling second seats (for third
seat entry and enlargement of
luggage compartment)
Page 59 of 412
’04 4Runner_U (L/O 0308)
51
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
If you cannot raise the seatback because
of the locked seat belt, do not try to force
it. Release the lock of the seat belt in the
following way.
1. Push in the lower front edge of the seatback cushion to slacken the seat
belt.
2. Let the seat belt retract a little.
CAUTION
When tumbling seats or returning
seats to their original positions, ob-
serve the following to prevent person-
al injury:
Do not tumble or return the seat
while the vehicle is moving.
Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.
Be careful not to get your hands or
feet pinched in the seat.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback or tumbled seat
while driving.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Page 60 of 412
’04 4Runner_U (L/O 0308)
52
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

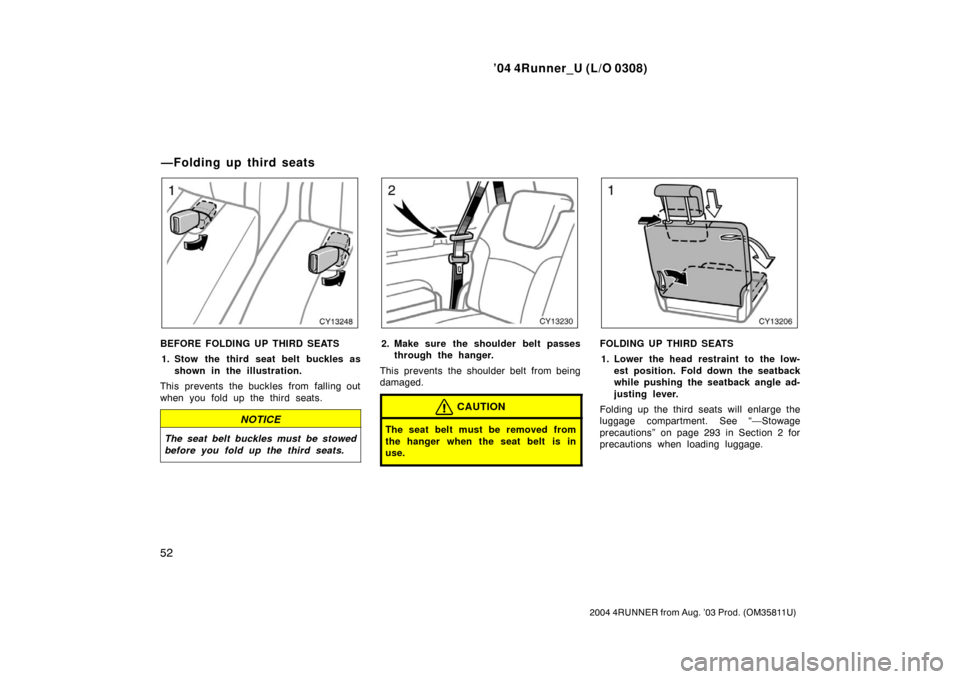

BEFORE FOLDING UP THIRD SEATS
1. Stow the third seat belt buckles as shown in the illustration.
This prevents the buckles from falling out
when you fold up the third seats.
NOTICE
The seat belt buckles must be stowed
before you fold up the third seats.
2. Make sure the shoulder belt passes through the hanger.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
FOLDING UP THIRD SEATS 1. Lower the head restraint to the low- est position. Fold down the seatback
while pushing the seatback angle ad-
justing lever.
Folding up the third seats will enlarge the
luggage compartment. See “—Stowage
precautions” on page 293 in Section 2 for
precautions when loading luggage.
—Folding up third seats
