TOYOTA 4RUNNER 2004 N210 / 4.G Owners Manual

’04 4Runner_U (L/O 0308)
303
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 360 in Section 7 −2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—he will be pleased to
help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
“P” and block the front wheels. Do not
use the parking brake, or snow or water
accumulated in and around the parking
brake mechanism may freeze, making it
hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.
Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Dinghy towing

’04 4Runner_U (L/O 0308)
304
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Your vehicle is designed primarily as a
passenger −and− load− carrying vehicle. Tow-
ing a trailer will have an adverse effect on
handling, performance, braking, durability
and driving economy (fuel consumption,
etc.). Your safety and satisfaction depend
on the proper use of correct equipment
and cautious driving habits. For your safe-
ty and the safety of others, you must not
overload your vehicle or trailer. Ask your
local Toyota dealer for further details be-
fore towing.

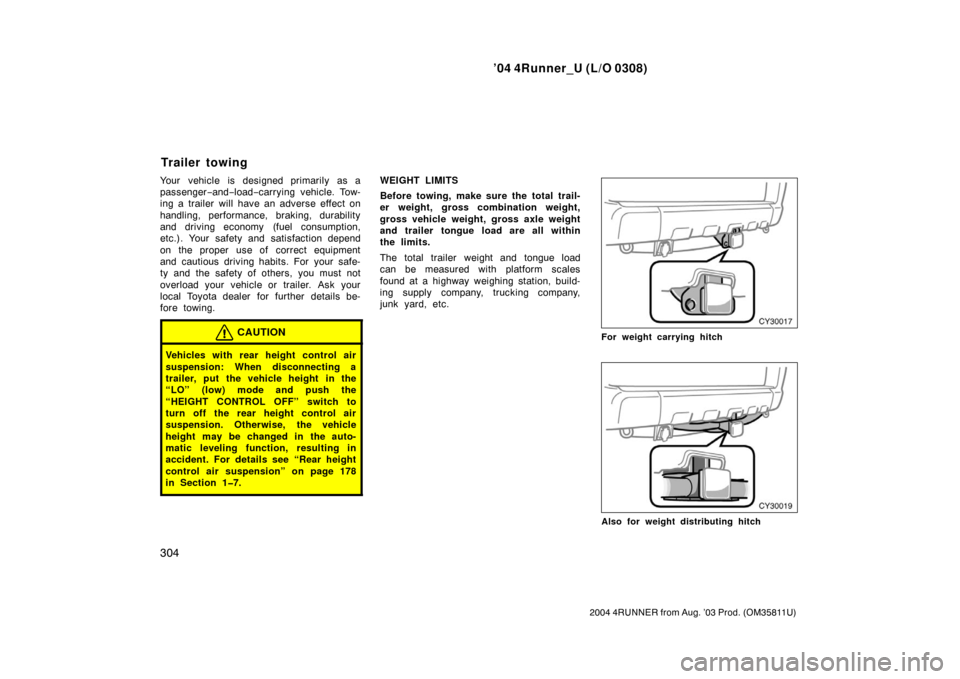

CAUTION
Vehicles with rear height control air
suspension: When disconnecting a
trailer, put the vehicle height in the
“LO” (low) mode and push the
“HEIGHT CONTROL OFF” switch to
turn off the rear height control air
suspension. Otherwise, the vehicle
height may be changed in the auto-
matic leveling function, resulting in
accident. For details see “Rear height
control air suspension” on page 178
in Section 17.
WEIGHT LIMITS
Before towing, make sure the total trail-
er weight, gross combination weight,
gross vehicle weight, gross axle weight
and trailer tongue load are all within
the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station, build-
ing supply company, trucking company,
junk yard, etc.
For weight carrying hitch
Also for weight distributing hitch
Tr ailer to win g

’04 4Runner_U (L/O 0308)
305
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

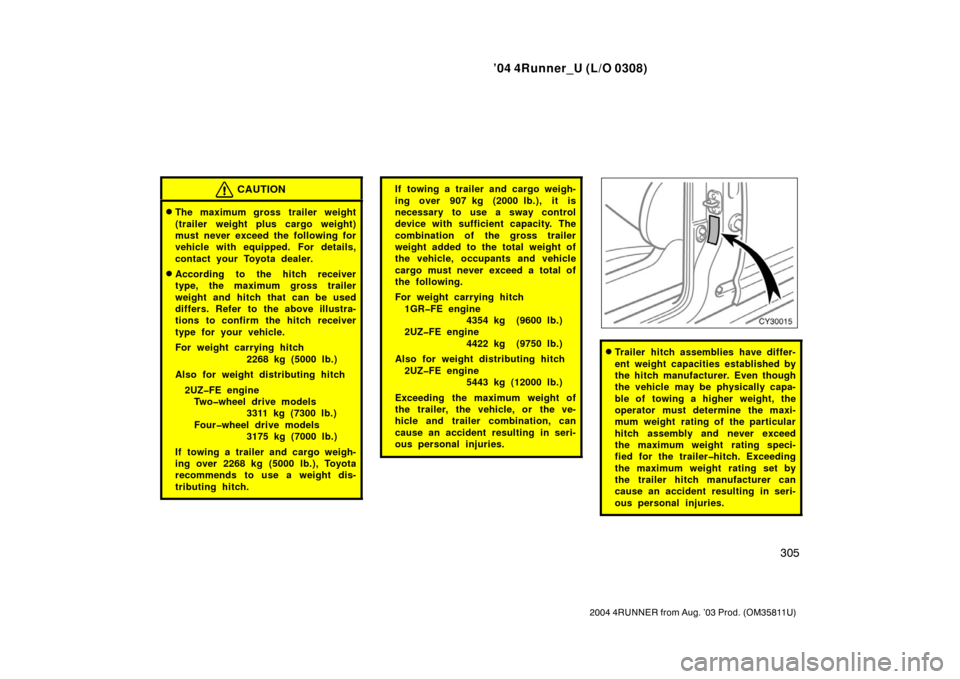

CAUTION
The maximum gross trailer weight
(trailer weight plus cargo weight)
must never exceed the following for
vehicle with equipped. For details,
contact your Toyota dealer.
According to the hitch receiver
type, the maximum gross trailer
weight and hitch that can be used
differs. Refer to the above illustra-
tions to confirm the hitch receiver
type for your vehicle.
For weight carrying hitch
2268 kg (5000 lb.)
Also for weight distributing hitch
2UZFE engineTwowheel drive models 3311 kg (7300 lb.)
Fourwheel drive models 3175 kg (7000 lb.)
If towing a trailer and cargo weigh-
ing over 2268 kg (5000 lb.), Toyota
recommends to use a weight dis-
tributing hitch.
If towing a trailer and cargo weigh-
ing over 907 kg (2000 lb.), it is
necessary to use a sway control
device with sufficient capacity. The
combination of the gross trailer
weight added to the total weight of
the vehicle, occupants and vehicle
cargo must never exceed a total of
the following.
For weight carrying hitch 1GRFE engine 4354 kg (9600 lb.)
2UZFE engine
4422 kg (9750 lb.)
Also for weight distributing hitch 2UZFE engine 5443 kg (12000 lb.)
Exceeding the maximum weight of
the trailer, the vehicle, or the ve-
hicle and trailer combination, can
cause an accident resulting in seri-
ous personal injuries.
Trailer hitch assemblies have differ-
ent weight capacities established by
the hitch manufacturer. Even though
the vehicle may be physically capa-
ble of towing a higher weight, the
operator must determine the maxi-
mum weight rating of the particular
hitch assembly and never exceed
the maximum weight rating speci-
fied for the trailerhitch. Exceeding
the maximum weight rating set by
the trailer hitch manufacturer can
cause an accident resulting in seri-
ous personal injuries.

’04 4Runner_U (L/O 0308)
306
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
The gross vehicle weight must not
exceed the Gross Vehicle Weight
Rating (GVWR) indicated on the
Certification Label. The gross vehi-
cle weight is the sum of weights of
the unloaded vehicle, driver, pas-
sengers, luggage, hitch and trailer
tongue load. It also includes the
weight of any special equipment
installed on your vehicle.
The load on either the front or rear
axle resulting from distribution of
the gross vehicle weight on both
axles must not exceed the front and
rear Gross Axle Weight Ratings
(GAWR) listed on the Certification
Label.

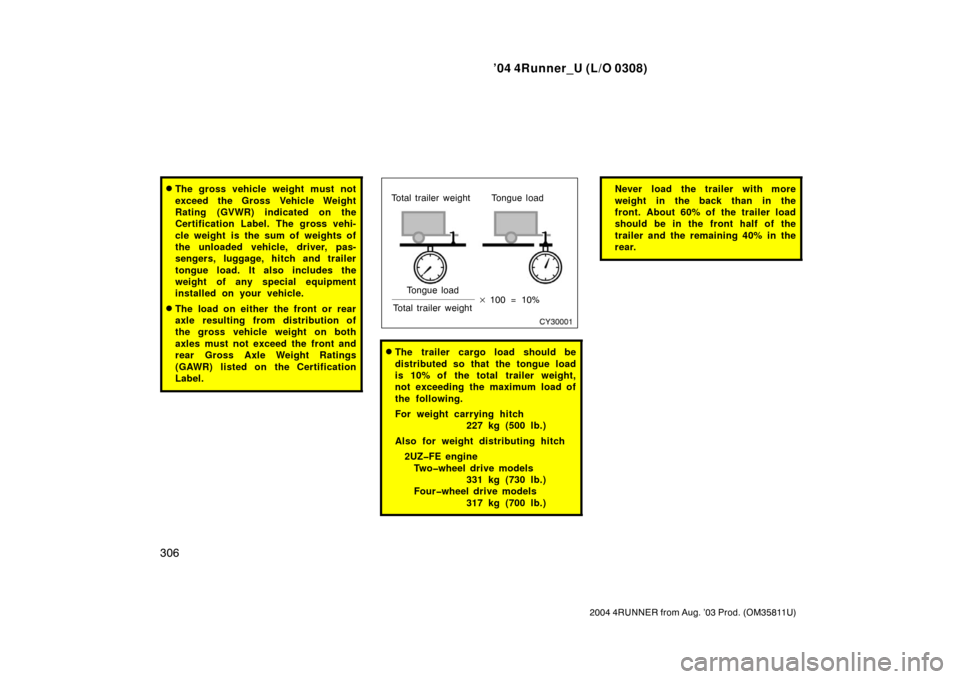

Total trailer weight Tongue load
Tongue load
Total trailer weight
100 = 10%
The trailer cargo load should be
distributed so that the tongue load
is 10% of the total trailer weight,
not exceeding the maximum load of
the following.
For weight carrying hitch
227 kg (500 lb.)
Also for weight distributing hitch 2UZFE engineTwowheel drive models 331 kg (730 lb.)
Fourwheel drive models
317 kg (700 lb.)
Never load the trailer with more
weight in the back than in the
front. About 60% of the trailer load
should be in the front half of the
trailer and the remaining 40% in the
rear.

’04 4Runner_U (L/O 0308)
307
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
HITCHES
If you wish to install a trailer hitch, you
should consult with your Toyota dealer.
Use only a hitch recommended by the
hitch manufacturer and the one which
conforms to the total trailer weight re-
quirement.
According to the hitch receiver type,
the maximum gross trailer weight and
hitch that can be used differs. Refer to
the above illustrations to confirm the
hitch receiver type for your vehicle.
If you wish to install an aftermarket
hitch, the hitch must be bolted securely
to the vehicle frame and installed ac-
cording to the hitch manufactures’ in-
structions.
The hitch ball and king pin should have
a light coat of grease.
Toyota recommends the ball mount as-
sembly be removed when not towing to
prevent injury and to prevent damage
in the event of a rear end collision.
After removing the ball mount assem-
bly, install the grommet to the hitch to
prevent entry of dirt and mud.
NOTICE
Do not install weight distributing
hitch to weight carrying hitch re-
ceiver because it will be damaged
your vehicle.
 Do not use axlemounted hitches as
they can cause damage to the axle
housing, wheel bearings, wheels or
tires. Also, never install a hitch
which may interfere with the normal
function of an Energy Absorbing
Bumper, if so equipped.
1 Trailer ball load rating
2 Ball diameter
3 Shank length
4 Shank diameter

’04 4Runner_U (L/O 0308)
308
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
TRAILER BALL
Follow these easy steps to properly deter-
mine the correct trailer ball for your ap-
plication:
1. Determine the correct trailer ball size for the trailer coupler. Most couplers
are stamped with the required trailer
ball size. The sizes you will most likely
find stamped on the coupler are:
Trailer class
Typical trailer ball size
III and IV2 5/16 in.
II2in.
I1 7/8 in.
2. Select the appropriate trailer ball to match or exceed the gross trailer
weight rating of the trailer. The trailer
ball load rating should be printed on
the top of the ball.
3. When mounted in the ball mount, the threaded ball shank must protrude be-
yond the bottom of the lock washer
and nut at least 2 threads. The trailer
ball shank must be matched to the ball
mount hole diameter size.

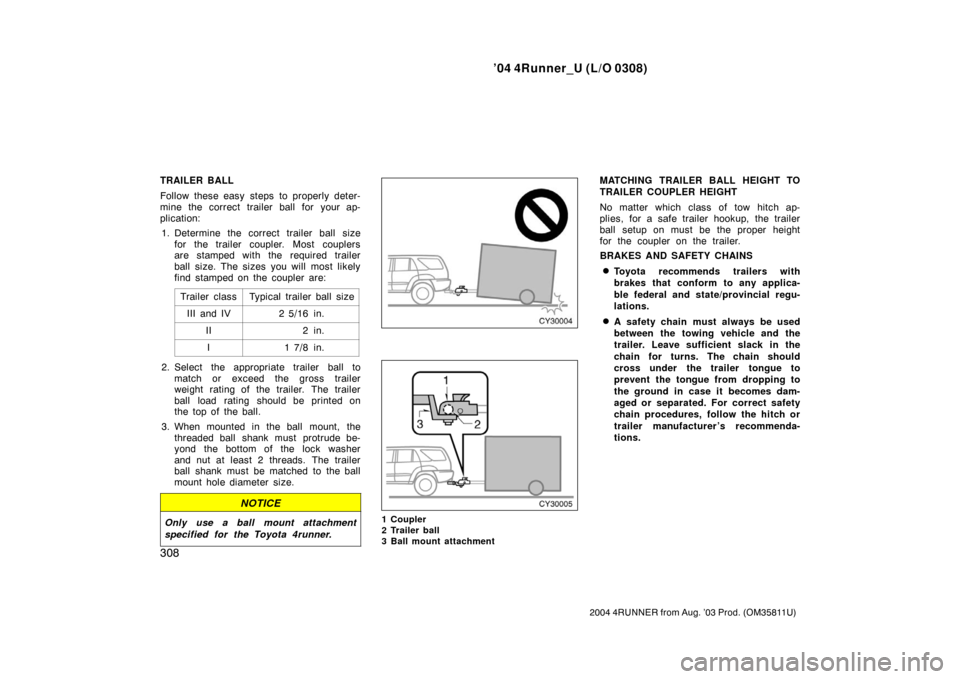

NOTICE
Only use a ball mount attachment
specified for the Toyota 4runner.1 Coupler
2 Trailer ball
3 Ball mount attachment
MATCHING TRAILER BALL HEIGHT TO
TRAILER COUPLER HEIGHT
No matter which class of tow hitch ap-
plies, for a safe trailer hookup, the trailer
ball setup on must be the proper height
for the coupler on the trailer.
BRAKES AND SAFETY CHAINS
Toyota recommends trailers with
brakes that conform to any applica-
ble federal and state/provincial regu-
lations.
A safety chain must always be used
between the towing vehicle and the
trailer. Leave sufficient slack in the
chain for turns. The chain should
cross under the trailer tongue to
prevent the tongue from dropping to
the ground in case it becomes dam-
aged or separated. For correct safety
chain procedures, follow the hitch or
trailer manufacturer ’s recommenda-
tions.

’04 4Runner_U (L/O 0308)
309
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

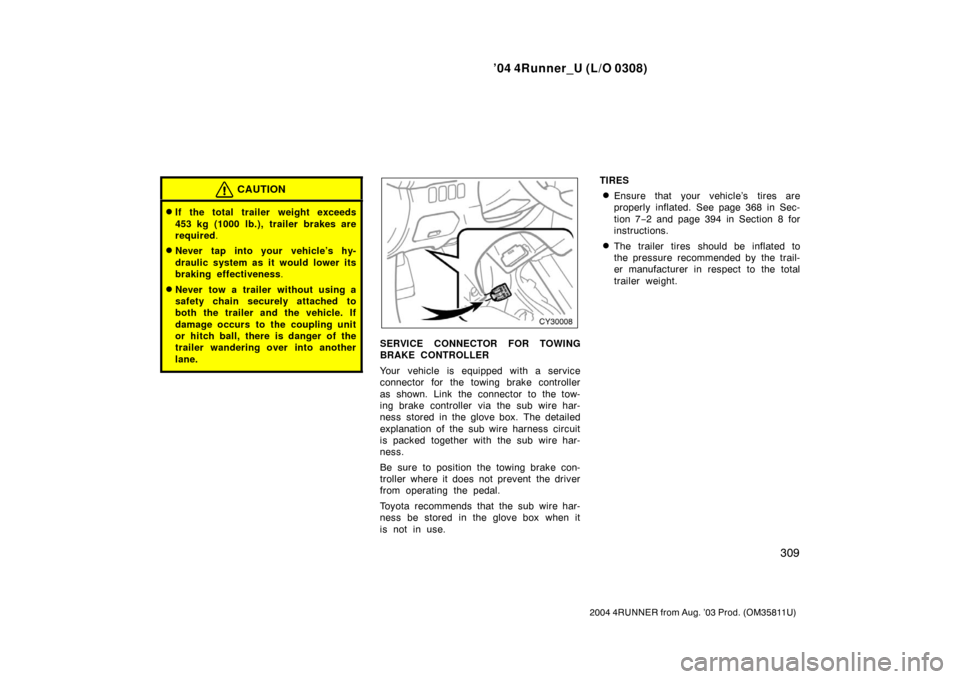

CAUTION
If the total trailer weight exceeds
453 kg (1000 lb.), trailer brakes are
required .
Never tap into your vehicle’s hy-
draulic system as it would lower its
braking effectiveness .
Never tow a trailer without using a
safety chain securely attached to
both the trailer and the vehicle. If
damage occurs to the coupling unit
or hitch ball, there is danger of the
trailer wandering over into another
lane.
SERVICE CONNECTOR FOR TOWING
BRAKE CONTROLLER
Your vehicle is equipped with a service
connector for the towing brake controller
as shown. Link the connector to the tow-
ing brake controller via the sub wire har-
ness stored in the glove box. The detailed
explanation of the sub wire harness circuit
is packed together with the sub wire har-
ness.
Be sure to position the towing brake con-
troller where it does not prevent the driver
from operating the pedal.
Toyota recommends that the sub wire har-
ness be stored in the glove box when it
is not in use. TIRES
Ensure that your vehicle’s tires are
properly inflated. See page 368 in Sec-
tion 7
−2 and page 394 in Section 8 for
instructions.
The trailer tires should be inflated to
the pressure recommended by the trail-
er manufacturer in respect to the total
trailer weight.

’04 4Runner_U (L/O 0308)
310
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
TOWING CONNECTOR FOR TRAILER
LIGHTS
Your vehicle is equipped with a wire
harness stored in the rear end under
body. Some models are fitted with a
socket for trailer lights under the rear
bumper. Use either of them to connect
and operate the trailer lights. However,
the trailer lights must comply with fed-
eral, state/provincial and local regula-
tions. See your local recreational ve-
hicle dealer or rental agency for the
correct type of wiring and relays for
your trailer. Check for correct operation
of the turn signals and stop lights each
time you hitch up. Direct splicing may
damage your vehicle’s electrical system
and cause a malfunction of your lights.
The towing connector can be also con-
nected to the trailer brake and trailer
sub battery.
BREAKIN SCHEDULE
Toyota recommends that you do not
tow a trailer with a new vehicle or a
vehicle with any new power train com-
ponent (engine, transmission, differen-
tial, wheel bearing, etc.) for the first
800 km (500 miles) of driving. MAINTENANCE
If you tow a trailer, your vehicle will
require more frequent maintenance due
to the additional load. For this informa-
tion, please refer to the scheduled
maintenance information in the “Sched-
uled Maintenance Guide” or “Owner ’s
Manual Supplement”.
Retighten all fixing bolts of the towing
ball and bracket after approximately
1000 km (600 miles) of trailer driving.
CONNECTING A TRAILER (models with
rear height control air suspension)
Stop your vehicle and a trailer in line and
perform the following: 1. Put the rear height control air suspen- sion in the “LO” (low) mode. Turn the
ignition switch off or push the “HEIGHT
CONTROL OFF” switch to turn off the
rear height control air suspension.
2. Connect a trailer.
3. Turn the ignition switch on or push the “HEIGHT CONTROL OFF” switch to
turn on the rear height control air sus-
pension. Select the “N” (normal) mode
with the height select switch.

’04 4Runner_U (L/O 0308)
311
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
DISCONNECTING A TRAILER (models
with rear height control air suspension)
Stop your vehicle and a trailer in line and
perform the following:
1. Put the rear height control air suspen- sion in the “LO” (low) mode. (Make
sure the vehicle height is in the “LO”
(low) mode by pushing the height se-
lect switch on the “ ” side.)
2. Turn the ignition switch off or push the “HEIGHT CONTROL OFF” switch to
turn off the rear height control air sus-
pension.
3. Set the supporting leg of a trailer on the ground and raise the hitch by 100
mm (4 in.).
4. Turn the ignition switch on or push the “HEIGHT CONTROL OFF” switch to
turn on the rear height control air sus-
pension.
5. Wait for about 20 seconds until the rear vehicle height is lowered by the
automatic leveling function.
6. Make sure the hitch is disconnected. If not, raise the hitch higher and repeat
steps 2 through 5. 7. Move the vehicle forward in the “LO”
(low) mode where the hitch does not
touch anything in the “N” (normal)
mode.
8. Put the rear height control air suspen- sion in the “N” (normal) mode.
PRETOWING SAFETY CHECK
Check that your vehicle remains level
when a loaded or unloaded trailer is
hitched. Do not drive if the vehicle has
an abnormal nose −up or nose −down
condition, and check for improper
tongue load, overload, worn suspension
or other possible causes.
Make sure the trailer cargo is securely
loaded so that it cannot shift.
Check that your rear view mirrors con-
form to any applicable federal, state/
provincial or local regulations. If not,
install the rear view mirrors required
for towing purpose. TRAILER TOWING TIPS
When towing a trailer, your vehicle will
handle differently than when not tow-
ing. The three main causes of vehicle
trailer accidents are driver error, exces-
sive speed and improper trailer loading.
Keep these in mind when towing:
Before starting out, check operation of
the lights and all vehicle
−trailer connec-
tions. After driving a short distance,
stop and recheck the lights and con-
nections. Before actually towing a trail-
er, practice turning, stopping and back-
ing with a trailer in an area away from
traffic until you learn the feel.
Backing with a trailer is difficult and
requires practice. Grip the bottom of
the steering wheel and move your hand
to the left to move the trailer to the
left. Move your hand to the right to
move the trailer to the right. (This pro-
cedure is generally opposite to that
when backing without a trailer.) Also,
just turn the steering wheel a little at
a time, avoiding sharp or prolonged
turning. Have someone guide you when
backing to reduce the risk of an acci-
dent.

’04 4Runner_U (L/O 0308)
312
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Because stopping distance may be in-
creased, vehicle −to −vehicle distance
should be increased when towing a
trailer. For each 16 km/h (10 mph) of
speed, allow at least one vehicle and
trailer length between you and the ve-
hicle ahead. Avoid sudden braking as
you may skid, resulting in jackknifing
and loss of control. This is especially
true on wet or slippery surfaces.
Avoid jerky starts or sudden accelera-
tion.
Avoid jerky steering and sharp turns.
The trailer could hit your vehicle in a
tight turn. Slow down before making a
turn to avoid the necessity of sudden
braking.
Remember that when making a turn,
the trailer wheels will be closer than
the vehicle wheels to the inside of the
turn. Therefore, compensate for this by
making a larger than normal turning
radius with your vehicle.
Crosswinds and rough roads will ad-
versely affect handling of your vehicle
and trailer, causing sway. Pay attention
to the rear from time to time to pre-
pare yourself for being passed by large
trucks or buses, which may cause your
vehicle and trailer to sway. If swaying
happens, firmly grip the steering wheel
and reduce speed immediately but
gradually. Never increase speed. Steer
straight ahead. If you make no extreme
correction with the steering or brakes,
the vehicle and trailer will stabilize.
Be careful when passing other ve-
hicles. Passing requires considerable
distance. After passing a vehicle, do
not forget the length of your trailer and
be sure you have plenty of room befo-
re changing lanes.
In order to maintain engine braking effi-
ciency, do not put the transmission in
“D”.
Because of the added load of the trail-
er, your vehicle’s engine may overheat
on hot days (at temperatures over
30 C [85 F]) when going up a long or
steep grade with a trailer. If the engine
coolant temperature gauge indicates
overheating, immediately turn off the air
conditioning (if in use), pull off the road
and stop in a safe spot. Refer to “If
your vehicle overheats” on page 320 in
Section 4.
Always place wheel blocks under both
the vehicle and trailer wheels when
parking. Apply the parking brake firmly.
Put the transmission in “P”. Avoid park-
ing on a slope with a trailer, but if it
cannot be avoided, do so only after
performing the following:
1. Apply the brakes and hold.
2. Have someone place wheel blocks un- der both the vehicle and trailer wheels.
3. When the wheel blocks are in place, release your brakes slowly until the
blocks absorb the load.
4. Apply the parking brake firmly.
5. Shift into “P” and turn off the engine.
