383
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: Double end bulbs
9005
Ty p e
WBulb No.Light bulbs
Headlights (high beam)
Headlights (high and low beams)
Front fog lights
Parking and front side marker lights
Front turn signal lights
(without daytime running light system)
Front turn signal lights
(with daytime running light system)
Rear turn signal lights
Stop/tail and rear side marker lights
Back −up lights
License plate lights
High mounted stoplight
Interior light
Personal lights
Vanity lights
Door courtesy lights
Glove box light
Luggage compartment light
Running board lights 9006
9006
168
—
—
—
—
921
—
—
— —
—
921
168 —
4157NAK 60
51
51
5
21
27/8 21
21/5 165
16 8
5
3
3.8
1.2 8
3.8 A
B
B
D
D
D
D
C
C
C
C E
C E
C
C E
C

’04 4Runner_U (L/O 0308)
384
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Low beam
(outside)
High beam
(inside)
1. Turn the bulb base counterclockwise to the front of the vehicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole and turn
them clockwise to the front of the
vehicle.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights

’04 4Runner_U (L/O 0308)
385
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
1. Turn the bulb base counterclockwise
to the front of the vehicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole and turn
them clockwise to the front of the
vehicle.
—Front fog lights

’04 4Runner_U (L/O 0308)
386
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

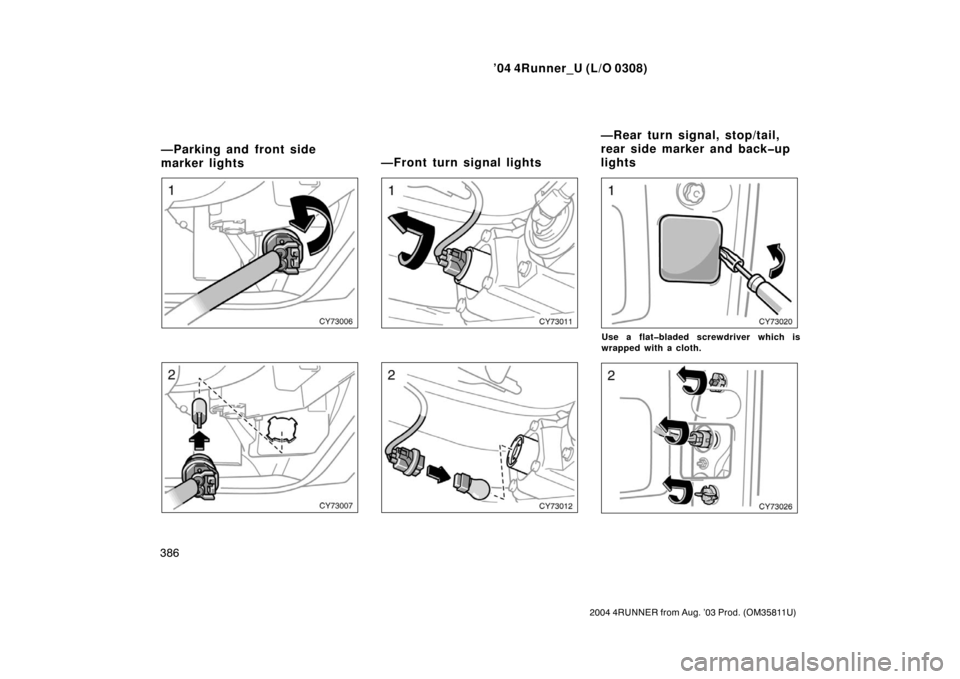

Use a flatbladed screwdriver which is
wrapped with a cloth.
—Parking and front side
marker lights —Front turn signal lights—Rear turn signal, stop/tail,
rear side marker and backup
lights

’04 4Runner_U (L/O 0308)
387
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

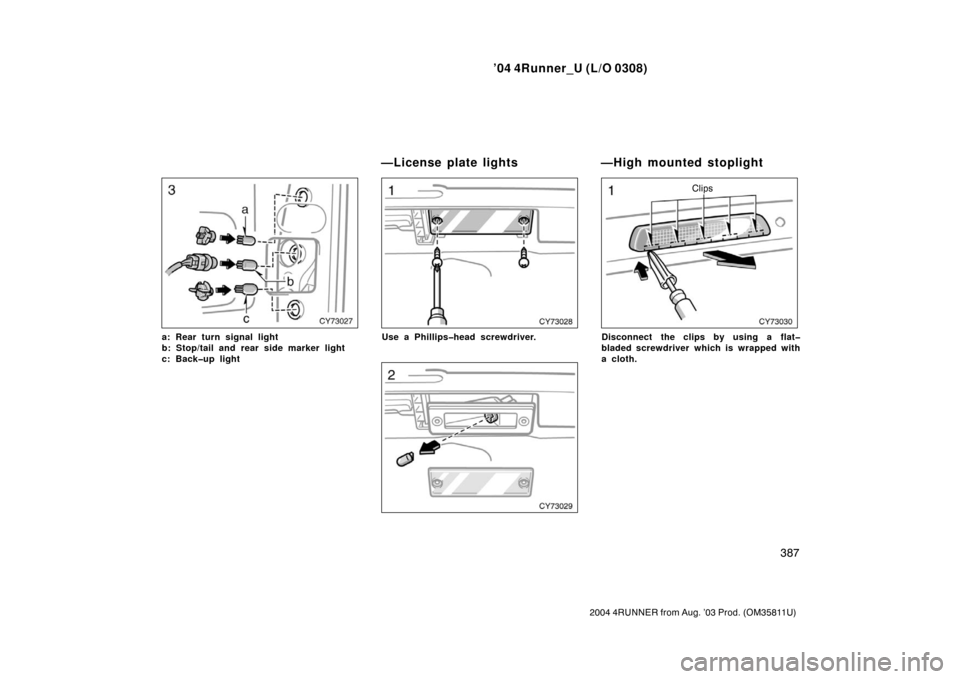

a: Rear turn signal light
b: Stop/tail and rear side marker light
c: Backup lightUse a Phillipshead screwdriver.
Clips

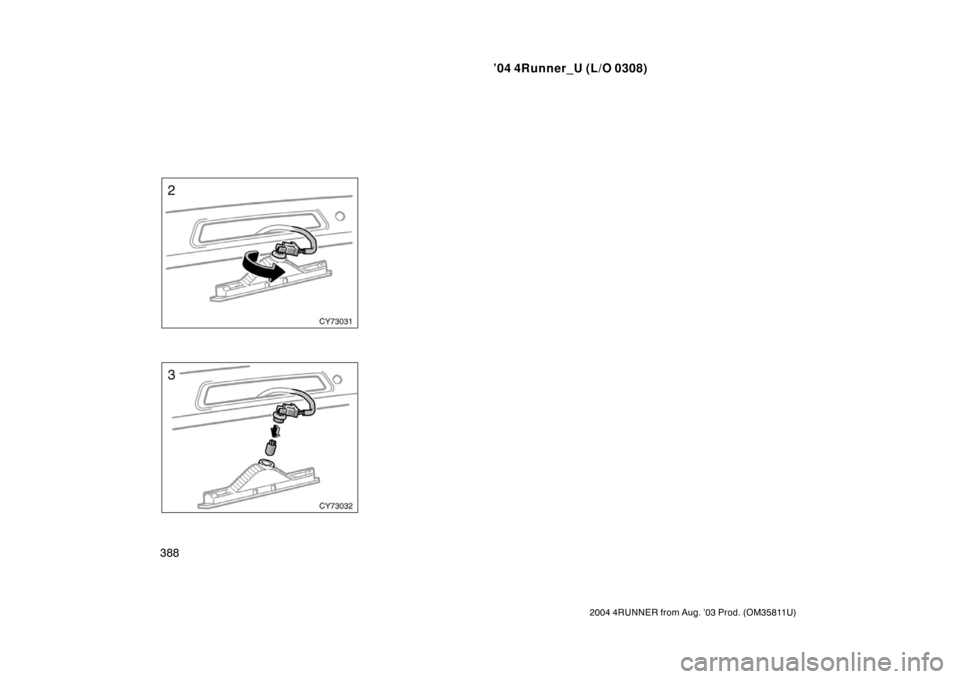

Disconnect the clips by using a flat
bladed screwdriver which is wrapped with
a cloth.
—License plate lights —High mounted stoplight

’04 4Runner_U (L/O 0308)
388
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)

’04 4Runner_U (L/O 0308)
389
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
SPECIFICATIONS
Specifications
Dimensions and weights 390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 391
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 391
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 391
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 394
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 395
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’04 4Runner_U (L/O 0308)
390
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Towing capacity (trailer weight + cargo
weight), kg (lb.):
For weight carrying hitch 2268 (5000)
Also for weight distributing hitch
2UZ− FE engine
Tw o −wheel drive models
3311 (7300)
Four −wheel drive models
3175 (7000)
Dimensions and weights
Overall width mm (in.)
2790 (109.8)
Overall height
∗
1mm (in.)
1575 (62.0)
Wheelbase mm (in.)
Front tread mm (in.) 1575 (62.0)
Rear tread mm (in.)
431 (950)
∗7
476 (1050)∗8
∗1: Unladen vehicle∗2: With two −wheel drive models∗
3: With four −wheel drive models∗
4: With roof rails∗5: With rear spoiler∗6: With rear height control air suspension∗7: With 5 occupants∗8: With 7 occupantsOverall length mm (in.)
Vehicle capacity weight (occupants + luggage)
kg (lb.)4800 (189.0)
1875 (73.8)
1820 (71.7)
∗
2or3,4
1765 (69.5)∗2, 5
1760 (69.3)∗3, 5
1755 (69.1)∗2
1750 (68.9)∗3
1810 (71.3)∗2 or 3,4,6
1750 (68.9)∗2 or 3,5,6
1740 (68.5)∗2or3,6
91 (200)∗7
0(0)∗8Luggage compartment load capacity kg (lb.)

’04 4Runner_U (L/O 0308)
391
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
Model:
1GR −FE and 2UZ −FE
Type: 1GR −FE engine
6 cylinder V type, 4 cycle, gasoline
2UZ− FE engine
8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 1GR −FE engine
94.0 95.0 (3.70 3.74)
2UZ− FE engine
94.0 84.0 (3.70 3.31)
Displacement, cm
3 (cu. in.):
1GR −FE engine 3956 (241.4)
2UZ− FE engine 4664 (284.6) Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp. gal.): 87 (23.0, 19.1) ENGINE
Valve clearance (engine cold), mm (in.):
1GR −FE engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.29—0.39 (0.011—0.015)
2UZ− FE engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: 1GR −FE engine
DENSO K20HR−U11
NGK LFR6C11
2UZ− FE engine
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.): 1GR −FE engine
With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3)
2UZ− FE engine
With filter 6.2 (6.5, 5.5)
Without filter 5.7 (6.0, 5.0)
Engine FuelService specifications

’04 4Runner_U (L/O 0308)
392
2004 4RUNNER from Aug. ’03 Prod. (OM35811U)
“Toyota Genuine Motor Oil” is filled in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade:
API grade SL “Energy −Conserving” or
ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
1GR −FE engine 9.8 (10.4, 8.6)
2UZ− FE engine 12.3 (13,0, 10.8)
Coolant type:
“Toyota Super Long Life Coolant” is
filled in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off
Charging rates: 5 A max. AUTOMATIC TRANSMISSION (4speed)
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 2.0 (2.1, 1.8)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T −IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transmission perfor-
mance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details.
