display TOYOTA 4RUNNER 2006 N210 / 4.G Navigation Manual

120

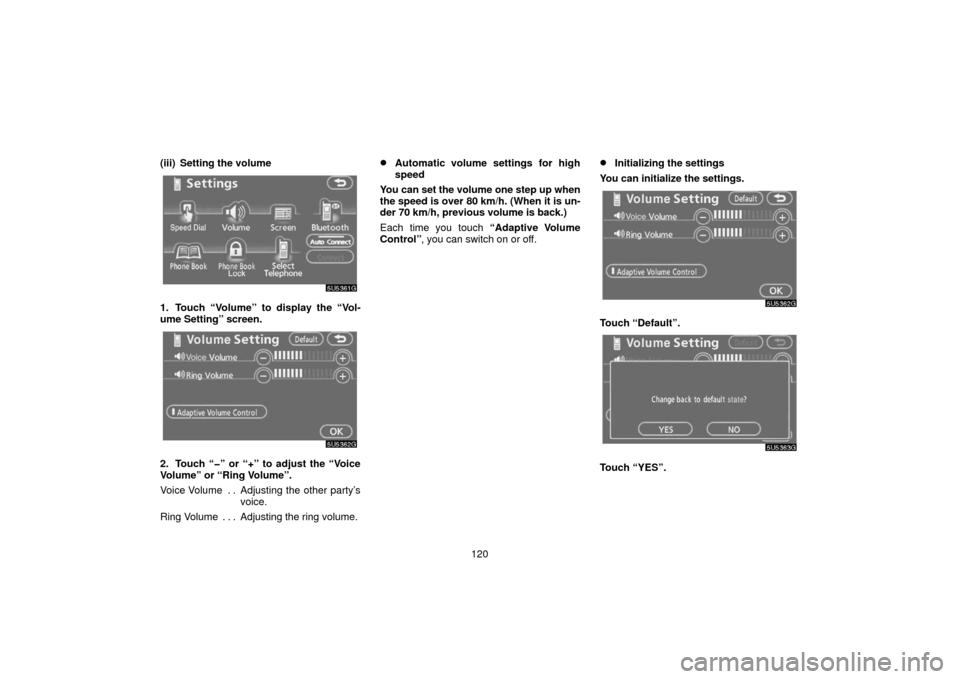

(iii) Setting the volume
1. Touch “Volume” to display the “Vol-
ume Setting” screen.
2. Touch “” or “+” to adjust the “Voice
Volume” or “Ring Volume”.
Voice Volume Adjusting the other party’s
. .
voice.
Ring Volume Adjusting the ring volume. . . .
Automatic volume settings for high
speed
You can set the volume one step up when
the speed is over 80 km/h. (When it is un-
der 70 km/h, previous volume is back.)
Each time you touch “Adaptive Volume
Control” , you can switch on or off.Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “YES”.

121
(iv) Setting the screen
1. Touch
“Screen” to display the “Screen
Settings” screen.
2. Do the detail settings of the screen and
touch “OK”.
Receiving Call Display
You can select the method of the receiving
call display.
Touch “Full” or “Icon”.
Full mode When a call is received, the
. . . . .
Hands −free screen is
displayed and you can
operate it on the screen.
Icon mode The message is displayed . . . . .
on the upper side of the
screen. You can only
operate the steering
switch.
Auto answer
When a call is received, the display auto-
matically changes to the talking screen
and you can start to talk on the phone
(without touching any switch) after the
preset time.
Touch “On” of “Auto Answer” and “” or
“+” to adjust the waiting time of auto an-
swer within 1 60 seconds.

122
The Bluetooth connection status at
startup
When the ignition switch is set at ACC or
ON and the Bluetooth is automatically
connected, the connection check is dis-
played.
Touch “On” or “Off” of “Show Bluetooth
connection status at start up”.
Initializing the settings
You can initialize the settings.
Touch “Default”.
Touch “YES”. (v) Setting the phone book
You can register phone numbers in the
phone book.
Touch “Phone Book” to display the
“Phone Book Management” screen.
You can do the detail settings of phone
book.

123

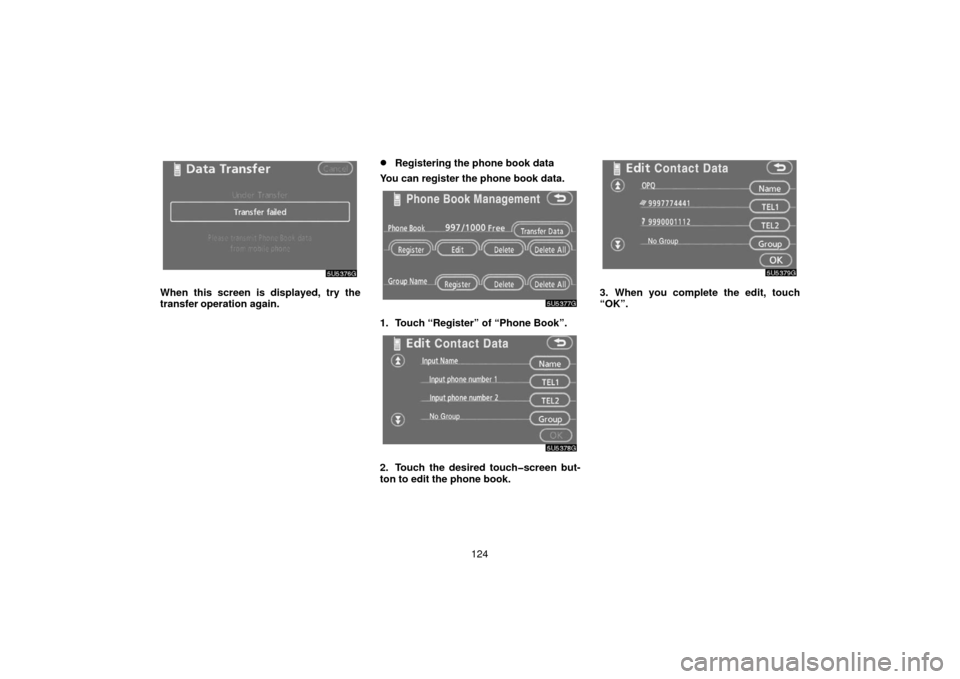

Transferring a telephone number
You can transfer the telephone numbers in
your Bluetooth phone to the system. Up to
1000 person’s data (up to 2 numbers a per-
son) can be registered in the phone book.
Transfer it while the engine is running.
1. Touch “Transfer Data” to display “Se-
lect Group” screen.
2. Select the group you want to transfer
to.
3. Touch “Overwrite” or “Add to”.
4. Transfer the phone book data to the
system using the Bluetooth phone.
This screen appears while transferring. To
cancel it, touch “Cancel” . If the transferring
is interrupted on the way , the phone book data
transferred until then can be memorized in the
system.
5. When this screen is displayed, the
transfer is completed.

124
When this screen is displayed, try the
transfer operation again.
Registering the phone book data
You can register the phone book data.
1. Touch “Register” of “Phone Book”.
2. Touch the desired touchscreen but-
ton to edit the phone book.
3. When you complete the edit, touch
“OK”.

125
Editing the name
When you don’t input the name, the num-
ber is displayed.
1. Touch “Name”.
2. Use the software keyboard to input the
name.
Editing the phone number
You can register the phone number in
“TEL1” and “TEL 2” separately. Up to 2
numbers a person can be registered.
1. Touch “TEL 1” or “TEL 2”.
2. Input the number and touch “OK”.
3. Select the desired icon.

126

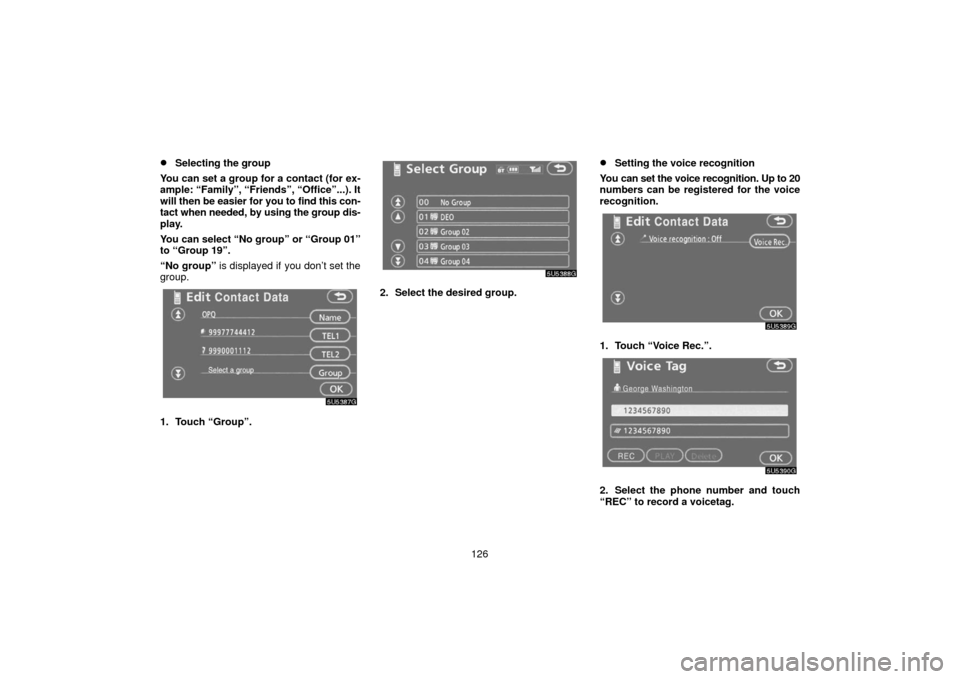

Selecting the group
You can set a group for a contact (for ex-
ample: “Family”, “Friends”, “Office”...). It
will then be easier for you to find this con-
tact when needed, by using the group dis-
play.
You can select “No group” or “Group 01”
to “Group 19”.
“No group” is displayed if you don’t set the
group.
1. Touch “Group”.
2. Select the desired group.
Setting the voice recognition
You can set the voice recognition. Up to 20
numbers can be registered for the voice
recognition.
1. Touch “Voice Rec.”.
2. Select the phone number and touch
“REC” to record a voicetag.

130

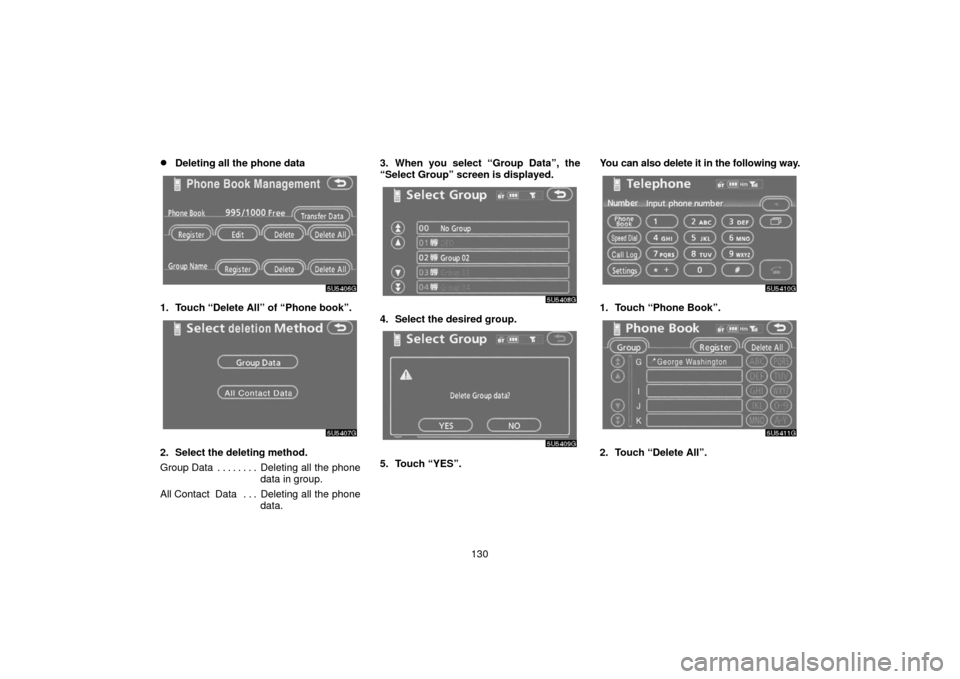

Deleting all the phone data
1. Touch “Delete All” of “Phone book”.
2. Select the deleting method.
Group Data Deleting all the phone. . . . . . . .
data in group.
All Contact Data Deleting all the phone . . .
data. 3. When you select “Group Data”, the
“Select Group” screen is displayed.
4. Select the desired group.
5. Touch “YES”.
You can also delete it in the following way.
1. Touch “Phone Book”.
2. Touch “Delete All”.

135
2. Touch “Change”.
3. Input the security code.
Each time you touch  , an inputted digit is de-
leted.
4. Touch “YES”.
Phone Book Lock
When you set the phone book lock, you
can have the following functions locked.
Display of the phone book screen and
transferring, registering, editing, deleting
the phone book data.
Display of speed dial screen, registering,
deleting the speed dial and speed dialing.
Display of the other party’s name for calls
being received or made.
Display of dialed numbers screen and
received calls screen, deleting dialed
numbers and received numbers.
Display of phone information screen.
Changing the security code.
When you set this function, the speed dial
screen is not displayed while you are driving.

137
(f) Set a Bluetooth phone
Selecting a Bluetooth phone
In case you register more than one Blue-
tooth phone, you need to choose a favor-
ite one.
1. Touch “Settings” to display “Settings”
screen.
2. Touch “Select Telephone” to display
“Select Telephone” screen. You can se-
lect the Bluetooth phone from a maximum
of 6 numbers.
“Empty” is displayed when you have not reg-
istered a Bluetooth phone yet.
Bluetooth mark is displayed when you
choose the phone.
Although you can register up to 6 Bluetooth
phones in the system, only one Bluetooth
phone can function at a time.
3. Touch “OK”.
When the result message is displayed, you
can use the Bluetooth phone.
