display TOYOTA 4RUNNER 2006 N210 / 4.G Navigation Manual

93
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving distance
until the next maintenance check can be in-
put.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance con-
ditions .
5. Touch “OK”.
The screen then returns to the “Maintenance”
screen.
INFORMATION
 For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
 Depending on driving or road condi-
tions, the actual date and distance
may differ from the stored date and
distance in the system.
— Dealer setting
It is possible to register a dealer in the system.
With dealer information registered, route
guidance to the dealer is available.
1. Touch “Set Dealer” on the “Mainte-
nance” screen.
2. If the dealer has not been registered,
enter the location of the dealer in the same
way as for a destination search. (See “Des-
tination search” on page 24.)
When “Set Dealer” registration is finished, the
“Edit Dealer” screen will be displayed.

94

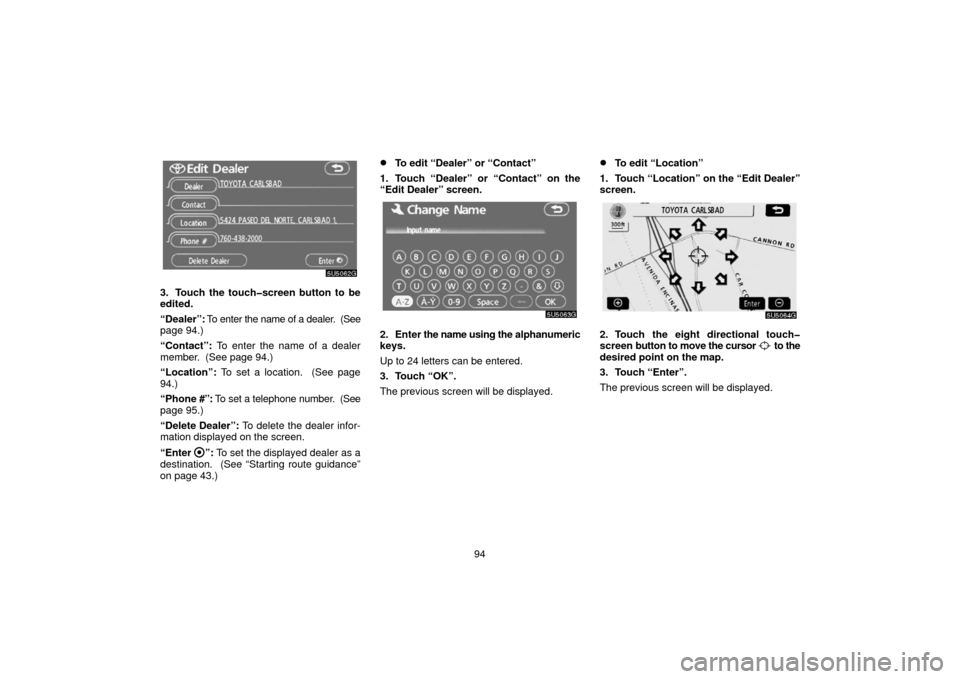

3. Touch the touchscreen button to be
edited.
“Dealer”: To enter the name of a dealer. (See
page 94.)
“Contact”: To enter the name of a dealer
member. (See page 94.)
“Location”: To set a location. (See page
94.)
“Phone #”: To set a telephone number. (See
page 95.)
“Delete Dealer”: To delete the dealer infor-
mation displayed on the screen.
“Enter
”: To set the displayed dealer as a
destination. (See “Starting route guidance”
on page 43.)
To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Location” on the “Edit Dealer”
screen.
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

95
To edit “Phone #” (telephone number)
1. Touch “Phone #” on the “Edit Dealer”
screen.
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
Calendar with memo —
It is possible to enter memos for particular
dates on the calendar. The system informs
you of the memo entry when the system is
turned on. (See page 3 .) Memos can also be
used for route guidance if the memo has been
registered with location information.
1. Push the “INFO” button.
2. Touch “Calendar”.
On this screen, the current date is highlighted
in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month calen-
dar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 98.)
Touching a date button on the “Calendar”
screen displays the “Memo” screen.

96
Memos can be edited by touching the list but-
ton. (See “ — Editing a memo” on page 98.) “Add
Memo”: To add a memo. (See “ — Add-
ing a memo” on page 96.)
“Mark ”: To change the color of the mark
displayed next to the date. To default the
mark color, touch “Delete” on the “Mark col-
or” screen.
“Date ”: To change the color of the date. To
default the date color, touch “Delete” on the
“Date color” screen.
“Prev. Day”: To go to the “Memo” screen of
the previous date.
“Today”: To go to the “Memo” screen for the
current day.
“Next Day”: To go to the “Memo” screen of
the next date.
— Adding a memo
If a memo is added, the system informs of the
memo entry when the system is started on the
memo date. (See page 3.)
1. Touch the date you want to add a memo
on the “Calendar” screen.
2. Touch “Add Memo”.
Up to 100 memos can be added.

98

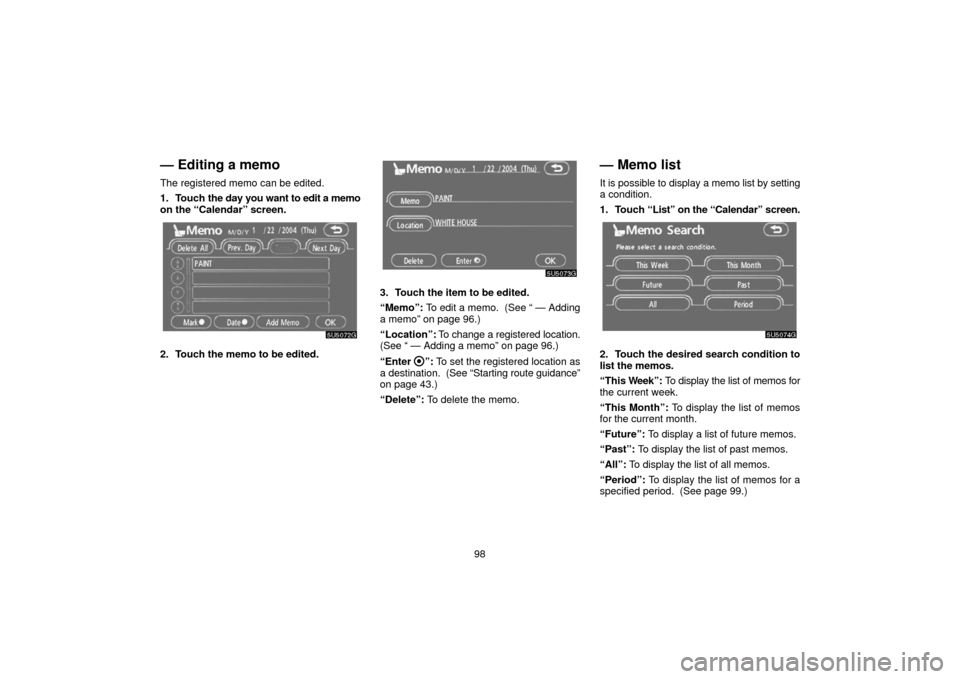

— Editing a memo
The registered memo can be edited.
1. Touch the day you want to edit a memo
on the “Calendar” screen.
2. Touch the memo to be edited.
3. Touch the item to be edited.
“Memo”: To edit a memo. (See “ — Adding
a memo” on page 96.)
“Location”: To change a registered location.
(See “ — Adding a memo” on page 96.)
“Enter
”: To set the registered location as
a destination. (See “Starting route guidance”
on page 43.)
“Delete”: To delete the memo.
— Memo list
It is possible to display a memo list by setting
a condition.
1. Touch “List” on the “Calendar” screen.
2. Touch the desired search condition to
list the memos.
“This Week”: To display the list of memos for
the current week.
“This Month”: To display the list of memos
for the current month.
“Future”: To display a list of future memos.
“Past”: To display the list of past memos.
“All”: To display the list of all memos.
“Period”: To display the list of memos for a
specified period. (See page 99.)

99
3. To delete and/or edit the memo, touch
the desired memo button.
“Delete All”: To delete all the displayed me-
mos.
A message will be displayed.
4. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified peri-
od of time
1. Touch “Period” on the “Memo Search”
screen.
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through De-
cember 31, 2024 can be set for searching.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
Handsfree system
Handsfree system allows you to make or
receive a call without taking your hands
off the steering wheel by connecting your
cellular phone.
This system supports Bluetooth. Bluetooth is
a wireless data system by which you can call
without your cellular phone being connected
with a cable or placed on a cradle.
If your cellular phone does not support Blue-
tooth, this system can not function.
CAUTION
While you are driving, do not use a cel-
lular phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in the
car. The temperature indoor may be
high and damage the phone.

101
1Indicates the condition of Bluetooth
connection.
“Blue” indicates an excellent connection to
Bluetooth.
“Yellow” indicates a bad connection to Blue-
tooth, resulting in possible deterioration of
voice quality.
: no connection to Bluetooth.
2Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth is con-
necting or the phone book data is being trans-
ferred.
The amount left does not always correspond
with the one of your cellular phone. This sys-
tem doesn’t have a charging function.
3Indicates the receiving area.
“Rm” is displayed when receiving in Roam-
ing area.
“Hm” is displayed when receiving in Home
area.
4Indicates the level of reception.

Too bad Excellent
The level of reception does not always corre-
spond with the one of your cellular phone.
INFORMATION
This system supports the following ser-
vice.
 HFP (Hands Free Profile) Ver. 1.0
 OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individual-
ly.
An antenna for the Bluetooth connection
is built in the display. The indication of the
Bluetooth connection may turn yellow and
the system may not function when you
use the Bluetooth phone in the following
conditions and places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove box
and console box).
Your cellular phone touches or is covered
with metal materials.
Leave the Bluetooth phone on the place
where “Blue” indication is displayed.
Bluetooth is a trademark owned by Bluetooth
SIG. Inc.

103
CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC radi-
ation exposure limits set forth for uncon-
trolled equipment and meets the FCC ra-
dio frequency (RF) Exposure Guidelines
in Supplement C to OET65. This equip-
ment has very low levels of RF energy
that it deemed to comply without maxi-
mum permissive exposure evaluation
(MPE). But it is desirable that it should be
installed and operated with at least 20 cm
and more between the radiator and per-
son’s body (excluding extremities:
hands, wrists, feet and legs).
Colocation: This transmitter must not
be co− located or operated in conjunction
with any other antenna or transmitter.(a) Enter a Bluetooth phone
To use the handsfree system, you need
to enter your phone into the system. Once
you have registered it, you can make a
handsfree call.
1. Push the “INFO” button to display the
“Information” screen.
2. Touch “Telephone” to display “Tele-
phone” screen.
You can also push the
switch of the steer-
ing wheel to display this screen when the ve-
hicle is stopped.
3. Touch “Settings” to display “Settings”
screen.
4. Touch “Bluetooth” to display the
“Bluetooth Settings” screen.

104
5. Touch “Register” to connect your cel-
lular phone to the system.
6. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case of
using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.
Connecting a Bluetooth phone
(i) Automatically
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.

105
When the ignition switch is set at ACC or
ON, the selected Bluetooth phone will be
automatically connected and the connec-
tion result is displayed.
This screen appears when the Bluetooth
phone is first connected after the ignition
switch is set at ACC or ON. (ii) Manually
When
the auto connection failed or turned
off, you have to connect Bluetooth manu-
ally.
Touch “Connect” after having enabled the
Bluetooth connection on the phone.
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth phone.
Reconnecting the Bluetooth phone
If the Bluetooth phone is disconnected
with a poor reception from the Bluetooth
network when the i gnition switch is set at
ACC or ON, the system automatically re-
connects the Bluetooth phone. In this
case, the connection result is not dis-
played.
If the Bluetooth is disconnected on purpose
such as you turned your cellular phone OFF,
this does not happen. Reconnect it by the fol-
lowing methods.
Select the Bluetooth phone again.
Enter the Bluetooth phone.
