AUX TOYOTA 4RUNNER 2006 N210 / 4.G Navigation Manual

152
1Function menu display screen
To control the radio, CD changer or DVD
player, touch the touch−screen buttons.
For details, see page 154.
2“TUNE·FILE” knob
Turn this knob to move the station band
and files up or down. For details, see
pages 157 and 167.
3“AM·SAT” button
Push this button to choose an AM sta-
tion. For details, see pages 154 and
157.
4“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 154 and
157.
5“DISC·AUX” button
Push this button to turn the CD changer,
DVD player and AUX on. For details,
see pages 154, 156, 162 and 171.
6“SCAN” button
Push this button to scan radio stations.
For details, see pages 158, 165, 168,
173 and 175.
7“LOAD·” button
Push this button to display the
“LOAD·EJECT” screen or close the dis-
play. For details, see page 160.
Quick reference

154
Push “AM·SAT”, “FM” or “DISC·AUX” but-
ton to turn on the desired mode. The se-
lected mode turns on immediately.
Push these buttons if you want to switch from
one mode to another.
If the disc is not set, the CD changer does not
turn on.
You can turn off the CD changer by ejecting
all the discs. If the audio system was pre-
viously off, then the entire audio system will
be turned off when you eject all the discs. If
the other function was previously playing, it
will come on again.
The touchscreen buttons for radio, CD
changer and DVD player operation are dis-
played on the function touchscreen but-
ton display screen when the audio control
mode is selected. Touch them lightly and
directly on the screen.
The selected switch is highlighted.
INFORMATION
 If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
 You cannot operate dimmed touch
screen buttons.
 Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.

156
(e) Your CD changer
When you insert a disc, touch “LOAD” and
gently push
the disc in with the label side up.
This CD changer can store up to four discs.
The changer will play from track 1 through to
the end of the disc. Then it will play from track
1 of the next disc.
The changer is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE
 Do not stack up two discs for inser-
tion, or it will cause damage to the
changer. Insert only one disc into
slot at a time.
 Never try to disassemble or oil any
part of the changer. Do not insert
anything other than a disc into the s-
lot.
(f) Your DVD player
(with rear seat entertainment system)
The sound of the rear seat entertainment sys-
tem can be enjoyed by pushing the
“DISC·AUX” button.
(g) AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to AUX
mode. For details, refer to the “Owner’s
Manual”.

162
3. Remove the disc.
The indicators start blinking again and the
next disc is ejected.
If a disc is not remove within 15 seconds after
it is ejected, the operation will be canceled.
When
all the discs are removed, the amber in-
dicators change to green. A disc can be in-
serted.
The numbers of the trays where the disc is not
set are dimmed.
(c) Playing a disc
Push the “DISC·AUX” button if the discs
are already loaded in the changer.
“CD CHANGER” appears on the screen.
The discs set in the changer are played con-
tinuously, starting with the last disc you in-
serted. The disc number of the disc currently
being played, the track number and the time
from the beginning of the program appear on
the screen.
When play of one disc ends, the first track of
the following disc starts. When play of the fi-
nal disc ends, play of the first disc starts
again.
The changer will skip any empty disc trays.

163
Vehicles with rear entertainment system —
If the DVD player is turned on, push the
“DISC·AUX”
button again to switch to the CD
changer.
If the rear seat entertainment system is on,
pushing the “DISC·AUX” button switches the
sound of the front audio system and that of the
rear seat entertainment system.

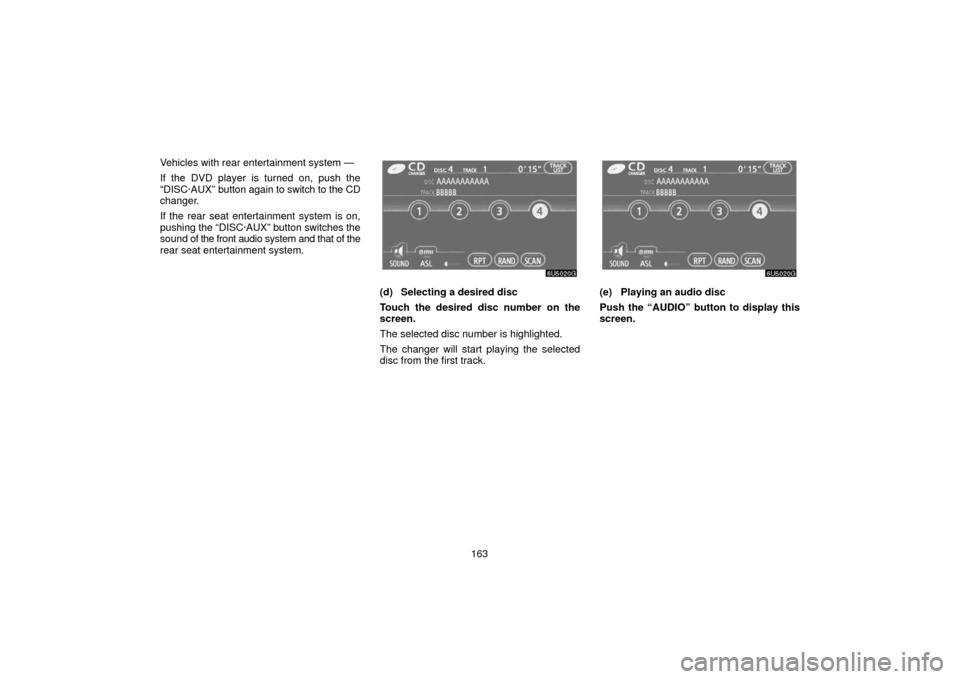

(d) Selecting a desired disc
Touch the desired disc number on the
screen.
The selected disc number is highlighted.
The changer will start playing the selected
disc from the first track.(e) Playing an audio disc
Push the “AUDIO” button to display this
screen.

171

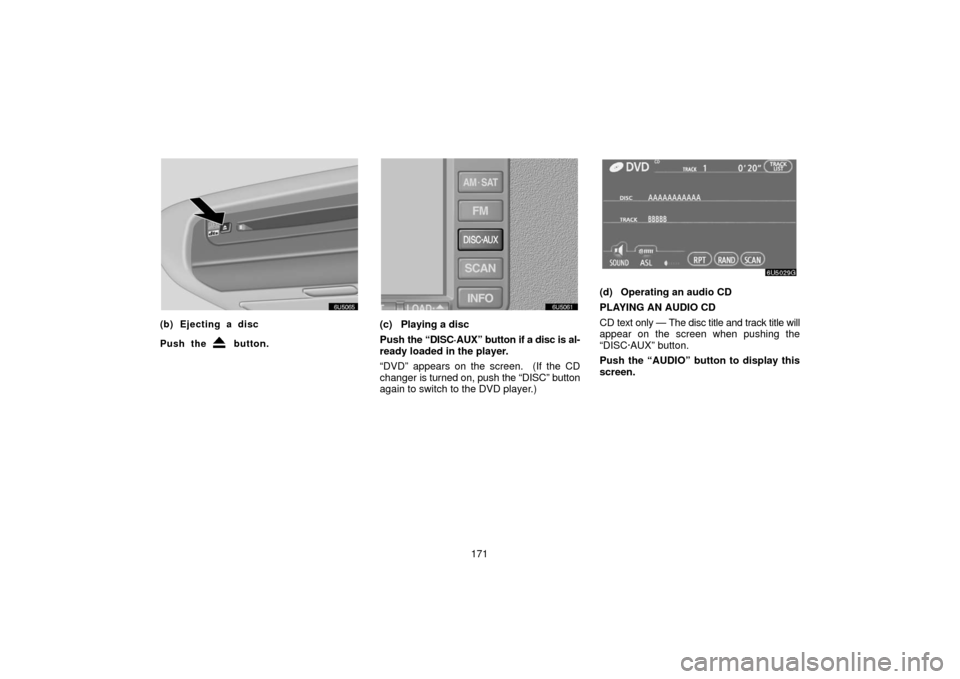

(b) Ejecting a disc
Push the
button.
(c) Playing a disc
Push the “DISC·AUX” button if a disc is al-
ready loaded in the player.
“DVD” appears on the screen. (If the CD
changer is turned on, push the “DISC” button
again to switch to the DVD player.)
(d) Operating an audio CD
PLAYING AN AUDIO CD
CD text only — The disc title and track title will
appear on the screen when pushing the
“DISC·AUX” button.
Push the “AUDIO” button to display this
screen.
