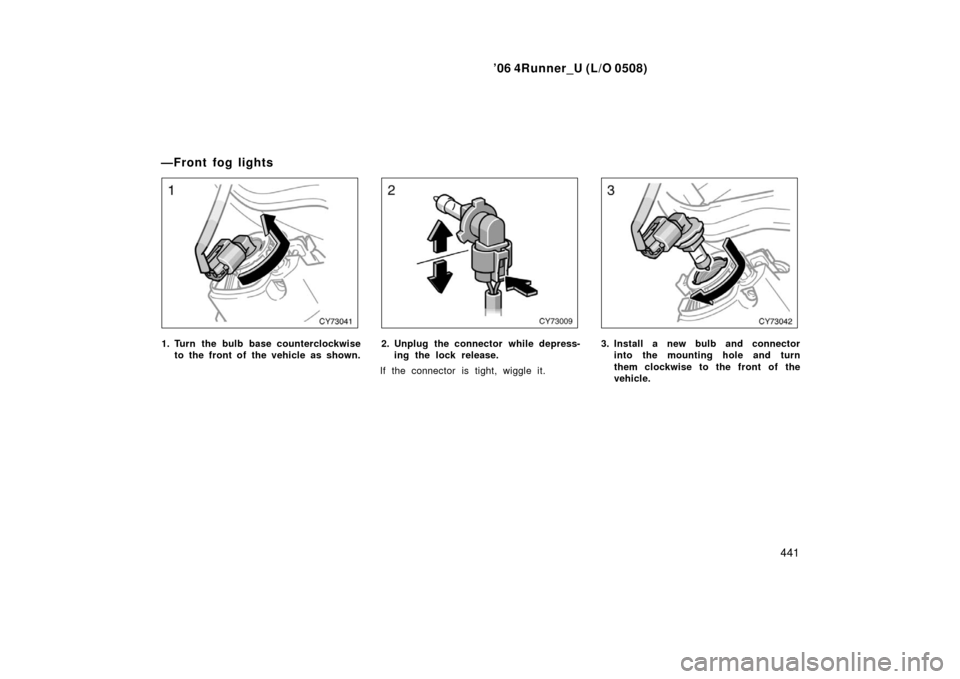

1. Turn the bulb base counterclockwise
to the front of the vehicle as shown.2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole and turn
them clockwise to the front of the
vehicle.
—Front fog lights

’06 4Runner_U (L/O 0508)
442

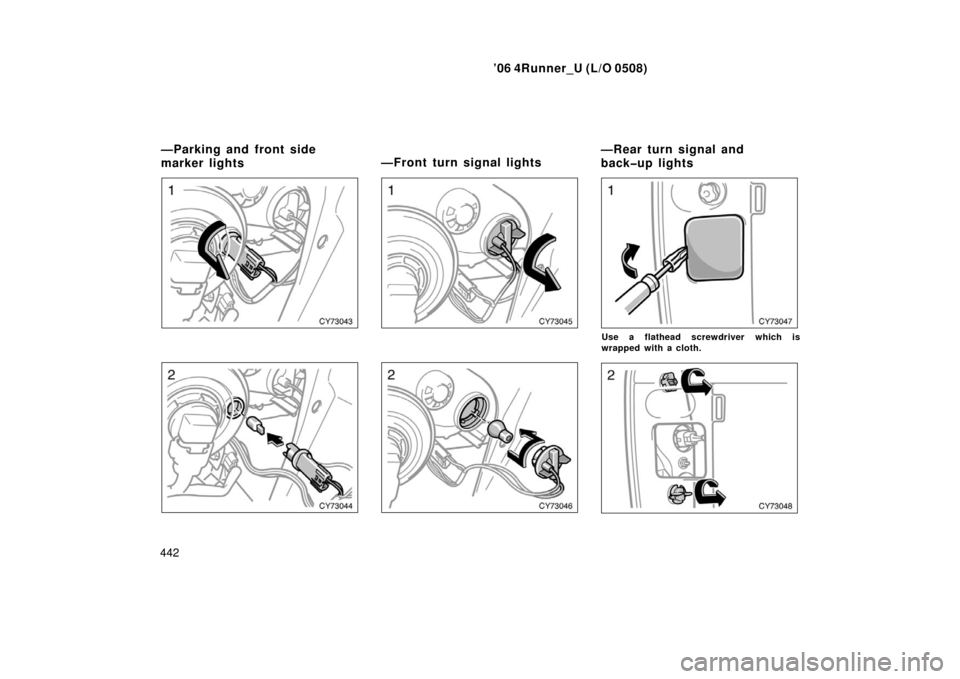

Use a flathead screwdriver which is
wrapped with a cloth.
—Parking and front side
marker lights —Front turn signal lights—Rear turn signal and
backup lights

’06 4Runner_U (L/O 0508)
443

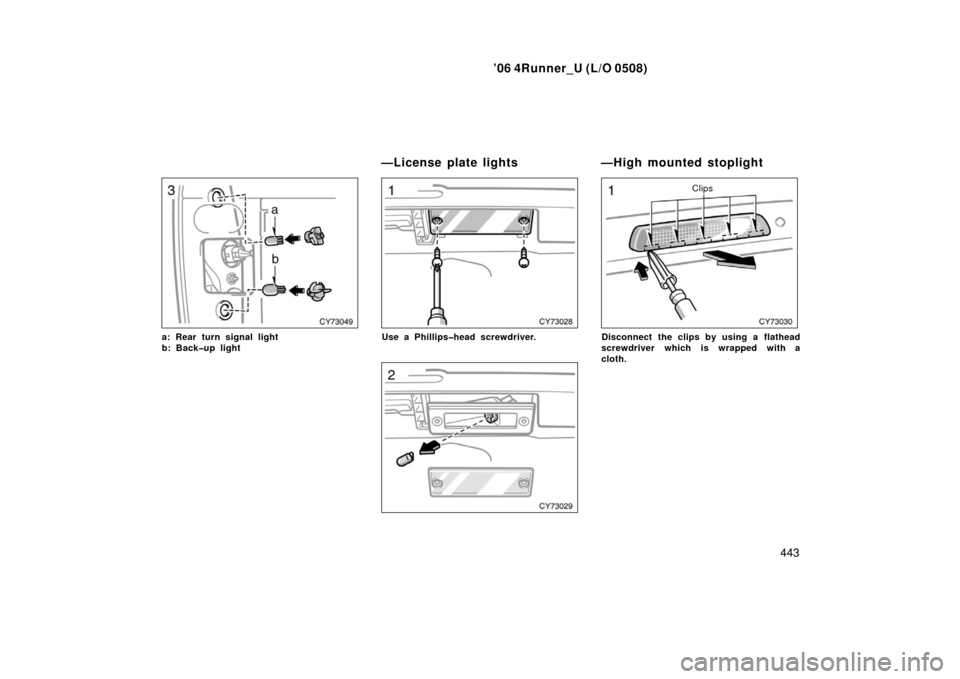

a: Rear turn signal light
b: Backup lightUse a Phillipshead screwdriver.
Clips
Disconnect the clips by using a flathead
screwdriver which is wrapped with a
cloth.

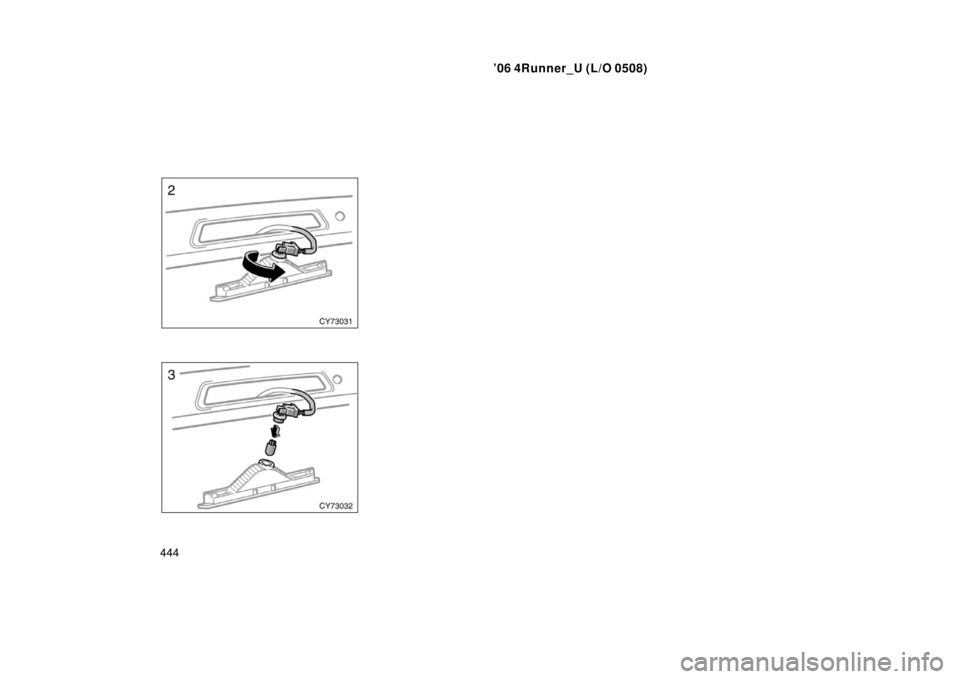

—License plate lights —High mounted stoplight

’06 4Runner_U (L/O 0508)
444

’06 4Runner_U (L/O 0508)
445
SPECIFICATIONS
Specifications
Dimensions and weights 446
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 447
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 447
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 447
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 451
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 452
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’06 4Runner_U (L/O 0508)
446
Towing capacity (trailer weight + cargo
weight), kg (lb.):
For weight carrying hitch 2268 (5000)
Also for weight distributing hitch
(4.7 L V8 [2UZ −FE] engine only)
Tw o −wheel drive models
3311 (7300)
Four −wheel drive models
3175 (7000)
Dimensions and weights
Overall width mm (in.)
2790 (109.8)
Overall height
∗
1mm (in.)
1575 (62.0)
Wheelbase mm (in.)
Front tread mm (in.) 1575 (62.0)
Rear tread mm (in.)
431 (950)
∗7
476 (1050)∗8
∗1: Unladen vehicle∗2:Two −wheel drive models∗
3: Four −wheel drive models∗
4: With roof rails∗5: With rear spoiler∗6: With rear height control air suspension∗7: With 5 occupants∗8: With 7 occupantsOverall length mm (in.)
Vehicle capacity weight (occupants + luggage)
kg (lb.)4805 (189.2)
1910 (75.2)
1820 (71.7)
∗
2or3,4
1800 (70.9)∗2, 3, 5
1755 (69.1)∗2, 3
1805 (71.1)∗2 or 3,4,6
1785 (70.3)∗2 or 3,5,6
1740 (68.5)∗2or3,6
91 (200)∗7
0(0)∗8Luggage compartment load capacity kg (lb.)

’06 4Runner_U (L/O 0508)
447
Model:
1GR −FE and 2UZ −FE
Type: 1GR −FE engine
6 cylinder V type, 4 cycle, gasoline
2UZ− FE engine
8 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 1GR −FE engine
94.0 95.0 (3.70 3.74)
2UZ− FE engine
94.0 84.0 (3.70 3.31)
Displacement, cm
3 (cu. in.):
1GR −FE engine 3956 (241.4)
2UZ− FE engine 4664 (284.5) Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, use
premium unleaded gasoline with an Oc-
tane Rating of 91 (Research Octane
Number 96) or higher.
Fuel tank capacity, L (gal., Imp. gal.): 87 (23.0, 19.1) ENGINE
Valve clearance (engine cold), mm (in.):
4.0 L V6 (1GR −FE) engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.29—0.39 (0.011—0.015)
4.7 L V8 (2UZ −FE) engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type: 4.0 L V6 (1GR −FE) engine
DENSO K20HR −U11
NGK LFR6C11
4.7 L V8 (2UZ −FE) engine
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.): 4.0 L V6 (1GR −FE) engine
With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3)
4.7 L V8 (2UZ −FE) engine
With filter 6.2 (6.5, 5.5)
Without filter 5.7 (6.0, 5.0)
Engine FuelService specifications

’06 4Runner_U (L/O 0508)
448
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade:
ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W −30

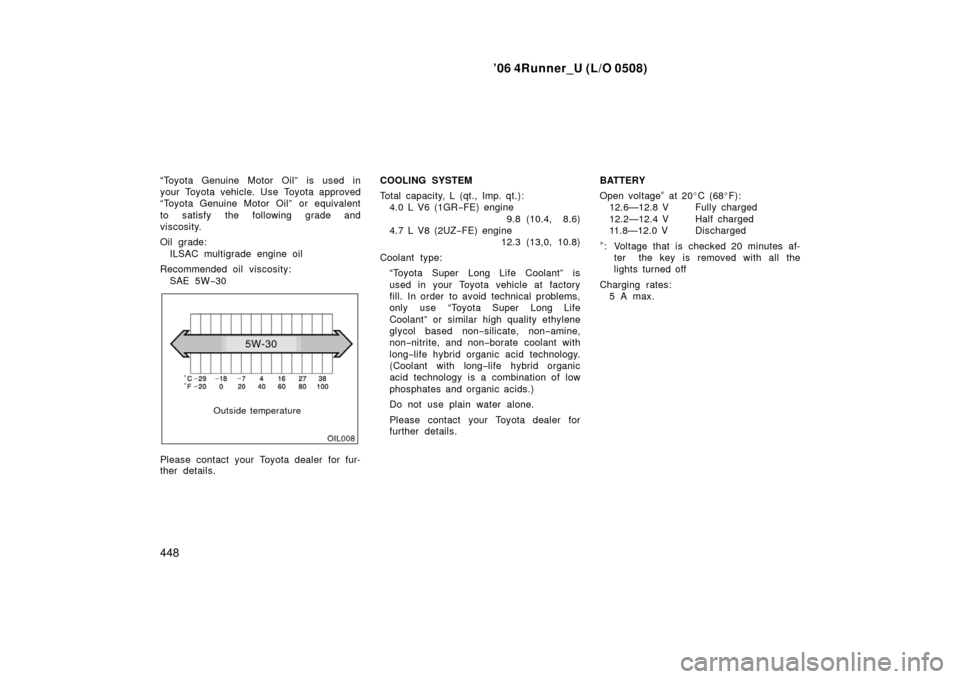

Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
4.0 L V6 (1GR −FE) engine
9.8 (10.4, 8.6)
4.7 L V8 (2UZ −FE) engine
12.3 (13,0, 10.8)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗ at 20
C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off
Charging rates: 5 A max.

’06 4Runner_U (L/O 0508)
449
AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 3.0 (3.2, 2.6)
Fluid type: Toyota Genuine ATF WS
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF WS” (ATF
JWS3324 or NWS9638) to aid in assuring
optimum transmission performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.
Please contact your Toyota dealer for fur-
ther details. TRANSFER
Oil capacity, L (qt., Imp. qt.):
1.4 (1.5, 1.2)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL (4.0 L V6 [1GRFE] en-
gine)
Oil capacity, L (qt., Imp. qt.): Tw o −wheel drive models
3.05 (3.2, 2.7)
Four −wheel drive models
Front 1.5 (1.6, 1.3)
Rear 3.05 (3.2, 2.7)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Front
SAE 75W −90
Rear Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90 DIFFERENTIAL (4.7 L V8 [2UZFE] en-
gine)
Oil capacity, L (qt., Imp. qt.):
Tw o −wheel drive models
3.05 (3.2, 2.7)
Four −wheel drive models
Front 1.4 (1.5, 1.2)
Rear 3.05 (3.2, 2.7)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: Above −18 C (0 F)
SAE 90
Below −18 C (
0 F)
SAE 80W or 80W −90
CHASSIS LUBRICATION
Propeller shafts: SpidersLithium base chassis grease, NLGI
No.2
Slide yokes Molybdenum −disulfide lithium base
chassis grease, NLGI No.2 or lithium
base multipurpose grease, NLGI No.2

’06 4Runner_U (L/O 0508)
450
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
54 (2.1)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66.1 lbf): 5—7 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
