13 DESTINATION INFORMATION
When the cursor is set on a destination icon,
the name and “Info.” are displayed on the top
of the screen.
1U5014G
Touch “Info.”.
1U5015aG
Information such as the name, address, and
phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered tele-
phone number can be called.
— Switching the screens
Any one of the screen configurations can be
selected.
1U5032G
1. Touch this touchscreen button to dis-
play the following screen.
1U5033G
2. To select the desired screen configura-
tion, touch one of the following touch
screen buttons.

14 Depending on the conditions, certain screen
configuration buttons cannot be selected.
:To display the single map screen.
(See page 14.)
:To display the dual map screen. (See
page 14.)
:To display the compass mode
screen. (See page 15.)
:To display the turn list screen. (See
page 50.)
:To display the arrow screen. (See
page 50.)
:To display the freeway information
screen. (See page 48.)
:To display the intersection guidance
screen or the guidance screen on the
freeway. (See page 49.)
Screen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
1U5004G
The screen shows the single map.DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
1U5034aG
The screen shows the dual map. The map on
the left is the main map.
The right side map can be edited by touching
any specific point on the right side map.

15
1U5035aG
This screen can perform the following proce-
dures:
1. Changing the map scale
2. Displaying the POI icon
3. Changing the orientation of the map
Touch “OK” when you complete editing.
The screen returns to the dual map screen.COMPASS MODE
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
1U5036aG
Information about the destination and current
position, as well as a compass, is displayed
on the screen.
The destination mark is displayed in the direc-
tion of the destination. When driving, refer to
the longitude and latitude coordinates and the
compass, to make sure that your vehicle is
headed in the direction of the destination.
INFORMATION
When the vehicle goes out of the disc
area, the guidance screen changes into
compass mode.
— Map scale
1U5018G
Touch or to change the scale of
the map display. The scale bar and indicator
at the bottom of the screen indicates the map
scale menu. The scale range is 150 feet (50
m) to 250 miles (400 km).
Touch
or until the scale bar
changes normally. By continuing to touch the
touch−screen button, the scale bar changes
smoothly.
The scale of the map display can be changed
by touching the scale bar directly. It is not
available while driving.
The map scale is displayed under the north−
up symbol or heading−up symbol at the top
left of the screen.

16
INFORMATION
When the map scale is at the maximum
range of 250 miles (400 km), is not
shown. When the map scale is at the
minimum range of 150 feet (50 m),
is not shown. However, in the area
where the foot print map is contained,
when the map scale is changed to 150
feet (50 m), changes to .
— Foot print map
For the area which is covered by the foot print
map (Some areas in the following cities; De-
troit, Chicago, N.Y., L.A), you can switch to
the foot print map on a scale of 75 feet (25 m).
To switch to the foot print map
changes into when the map is
scaled down to 150 feet (50 m).
1U5055G
To display the foot print map, touch .
To delete the foot print map display, touch
.
INFORMATION
If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the screen
scale automatically changes to 150
feet (50 m).
On the foot print map, a one way
street is displayed by .
It is not possible to perform scrolling
on the foot print map (onetouch
scroll) while driving.

17
To display building information
Information is available only for buildings for
which information is recorded on the map
disc.
1U5056G
1. Touch “Info.” while the foot print map
is displayed.
If the map is displayed by a split screen, the
map turned into a single map display.
1U5057G
2. Using an eightdirection arrow, move
the cursor to the position of the building to
display building information.
3. Touch “Building Info.”.
1U5058G
Details of POIs in some buildings may be dis-
played.
For detailed POI information, touch the build-
ing name. You can see details of the selected
POIs.

19
1U5037aG
3. Enter the name of the destination.
Every touch on a letter key narrows the selec-
tion.
Letters that cannot be selected in the data-
base are dimmed out.
When there are four or fewer database items,
these items are displayed in a list.
Even if the entered name is incomplete,
touching “List” displays the list.
1U5038aG
4. Select the destination from the dis-
played list.
1U5039bG
5. Touch “Enter”.
The system starts route search and displays
recommended routes.

21
1U5043aG
5. Enter the house number.
1U5044aG
6. Enter the street name.
Every touch on a letter key narrows the selec-
tion.
Letters that cannot be selected in the data-
base are dimmed out.
When there are four or fewer database items,
these items are displayed in a list.
Even if the entered name is incomplete,
touching “List” displays the list.
1U5045G
7. Select the street name from the dis-
played list.

22
1U5046bG
8. Touch “Enter”.
Registration of home is complete and the
“Memory Point” screen is displayed.
1U5047aG
Registered “Home” information will be
displayed.
The icon, quick access, name, location and
phone number can be changed. (See “ —
Editing memory points” on page 71.)

24
Destination search —
Push the “DEST” button and the
“Destination” screen appears.
2U5001aG
You can use one of 13 different methods to
search your destination. (See pages 26
through 43.)
INFORMATION
When searching the destination, the re-
sponse to the touchscreen button may
be slow.
— Selecting the search area
SELECTING THE SEARCH AREA ON THE
DESTINATION SCREEN
2U5102aG
1. Touch “Change” on the “Destination”
screen to display a map of the United
States and Canada divided into 11 areas.
(For map database information and updates,
see “Map database information and updates”
on page 200.)
2U5002G
2. Touch one of “US1” through “CAN” to
select a search area.
3. Touch “OK” and the “Destination”
screen returns.

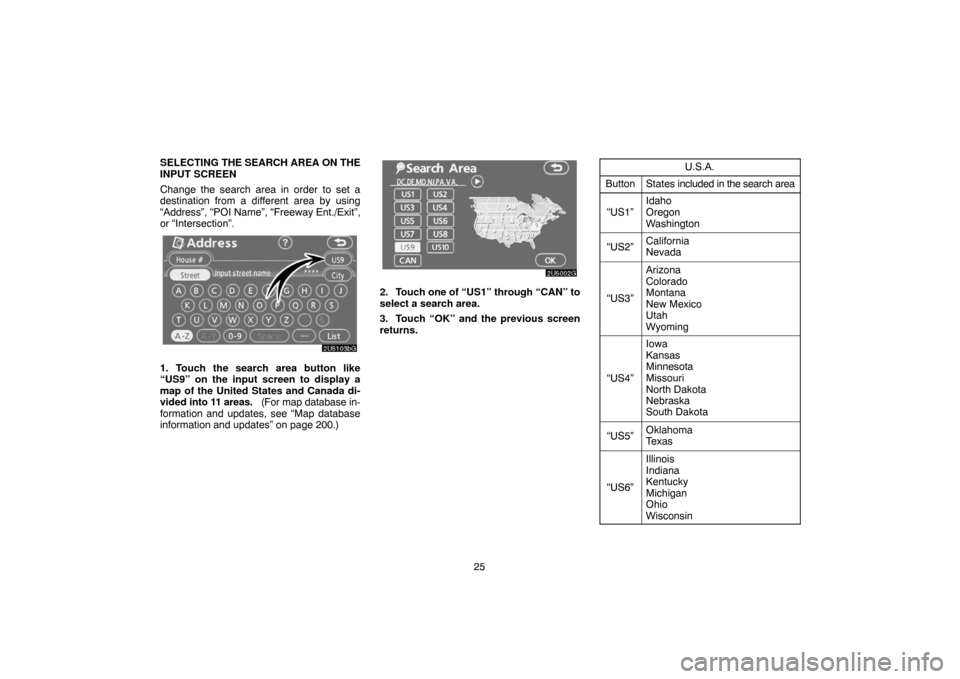

25 SELECTING THE SEARCH AREA ON THE
INPUT SCREEN
Change the search area in order to set a
destination from a different area by using
“Address”, “POI Name”, “Freeway Ent./Exit”,
or “Intersection”.
2U5103bG
1. Touch the search area button like
“US9” on the input screen to display a
map of the United States and Canada di-
vided into 11 areas. (For map database in-
formation and updates, see “Map database
information and updates” on page 200.)
2U5002G
2. Touch one of “US1” through “CAN” to
select a search area.
3. Touch “OK” and the previous screen
returns.U.S.A.
ButtonStates included in the search area
“US1”
Idaho
Oregon
Washington
“US2”California
Nevada
“US3”
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
“US4”
Iowa
Kansas
Minnesota
Missouri
North Dakota
Nebraska
South Dakota
“US5”Oklahoma
Texas
“US6”
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
