display TOYOTA 4RUNNER 2007 N210 / 4.G Navigation Manual

62
3U5081aG
You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap-
pear on the list. The street name closest to
the starting point will be displayed with the
mileage to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.

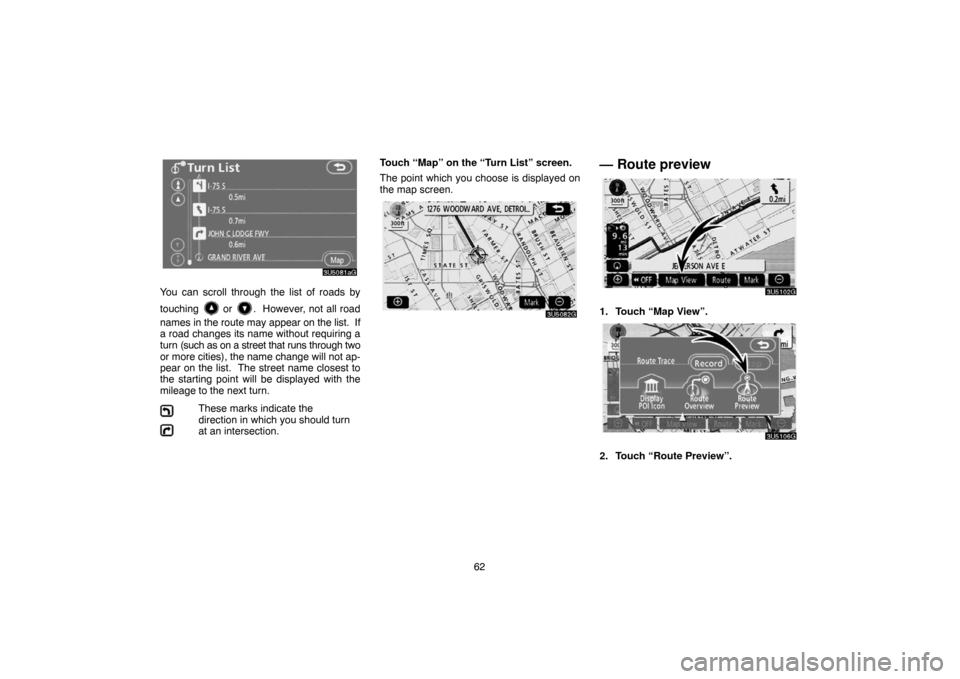

Touch “Map” on the “Turn List” screen.
The point which you choose is displayed on
the map screen.
3U5082G
— Route preview
3U5102G
1. Touch “Map View”.
3U5106G
2. Touch “Route Preview”.

63
3U5083aG
:To indicate the next destination.
:To preview the route to the next des-
tination.
:To preview the route to the next des-
tination in fast−forward mode.
:To stop the preview.
:To review the route to the previous
destination or starting point.
:To review the route to the previous
destination or starting point in fast−
forward mode.
:To indicate the previous destination
or starting point.
— Route trace
It is possible to store the traveled route up to
124 miles (200 km) and retrace the route on
the display.
INFORMATION
This feature is available on the map with
more detailed map scale than 30 mile (50
km).
3U5102G
Touch “Map View”.
3U5107G
“Record”: To start recording the route trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
3U5084G
Touching “Yes” stops recording and the
route trace remains displayed on the screen.
Touching “No” stops recording and the route
trace is erased.

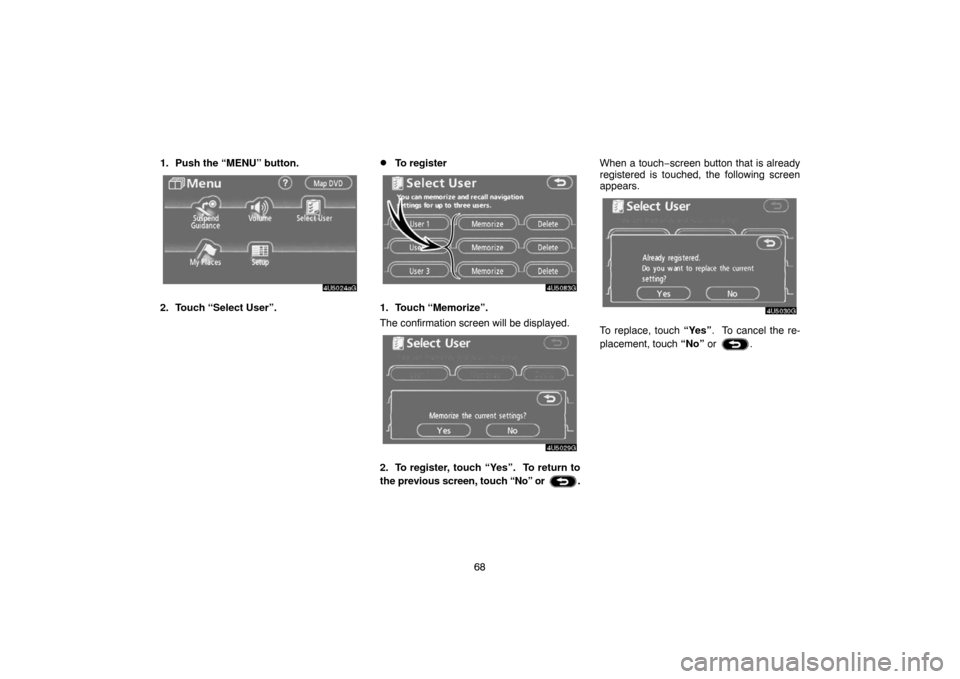

68 1. Push the “MENU” button.
4U5024aG
2. Touch “Select User”.
To register
4U5083G
1. Touch “Memorize”.
The confirmation screen will be displayed.
4U5029G
2. To register, touch “Yes”. To return to
the previous screen, touch “No” or
.When a touch−screen button that is already
registered is touched, the following screen
appears.
4U5030G
To replace, touch “Yes”. To cancel the re-
placement, touch “No” or
.

69

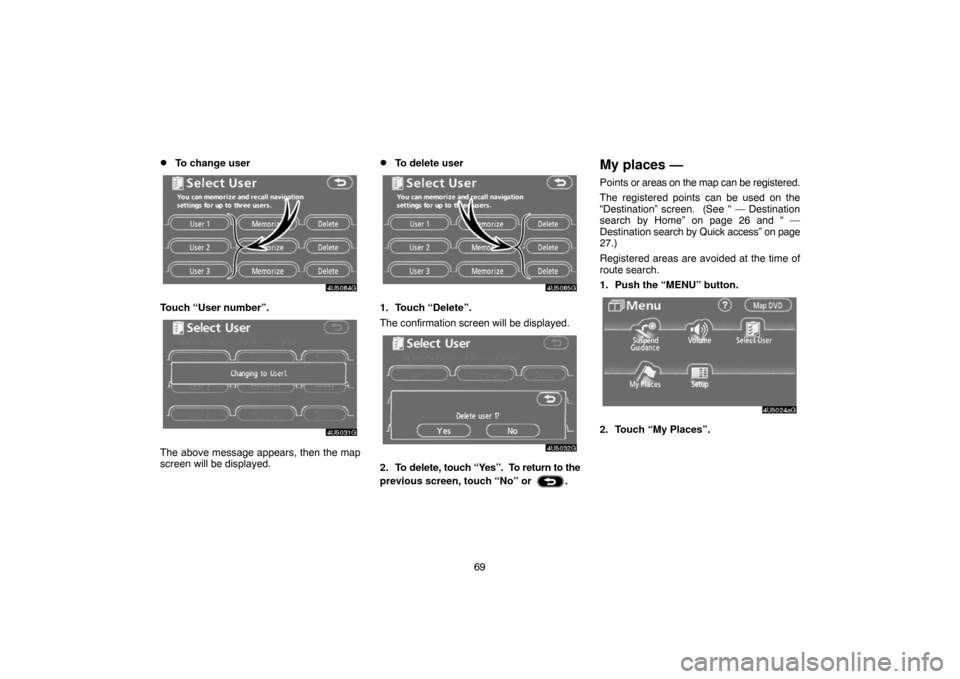

To change user
4U5084G
Touch “User number”.
4U5031G
The above message appears, then the map
screen will be displayed.
To delete user
4U5085G
1. Touch “Delete”.
The confirmation screen will be displayed.
4U5032G
2. To delete, touch “Yes”. To return to the
previous screen, touch “No” or
.
My places —
Points or areas on the map can be registered.
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Home” on page 26 and “ —
Destination search by Quick access” on page
27.)
Registered areas are avoided at the time of
route search.
1. Push the “MENU” button.
4U5024aG
2. Touch “My Places”.

70
4U5033G

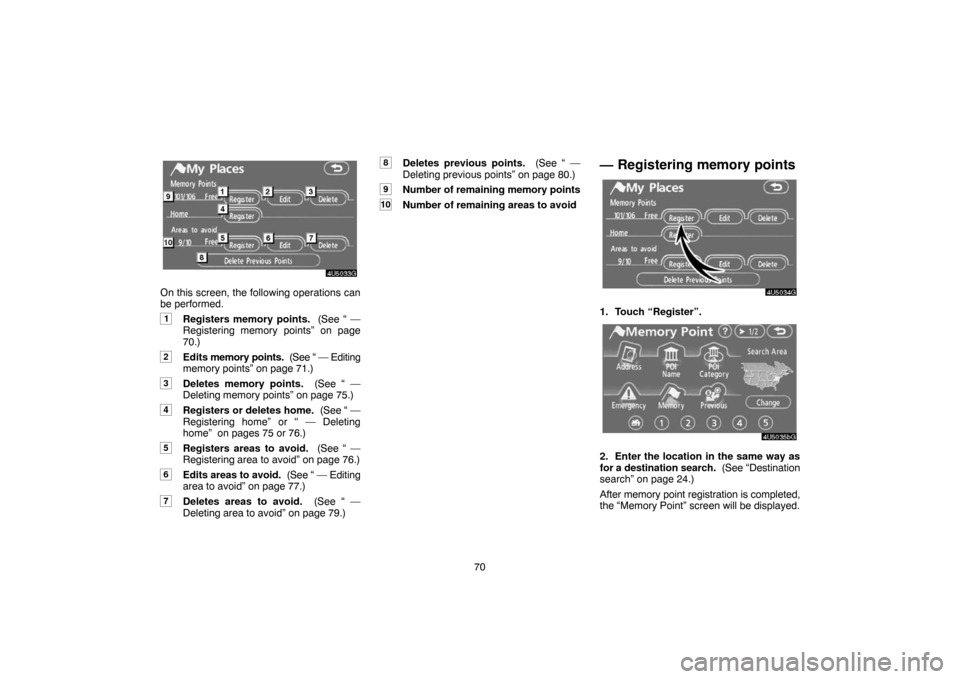

On this screen, the following operations can
be performed.
1Registers memory points. (See “ —
Registering memory points” on page
70.)
2Edits memory points. (See “ — Editing
memory points” on page 71.)
3Deletes memory points. (See “ —
Deleting memory points” on page 75.)
4Registers or deletes home. (See “ —
Registering home” or “ — Deleting
home” on pages 75 or 76.)
5Registers areas to avoid. (See “ —
Registering area to avoid” on page 76.)
6Edits areas to avoid. (See “ — Editing
area to avoid” on page 77.)
7Deletes areas to avoid. (See “ —
Deleting area to avoid” on page 79.)
8Deletes previous points. (See “ —
Deleting previous points” on page 80.)
9Number of remaining memory points
10Number of remaining areas to avoid
— Registering memory points
4U5034G
1. Touch “Register”.
4U5035bG
2. Enter the location in the same way as
for a destination search. (See “Destination
search” on page 24.)
After memory point registration is completed,
the “Memory Point” screen will be displayed.

71
4U5036aG
3. Touch “OK”.
To edit registered information, see “ — Editing
memory points” on page 71.
INFORMATION
Up to 106 memory points can be regis-
tered.
— Editing memory points
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
4U5037G

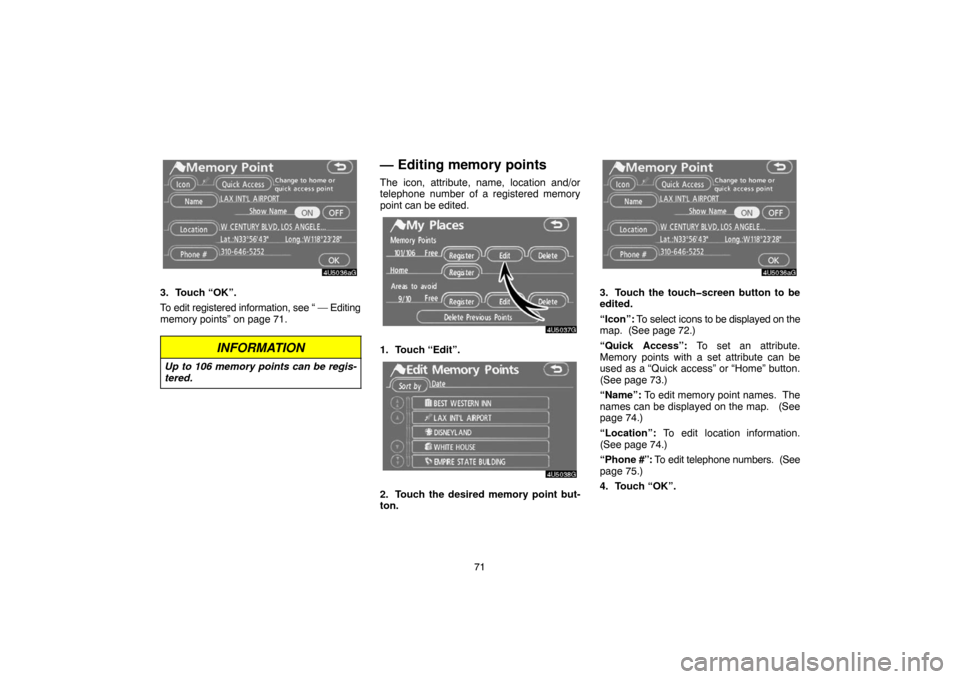

1. Touch “Edit”.
4U5038G
2. Touch the desired memory point but-
ton.
4U5036aG
3. Touch the touchscreen button to be
edited.
“Icon”: To select icons to be displayed on the
map. (See page 72.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” button.
(See page 73.)
“Name”: To edit memory point names. The
names can be displayed on the map. (See
page 74.)
“Location”: To edit location information.
(See page 74.)
“Phone #”: To edit telephone numbers. (See
page 75.)
4. Touch “OK”.

74
To change “Name”
1. Touch “Name” on the “Memory Point”
screen.
4U5046G
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be dis-
played on the map can be set.
4U5044G
To show the name, touch “ON” on the
“Memory Point” screen. To not show it,
touch “OFF”.
To change “Location”
1. Touch “Location” on the “Memory
Point” screen.
4U5047G
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

75
To change “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Memory
Point” screen.
4U5048G
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
— Deleting memory points
4U5049G
1. Touch “Delete”.
4U5050G
2. Touch the touchscreen button to be
deleted.
“Delete All”: To delete all memory points in
the system.
3. To delete the memory point, touch
“Yes”. To cancel the deletion, touch “No”.
— Registering home
If home has been registered, that information
can be recalled by using the “Home” touch−
screen button on the “Destination” screen.
(See “ — Destination search by Home” on
page 26.)
4U5051G
1. Touch “Register”.

76
4U5052bG
2. Enter the location in the same way as
for a destination search. (See “Destination
search” on page 24.)
When registration of home is completed, the
“Memory Point” screen will be displayed.
4U5053G
3. Touch “OK”.
To edit registered information, see “ — Editing
memory points” on page 71.

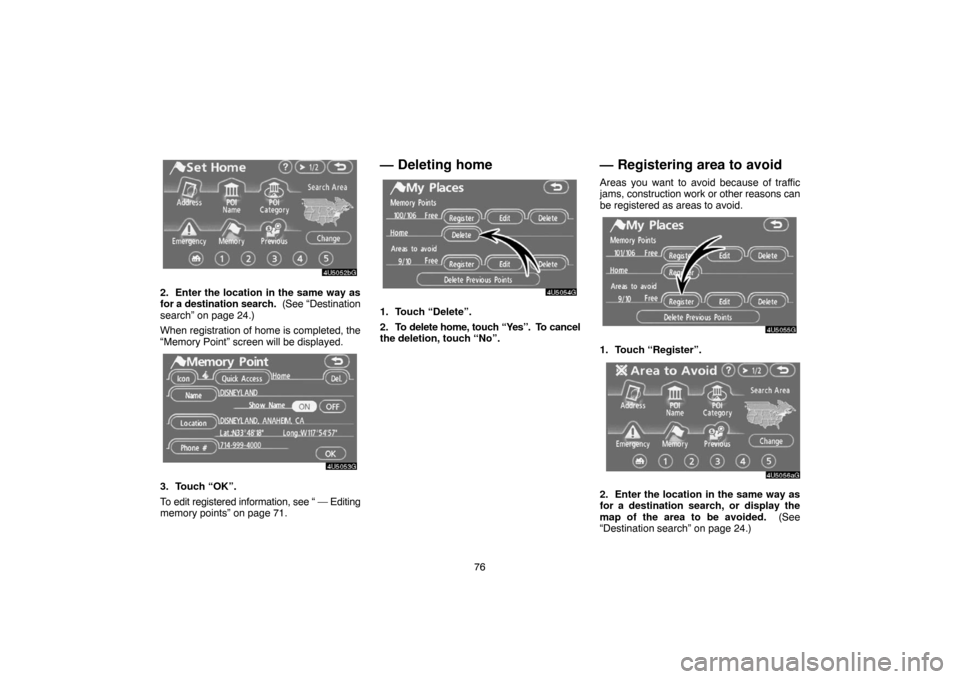

— Deleting home
4U5054G
1. Touch “Delete”.
2. To delete home, touch “Yes”. To cancel
the deletion, touch “No”.
— Registering area to avoid
Areas you want to avoid because of traffic
jams, construction work or other reasons can
be registered as areas to avoid.
4U5055G
1. Touch “Register”.
4U5056aG
2. Enter the location in the same way as
for a destination search, or display the
map of the area to be avoided. (See
“Destination search” on page 24.)

77
4U5057G
3. Set the cursor in the center of the
area to avoid, and touch “Enter”.
4U5058G
4. Touch either or to change
the size of the area to be avoided.
5. Touch “OK”.
INFORMATION
If a destination is input in the area to
avoid or the route calculation cannot
be made without running through the
area to avoid, a route passing through
the area to be avoided may be shown.
Up to 10 locations can be registered
as points/areas to avoid. If there are
10 locations already registered, the
following message will be displayed:
“Unable to register additional points.
Perform operation again after
deleting unnecessary points.”.
— Editing area to avoid
The name, location and/or area size of a reg-
istered area can be edited.
4U5059G
1. Touch “Edit”.
4U5060G
2. Touch the desired area button.
