key TOYOTA 4RUNNER 2007 N210 / 4.G Navigation Manual

124

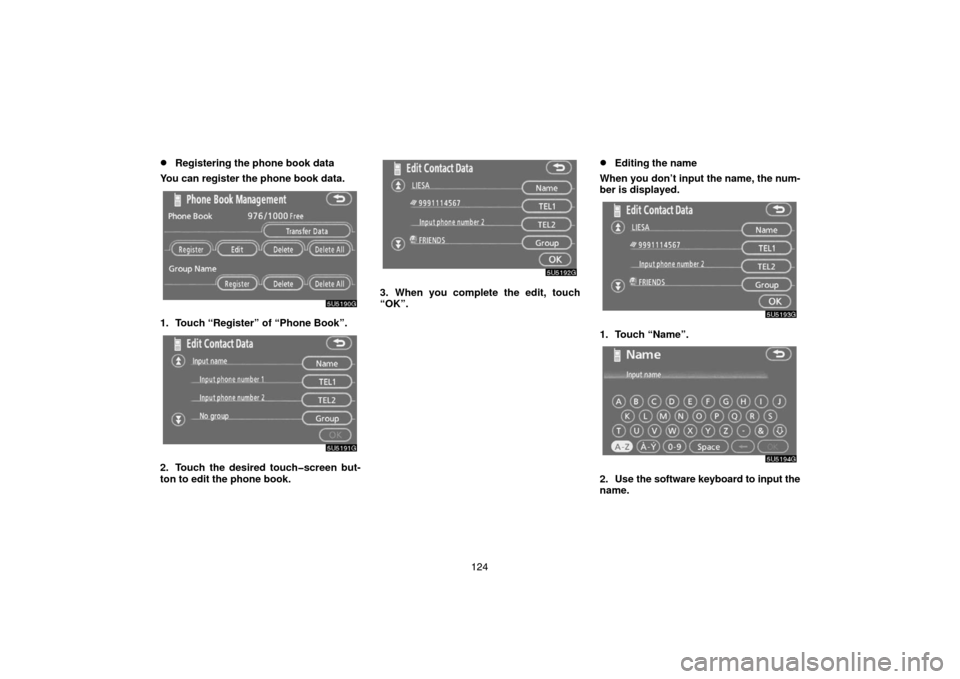

Registering the phone book data
You can register the phone book data.
5U5190G
1. Touch “Register” of “Phone Book”.
5U5191G
2. Touch the desired touchscreen but-
ton to edit the phone book.
5U5192G
3. When you complete the edit, touch
“OK”.
Editing the name
When you don’t input the name, the num-
ber is displayed.
5U5193G
1. Touch “Name”.
5U5194G
2. Use the software keyboard to input the
name.

132

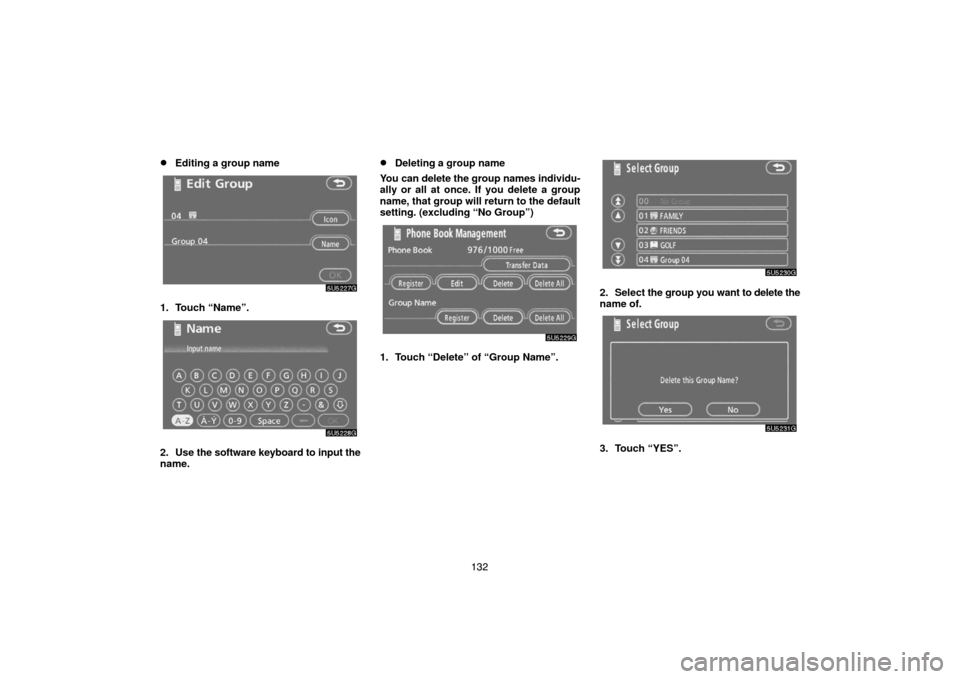

Editing a group name
5U5227G
1. Touch “Name”.
5U5228G
2. Use the software keyboard to input the
name.
Deleting a group name
You can delete the group names individu-
ally or all at once. If you delete a group
name, that group will return to the default
setting. (excluding “No Group”)
5U5229G
1. Touch “Delete” of “Group Name”.
5U5230G
2. Select the group you want to delete the
name of.
5U5231G
3. Touch “YES”.

138

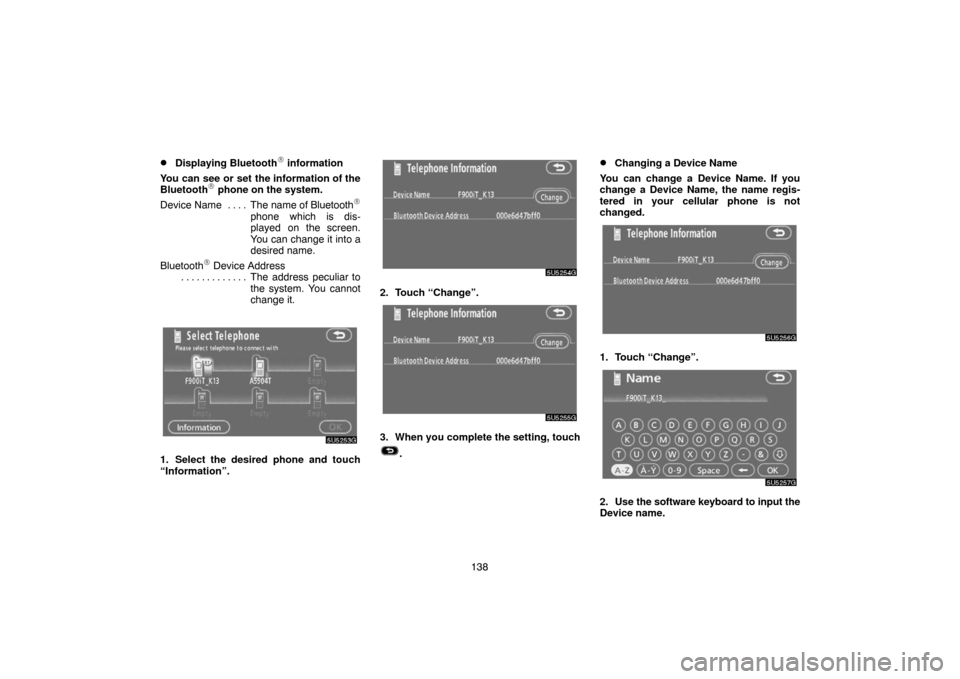

Displaying Bluetooth information
You can see or set the information of the
Bluetooth
 phone on the system.
Device Name The name of Bluetooth
. . . .
phone which is dis-
played on the screen.
You can change it into a
desired name.
Bluetooth
 Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You cannot
change it.
5U5253G
1. Select the desired phone and touch
“Information”.
5U5254G
2. Touch “Change”.
5U5255G
3. When you complete the setting, touch
.
Changing a Device Name
You can change a Device Name. If you
change a Device Name, the name regis-
tered in your cellular phone is not
changed.
5U5256G
1. Touch “Change”.
5U5257G
2. Use the software keyboard to input the
Device name.

139

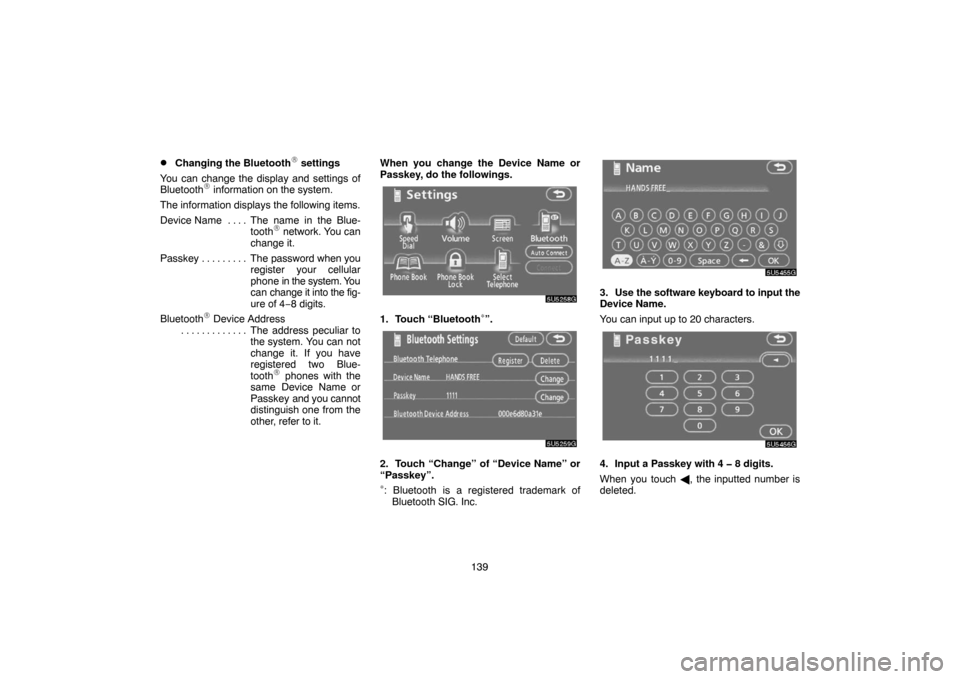

Changing the Bluetooth settings
You can change the display and settings of
Bluetooth
 information on the system.
The information displays the following items.
Device Name The name in the Blue-. . . .
tooth
 network. You can
change it.
Passkey The password when you . . . . . . . . .
register your cellular
phone in the system. You
can change it into the fig-
ure of 4−8 digits.
Bluetooth
 Device Address
The address peculiar to . . . . . . . . . . . . .
the system. You can not
change it. If you have
registered two Blue-
tooth
 phones with the
same Device Name or
Passkey and you cannot
distinguish one from the
other, refer to it.When you change the Device Name or
Passkey, do the followings.
5U5258G
1. Touch “Bluetooth∗”.
5U5259G
2. Touch “Change” of “Device Name” or
“Passkey”.
∗: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
5U5455G
3. Use the software keyboard to input the
Device Name.
You can input up to 20 characters.
5U5456G
4. Input a Passkey with 4 8 digits.
When you touch , the inputted number is
deleted.

178
RS02020

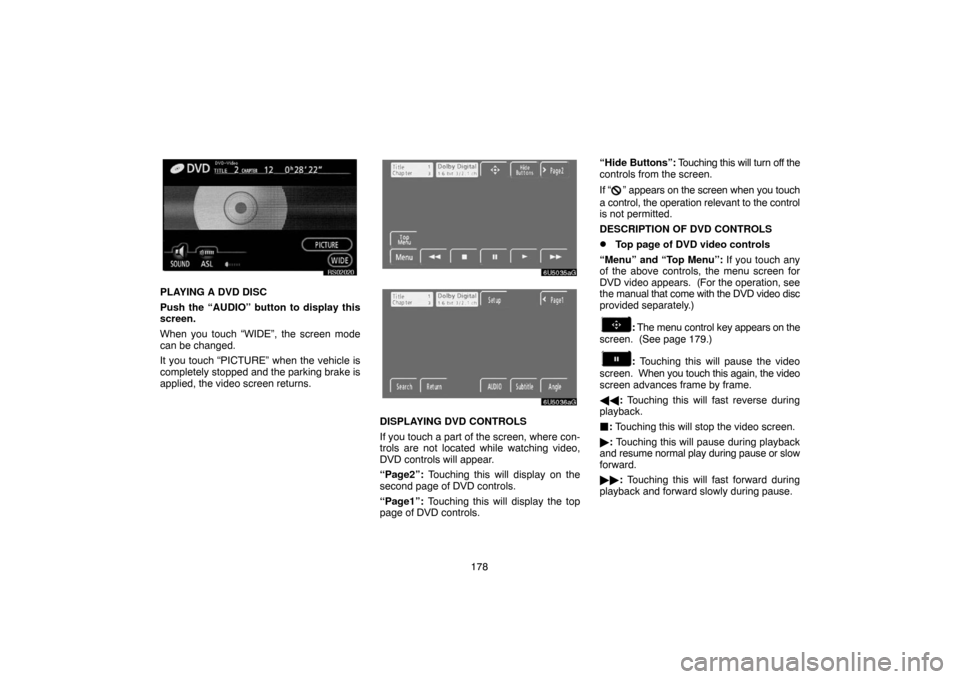

PLAYING A DVD DISC
Push the “AUDIO” button to display this
screen.
When you touch “WIDE”, the screen mode
can be changed.
It you touch “PICTURE” when the vehicle is
completely stopped and the parking brake is
applied, the video screen returns.
6U5035aG
6U5036aG
DISPLAYING DVD CONTROLS
If you touch a part of the screen, where con-
trols are not located while watching video,
DVD controls will appear.
“Page2”: Touching this will display on the
second page of DVD controls.
“Page1”: Touching this will display the top
page of DVD controls.“Hide Buttons”: Touching this will turn off the
controls from the screen.
If “
” appears on the screen when you touch
a control, the operation relevant to the control
is not permitted.
DESCRIPTION OF DVD CONTROLS
Top page of DVD video controls
“Menu” and “Top Menu”: If you touch any
of the above controls, the menu screen for
DVD video appears. (For the operation, see
the manual that come with the DVD video disc
provided separately.)
: The menu control key appears on the
screen. (See page 179.)
: Touching this will pause the video
screen. When you touch this again, the video
screen advances frame by frame.
: Touching this will fast reverse during
playback.

: Touching this will stop the video screen.
: Touching this will pause during playback
and resume normal play during pause or slow
forward.
: Touching this will fast forward during
playback and forward slowly during pause.
