94
5U5062G

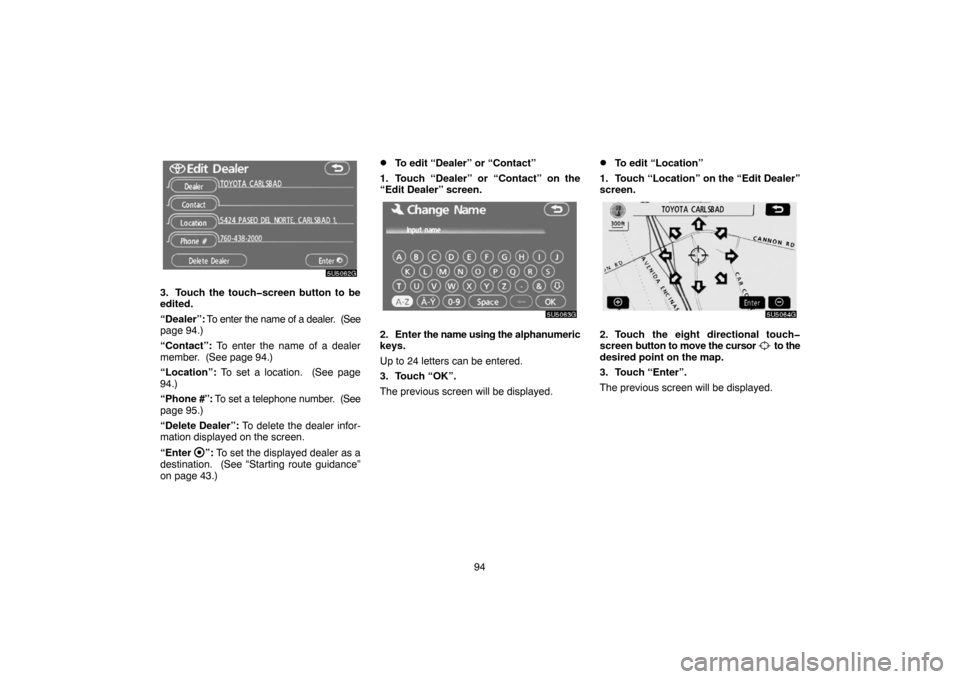

3. Touch the touchscreen button to be
edited.
“Dealer”: To enter the name of a dealer. (See
page 94.)
“Contact”: To enter the name of a dealer
member. (See page 94.)
“Location”: To set a location. (See page
94.)
“Phone #”: To set a telephone number. (See
page 95.)
“Delete Dealer”: To delete the dealer infor-
mation displayed on the screen.
“Enter
”: To set the displayed dealer as a
destination. (See “Starting route guidance”
on page 43.)
To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.
5U5063G
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Location” on the “Edit Dealer”
screen.
5U5064G
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

95

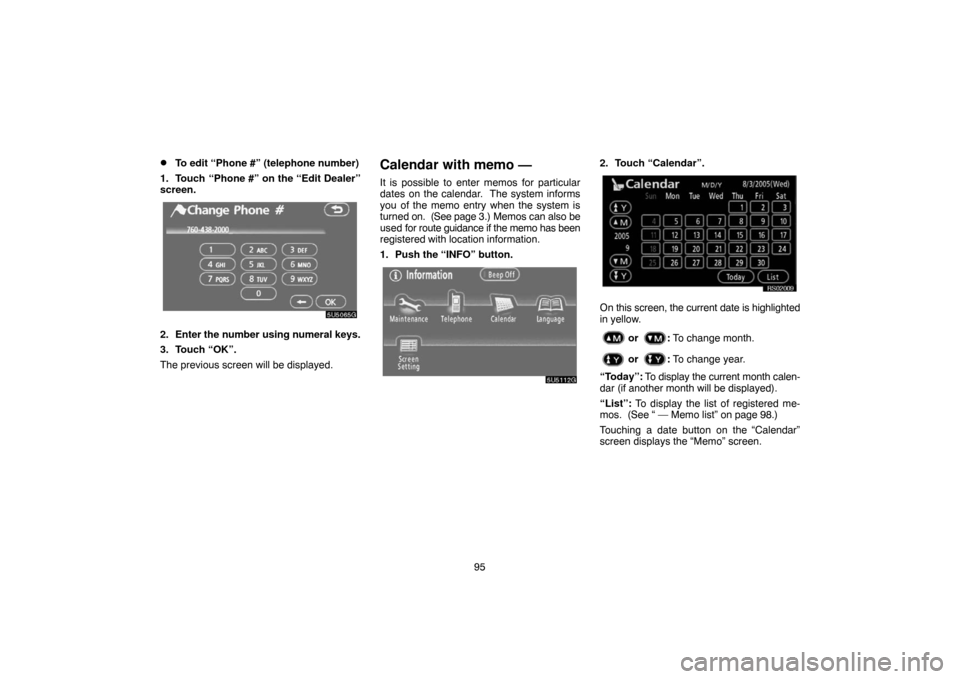

To edit “Phone #” (telephone number)
1. Touch “Phone #” on the “Edit Dealer”
screen.
5U5065G
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
Calendar with memo —
It is possible to enter memos for particular
dates on the calendar. The system informs
you of the memo entry when the system is
turned on. (See page 3.) Memos can also be
used for route guidance if the memo has been
registered with location information.
1. Push the “INFO” button.
5U5112G
2. Touch “Calendar”.
RS02009
On this screen, the current date is highlighted
in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month calen-
dar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 98.)
Touching a date button on the “Calendar”
screen displays the “Memo” screen.

97
RS02010

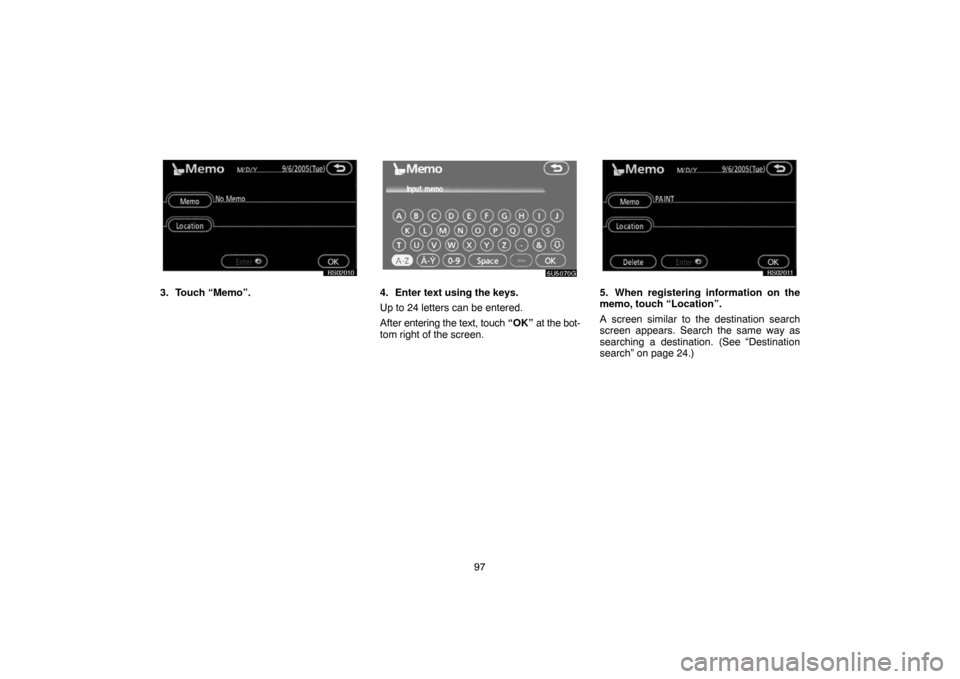

3. Touch “Memo”.
5U5070G
4. Enter text using the keys.
Up to 24 letters can be entered.
After entering the text, touch “OK” at the bot-
tom right of the screen.
RS02011
5. When registering information on the
memo, touch “Location”.
A screen similar to the destination search
screen appears. Search the same way as
searching a destination. (See “Destination
search” on page 24.)

99
RS02014

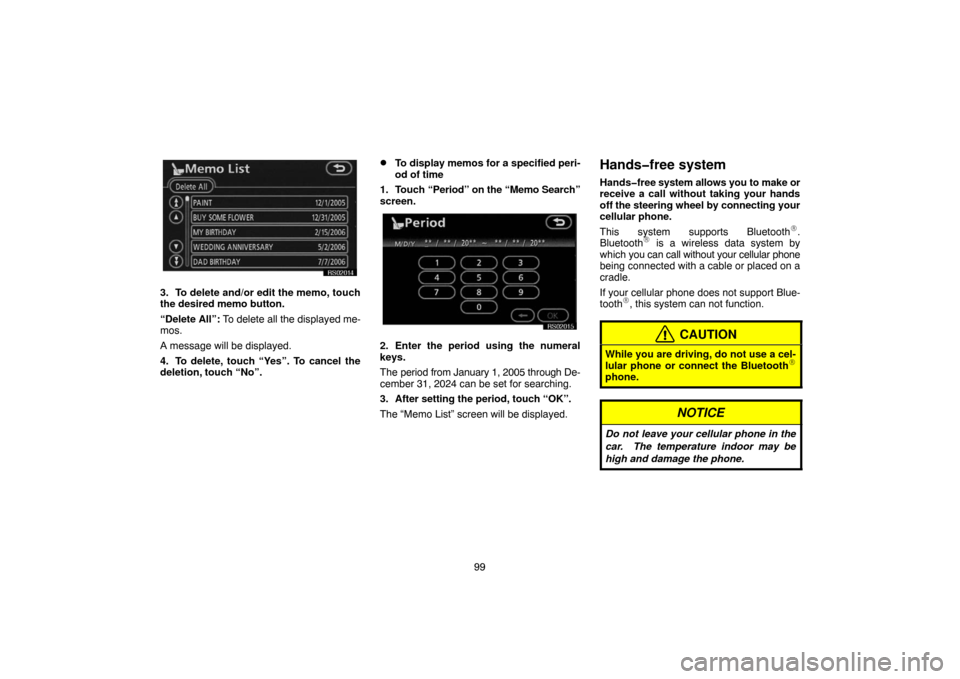

3. To delete and/or edit the memo, touch
the desired memo button.
“Delete All”: To delete all the displayed me-
mos.
A message will be displayed.
4. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified peri-
od of time
1. Touch “Period” on the “Memo Search”
screen.
RS02015
2. Enter the period using the numeral
keys.
The period from January 1, 2005 through De-
cember 31, 2024 can be set for searching.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
Handsfree system
Handsfree system allows you to make or
receive a call without taking your hands
off the steering wheel by connecting your
cellular phone.
This system supports Bluetooth
.
Bluetooth is a wireless data system by
which you can call without your cellular phone
being connected with a cable or placed on a
cradle.
If your cellular phone does not support Blue-
tooth
, this system can not function.
CAUTION
While you are driving, do not use a cel-
lular phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in the
car. The temperature indoor may be
high and damage the phone.

104

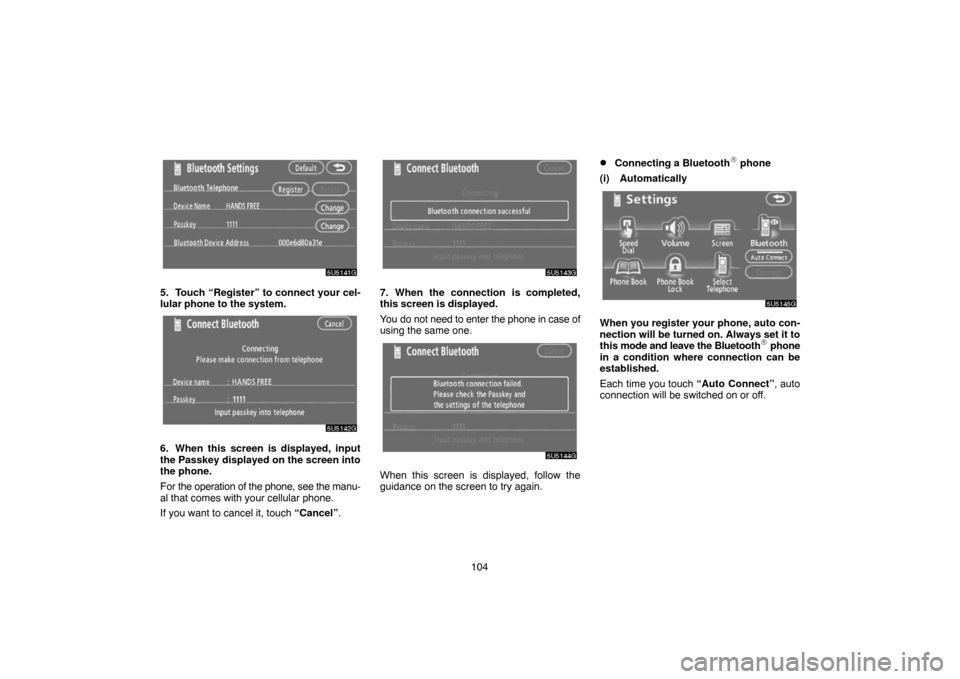

5U5141G
5. Touch “Register” to connect your cel-
lular phone to the system.
5U5142G
6. When this screen is displayed, input
the Passkey displayed on the screen into
the phone.
For the operation of the phone, see the manu-
al that comes with your cellular phone.
If you want to cancel it, touch “Cancel”.
5U5143G
7. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case of
using the same one.
5U5144G
When this screen is displayed, follow the
guidance on the screen to try again.
Connecting a Bluetooth phone
(i) Automatically
5U5145G
When you register your phone, auto con-
nection will be turned on. Always set it to
this mode and leave the Bluetooth
 phone
in a condition where connection can be
established.
Each time you touch “Auto Connect”, auto
connection will be switched on or off.

106
(b) Call on the Bluetooth phone
After you enter the Bluetooth phone, you
can call by using handsfree system. You
can call using the 7 methods described
below.

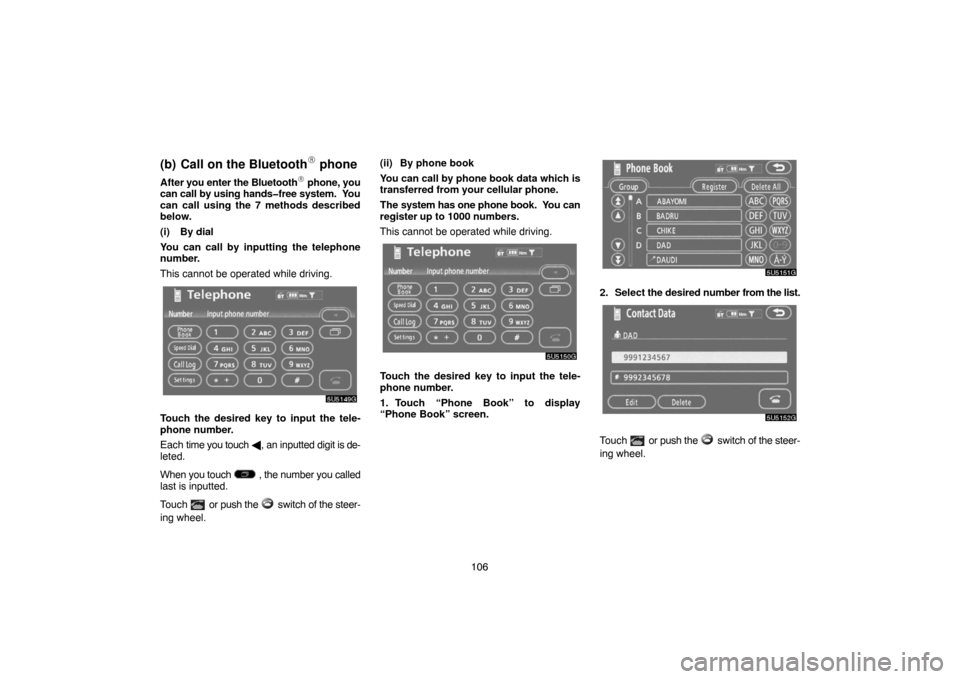

(i) By dial
You can call by inputting the telephone
number.
This cannot be operated while driving.
5U5149G
Touch the desired key to input the tele-
phone number.
Each time you touch , an inputted digit is de-
leted.
When you touch
, the number you called
last is inputted.
Touch
or push the switch of the steer-
ing wheel.(ii) By phone book
You can call by phone book data which is
transferred from your cellular phone.
The system has one phone book. You can
register up to 1000 numbers.
This cannot be operated while driving.
5U5150G
Touch the desired key to input the tele-
phone number.
1. Touch “Phone Book” to display
“Phone Book” screen.
5U5151G
2. Select the desired number from the list.
5U5152G
Touch or push the switch of the steer-
ing wheel.

11 2

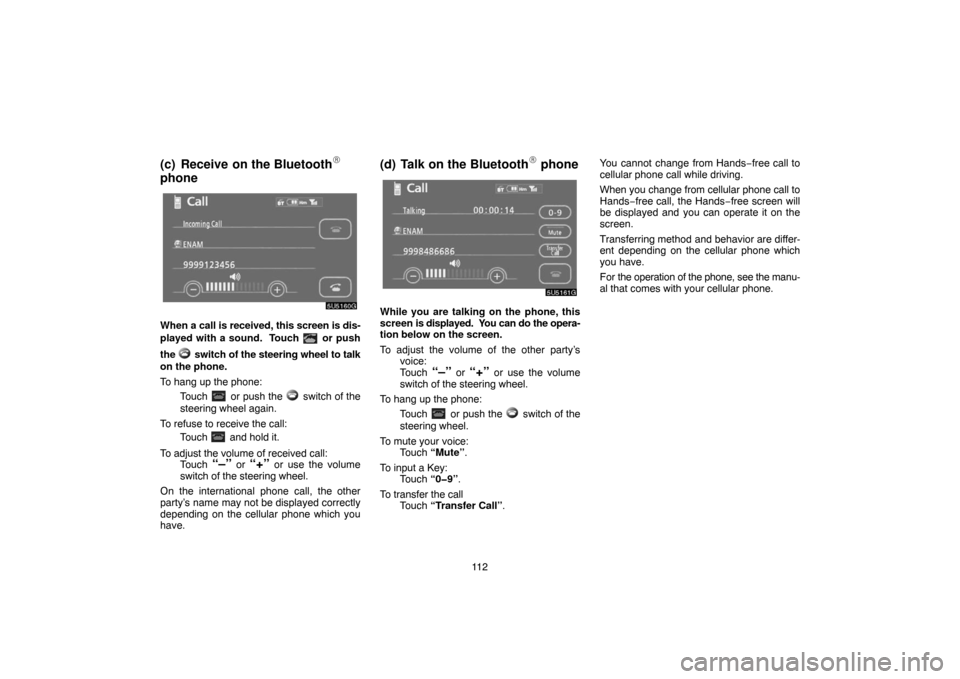

(c) Receive on the Bluetooth
phone
5U5160G
When a call is received, this screen is dis-
played with a sound. Touch
or push
the
switch of the steering wheel to talk
on the phone.
To hang up the phone:
Touch
or push the switch of the
steering wheel again.
To refuse to receive the call:
Touch
and hold it.
To adjust the volume of received call:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed correctly
depending on the cellular phone which you
have.
(d) Talk on the Bluetooth phone
5U5161G
While you are talking on the phone, this
screen is displayed. You can do the opera-
tion below on the screen.
To adjust the volume of the other party’s
voice:
Touch
“–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
To mute your voice:
Touch “Mute”.
To input a Key:
Touch “09”.
To transfer the call
Touch “Transfer Call”.You cannot change from Hands−free call to
cellular phone call while driving.
When you change from cellular phone call to
Hands−free call, the Hands−free screen will
be displayed and you can operate it on the
screen.
Transferring method and behavior are differ-
ent depending on the cellular phone which
you have.
For the operation of the phone, see the manu-
al that comes with your cellular phone.

11 3

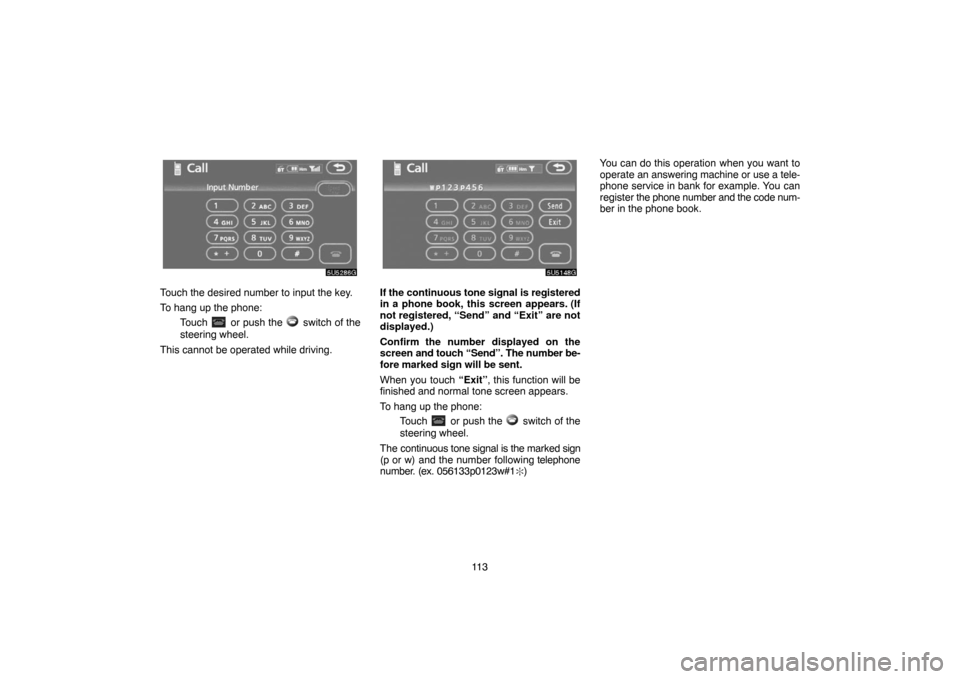

5U5286G
Touch the desired number to input the key.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
This cannot be operated while driving.
5U5148G
If the continuous tone signal is registered
in a phone book, this screen appears. (If
not registered, “Send” and “Exit” are not
displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number be-
fore marked sign will be sent.
When you touch “Exit”, this function will be
finished and normal tone screen appears.
To hang up the phone:
Touch
or push the switch of the
steering wheel.
The continuous tone signal is the marked sign
(p or w) and the number following telephone
number. (ex. 056133p0123w#1
)You can do this operation when you want to
operate an answering machine or use a tele-
phone service in bank for example. You can
register the phone number and the code num-
ber in the phone book.

11 7 (ii) Registering the speed tone
You can register the desired tone number.
Up to 6 speed tone numbers can be regis-
tered.

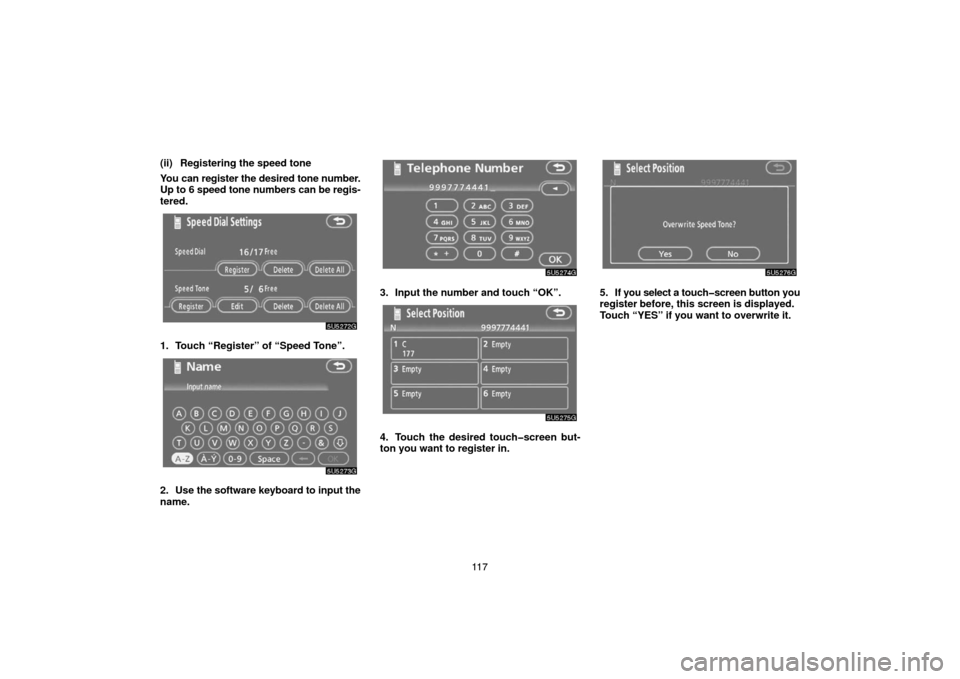

5U5272G
1. Touch “Register” of “Speed Tone”.
5U5273G
2. Use the software keyboard to input the
name.
5U5274G
3. Input the number and touch “OK”.
5U5275G
4. Touch the desired touchscreen but-
ton you want to register in.
5U5276G
5. If you select a touchscreen button you
register before, this screen is displayed.
Touch “YES” if you want to overwrite it.

11 8

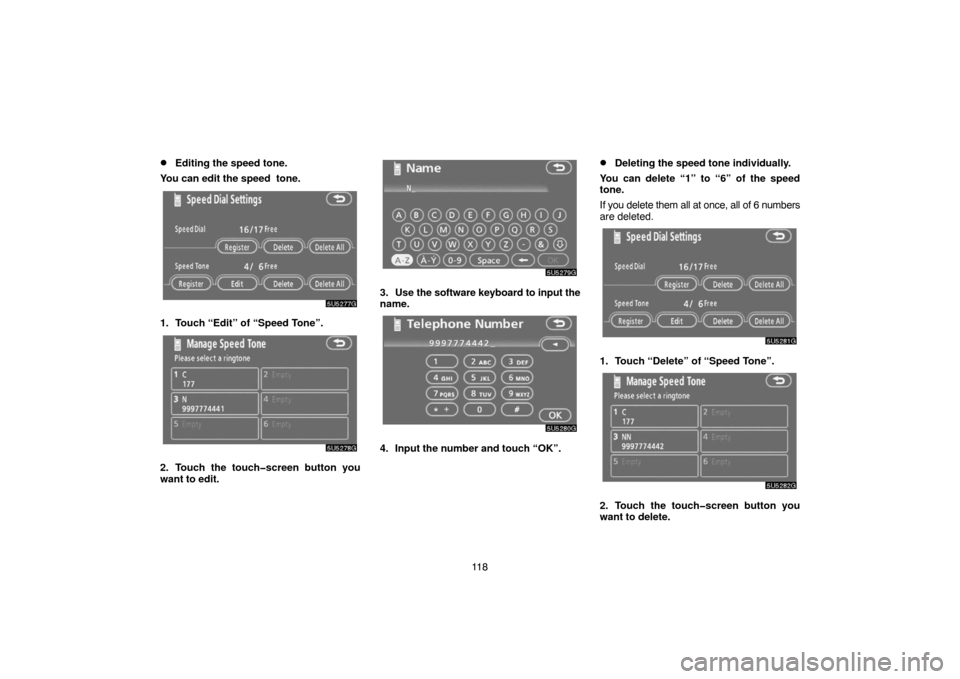

Editing the speed tone.
You can edit the speed tone.
5U5277G
1. Touch “Edit” of “Speed Tone”.
5U5278G
2. Touch the touchscreen button you
want to edit.
5U5279G
3. Use the software keyboard to input the
name.
5U5280G
4. Input the number and touch “OK”.
Deleting the speed tone individually.
You can delete “1” to “6” of the speed
tone.
If you delete them all at once, all of 6 numbers
are deleted.
5U5281G
1. Touch “Delete” of “Speed Tone”.
5U5282G
2. Touch the touchscreen button you
want to delete.
