TOYOTA 4RUNNER 2007 N210 / 4.G Owners Manual

1212007 4Runner from Aug. ’06 Prod. (OM35866U)

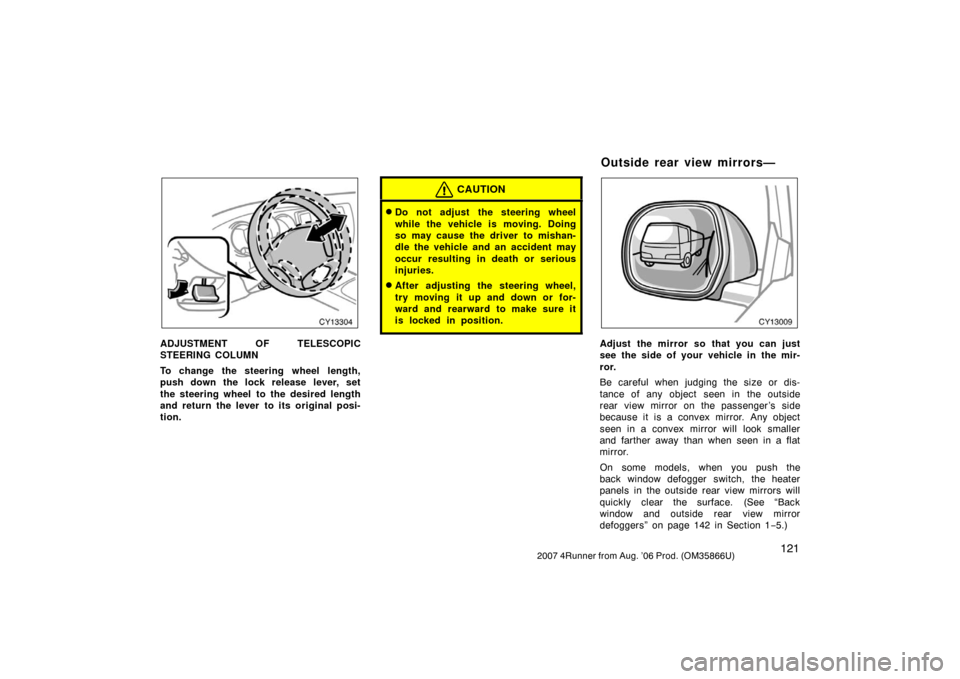

CY13304
ADJUSTMENT OF TELESCOPIC
STEERING COLUMN
To change the steering wheel length,
push down the lock release lever, set
the steering wheel to the desired length
and return the lever to its original posi-
tion.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down or for-
ward and rearward to make sure it
is locked in position.
CY13009
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. (See “Back
window and outside rear view mirror
defoggers” on page 142 in Section 1−5.)
Outside rear view mirrors—

1222007 4Runner from Aug. ’06 Prod. (OM35866U)
On some models, the outside rear view
mirrors are rain clearing mirrors that clear
the driver’s rear view when it rains. (For
details, see “Rain clearing mirrors” on
page 403 in Section 5.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is
on.

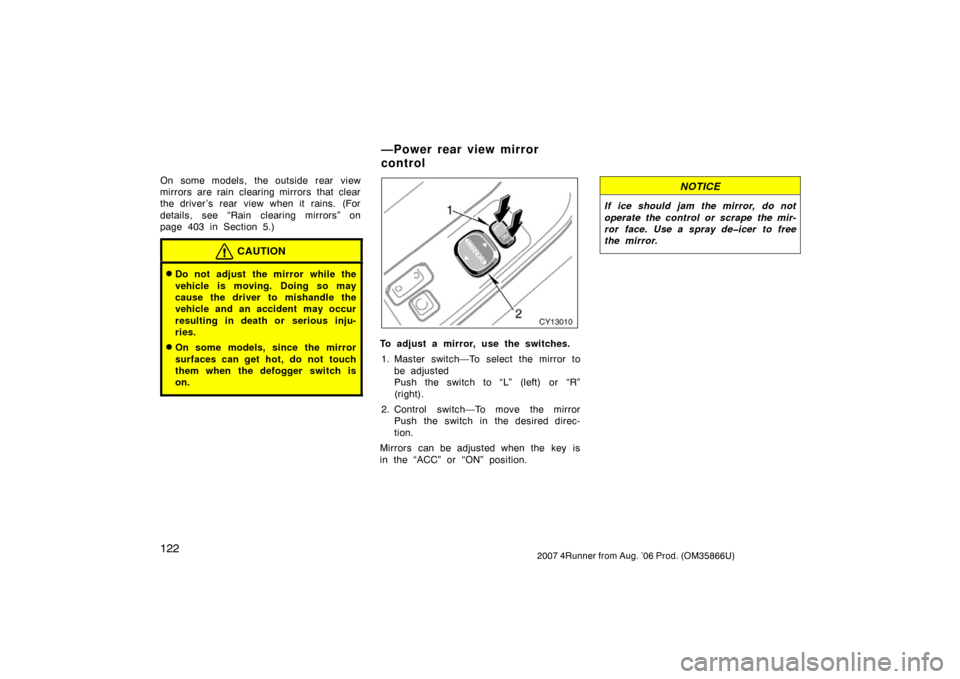

CY13010
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

1232007 4Runner from Aug. ’06 Prod. (OM35866U)

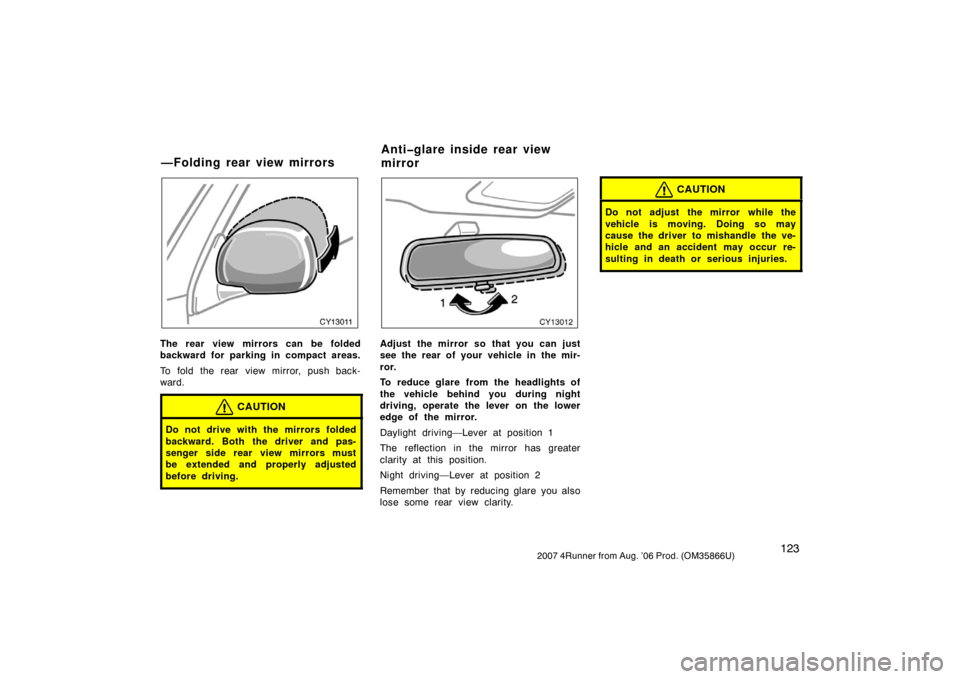

CY13011
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
CY13012
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
—Folding rear view mirrorsAntiglare inside rear view
mirror

1242007 4Runner from Aug. ’06 Prod. (OM35866U)

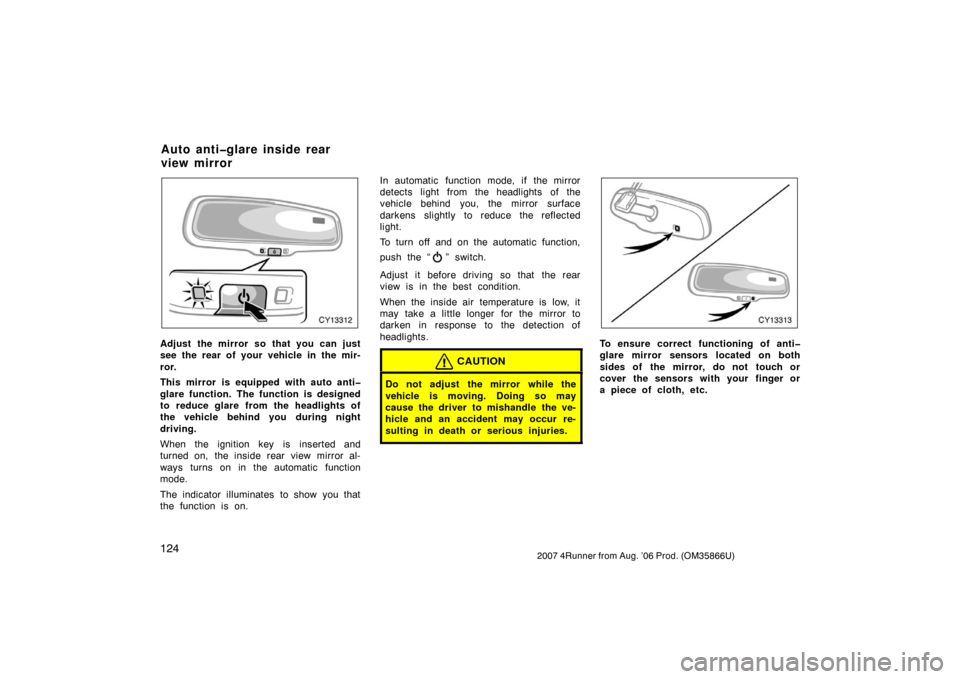

CY13312
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off and on the automatic function,
push the “
” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
CY13313
To ensure correct functioning of anti
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.
Auto antiglare inside rear
view mirror

1252007 4Runner from Aug. ’06 Prod. (OM35866U)

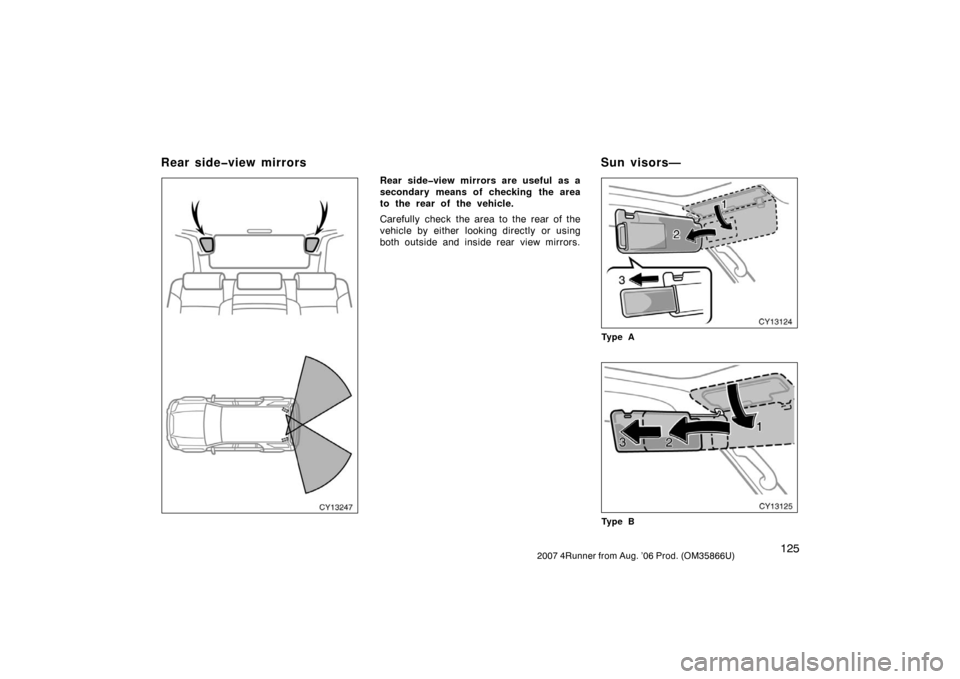

CY13247
Rear sideview mirrors are useful as a
secondary means of checking the area
to the rear of the vehicle.
Carefully check the area to the rear of the
vehicle by either looking directly or using
both outside and inside rear view mirrors.
CY13124
Ty p e A
CY13125
Ty p e B
Rear sideview mirrorsSun visors—

1262007 4Runner from Aug. ’06 Prod. (OM35866U)
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the main sun visor (position 1).
To block out glare from the side—Swing
down the main sun visor, remove it from
the hook and swing it to the lateral side
(position 2).
Type A—If glare comes from obliquely be-
hind you, extend the plate at the end of
the visor (to position 3).
Type B—If glare comes from obliquely be-
hind you, slide the main sun visor back-
ward (to position 3).

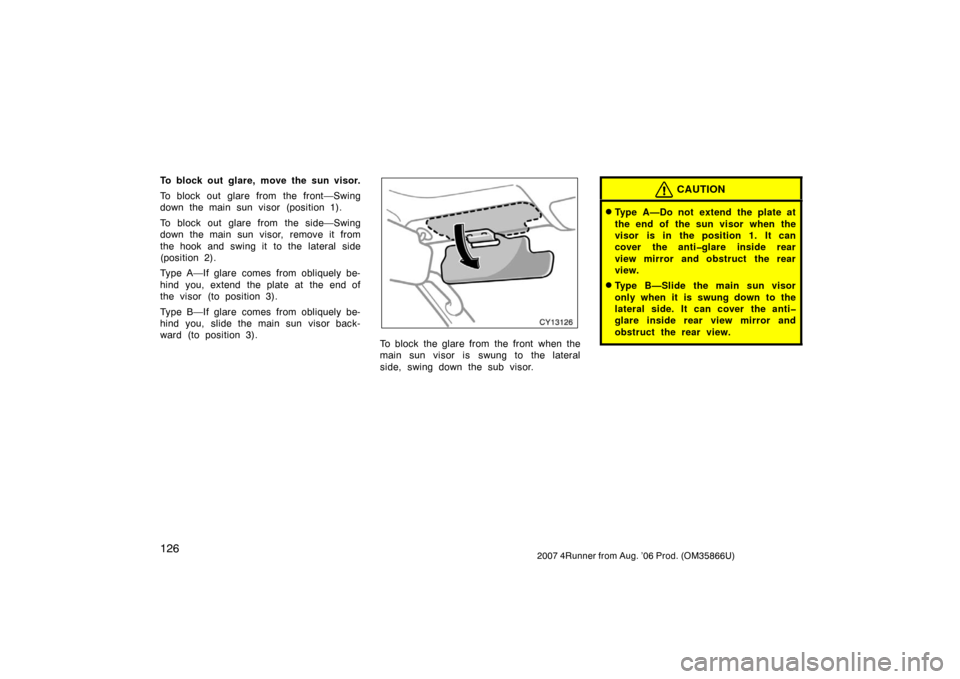

CY13126
To block the glare from the front when the
main sun visor is swung to the lateral
side, swing down the sub visor.
CAUTION
Type A—Do not extend the plate at
the end of the sun visor when the
visor is in the position 1. It can
cover the antiglare inside rear
view mirror and obstruct the rear
view.
Type B—Slide the main sun visor
only when it is swung down to the
lateral side. It can cover the anti
glare inside rear view mirror and
obstruct the rear view.

1272007 4Runner from Aug. ’06 Prod. (OM35866U)

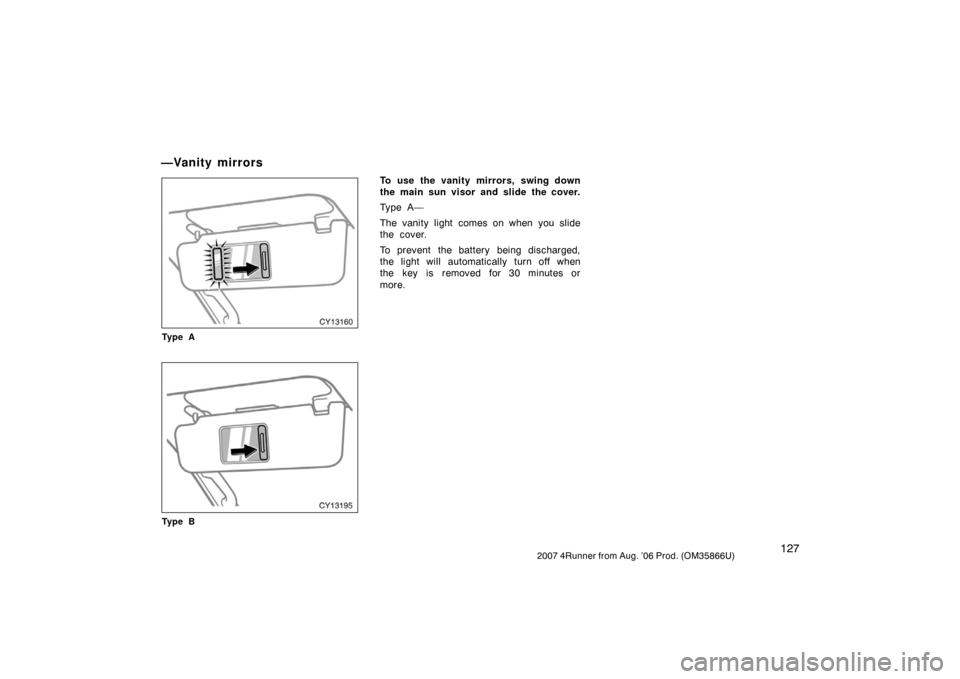

CY13160
Ty p e A
CY13195
Ty p e B
To use the vanity mirrors, swing down
the main sun visor and slide the cover.
Ty p e A —
The vanity light comes on when you slide
the cover.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed for 30 minutes or
more.
—Vanity mirrors

1282007 4Runner from Aug. ’06 Prod. (OM35866U)

1292007 4Runner from Aug. ’06 Prod. (OM35866U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Personal lights 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Luggage compartment light 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Running board lights 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Windshield wipers and washer 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defoggers 142
. . . . . . . . . . .
SECTION 1 5

1302007 4Runner from Aug. ’06 Prod. (OM35866U)

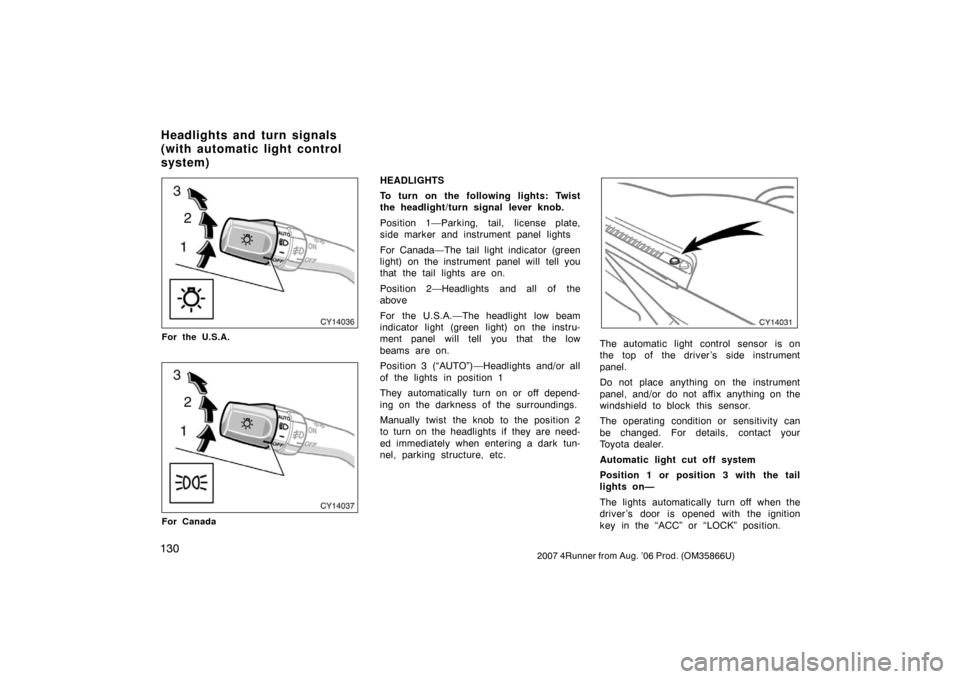

CY14036
For the U.S.A.
CY14037
For Canada
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
For Canada—The tail light indicator (green
light) on the instrument panel will tell you
that the tail lights are on.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight low beam
indicator light (green light) on the instru-
ment panel will tell you that the low
beams are on.
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.
CY14031
The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
The operating condition or sensitivity can
be changed. For details, contact your
Toyota dealer.
Automatic light cut off system
Position 1 or position 3 with the tail
lights on—
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position.
Headlights and turn signals
(with automatic light control
system)
