warning light TOYOTA 4RUNNER 2007 N210 / 4.G Quick Reference Guide

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1-7, 2007 Owner’s Manual.4If this light flashes, refer to “Rear height control air
suspension,” Section 1-7, 2007 Owner’s Manual.
5If this light flashes, refer to “Cruise control,” Section 1-7, 2007
Owner’s Manual.
Automatic Transmission indicator
Front passenger occupant classification indicator
Tu r n signal indicator
Front fog light indicator
Four-wheel drive indicator
3
Low speed four-wheel drive indicator3
Center differential lock indicator3
Slip indicator
Vehicle Stability Control “OFF” indicator
Downhill Assist Control indicator “AUTO LSD” indicator
Cruise control indicator5
Height control indicator
Height control “OFF” indicator4
Automatic Transmission fluid temperature
warning1
Low Tire Pressure Wa r n i n g1
Roll Sensing of Curtain shield Airbag “OFF”
indicator1,2
Engine immobilizer/Theft deterrent system
indicator
Open door warning1
Airbag SRS warning1
•Vehicle Stability Control warning1
•“AUTO LSD” warning1
•Tr a c t i o n Control warning1
•Downhill Assist Control warning1
•Active Tr a c t i o n Control warning1
•Hill-start Assist Control warning1
Headlight high beam indicator
4
OVERVIEW
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2007 Owner’s Manual.
2For details, see “Roll sensing of curtain shield airbags off
switch,” Section 1-3, 2007 Owner’s Manual.
3If this light flashes, refer to “Four-wheel drive system,” Section
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Low fuel level warning
Engine coolant temperature
Tr i p meter reset knob
Odometer and two trip meters
Height control indicator
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Anti-lock Brake System warning1
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced
braking performance.
Indicator symbols
Driver/Front passenger seat belt
reminder1
Limited model only
Low windshield washer fluid level warning1

24

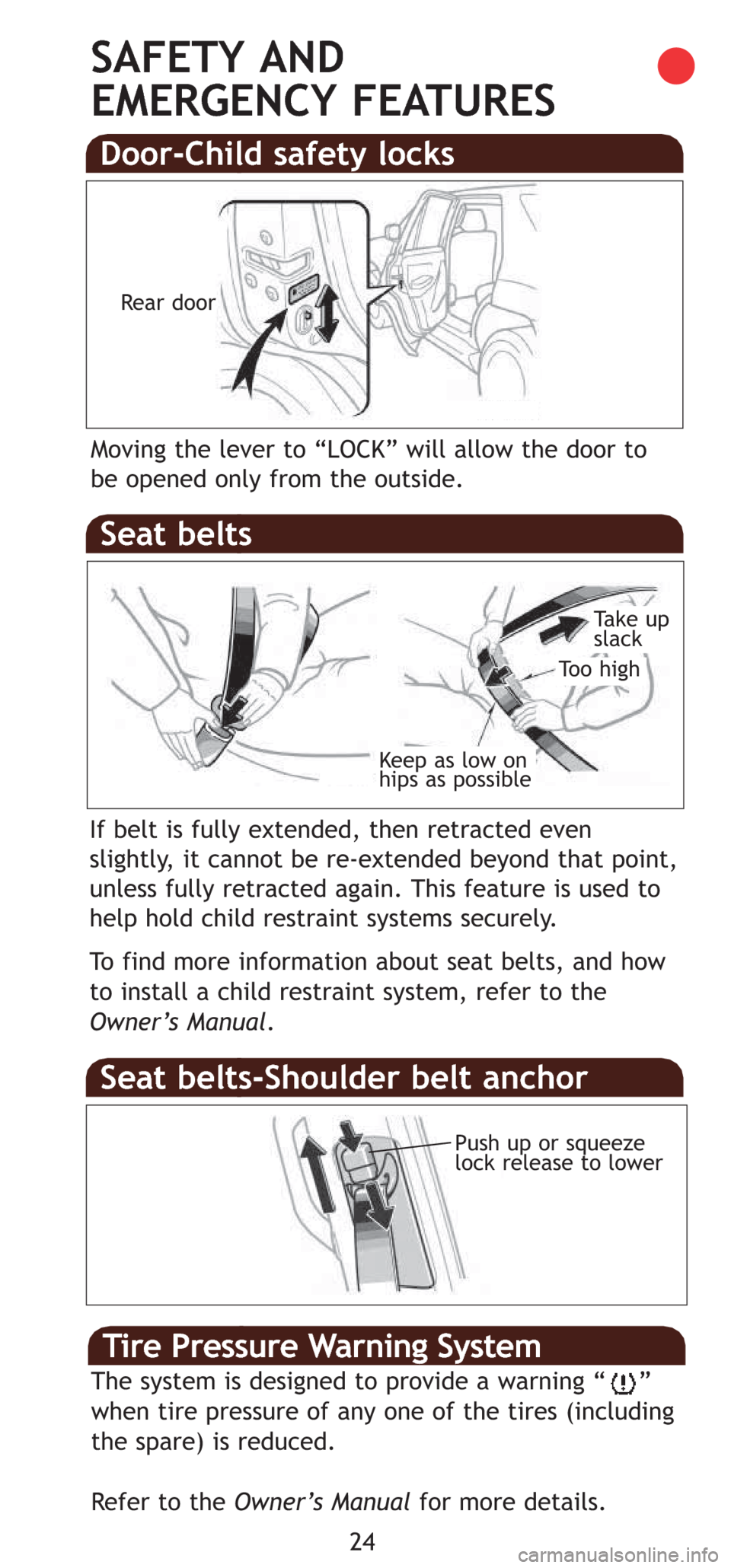

Tire Pressure Warning System
The system is designed to provide a warning “ ”
when tire pressure of any one of the tires (including
the spare) is reduced.
Refer to the
Owner’s Manualfor more details.
SAFETY AND
EMERGENCY FEATURES
Seat belts-Shoulder belt anchor
Push up or squeeze
lock release to lower
Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
Door-Child safety locks
Rear door
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To f i n d more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
To o high
Seat belts
