TOYOTA 4RUNNER 2008 N210 / 4.G Owners Manual

199
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS−
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
under−inflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly under−inflated tire causes
the tire to overheat and can lead to
tire failure. Under−inflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
under−inflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).Your vehicle has also been equipped
with a TPMS (tire pressure warning
system) malfunction indicator to indi-
cate when the system is not operat-
ing properly. The TPMS (tire pressure
warning system) malfunction indicator
is combined with the low tire pres-
sure telltale (tire pressure warning
light). When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subse-
quent vehicle start−ups as long as
the malfunction exists. When the mal-
function indicator is illuminated, the
system may not be able to detect or
signal low tire pressure as intended.TPMS (tire pressure warning system)
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS (tire pressure warning sys-
tem) from functioning properly. Al-
ways check the TPMS (tire pressure
warning system) malfunction telltale
after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS (tire pressure
warning system) to continue to func-
tion properly.
NOTICE
 Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.

200
CY16072
Ty p e A
CY16071
Ty p e B
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
engine switch is in ON" position, the
tire pressure warning system is not
working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
computer.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2
or bar, 73
psi).
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work pr operly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.

201

If non−genuine Toyota wheels are used.
If tire chains are used.
If the spare tire is in a location subject
to poor radio wave signal reception.
If a large metallic object which can
interfere with signal reception is put in
the deck.
If the tire pressure warning light continues
to comes on after blinking for 1 minute
when the engine switch is in ON" posi-
tion, have the system checked by your
Toyota dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires. For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:

202
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered in the tire pressure warning
computer. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Toyota
dealer.
If the ID code is not registered, the sys-
tem will not work properly. After about 20
minutes, the tire pressure warning light
comes on after blinking for 1 minute to
indicate a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Toyota dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.
CY16007
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
Parkin g brake

203

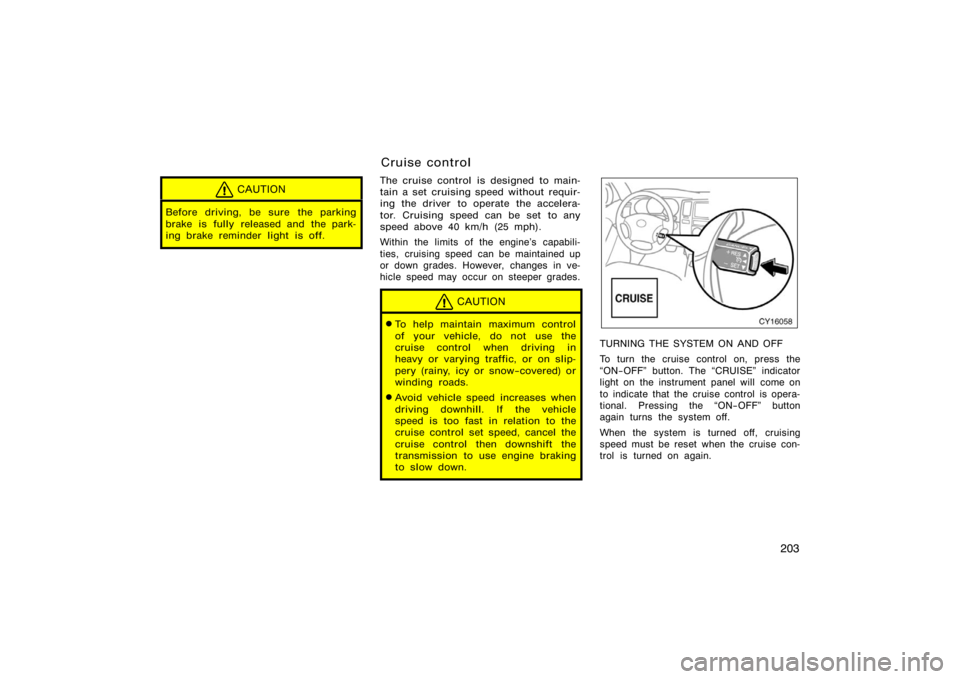

CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the engine’s capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snow−covered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
CY16058
TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
ON−OFF" button. The CRUISE" indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the ON−OFF" button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
Cruise control

204

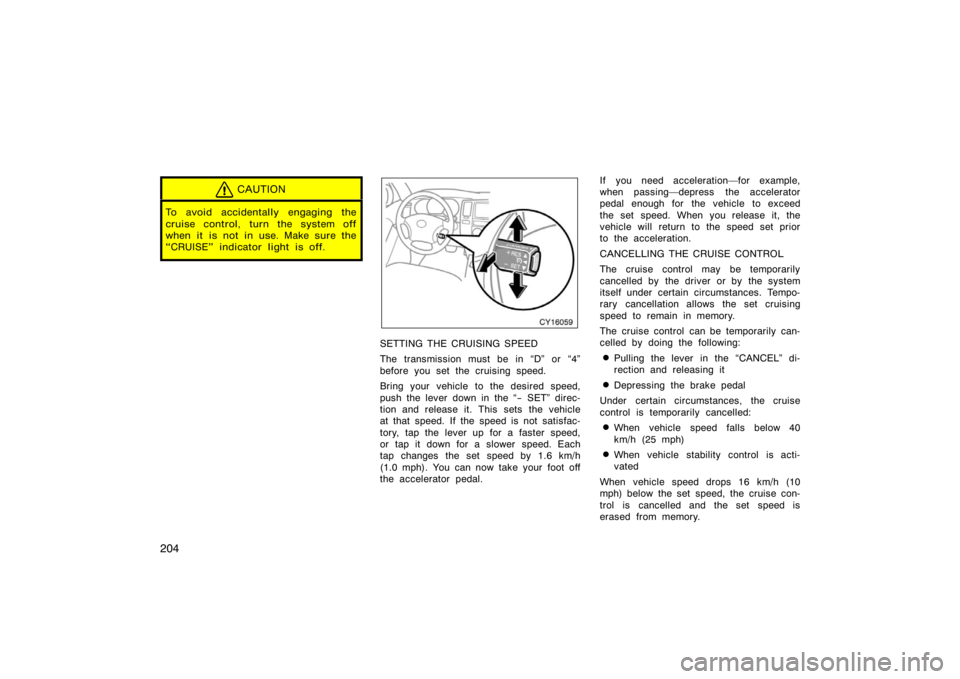

CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
CRUISE" indicator light is off.
CY16059
SETTING THE CRUISING SPEED
The transmission must be in D" or 4"
before you set the cruising speed.
Bring your vehicle to the desired speed,
push the lever down in the − SET" direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.If you need accelerationfor example,
when passingdepress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the CANCEL" di-
rection and releasing it
Depressing the brake pedal
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory.

205
The CRUISE" indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, press the
ON−OFF" button. Make sure the
CRUISE" indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the + RES"
direction.
Vehicle speed must be above 40 km/h (25
mph).
RESETTING TO A FASTER SPEED
Push the lever up in the + RES" direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the − SET" direction.RESETTING TO A SLOWER SPEED
Push the lever down in the − SET" direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the − SET" direction.
Even if you downshift from D" to 4", with
the cruise control on, engine braking will
not be enabled because the cruise control
is not cancelled. To decrease the vehicle
speed, reset to a slower speed with the
cruise control lever or depress the brake
pedal. If you use the brake pedal, cruise
control is cancelled.
CRUISE CONTROL FAILURE WARNING
If the CRUISE" indicator light flashes
when using the cruise control, press the
ON−OFF" button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

206

207
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference208
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 209
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
AUX adapter 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Rear seat entertainment system 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints 280
. . . . . . . . . . . . . . . . . . . . . . . . . . .
For vehicle equipped with Navigation system, please refer to the
separate Navigation System Owner’s Manual".
SECTION 1− 8

208

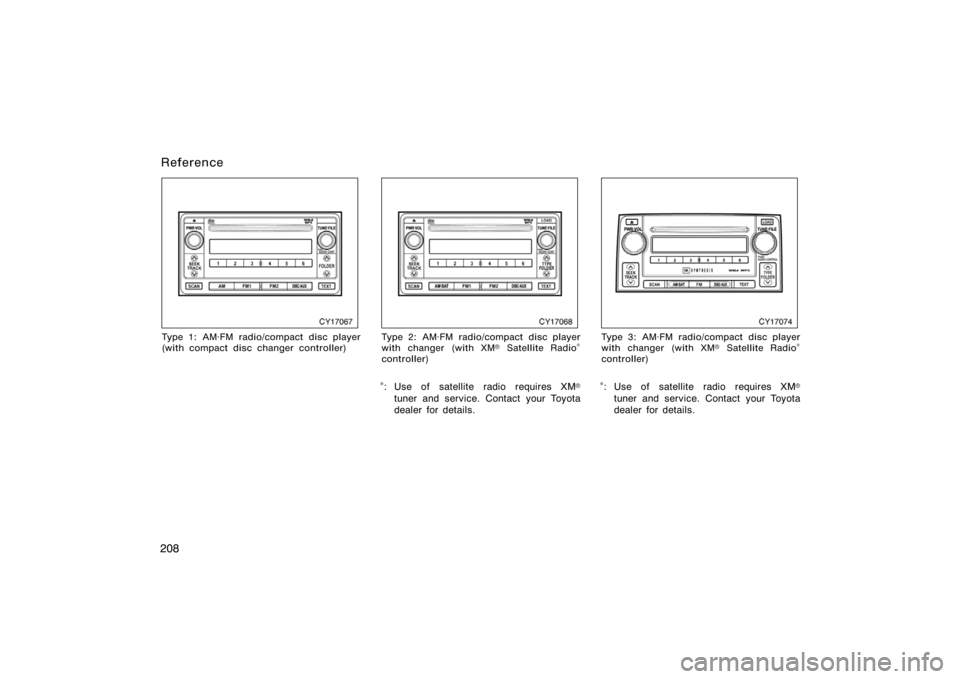

CY17067
Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)
CY17068
Type 2: AM·FM radio/compact disc player
with changer (with XM Satellite Radio∗
controller)
∗: Use of satellite radio r equires XM
tuner and service. Contact your Toyota
dealer for details.
CY17074
Type 3: AM·FM radio/compact disc player
with changer (with XM Satellite Radio∗
controller)
∗: Use of satellite radio r equires XM
tuner and service. Contact your Toyota
dealer for details.
Reference
