TOYOTA 4RUNNER 2008 N210 / 4.G Owners Manual

239
XM Satellite Radio∗
To select a preset channel, push the  "
or  " side of the switch. Repeat until a
desired channel is found.
∗: Use of satellite radio r equires XM
tuner and service. Contact your Toyota
dealer for details.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the  " or  "
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the  " side of the switch once, quickly.
Vehicles with rear seat entertainment sys-
tem
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the  " or  " side of the switch.
With compact disc changer only
Push and hold the  " or  " side of the
switch until the disc you want to listen to
is set. MP3/WMA player
Use this switch to select a desired file or
disc.
To select a desired file:
Quickly push and release the
" or  "
side of the switch until the file you want
to listen to is set. If you want to return
to the beginning of the current file, push
the  " side of the switch once, quickly.
To select a desired disc:
Push and hold the  " or  " side of the
switch until the disc you want to listen to
is set.
Vehicles with rear seat entertainment sys-
tem
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the  " or  " side of the switch.
3. MODE" switch
Push the MODE" switch to select an au-
dio mode. Each push changes the mode
sequentially if the desired mode is ready
to use.
To turn the audio system on, push the
MODE" switch.
To turn the audio system off, push and
hold the MODE" switch until the system
turns off.CY17076
An AUX adapter is installed in the rear
console box.
By inserting a mini plug into the AUX
adapter, you can listen to music from a
portable audio device through the vehicle’s
speaker system.
To use the AUX adapter, switch to the
AUX mode (external device mode) by
pressing the DISC·AUX" button. When the
AUX adapter is in use, AUX" will appear
on the display. To adjust the volume, turn
the PWR·VOL" knob.
When using a portable audio device con-
nected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable au-
dio device.
A U X ad ap t er

240
If you install an audio system other than
a genuine audio system, you will not be
able to use the AUX adapter.
Rear seat entertainment system

241
The rear seat entertainment system con-
sists of the following components.1. Front audio system
2. DVD player
3. Rear seat entertainment system display
4. Rear seat entertainment system controller
5. A/V input adapter
6. Power outlet (115 VAC)
7. Power outlet main switch The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the engine switch is in
the ACC" or ON" position.
The rear passengers can enjoy DVD vid-
eo, audio CD, video CD, CD text, dts−CD
and MP3.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts−CD or MP3 only when a disc is
loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the A/V input adapter. For details, refer
to the manufacturer ’s instructions.
You can enjoy the rear seat entertainment
system with a wireless h
eadphone. The
wireless headphone can be used within
rear seat. If the signal becomes weak, the
headphone will mute. For details, refer to
the manufacturer ’s instructions.
With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone. You can purchase a wireless headphone
at a Toyota dealer.
CAUTION
Do not operate a motor vehicle
while using headphones. Doing so
may cause an accident, resulting in
death or serious injury.
With DVD player:
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

242
CY17058
To open the display, push the lock release
button.
CY17059
Pull the display down to an easily view-
able angle (between 90 and 125 )
NOTICE
The screen should be cleaned with a
dry soft cloth. If the screen is pushed
by hand or wiped with a hard cloth,
the surface of the screen may be
scratched.
CY17060
To close, push the display up until you
hear a click.
The illumination of the screen is automati-
cally turned off when the display is
closed. However, the rear seat entertain-
ment system is not turned off.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, close the display when
it is not in use.
Display

243
NOTICE
Benzene or alkaline solutions may
damage the coated surface of the
screen.
 To prevent the battery from being
discharged, do not turn on the rear
seat entertainment system longer
than necessary when the engine is
not running.
INFORMATION
Wipe off fingerprints on the surface
of the display using a glass clean-
ing cloth.
 The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
 When you look at the screen
through polarised material such as
polarised sunglasses, the screen
may be dark and hard to see. If so,
change the angle of the screen,
look at the screen from different
angles, adjust the screen settings
on the Display" screen, or take off
your sunglasses.
The rear seat entertainment system can
be operated with the rear seat entertain-
ment system controller and buttons on the
DVD player unit. The system cannot be
operated by touching the switches on the
screen directly.
CAUTION
Do not disassemble or modify the
controller. It may cause an accident,
fire or electric shock.
NOTICE
Keep the controller away from direct
sunlight, high heat and high humidity.
These conditions could cause the
case to deform or the battery to ex-
plode or leak.
BEFORE USING THE CONTROLLER
(for new vehicle owners)
A battery is already set in the control-
ler with an insulating sheet, which pre-
vents the battery from being dis-
charged. Before using the controller,
remove the insulating sheet according
to the following procedure.
Rear seat entertainment
system controller

244
Z17448
1. Remove the cover of the controlleras shown.
Z17449
2. Remove the insulating sheet.CY17061

245
USING THE CONTROLLER
To use the rear seat entertainment sys-
tem controller, direct the signal output
portion of the controller to the signal
reception portion of the rear seat enter-
tainment system display.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, stow the controller in
the console box or front seat side
table when it is not in use.
NOTICE
Observe the followings, otherwise the
controller may be damaged.
Do not drop or strongly knock the
controller against hard objects.
 Do not sit on or place heavy ob-
jects on the controller.
 Do not leave the controller exposed
to high temperatures (such as on
the instrument panel) for a long
time.

246

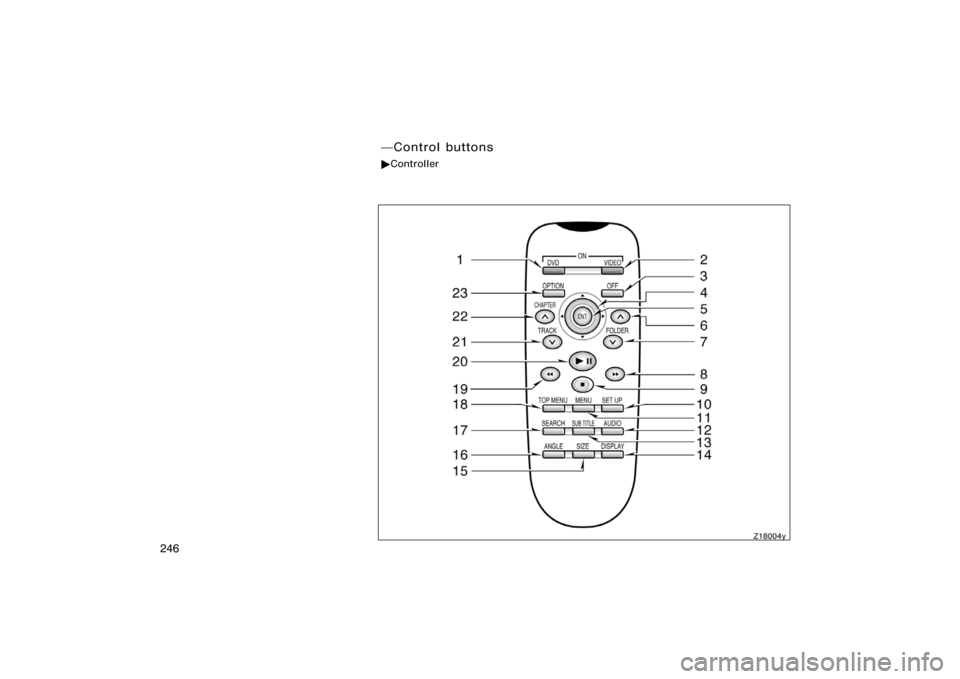

Control buttons
Controller

247
1. DVD" buttonThis button turns on the DVD mode.
2. VIDEO" button This button causes the display to use
the video signal from an external video
device.
3. OFF" button
This button turns off the rear seat en-
tertainment system.
4. Joystick This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. ENT" button
This button inputs the selected switch
or the selected menu for the disc.
6. FOLDER
" button
This button selects a desired folder.
7. FOLDER
" button
This button selects a desired folder.
8.
" button
This button fast forwards a screen
when the DVD player is operated. 9.
" button
This button stops a screen when the
DVD player is operated.
10. SET UP" button
This button indicates the initial set up
screen when the DVD player is oper-
ated.
11. MENU" button This button indicates the menu screen
for DVD video when the DVD player is
operated.
12. AUDIO" button This button indicates the changing au-
dio screen when the DVD player is
operated.
13. SUB TITLE" button
This button indicates the changing sub-
title screen when the DVD player is
operated.
14. DISPLAY" button
This button adjusts the color, tone,
contrast and brightness of the screen.
15. SIZE" button
This button changes the display mode
when the DVD player is operated. 16. ANGLE" button
This button selects the angle of the
screen when the DVD player is oper-
ated.
17. SEARCH" button
This button indicates the title search
screen when the DVD player is oper-
ated.
18. TOP MENU" button This button indicates the title selection
screen for DVD video when the DVD
player is operated.
19.
" button
This button reverse a screen when the
DVD player is operated.
20.
" button
This button plays or pauses a screen
when the DVD player is operated.
21. TRACK/CHAPTER
" button
This button selects track/chapter.
22. TRACK/CHAPTER
" button
This button selects track/chapter.
23. OPTION" button This button indicates the control
switches on the screen when the DVD
player is operated.

248
REPLACING CONTROLLER BATTERY
For replacement, use 3 AA batteries.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Z17448
Replace the battery according to the fol-
lowing procedure:
1. Remove the cover of the controller as shown.
Z17458
2. Remove the discharged batteries andput in the new batteries as shown.
Install the cover.
