TOYOTA 4RUNNER 2008 N210 / 4.G Quick Reference Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

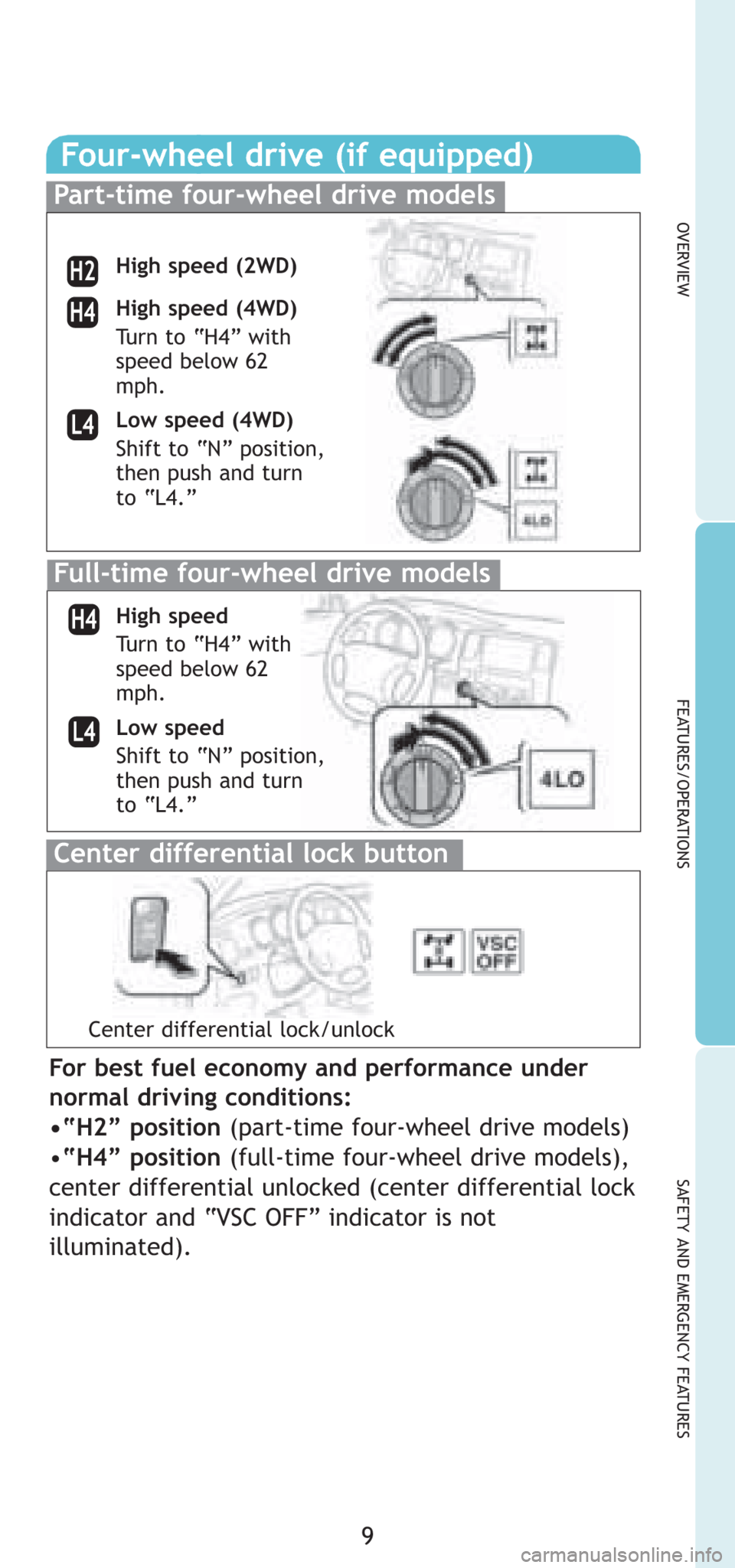

Four-wheel drive (if equipped)
H2
Full-time four-wheel drive models
Part-time four-wheel drive models
High speed (2WD)
High speed (4WD)
Turn to “H4” with
speed below 62
mph.
Low speed (4WD)
Shift to “N” position,
then push and turn
to “L4.”
Center differential lock button
For best fuel economy and performance under
normal driving conditions:
•“H2” position(part-time four-wheel drive models)
•“H4” position(full-time four-wheel drive models),
center differential unlocked (center differential lock
indicator and “VSC OFF” indicator is not
illuminated).
Center differential lock/unlockHigh speed
Turn to “H4” with
speed below 62
mph.
Low speed
Shift to “N” position,
then push and turn
to “L4.”

10
FEATURES/OPERATIONS

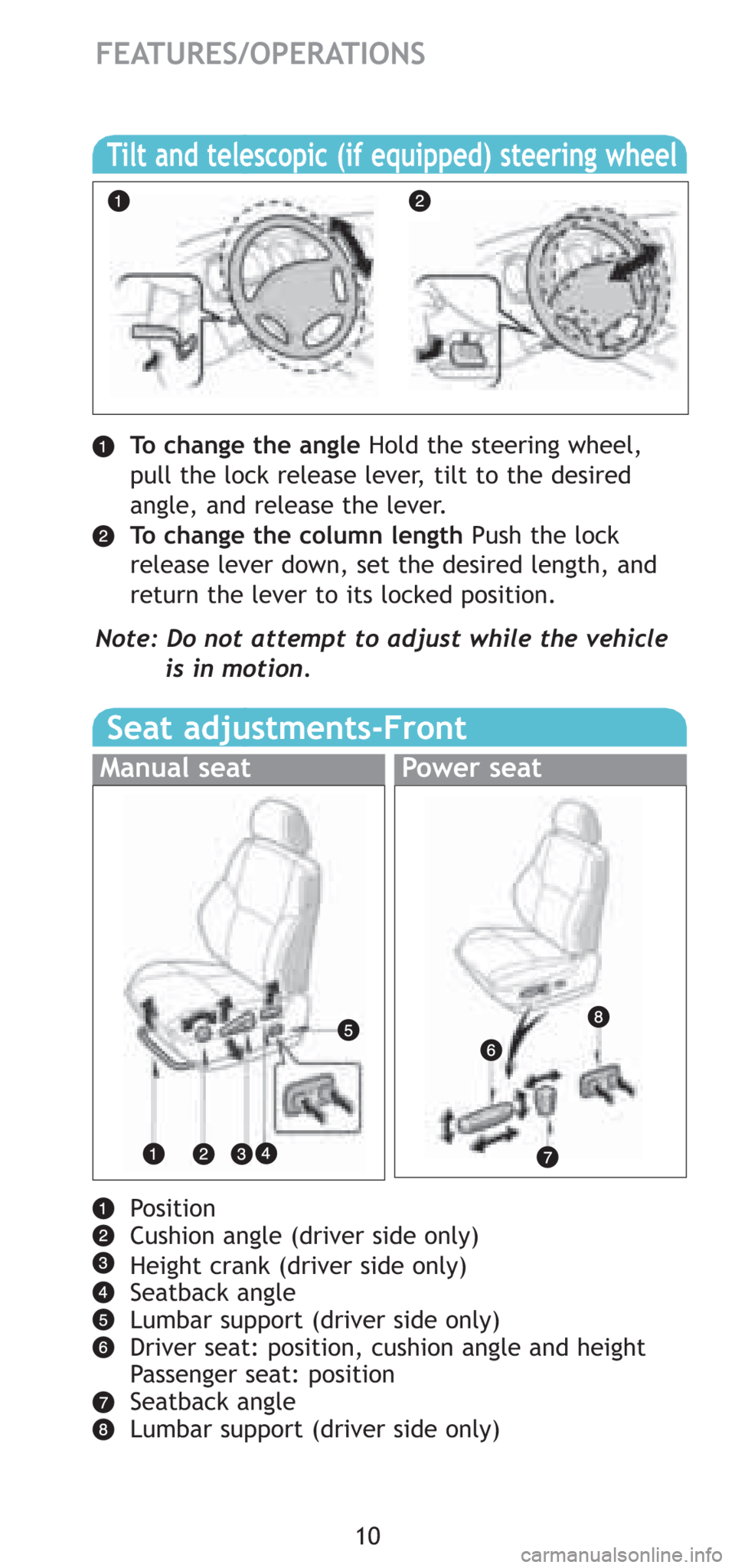

Position
Cushion angle (driver side only)
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only)
Driver seat: position, cushion angle and height
Passenger seat: position
Seatback angle
Lumbar support (driver side only)
Seat adjustments-Front
Manual seatPower seat
To change the angleHold the steering wheel,
pull the lock release lever, tilt to the desired
angle, and release the lever.
To change the column lengthPush the lock
release lever down, set the desired length, and
return the lever to its locked position.
Note: Do not attempt to adjust while the vehicle
is in motion.
Tilt and telescopic (if equipped) steering wheel

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

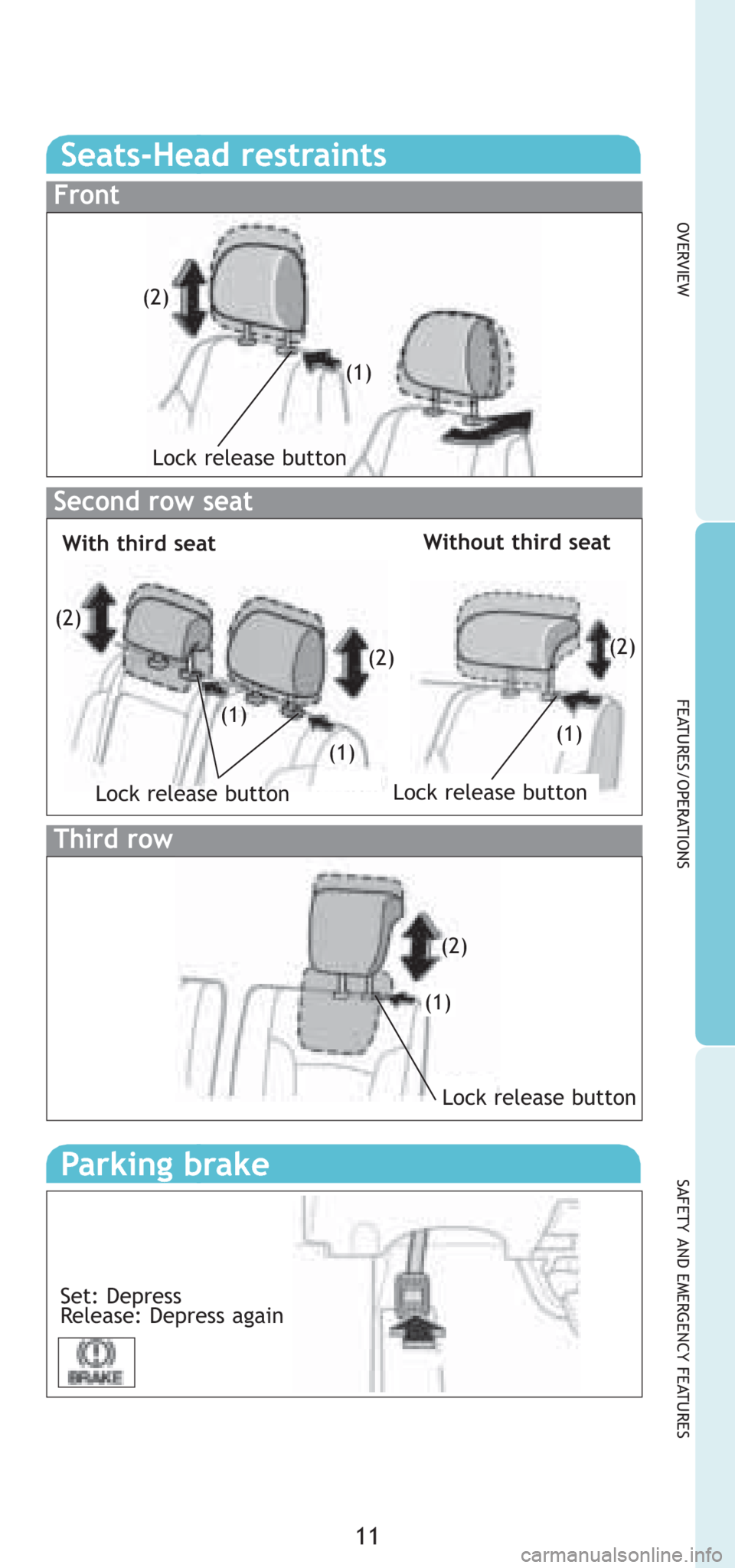

Seats-Head restraints
Front
Second row seat
Third row
Lock release button
Lock release button
Lock release button
Lock release button
With third seatWithout third seat
Parking brake
Set: Depress
Release: Depress again
(2)
(1)
(2)
(1) (2)
(2)
(1)
(2)
(1) (1)

12
FEATURES/OPERATIONS

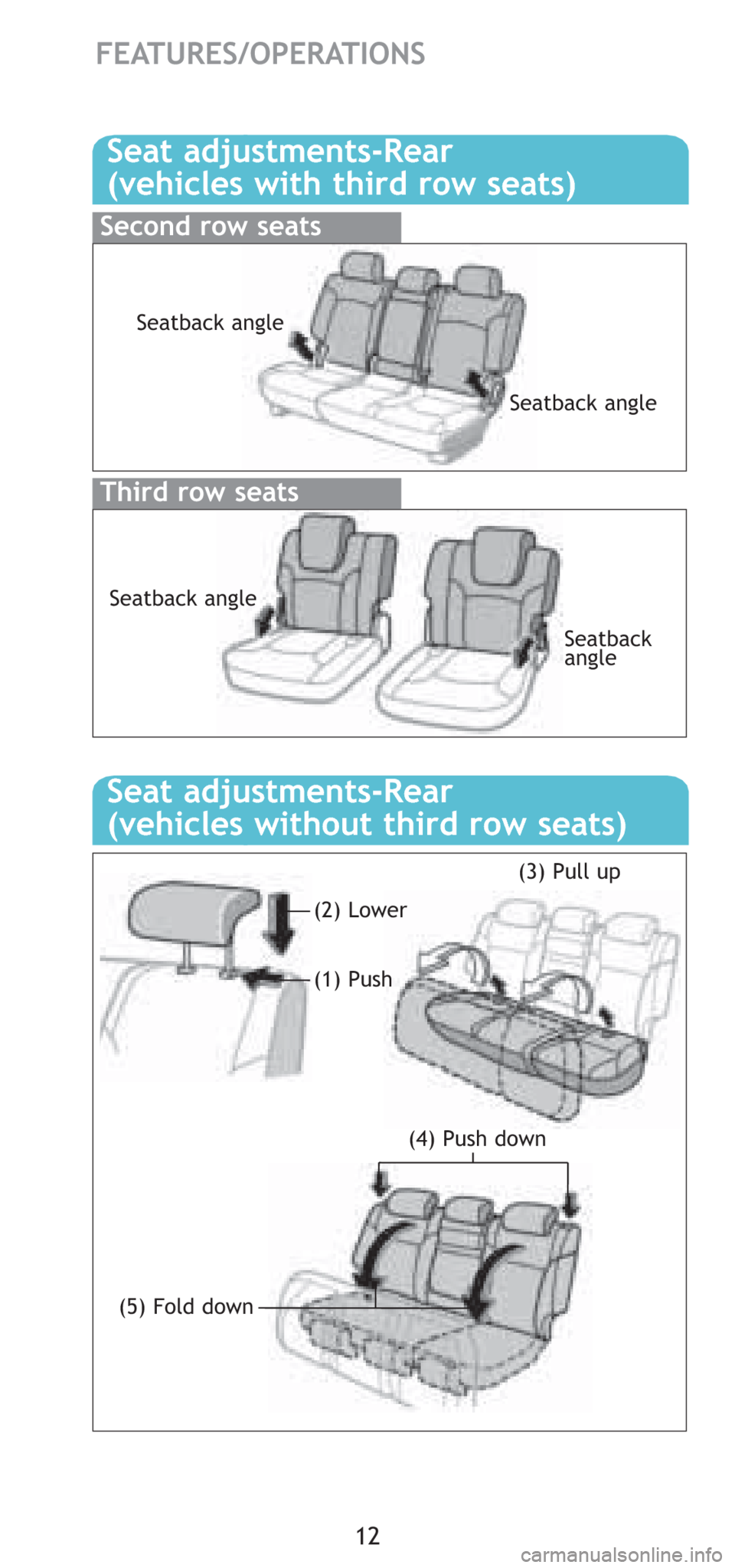

Second row seats
Third row seats
Seatback angle
Seatback angle
Seatback
angle Seatback angle
Seat adjustments-Rear
(vehicles with third row seats)
Seat adjustments-Rear
(vehicles without third row seats)
(1) Push
(2) Lower(3) Pull up
(5) Fold down(4) Push down

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

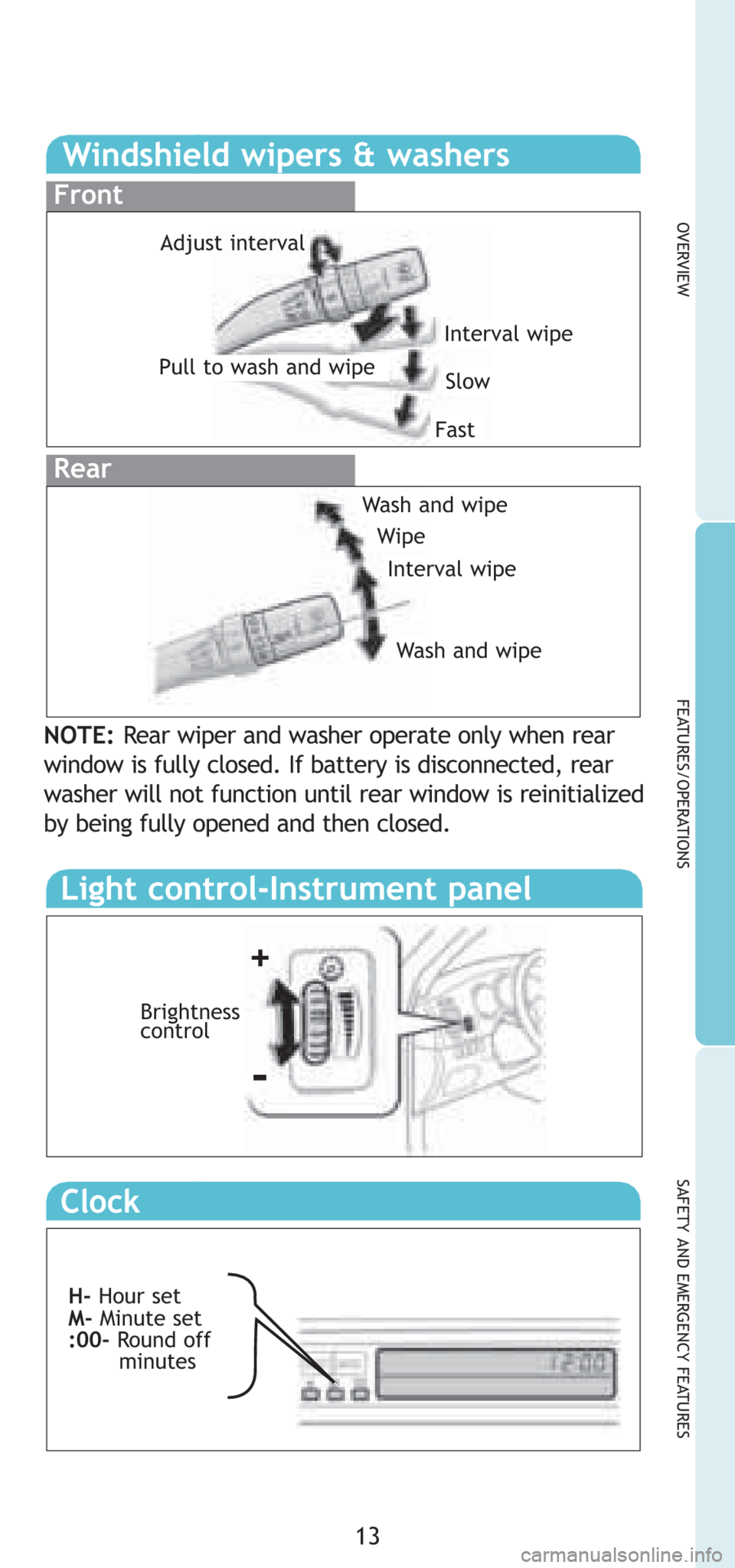

Windshield wipers & washers
Rear
Front
Interval wipe
Slow
Fast
Pull to wash and wipeAdjust interval
Wash and wipe
Wipe
Interval wipe
Wash and wipe
NOTE: Rear wiper and washer operate only when rear
window is fully closed. If battery is disconnected, rear
washer will not function until rear window is reinitialized
by being fully opened and then closed.
Light control-Instrument panel
Brightness
control
+
-
Clock
H-Hour set
M-Minute set
:00-Round off
minutes

14
FEATURES/OPERATIONS

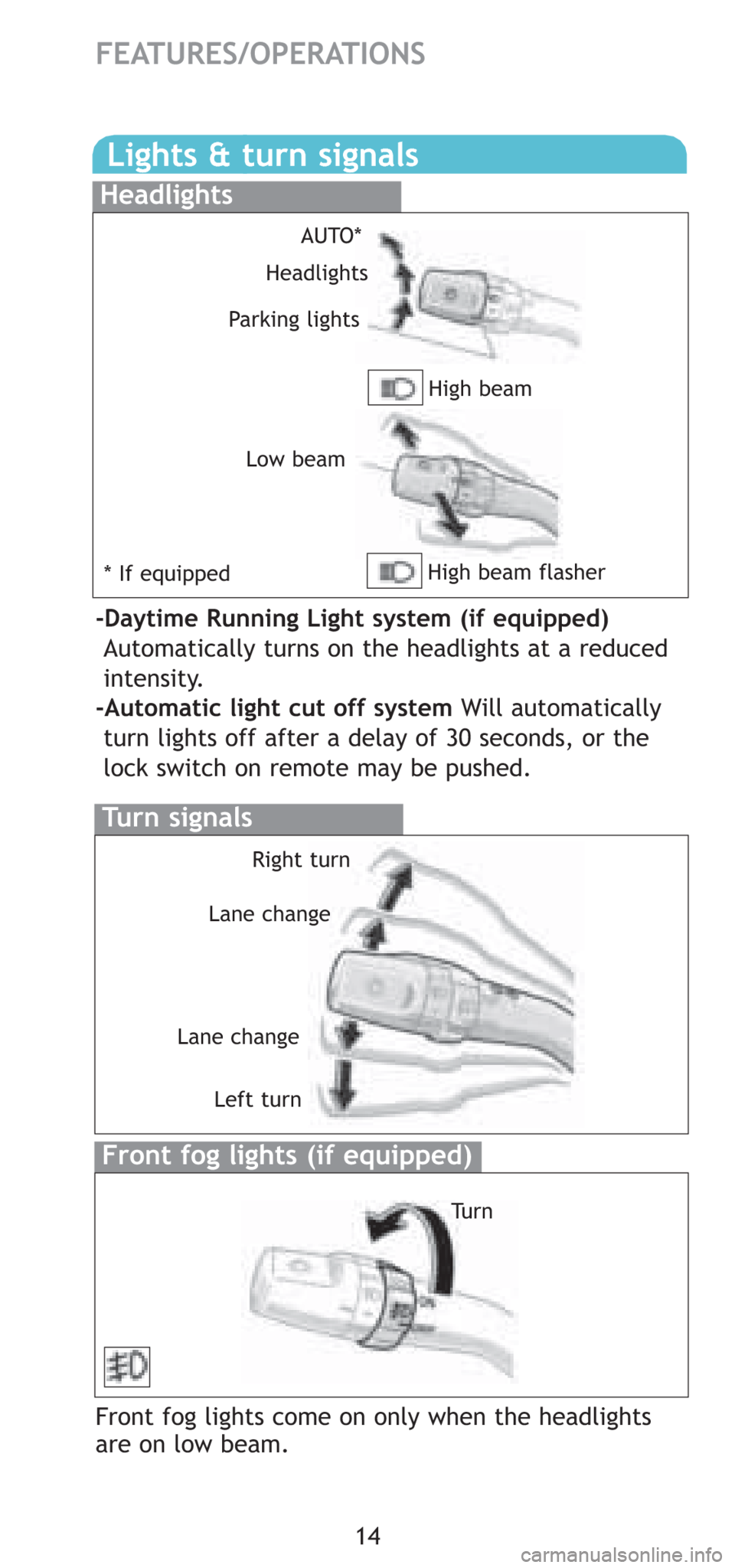

Lights & turn signals
Turn signals
Headlights
AUTO*
High beam flasher
* If equippedLow beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (if equipped)
Automatically turns on the headlights at a reduced
intensity.
-Automatic light cut off system Will automatically
turn lights off after a delay of 30 seconds, or the
lock switch on remote may be pushed.
Front fog lights come on only when the headlights
are on low beam.
Parking lights
High beam
Right turn
Tu r n Lane change
Lane change
Left turn

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

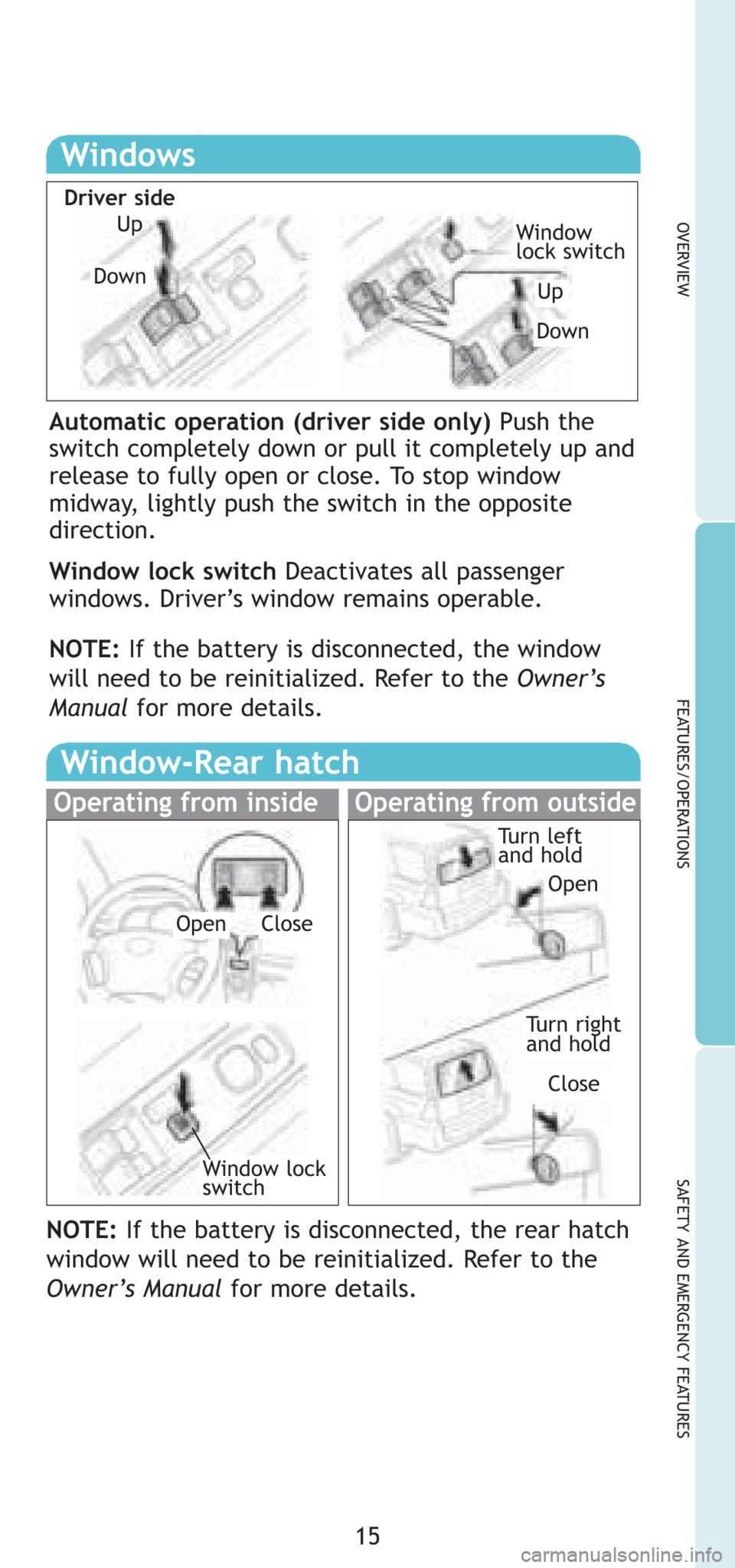

Operating from inside
Windows
Driver side
Automatic operation (driver side only) Push the
switch completely down or pull it completely up and
release to fully open or close. To stop window
midway, lightly push the switch in the opposite
direction.
Window lock switch Deactivates all passenger
windows. Driver’s window remains operable.
NOTE: If the battery is disconnected, the window
will need to be reinitialized. Refer to the Owner’s
Manualfor more details.
Window-Rear hatch
Operating from outside
Up
Down
Window
lock switch
Window lock
switch
Tu r n l e f t
and hold
Up
Down
Open
Open
Turn right
and hold
Close
Close
NOTE: If the battery is disconnected, the rear hatch
window will need to be reinitialized. Refer to the
Owner’s Manualfor more details.

16
FEATURES/OPERATIONS

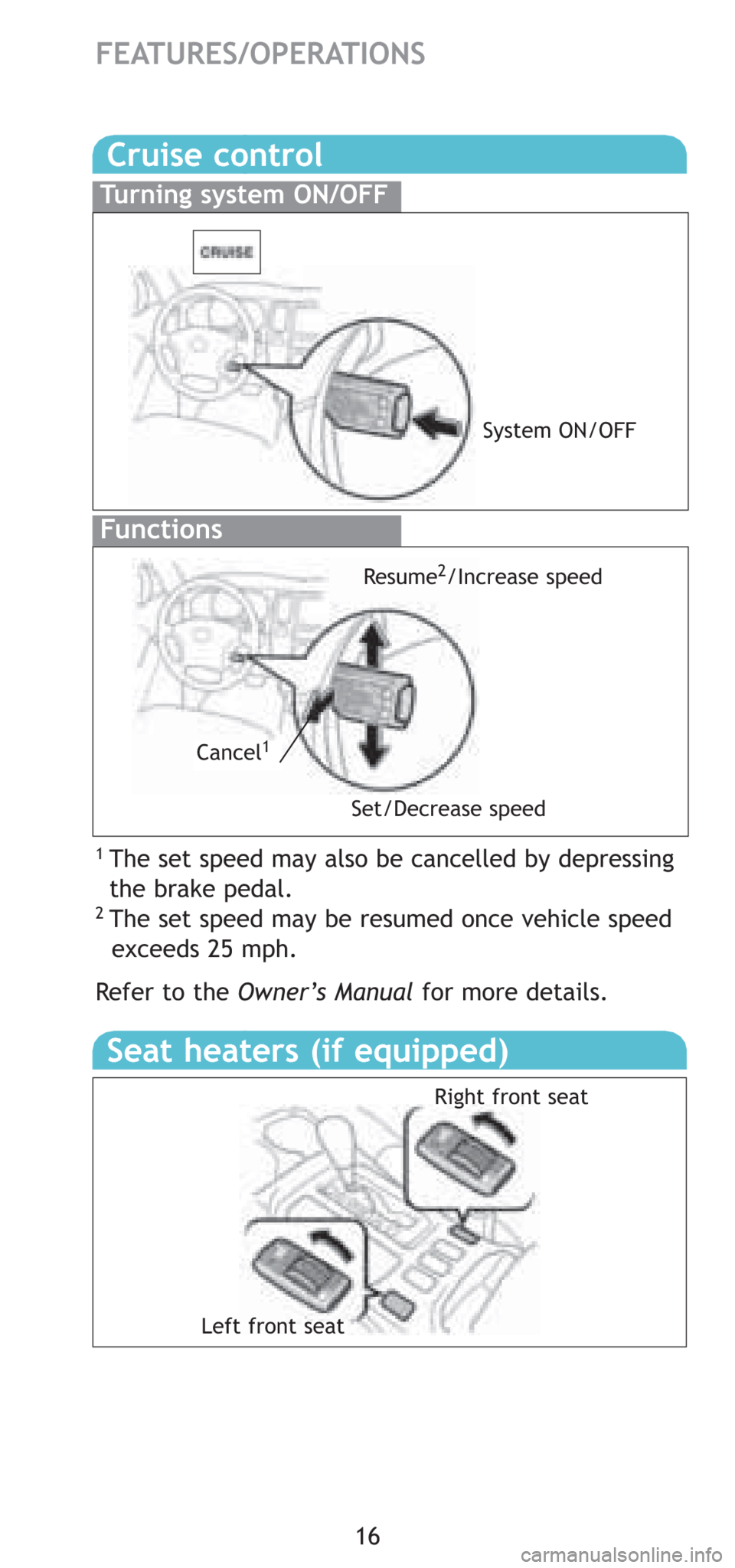

Cruise control
1 The set speed may also be cancelled by depressing
the brake pedal.
2 The set speed may be resumed once vehicle speed
exceeds 25 mph.
Refer to the Owner’s Manualfor more details.
Turning system ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed
Cancel1
Seat heaters (if equipped)
Left front seatRight front seat

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

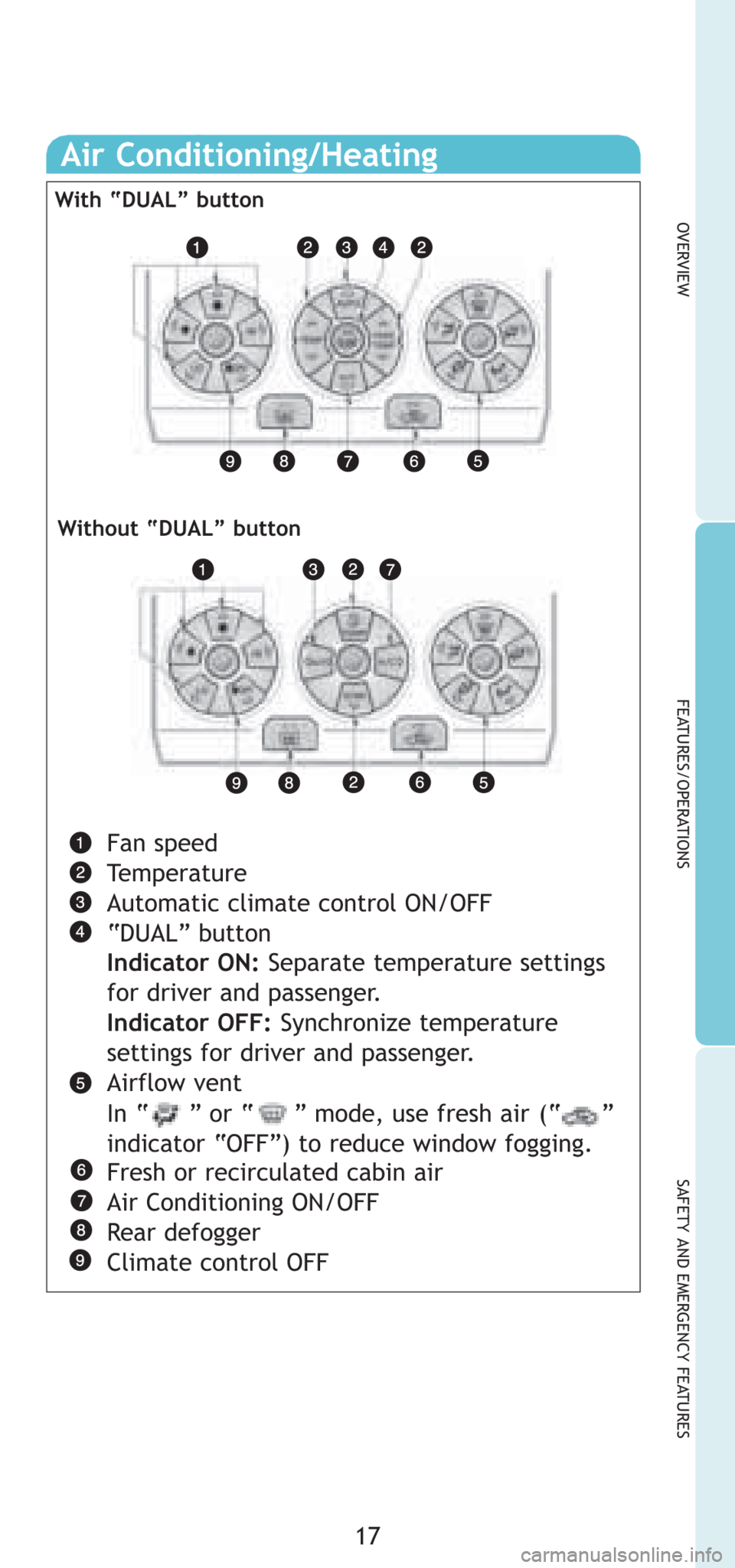

Air Conditioning/Heating
With “DUAL” button
Fan speed
Temperature
Automatic climate control ON/OFF
“DUAL” button
Indicator ON:Separate temperature settings
for driver and passenger.
Indicator OFF:Synchronize temperature
settings for driver and passenger.
Airflow vent
Fresh or recirculated cabin air
Air Conditioning ON/OFF
Rear defogger
Climate control OFF
Without “DUAL” button
In “ ” or “ ” mode, use fresh air (“ ”
indicator “OFF”) to reduce window fogging.

18

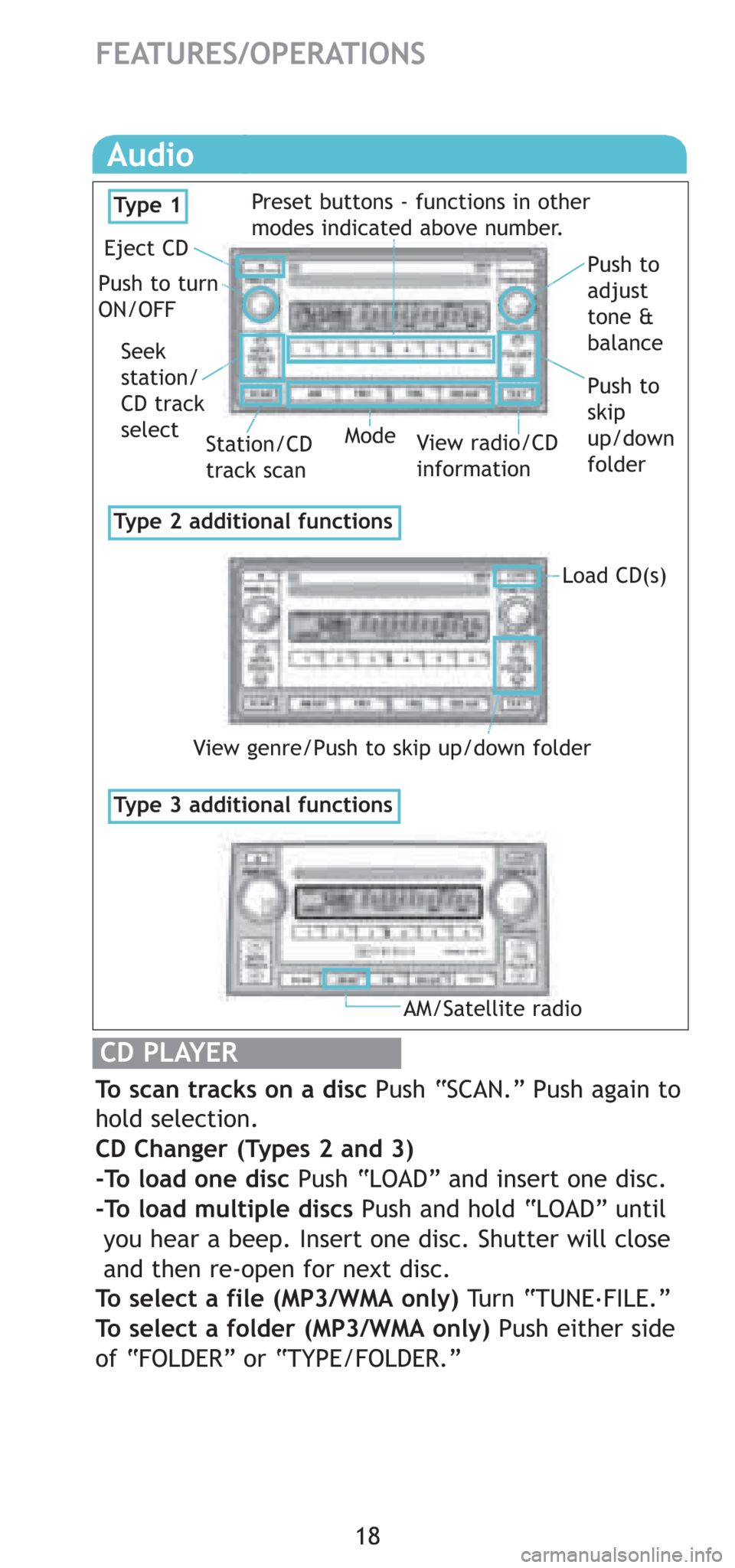

CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to
hold selection.
CD Changer (Types 2 and 3)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until
you hear a beep. Insert one disc. Shutter will close
and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push either side
of “FOLDER” or “TYPE/FOLDER.”
FEATURES/OPERATIONS
Audio
Type 2 additional functions
Type 3 additional functions
View radio/CD
information Eject CD
Push to turn
ON/OFFPush to
adjust
tone &
balance
Push to
skip
up/down
folder Seek
station/
CD track
select
Station/CD
track scanMode
Load CD(s) Preset buttons - functions in other
modes indicated above number.
View genre/Push to skip up/down folder
Ty p e 1
AM/Satellite radio
