TOYOTA 4RUNNER 2008 N210 / 4.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
Volume control
“ ”
-In radio modePush to select a preset station;
push and hold to seek the next strong station.
-In CD modePush to skip up or down to next/
previous track.
“MODE”
Push to turn audio ON and select an audio mode.
Push and hold to turn the audio system OFF.
By inserting a mini plug into the AUX audio jack, you
can listen to music from a portable audio device
through the vehicle’s speaker system.
>>
Steering wheel controls (if equipped)
AUX adapter
RADIO
To preset stations Tune in the desired station and
hold down a preset button (1-6) until you hear a
beep. Push desired preset button (1-6) to select.
To scan stations Push “SCAN.” Push and hold to scan
preset stations. Push again to hold selection.
-+
Center console

20
FEATURES/OPERATIONS

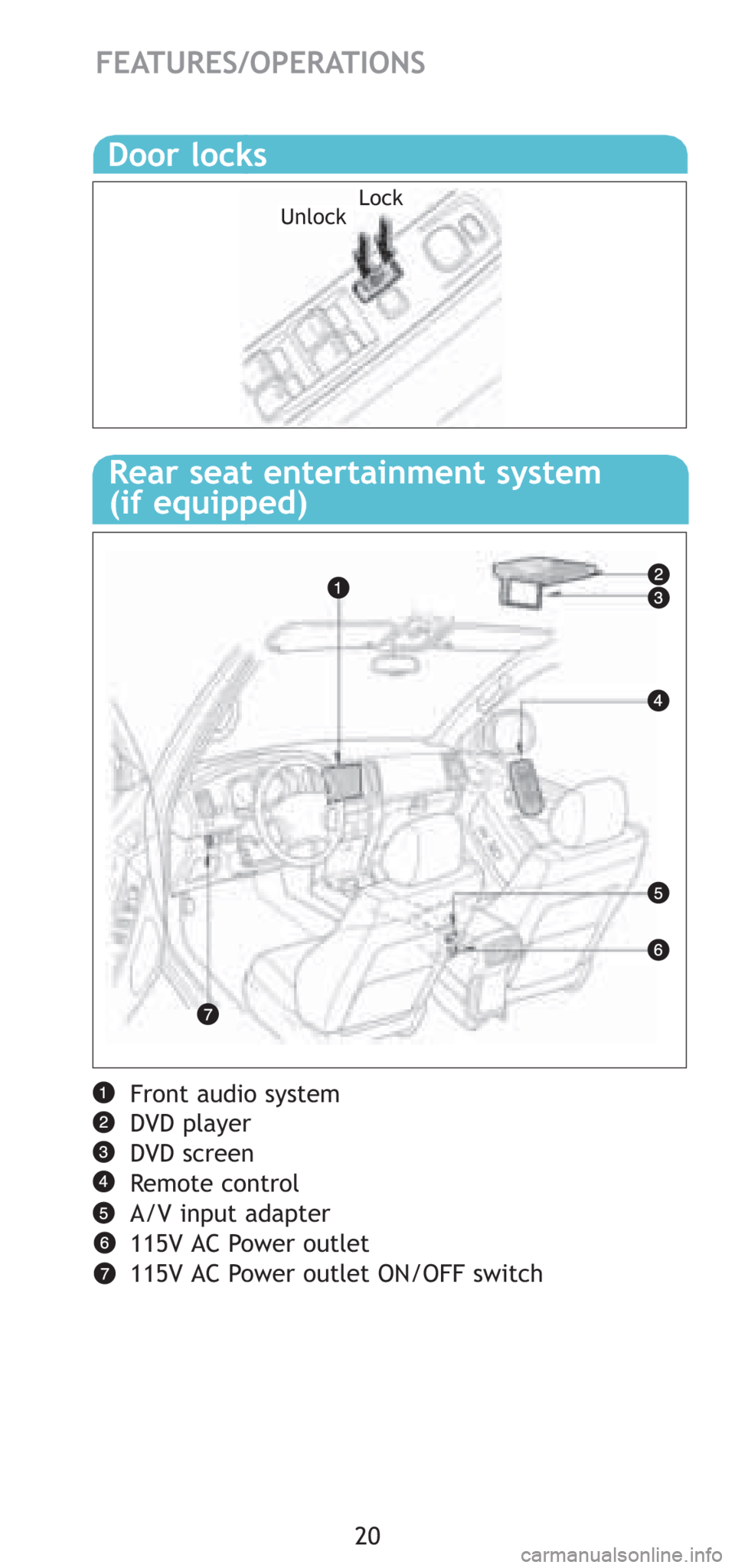

Front audio system
DVD player
DVD screen
Remote control
A/V input adapter
115V AC Power outlet
115V AC Power outlet ON/OFF switch
Door locks
UnlockLock
Rear seat entertainment system
(if equipped)

21
OVERVIEW
FEATURES/OPERATIONS

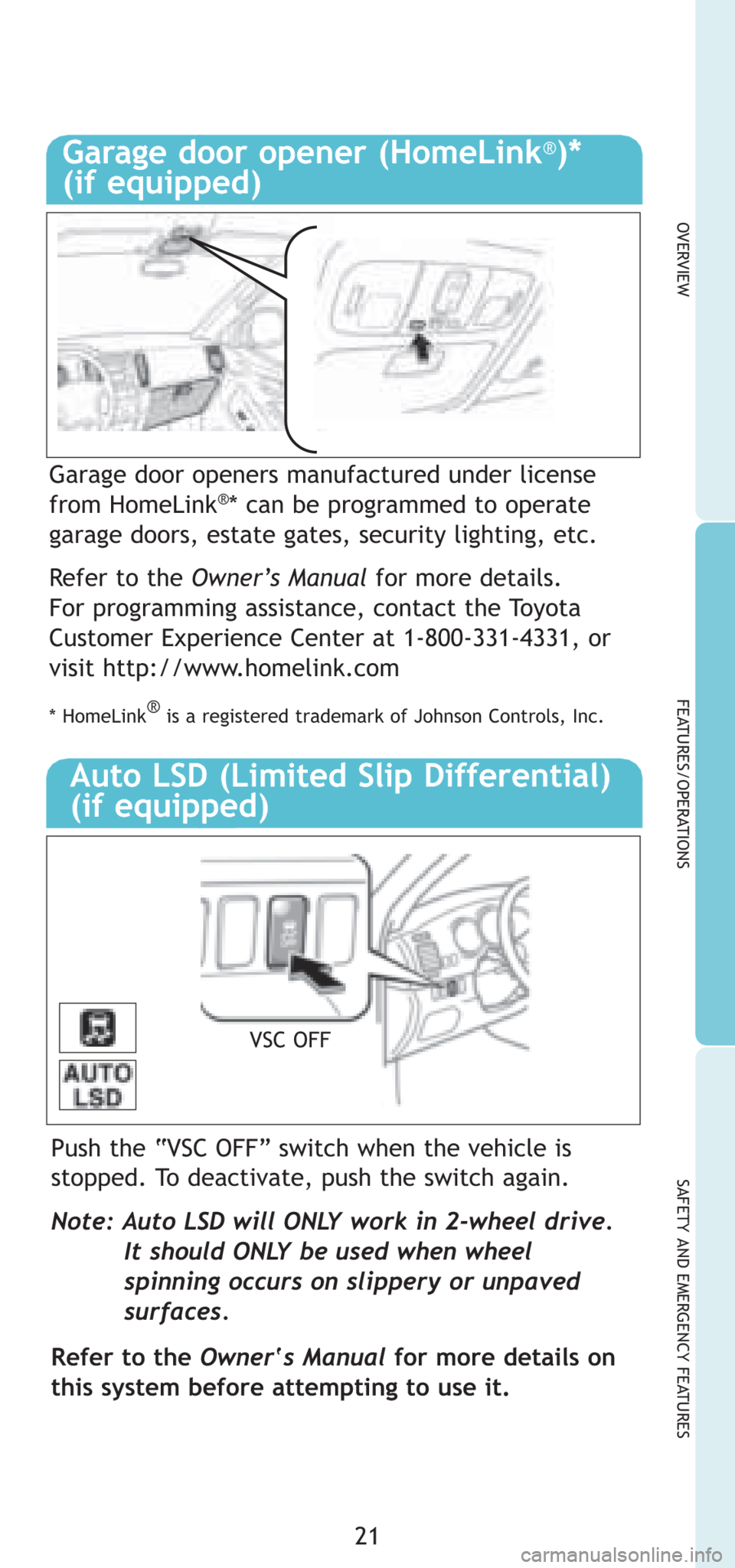

SAFETY AND EMERGENCY FEATURESPush the “VSC OFF” switch when the vehicle is
stopped. To deactivate, push the switch again.
Note: Auto LSD will ONLY work in 2-wheel drive.
It should ONLY be used when wheel
spinning occurs on slippery or unpaved
surfaces.
Refer to the Owner‘s Manualfor more details on
this system before attempting to use it.
Garage door openers manufactured under license
from HomeLink®* can be programmed to operate
garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manualfor more details.
For programming assistance, contact the Toyota
Customer Experience Center at 1-800-331-4331, or
visit http://www.homelink.com
* HomeLink®
is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
Auto LSD (Limited Slip Differential)
(if equipped)
VSC OFF

22
FEATURES/OPERATIONS

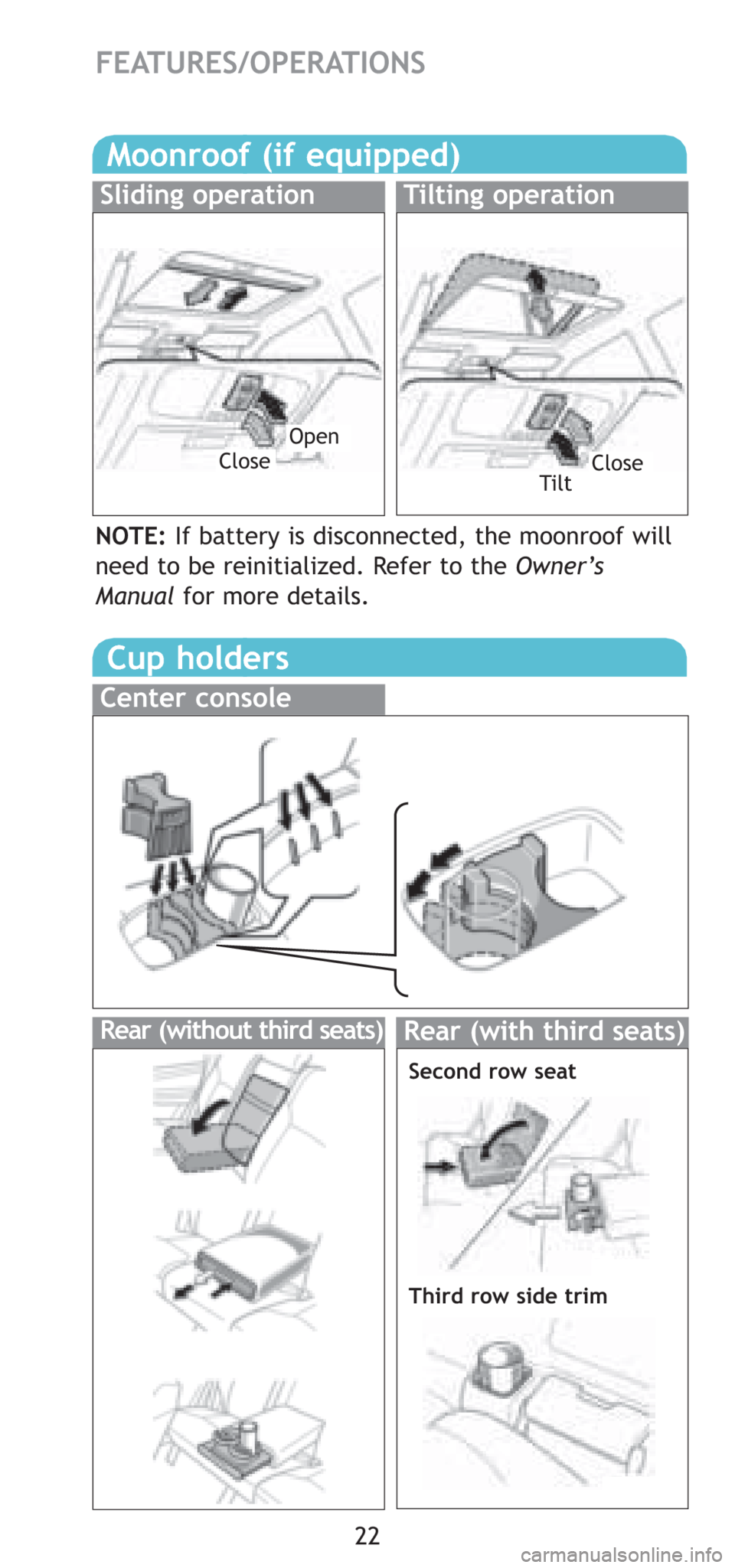

Moonroof (if equipped)
NOTE:If battery is disconnected, the moonroof will
need to be reinitialized. Refer to the Owner’s
Manualfor more details.
Cup holders
Center console
Rear (with third seats)
Second row seat
Third row side trim
Rear (without third seats)
Sliding operationTilting operation
OpenCloseCloseTilt

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

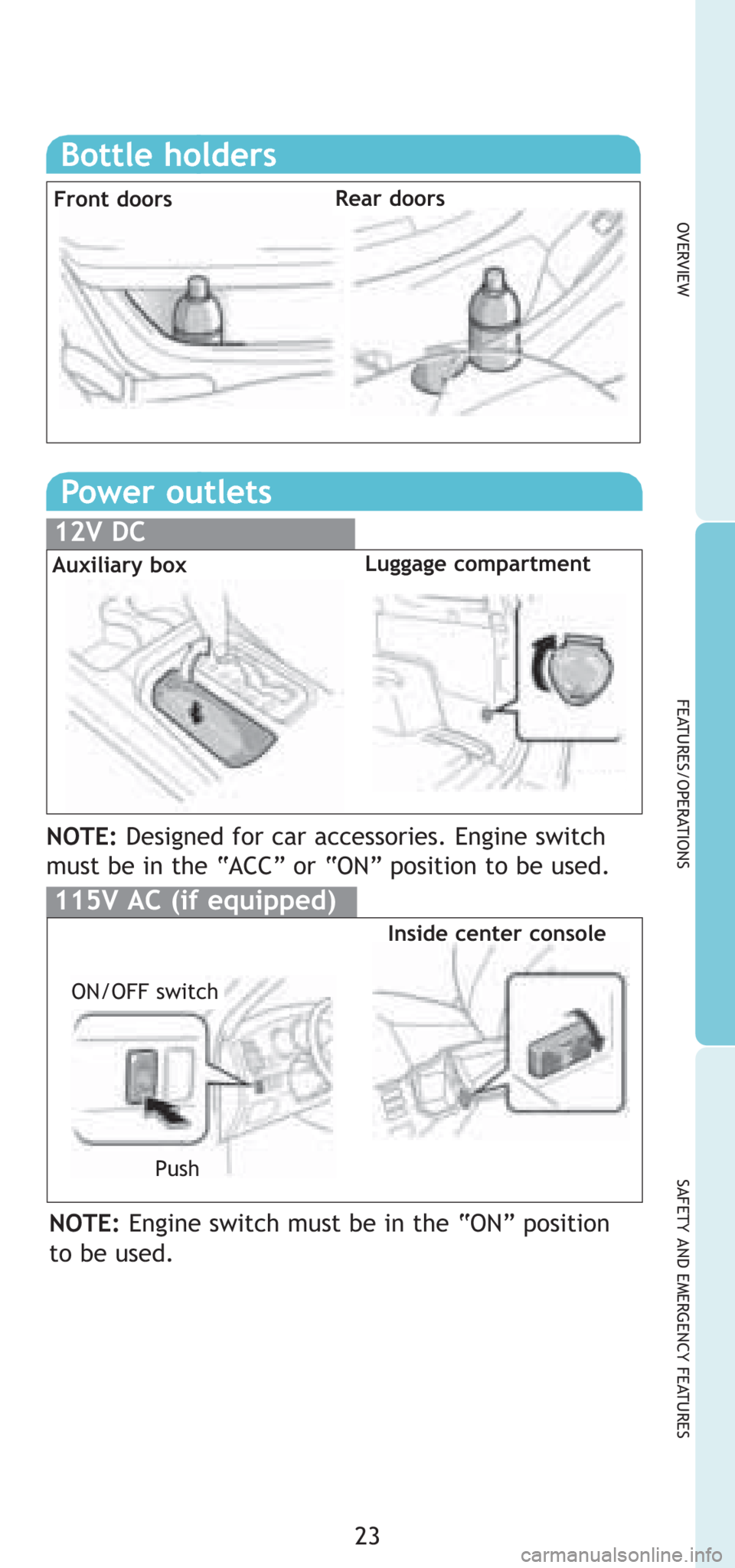

Power outlets
115V AC (if equipped)
ON/OFF switchInside center console
Push
Auxiliary boxLuggage compartment
NOTE:Designed for car accessories. Engine switch
must be in the “ACC” or “ON” position to be used.
NOTE:Engine switch must be in the “ON” position
to be used.
Bottle holders
Front doorsRear doors
12V DC

24
Tire Pressure Warning System
The system is designed to provide a warning “ ”
when tire pressure of any one of the tires (including
the spare) is critically low.
Refer to the Owner’s Manualfor more details.
SAFETY AND
EMERGENCY FEATURES
Seat belts-Shoulder belt anchor
Push up or squeeze
lock release to lower
Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
Doors-Child safety locks
Rear door
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To find more information about seat belts, and how
to install a child restraint system, refer to the
Owner’s Manual.
Keep as low on
hips as possible
Take up
slack
Too high
Seat belts

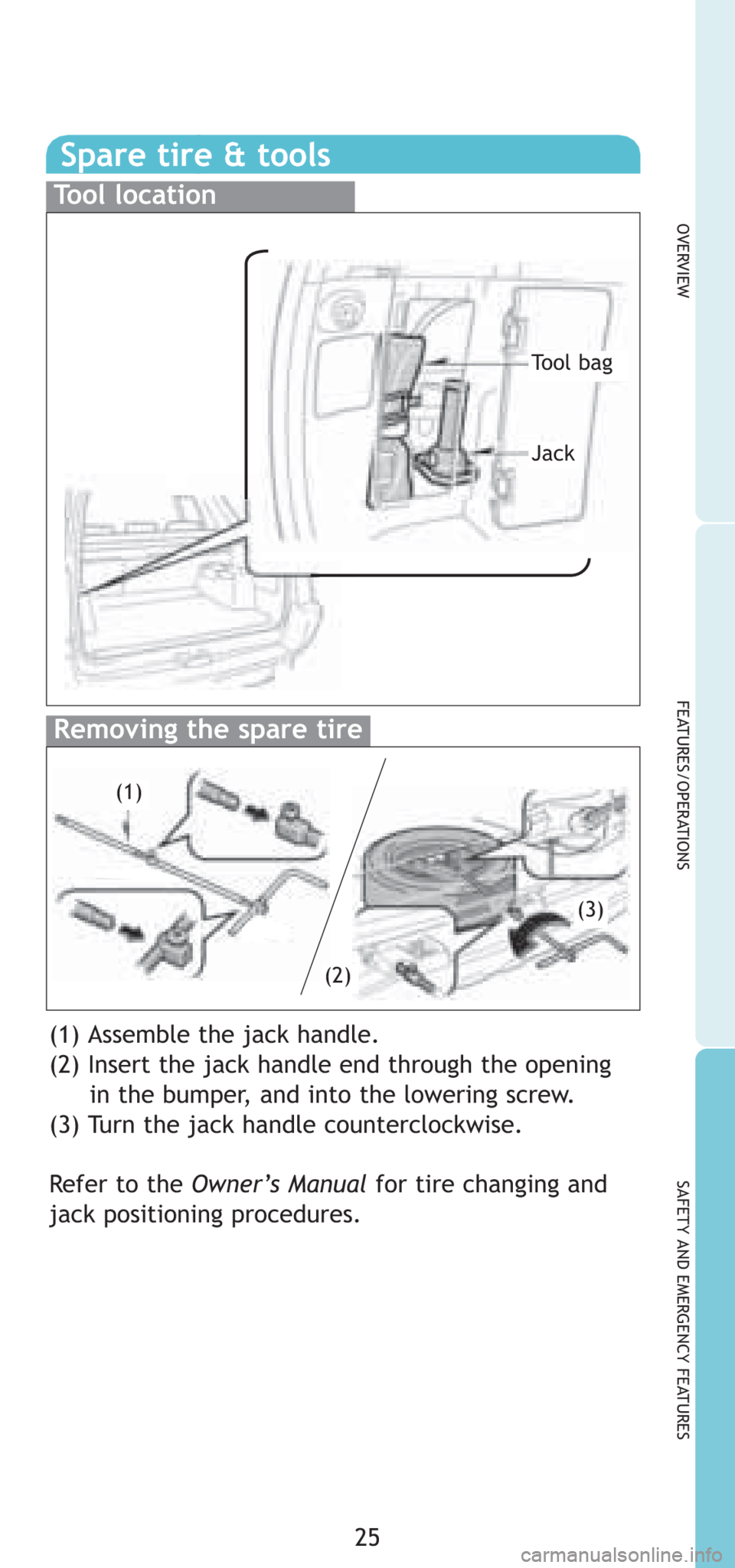

Spare tire & tools
Tool location
Removing the spare tire
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(1) Assemble the jack handle.
(2) Insert the jack handle end through the opening
in the bumper, and into the lowering screw.
(3) Turn the jack handle counterclockwise.
Refer to the
Owner’s Manualfor tire changing and
jack positioning procedures.
Tool bag
Jack
(1)
(2)
(3)

MN 00505-QRG08-4RUN
Printed in the USA 7/07
Customer Experience Center
1-800-331-4331
