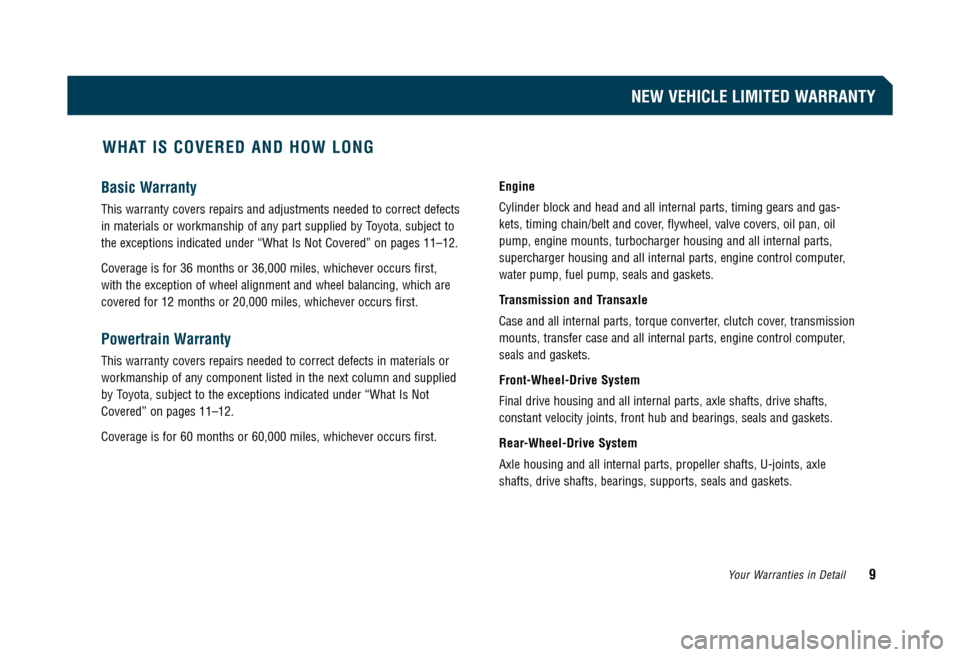

Basic Warranty
This warranty covers repairs and adjustments needed to correct defects
in materials or workmanship of any part supplied by Toyota, subject to
the exceptions indicated under “What Is Not Covered” on pages 11–12.
Coverage is for 36 months or 36,000 miles, whichever occurs first,
with the exception of wheel alignment and wheel balancing, which are
covered for 12 months or 20,000 miles, whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to correct defects in materials or
workmanship of any component listed in the next column and supplied
by Toyota, subject to the exceptions indicated under “What Is Not
Covered” on pages 11–12.
Coverage is for 60 months or 60,000 miles, whichever occurs first. Engine
Cylinder block and head and all internal parts, timing gears and gas-
kets, timing chain/belt and cover, flywheel, valve covers, oil pan, oil
pump, engine mounts, turbocharger housing and all internal parts,
supercharger housing and all internal parts, engine control computer,
water pump, fuel pump, seals and gaskets.
Transmission and Transaxle
Case and all internal parts, torque converter, clutch cover, transmission
mounts, transfer case and all internal parts, engine control computer,
seals and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts, axle shafts, drive shafts,
constant velocity joints, front hub and bearings, seals and gaskets.
Rear-Wheel-Drive System
Axle housing and all internal parts, propeller shafts, U-joints, axle
shafts, drive shafts, bearings, supports, seals and gaskets.
WHAT IS COVERED AND HOW LONG
Your Warranties in Detail9
NEW VEHICLE LIMITED WARRANTY
09 All M OWI-text.cgla 6/17/08 5:51 PM Page 9

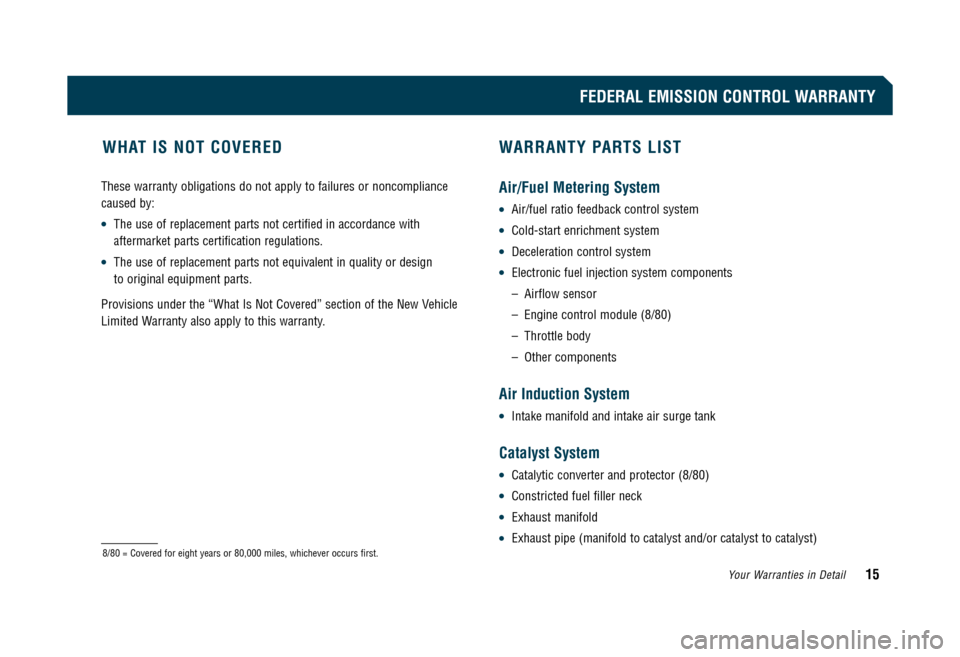

These warranty obligations do not apply to failures or noncompliance
caused by:
•The use of replacement parts not certified in accordance with
aftermarket parts certification regulations.
•The use of replacement parts not equivalent in quality or design
to original equipment parts.
Provisions under the “What Is Not Covered” section of the New Vehicle
Limited Warranty also apply to this warranty.
Air/Fuel Metering System
•
Air/fuel ratio feedback control system
•Cold-start enrichment system
•Deceleration control system
•Electronic fuel injection system components
– Airflow sensor
– Engine control module (8/80)
– Throttle body
– Other components
Air Induction System
•
Intake manifold and intake air surge tank
Catalyst System
•
Catalytic converter and protector (8/80)
•Constricted fuel filler neck
•Exhaust manifold
•Exhaust pipe (manifold to catalyst and/or catalyst to catalyst)
WHAT IS NOT COVERED WARRANTY PARTS LIST
Your Warranties in Detail15
FEDERAL EMISSION CONTROL WARRANTY
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
09 All M OWI-text.cgla 6/17/08 5:52 PM Page 15

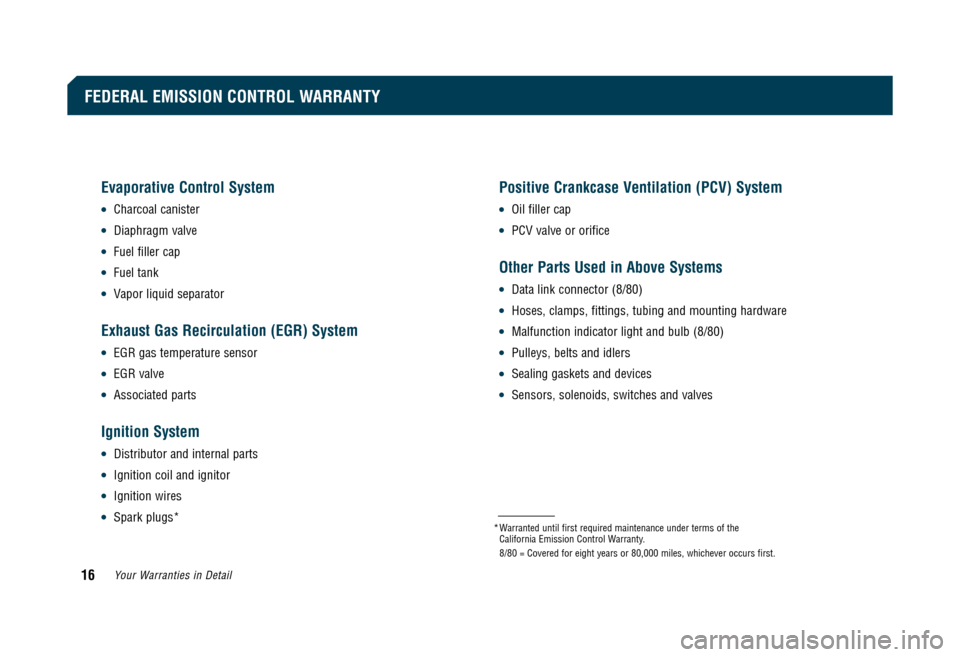

Evaporative Control System
•
Charcoal canister
•Diaphragm valve
•Fuel filler cap
•Fuel tank
•Vapor liquid separator
Exhaust Gas Recirculation (EGR) System
•
EGR gas temperature sensor
•EGR valve
•Associated parts
Ignition System
•
Distributor and internal parts
•Ignition coil and ignitor
•Ignition wires
•Spark plugs*
Positive Crankcase Ventilation (PCV) System
•
Oil filler cap
•PCV valve or orifice
Other Parts Used in Above Systems
•
Data link connector (8/80)
•Hoses, clamps, fittings, tubing and mounting hardware
•Malfunction indicator light and bulb (8/80)
•Pulleys, belts and idlers
•Sealing gaskets and devices
•Sensors, solenoids, switches and valves
Your Warranties in Detail16
FEDERAL EMISSION CONTROL WARRANTY
*Warranted until first required maintenance under terms of the
California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
09 All M OWI-text.cgla 6/17/08 5:53 PM Page 16

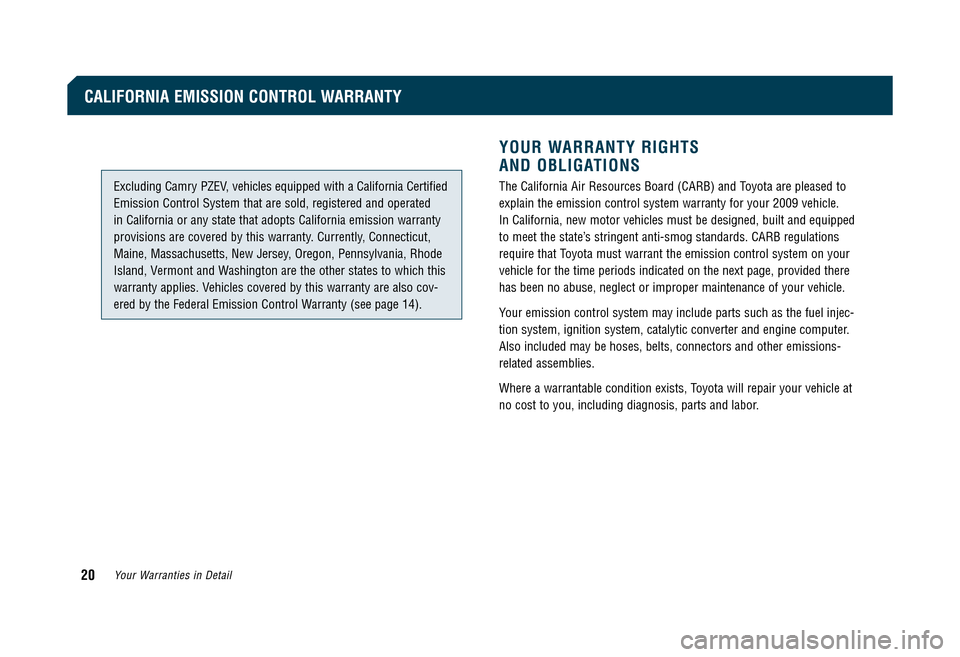

YOUR WARRANTY RIGHTS
AND OBLIGATIONS
Excluding Camry PZEV, vehicles equipped with a California Certified
Emission Control System that are sold, registered and operated
in California or any state that adopts California emission warranty
provisions are covered by this warranty. Currently, Connecticut,
Maine, Massachusetts, New Jersey, Oregon, Pennsylvania, Rhode
Island, Vermont and Washington are the other states to which this
warranty applies. Vehicles covered by this warranty are also cov-
ered by the Federal Emission Control Warranty (see page 14). The California Air Resources Board (CARB) and Toyota are pleased to
explain the emission control system warranty for your 2009 vehicle.
In California, new motor vehicles must be designed, built and equipped
to meet the state’s stringent anti-smog standards. CARB regulations
require that Toyota must warrant the emission control system on your
vehicle for the time periods indicated on the next page, provided there
has been no abuse, neglect or improper maintenance of your vehicle.
Your emission control system may include parts such as the fuel injec-
tion system, ignition system, catalytic converter and engine computer.
Also included may be hoses, belts, connectors and other emissions-
related assemblies.
Where a warrantable condition exists, Toyota will repair your vehicle at
no cost to you, including diagnosis, parts and labor.
Your Warranties in Detail20
CALIFORNIA EMISSION CONTROL WARRANTY
09 All M OWI-text.cgla 6/17/08 5:54 PM Page 20

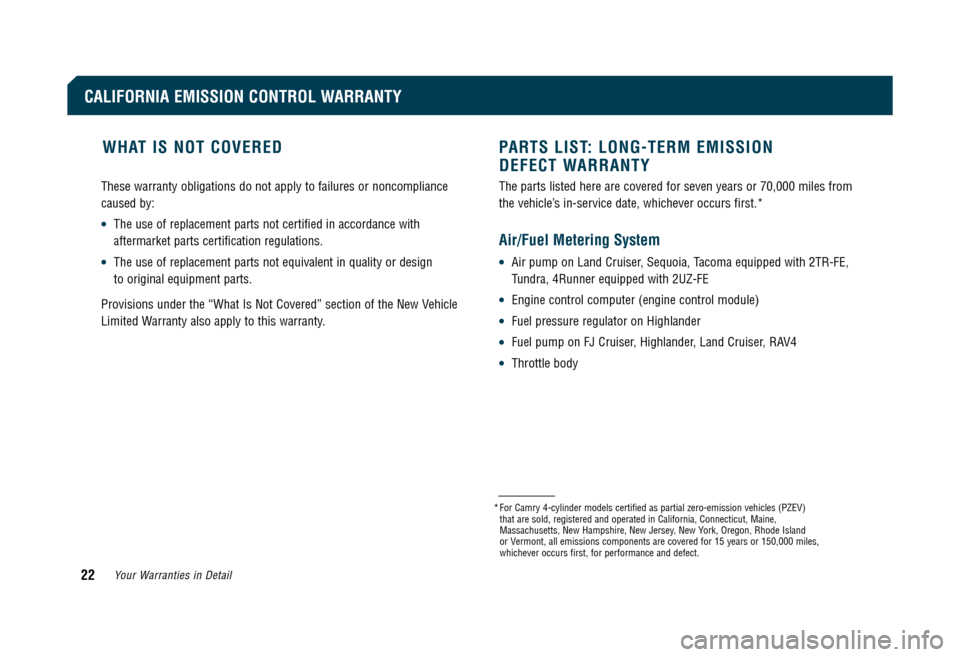

WHAT IS NOT COVERED PARTS LIST: LONG-TERM EMISSION DEFECT WARRANTY
These warranty obligations do not apply to failures or noncompliance
caused by:
•The use of replacement parts not certified in accordance with
aftermarket parts certification regulations.
•The use of replacement parts not equivalent in quality or design
to original equipment parts.
Provisions under the “What Is Not Covered” section of the New Vehicle
Limited Warranty also apply to this warranty. The parts listed here are covered for seven years or 70,000 miles from
the vehicle’s in-service date, whichever occurs first.*
Air/Fuel Metering System
•
Air pump on Land Cruiser, Sequoia, Tacoma equipped with 2TR-FE,
Tundra, 4Runner equipped with 2UZ-FE
•Engine control computer (engine control module)
•Fuel pressure regulator on Highlander
•Fuel pump on FJ Cruiser, Highlander, Land Cruiser, RAV4
•Throttle body
Your Warranties in Detail22
CALIFORNIA EMISSION CONTROL WARRANTY
*For Camry 4-cylinder models certified as partial zero-emission vehicles (PZEV)
that are sold, registered and operated in California, Connecticut, Maine,
Massachusetts, New Hampshire, New Jersey, New York, Oregon, Rhode Island
or Vermont, all emissions components are covered for 15 years or 150,000 miles,
whichever occurs first, for performance and defect.
09 All M OWI-text.cgla 6/17/08 5:55 PM Page 22

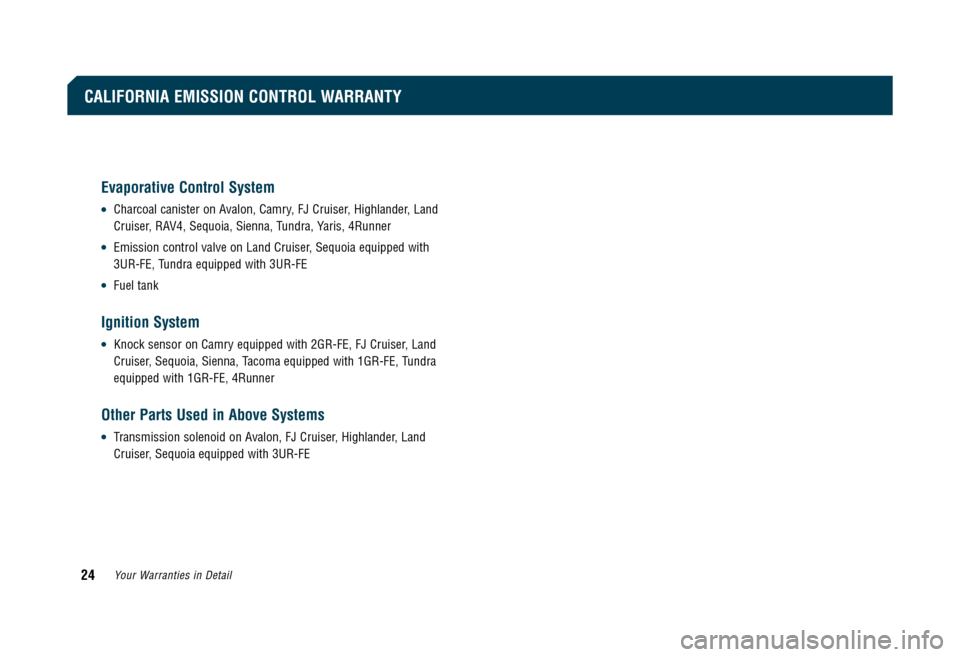

Evaporative Control System
•
Charcoal canister on Avalon, Camry, FJ Cruiser, Highlander, Land
Cruiser, RAV4, Sequoia, Sienna, Tundra, Yaris, 4Runner
•Emission control valve on Land Cruiser, Sequoia equipped with
3UR-FE, Tundra equipped with 3UR-FE
•Fuel tank
Ignition System
•
Knock sensor on Camry equipped with 2GR-FE, FJ Cruiser, Land
Cruiser, Sequoia, Sienna, Tacoma equipped with 1GR-FE, Tundra
equipped with 1GR-FE, 4Runner
Other Parts Used in Above Systems
•
Transmission solenoid on Avalon, FJ Cruiser, Highlander, Land
Cruiser, Sequoia equipped with 3UR-FE
Your Warranties in Detail24
CALIFORNIA EMISSION CONTROL WARRANTY
