TOYOTA 4RUNNER 2009 N280 / 5.G Navigation Manual

MN 00505-NAV09-RUN
Printed in the USA 07/08
412717M1.indd Sec1:197/22/08 4:15:32 PM
2009
Navigation System
Quick Reference Guide
412717M1.indd 17/22/08 4:14:44 PM

1

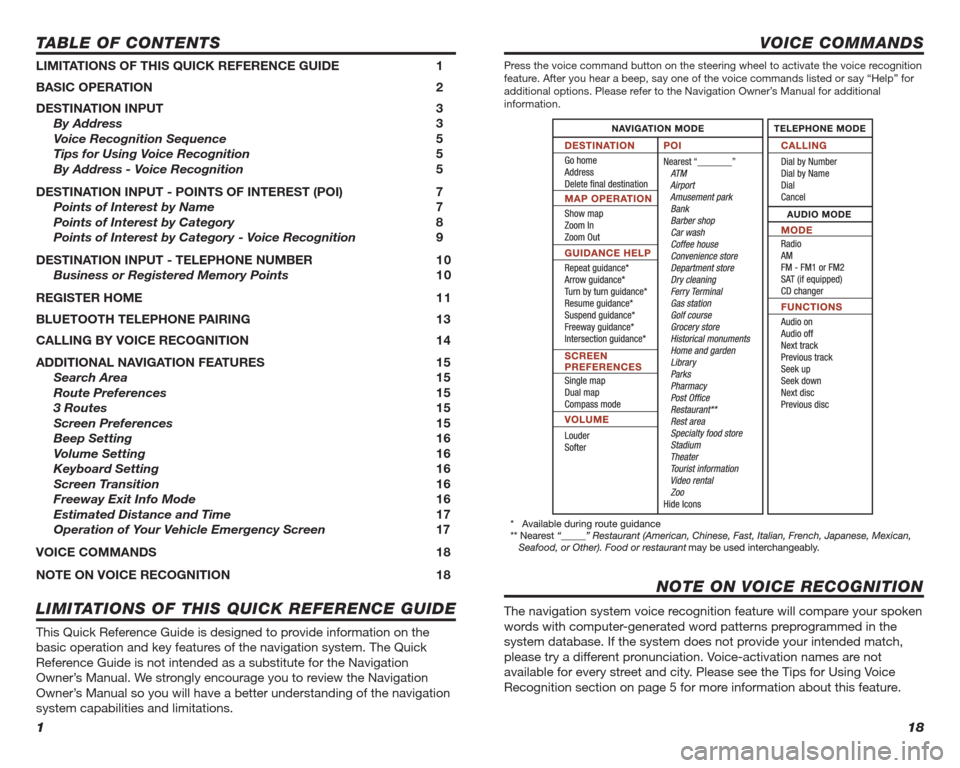

TABLE OF CONTENTS
LIMITATIONS OF THIS QUICK REFERENCE GUIDE 1
BASIC OPERATION 2
DESTINATION INPUT 3
By Address 3
Voice Recognition Sequence 5
Tips for Using Voice Recognition 5
By Address - Voice Recognition 5
DESTINATION INPUT - POINTS OF INTEREST (POI) 7
Points of Interest by Name 7
Points of Interest by Category 8
Points of Interest by Category - Voice Recognition 9
DESTINATION INPUT - TELEPHONE NUMBER 1 0
Business or Registered Memory Points 10
REGISTER HOME 1 1
BLUETOOTH TELEPHONE PAIRING 13
CALLING BY VOICE RECOGNITION 14
ADDITIONAL NAVIGATION FEATURES 15
Search Area 15
Route Preferences 15
3 Routes 15
Screen Preferences 15
Beep Setting 16
Volume Setting 16
Keyboard Setting 16
Screen Transition 16
Freeway Exit Info Mode 16
Estimated Distance and Time 17
Operation of Your Vehicle Emergency Screen 17
VOICE COMMANDS 18
NOTE ON VOICE RECOGNITION 18
This Quick Reference Guide is designed to provide information on the
basic operation and key features of the navigation system. The Quick
Reference Guide is not intended as a substitute for the Navigation
Owner’s Manual. We strongly encourage you to review the Navigation
Owner’s Manual so you will have a better understanding of the navigation
system capabilities and limitations.
LIMITATIONS OF THIS QUICK REFERENCE GUIDE
412717M1.indd Sec1:17/22/08 4:14:44 PM
18
VOICE COMMANDS
Press the voice command button on the steering wheel to activate the voice recognition
feature. After you hear a beep, say one of the voice commands listed or say “Help” for
additional options. Please refer to the Navigation Owner’s Manual for additional
information.
The navigation system voice recognition feature will compare your spoken
words with computer-generated word patterns preprogrammed in the
system database. If the system does not provide your intended match,
please try a different pronunciation. Voice-activation names are not
available for every street and city. Please see the Tips for Using Voice
Recognition section on page 5 for more information about this feature.
NOTE ON VOICE RECOGNITION
412717M1.indd Sec1:187/22/08 4:15:32 PM

2

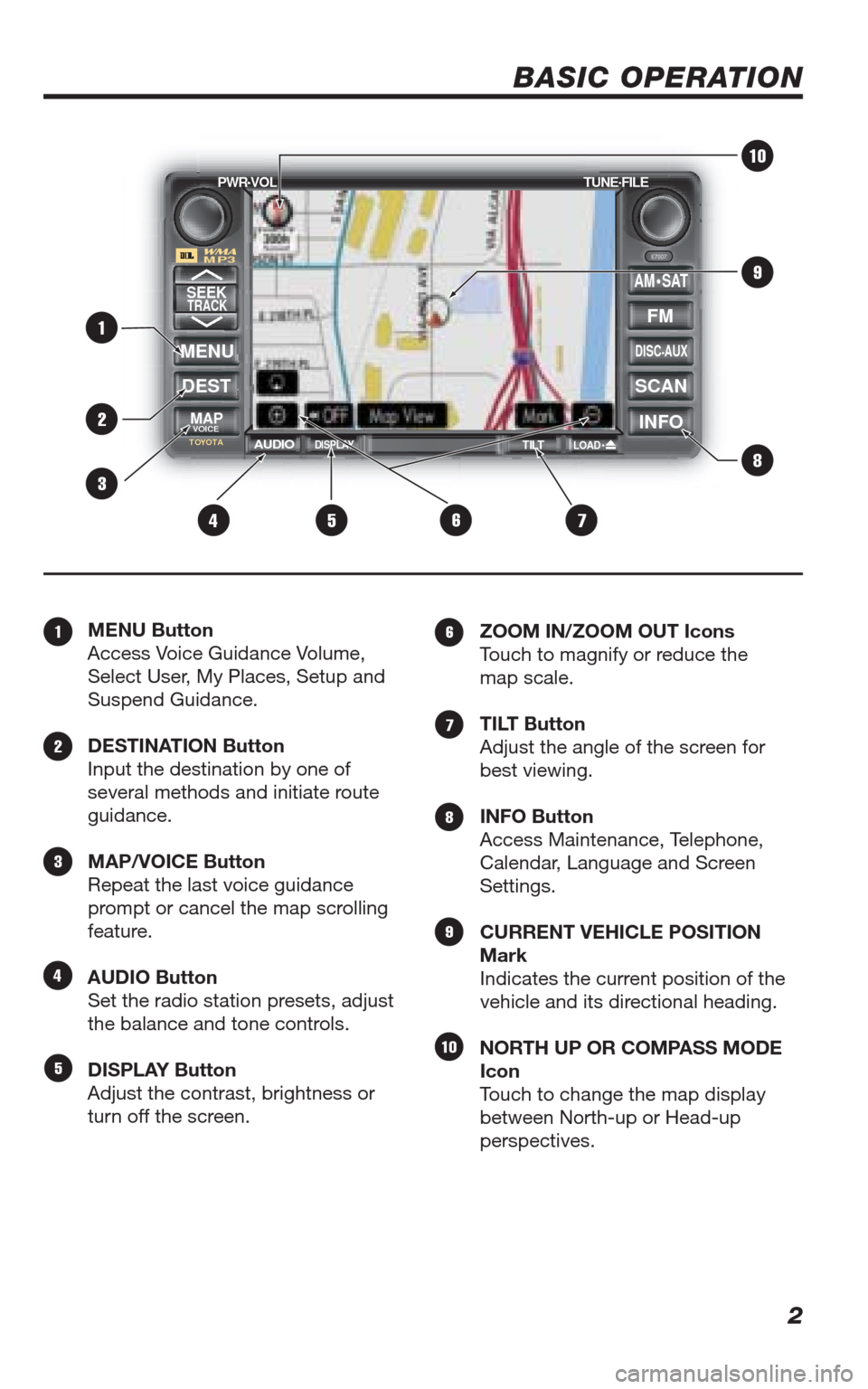

BASIC OPERATION
MENU Button
Access Voice Guidance Volume,
Select User, My Places, Setup and
Suspend Guidance.
DESTINATION Button
Input the destination by one of
several methods and initiate route
guidance.
MAP/VOICE Button
Repeat the last voice guidance
prompt or cancel the map scrolling
feature.
AUDIO Button
Set the radio station presets, adjust
the balance and tone controls.
DISPLAY Button
Adjust the contrast, brightness or
turn off the screen.ZOOM IN/ZOOM OUT Icons
Touch to magnify or reduce the
map scale.
TILT Button
Adjust the angle of the screen for
best viewing.
INFO Button
Access Maintenance, Telephone,
Calendar, Language and Screen
Settings.
CURRENT VEHICLE POSITION
Mark
Indicates the current position of the
vehicle and its directional heading.
NORTH UP OR COMPASS MODE
Icon
Touch to change the map display
between North-up or Head-up
perspectives.£
Ó
Î
{
x
È
Ç
n
™
£ä
MENU
SCANDISC•AUX
FM
AM • SAT
INFO
SEEK
DEST
MAPVOICE
TRACK
AUDIO
PWR•VOL
TUNE•FILE
DISPLAYTILTLOAD•
WMAMP3
TOYOTA
E7007
UMUUMMEN
NSSCANSSCASSCA
DIISC•UXAU•
FM
OOFINF
TTDDESTTTESTTTEST
MMPMAPVOOICEAAOOAAUDIODDDILLOAD•TTTOOTOOOOAAAAOYOTAOYOTA
AM•AT SA•
E7007
UUUMMEN
KKKKKKKKKKKK
MAMP3P
MM
SSST
UMMEN
SEEKSEEKSEEKEEKSSEEKKTTRRACK
WMMP
YAYSPLATILT
PWR•RROLOLOVOV•TTTUTUUNEUNEEE•FILEFILE
1
2
3
4567
8
9
10
412717M1.indd Sec1:27/22/08 4:14:44 PM

3
DESTINATION INPUT

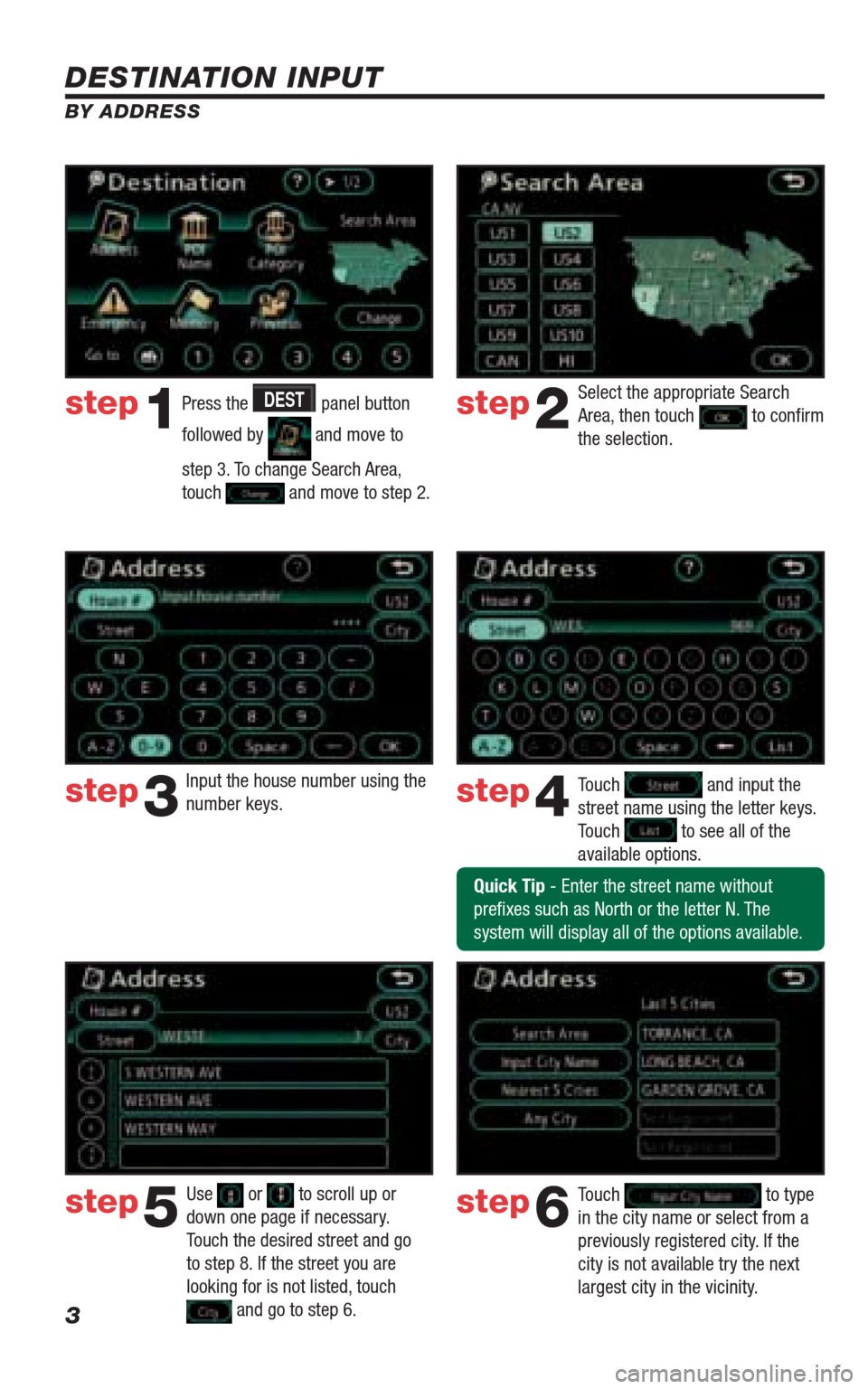

BY ADDRESS
Press the DEST panel button
followed by
and move to
step 3. To change Search Area,
touch
and move to step 2.
Input the house number using the
number keys.Touch
and input the
street name using the letter keys.
Touch
to see all of the
available options.
Use
or to scroll up or
down one page if necessary.
Touch the desired street and go
to step 8. If the street you are
looking for is not listed, touch
and go to step 6.
Touch to type
in the city name or select from a
previously registered city. If the
city is not available try the next
largest city in the vicinity.
step1step2
step3step4
step5step6
Select the appropriate Search
Area, then touch to confi rm
the selection.
Quick Tip - Enter the street name without
prefi xes such as North or the letter N. The
system will display all of the options available.
412717M1.indd Sec1:37/22/08 4:15:18 PM

4
DESTINATION INPUT

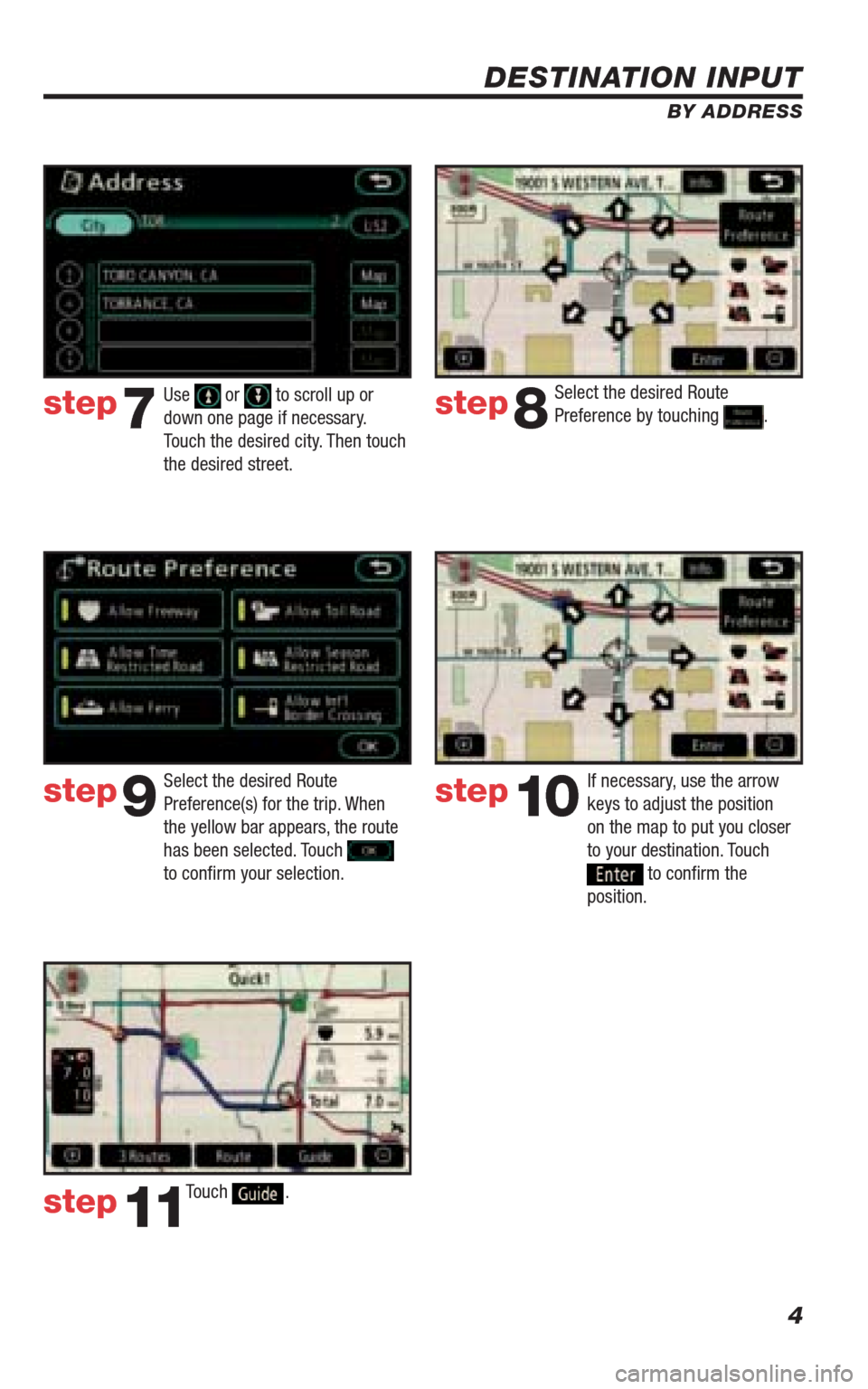

BY ADDRESS
If necessary, use the arrow
keys to adjust the position
on the map to put you closer
to your destination. Touch
to confi rm the
position.
Select the desired Route
Preference by touching .
Select the desired Route
Preference(s) for the trip. When
the yellow bar appears, the route
has been selected. Touch

to confi rm your selection.
Use or to scroll up or
down one page if necessary.
Touch the desired city. Then touch
the desired street.
Touch .
step7step8
step9step10
step11
412717M1.indd Sec1:47/22/08 4:15:18 PM

5
DESTINATION INPUT
BY ADDRESS - VOICE RECOGNITION
TIPS FOR USING VOICE RECOGNITION
VOICE RECOGNITION SEQUENCE
PRESS: PRESS:
COMPUTER:
“Select Command.”
REPLY:
“Address”COMPUTER:PRESS:
“Select State.”
REPLY:
“”COMPUTER:
“Select City.”
REPLY:
“”
PRESS: PRESS:
COMPUTER:
“Select Street.”
REPLY:
“”COMPUTER:
“Select Address.”
REPLY:
“

6
DESTINATION INPUT
BY ADDRESS - VOICE RECOGNITION
Press the voice command button
on the steering wheel and wait
for the beep. After the beep say,
“Enter destination” or touch
.Touch
.
Press the voice command button
on the steering wheel and wait
for the beep. After the beep say
the appropriate state.Press the voice command button
on the steering wheel and wait for
the beep. After the beep say the
appropriate city.
Press the voice command button
on the steering wheel and wait
for the beep. After the beep say
the appropriate street.Press the voice command button
on the steering wheel and wait for
the beep. After the beep say the
appropriate numerical address.step3step4
step5step6
step7step8
412717M1.indd Sec1:67/22/08 4:15:26 PM

7
DESTINATION INPUT - POINTS OF INTEREST (POI)

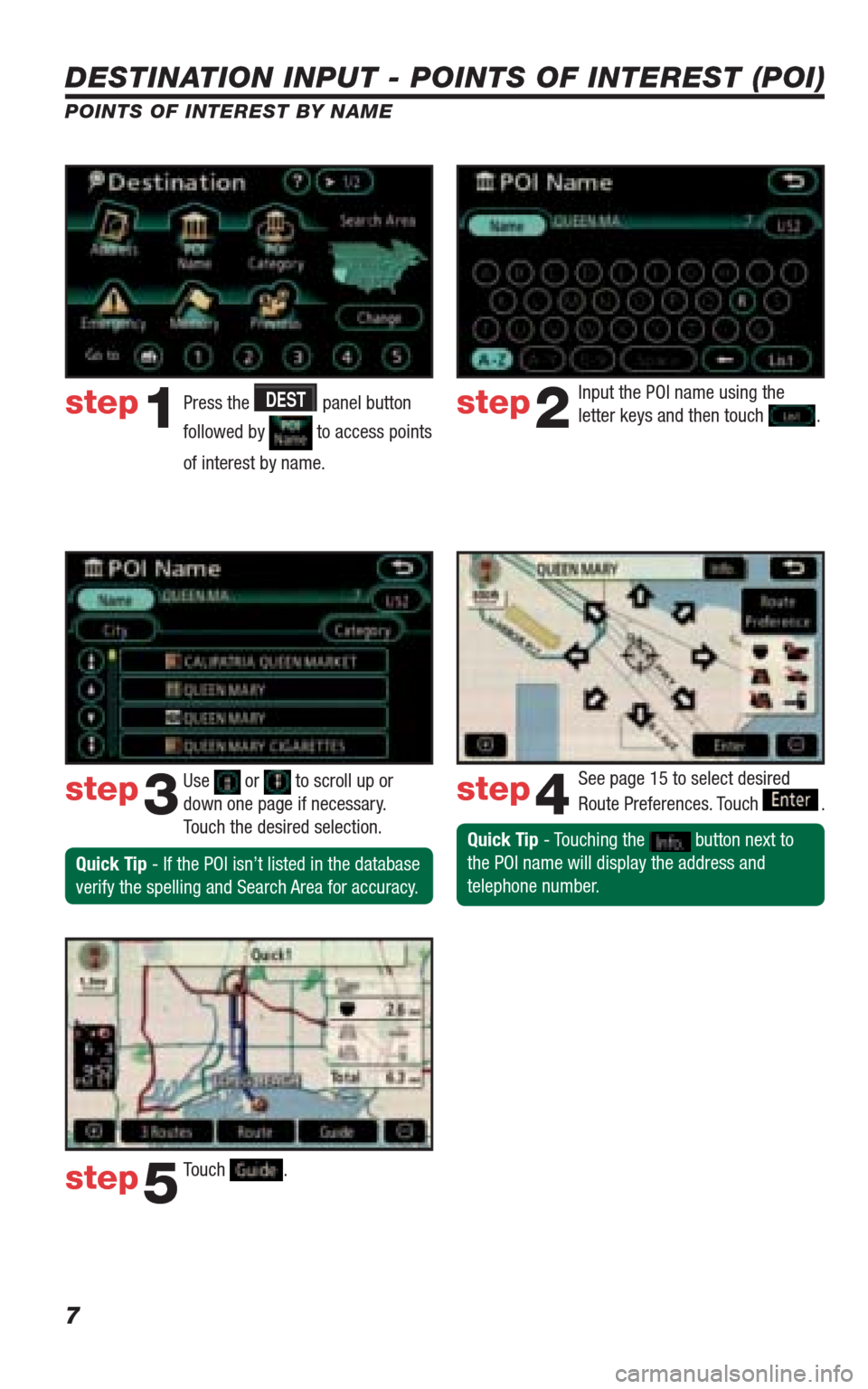

POINTS OF INTEREST BY NAME
Quick Tip - Touching the button next to
the POI name will display the address and
telephone number.
Press the DEST panel button
followed by
to access points
of interest by name.Input the POI name using the
letter keys and then touch .
Use
or to scroll up or
down one page if necessary.
Touch the desired selection.See page 15 to select desired
Route Preferences. Touch .
Touch
.
step1step2
step3step4
step5
Quick Tip - If the POI isn’t listed in the database
verify the spelling and Search Area for accuracy.
412717M1.indd Sec1:77/22/08 4:15:26 PM

8
DESTINATION INPUT - POINTS OF INTEREST (POI)

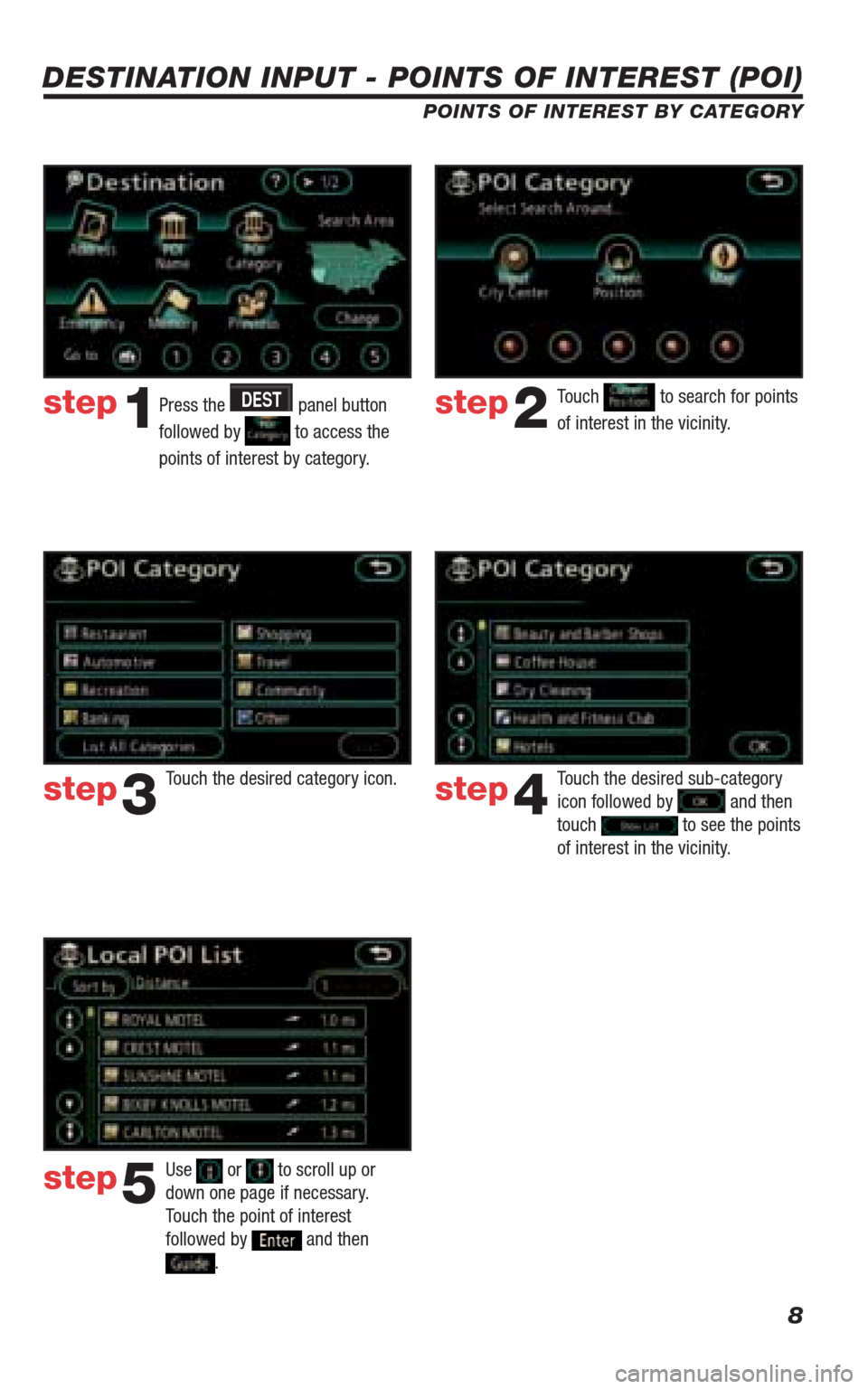

POINTS OF INTEREST BY CATEGORY
Press the DEST panel button
followed by
to access the
points of interest by category.Touch
to search for points
of interest in the vicinity.
Touch the desired category icon. Touch the desired sub-category
icon followed by
and then
touch to see the points
of interest in the vicinity.
Use
or to scroll up or
down one page if necessary.
Touch the point of interest
followed by
and then .
step1step2
step3step4
step5
412717M1.indd Sec1:87/22/08 4:15:27 PM

9
DESTINATION INPUT - POINTS OF INTEREST (POI)

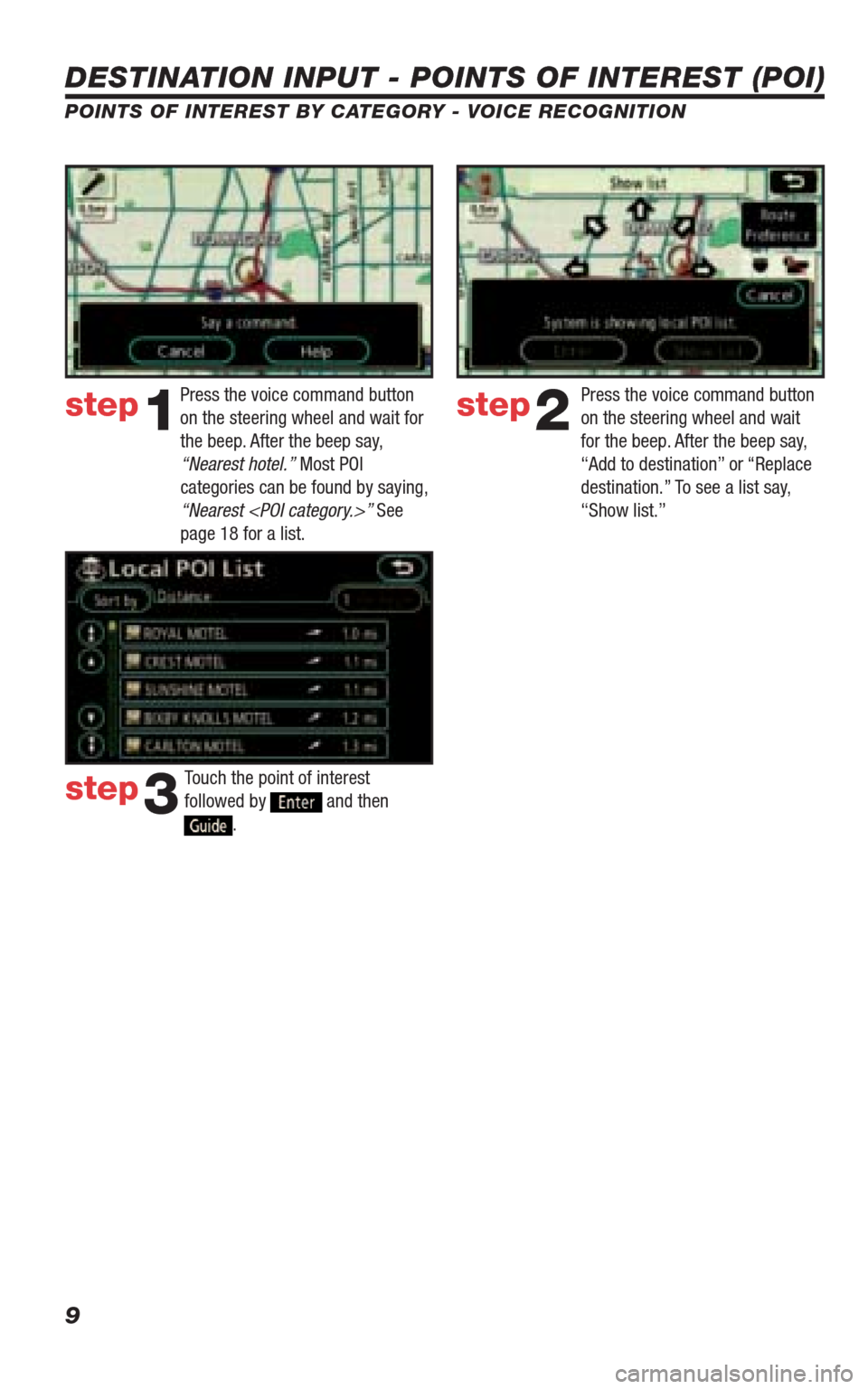

POINTS OF INTEREST BY CATEGORY - VOICE RECOGNITION
Press the voice command button
on the steering wheel and wait for
the beep. After the beep say,
“Nearest hotel.” Most POI
categories can be found by saying,
“Nearest ” See
page 18 for a list.step1step2
step3
Press the voice command button
on the steering wheel and wait
for the beep. After the beep say,
“Add to destination” or “Replace
destination.” To see a list say,
“Show list.”
Touch the point of interest
followed by
and then .
