audio TOYOTA 4RUNNER 2009 N280 / 5.G Quick Reference Guide

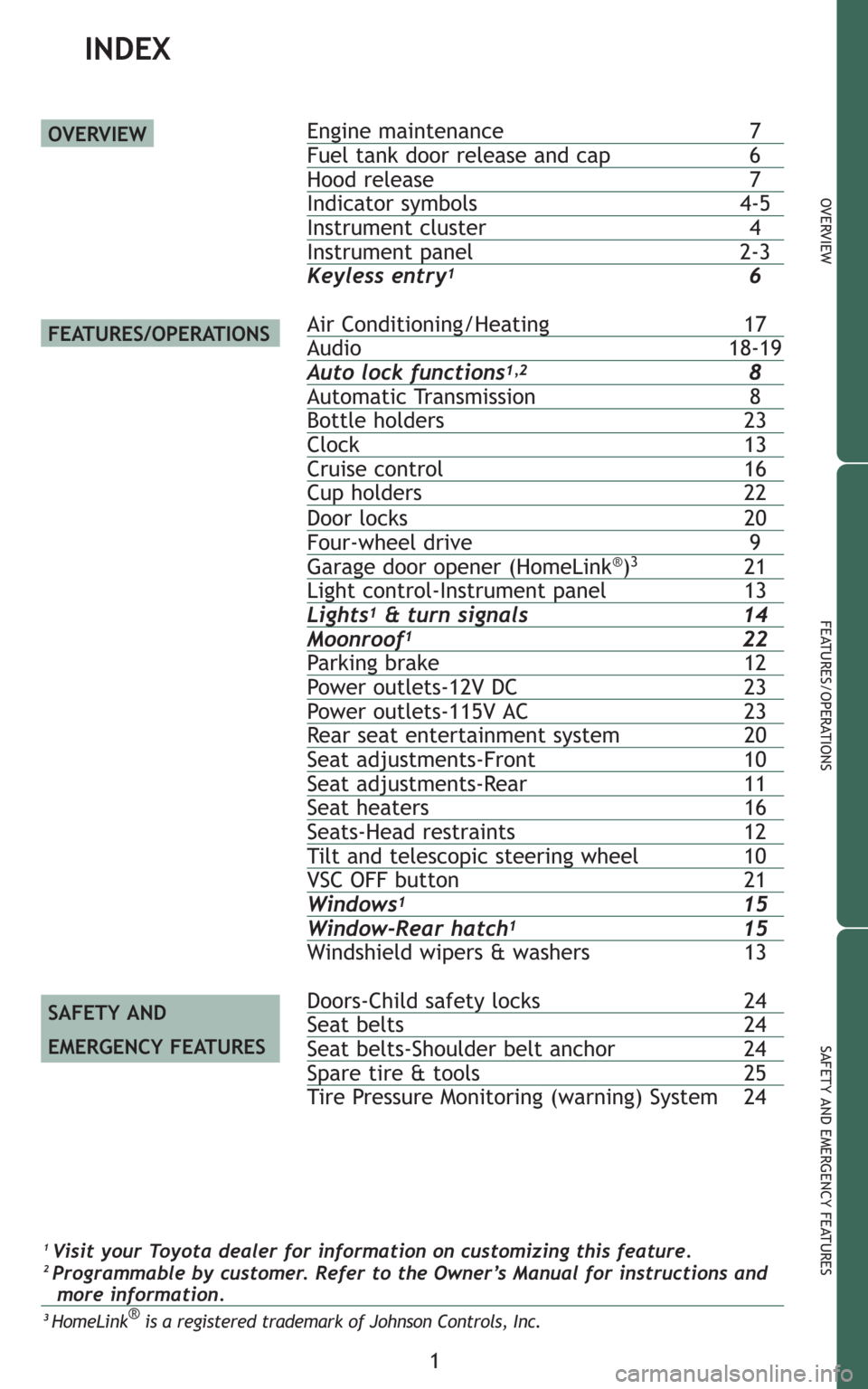

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance7Fuel tank door release and cap 6Hood release 7Indicator symbols 4-5Instrument cluster 4
Instrument panel 2-3Keyless entry16
Air Conditioning/Heating 17Audio 18-19Auto lock functions1,28Automatic Transmission 8Bottle holders 23Clock 13Cruise control 16Cup holders 22
Door locks20Four-wheel drive 9Garage door opener (HomeLink®)321Light control-Instrument panel13Lights1& turn signals 14Moonroof122Parking brake 12Power outlets-12V DC 23Power outlets-115V AC 23Rear seat entertainment system20Seat adjustments-Front 10Seat adjustments-Rear 11Seat heaters16Seats-Head restraints 12Tilt and telescopic steering wheel 10VSC OFF button 21Windows115Window-Rear hatch115
Windshield wipers & washers13
Doors-Child safety locks 24Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

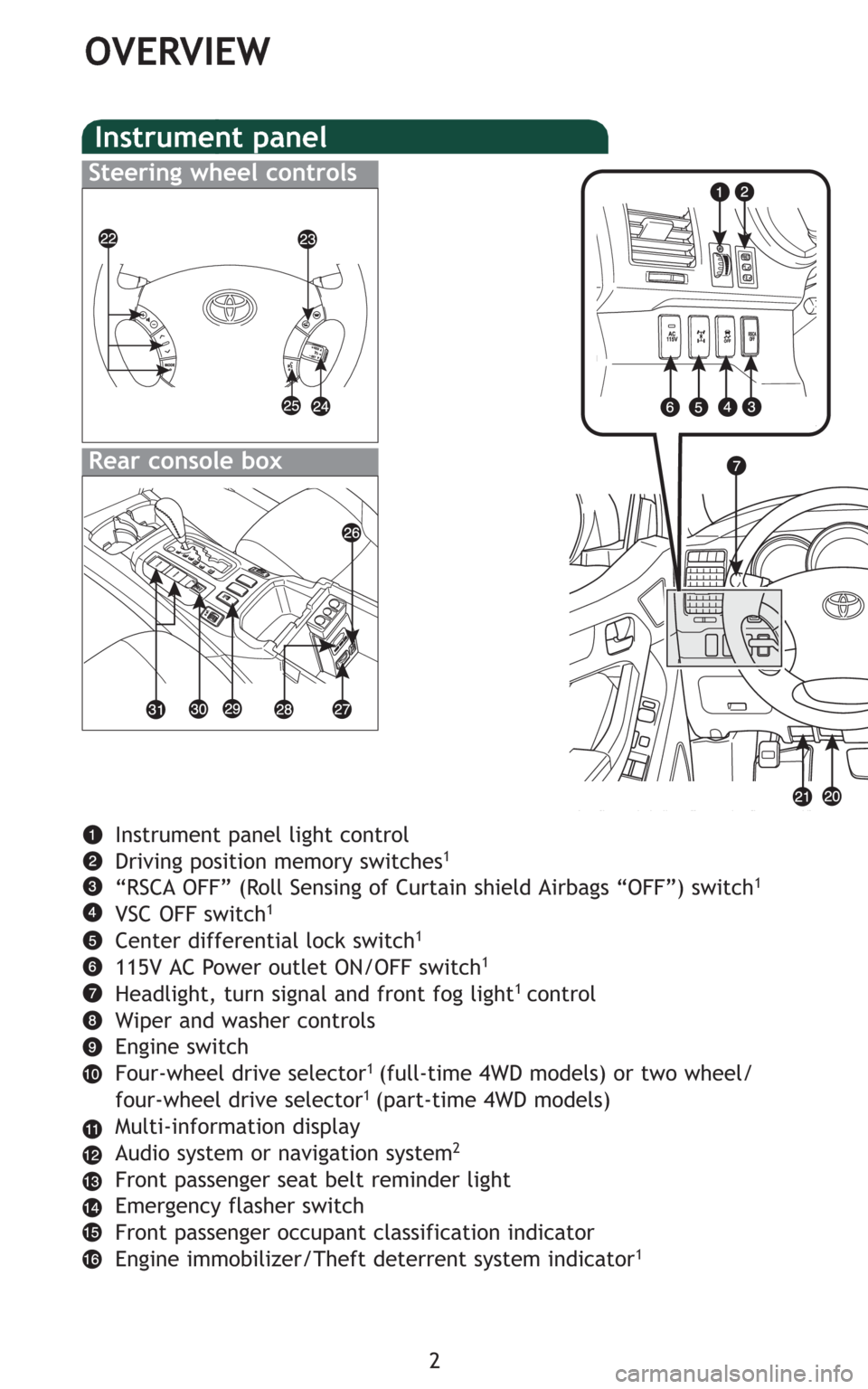

Instrument panel light control
Driving position memory switches1
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch1
VSC OFF switch1
Center differential lock switch1
115V AC Power outlet ON/OFF switch1
Headlight, turn signal and front fog light1 control
Wiper and washer controls
Engine switch
Four-wheel drive selector
1 (full-time 4WD models) or two wheel/
four-wheel drive selector1 (part-time 4WD models)
Multi-information display
Audio system or navigation system
2
Front passenger seat belt reminder light
Emergency flasher switch
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator
1
2
OVERVIEW
Instrument panel
Steering wheel controls
Rear console box

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

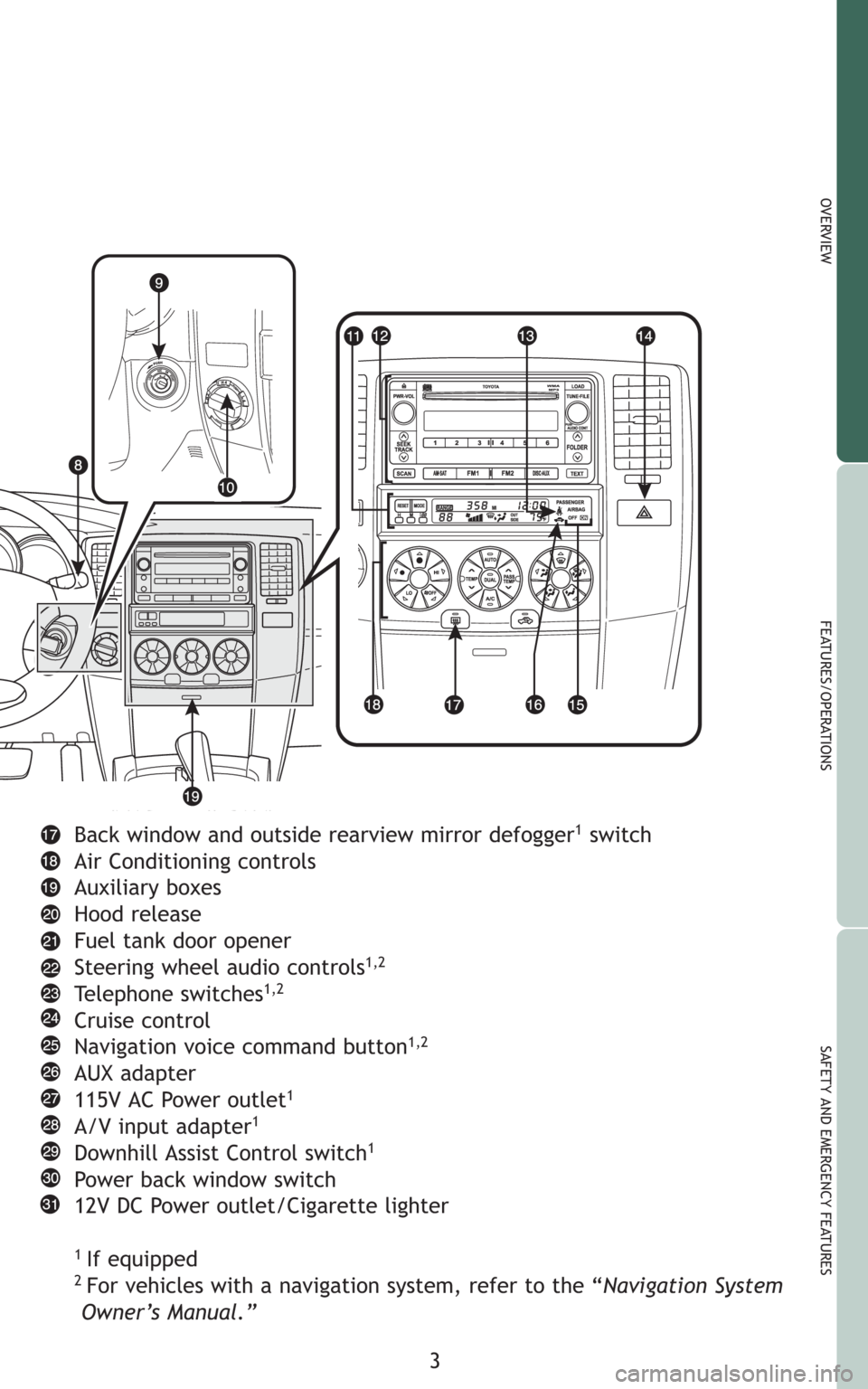

Back window and outside rearview mirror defogger1switch
Air Conditioning controls
Auxiliary boxes
Hood release
Fuel tank door opener
Steering wheel audio controls
1,2
Telephone switches1,2
Cruise control
Navigation voice command button1,2
AUX adapter
115V AC Power outlet1
A/V input adapter1
Downhill Assist Control switch1
Power back window switch
12V DC Power outlet/Cigarette lighter
1 If equipped2 For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”

18
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Types 2 and 3)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER” or
“TYPE/FOLDER.”
Audio
Type 2 additional functions
Type 3 additional functions
View radio/CD
information Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Push to skip
up/down folder Seek station/
CD track select
Station/CD
track scanMode
Load CD(s) Preset buttons - functions in other
modes indicated above number.
View genre/Push to skip up/down folder
Ty p e 1
AM/Satellite radio
FEATURES/OPERATIONS

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”

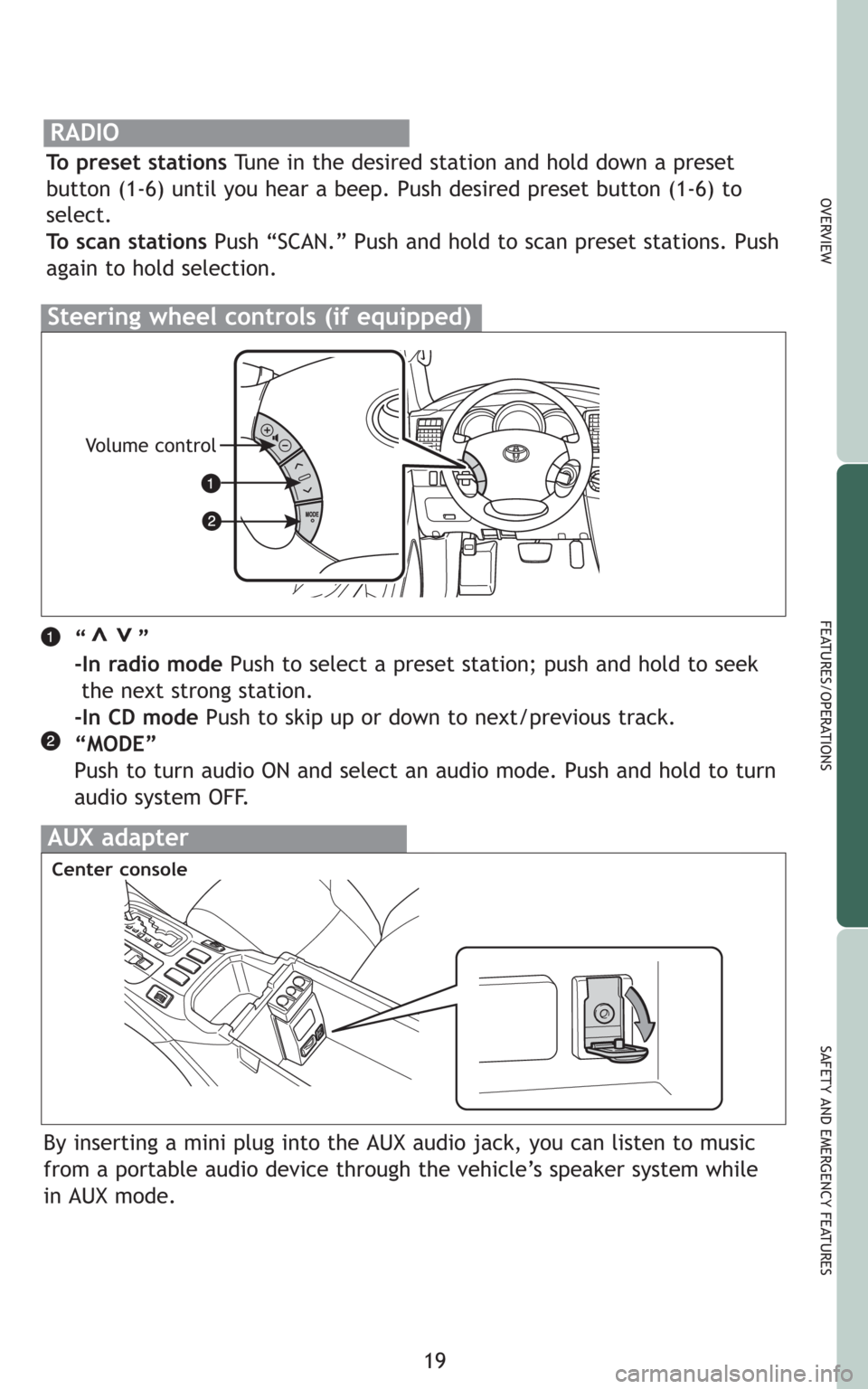

-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.>>
Steering wheel controls (if equipped)
AUX adapter
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
Center console
Volume control

20
Front audio system
DVD player
DVD screen
Remote control
A/V input adapter
115V AC Power outlet
115V AC Power outlet ON/OFF switch
Door locks
Unlock
Lock
Rear seat entertainment system
(if equipped)
FEATURES/OPERATIONS
