engine TOYOTA 4RUNNER 2009 N280 / 5.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance7Fuel tank door release and cap 6Hood release 7Indicator symbols 4-5Instrument cluster 4
Instrument panel 2-3Keyless entry16
Air Conditioning/Heating 17Audio 18-19Auto lock functions1,28Automatic Transmission 8Bottle holders 23Clock 13Cruise control 16Cup holders 22
Door locks20Four-wheel drive 9Garage door opener (HomeLink®)321Light control-Instrument panel13Lights1& turn signals 14Moonroof122Parking brake 12Power outlets-12V DC 23Power outlets-115V AC 23Rear seat entertainment system20Seat adjustments-Front 10Seat adjustments-Rear 11Seat heaters16Seats-Head restraints 12Tilt and telescopic steering wheel 10VSC OFF button 21Windows115Window-Rear hatch115
Windshield wipers & washers13
Doors-Child safety locks 24Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

Instrument panel light control
Driving position memory switches1
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch1
VSC OFF switch1
Center differential lock switch1
115V AC Power outlet ON/OFF switch1
Headlight, turn signal and front fog light1 control
Wiper and washer controls
Engine switch
Four-wheel drive selector
1 (full-time 4WD models) or two wheel/
four-wheel drive selector1 (part-time 4WD models)
Multi-information display
Audio system or navigation system
2
Front passenger seat belt reminder light
Emergency flasher switch
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator
1
2
OVERVIEW
Instrument panel
Steering wheel controls
Rear console box

4

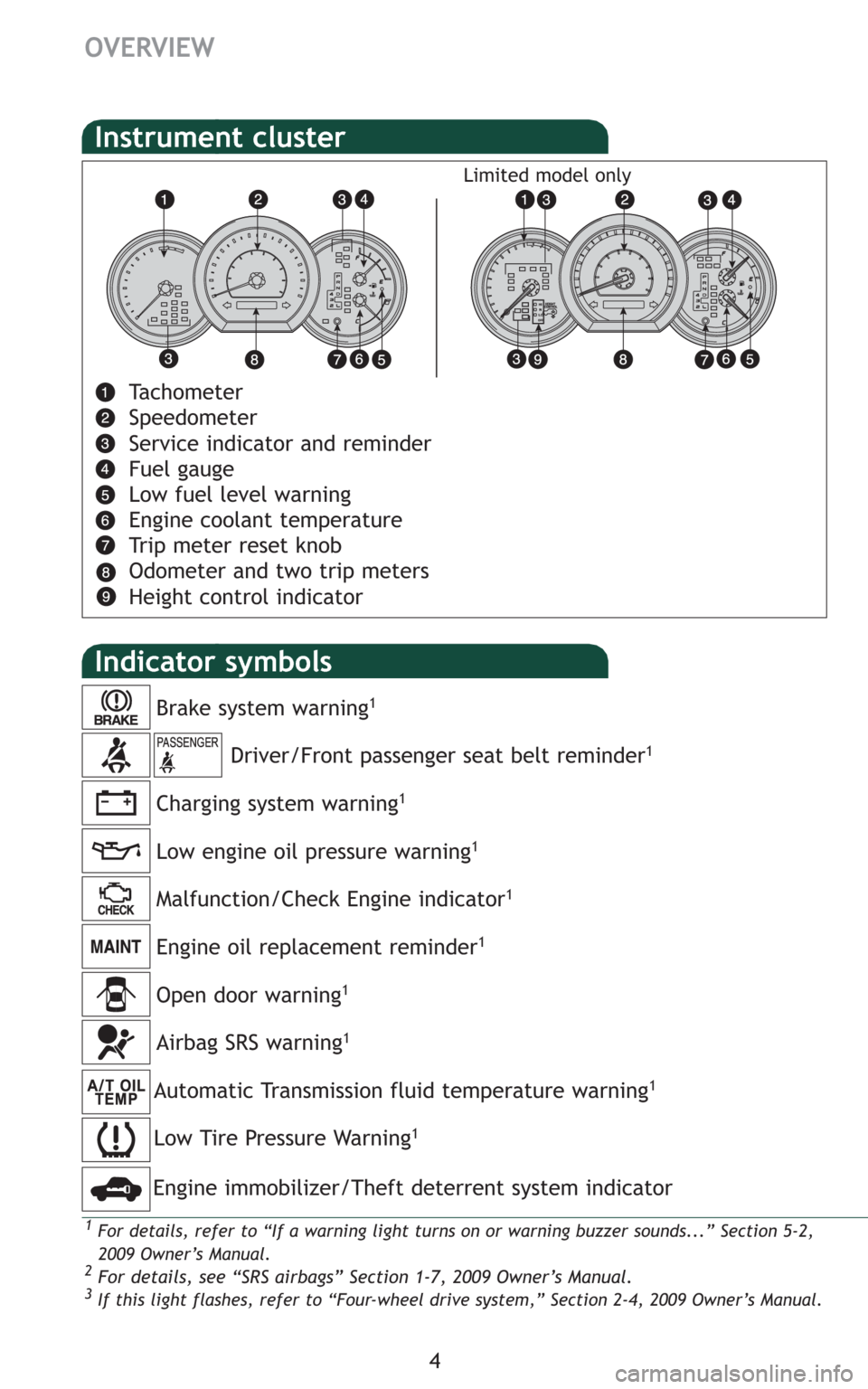

OVERVIEW
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Open door warning1
Airbag SRS warning1
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Low fuel level warning
Engine coolant temperature
Trip meter reset knob
Odometer and two trip meters
Height control indicator
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt reminder1
Limited model only
Engine immobilizer/Theft deterrent system indicator
1For details, refer to “If a warning light turns on or warning buzzer sounds...” Section 5-2,
2009 Owner’s Manual.
2For details, see “SRS airbags” Section 1-7, 2009 Owner’s Manual.3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2009 Owner’s Manual.

6
OVERVIEW

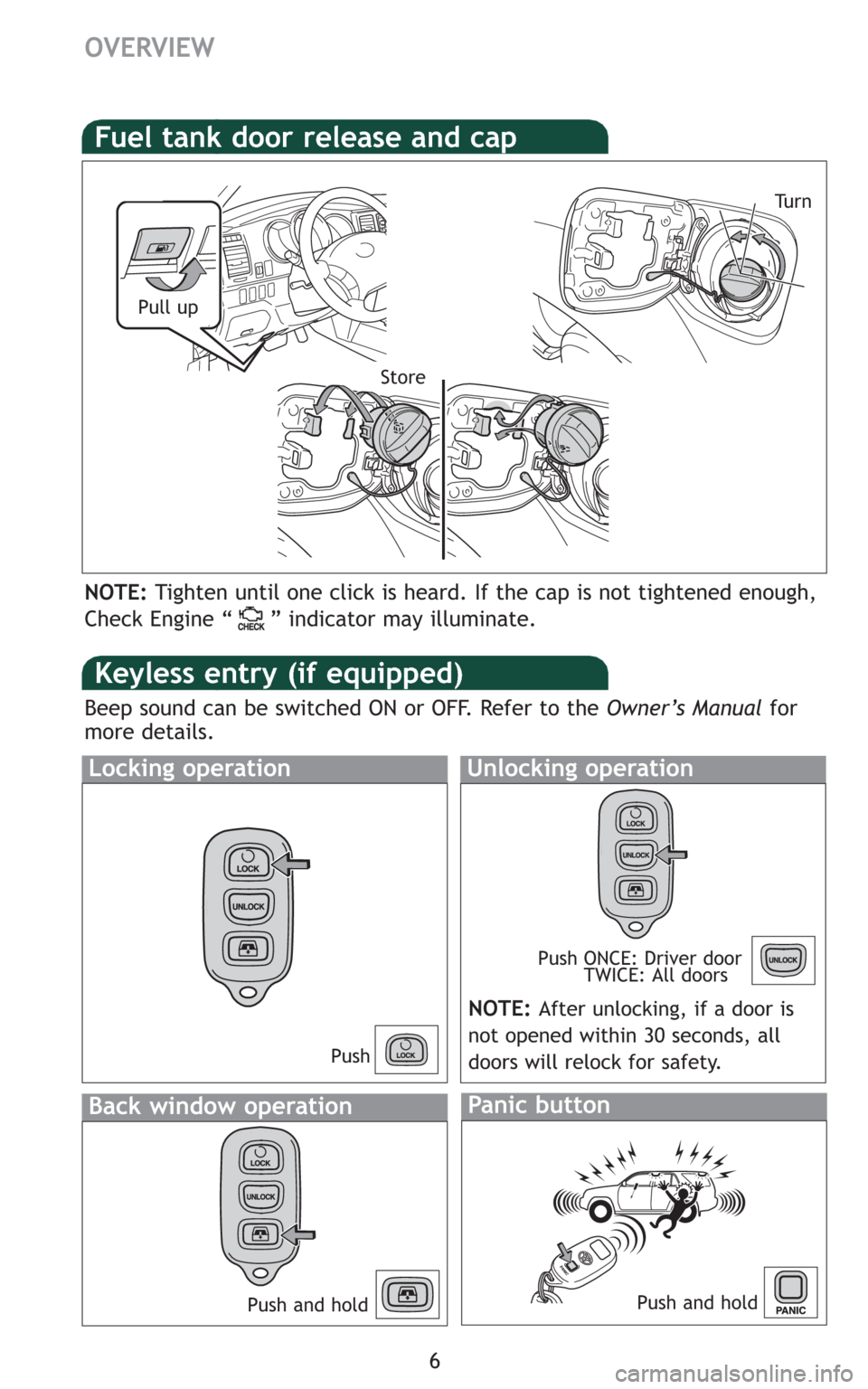

NOTE:Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Fuel tank door release and cap
Pull up
Tu r n
Store
NOTE:After unlocking, if a door is
not opened within 30 seconds, all
doors will relock for safety.
Panic button
Keyless entry (if equipped)
Locking operationUnlocking operation
Back window operation
Beep sound can be switched ON or OFF. Refer to the Owner’s Manualfor
more details.
Push
Push and hold Push ONCE: Driver door
TWICE: All doors
Push and hold

7
OVERVIEW
FEATURES/OPERATIONS

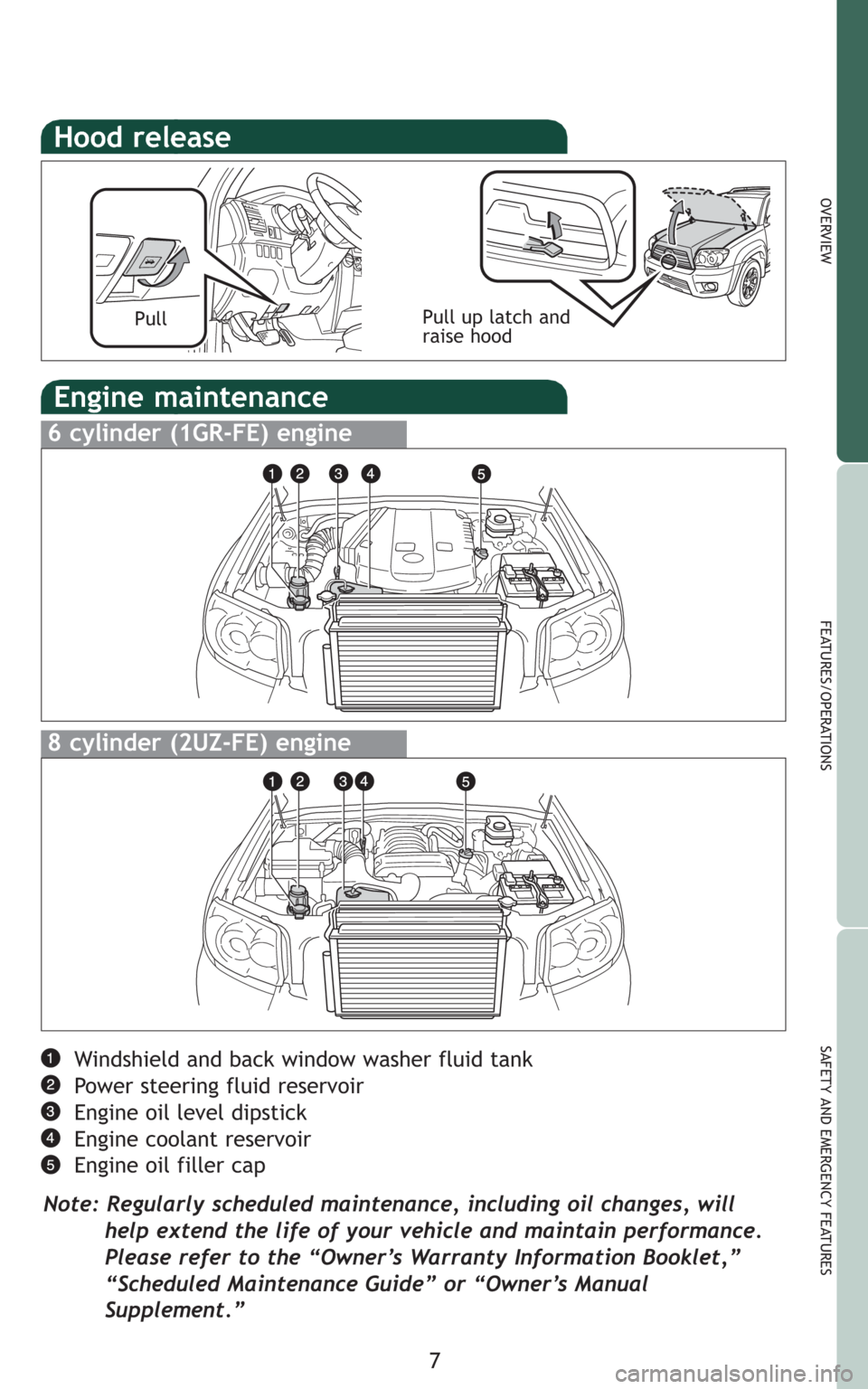

SAFETY AND EMERGENCY FEATURESWindshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
6 cylinder (1GR-FE) engine
8 cylinder (2UZ-FE) engine
Hood release
PullPull up latch and
raise hood

8
FEATURES/OPERATIONS

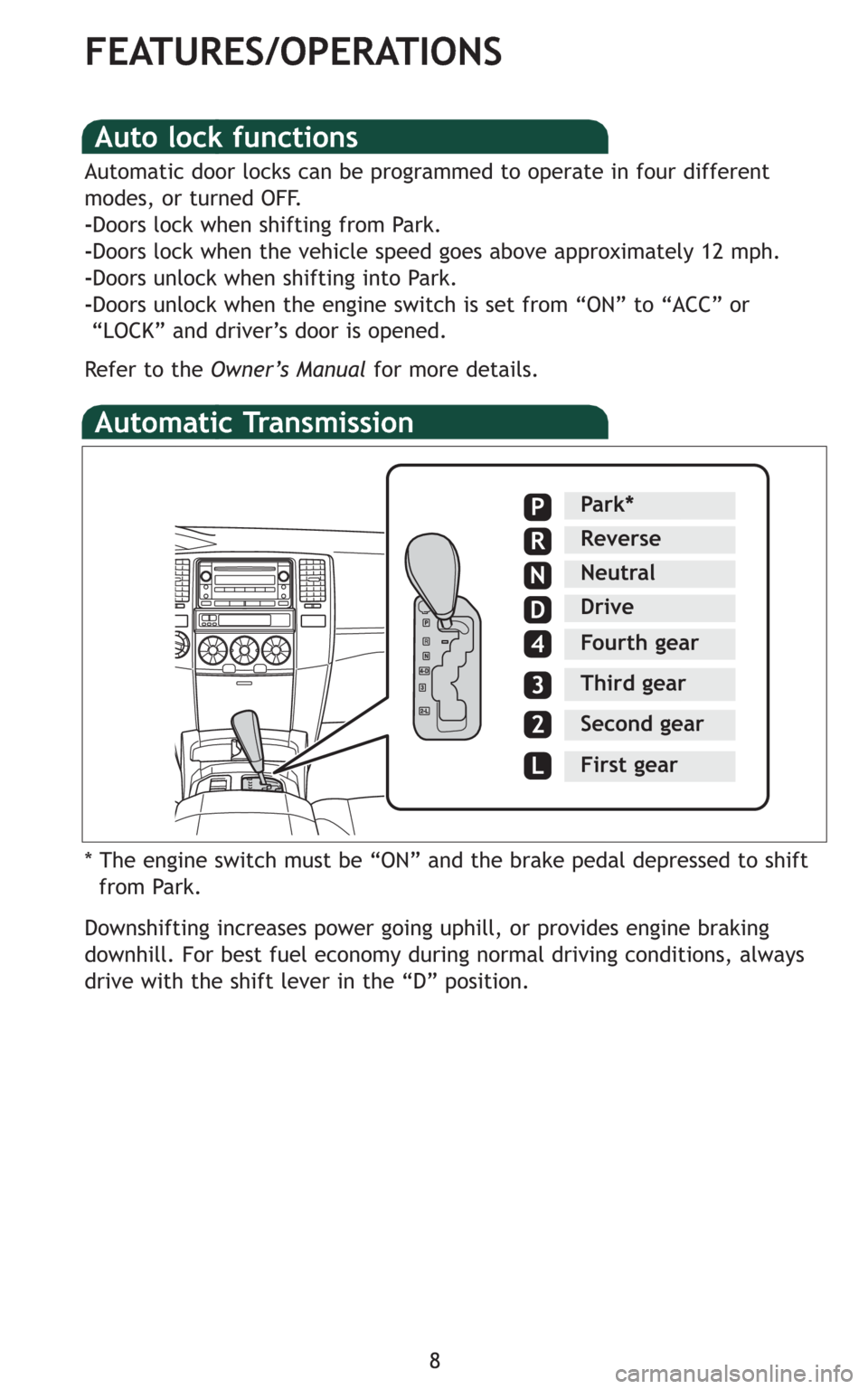

Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the engine switch is set from “ON” to “ACC” or
“LOCK” and driver’s door is opened.
Refer to the Owner’s Manualfor more details.
Automatic Transmission
* The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
4
3
2
L
Fourth gear

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

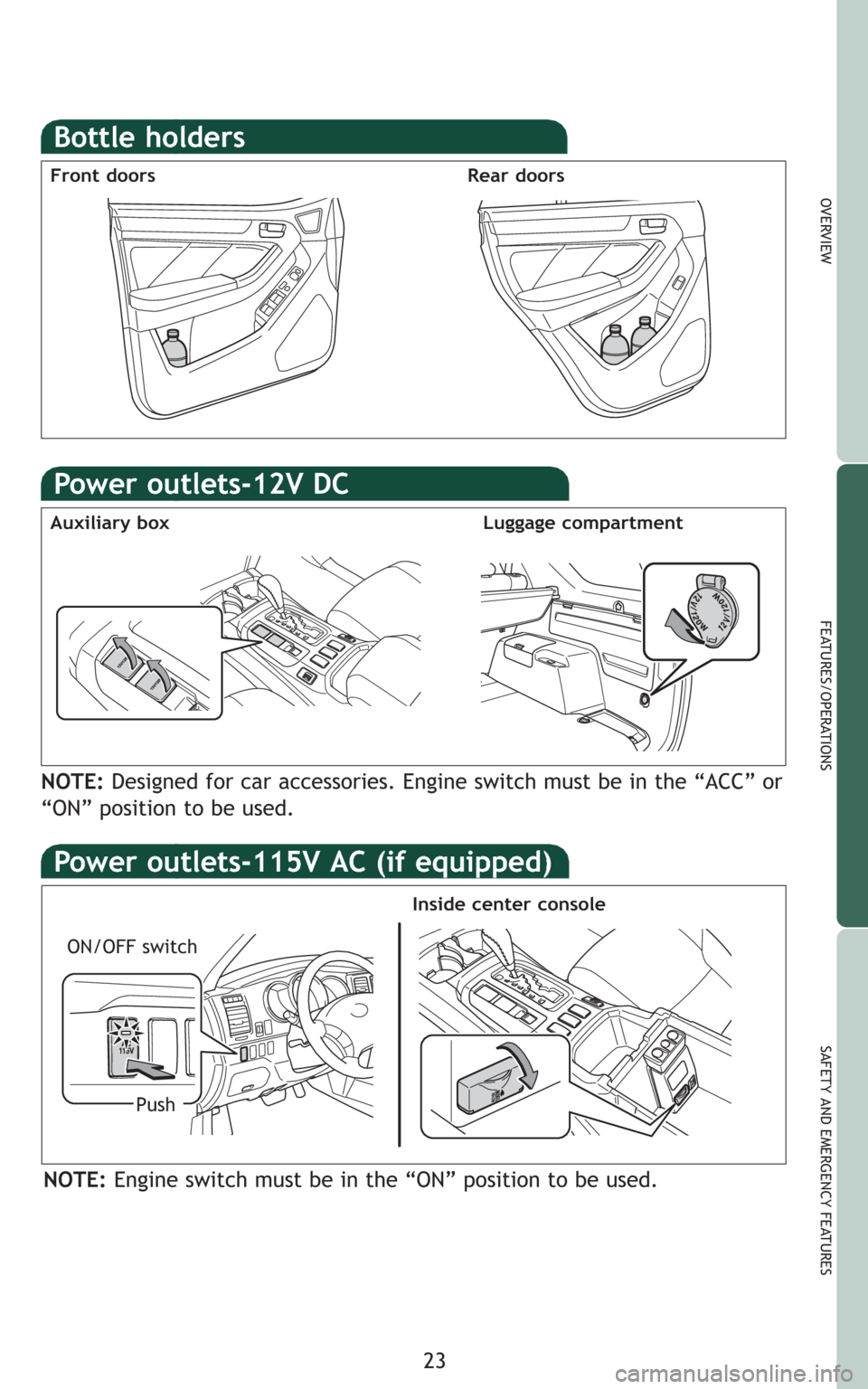

Power outlets-12V DC
ON/OFF switch
Inside center console
Push
Auxiliary boxLuggage compartment
NOTE:Designed for car accessories. Engine switch must be in the “ACC” or
“ON” position to be used.
NOTE:Engine switch must be in the “ON” position to be used.
Bottle holders
Front doorsRear doors
Power outlets-115V AC (if equipped)
