steering TOYOTA 4RUNNER 2009 N280 / 5.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance7Fuel tank door release and cap 6Hood release 7Indicator symbols 4-5Instrument cluster 4
Instrument panel 2-3Keyless entry16
Air Conditioning/Heating 17Audio 18-19Auto lock functions1,28Automatic Transmission 8Bottle holders 23Clock 13Cruise control 16Cup holders 22
Door locks20Four-wheel drive 9Garage door opener (HomeLink®)321Light control-Instrument panel13Lights1& turn signals 14Moonroof122Parking brake 12Power outlets-12V DC 23Power outlets-115V AC 23Rear seat entertainment system20Seat adjustments-Front 10Seat adjustments-Rear 11Seat heaters16Seats-Head restraints 12Tilt and telescopic steering wheel 10VSC OFF button 21Windows115Window-Rear hatch115
Windshield wipers & washers13
Doors-Child safety locks 24Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

Instrument panel light control
Driving position memory switches1
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch1
VSC OFF switch1
Center differential lock switch1
115V AC Power outlet ON/OFF switch1
Headlight, turn signal and front fog light1 control
Wiper and washer controls
Engine switch
Four-wheel drive selector
1 (full-time 4WD models) or two wheel/
four-wheel drive selector1 (part-time 4WD models)
Multi-information display
Audio system or navigation system
2
Front passenger seat belt reminder light
Emergency flasher switch
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator
1
2
OVERVIEW
Instrument panel
Steering wheel controls
Rear console box

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Back window and outside rearview mirror defogger1switch
Air Conditioning controls
Auxiliary boxes
Hood release
Fuel tank door opener
Steering wheel audio controls
1,2
Telephone switches1,2
Cruise control
Navigation voice command button1,2
AUX adapter
115V AC Power outlet1
A/V input adapter1
Downhill Assist Control switch1
Power back window switch
12V DC Power outlet/Cigarette lighter
1 If equipped2 For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESWindshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
6 cylinder (1GR-FE) engine
8 cylinder (2UZ-FE) engine
Hood release
PullPull up latch and
raise hood

10
FEATURES/OPERATIONS
Seat position (forward/backward)
Cushion angle (driver side only)
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only)
Driver seat: position, cushion angle and height
Passenger seat: position
Seatback angle
Lumbar support (driver side only)

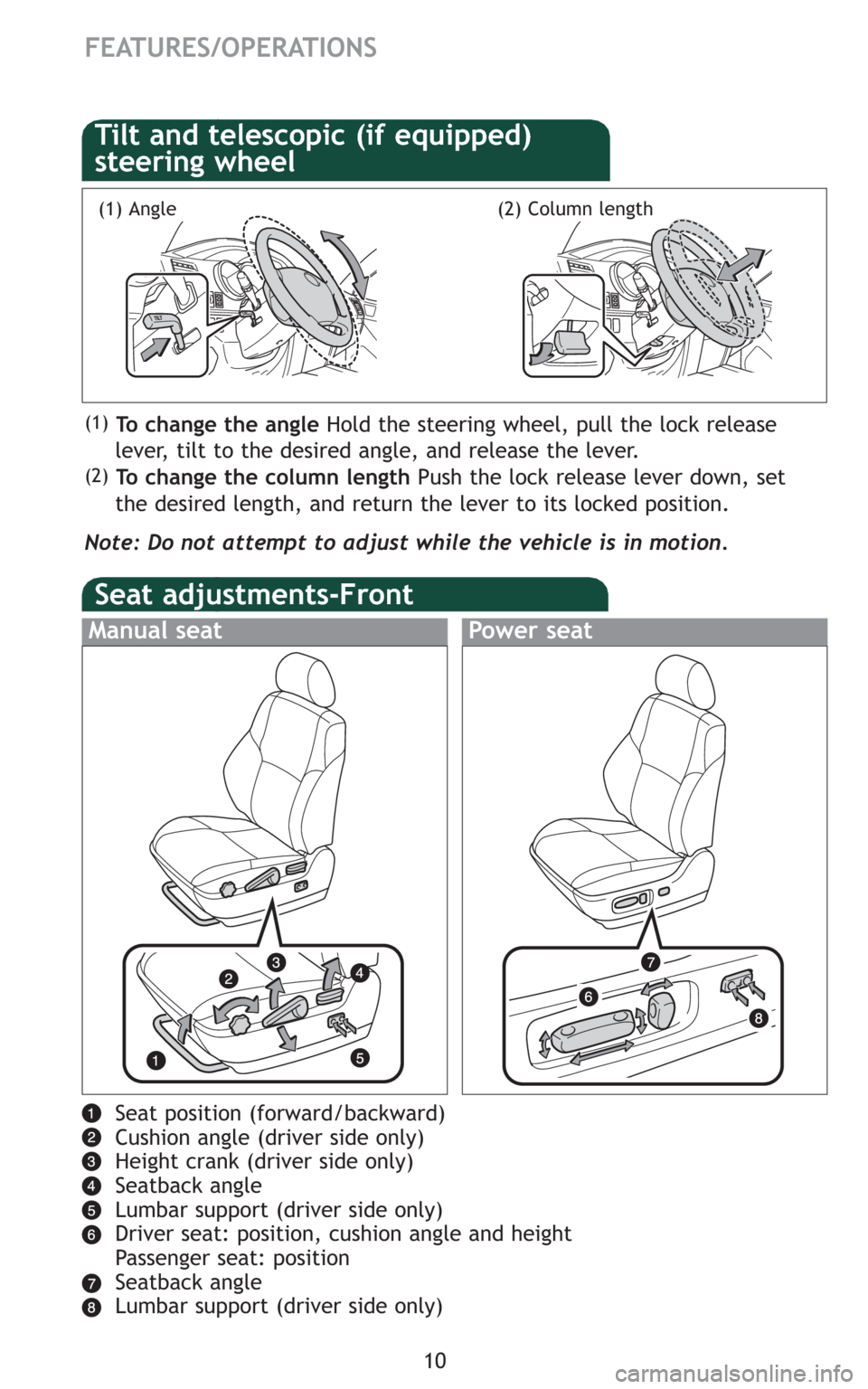

Seat adjustments-Front
Manual seatPower seat
To change the angleHold the steering wheel, pull the lock release
lever, tilt to the desired angle, and release the lever.
To change the column lengthPush the lock release lever down, set
the desired length, and return the lever to its locked position.
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic (if equipped)
steering wheel
(1) Angle(2) Column length
(1)
(2)

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.>>
Steering wheel controls (if equipped)
AUX adapter
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
Center console
Volume control
