window TOYOTA 4RUNNER 2009 N280 / 5.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance7Fuel tank door release and cap 6Hood release 7Indicator symbols 4-5Instrument cluster 4
Instrument panel 2-3Keyless entry16
Air Conditioning/Heating 17Audio 18-19Auto lock functions1,28Automatic Transmission 8Bottle holders 23Clock 13Cruise control 16Cup holders 22
Door locks20Four-wheel drive 9Garage door opener (HomeLink®)321Light control-Instrument panel13Lights1& turn signals 14Moonroof122Parking brake 12Power outlets-12V DC 23Power outlets-115V AC 23Rear seat entertainment system20Seat adjustments-Front 10Seat adjustments-Rear 11Seat heaters16Seats-Head restraints 12Tilt and telescopic steering wheel 10VSC OFF button 21Windows115Window-Rear hatch115
Windshield wipers & washers13
Doors-Child safety locks 24Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Back window and outside rearview mirror defogger1switch
Air Conditioning controls
Auxiliary boxes
Hood release
Fuel tank door opener
Steering wheel audio controls
1,2
Telephone switches1,2
Cruise control
Navigation voice command button1,2
AUX adapter
115V AC Power outlet1
A/V input adapter1
Downhill Assist Control switch1
Power back window switch
12V DC Power outlet/Cigarette lighter
1 If equipped2 For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”

6
OVERVIEW
NOTE:Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Fuel tank door release and cap
Pull up
Tu r n
Store
NOTE:After unlocking, if a door is
not opened within 30 seconds, all
doors will relock for safety.
Panic button
Keyless entry (if equipped)
Locking operationUnlocking operation
Back window operation
Beep sound can be switched ON or OFF. Refer to the Owner’s Manualfor
more details.
Push
Push and hold Push ONCE: Driver door
TWICE: All doors
Push and hold

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESWindshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
6 cylinder (1GR-FE) engine
8 cylinder (2UZ-FE) engine
Hood release
PullPull up latch and
raise hood

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windshield wipers & washers
Rear
Front
Interval wipe
Slow
FastPull to wash and wipeAdjust interval*
Wash and wipe
Wipe
Interval wipe
Wash and wipe
NOTE:Rear wiper and washer operate only when rear window is fully
closed. If battery is disconnected, rear washer will not function until rear
window is reinitialized by being fully opened and then closed.
Light control-Instrument panel
Brightness control
+
Clock
H-Hour set
M-Minute set
:00-Round off
minutes
* Intermittent windshield wiper interval adjustment
Rotate to increase/decrease wipe frequency.
-

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

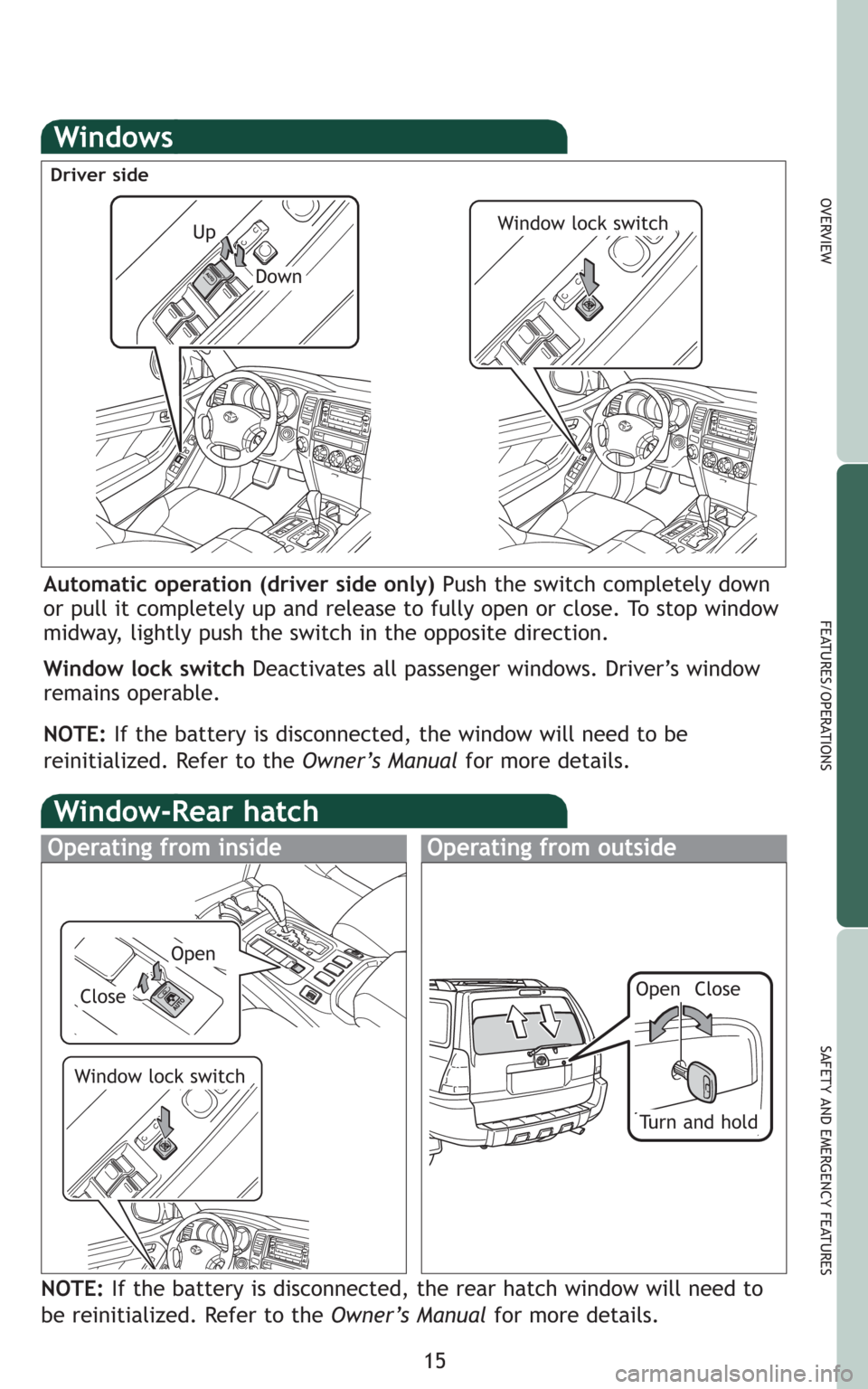

Operating from inside
Windows
Driver side
Automatic operation (driver side only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
NOTE:If the battery is disconnected, the window will need to be
reinitialized. Refer to the Owner’s Manualfor more details.
Window-Rear hatch
Operating from outside
Up
Down
Window lock switch
Window lock switch
Open
Open
Turn and hold
CloseClose
NOTE:If the battery is disconnected, the rear hatch window will need to
be reinitialized. Refer to the Owner’s Manualfor more details.

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Air Conditioning/Heating
With “DUAL” button
Fan speed
Temperature selector
Automatic climate control ON/OFF
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF:Synchronize temperature settings for driver and
passenger.
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Fresh or recirculated cabin air
Air Conditioning ON/OFF
Rear defogger
Climate control OFF
Without “DUAL” button
