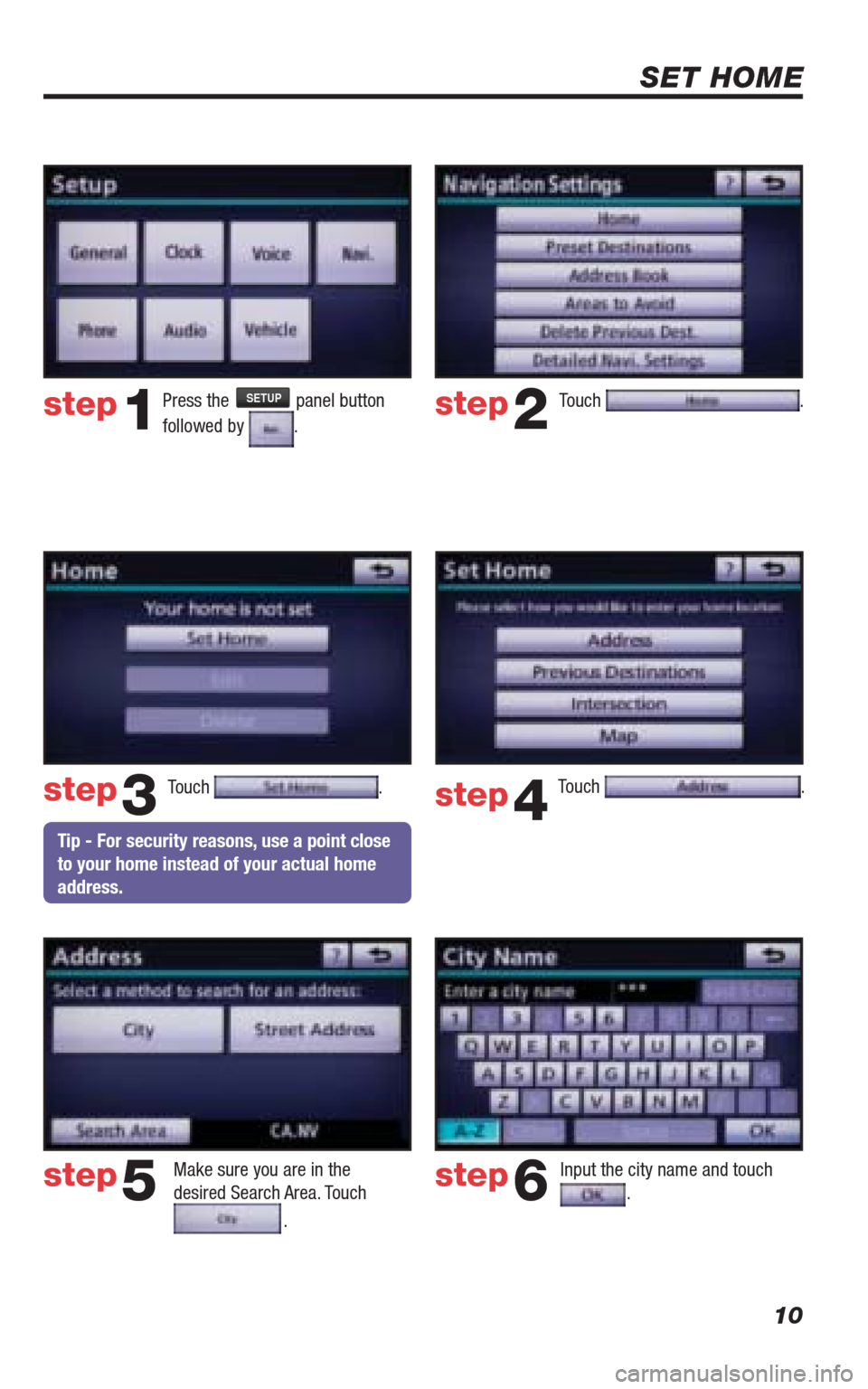

TOYOTA 4RUNNER 2010 N280 / 5.G Navigation Manual

10
SET HOME
Touch .
Make sure you are in the
desired Search Area. Touch
.
Input the city name and touch .
step2
step3
step5step6
Press the SETUP panel button
followed by
.step1
Touch . Touch . step4 Tip - For security reasons, use a point close
to your home instead of your actual home
address.
413614M2.indd 108/20/09 10:30:46 AM

11

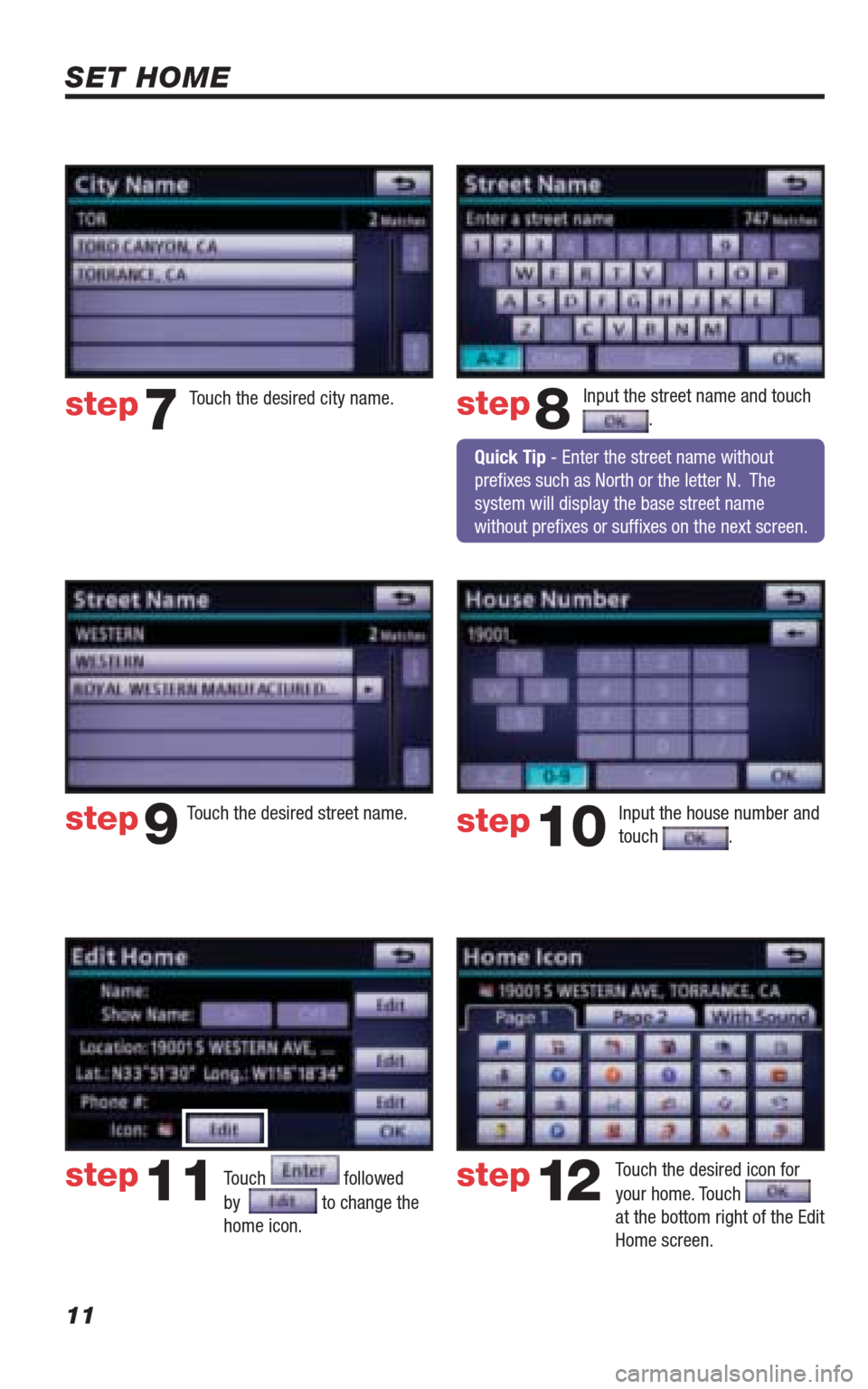

SET HOME
Input the street name and touch .
Touch followed
by
to change the
home icon.
Touch the desired icon for
your home. Touch

at the bottom right of the Edit
Home screen.
step8
step9
step11step12
Touch the desired city name. step7
Touch the desired street name. Input the house number and
touch . step10
Quick Tip - Enter the street name without
prefi xes such as North or the letter N. The
system will display the base street name
without prefi xes or suffi xes on the next screen.
413614M2.indd 118/20/09 10:30:50 AM

12

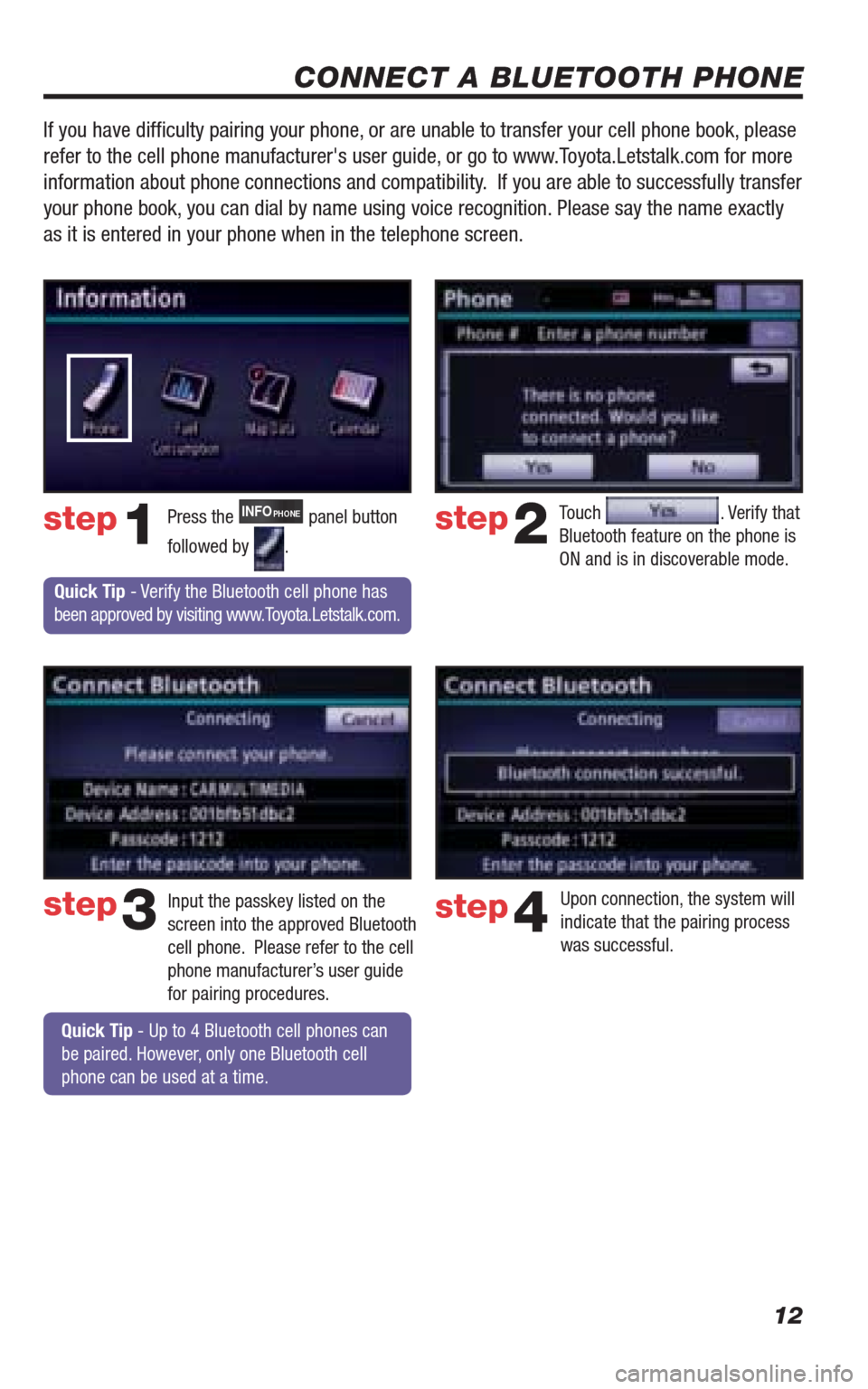

CONNECT A BLUETOOTH PHONE
Touch . Verify that
Bluetooth feature on the phone is
ON and is in discoverable mode. step2
step3
Press the INFOPHONE panel button
followed by
.step1
Input the passkey listed on the
screen into the approved Bluetooth
cell phone. Please refer to the cell
phone manufacturer’s user guide
for pairing procedures. Upon connection, the system will
indicate that the pairing process
was successful.step4
Quick Tip - Verify the Bluetooth cell phone has
been approved by visiting www.Toyota.Letstalk.com.
Quick Tip - Up to 4 Bluetooth cell phones can
be paired. However, only one Bluetooth cell
phone can be used at a time.
If you have diffi culty pairing your phone, or are unable to transfer your cell phone book, please
refer to the cell phone manufacturer's user guide, or go to www.Toyota.Letstalk.com for more
information about phone connections and compatibility. If you are able to successfully transfer
your phone book, you can dial by name using voice recognition. Please say the name exactly
as it is entered in your phone when in the telephone screen.
413614M2.indd 128/20/09 10:30:54 AM

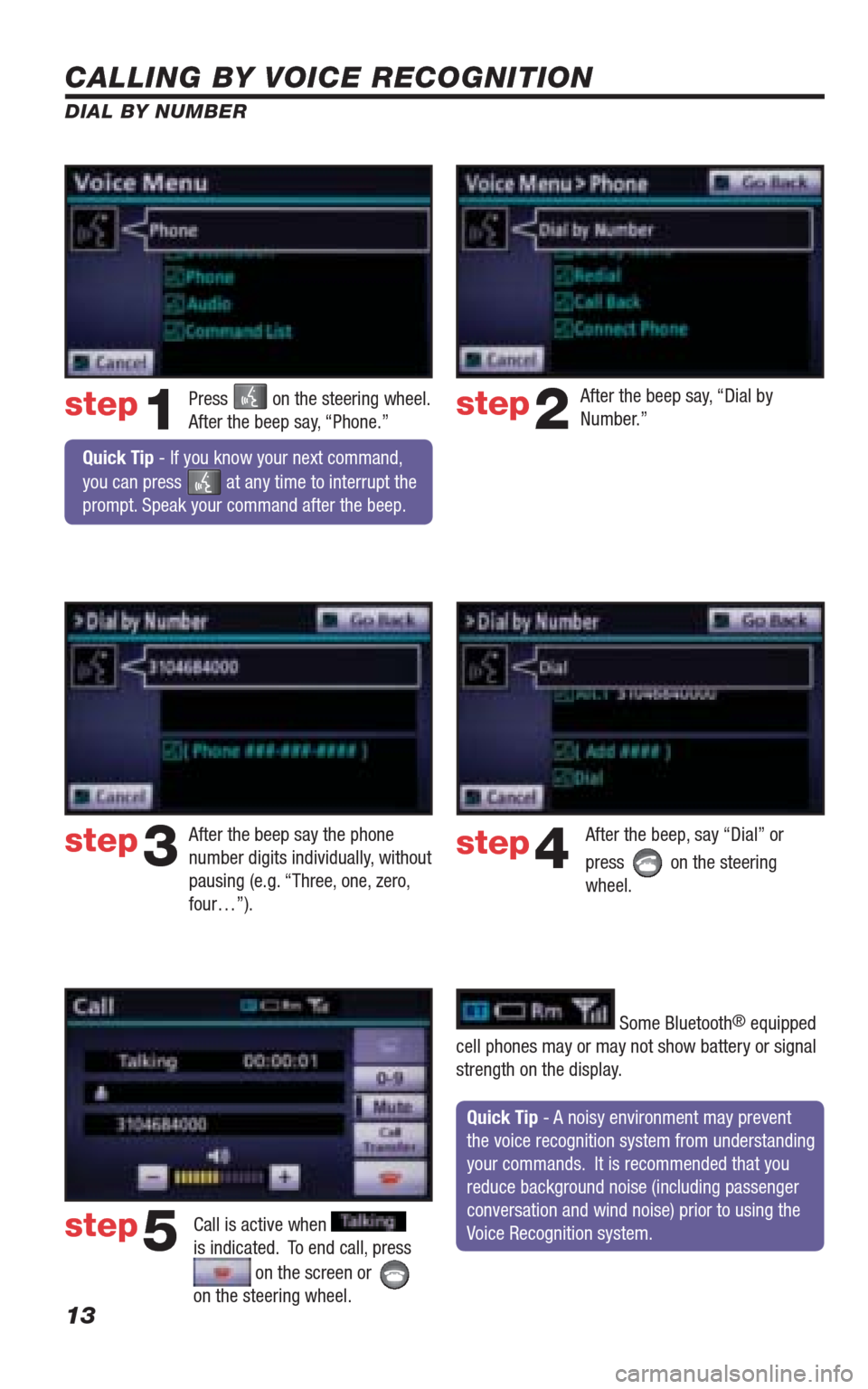

13
CALLING BY VOICE RECOGNITION
After the beep say, “Dial by
Number.”
Call is active when
is indicated. To end call, press
on the screen or
on the steering wheel.
step2
step3
step5
Press on the steering wheel.
After the beep say, “Phone.”step1
After the beep say the phone
number digits individually, without
pausing (e.g. “Three, one, zero,
four…”).After the beep, say “Dial” or
press
on the steering
wheel. step4
Quick Tip - A noisy environment may prevent
the voice recognition system from understanding
your commands. It is recommended that you
reduce background noise (including passenger
conversation and wind noise) prior to using the
Voice Recognition system.
Quick Tip - If you know your next command,
you can press
at any time to interrupt the
prompt. Speak your command after the beep.
Some Bluetooth® equipped
cell phones may or may not show battery or signal
strength on the display. DIAL BY NUMBER
413614M2.indd 138/20/09 10:30:56 AM

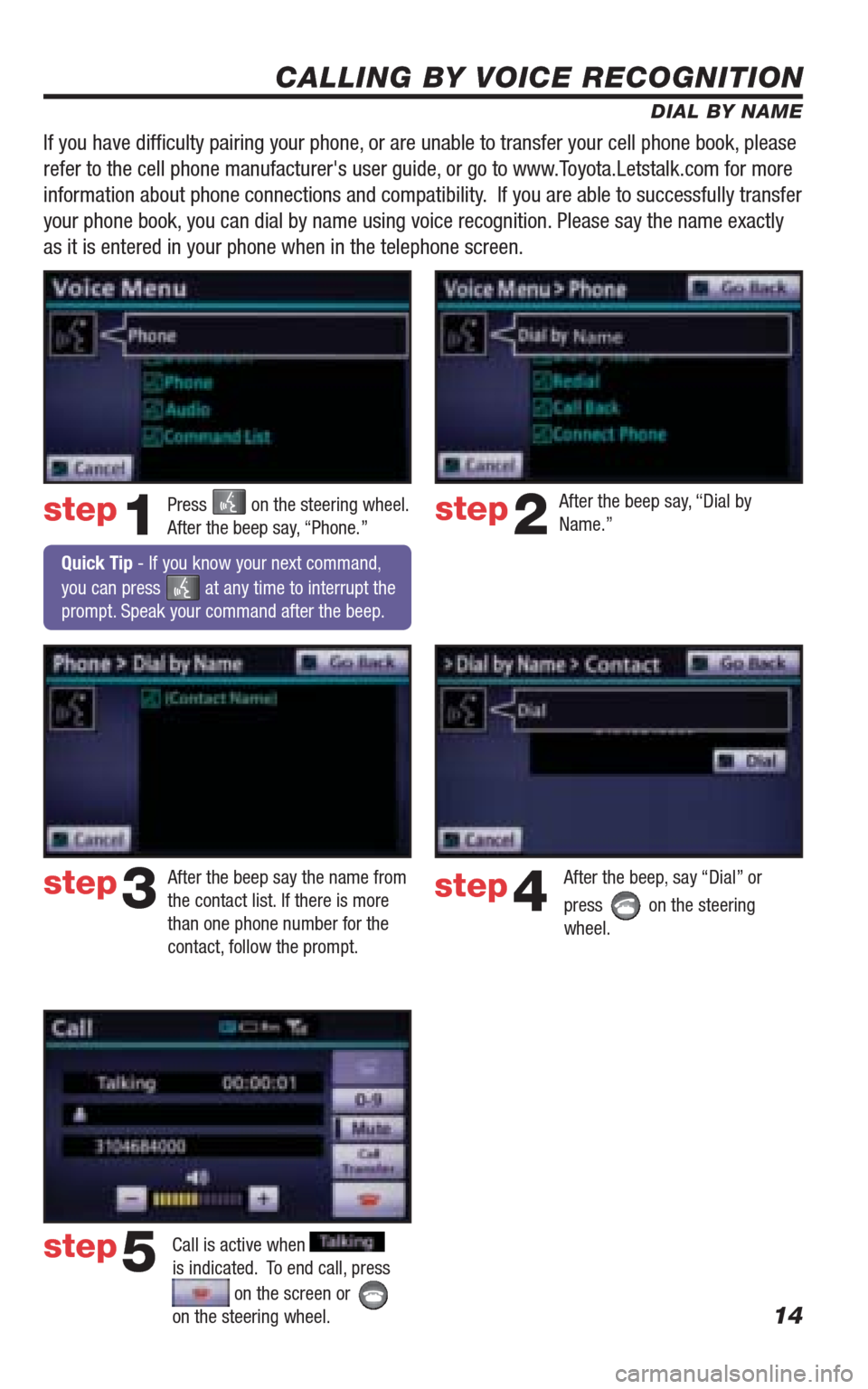

14
CALLING BY VOICE RECOGNITION
DIAL BY NAME
Press on the steering wheel.
After the beep say, “Phone.”step1
Quick Tip - If you know your next command,
you can press
at any time to interrupt the
prompt. Speak your command after the beep.
After the beep say, “Dial by
Name.”step2
step3
After the beep say the name from
the contact list. If there is more
than one phone number for the
contact, follow the prompt.After the beep, say “Dial” or
press
on the steering
wheel. step4
Call is active when
is indicated. To end call, press
on the screen or
on the steering wheel.
step5
If you have diffi culty pairing your phone, or are unable to transfer your cell phone book, please
refer to the cell phone manufacturer's user guide, or go to www.Toyota.Letstalk.com for more
information about phone connections and compatibility. If you are able to successfully transfer
your phone book, you can dial by name using voice recognition. Please say the name exactly
as it is entered in your phone when in the telephone screen.
413614M2.indd 148/20/09 10:31:00 AM

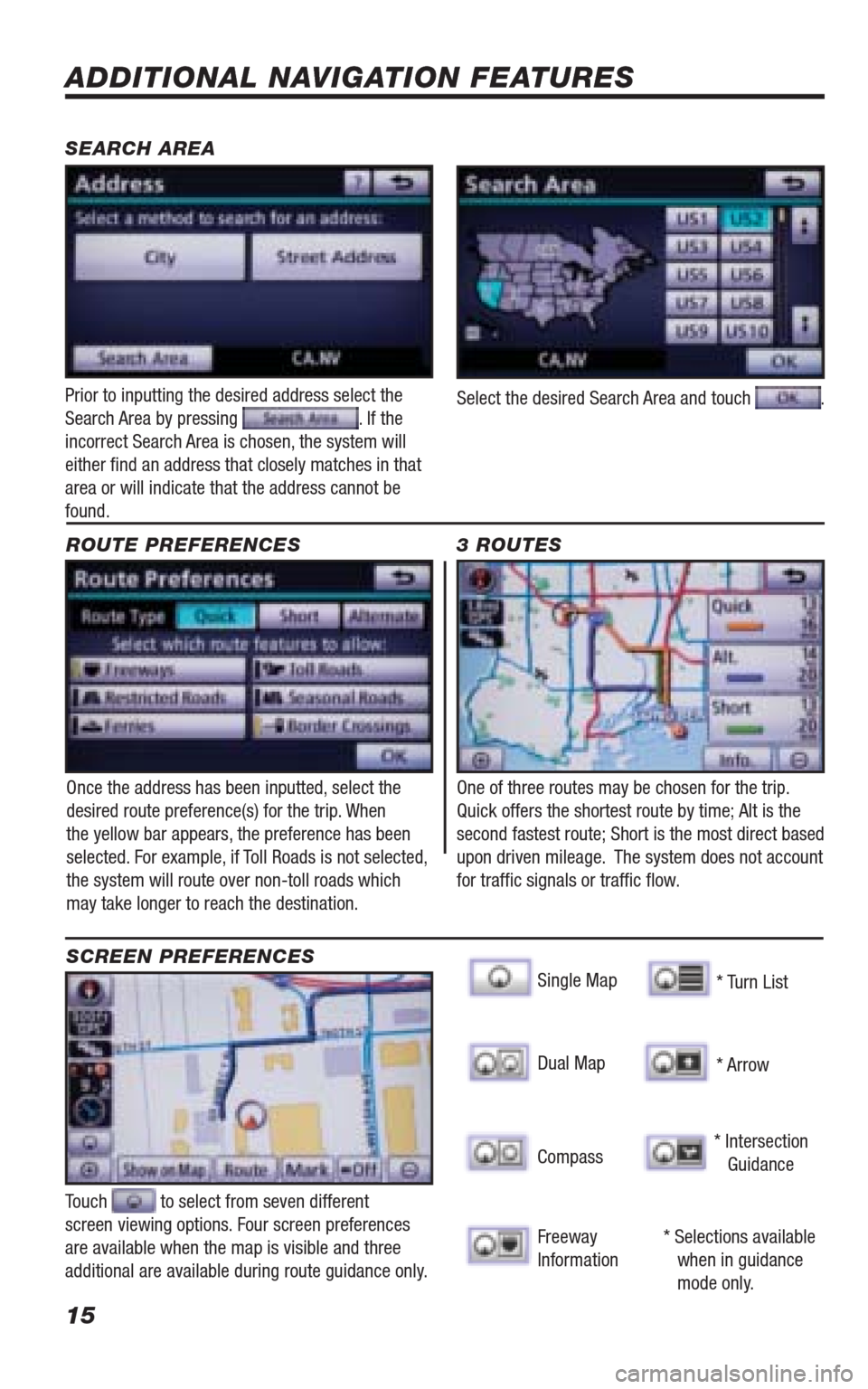

15
ADDITIONAL NAVIGATION FEATURES
Once the address has been inputted, select the
desired route preference(s) for the trip. When
the yellow bar appears, the preference has been
selected. For example, if Toll Roads is not selected,
the system will route over non-toll roads which
may take longer to reach the destination. ROUTE PREFERENCES
Touch to select from seven different
screen viewing options. Four screen preferences
are available when the map is visible and three
additional are available during route guidance only.
3 ROUTES
SCREEN PREFERENCES
One of three routes may be chosen for the trip.
Quick offers the shortest route by time; Alt is the
second fastest route; Short is the most direct based
upon driven mileage. The system does not account
for traffi c signals or traffi c fl ow.
Single Map SEARCH AREASinggle Map
* Selections available
when in guidance
mode only. Dual Map
Compass
Freeway
Information* Turn List
* Arrow
* Intersection
Guidance
Prior to inputting the desired address select the
Search Area by pressing . If the
incorrect Search Area is chosen, the system will
either fi nd an address that closely matches in that
area or will indicate that the address cannot be
found.Select the desired Search Area and touch .
413614M2.indd 158/20/09 10:31:03 AM

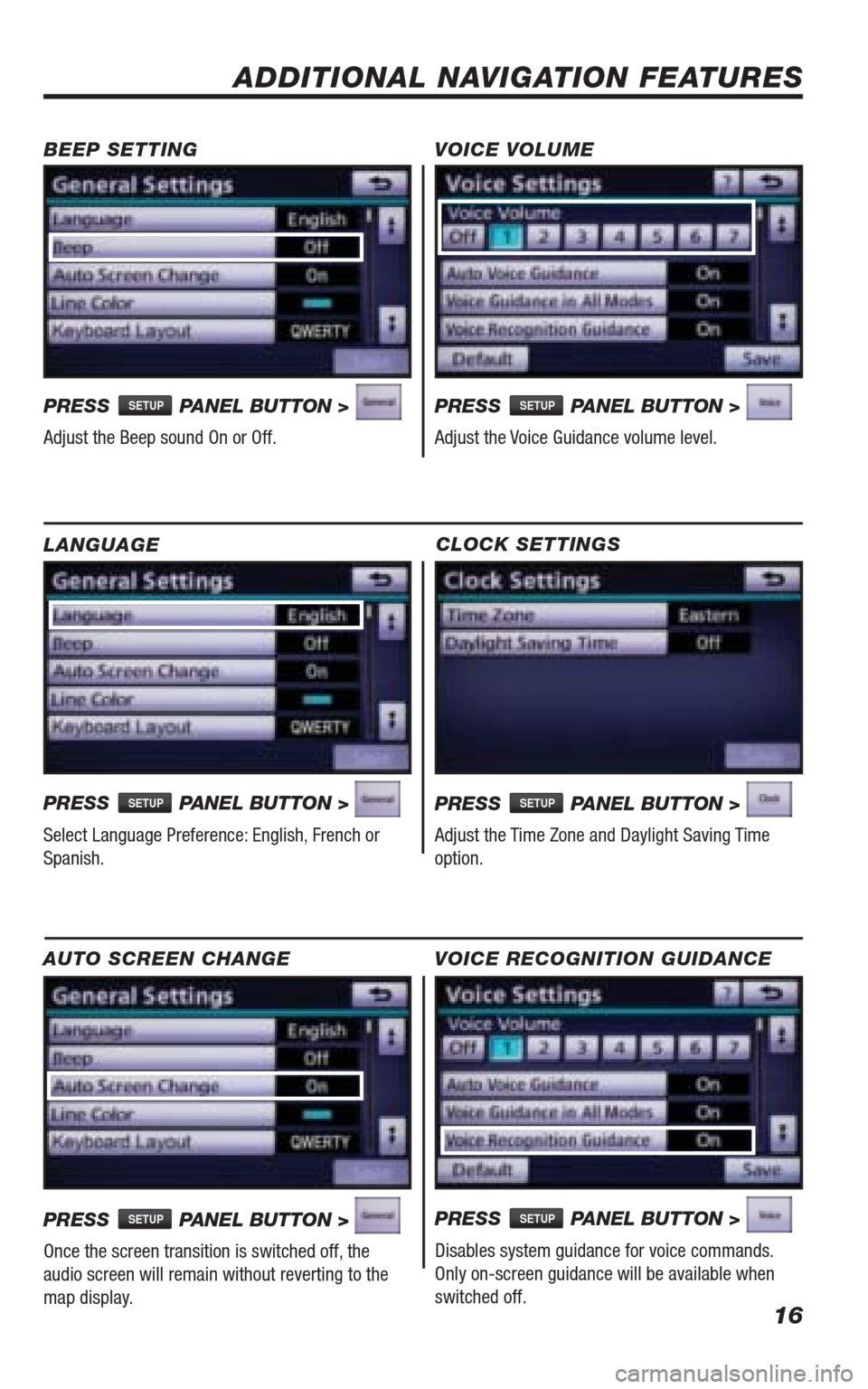

16
CLOCK SETTINGS
PRESS SETUP PANEL BUTTON >
Adjust the Time Zone and Daylight Saving Time
option.
ADDITIONAL NAVIGATION FEATURES
LANGUAGE
PRESS
SETUP PANEL BUTTON >
Select Language Preference: English, French or
Spanish. PRESS
SETUP PANEL BUTTON >
Adjust the Voice Guidance volume level. BEEP SETTING VOICE VOLUME
AUTO SCREEN CHANGE
PRESS SETUP PANEL BUTTON >
Once the screen transition is switched off, the
audio screen will remain without reverting to the
map display.PRESS
SETUP PANEL BUTTON >
Adjust the Beep sound On or Off.
PRESS SETUP PANEL BUTTON >
Disables system guidance for voice commands.
Only on-screen guidance will be available when
switched off. VOICE RECOGNITION GUIDANCE
413614M2.indd 168/20/09 10:31:06 AM

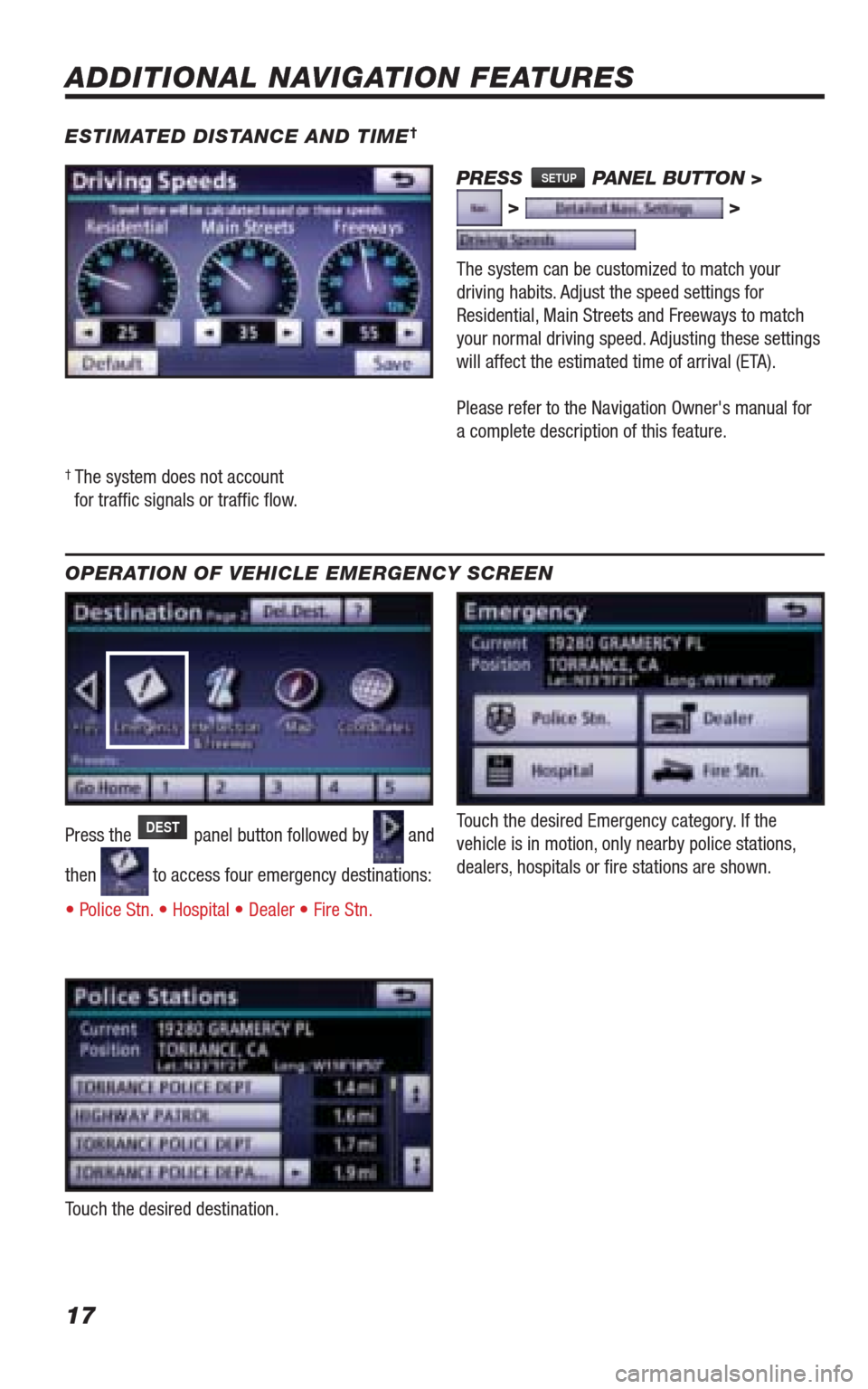

17
ESTIMATED DISTANCE AND TIME†
†
The system does not account
for traffi c signals or traffi c fl ow.
ADDITIONAL NAVIGATION FEATURES
OPERATION OF VEHICLE EMERGENCY SCREEN
Touch the desired Emergency category. If the
vehicle is in motion, only nearby police stations,
dealers, hospitals or fi re stations are shown. Press the DEST panel button followed by and
then
to access four emergency destinations:
• Police Stn. • Hospital • Dealer • Fire Stn.
Touch the desired destination.
The system can be customized to match your
driving habits. Adjust the speed settings for
Residential, Main Streets and Freeways to match
your normal driving speed. Adjusting these settings
will affect the estimated time of arrival (ETA).
Please refer to the Navigation Owner's manual for
a complete description of this feature.
PRESS SETUP PANEL BUTTON >
> >
413614M2.indd 178/20/09 10:31:10 AM

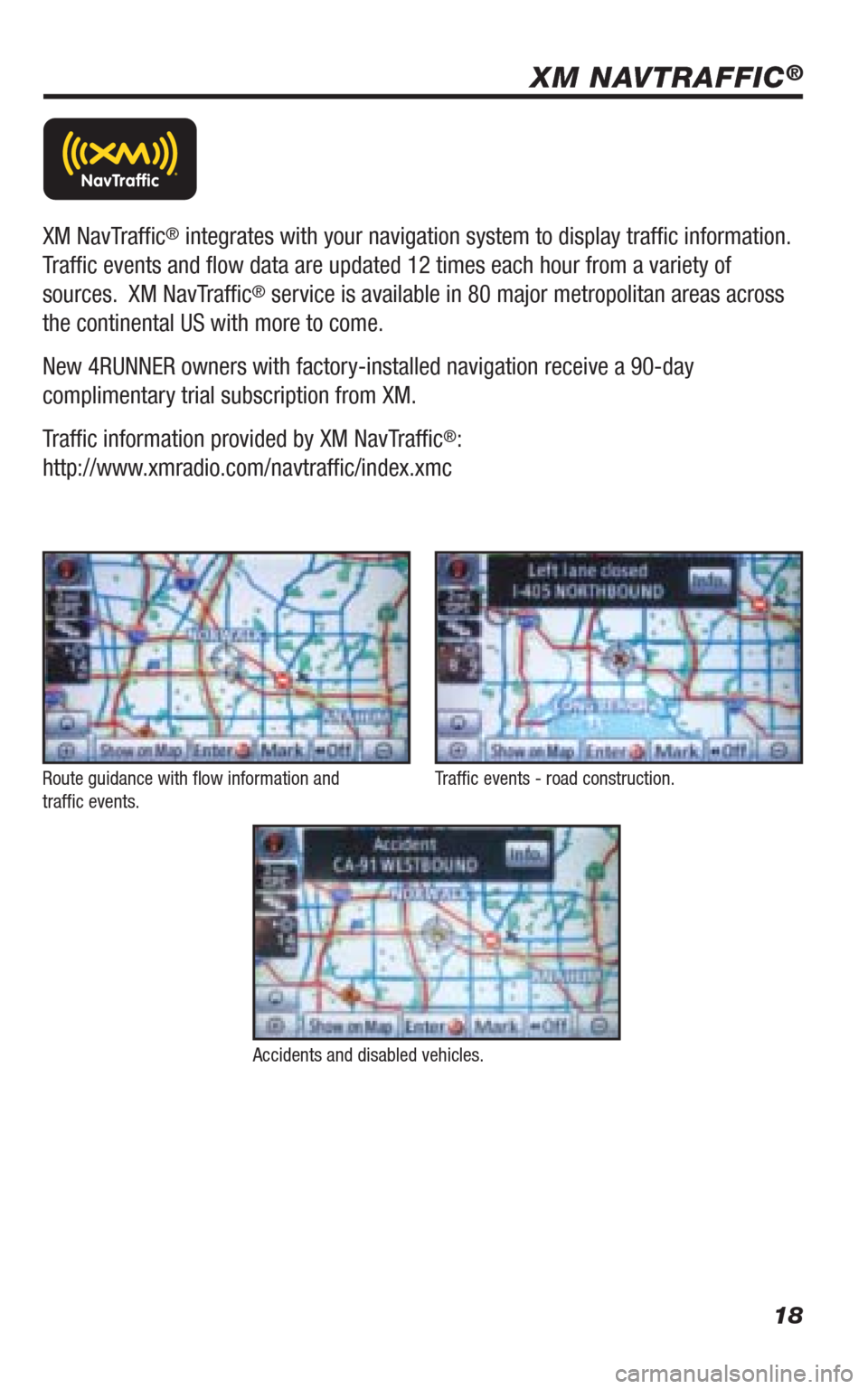

18
Route guidance with fl ow information and
traffi c events.
Accidents and disabled vehicles.Traffi c events - road construction.
XM NavTraffi c® integrates with your navigation system to display traffi c information.
Traffi c events and fl ow data are updated 12 times each hour from a variety of
sources. XM NavTraffi c
® service is available in 80 major metropolitan areas across
the continental US with more to come.
New 4RUNNER owners with factory-installed navigation receive a 90-day
complimentary trial subscription from XM.
Traffi c information provided by XM NavTraffi c
®:
http://www.xmradio.com/navtraffi c/index.xmc
XM NAVTRAFFIC®
413614M2.indd 188/20/09 10:31:15 AM

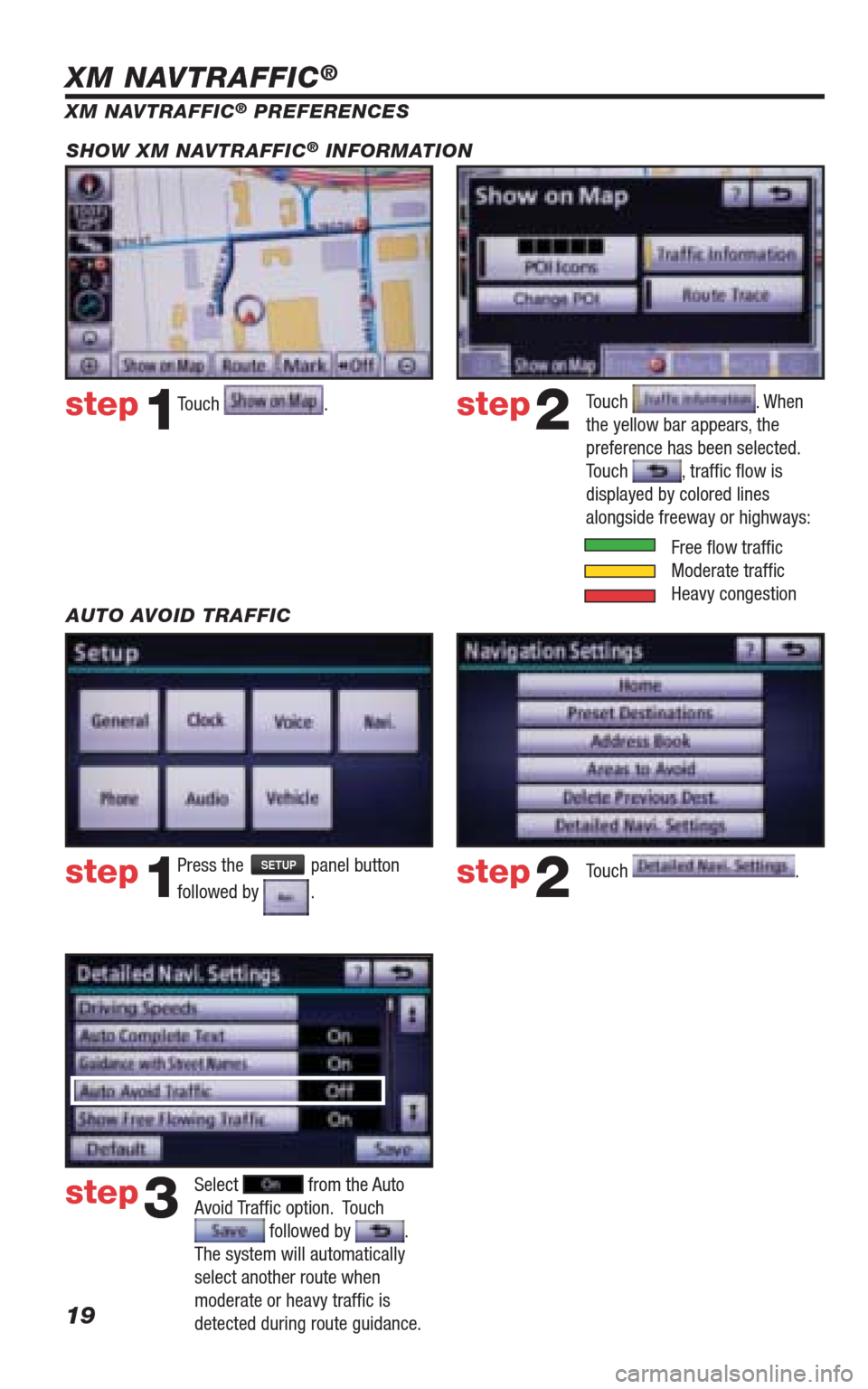

19
Touch .step1step2
XM NAVTRAFFIC® PREFERENCES
Touch
. When
the yellow bar appears, the
preference has been selected.
Touch
, traffi c fl ow is
displayed by colored lines
alongside freeway or highways: SHOW XM NAVTRAFFIC
® INFORMATION
Free fl ow traffi c
Moderate traffi c
Heavy congestion
Press the SETUP panel button
followed by
. step1step2Touch . AUTO AVOID TRAFFIC
step3
Select from the Auto
Avoid Traffi c option. Touch
followed by .
The system will automatically
select another route when
moderate or heavy traffi c is
detected during route guidance.
XM NAVTRAFFIC®
413614M2.indd 198/20/09 10:31:16 AM
