TOYOTA 4RUNNER 2010 N280 / 5.G Owners Manual

181
2-1. Driving procedures
2
When driving
4RUNNER_U
Hor n
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 86)
To sound the horn, press on or
close to the mark.
CTH21AS022

182
4RUNNER_U
2-2. Instrument cluster
Gauges and meters
Non-Optitron type meters
Optitron type meters

183
2-2. Instrument cluster
2
When driving
4RUNNER_U
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Display change button

P. 184
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Eco Driving Indicator Zone Display
P. 185
Odometer, trip meter and average fuel consumption display
P. 184
Shift position and shift range indicators
P. 173
Vo l t m e t e r
Displays the charge state

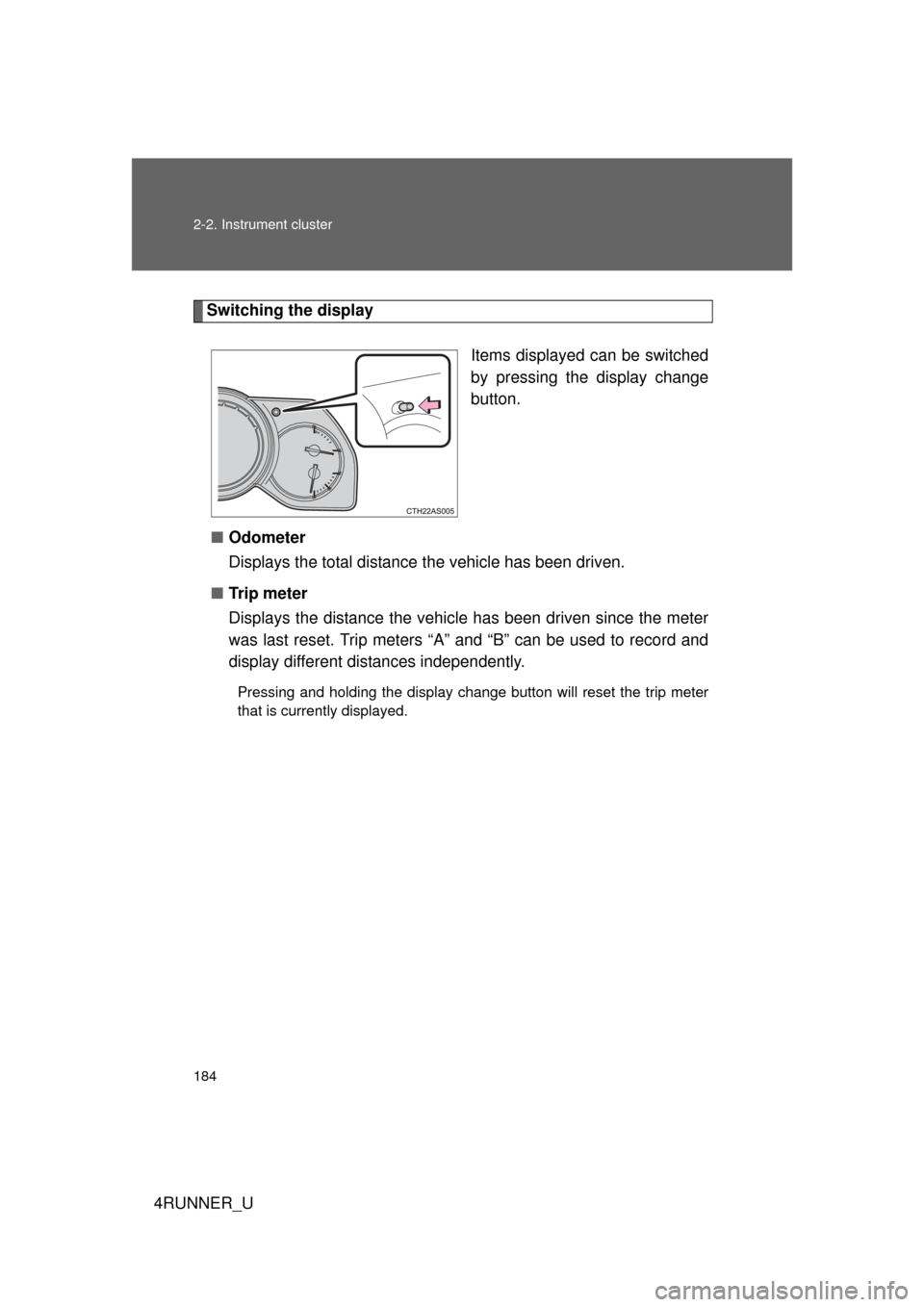

184 2-2. Instrument cluster
4RUNNER_U
Switching the displayItems displayed can be switched
by pressing the display change
button.
■ Odometer
Displays the total distance the vehicle has been driven.
■ Tr i p m e t e r
Displays the distance the vehicl e has been driven since the meter
was last reset. Trip meters “A” and “B” can be used to record and
display different distances independently.
Pressing and holding the display change button will reset the trip meter
that is currently displayed.

185
2-2. Instrument cluster
2
When driving
4RUNNER_U
■

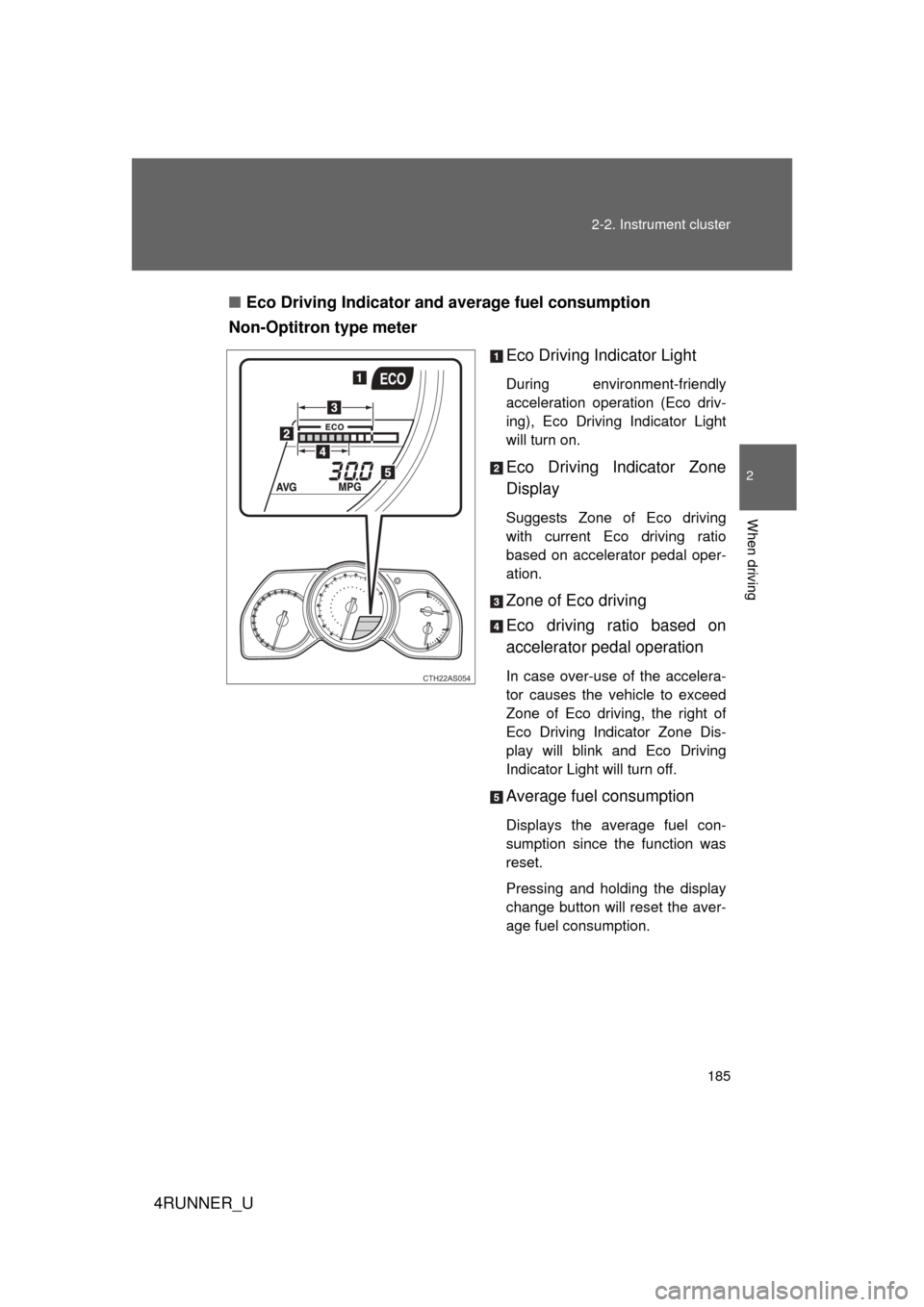

Eco Driving Indicator and average fuel consumption
Non-Optitron type meter
Eco Driving Indicator Light
During environment-friendly
acceleration operation (Eco driv-
ing), Eco Driving Indicator Light
will turn on.
Eco Driving Indicator Zone
Display
Suggests Zone of Eco driving
with current Eco driving ratio
based on accelerator pedal oper-
ation.
Zone of Eco driving
Eco driving ratio based on
accelerator pedal operation
In case over-use of the accelera-
tor causes the vehicle to exceed
Zone of Eco driving, the right of
Eco Driving Indicator Zone Dis-
play will blink and Eco Driving
Indicator Light will turn off.
Average fuel consumption
Displays the average fuel con-
sumption since the function was
reset.
Pressing and holding the display
change button will reset the aver-
age fuel consumption.
CTH22AS054

186 2-2. Instrument cluster

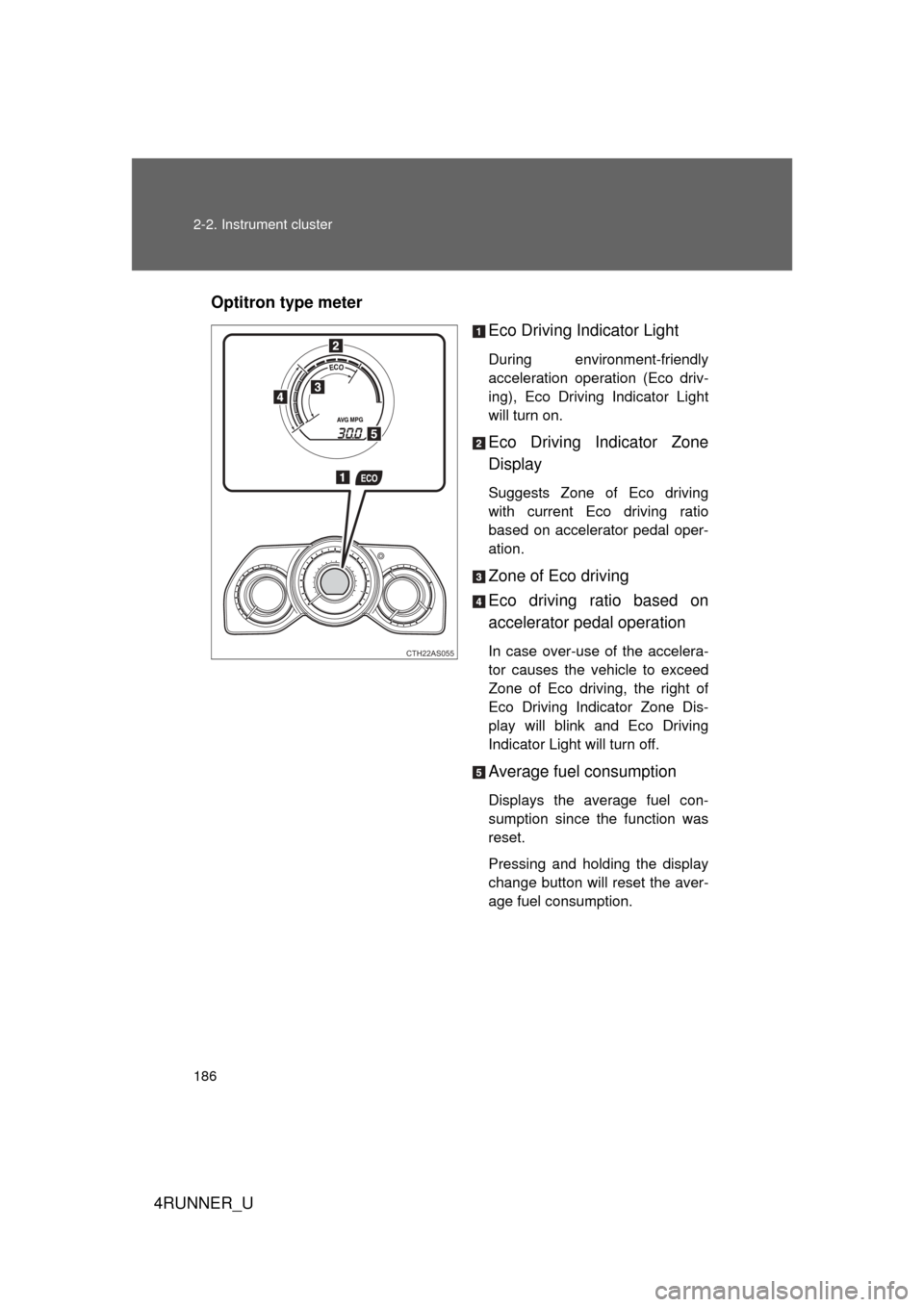

4RUNNER_UOptitron type meter
Eco Driving Indicator Light
During environment-friendly
acceleration operation (Eco driv-
ing), Eco Driving Indicator Light
will turn on.
Eco Driving Indicator Zone
Display
Suggests Zone of Eco driving
with current Eco driving ratio
based on accelerator pedal oper-
ation.
Zone of Eco driving
Eco driving ratio based on
accelerator pedal operation
In case over-use of the accelera-
tor causes the vehicle to exceed
Zone of Eco driving, the right of
Eco Driving Indicator Zone Dis-
play will blink and Eco Driving
Indicator Light will turn off.
Average fuel consumption
Displays the average fuel con-
sumption since the function was
reset.
Pressing and holding the display
change button will reset the aver-
age fuel consumption.
CTH22AS055

187
2-2. Instrument cluster
2
When driving
4RUNNER_U
■

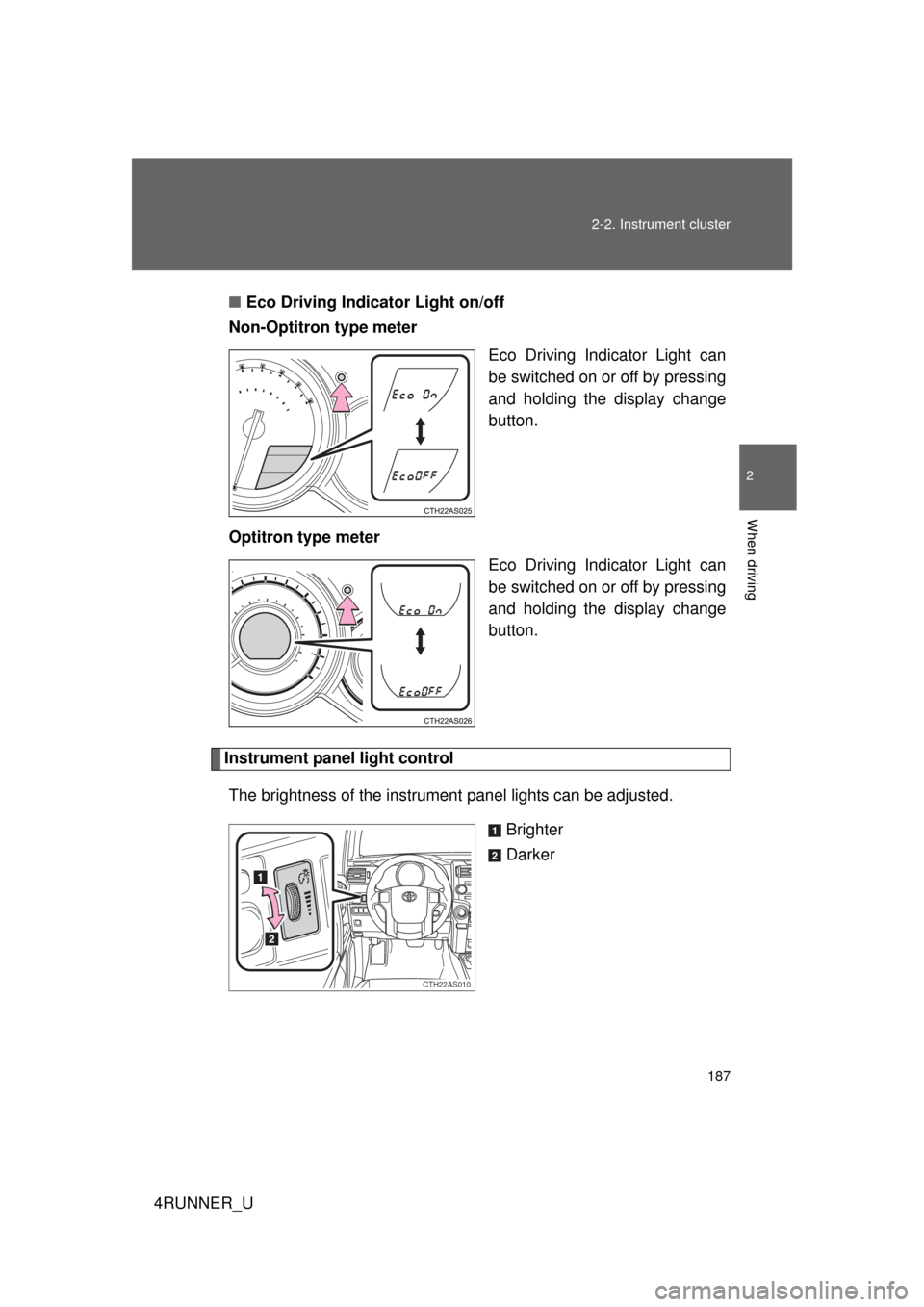

Eco Driving Indicator Light on/off
Non-Optitron type meter
Eco Driving Indicator Light can
be switched on or off by pressing
and holding the display change
button.
Optitron type meter Eco Driving Indicator Light can
be switched on or off by pressing
and holding the display change
button.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
CTH22AS010

188 2-2. Instrument cluster
4RUNNER_U
■The meters and display illuminate when (Optitron type meter)
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Eco Driving Indicator operates when
The vehicle is being driven with the shift lever in D.
■ When the average fuel consumption is reset
The average fuel consumption displayed on the accessory meter and “Past
Record” screen of the navigation system (if equipped) will be reset at the
same time.
■ The brightness of the instrument panel lights (Optitron type meter)
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control dial is turned fully upward.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 603)
■ While driving (Optitron type meter)
When the voltmeter indicates more than 19 V or less than 9 V, the battery
may be malfunctioning. Have your vehicle checked at your Toyota dealer.

189
2-2. Instrument cluster
2
When driving
4RUNNER_U

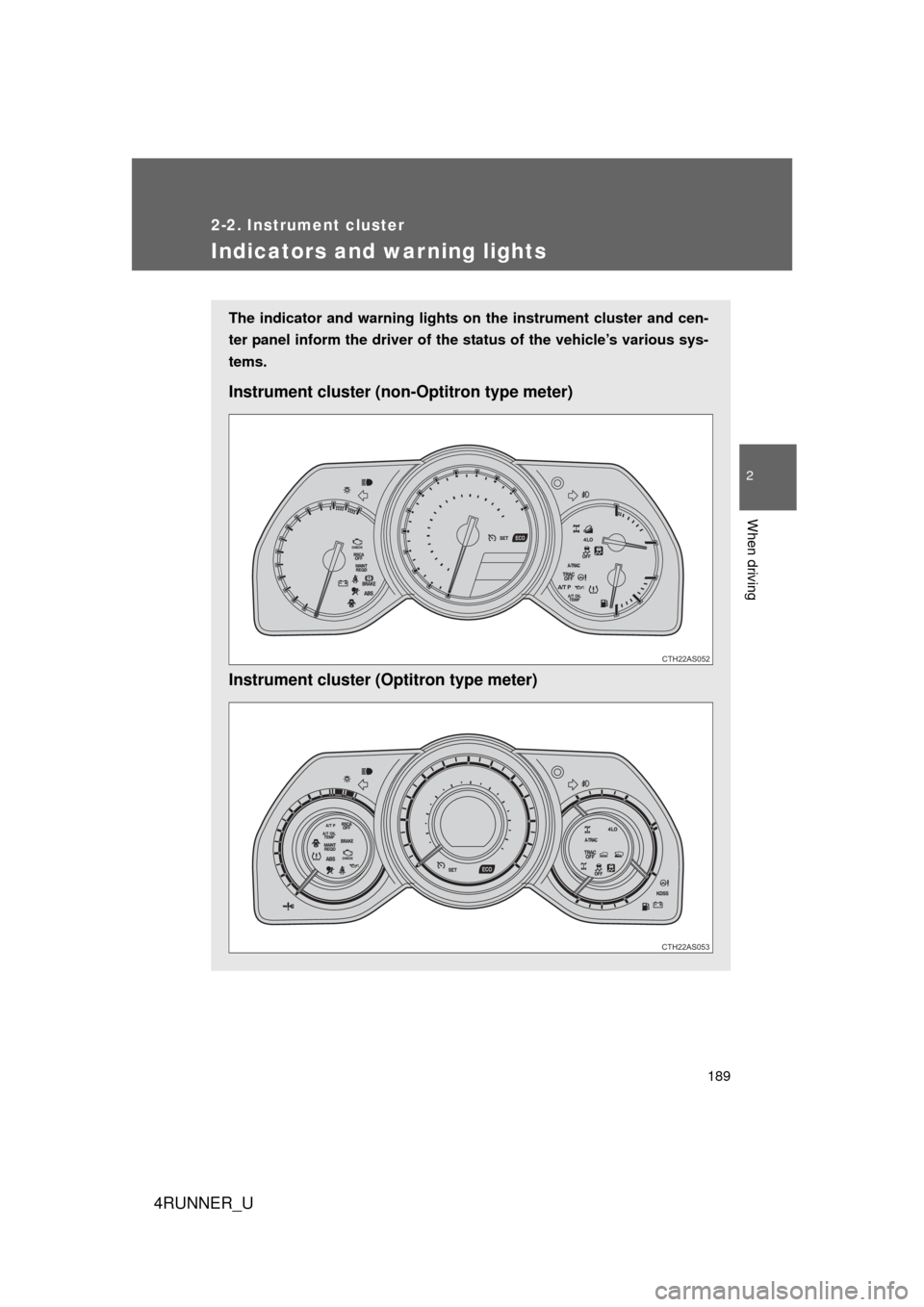

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster ( non-Optitron type meter)
Instrument cluster (Optitron type meter)
CTH22AS052
CTH22AS053

190 2-2. Instrument cluster
4RUNNER_U

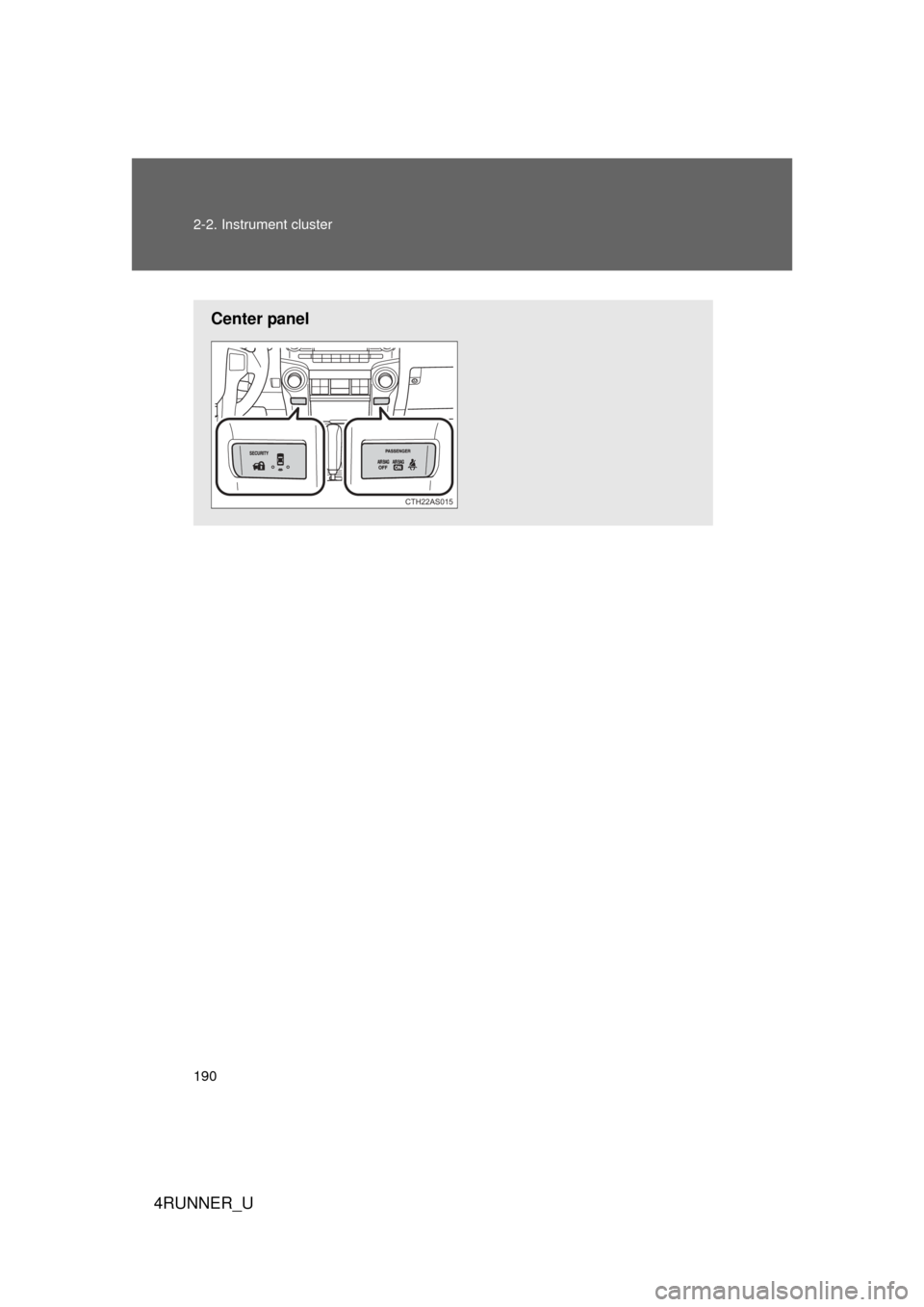

Center panel
CTH22AS015
