Page 21 of 665
4RUNNER_U
21
Vehicles without third row seats
A
CTHPIAS066
Grocery bag hooks P. 459
Cargo net hooks
Grocery bag hooks
P. 457
P. 459
Tool bag P. 578
Jack P. 578
Cargo hooks
Cargo net
hooks
P. 456
P. 457
Vehicles with third row seats
CTHPIAS067
Cargo net hooks
Grocery bag hooks
P. 457
P. 459
Tool bag P. 578
Jack P. 578
Cargo hooks
Cargo net
hooks
P. 456
P. 457
: If equipped
Page 22 of 665
4RUNNER_U
22
B
Vehicles without third row seats
CTHPIAS028
Grocery bag hooks P. 459
Cargo hooks
Cargo net hooks
P. 456
P. 457
Power outlets P. 439
Power outletsP. 436
Cargo net hooks
Grocery bag hooks P. 457
P. 459
Pictorial indexLuggage compartment
Page 23 of 665
4RUNNER_U
23
CTHPIAS029
B
: If equipped
Vehicles with third row seatsStorage compartment
P. 458
Power outletsP. 436
Power outlets P. 439
Cargo net hooks
Grocery bag hooks P. 457
P. 459
Cargo hooks
Cargo net hooks P. 456
P. 457
Page 24 of 665
4RUNNER_U
24
For your information
Main Owner’s Manual
Please note that this manual applies to all models and all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota vehi-
cles are currently available on the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products. Mod-
ification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the modification may
not be covered under warranty.
Page 25 of 665
4RUNNER_U
25
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle may
affect electronic systems such as the multi-port fuel injection system/sequen-
tial multi-port fuel injection system, cruise control system, anti-lock brake
system, SRS airbag system and seat belt pretensioner system, be sure to
check with your Toyota dealer for precautionary measures or special instruc-
tions regarding installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Page 26 of 665
4RUNNER_U
26
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to
children.
Page 27 of 665
4RUNNER_U
27
Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,etc.) used to operate switches and other
devices.
Indicates the outcome of an operation (e.g. a lid opens).
Page 28 of 665
4RUNNER_U
28
Page 29 of 665

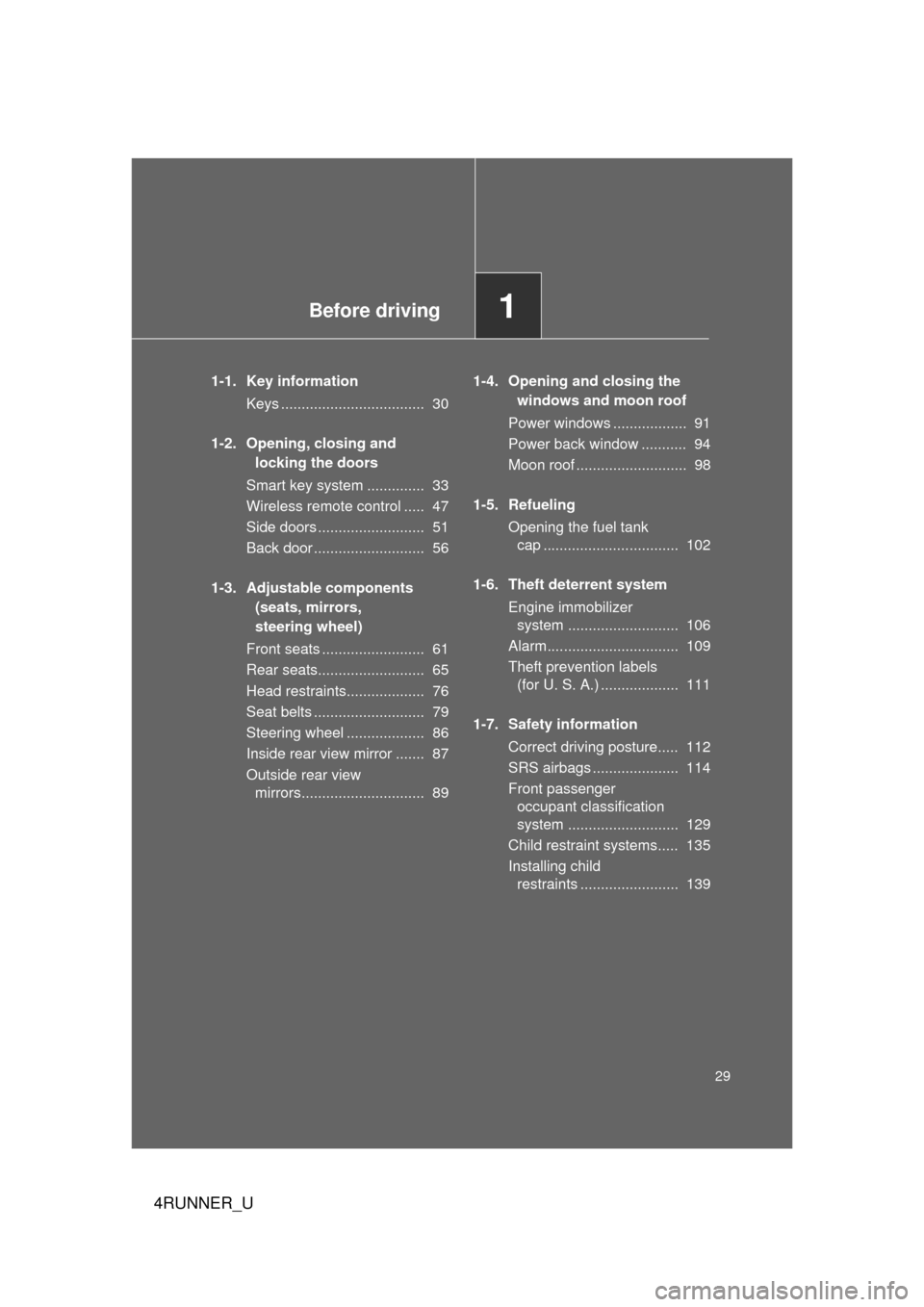

Before driving1
29
4RUNNER_U
1-1. Key informationKeys ................................... 30
1-2. Opening, closing and locking the doors
Smart key system .............. 33
Wireless remote control ..... 47
Side doors .......................... 51
Back door ........................... 56
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 61
Rear seats.......................... 65
Head restraints................... 76
Seat belts ........................... 79
Steering wheel ................... 86
Inside rear view mirror ....... 87
Outside rear view mirrors.............................. 89 1-4. Opening and closing the
windows and moon roof
Power windows .................. 91
Power back window ........... 94
Moon roof ........................... 98
1-5. Refueling Opening the fuel tank cap ................................. 102
1-6. Theft deterrent system Engine immobilizer system ........................... 106
Alarm................................ 109
Theft prevention labels (for U. S. A.) ................... 111
1-7. Safety information Correct driving posture..... 112
SRS airbags ..................... 114
Front passenger occupant classification
system ........................... 129
Child restraint systems..... 135
Installing child restraints ........................ 139
Page 30 of 665
30
4RUNNER_U

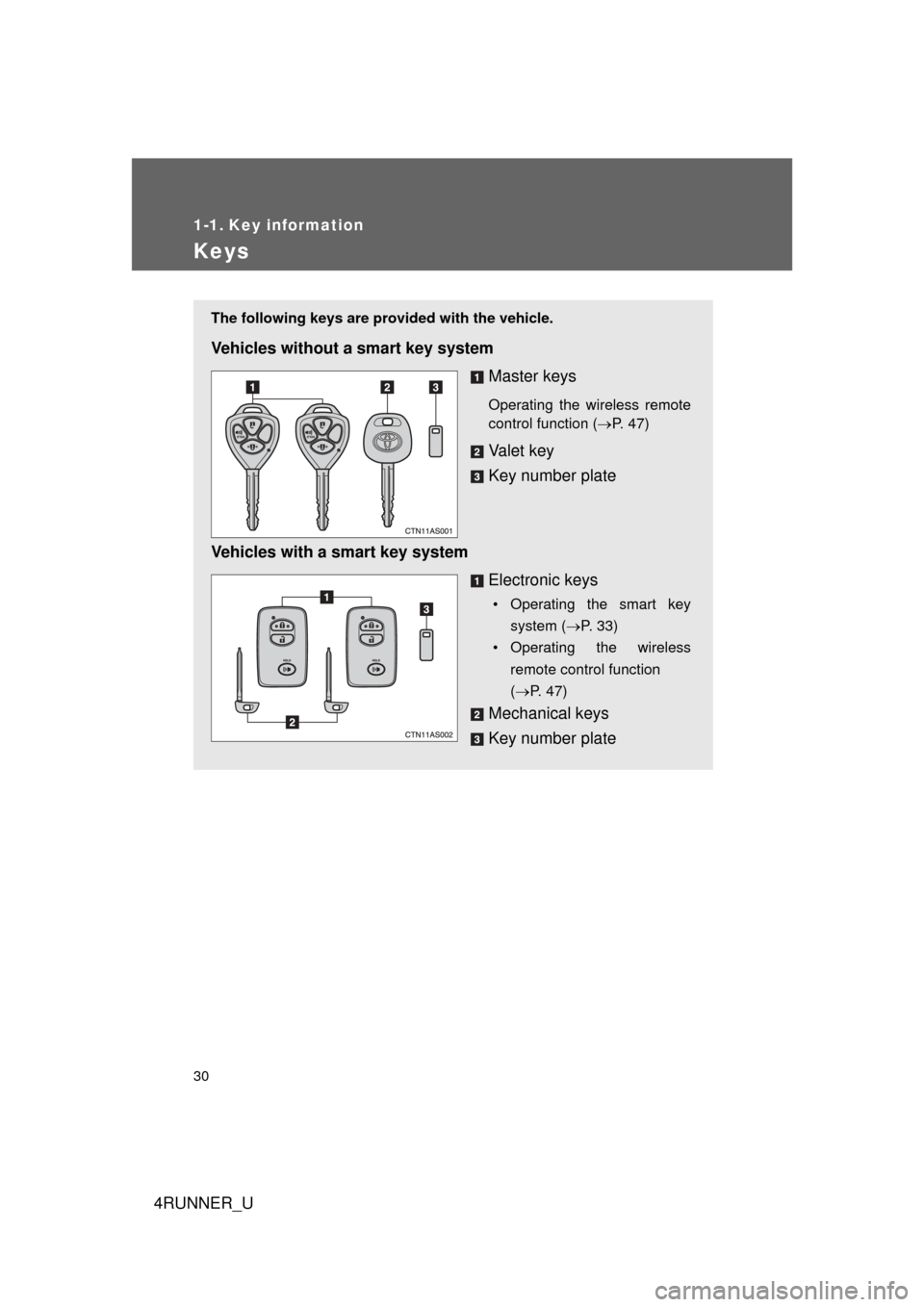

1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without a smart key system
Master keys
Operating the wireless remote
control function (P. 47)
Va l e t k e y
Key number plate
Vehicles with a smart key system Electronic keys
• Operating the smart keysystem ( P. 33)
• Operating the wireless remote control function
(P. 47)
Mechanical keys
Key number plate
