TOYOTA 4RUNNER 2010 N280 / 5.G Manual PDF

71
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U
Moving a second row seat for access to the third row seats (vehicles
with third row seats)
■Getting in the vehicl e (right side only)
Pull up the lever and fold down
the seatback. The seat will slide
forward.
Move the seat to the front-most
position.
■ Getting out of the vehicle (right side only)
Lift the lever on the back of the
seatback and fold down the seat-
back. The seat will slide forward.
Move the seat to the front-most
position.
■ After passengers have entered/exited the vehicle
Lift up the seatback and slide th e seat backward until it locks.
CTH13AS057
CTH13AS058

72 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U
Folding down the third row seats (v ehicles with third row seats)
■ Before folding down the third row seats
Pass the seat belts through the
seat belt hangers and secure the
seat belt plates.
This prevents the shoulder belts
from being damaged.
Make sure that the seat belts are
removed from the hangers before
using them.
■Folding down the third row seats
From inside
Pull the strap to fold down the
head restraint.
Pull the lever up.
The seat cushion will slide back-
ward.
CTH13AS072
CTH13AS025
STEP 1
CTH13AS026
STEP 2

73
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U Pull the lever to unlock the seat-
back and then fold the seatback
down.
From outside Pull the strap to fold down the
head restraint.
Pull the lever up.
The seat cushion will slide back-
ward and the seatback will be
unlocked.
Fold the seatback down.
CTH13AS027
STEP 3
CTH13AS028
STEP 1
CTH13AS029
STEP 2
CTH13AS064
STEP 3

74 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U■
Returning the third row seats
As the seat cushions cannot be pulled forward from outside, this
operation can only be performed from inside.
Raise the seatbacks to their orig-
inal positions.
Make sure they are locked
securely.
Pull the seat cushions forward.
Raise the head restraints.
CTH13AS061
STEP 1
CTH13AS062
STEP 2
CTH13AS063
STEP 3

75
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U
CAUTION
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
■ Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the shoul-
der belt, increasing the risk of death or serious injury in the event of\
an acci-
dent.
Adjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
■ After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.

76
1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U

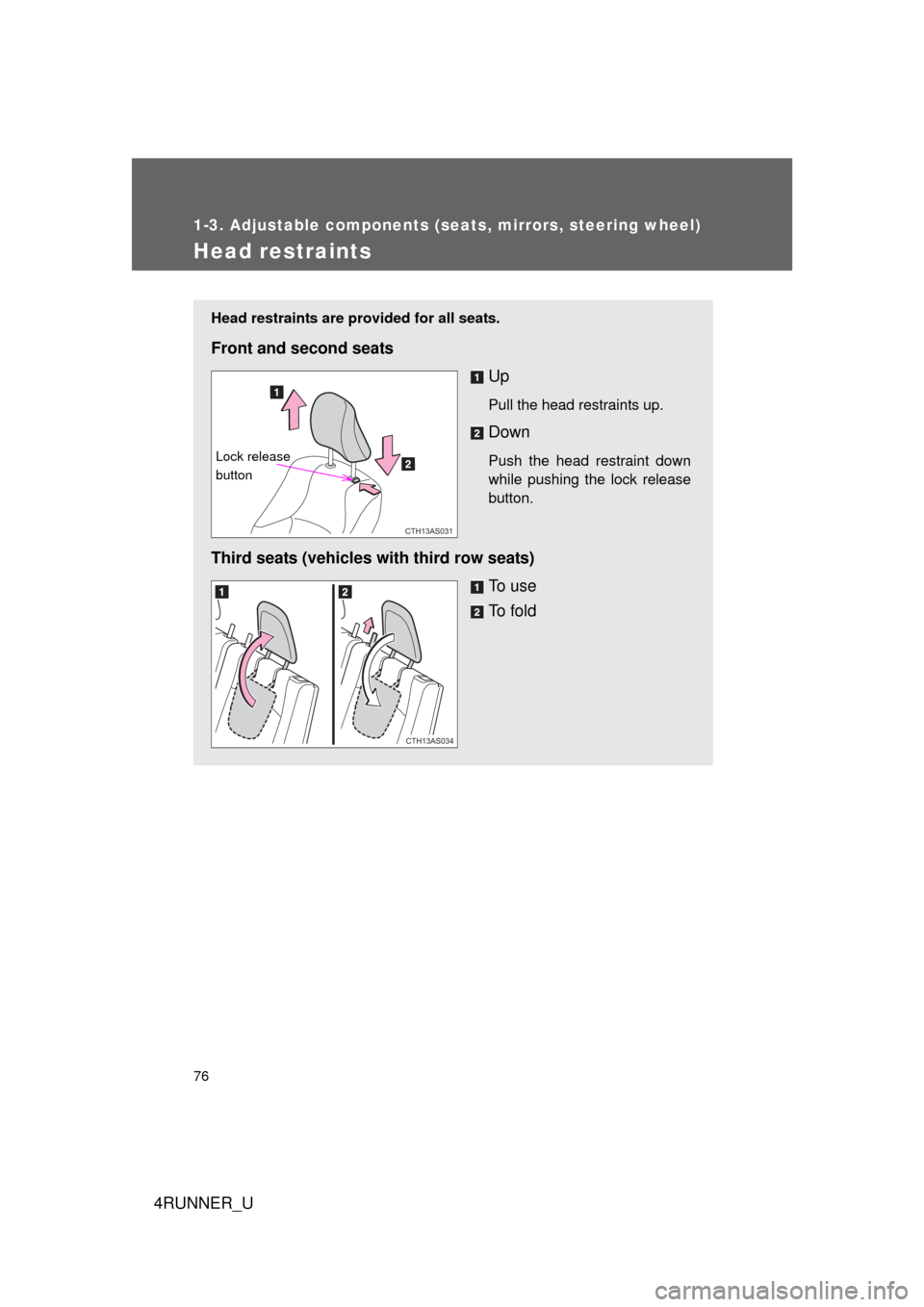

Head restraints
Head restraints are provided for all seats.
Front and second seatsUp
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Third seats (vehicles with third row seats)To u s e
To f o l d
CTH13AS031
Lock release
button
CTH13AS034

77
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
4RUNNER_U
■Removing the head restraints (except third row seats)
■ Installing the head restra ints (except third row seats)
■ Adjusting the height of the head restraints
■ Adjusting the second cen ter seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Pull the head restraint up while pressing
the lock release button.
CTH13AS036
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
CTH13AS037
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
CTH13AS035

78 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

79
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
4RUNNER_U

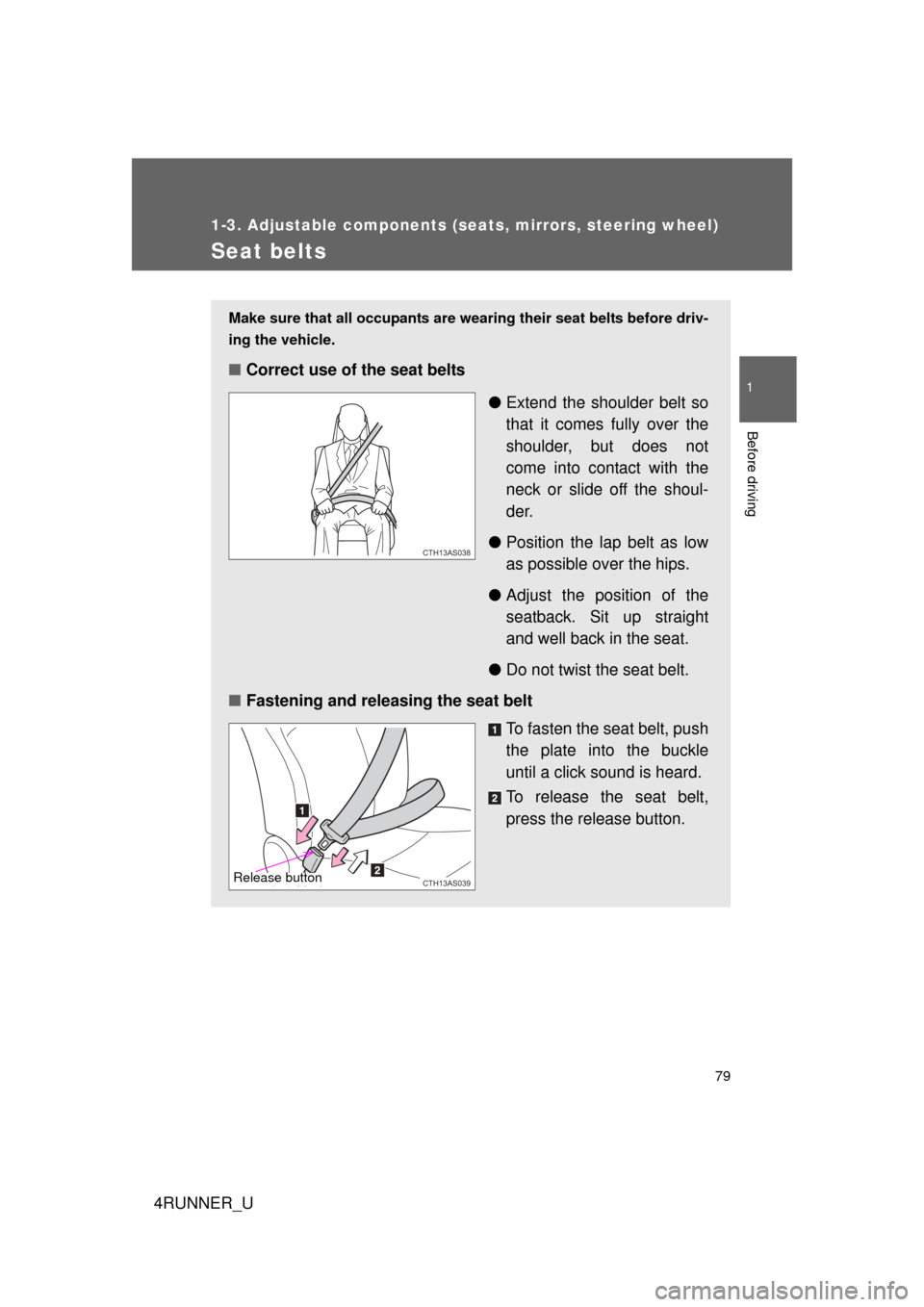

Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
● Position the lap belt as low
as possible over the hips.
● Adjust the position of the
seatback. Sit up straight
and well back in the seat.
● Do not twist the seat belt.
■ Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
CTH13AS038
CTH13AS039Release button

80 1-3. Adjustable components (seats, mirrors, steering wheel)
4RUNNER_U

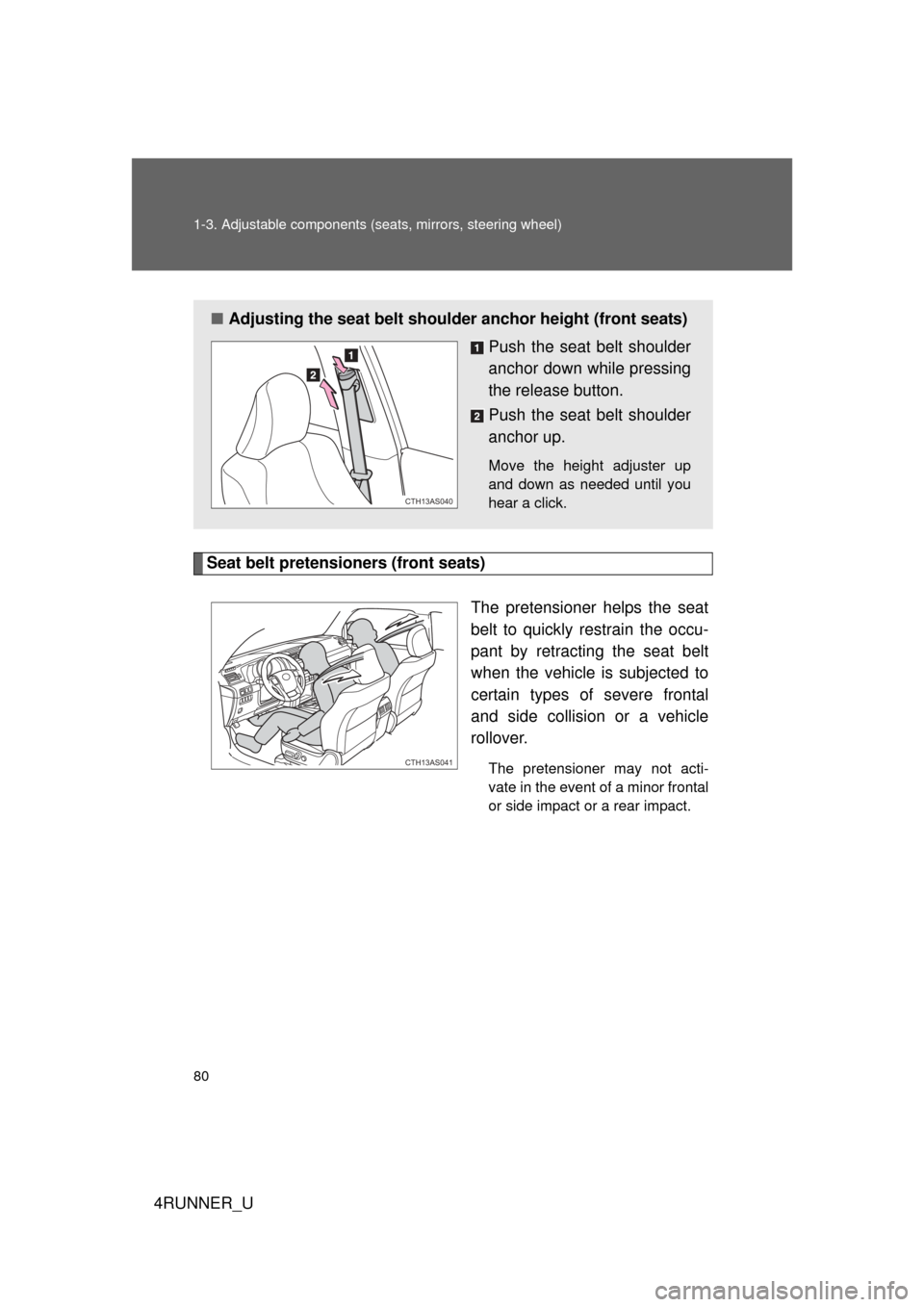

Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
and side collision or a vehicle
rollover.
The pretensioner may not acti-
vate in the event of a minor frontal
or side impact or a rear impact.
■Adjusting the seat belt shoulde r anchor height (front seats)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.
CTH13AS040
CTH13AS041
