!Awordaboutsafevehicleoperations ThisQuick Reference Guideis a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
TheQuick Reference Guideis not intended as a substitute for
theOwner’s Manuallocated in the vehicle’s glove box. We
strongly encourage you to review theOwner’s Manualand
supplementary manuals so you will have a better understanding
of the vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new 4Runner.
ThisQuick Reference Guideis not a full description of
4Runner operations. Every 4Runner owner should review the
Owner’s Manualthat accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout theOwner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in thisQuick Reference Guideis current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Doors-Child safety locks
Rear door
Sparetire&tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end through the opening in the bumper, and into
the lowering screw.
(3) Turn the jack handle counterclockwise.
Refer to theOwner’s Manualfor tire changing and jack positioning
procedures.
Tool bag
Jack
(1)
(2)
(3)
Spare tire

1
Engine maintenance8Fuel tank door and cap 6Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3
Keyless entry16Smart Key system17
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions1,29Automatic Transmission 9
Bluetooth®audio 23Clock 14Cruise control 17Four-wheel drive 10Garage door opener (HomeLink®)319iPod®/USB/AUX audio jack 21Light control-Instrument panel15Lights1& turn signals 16Moonroof114Parking brake 9Power outlets-12V DC 23Power outlets-120V AC 22Seat adjustments-Front 11Seat adjustments-Second row seats 11Seat heaters18Seats-Folding down second row seats 12Seats-Head restraints 13Seats-Returning third row seats 13Seats-Stowing third row seats 13Telephone controls (Bluetooth®)22Tilt and telescopic steering wheel 10VSC OFF button 15Windows114Window-Back window115
Windshield wipers & washers17
Door locks24Doors-Child safety locks 25Seat belts 24Seat belts-Shoulder belt anchor 24Sparetire&tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

Power rearview mirror controls
Instrument panel light control
Intuitive parking assist switch and indicator
1
Tilt and telescopic steering lock release
“RSCA OFF” (Roll Sensing of Curtain shield Airbags “OFF”) switch
120V AC Power outlet ON/OFF switch
1
Windshield wiper de-icer switch1
Headlight, turn signal and front fog light1control
Wiper and washer controls
Accessory meter/Outside temperature display
Emergency flasher switch
Audio system
1or navigation system2
Back window and outside rearview mirror defoggers switch
Front passenger seat belt reminder light
Front passenger occupant classification indicator
Engine immobilizer/Theft deterrent system indicator
1
12V DC Power outlet
2
OVERVIEW
Instrument panel
Steering wheel controls
Center console box
Without Smart Key system
With Smart Key systemManual Air

4
OVERVIEW
Low Tire Pressure Warning1
Open door warning1
Airbag SRS warning1
Tachometer
Speedometer
Display change button
Engine coolant temperature
Fuel gauge
Eco driving indicator zone display
Odometer, trip meter and average fuel consumption display
Shift position and shift range indicators
Vo l t m e t e r
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Indicator symbols
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Optitron type meters
AIR BAG ON and AIR BAG OFF indicator
Turn signal indicatorHeadlight low/high beam indicator
1For details, refer to “If a warning light turns on or a warning buzzer sounds...” Section 5-2,
2010 Owner’s Manual.
2For details, see “SRS airbags” Section 1-7, 2010 Owner’s Manual.
Low fuel level warning1
Non-Optitron type meters

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Automatic Transmission fluid temperature warning1
Crawl Control indicator
Front fog light indicator
Four-wheel drive indicator
3
Low speed four-wheel drive indicator3
Center differential lock indicator3
Slip indicator1
Vehicle Stability Control OFF indicator
Downhill Assist Control indicator AUTO Limited Slip Differential indicator
Cruise control/Cruise control SET indicator4
Roll Sensing of Curtain shield Airbag OFF indicator2
Engine immobilizer/Theft deterrent system indicator
Anti-lock Brake System warning
1
3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2010 Owner’s Manual.4If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.
Multi-terrain select
Rear differential lock indicator Active traction control indicator
Power steering system warning1
Kinetic Dynamic Suspension System indicator1
Unengaged Park warning light1
Smart Key system warning
Intuitive parking assist indicator
Eco driving indicator light Traction Control OFF indicator

14
FEATURES/OPERATIONS

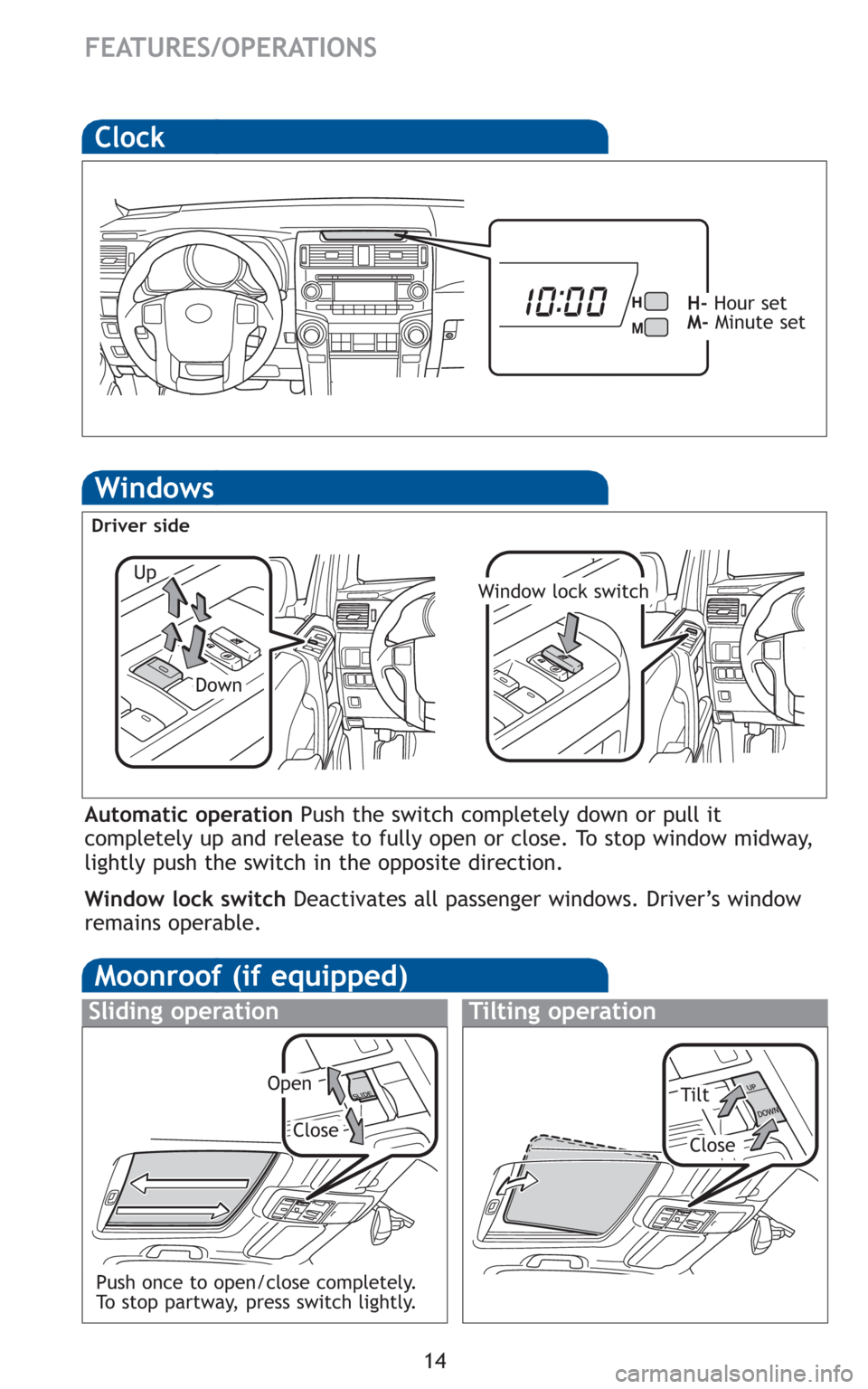

Clock
H-Hour set
M-Minute set
Windows
Driver side
Automatic operationPush the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switchDeactivates all passenger windows. Driver’s window
remains operable.
Up
Down
Window lock switch
Moonroof (if equipped)
Sliding operationTilting operation
Open
CloseClose
Tilt
Push once to open/close completely.
To stop partway, press switch lightly.

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Light control-Instrument panel
Operating from inside

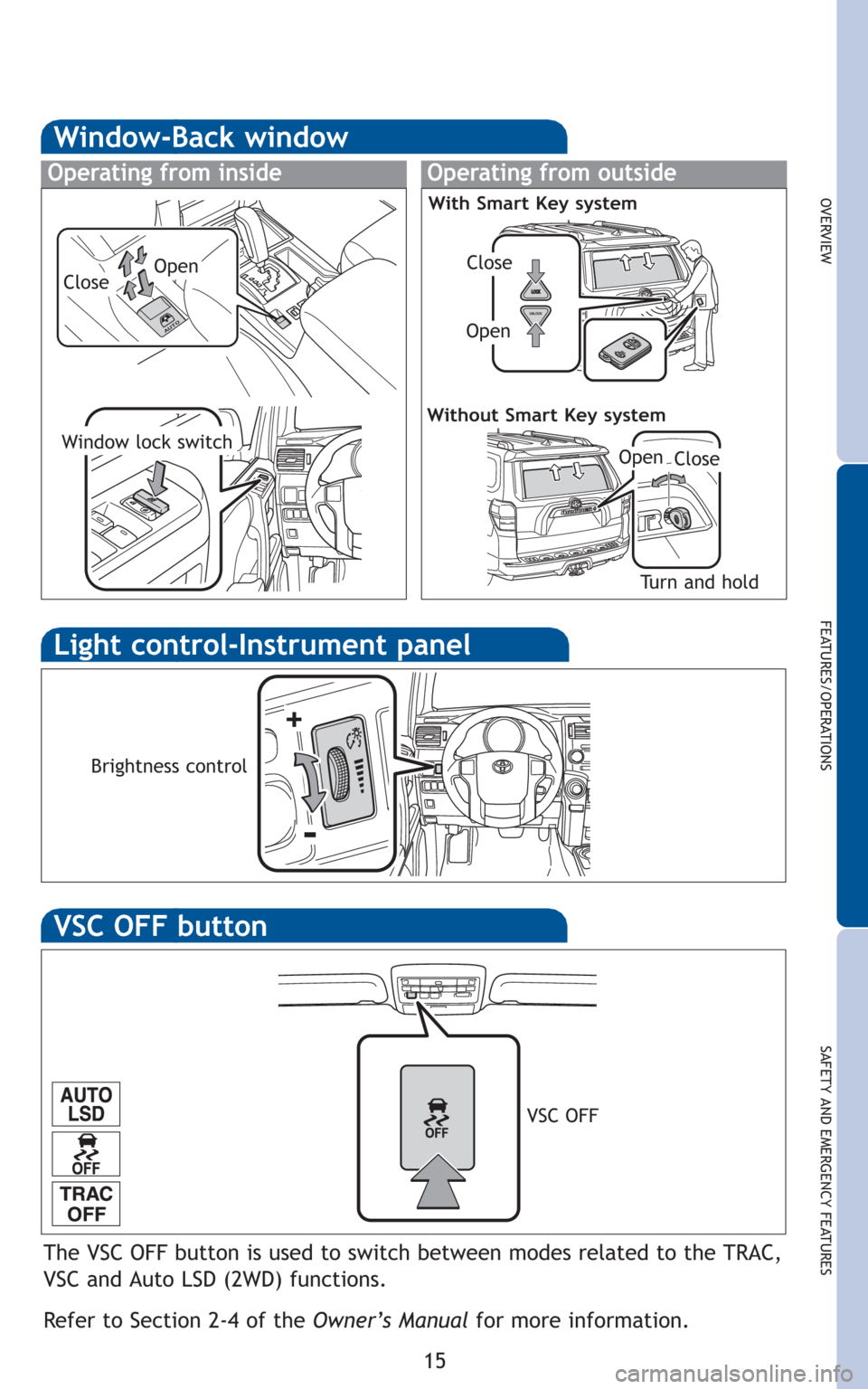

Window-Back window
Operating from outside
Window lock switch
OpenClose
Turn and hold
CloseOpen
With Smart Key system
Without Smart Key system
Close
Open
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD (2WD) functions.
Refer to Section 2-4 of theOwner’s Manualfor more information.
VSC OFF
VSC OFF button
Brightness control
+
-

16
FEATURES/OPERATIONS
Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Right turn
Tu r n Lane change
Lane change
Left turn

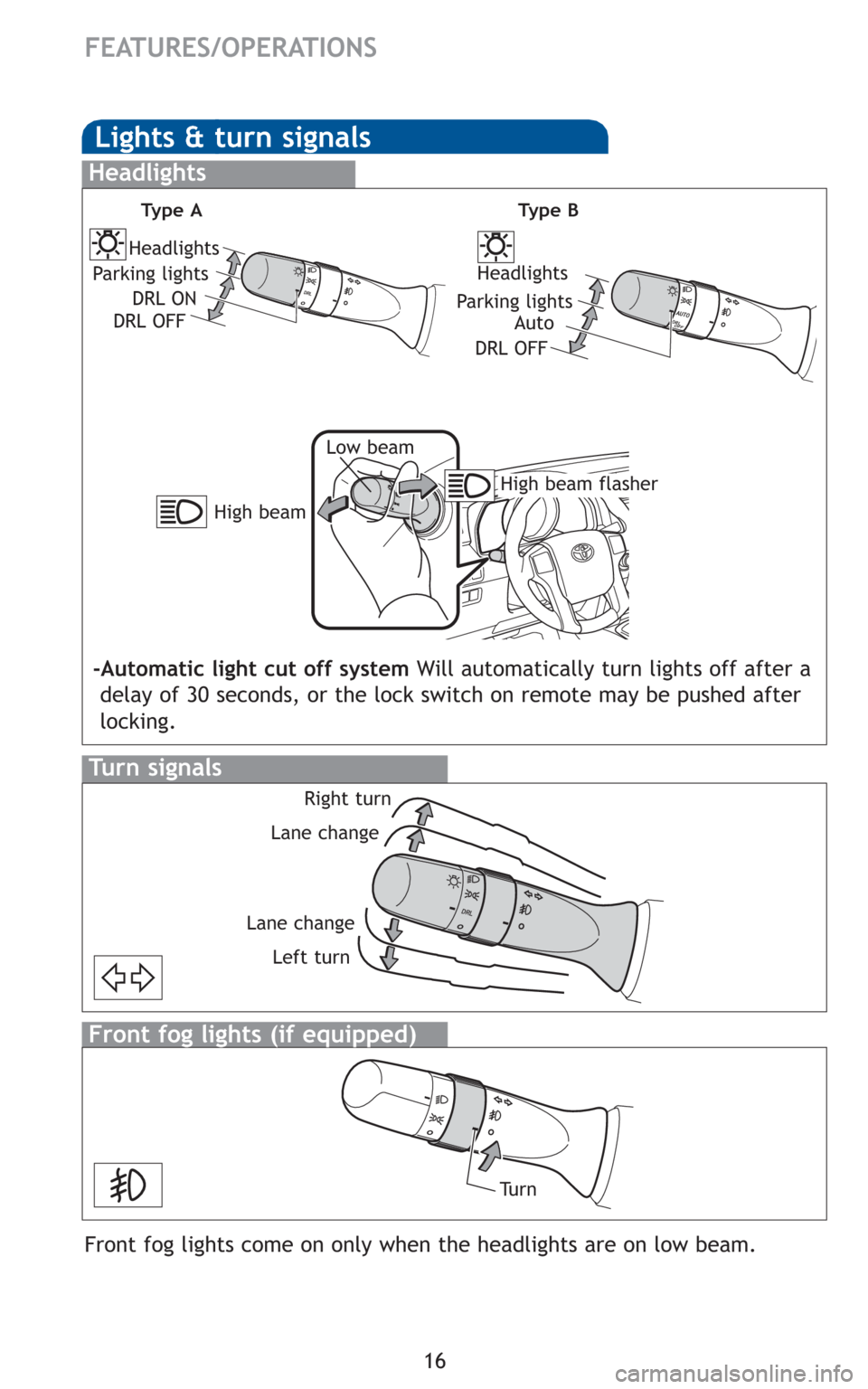

Lights & turn signals
Headlights
High beam flasher Low beamHeadlights
Parking lights
High beam
Headlights
Parking lights
DRL ON
Auto
DRL OFF
Ty p e BTy p e A
-Automatic light cut off systemWill automatically turn lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
DRL OFF

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

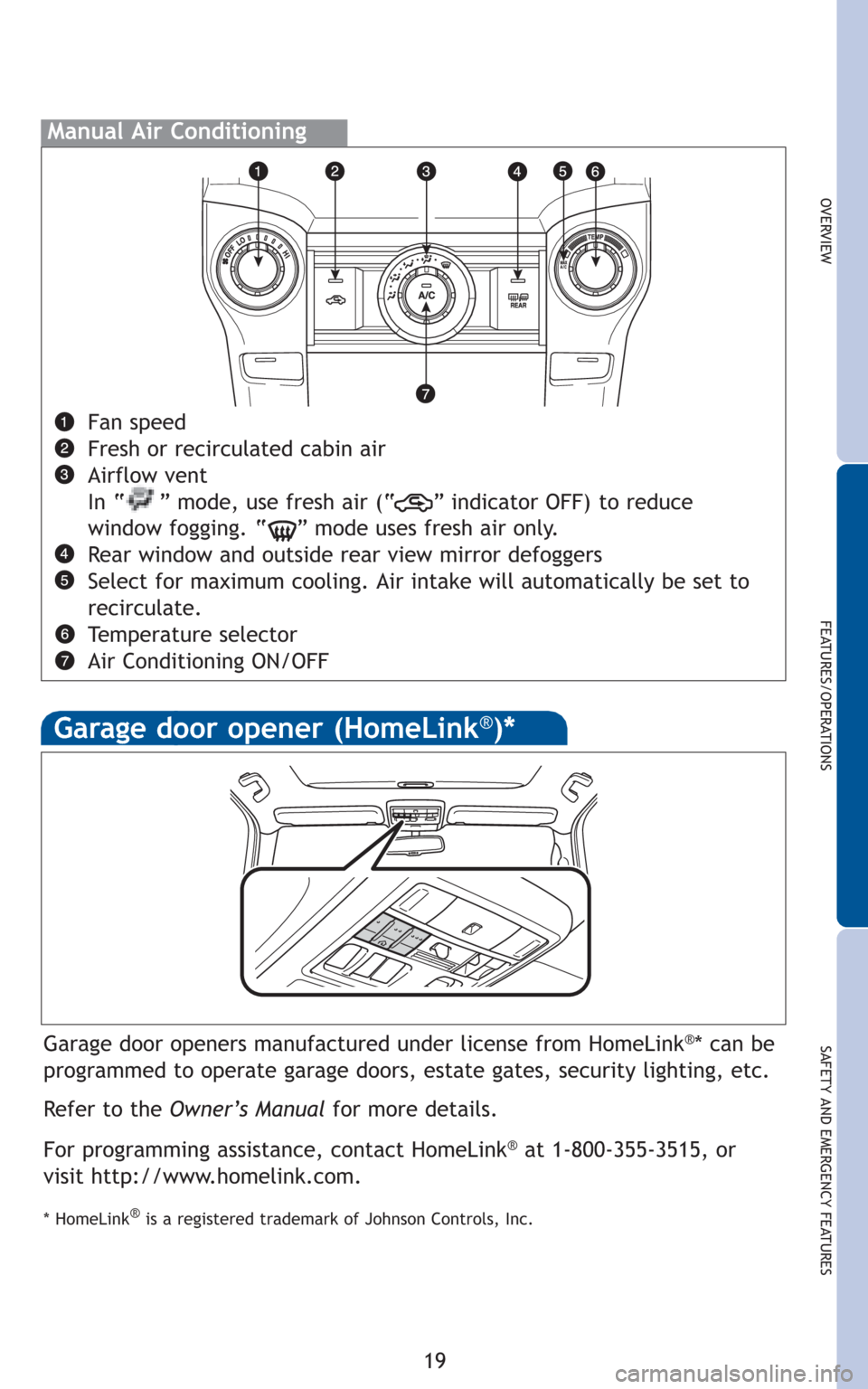

Manual Air Conditioning
Fan speed
Fresh or recirculated cabin air
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Rear window and outside rear view mirror defoggers
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Temperature selector
Air Conditioning ON/OFF
Garage door openers manufactured under license from HomeLink®*canbe
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to theOwner’s Manualfor more details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or
visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*

24
SAFETY AND EMERGENCY FEATURES
If tire pressure becomes critically low on any of the tires, “ ” indicator
light will come on. Correctly adjusting tire inflation will turn off the light
after a few minutes. If the light does not turn off, have the system
checked by your Toyota dealer.
Refer to theOwner’s Manualfor more details.
Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to theOwner’s Manual.
Keep as low on
hips as possible
Take up slack
To o h i g h
Seat belts
Tire Pressure Monitoring (warning)
System

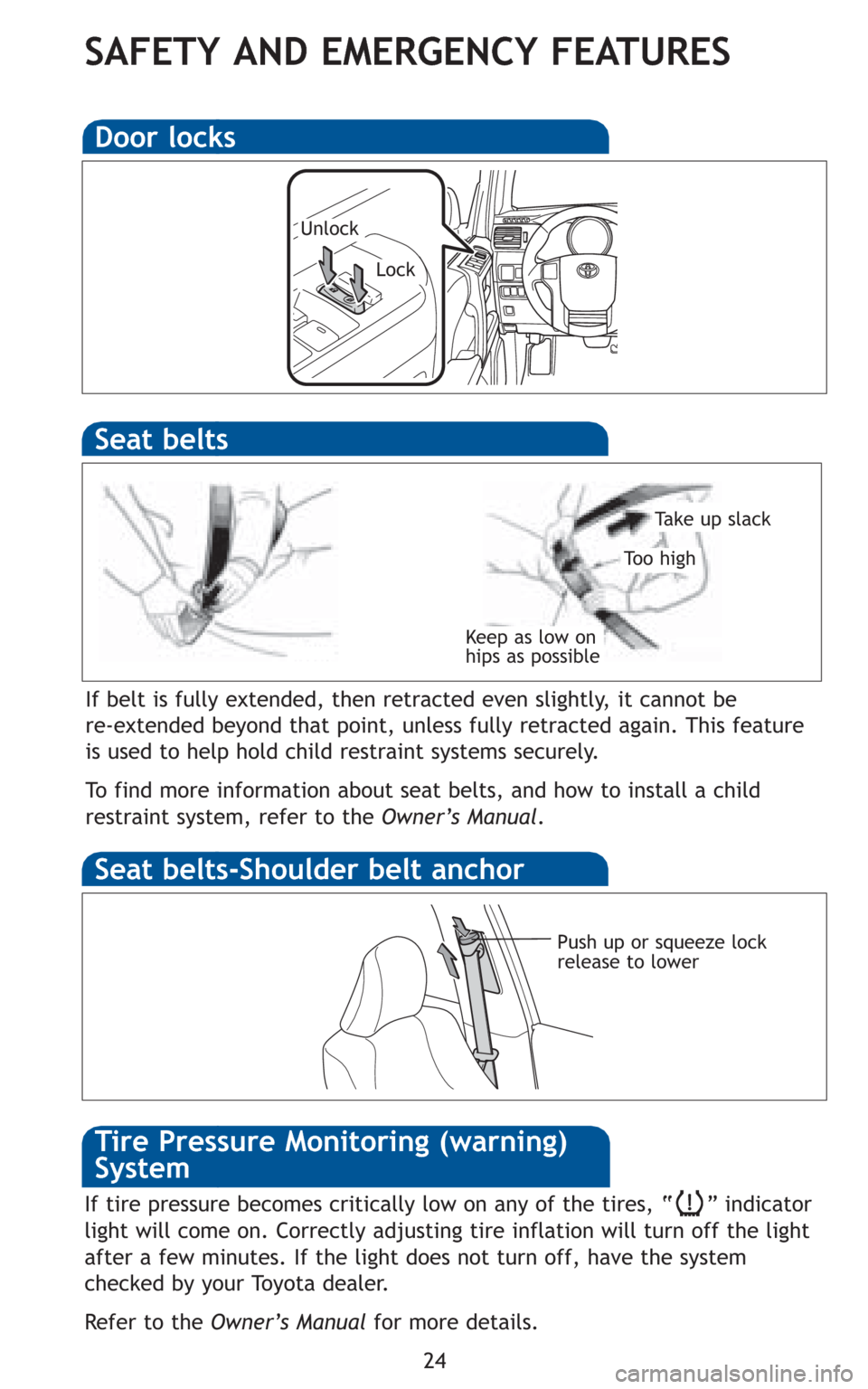

Door locks
Unlock
Lock
