tow TOYOTA 4RUNNER 2010 N280 / 5.G Quick Reference Guide

1
Engine maintenance8Fuel tank door and cap 6Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3
Keyless entry16Smart Key system17
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions1,29Automatic Transmission 9
Bluetooth®audio 23Clock 14Cruise control 17Four-wheel drive 10Garage door opener (HomeLink®)319iPod®/USB/AUX audio jack 21Light control-Instrument panel15Lights1& turn signals 16Moonroof114Parking brake 9Power outlets-12V DC 23Power outlets-120V AC 22Seat adjustments-Front 11Seat adjustments-Second row seats 11Seat heaters18Seats-Folding down second row seats 12Seats-Head restraints 13Seats-Returning third row seats 13Seats-Stowing third row seats 13Telephone controls (Bluetooth®)22Tilt and telescopic steering wheel 10VSC OFF button 15Windows114Window-Back window115
Windshield wipers & washers17
Door locks24Doors-Child safety locks 25Seat belts 24Seat belts-Shoulder belt anchor 24Sparetire&tools 25
Tire Pressure Monitoring (warning) System 24
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
INDEX
1Visit your Toyota dealer for information on customizing this feature.2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

12
FEATURES/OPERATIONS
(1) Push(2) Lower
(4) Pull up

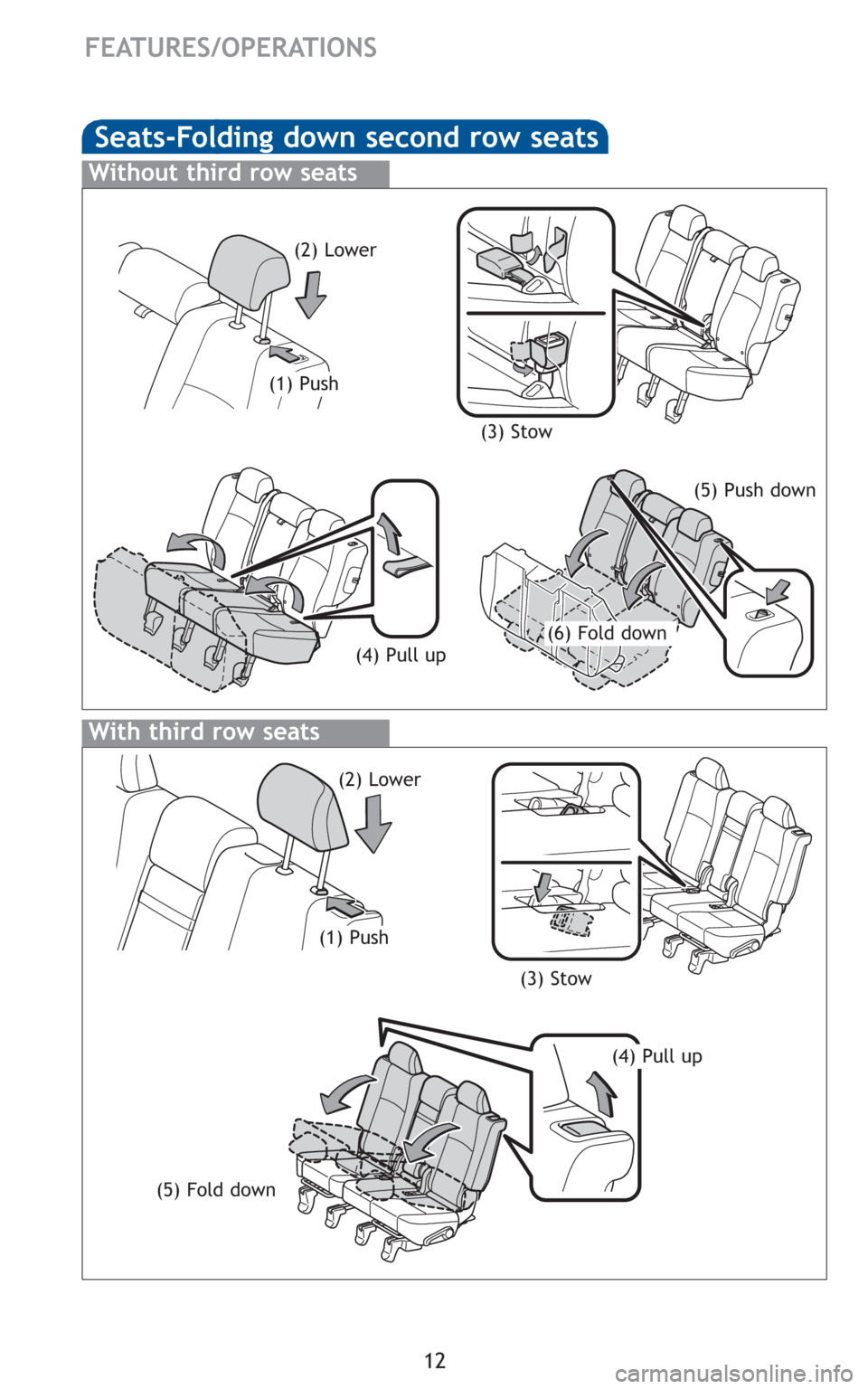

Seats-Folding down second row seats
(3) Stow
(6) Fold down(5) Push down
(1) Push(2) Lower
(3) Stow
(5) Fold down
(4) Pull up
Without third row seats
With third row seats

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

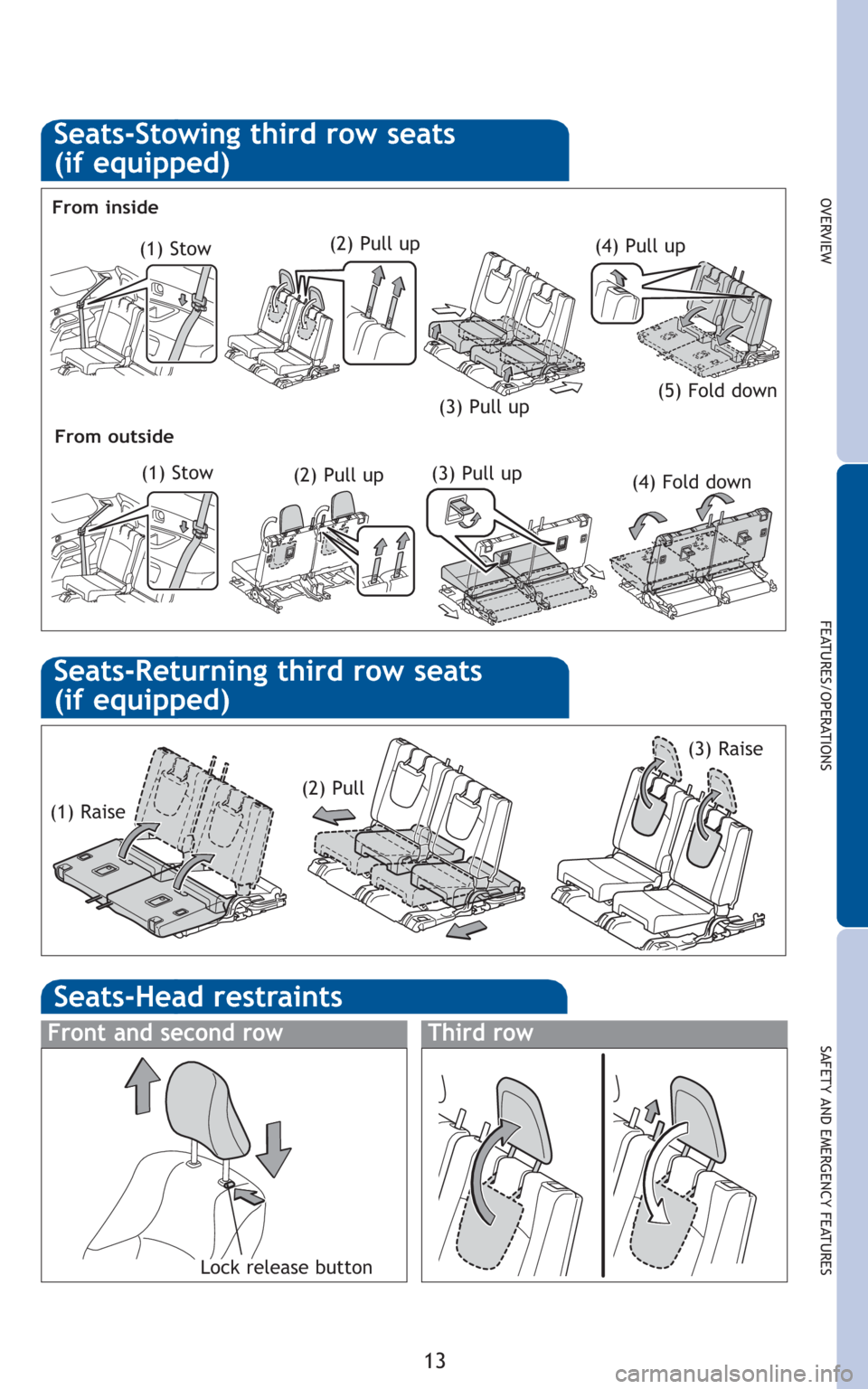

Seats-Stowing third row seats
(if equipped)
(1) Stow(2) Pull up
(3) Pull up(4) Pull up
(5) Fold down
(1) Stow(2) Pull up(3) Pull up
(4) Fold down
From inside
From outside
Seats-Returning third row seats
(if equipped)
(1) Raise(2) Pull(3) Raise
Seats-Head restraints
Front and second rowThird row
Lock release button
