1-7. Safety information
1
Before driving
4RUNNER_U
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) (
P. 79)
Vehicles without third row seats Anchor brackets (for top tether
strap)
An anchor bracket is provided
for each rear seat.
Vehicles with third row seatsAnchor brackets (for top tether
strap)
An anchor bracket is provided
for each second row seat.
CTH17AS114
CTH17AS115
CTH17AS031

142 1-7. Safety information
4RUNNER_U

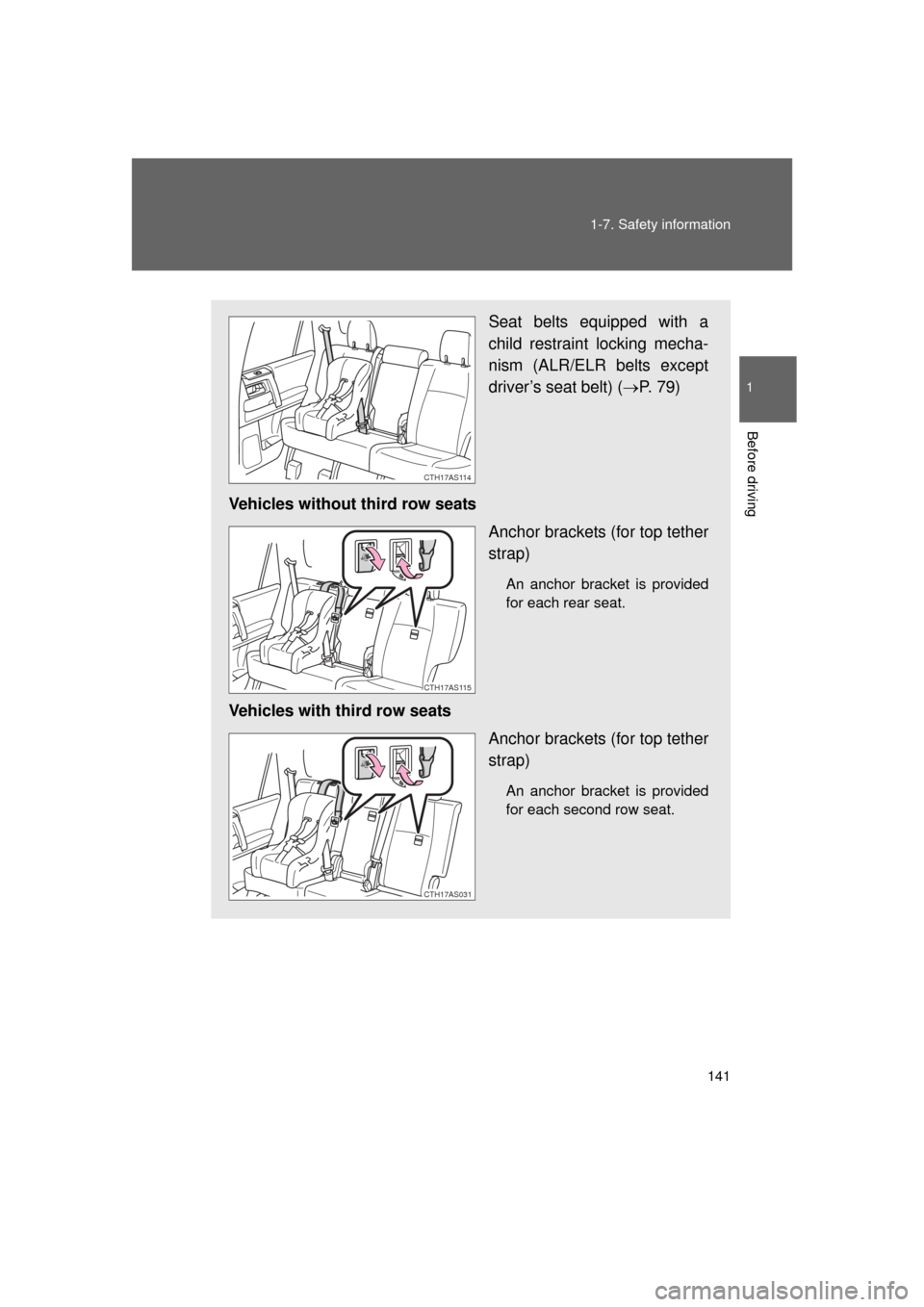

Installation with LATCH system (rear/second row seats only)

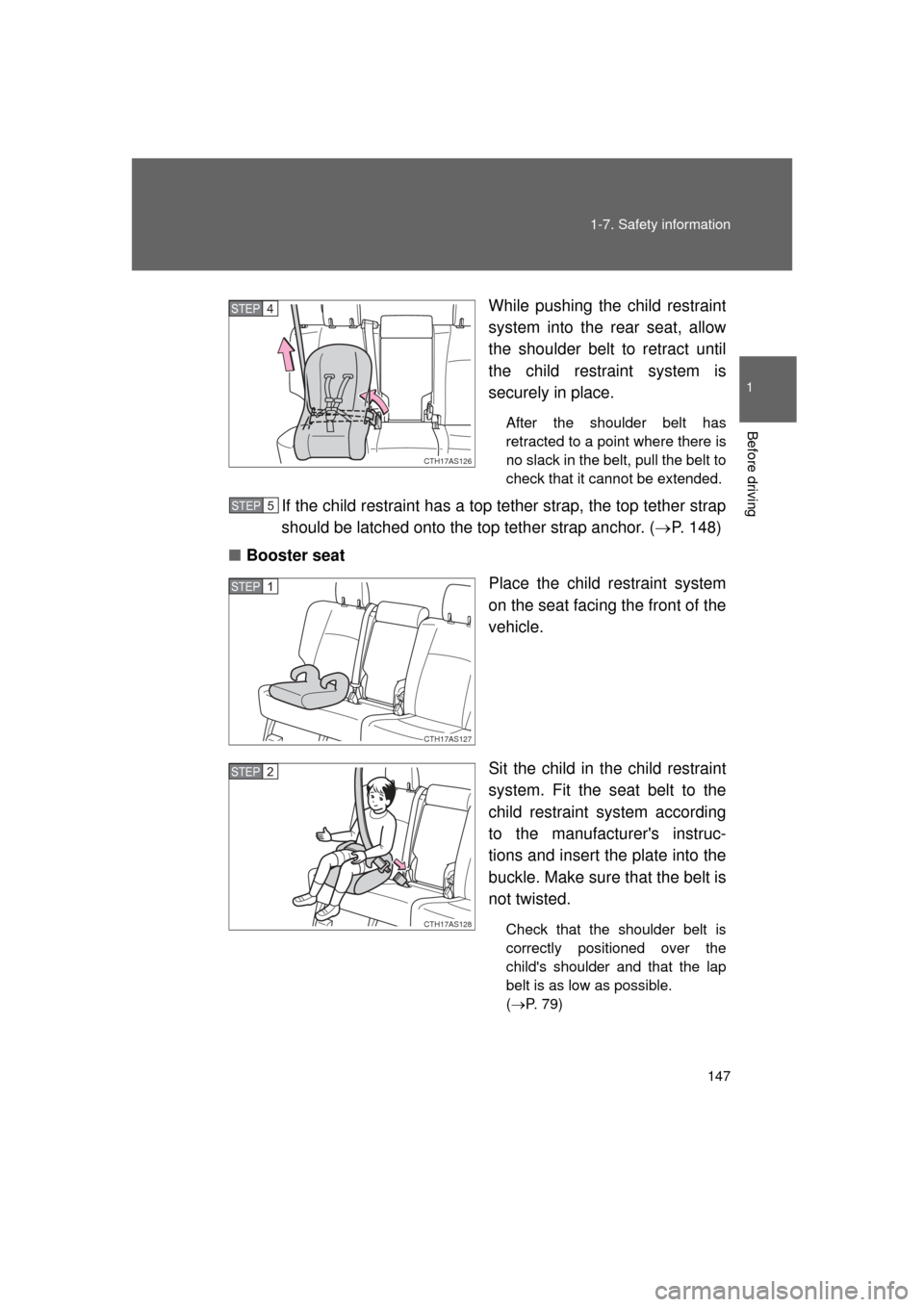

■ Installing on the rear seats (veh icles without third row seats)
Fold the seatback while pulling
the seatback angle adjustment
lever. Return the seatback and
secure it at the first lock position.
(  P. 65)
Ty p e A Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
CTH17AS116
STEP 1
CTH17AS117
STEP 2
Canada only

143
1-7. Safety information
1
Before driving
4RUNNER_U
Ty p e B
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.

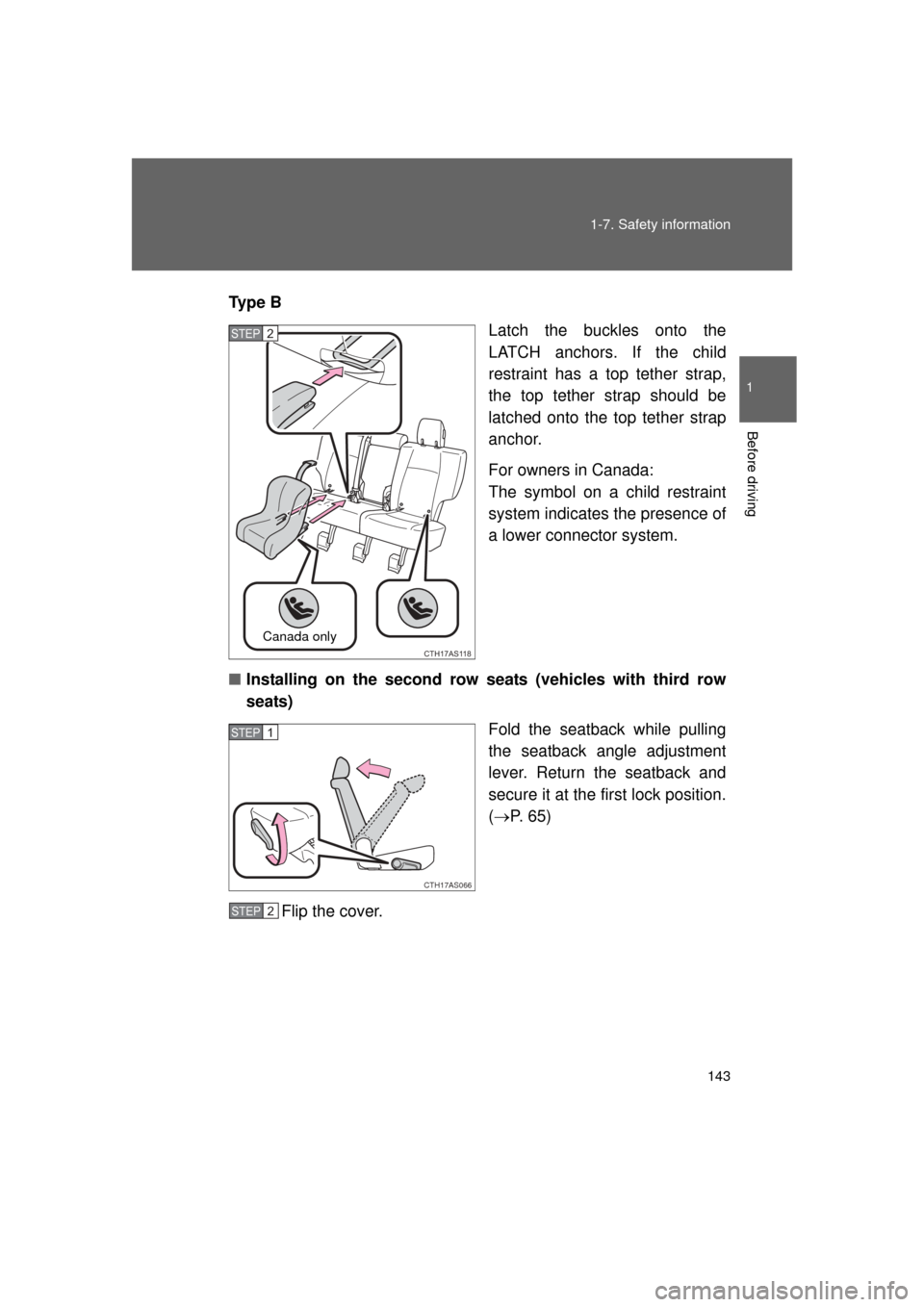

■ Installing on the second row seats (vehicles with third row
seats)
Fold the seatback while pulling
the seatback angle adjustment
lever. Return the seatback and
secure it at the first lock position.
( P. 65)
Flip the cover.
CTH17AS118
STEP 2
Canada only
CTH17AS066
STEP 1
STEP 2

144 1-7. Safety information
4RUNNER_UTy p e A
Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.

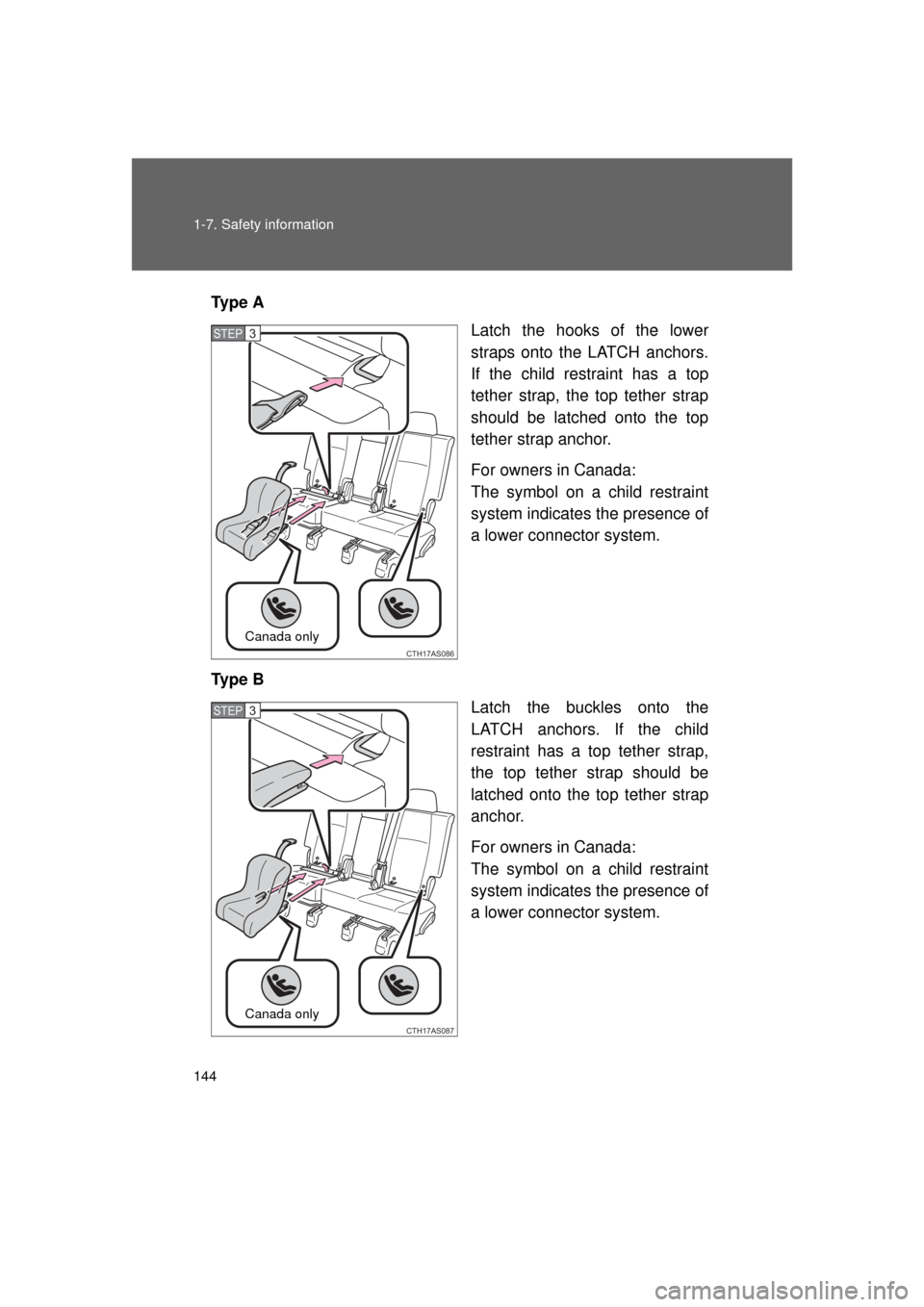

Ty p e B Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
CTH17AS086
STEP 3
Canada only
CTH17AS087
STEP 3
Canada only

145
1-7. Safety information
1
Before driving
4RUNNER_U
Installing child restraints using a
seat belt (child restraint lock
function belt)

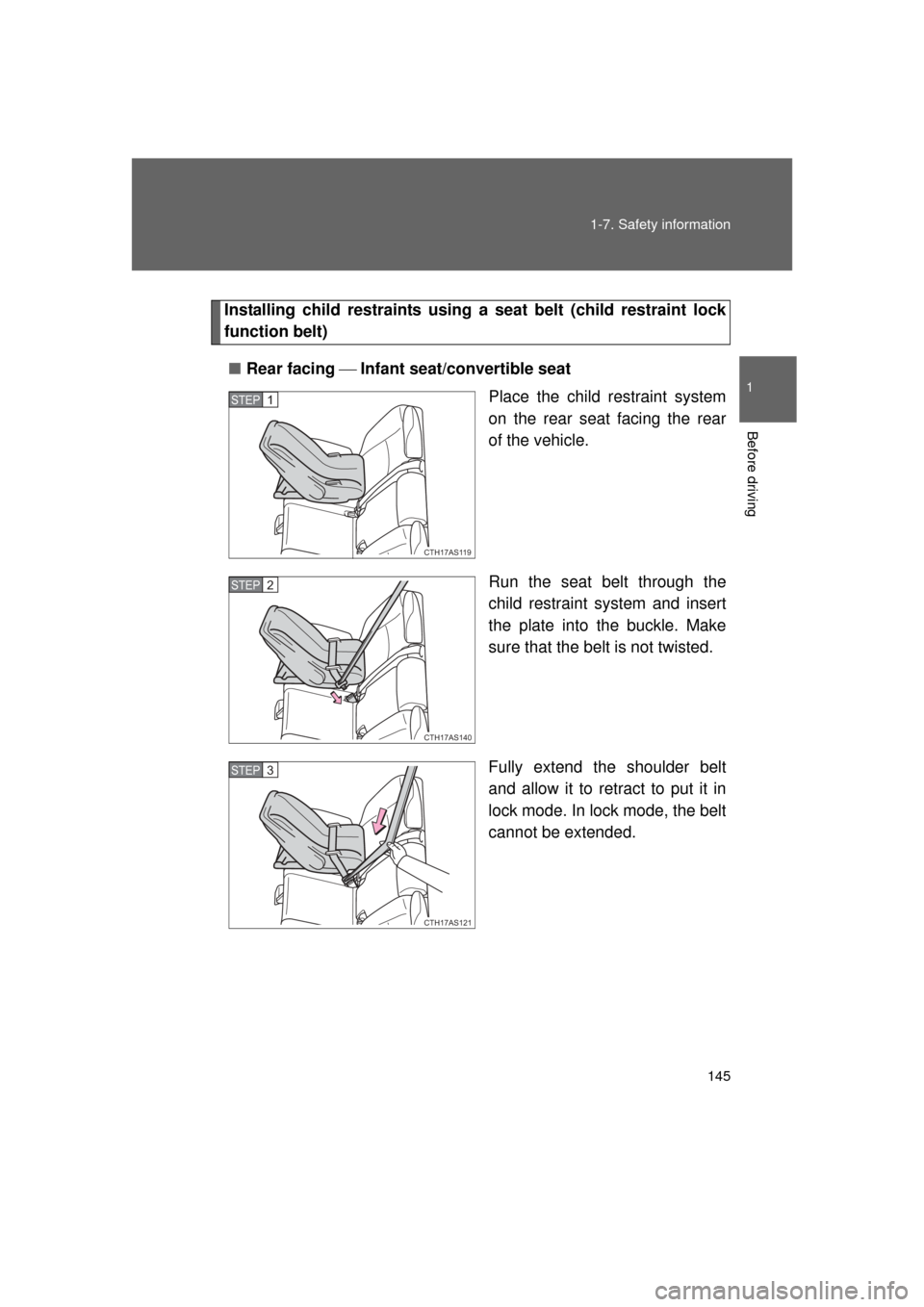

■ Rear facing  Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
CTH17AS119
STEP 1
CTH17AS140
STEP 2
CTH17AS121
STEP 3

146 1-7. Safety information
4RUNNER_UWhile pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■

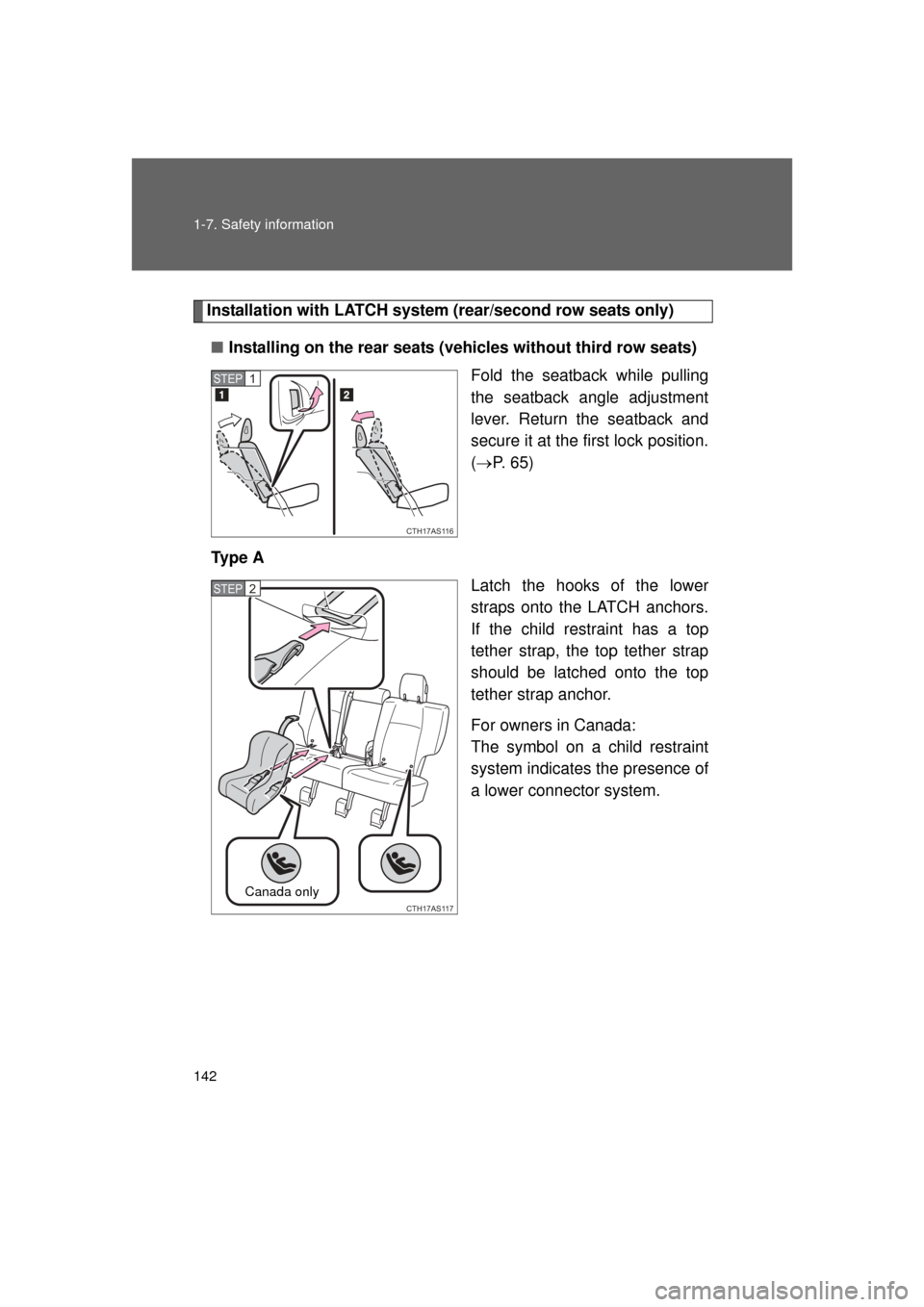

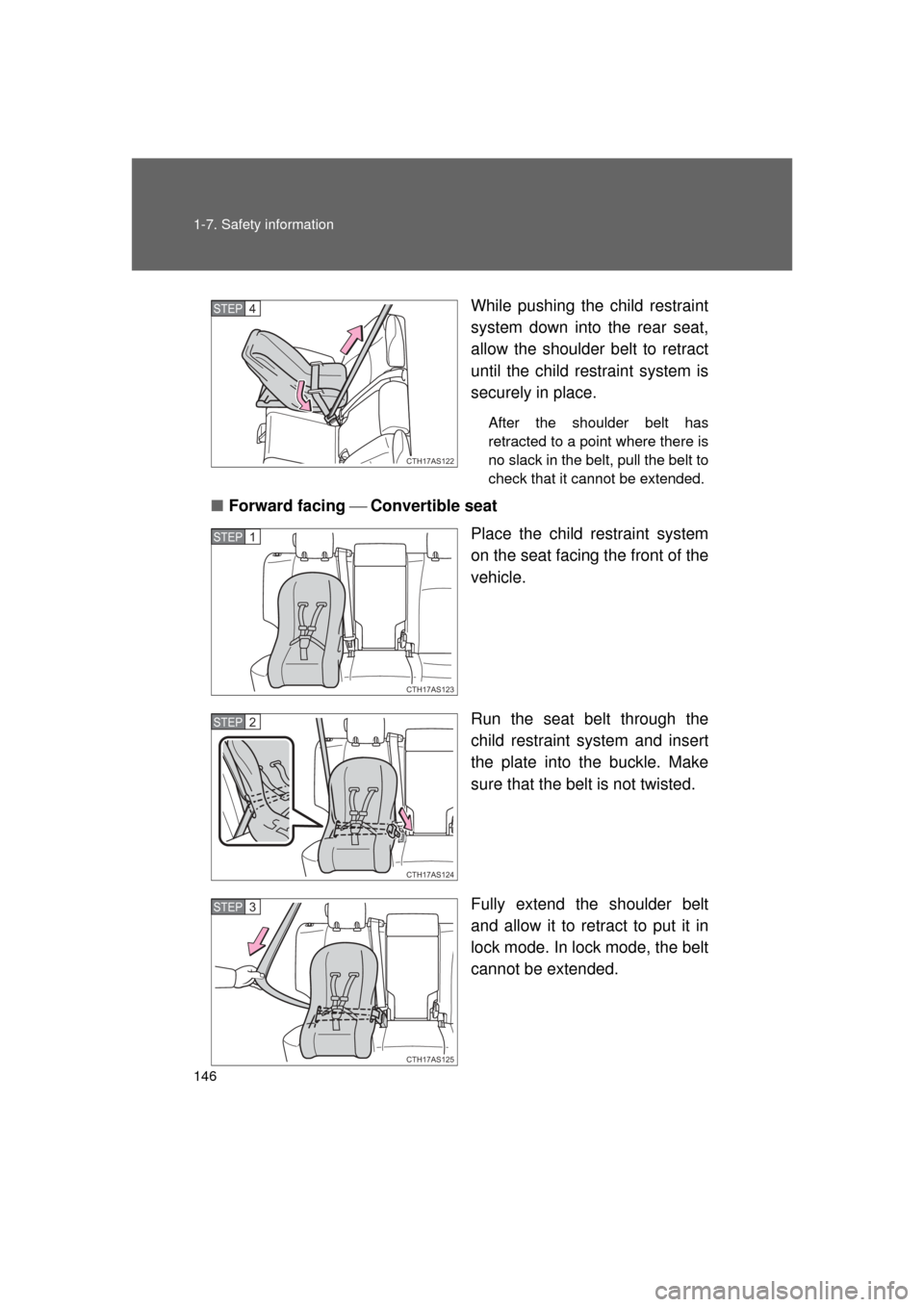

Forward facing Convertible seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
CTH17AS122
STEP 4
CTH17AS123
STEP 1
CTH17AS124
STEP 2
CTH17AS125
STEP 3

147
1-7. Safety information
1
Before driving
4RUNNER_U
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top te
ther strap, the top tether strap
should be latched onto the top tether strap anchor. ( P. 148)
■ Booster seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer's instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child's shoulder and that the lap
belt is as low as possible.
( P. 79)
CTH17AS126
STEP 4
STEP 5
CTH17AS127
STEP 1
CTH17AS128
STEP 2

148 1-7. Safety information
4RUNNER_U

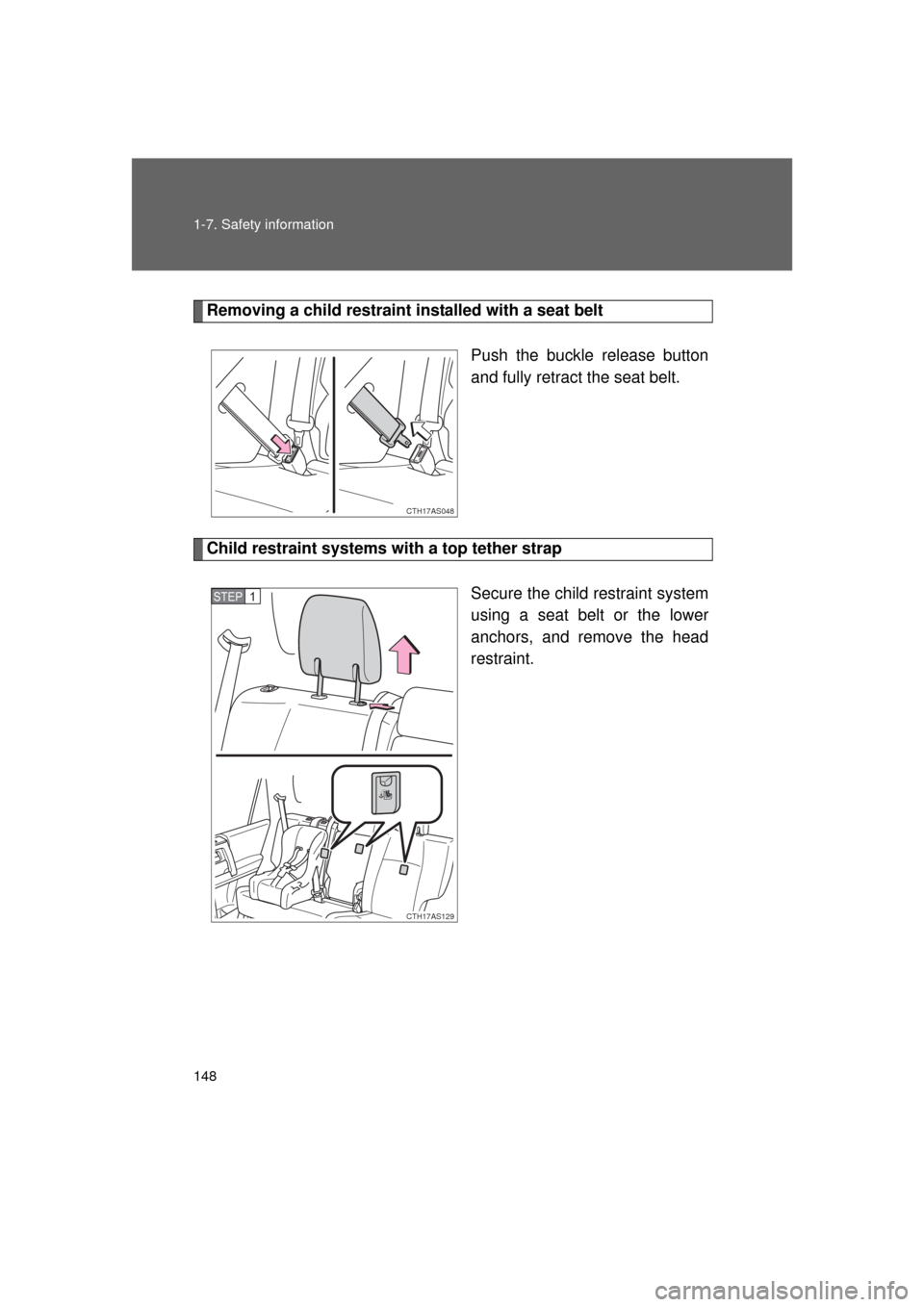

Removing a child restraint installed with a seat beltPush the buckle release button
and fully retract the seat belt.

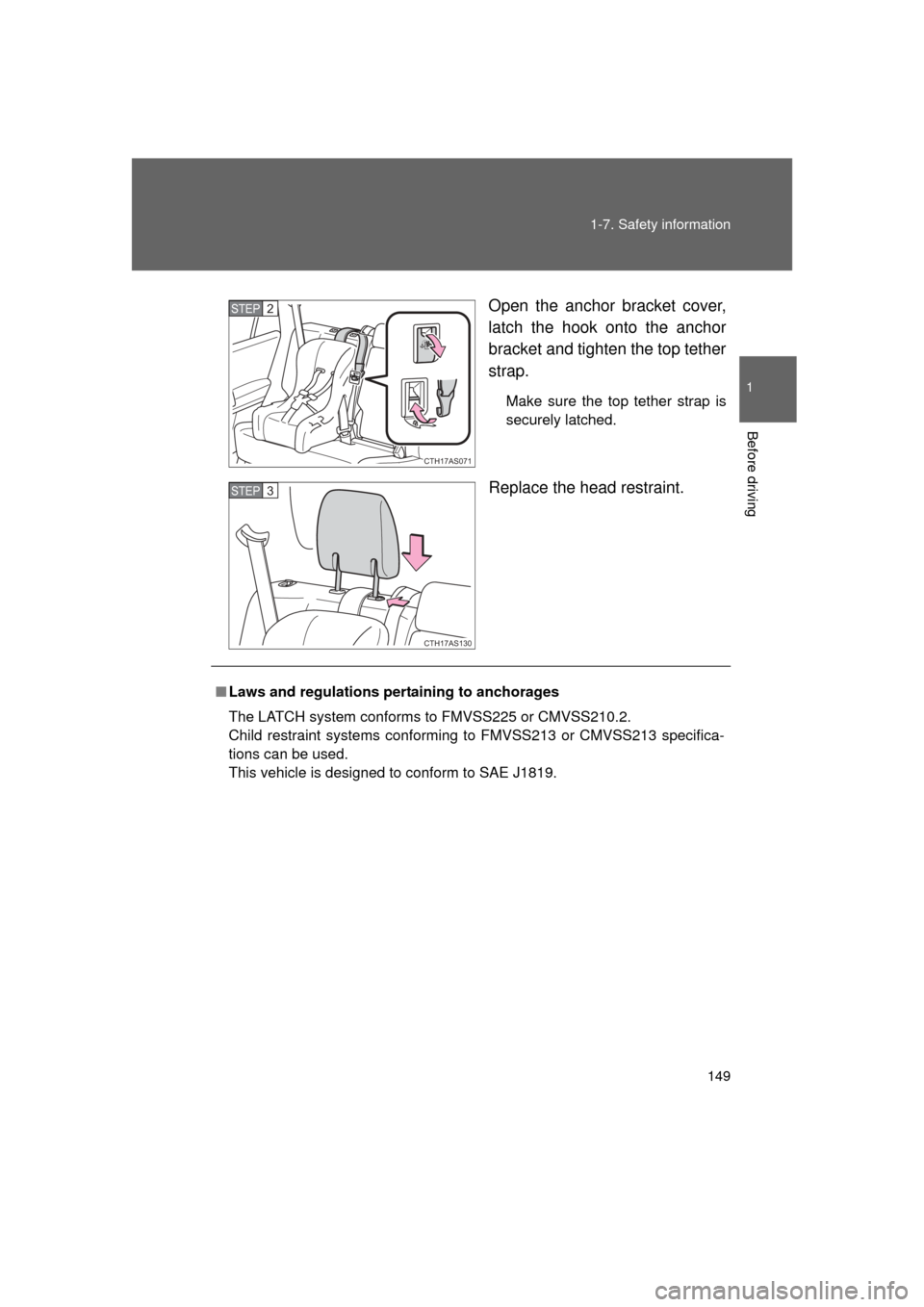

Child restraint systems with a top tether strap
Secure the child restraint system
using a seat belt or the lower
anchors, and remove the head
restraint.
CTH17AS048
CTH17AS129
STEP 1

149
1-7. Safety information
1
Before driving
4RUNNER_U
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Replace the head restraint.
CTH17AS071
STEP 2
CTH17AS130
STEP 3
■
Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.

150 1-7. Safety information
4RUNNER_U

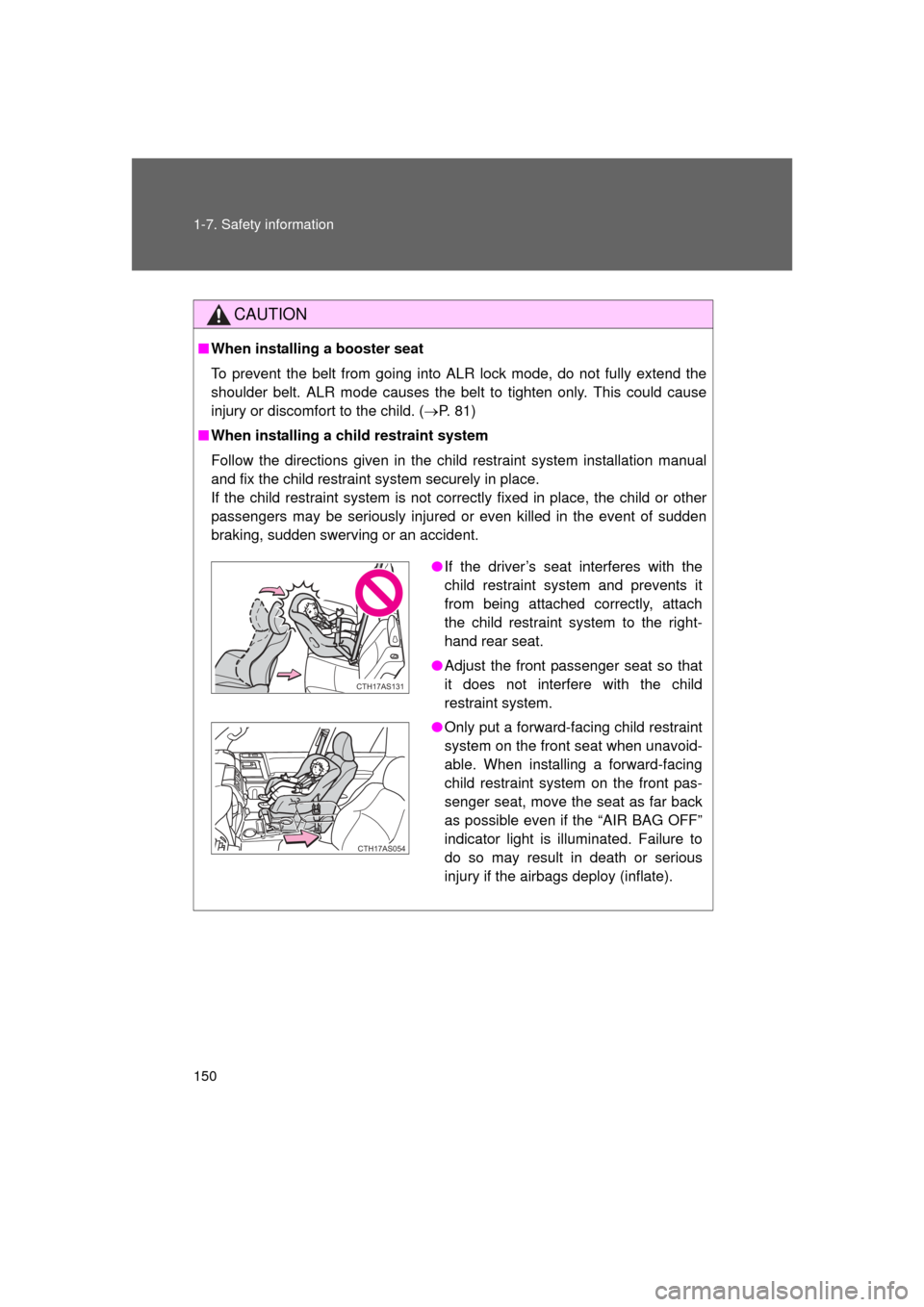

CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. ( P. 81)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).
CTH17AS131
CTH17AS054
