4-1. Maintenance and careCleaning and protecting the vehicle exterior............ 478
Cleaning and protecting the vehicle interior............. 481
4-2. Maintenance Maintenance requirements ..................... 484
General maintenance.......... 486
Emission inspection and maintenance (I/M)
programs........................... 490
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions ....................... 491
Hood ................................... 494
Engine compartment ........... 495
Tires .................................... 514
Tire inflation pressure ......... 520
Wheels ................................ 524
Air conditioning filter............ 526
Wireless remote control/ electronic key battery ........ 528
Checking and replacing fuses ................................. 531
Light bulbs........................... 541 5-1. Essential information
Emergency flashers............ 554
If your vehicle needs to be towed................................ 555
If you think something is wrong ............................... 561
Fuel pump shut off system .............................. 562
Event data recorder ............ 563
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds.............................. 565
If you have a flat tire ........... 578
If the engine will not start.... 591
If the shift lever cannot be shifted from P ................... 593
If you lose your keys........... 595
If you cannot operate back door opener ............. 596
If the electronic key does not operate properly ......... 597
If the vehicle battery is discharged........................ 599
If your vehicle overheats .... 604
If the vehicle becomes stuck ................................. 607
If your vehicle has to be stopped in an
emergency ....................... 608
4Maintenance and care5When trouble arises

4RUNNER_U
9
Tires
●Rotation
● Replacement
● Inflation pressure
● Information
P. 514
P. 578
P. 623
P. 628
Rear window defogger P. 310
Rear window wiper P. 207
Side doors P. 51
Rear turn signal lights P. 179
License plate lights P. 198
Back door P. 56
: If equipped
Stop/tail and rear side
marker lights
P. 198
Fuel filler door P. 102

478
4RUNNER_U
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
■Automatic car washes
● Fold the mirrors and remove the detachable pole antenna before wash-
ing the vehicle. Start washing from the front of the vehicle. Make sure to
re-install the antenna and extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
● In certain automatic car washes, the roof antenna (if equipped) or rear
spoiler may interfere with machine operation. This may prevent the vehi-
cle from being cleaned properly or result in damage to the antenna or
rear spoiler.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity
of the windows.
● Before using the car wash, check that the fuel filler door on your vehicle
is closed properly.
Perform the following to protect the vehicle and maintain it in prime
condition:
● Working from top to bottom, liber ally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehi-
cle body is cool.

522 4-3. Do-it-yourself maintenance
4RUNNER_U
■Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure ma y result in the following:
●Reduced fuel efficiency
●Reduced driving comfort and tire life
●Reduced safety
●Damage to the drive train
If a tire needs frequent inflating, have it checked by your Toyota dealer.
■Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been
driven for more than 1 mile or 1.5 km, you will get an accurate cold
tire inflation pressure reading.
●Always use a tire pressure gauge.
The appearance of the tire can be mi sleading. In addition, tire infla-
tion pressure that is even just a few pounds off can affect ride quality
and handling.
●Do not reduce tire inflation pressure after driving. It is normal for tire
inflation pressure to be higher after driving.
●Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle
is balanced.

538 4-3. Do-it-yourself maintenance
4RUNNER_U■
Driver’s side instrument panel
FuseAmpereCircuit
1TA I L10 A Stop/tail lights
2PA N E L7.5 A Instrument panel lights
3GAUGE7.5 A Meter and gauge
4IGN10 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system, air bag system,
smart key system
5WASHER20 A Wiper and washer
6WIP30 A Wiper and washer
7S/ROOF 25 A Electric moon roof
8DOOR RR25 A Power windows
9DOOR D25 A Power windows
10DOOR BACK30 A
Multiplex communication sys-
tem
11DOOR P30 A Power windows
12P/SEAT FR 30 A Front passenger's power seat
13S/HTR FR 20 A Seat heater system
14ECU-IG NO.210 AAir conditioning system, multi-
port fuel injection system/
sequential multiport fuel injec-
tion system
15IG17.5 A
Turn signal lights, emergency
flashers
16ECU-IG NO.110 AVehicle stability control sys-
tem, tire pressure warning sys-
tem, steering sensor
17DOOR7.5 A Power windows

568 5-2. Steps to take in an emergency
4RUNNER_U

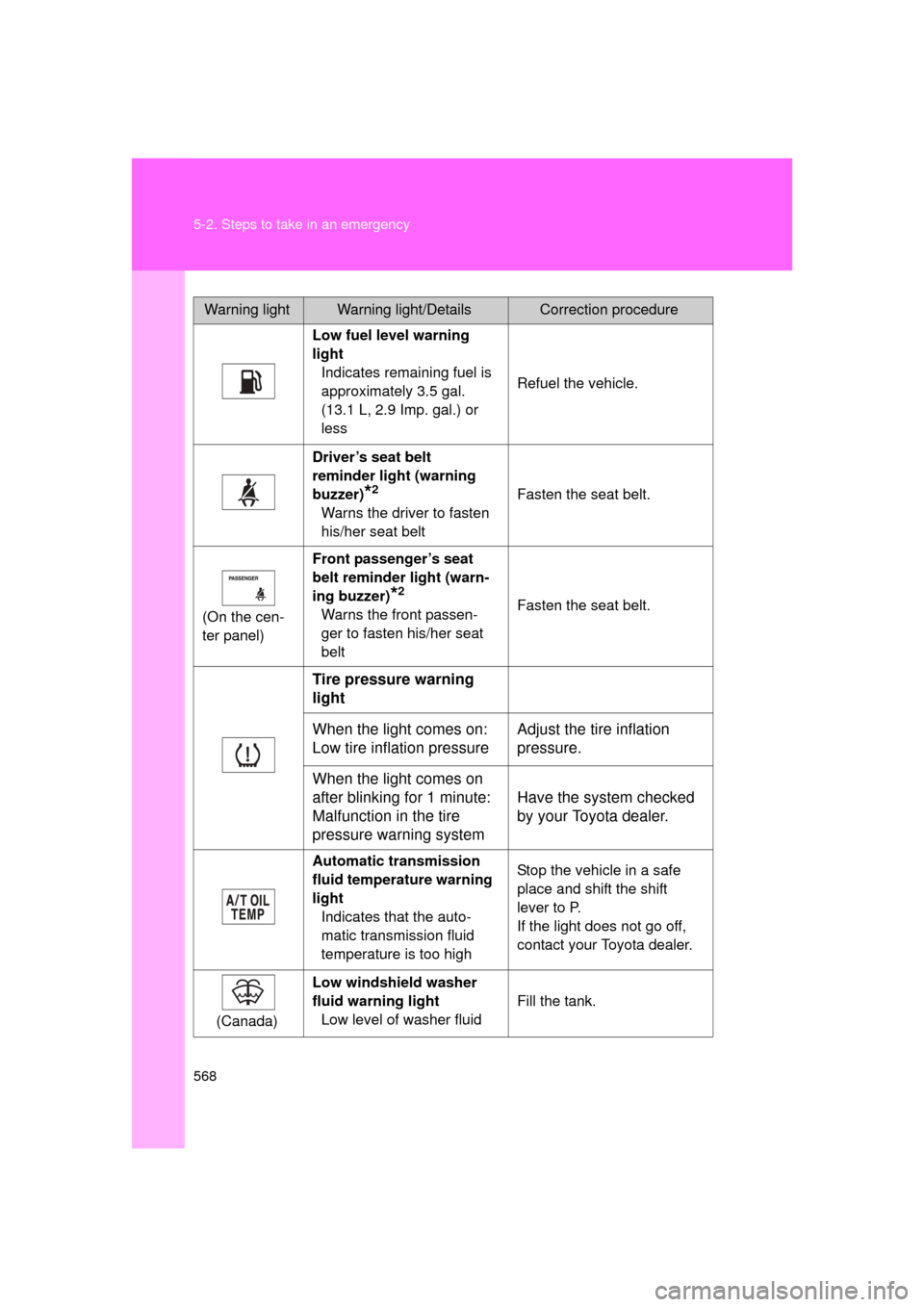

Low fuel level warning
lightIndicates remaining fuel is
approximately 3.5 gal.
(13.1 L, 2.9 Imp. gal.) or
less Refuel the vehicle.
Driver’s seat belt
reminder light (warning
buzzer)
*2
Warns the driver to fasten
his/her seat belt Fasten the seat belt.
(On the cen-
ter panel) Front passenger’s seat
belt reminder light (warn-
ing buzzer)
*2
Warns the front passen-
ger to fasten his/her seat
belt
Fasten the seat belt.
Tire pressure warning
light
When the light comes on:
Low tire inflation pressure
Adjust the tire inflation
pressure.
When the light comes on
after blinking for 1 minute:
Malfunction in the tire
pressure warning system Have the system checked
by your Toyota dealer.
Automatic transmission
fluid temperature warning
light
Indicates that the auto-
matic transmission fluid
temperature is too high Stop the vehicle in a safe
place and shift the shift
lever to P.
If the light does not go off,
contact your Toyota dealer.
(Canada) Low windshield washer
fluid warning light
Low level of washer fluid Fill the tank.
Warning lightWarning light/DetailsCorrection procedure

576 5-2. Steps to take in an emergency
4RUNNER_U
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ-
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pr essure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressu re telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle's hand ling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper ti re maintenance, an d it is the driver's responsibility to
maintain correct tire pressure, even if under-inflation has not reached the
level to trigger illu mination of the TPMS low tire pressure telltale (tire
pressure warning light).

633
6-1. Specifications
6
Vehicle specifications
4RUNNER_U
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can caus e heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated
pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended
inflation pressure Cold tire inflation pressure recommended by a
manufacturer.
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

676 Alphabetical index
4RUNNER_U
Turn signal lightsReplacing light bulbs ............. 541
Switch.................................... 179
Wattage .................................624
Valet key .....................................30
Vanity lights Vanity lights ...........................430
Wattage .................................624
Vanity mirrors...........................430
Vehicle identification number ...................................613
Vehicle stability control...........253
VSC............................................ 253
Warning buzzers Brake system ........................565
Key reminder .........................572
Open door ............................ 567
Open moon roof reminder ..... 572
Seat belt reminder .................568
Warning lights Anti-lock brake system .......... 567
Automatic transmission
fluid temperature ................. 568
Brake system ........................565
Charging system .... ...............566
Engine oil pressure ............... 566
Engine oil replacement.......... 569
KDSS .................................... 567
Low fuel level ........................568
Low washer fluid ...................568
Malfunction indicator lamp ....566
Open door ............................. 567
Power steering ......................567
Pretensioners ........................566
Seat belt reminder .................568
Smart key system... ............... 570
SRS airbags .......................... 566
Tire pressure .........................568
Unengaged “Park” .................567 Washer
Checking ............................... 512
Preparing and checking before winter ....................... 275
Switch ........................... 205, 207
Washing and waxing ............... 478
Weight
Cargo capacity ...................... 267
Load limits ............................. 273
Weight ................................... 612
Wheels ...................................... 524
Window glasses .................. 91, 94
Window lock switch................... 91
Windows Power back window ................ 94
Power windows ....................... 91
Rear window defogger .......... 310
Washer.......................... 205, 207
Windshield wiper de-icer ........ 312
Windshield wipers ................... 205
Wireless remote control key Replacing the battery ............ 528
Wireless remote control key.... 47
WMA disc.................................. 333
V
W

679
What to do if...
4RUNNER_U
■
Warning lights
P. 567
or
P. 567
or
P. 5 6 5P. 568
P. 5 6 6P. 568
P. 5 6 6P. 568
P. 5 6 6P. 569
P. 5 6 6P. 568
P. 5 6 7P. 568
P. 568
or
P. 5 6 7P. 570
P. 5 6 7P. 567
Brake system warning
lightUnengaged “Park”
warning light
Power steering warning
light
Low fuel level warning
light
Charging system warn-
ing lightDriver’s seat belt
reminder light
Low engine oil pressure
warning lightFront passenger’s seat belt
reminder light
Malfunction indicator
lampEngine oil replacement
reminder light
SRS warning lightLow windshield washer fluid
warning light
Open door warning lightAutomatic transmission fluid temper-
ature warning light
ABS warning lightTire pressure warning
light
Smart key system warn-
ing light
Slip indicatorKDSS warning light
